1. SAFETY INSTRUCTIONS
Important safety information
User safety precautions
Prior to use
During use
Exercise safety precautions
Facility safety precautions
p. 6
p. 7
p. 7
p. 7
p. 7
p. 7
Exploded diagram
Parts list
p. 4
p. 5

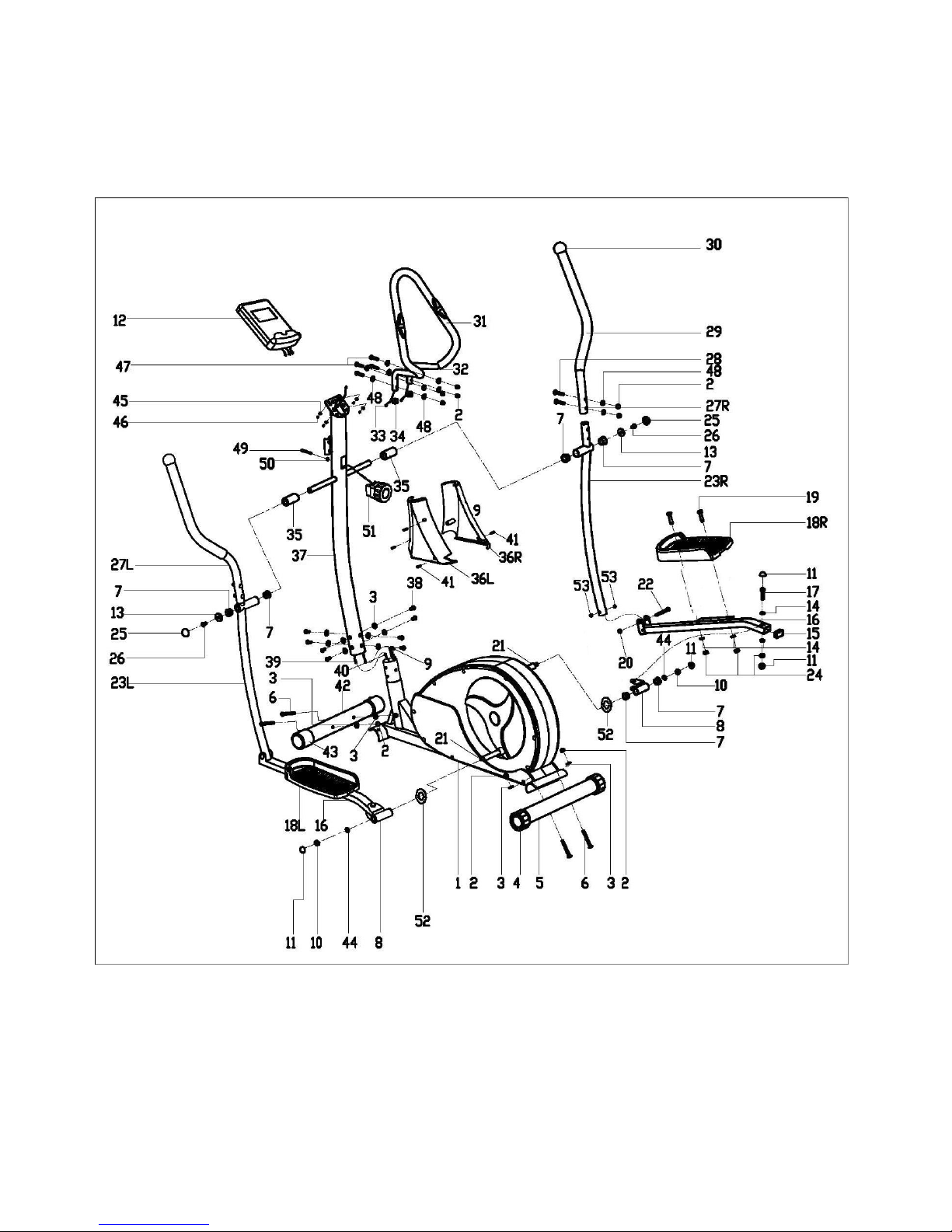

EXPLODED DIAGRAM

4
1

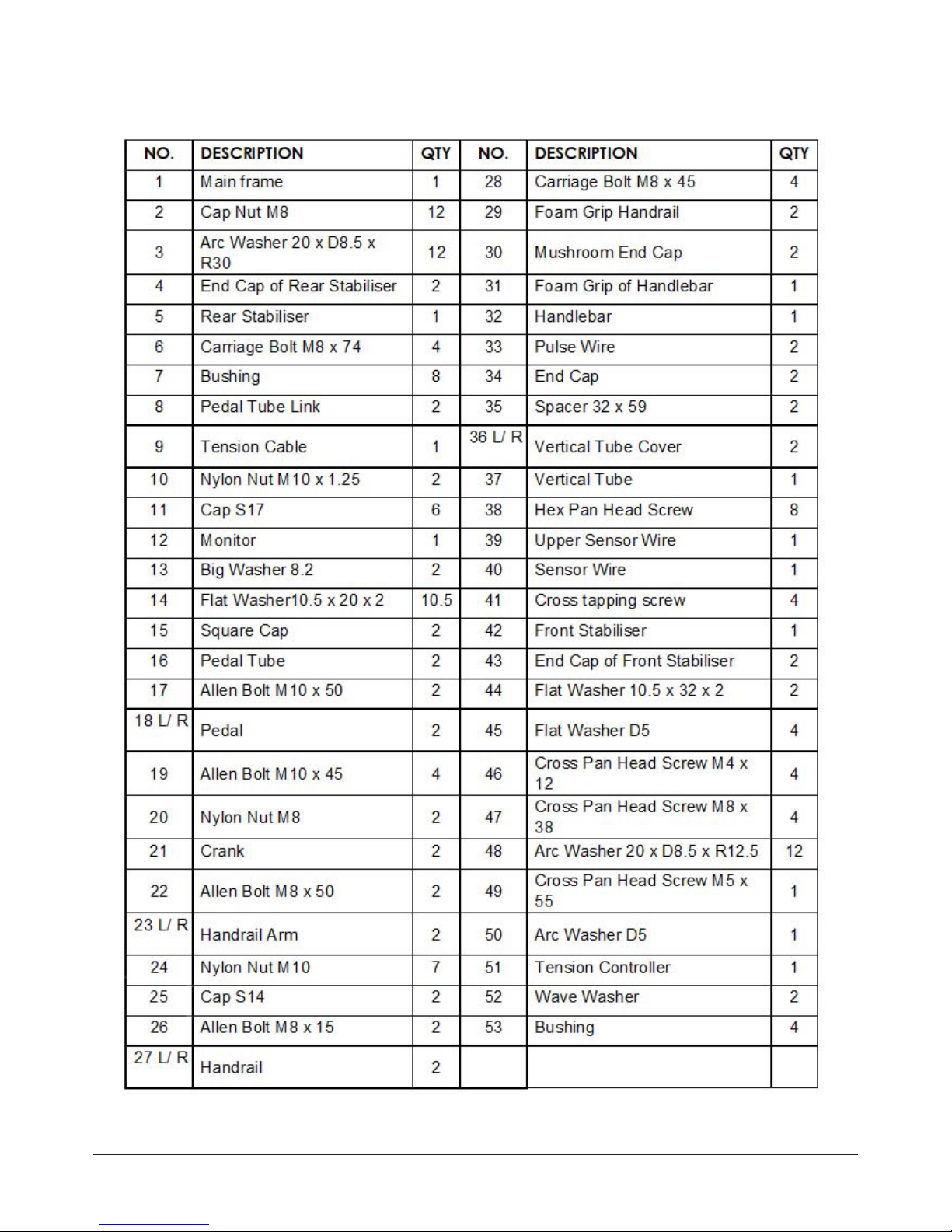

PARTS LIST

5
Safety Instructions
Please pay attention to the following instructions before operating this cross trainer.
IMPORTANT SAFETY INFORMATION
Thank you for choosing our product. To ensure your health and safety, please use
this equipment as advised. It is important to read this entire manual before
assembling and using the equipment. Safe and effective use can only be achieved
if the equipment is assembled, maintained and used in accordance to the manual.
It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions.
1. Before starting any exercise program, you should consult a health professional
to determine if you have any medical or physical conditions that could put your
health and safety at risk or prevent you from using the equipment properly. A
health professional’s advice is essential if you are taking medication that affects
your heart rate, blood pressure or cholesterol level.
2.Be aware of your body’s signals. Incorrect or excessive exercise can damage your
health. Stop exercising if you experience any of the following symptoms: pain,
tightness in your chest, irregular heartbeat, lightheadedness, dizziness or
feelings of nausea. If you do experience any of these conditions, you should
consult a health professional before continuing with your exercise program.
3.Keep children and pets away from the equipment. The equipment is designed for
adult use only.
4.Use the equipment on a solid, flat level surface with a protective cover for your
floor or carpet. To ensure safety, the equipment should have at least 2 feet (61 cm)
of free space all around it.
5.Ensure that all nuts and bolts are securely tightened before using the equipment.
The safety of the equipment can only be maintained if it is regularly examined for
damage and/or wear and tear.
6.Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming
from the equipment during exercise, discontinue use of the equipment
immediately. Please contact JLL Fitness on 0800 6123 988 for advice on how to
resolve the issue.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing
that may become entangled in the equipment.
8.Do not place fingers or objects into the moving parts of the equipment.
1

6
USER SAFETY PRECAUTIONS
PRIOR TO USE
• Assemble the cross trainer according to the instruction manual.
• Consult your doctor before beginning any exercise program.
• Read instructions.
• Read warning labels.
• Read emergency stop procedures.
• Maximum user weight is 100kg/ 15.7 St.
• Inspect unit. If damaged, DO NOT USE.
• Ensure every bolt and screw is securely tightened.
DURING USE
• DO NOT use for stretching and DO NOT attach straps or other devices.
• DO NOT allow children aged 12 or younger to be on or near the machine.
• Stop exercising if you feel faint, dizzy, or encounter pain.
• Keep all clothing and accessories clear of moving parts.
EXERCISE SAFETY PRECAUTIONS
• Use sports clothes and gym shoes.
• This model should only be used at home, DO NOT use for commercial purposes.
FACILITY SAFETY PRECAUTIONS
• DO NOT operate this machine in damp or wet locations.
• Use caution when getting on or off the cross trainer.
• Check the machine for worn or loose components before each use. DO NOT use until
worn or damaged parts are replaced.
• Maintain regularly. Refer to Preventive Maintenance chapter.
• DO NOT use the cross trainer if: (1) the machine is not working adequately or (2) the
machine has been dropped or damaged.
• DO NOT use the cross trainer outdoors.
9.The maximum weight capacity of this unit is 100 kg.
10. To avoid bodily injury and/or damage to the product or property, ensure to follow
safe procedures for lifting and moving the item.
11. Your product is intended for use in cool, dry conditions. You should avoid storage
in extreme cold, hot or damp areas as this may lead to corrosion and other related
problems.
12. This equipment is designed for indoor home use only, it is not intended for
commercial use.

7
• Read the instruction manual completely before using the cross trainer.
• Ensure all users wear appropriate footwear on JLL®equipment.
• Set up and operate the machine on a level surface. DO NOT operate in small
restricted areas or on plush carpet.
• As far as possible provide the following clearances: 0.5 m at each side and 2 m
at the back. Be sure your machine is clear of walls, equipment and other hard
surfaces.
• DO NOT modify the unit in any way. Any modifications will void the warranty.
• All the data displayed by the monitor is for reference purposes only.

8
Assembly
2
To find the ideal location to set up this cross trainer, ensure that:
• Area is well illuminated and well ventilated.
• Surface is level.
• There is enough space to access the unit and emergency dismount. If it is possible,
keep the following clearances: 0.5 m at each side and 2 m at the back.
• The cross trainer is placed in an environment with a relative humidity range of 30-
50%. Please ensure the temperature is kept constant. Do not use in a moist or damp
environment as this may impact on the integrity and performance of the machine.
PREPARING SITE
DIAGRAM
Swing Arm
Pulse Plates
Handlebar Post
Main Base
Front Stabiliser
Monitor
Resistance Dial
Foot Plate
Joint Casing
Bottom Swing Arm
Rear Stabiliser

9
CONTENT LISTING
2TOOLS PACK
See diagram (left) and content listing (below) for cross trainer box contents. See
Customer Service chapter for contact information if any parts are missing.
BOX CONTENTS
M8*74
Carriage Bolts
x4
Arc
Washers
x24
Flat
Washer
x4
Main Base
Tools Pack2
Foot Plates x2
Stabilisers
Manual
Handlebar Post Swing Arms
Multi-Tool
x1
M8 Cap
Nuts
x4
M10*45 Hexagon Bolt
x4
17/19 Spanner
x2
Top Handrails Pulse Plate Handrails
M10 Nylon
Nuts
x4
M8*45
Carriage Bolts
x4
Cross Pan Head
Screw M8
x4
13/14 Spanner
x2
Hex Allen Key
x1
Monitor
Allen Head Bolts
x8
Joint Casing

10
CT300 ASSEMBLY
The cross trainer has been assembled and tested at the factory, so you shouldn’t have any
problems putting all the parts together. Components are designed to fit together, and
only basic tools are required for the assembly process. Inside the box you will find a Tools
Pack (Hex Allen Key, Spanner, Washers and Bolts). See previous page.
To assemble your JLL CT300 please follow these easy steps:

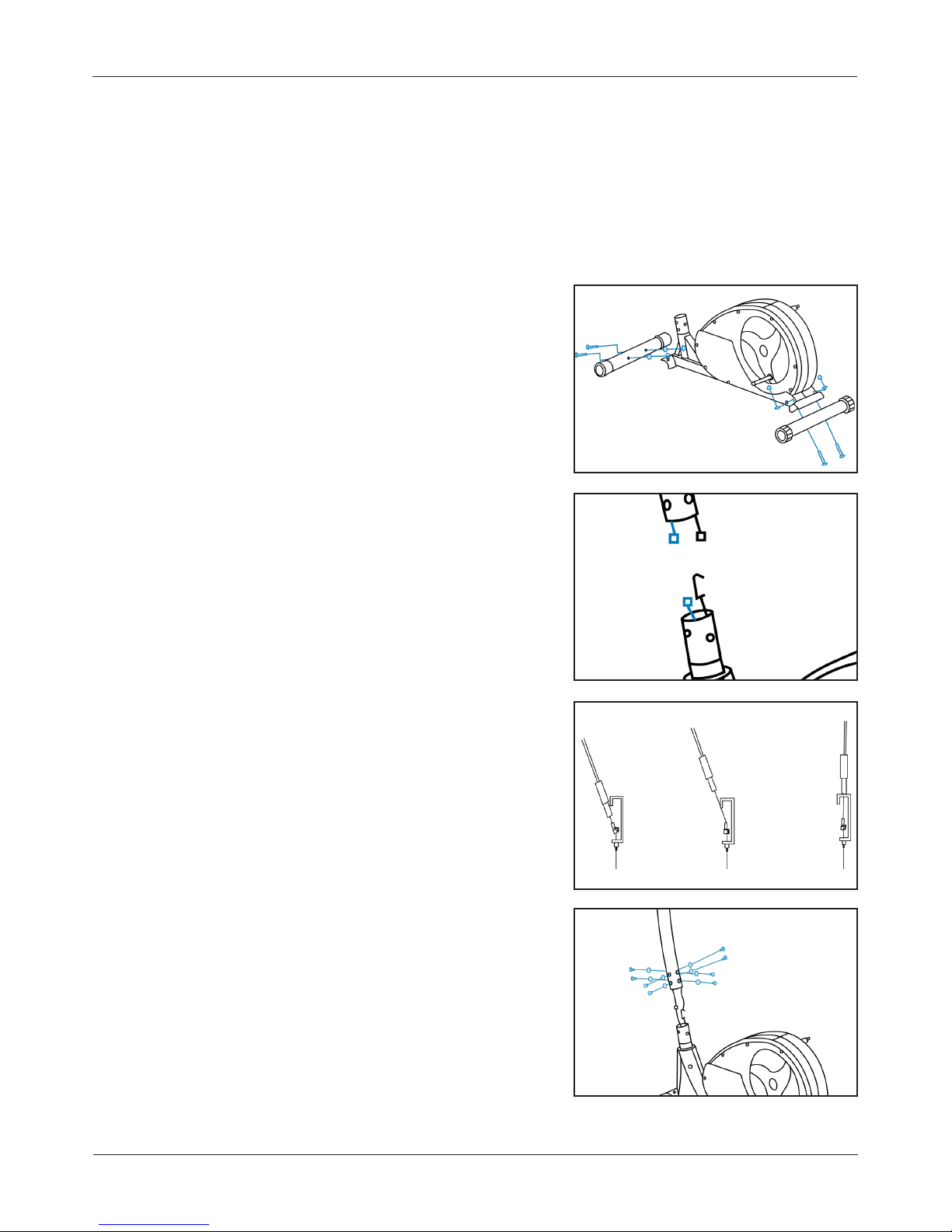

STEP 1
Start by attaching the stabilisers to the main base
using four carriage bolts, four arc washers and four
cap nuts. Tighten using the multi-tool.
STEP 2
Connect the sensor wire from the main base to the
bottom of the handlebar post. Make sure the pins
align and you hear a click.
STEP 3
Connect the tension cable following the diagram.
This may take some force.
STEP 4
Secure the handlebar post to the main base using
eight Allen head bolts and eight arc washers.
Tighten using the Allen key.

11
STEP 5
Align the tubes on the arms to the long axis on the
handlebar post and the crank on the base. Try to slide
them on approximately together. Secure the arm to
the crank using a flat washer, spring washer and
nylon nut. Secure the arm to the handlebar post
using two flat washers and two Allen head bolts.
STEP 6
Attach the joint casings and footplates to the swing
arms using four hex bolts, four flat washers and four
hex nuts for the footplates and a small screw for the
casings. Make sure the lip of the footplates sits
closest to the base.
STEP 7
Attach the top handrails to the swing arms using
four carriage bolts, four arc washers and four cap
nuts. Each handrail will be labelled R and L. Tighten
using the small spanner.
STEP 8
Feed the wires from the pulse plate handles through
the back of the handlebar post and pull them up
through the top of the post.
Secure the handles using four carriage bolts, four arc
washers and four cap nuts.
STEP 9
Clip together the wires from the handlebar post to
the monitor. Again make sure the pins align and you
hear a click. Secure the monitor to the bracket using
the screws found in the back of the monitor. Tighten
using the end of the multi-tool.

12
MOVING THE MACHINE
To move the machine, take hold of the pulse plate handles and tilt the machine onto it’s
front stabiliser. Now use the transport wheels to move the machine to the desired
location.
ADJUSTING THE RESISTANCE
Rotate the tension control knob clockwise to
increase the level of resistance. Rotate the tension
control knob counter-clockwise to decrease the
level of resistance.
Level 1 is the lowest and level 8 is the highest.
MONITOR CONFIGURATION
3
1
2
1LCD display 3Tablet Holder
2Function Buttons

13
SPECIFICATIONS
Display Display: Time, Speed, Distance, Calories, Pulse, Body Fat, Temperature,
RPM and Pulse Recovery.
Flywheel 5.5kg flywheel
Resistance 8 Levels of magnetic resistance
Battery 2 x AA
Pedals Wide platform pedals
Handlebars Both swing arms and stationary pulse plate handlebars
Colour Silver/Grey
Maximum User Weight 100kg, 15.7 St or 220 lb.
Occupying Area 120 cm (Length) x 61 cm (Width) x 167 cm (Height)
Packaging Dimensions 119 cm (Length) x 44.5 cm (Width) x 58 cm (Height)
Gross Weight 39.8kg
Net Weight 35.9kg

14
3
Operation
Use the following instructions to test the full resistance of the cross trainer.
1. Stand on the machine and place your feet on the footplates, gently complete a few
rotations.
2. Check the monitor to make sure the digits are changing.
3. Turn the tension control knob from 1 to 8 and check to feel a difference in the
difficulty of resistance.
4. As you are performing each rotation make sure the swing arms are moving freely.
5. Also make sure there are no unusual noises coming from the machine and no
wobble during your workout.
TESTING THE CROSS TRAINER OPERATION
Mode: To select the function you want to display on the main screen, press the mode
button on the monitor, this will scroll through each function until you reach the desired
one.
To reset your monitor, press and hold the reset/go button for 4 seconds to set all the
values back to zero.
Auto On/Off: The monitor will turn on when you start pedaling or by pressing any button.
The monitor will turn off after being inactive for 4 minutes.
OPERATION PROCEDURES
DISTANCE: The distance covered in kilometers during your workout.
TIME: Counts the duration of your workout.
SPEED: Calculates your current speed while exercising.
PULSE: Calculates your current heart rate while exercising.
CALORIE: Counts the estimated calories burnt while exercising.
TEMPERATURE: Shows the temperature of the location of the cross trainer.
PULSE RECOVERY: Takes the average between your 2 minute heart rate and heart rate
after intense exercise.
RPM: Counts the number of revolutions per minute.
SCAN: Scans through each function repeatedly.
FUNCTIONS

15
Maintenance
4
Maintenance must be performed on a regular basis. Performing maintenance actions can
aid in providing safe and trouble-free operation of all JLL®equipment.
JLL®are not responsible for performing regular inspection and maintenance actions for
your machine. JLL®representatives are available to answer any questions that you may
have on [phone].
PREVENTIVE MAINTENANCE ACTIVITIES
Keeping the cross trainer in a clean state will help to prolong its life. Perform regular
preventive maintenance to ensure normal operation of the unit. Keep a log of all
maintenance actions to assist in staying current with all preventive maintenance
activities. JLL®is not responsible for performing regular inspection or maintenance.
Read all instructions and warnings listed both in this chapter and in the
Safety chapter. Contact JLL®Customer Service on [phone] for any
maintenance or service concerns.
Requirements:
• Water
• Dry cloth
• Vacuum
1. Only use water to clean and dust. Do not use any cleaning product because they
may damage the cross trainer.
2. Be careful not to spill or get excessive moisture between the edge of the
display panel, as this might create an electrical hazard or cause failure of the
electronics.
3. Direct spraying could cause damage to the electronics and may void the
warranty.
WARNING

16
Depending on where the cross trainer is placed, you may experience dry air,
causing a common experience of static electricity. You can notice that by walking
across a carpet and then touching a metal object. On your machine you may
experience a shock due to the build-up of static electricity on your body and the
discharge path of the cross trainer. If you experience this type of situation, you may
want to increase the humidity to a comfortable level through the use of a humidifier.
Check your machine regularly for rust. If rust starts to appear on the screws it means
the item is not housed in the correct environment and will need to be moved to a more
suitable room. Any rust will indicate there may be moisture in the air and as a result this
could impact on the integrity and performance of your machine.
1. Use only JLL®replacement parts.
2. Keep water and liquids away from electrical parts.
3. If you allow your machine to become rusty, this will affect your warranty.
WARNING
3 EASY STEPS TO CLEAN YOUR CROSS TRAINER
Recommendation (these are just a guideline):
• Use a clean cloth to wipe down the whole machine.
• Vacuum or sweep the floor underneath and around the cross trainer to prevent any
dust going into the machine. A treadmill mat can help to reduce dust.
• Use a vacuum cleaner or a soft damp cloth to clean machines entire cover area.
When not using product for an extended period of time the product should be
folded and stored in a suitable environment.

17
In case any issues arise, please do not hesitate to contact our Customer Service team on
[phone] or email us at [email protected]
You can also visit our support centre at SUPPORT.JLLFITNESS.CO.UK for maintenance and
assembly articles & videos.
Additional Information
5
CONTACT INFORMATION
• You should consult your physician, doctor or other health care professional before
starting or taking part in any of our workout guides. It is your responsibility to
evaluate your own health before taking part or performing any physical activity you
may see associated with JLL Fitness Ltd.
• Always seek professional advice before changing your diet or starting any exercise
program.
• JLL Fitness Ltd is not liable for any injuries or damages that may occur when
assembling or using this cross trainer.
• By reading this you assume full responsibility for any injuries or changes to your
physical well-being. You waive all rights and release JLL Fitness Ltd of blame from
any injuries or damages to property that may occur whilst following our advice.
• This manual offers specific instructions on how to assemble and maintain your
cross trainer. Failure to follow these directions may result in your warranty being
void.
DISCLAIMER

18
WWW.JLLFITNESS.COM
Follow us on Facebook and Twitter @JLLFitness
© JLL Fitness Ltd . All Rights Reserved.

19

20
