JLL VELOX 2 User manual

INSTRUCTION MANUAL
Please read this book thoroughly before operating the bike.

CONTENTS
1. SAFETY INSTRUCTIONS
User safety precautions
Prior to use
During use
Exercise safety precautions
Facility safety precautions
Warning stickers
2. ASSEMBLY
Preparing the site
Diagram
Content listing
Box contents
Tools pack
Velox 2 PRO assembly
Monitor conguration
Testing the bike operation
Transporting the bike
Levelling the bike
Specications
Data readouts
Operation procedure
3. OPERATION
Preventive maintenance activities
Exercise bike cleaning
Bike balance
4. MAINTENANCE
p. 7
p. 7
p. 7
p. 7
p. 8
p. 8
p. 9
p. 9
p. 10
p. 10
p. 10
p. 12
p. 15
p. 16
p. 16
p. 16
p. 17
p. 18
p. 18
p. 22
p. 23
p. 23
Contact information
Disclaimer
5. ADDITIONAL INFORMATION
p. 25
p. 25
Exploded diagram
Parts list
p. 3
p. 5

3
EXPLODED DIAGRAM
101
24
24
26
27
26
27
29
29
30
101
19 18 17
19
18
17
15L
15R
31
34
24
24
27
26
26
27
29
29
191817
19
18
17
21
21
2223
20
20
22
23
25
33
14
33
36
13
11
12
10
9
9
5
38
2
37 1
4
6
738
38
38
102
107
32
28
35
106
104
8
3
3
108
109

4
1
53
52
51 50
49
48 47
4645
44 43
42
41
40
39
100
16R
99
98
97
96
95
94
93
92
91
90
89
88
87
82
81
79
72 70
68
67 65
64
60 59 58 57
56
55
54
86
86
32
86
91
40 41
42
44
44
44
68
68
76
68
63 62
61
80
59
11
68
68
66
69
54
71
62
61
74
74
74
74
73
85
77
42
42
83
84
78
42
79
44
42
75
76
100 39
16L
103
105

5
PARTS LIST
NO. Description Qty NO. Description Qty
1 Display 1 43 Right chain cover 1
2 Right handle top cover 1 44 Connection bar 5
3 Cross pan head screw M5*35 4 45 Nylon nut 4
4 Square end cap J50 1 46 Spring washer D6 4
5 Right handle bottom cover 1 47 Middle shaft 1
6 Left handle top cover 1 48 Middle shaft spacer 1
7 Display post 1 49 Corrugated washer
d20*Φ26*0.3
1
8 Left handle bottom cover 1 50 Belt wheel 1
9 Cross recessed pan head tap-
ping screwsST3*16*Φ5.6
6 51 Round magnet 1
10 Handlebar 1 52 Bolt M6*16*S10 4
11 Washer d10*Φ20*2.0 3 53 Multi-V belt 1
12 Spring washer d10 2 54 Bearing 2
13 L-shaped knob 1 55 Saddle post top right cover 1
14 Hexagon socket head screw 2 56 Nylon nut M10*H9.5*S17 1
15 Pedal 57 Free wheel shaft 1
16 Crank 58 Corrugated washer
d12*Φ15.5*0.3
1
17 Cap nut 4 59 Bearing 2
18 Washer d8 4 60 Free wheel 1
19 Arc washer d8*Φ20*2*R38 4 61 Flange nut M10*1*H8*S15 2
20 Inner hex pan head bolt
Φ7.8*30*M6*15*S5
2 62 Adjustable chain bolt 2
21 Transportation wheel 2 63 Conical nut M10*1*H5*S17 1
22 Washer d6*Φ12*1.5 2 64 Washer d6*Φ16*1.5 1
23 Inner hex pan head bolt
M6*12*S5
2 65 Bolt M6*10*S10 1
24 Round end cap Φ76 4 66 Motor 1
25 Front stabilizer 1 67 Sensor 1
26 Nut M8*H5.5*S14 4 68 Cross pan head screw
ST4.2*16*Φ8
9
27 Adjustable levelling knob 4 69 Saddle post bottom left
cover
1
28 Mainframe 1 70 Flywheel 1
29 Square neck bolt M8*90*20*H5 4 71 Snap ring d20 1
30 Rear stabilizer 1 72 Thin nut M10*1*H5*S17 1
31 Spring knob 1 73 Saddle post top left cover 1
32 Saddle post 1 74 Cross pan head screw
ST4.2*6*Φ8
4

6
1
Safety Instructions
33 End cap D28 2 75 Left chain cover
34 Saddle 1 76 Cross pan head self-drilling
screw ST4.2*25*Φ8
35 Handlebar post 1 77 Left handlebar post cover
36 Square end cap 1 78 Bottom cover
37 iPad holder 1 79 Cross pan head screw
M5*10*Φ10
38 Round end cap 2 80 Saddle post bottom right
cover
39 Flange nut M10*1.25*H7.5*S14 2 81 Limitation shaft
40 Decoration cover for plastic
plate
2 82 Bush
41 Plastic plate 2 83 Top cover 1
42 Cross pan head screw
ST4.2*19*Φ8
7 84 D-shaped bush 2
85 Right handlebar post cover 1 99 Cross pan head bolt
M5*16*Φ10
1
86 Cross countersunk screws-
M5*18*Φ8
1 100 Crank cover 2
87 Locking block 2 101 Package tube 2
88 Rubber band 1 102 Adaptor 1
89 Bottom slider 1 103 Resistance wire 1
90 Saddle seat 1 104 Extension wire 1 1
91 Square end cap J40 2 105 Extension wire 2 1
92 Rubber pad 1 106 Pulse wire 1
93 Limitation seat 1 107 Hexagon socket counter-
sunk head bolts
2
94 Cross pan head screw M4*12*Φ7 2 108 Aluminium bottle holder 1
95 Limitation pin 1 109 Bottle 1
96 Lock core 1 A Allen wrench S8 1
97 Locking knob 1 B Multi-function wrench S13-
14-15
1
98 Washer d5*Φ14*2 1 C Allen wrench S5 1

7
1
Safety Instructions
Safety Instructions
Please pay attention to the following instructions before operating this bike.
USER SAFETY PRECAUTIONS
PRIOR TO USE
• Assemble the bike according to the instruction manual.
• Consult your doctor before beginning any exercise program.
• Read instructions.
• Read warning labels.
• Read emergency stop procedures.
• Maximum user weight is 130kg/ 20.47 St.
• Inspect unit. If damaged, DO NOT USE.
• Ensure every bolt and screw is securely tightened.
DURING USE
• DO NOT use for stretching and DO NOT attach straps or other devices.
• DO NOT allow children aged 12 or younger to be on or near the machine.
• Stop exercising if you feel faint, dizzy, or encounter pain.
• Keep all clothing and accessories clear of moving parts.
• DO NOT jump onto the exercise bike.
• Keep water and liquids away from electrical parts.
EXERCISE SAFETY PRECAUTIONS
• Use sports clothes and gym shoes.
• DO NOT use with bare feet.
• This model should only be used at home, DO NOT use for commercial purposes.
WARNING
1

8
• DO NOT operate this bike in damp or wet locations.
• Use caution when getting on or off the bike.
• Check the exercise bike for worn or loose components before each use. DO NOT use
until worn or damaged parts are replaced.
• Maintain regularly. Refer to
Preventive Maintenance chapter.
• DO NOT use the bike if: (1) the bike is not working adequately or (3) the bike has
been dropped or damaged.
• DO NOT use the exercise bike outdoors.
• Read the instruction manual completely before using the bike.
• Ensure all users wear appropriate footwear on JLL®equipment.
• Set up and operate the bike on a level surface. DO NOT operate in small
restricted areas or on plush carpet.
• As far as possible provide the following clearances: 0.5 m at each side and 2 m at
the back. Be sure your exercise bike is clear of walls, equipment and other hard
surfaces.
• Modifications can be made to the bike if necessary however, they must not damage
the original bike itself. Any queries can be answered by our customer service team
on 0121 328 7507 - 0800 6123 988.
• All the data displayed by the monitor is for reference purposes only.
FACILITY SAFETY PRECAUTIONS
Warning stickers indicate a potentially hazardous situation which, if not avoided, could
result in death or serious injury. Carefully read the following caution and warning labels
before using the unit.
WARNING STICKERS
It is strictly forbidden to touch any moving parts of the bike.
Keep small children and pets a safe distance from bike when in use.
WARNING
WARNING

9

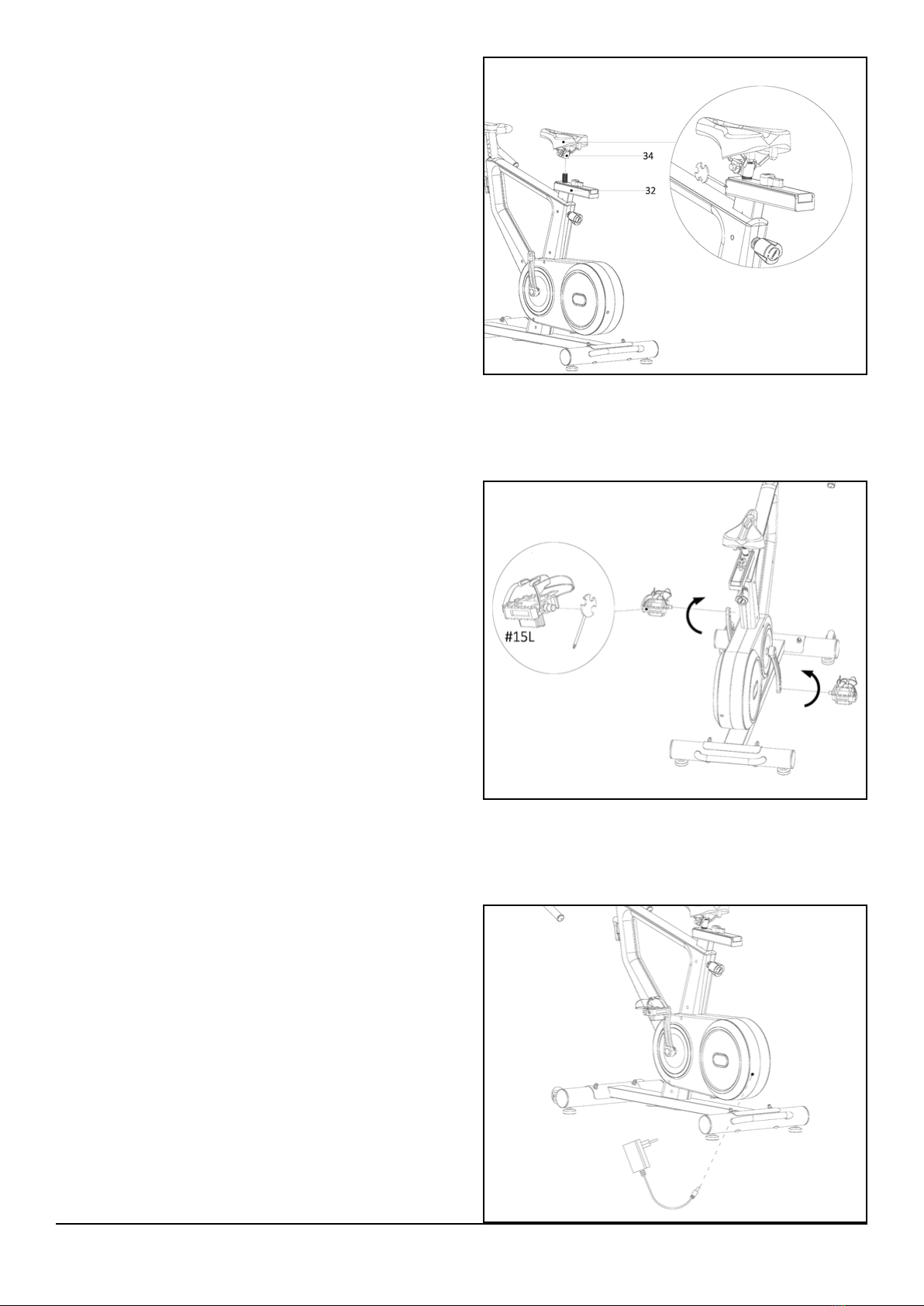

Assembly
2
To find the ideal location to set up this bike, ensure that:
• Area is well illuminated and well ventilated.
• Surface is level.
• There is enough space to access the unit and emergency dismount. If it is possible,
keep the following clearances: 0.5 m at each side and 2 m at the back.
• The bike is placed in an environment with a relative humidity range of 30-50%.
Please ensure the temperature is kept constant. Do not use in a moist or damp
environment as this may impact on the integrity and performance of the machine.
PREPARING SITE
DIAGRAM
Gear and Resistance Buttons
Ipad Holder
Locking Knob
Transport Wheel
Bike Frame
Handlebars
Left Pedal
Saddle
Display
Left Crank Arm
Seat Post
Adjustment Knob
Base
Transport Handle
Front Stabilizer
Rear Stabilizer

10
CONTENT LISTING
See diagram (pg.9) and content listing (below) for the exercise bike box contents. See
Customer Service chapter for contact information if any parts are missing.
#1 Display 1PC #7 Display Post 1PC #10 Handlebar 1PC
#15 Pedal 1pair #30 Rear Stabilizer Assembly 1PC
#25 Front Stabilizer Assembly 1PC
#34 Saddle 1PC #37 Ipad holder 1PC (Optional) Bilster Card 1PC
#28 Mainframe 1PC
0cm 12345678910 12345678910 1 2 3 4
inc h
0 1 2 3 4 5 6 7 8 9
STEP2
#A S13- 14- 15
M5 x35
PART#1 1/12/142PCS
M1 0 x30
STEP3
PART # 32P CS
H e x Wr e n c h 1PC
#B S8
Cr os s hea d s pa nner 1PC
Hex Wrenches 1PC
#C S5
PART#107 2PCS
M8 x20
#102 Adaptor 1PC
#108 aluminum
bottle holder 1PC
#109 bottle 1PC
0cm 1 2 3 4 5678 9 10 1 2 3 4 5678 9 10 1 2 3 4
inch
0 1 2 3 4 5678 9
STEP2
#A S13-14-15
M5x35
PART#11/12/14 2 PCS
M10 x30
STEP3
PART#3 2 PCS
Hex Wrench 1PC
#B S8
Crosshead spanner 1 PC
Hex Wrench 1PC
#C S5
PART#107
2 PCS
M8x20
BOX CONTENTS
