Jofemar TAOS Series User manual

TAOS Serie
1of 12
INSTRUCTION
MANUAL
TAOS
Serie

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 2of 12
IMPORTANT SECURITY INSTRUCTIONS. READ IT
CAREFULLY AND KEEP IT FOR FUTURE REFERENCES.
•Take the machine down from the pallet and remove the
metal chucks to place it on the floor before opening and
removing the packaging.
•When discarding packaging material or an old machine,
please consult about recycling.
•Before connecting to electricity or water mains, make
sure that the supply characteristics coincide with those
of the machine.
•The power cable plug should be installed so the
machine can be easily disconnected from mains.
•If the power cable is damaged, it should be replaced by
the manufacturer or after sales service or similar
qualified personnel to prevent hazards.
•It is compulsory wearing gloves to manipulate the inside
and charge the machine.
•Do not burn or throw away the battery. Batteries
should be disposed of in accordance with local laws and
regulations and can be recycled.
•Protect the machine against humidity, dust, dirt, etc.
•Do not clean the machine with concentrated products
as they may attack the paint and alter the colour.

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 3of 12
•This device is not intended for being installed in areas
which could be used a water jet.
•Frequent cleaning, can prevent breakdowns and extend
the machine's life.
•The machine should be installed in a vertical position,
both laterally and back to front.
•This device can be used by children from 8 years old and
people with physical, sensorial or mental reduced
abilities or with lack of experience and knowledge, if
they are supervised or have received the required
training for a safe use of the machine and they
understand the involved risks. Children should not play
with the machine. Cleaning and maintenance must not
be done by children without supervision.
•Access to servicing area should only be permitted to
persons with a knowledge of and practical experience in
the machine, particularly with regard to health and
safety.
•If you need to replace the power supply cable, please
replace it with the appropriate one for your country.
•This device is not intended for outdoor use. The
machine leaves the factory adjusted to work properly at
an ambient temperature between 5º C and 32º C.

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 4of 12
Jofemar S.A.
Marcilla Road, Km 2 - 31350 - Peralta (Navarra) - SPAIN
T. [phone] –F. [phone]
www.jofemarvending.com
•The transport and displacement of this machine must
be done with the technical and human resources that
guarantee the security of people who perform the
transport and installation, and other people that could
be in the installation surroundings.
•For the transport and displacement, it must be verified
the adequacy of the technical resources used, to the
weight and real dimensions of the machine, measured
in the exact machine, on wich it will be performed this
operation. Decisions that affect the security according
to the weights and dimensions indicated in this manual,
can not be taken.
•The average sound pressure level A, is lower than 70 dB.
•Do not clean the machine with a water jet.
•The appliance shall not be cleaned with a steam
cleaner.

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 5of 12
Table of contents
1. SYMBOLS.........................................................................................................6
2. OPERATING CONDITIONS ................................................................................6
3. DIMENSIONS AND WEIGHTS ...........................................................................6
4. AVAILABLE HEIGHTS ........................................................................................6
5. VINYL SURFACES..............................................................................................7
6. INSTALLATION STEPS RESUME ........................................................................8
7. MACHINE START UP ........................................................................................8
8. POWER CONSUMPTION AND ASSIGNED POWER.............................................9
9. MAINTENANCE CLEANING...............................................................................9
10. ENVIRONMENT AND REGULATIONS ..............................................................10
10.1. RECYCLING.......................................................................................................10
10.2. ENVIRONMENT .................................................................................................10
10.3. REGULATIONS...................................................................................................10
11. NOTES ...........................................................................................................11

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 6of 12
1. Symbols
2. Operating conditions
This machine is specially intended for indoor use. The machine leaves the factory adjusted to work properly at an
ambient temperature between 5 °C and 32 °C (41 °F and 89.6 °F) with a maximum humidity of 60%.
3. Dimensions and weights
Model
State
Height (mm /
“)
Width (mm / “)
Depth (mm / “)
Weight (kg / lb)
BASIC
Unpacked
1825 / 71,85
248 / 9,76
936 / 36,85
103 / 227,07
Packed
1895 / 74,6
318 / 12,51
1006 / 39,6
110,25 / 243,05
BASIC + MACHINE
Unpacked
1828 / 71,96
1047 / 41,22
981,5 / 38,64
407 / 897,28
Packed
1898 / 74,72
1117 / 43,97
1051,5 / 41,39
414,25 / 913,26
SLIM
Unpacked
1825 / 71,85
171,5 / 6,75
936 / 36,85
94,8 / 209
Packed
1895 / 74,6
241,5 / 9,5
1006 / 39,6
101,64 / 224,07
SLIM + MACHINE
Unpacked
1828 / 71,96
970,5 / 38,2
981,5 / 38,64
400,8 / 883,81
Packed
1898 / 74,72
1040,5 / 40,96
1051,5 / 41,39
407,64 / 888,69
TOUCH 10”
Unpacked
1825 / 71,85
248 / 9,76
936 / 36,85
105,6 / 232,8
Packed
1895 / 74,6
318 / 12,51
1006 / 39,6
112,98 / 249,07
TOUCH 10” + MACHINE
Unpacked
1828 / 71,96
1047 / 41,22
981,5 / 38,64
409,6 / 903,01
Packed
1898 / 74,72
1117 / 43,97
1051,5 / 41,39
416,98 / 919,28
4. Available heights
According to the American regulation, the heights of the front and the box of returning coins, have to be
delimited in an interval, which is defined by 2 limits or heights; low ADA and top ADA. In the European
This symbol means there are more detailed explanations on this subject elsewhere in
the manual.
This symbol means that the text in question refers to programming.
This symbol indicates very important information.
This symbol is a warning of high voltage hazard.
This symbol indicates that a given material should not be disposed of as domestic
waste.
This symbol indicates that a given material is recyclable.
This symbol indicates that Jofemar is committed to the environment.

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 7of 12
context, there is only top limit.
Next, the available models are shown, with their corresponding height limit in each case.
5. Vinyl surfaces
It is possible to customise the machine appearance, with vinyl.
Lateral vinyl
Note: to customise frontal surfaces, get in touch with Jofemar.

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 8of 12
6. Installation steps resume
Note: There are others range manuals “MNP143” y “MNP143M01” where it is explained how to
assembly the module on the machine.

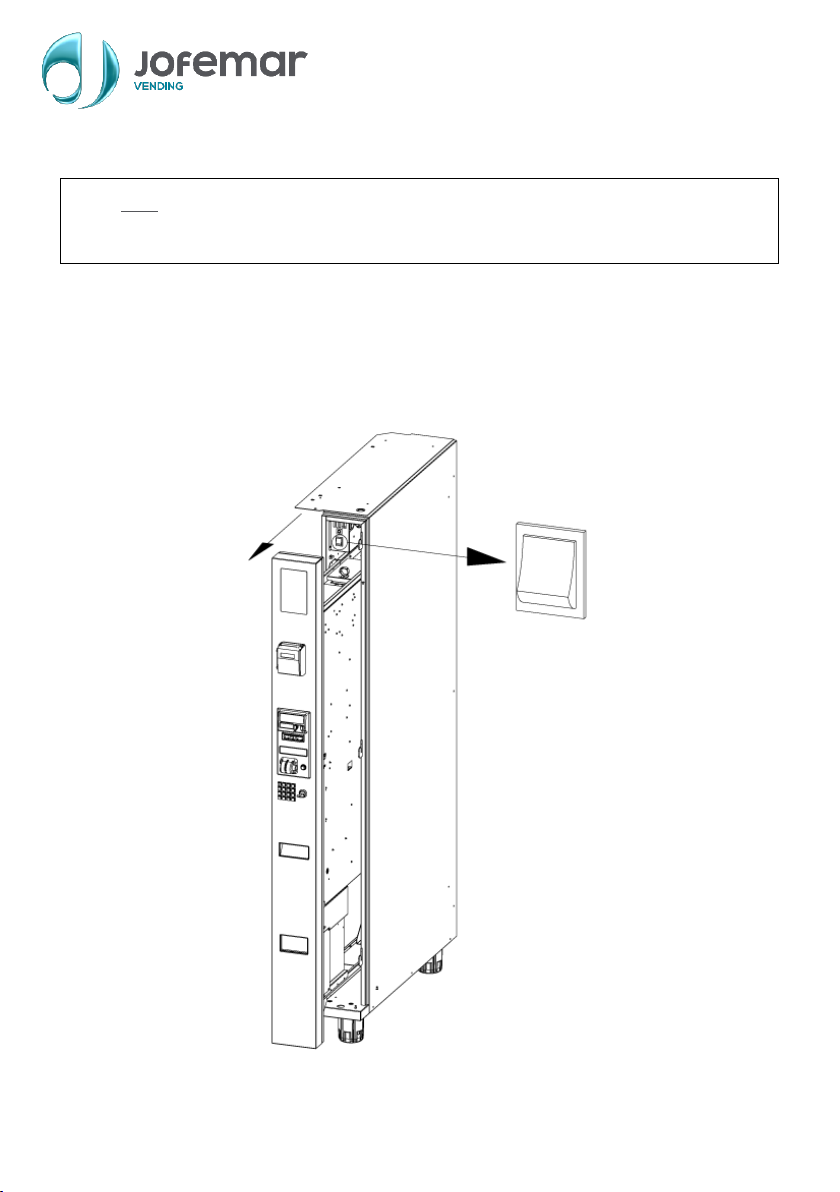

7. Machine start up
For the machine start up, we have to activate the general switch placed inside the machine. For this, we
need to open the door machine.

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 9of 12
8. Power consumption and assigned power
POWER CONSUMPTION (kw∙h)
ModeL
Standby 24h
BASIC
0.5
SLIM
0.5
TOUCH 10”
(Not available)
Procedure used
UNE-EN-50597
Model
ASSIGNED POWER (w)
BASIC
30
SLIM
30
TOUCH 10”
(Not available)
9. Maintenance cleaning
Note: always clean when the machine is disconnected
•It is very important never to touch those areas powered at 220 V, such as the ballast box, the
power box and live cables. To access areas where there are components powered at 220 V, open
the machine’s outside door and use a “Torx” screw driver to remove the metal boxes protecting
these components.
•To clean the exterior of the machine, use a moist cloth with warm water and dry with a soft cloth.
•Rub gently the screen with a soft cloth and only in one direction to avoid scratches.
•Use specific cleaners, applying them on a clean cloth. Don’t apply directly the cleaner on the
screen, because it can filter to the interior and produce damages. Don’t use alcohol, solvents or
other abrasive cleaner.
•It is recommended to clean periodically
the walls and ramps of the selector,
where the coins circulate with a soft
bristle brush and a rag or moist cloth.

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 10 of 12
10.Environment and regulations
10.1. Recycling
When you need to discard packing materials, please find out about how they can be recycled.
Do not dispose of electronic circuits as domestic waste as many of the materials used to
manufacture its components are recyclable.
To manage the equipment as waste once the client has decided to dispose of it, Jofemar has set up a
collection system with an Integrated Management System. Please consult us for information about
recycling.
10.2. Environment
Saving energy contributes to preserving the environment and, in the long run, helps save a considerable
amount of money. This section contains advice on optimising the machine's use of energy as much as
possible.
•The machine should be in a cool, dry, well-ventilated location, so a place with these
characteristics should be chosen within the premises.
•Direct exposure to sunlight should be avoided. If necessary, use a shade or parasol.
Throughout the design process, efforts have been made to ensure that the machine has a minimum
environmental impact, in terms of the use of raw materials, assembly, transport, service life and collection
for recycling.
This section lists several major ways in which Jofemar fulfils its commitment:
•Lower energy consumption.
•Wood consumption has been avoided by replacing the wood feet with plastic feet.
•Avoiding the use of a full cardboard box.
•
10.3. Regulations
Jofemar warrants that the machines of the TAOS Serie been designed and meet the
requirements and other relevant provisions of Directives 2014/30/UE, 2014/35/UE and
2011/65/UE.

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 11 of 12
11. Notes

TAOS Serie
MNP143ENV05 Date: 2018/02/21 Rev. 02 12 of 12
www.jofemarvending.com
Jofemar S.A.
reserves the right to introduce
improvements in this model arising
from its continuous research without
prior notice.
