GB Welcome to Joie™
Congratulations on becoming part of the Joie family! We are so excited to be part of your journey with your
little one. This stroller is suitable for a new born from 1 months to 36 months old weights below 15kg. Please
carefully read this manual and follow each step to ensure a comfortable ride and best protection for your child.
Visit us at joiebaby.com to download manuals and see more exciting Joie products!
For warranty information, please visit our website at joiebaby.com
Contents
Figures 1-9
Emergency 11
Product Information 12
Parts List 12
Accessories 12
WARNING 13
Stroller Assembly 15
Open Stroller 15
Assemble Canopy 15
Assemble & Detach Armbar 15
Stroller Operation 15
Adjust Backrest Angle 15
Use Buckle 15
Use Shoulder & Waist Harnesses 16
Adjust Calf Support 16
Use Canopy 16
Switch Handle Direction 16
Use Front Swivel Lock 16
Use Brake 16
Use Drift 16
Fold Stroller 17
Use Accessory 17
Care and Maintenance 17
About disposal 18
About After sales service 18
Precautions for Reparation 18
Emergency
In case of emergency or accident, it is most important to have your child taken care of with first aid and
medical treatment immediately.

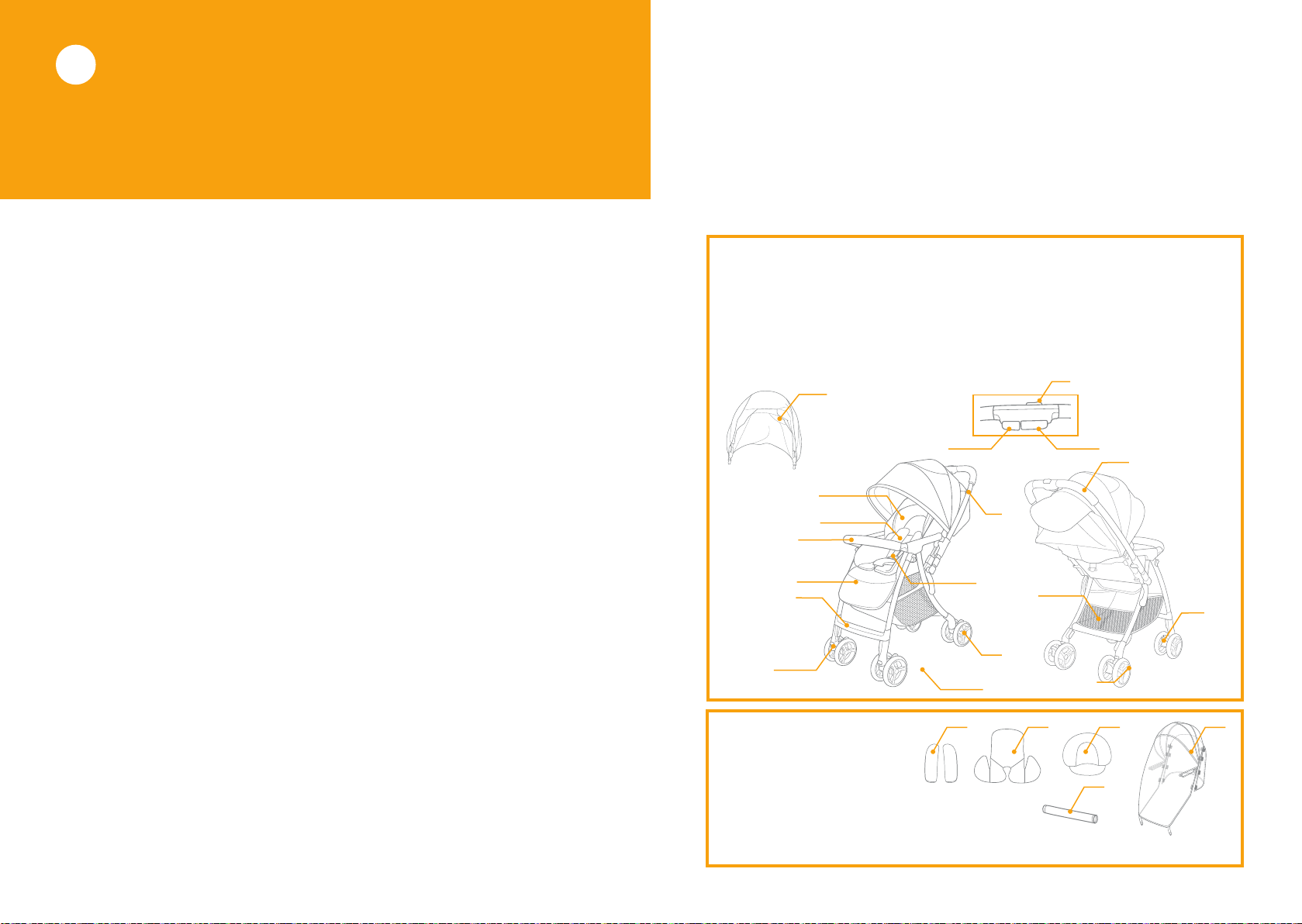

Product Information
Read all the instructions in this manual before using this product. If you have any further questions, please
consult the retailer. Some features may vary depending on model.
Product Sma Baggi™4WD Drift
Type A
Suitable for 1-36 MONTHS/UP TO 15KG
Materials Plastics, metal, fabrics
Patent No. Patents pending
Made in China
Brand Name Joie
Website www.joiebaby.com
Manufacturer Allison GmbH
1 Canopy
2 Secondary Lock
3 Drift Button
4 One-Hand-Fold
Handle
5 Head Support
6 Shoulder Harness
Cover
7 Armbar
8 Seat Pad
9 Footrest
10 Front Swivel Lock
11 Front Wheel
12 Rear Wheel
13 5 Point Buckle
14 Reversible Slider
15 Handle
16 Storage Basket
17 Rear Brake Lever
18 Front Brake Lever
Parts List
Make sure all parts are available before assembly. If any part is missing, please contact local retailer.
No tools are required for assembly.
Accessories
(May not be included)
1 Shoulder Harness Cover
2 Infant Insert
3 Head Support
4 Rain Cover
5 Armbar Cover
Accessories may be sold separately or may not be available depending on region.
1
5
2 3 4
9
8
10 11
12
14
17
13 16
15
18
1
7
6
5
43
2

13 14
WARNING
!Adult assembly required.
!This stroller is suitable for a new born from 1 month to 36 months old
weights below 15kg. It will cause damage to the stroller with an unfitted
child.
!Do not recommended uses continuously for more than 2 hours in recline
position.
!When the baby was born seven months later use this stroller, the
continuous use of the best in one hour or less.
!Always use the crotch combination with the waist belt. It is suggested
that the shoulder harnesses be used as well. Please lock the buckle on
the harness before using.
!Although the seat belt fastened, sometimes the baby will still stand up,
please be careful.
!Please adjust shoulder strap according infants physique, there is the
risk of neck entangled if shoulder strap left too long (drooping state).
!To prevent a hazardous﹐unstable condition﹐do not place more than
4.5kg in the storage basket.
!Never leave child unattended. Always keep child in view while in stroller.
!Use the stroller with only one child at a time, and prohibit the child
seating on the area out the seat. Never place purses﹐shopping bags﹐
parcels or accessory items on the handle or canopy.
!Overload﹐fold incorrectly or use it along with component parts from
other manufacturers may cause the stroller to be damaged﹐broken or
unsafe. Do read the instruction manual carefully.
!Please read all the instructions in this manual before using the product,
Please save instruction manual for future use. Failure to follow these
warnings and instructions may result in serious injury or death.
!Safety belts and restraint system must be used correctly.
!Make sure your child's body is clear from the moving parts when
adjusting the stroller.
!Child may slip into leg openings and be strangled.
!Never use stroller on stairs or escalators.
!Keep away from fire source, high temperature objects﹐liquids﹐and
electronics.
!Never allow your child stand on the stroller or sit in the stroller with head
toward front of stroller.
!Never place the stroller on roads﹐slopes or dangerous area. Never place
the stroller with baby in it on roads. Do not leave the stroller aside even
when it is empty.
!Do make sure all mechanisms are fixed before using the stroller.
!Avoid strangulation﹐do not place items with a string around your child’s
neck﹐suspend strings from this product﹐or attach strings to toys.
!To prevent tipping, do not put anything on the handle, back of the
backrest or side of the stroller, which can cause unit to tip rearward
easily.
!Do not lift stroller whilst child is in it as tumble would happen if stroller is
unbalance or unable to see the road clearly.
!Do not use storage basket as a child carrier.
!To prevent tipping﹐never let child climb the stroller.
!To avoid finger entrapment ensure that your child is kept away when
unfolding and folding this product.
!Be sure the stroller is fully opened or folded before allowing child near the
stroller.
!To ensure your child's safety, please make sure all parts are assembled
and fastened properly before using the stroller.
!Avoid strangulation﹐do make sure your child is clear from the canopy.
!Always engage the brakes when parking the stroller.
!If the stroller parts, structural elements appear loose and crunching
sound, or lack of parts, not smooth for wheels running and other
abnormal condition, please do not use, be sure to promptly contact the
distributor for repair and negotiation.
!This product is not suitable for running or skating. It is intended to be
used only at walking speed.
!To avoid suffocation, remove plastic bag and packaging materials before
using this product. The plastic bag and packaging materials should then
be destroyed or kept away from babies and children.
!Do not let your child play with this product.
!The parking device should be engaged when placing and removing your
child.
!Do not over rely on the stoppers after the child is sat, Subject to the road
condition, the stroller may be not stopped even the stoppers are
engaged.
!Pay attention to not getting caught in the door when getting on and off
the streetcar.

15 16
Stroller Assembly (Please refer to figures on page 1-9)
Please read all the instructions in this manual before assembling and using this product.

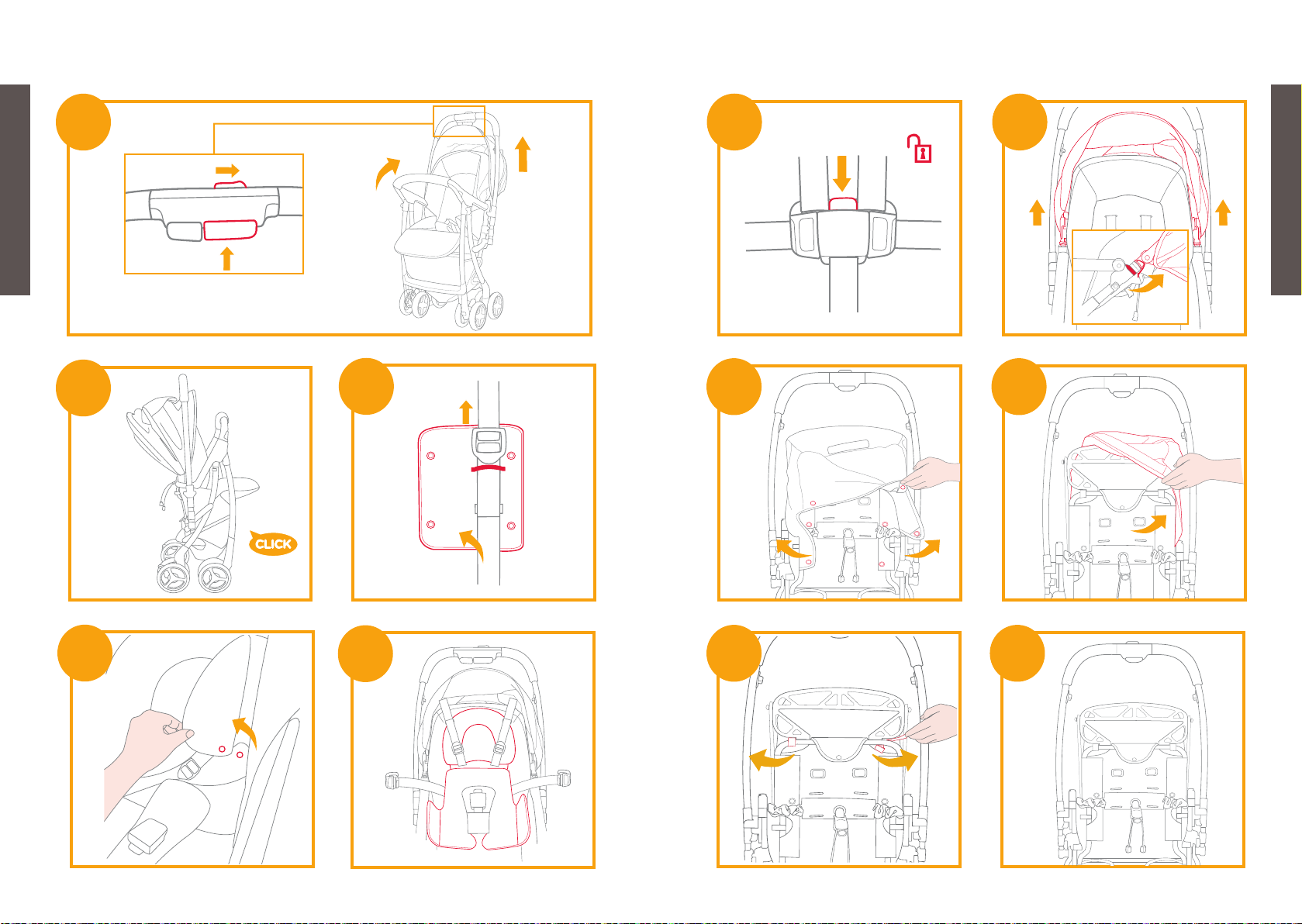

Open Stroller
Push secondary lock 1-1 and squeeze one-hand-fold handle. 1-2 Meanwhile, pull the stroller backward to
open. Latches should click into place. 2
!Check that the stroller is completely open before continuing.
Assemble Canopy
See images 3- 5
Assemble & Detach Armbar
The armbar can be pulled up on both left and right sides. 6- 8
Press armbar release button 8-1 , and then pull up the armbar. 8-1
!Armbar can be removable or pivot open for stroller entry.
The completely assembled stroller is shown as 9

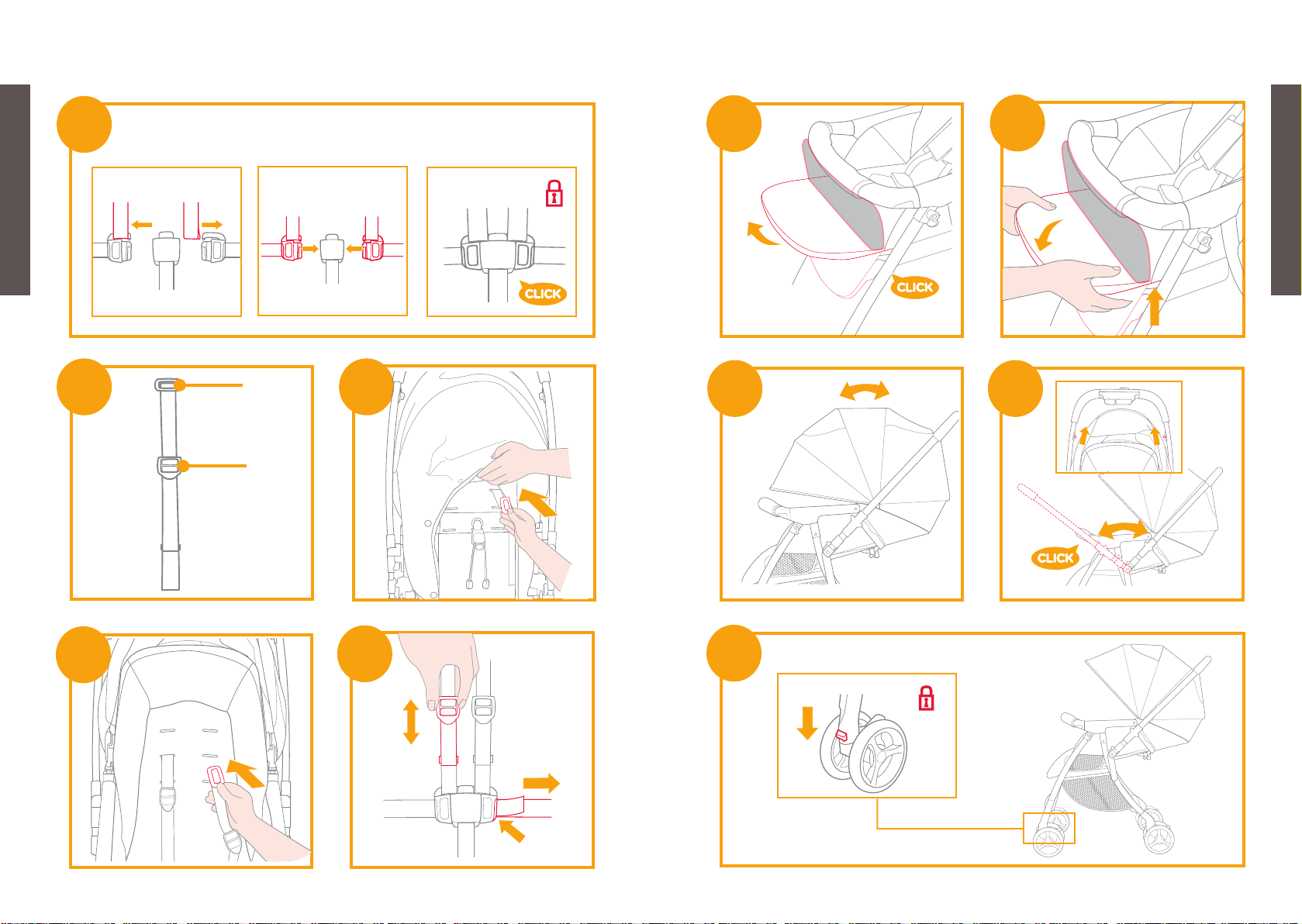

Stroller Operation
Adjust Backrest Angle
Recline Backrest
Pull tab to recline backrest. 10
!Hold the backrest with the other hand if a child is already seated in the stroller.
Raise Backrest
Hold both left and right strings and push up the angle adjuster to raise backrest. 11
!Before adjusting the backrest to the upright position, to ensure the detachable seat liner will not be caught
into the stroller frame please fold in both sides of the seat liner.
!Make sure the backrest angle is set properly for use.
Use Buckle
Release Buckle
Press the center button to release the buckle. 12
Lock Buckle
Match the waist belt buckle with the shoulder belt 13 -1, then align them with the center buckle, the buckle
can lock automatically. 13 -2A click sound means the buckle is locked completely. 13 -3
! To avoid serious injury from falling or sliding out, always secure your child with harness.
!Make sure your child is snugly secured, the space between the child and the shoulder harness is about the
thickness of one hand.
!Do not cross the shoulder belts. This will cause pressure on child’s neck.
Use Shoulder & Waist Harnesses
! In order to protect your child from falling out, after your child is placed into the seat, check whether the
shoulder and waist harnesses are at proper height and length.
14 -1 Shoulder harness anchor
14 -2 Slide adjuster
For larger child﹐use Shoulder harness anchor and the highest shoulder slots.
For smaller child﹐use Shoulder harness anchor and the lowest shoulder slots.
To adjust the position of the shoulder harness anchor, turn the anchor to be level with the side facing
forward. Thread it through the shoulder harness slot from back to front. 15 Rethread it through the slot that
is closest to child's shoulder height. 16
Use slide adjuster to change the harness length. 17 -1, Press the button 17 -2, while pulling the waist
harness to proper length. 17 -3
Adjust Calf Support
There are three angles for adjustment.
To raise calf support, push the calf support from position 1 to position 3. 18
To lower calf support, press the adjustment buttons on both sides of the calf support 19 -1, and rotate the calf
support downwards. 19 -1
Use Canopy
To open the canopy, pull canopy toward front. 20
To fold the canopy, pull canopy toward back. 20
Switch Handle Direction
!Make sure child’s hands and legs are clear from the armrest when switching the handle. 21
!Front swiveling wheels or rear swiveling wheels can be locked automatically when you use the handle in rear
facing position or front facing position..
Use Front Swivel Lock
Press the front swivel locks to maintain the moving direction. 22 23
!It is recommended to use swivel lock on uneven surfaces.
!After switching the handle position, push the stroller forward to ensure that the wheels nearest to you are
locked and do not swivel. 24
Use Brake
To lock wheels, step on the brake lever. Front wheel is shown as 25 -1, rear wheel is shown as 25 -2
Lift the brake lever to release wheel.
!The brake must be engaged when placing and removing children.
!Always apply brake when stroller is in stopped position.
!To ensure brake is fully on, gently rock the stroller backwards and forwards before releasing the handle.
!WARNING To prevent potential hazard, always make sure the parking device for all swiveling wheels are
engaged when you reverse the handle.
Use Drift
Press the drift button 26 -1 27 -1 , All wheels of the stroller can be rotated. 26 27
! Please release front wheel orientation lock and rear wheel brake pedal before use drift.
! When use drift, all wheels are in free rotation status, please be sure to push the stroller forward for a distance
to make rear wheels return to locked state after use drift, then stroller can be used normally.

17 18
Fold Stroller
Please fold the canopy before folding the stroller. 20
Push secondary lock 28 -1 and squeeze one-hand-fold handle. 28 -2 Push the stroller forward to fold. A
click sound means the stroller is folded completely. 29
Use Accessory
Accessories may be sold separately or may not be available depending on region.
Use Shoulder Harness Cover
The shoulder harness cover can be removed from the webbing. Simply reverse these steps to re-assemble
shoulder harness cover. 30
Use Armbar Cover
The armbar cover can be removed from the armbar. Simply reverse these steps to re-assemble armbar
cover.
Use Head Support & Infant Insert
The head support can be removed by opening the buttons on both sides, 31
the infant insert can be removed by unfastening the buckle. 32
Detach & Assemble Soft Goods
See images 33 - 42
To re-assemble seat soft goods, follow the steps above in reverse. 42 - 33
Use Rain Cover
To assemble the rain cover, place it over the stroller, and then attach the hook and loop fasteners on the rain
cover. 43
! When using the rain cover, please always check its ventilation.
! When not in use, please check that the rain cover has been cleaned and dried before folding.
! Do not fold the stroller after assembling the rain cover.
! Do not place your child into the stroller assembled with rain cover during hot weather.
Care and Maintenance
1. Removable seat pad may be washed in cold water and drip-dried. No bleach.
2. To clean stroller frame﹐use only household soap and warm water. No bleach or detergent.
3. From time to time check your stroller for loose screws﹐worn parts﹐torn material or stitching. Replace or
repair the parts as needed.
4. Excessive exposure to sun or heat could cause fading or warping of parts.
5. If stroller becomes wet﹐open canopy and allow to dry thoroughly before storing.
6. If wheels squeak﹐use a light oil (e.g.﹐WD-40﹐antirust oil﹐or sewing machine oil). It is important to get the oil
into the axle and wheel assembly. 44
7. When using your stroller at the beach﹐completely clean your stroller afterward to remove sand and salt from
mechanisms and wheel assemblies.
About disposal
1. Follow the instruction of relevant municipal authority to dispose.
2. Do not dispose it in a place other than that instructed, in order to protect the environment.
About After sales service
When the product malfunctions in use, a problem is found during check-up, replacement of parts or repair is
required, fixed part is loosened or squeaking, missing parts or wheel rotation is abnormal, or user finds any
other abnormal condition, stop using the product and check the product name, item number and lot number,
an contact our customer support center.
Precautions for Reparation
1. SG identification Reparation system was identified as SG product defects caused to physical injury
(personal injury) compensation system. This system does not compensate the loss or damage of product
itself with SG identification or other loss by the same cause,
2. When an accident occurred caused by product defect:
Please immediately contact the Product Safety Association.
After contacting, submit the notice of the accident issued by Product Safety Association (normally within 60
days after the accident)
Product Safety Association : xxxxxx (Address)
3. Information required for Accident Compensation
A. An accident caused by the product with SG identification
a) the product name, SG identification number
b) product purchase place and date
B. The accident situation
a) the date of the accident occurred
b) where
c) how the accident occurred
C. The injured personal information
a) name, age, sex, occupation, residential address
b) the status and extent of the injury

19 20
RU ™








 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
















  
  
  
  
 
  
  
  
   
 
 
 
 
 

 
 
 
 





 
 
 
 
 



2 


 



 







2

A








21 22

! 
! 

! 

! 

! 

! 


! 



! 




! 

! 

! 

! 

! 

! 

! 

! 

! 

! 

! 
! 
! 

! 


! 

! 


! 

! 
! 
! 


! 


23 24



1 1
 2
!
S
3 5

 6 8
 8 8
!
 9



10 
!

11 
!


12 

13 13 
13 
!

!

!

!

14 
14 




15 
16 
17 17 
17 


18 
19 
19 

20
20

!21
!

22 23


24

25 25 


!

26 27 26 27 






25 26

20 
28 28 
29 




30 



31 
32 

33 42
42 33

43














44



27 28
™  AR





 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 





 
A
 
 
 
 
 
 
 
  
  
  
  
 
  

  
  
  
 
 
 
 
 
 
 
 
 




 
 
 
 
 
           


  







 









29 30

 !
 !

 !
 !
 !

 !
 !

 !
 !
 !

 !


 !


 !
 !
 !
 !
 !
 !
 !

 !
 !

 !

 !

 !
 !
 !
 !
 !
 !
 !
 !


 !

 !

 !
 !
 !

 !

31 32



--

 !

- 

-
--
 !




 
!

 
!
!


 

- - 
- 
!
!
!

!
- 
- 


 
 
- - - 


 
- - 

 
 

 !
!

  
!
 !

- - 

!
!
!
!

  - - 




33 34

 
- - 
 



 



 
 

 -  
 -  

 





 
 
 

 
 
 
 
 

 
 





 

 
 
 
xxxxxx 












IM-000562C
view all fine signature selections at
joiebaby.com/signature
Allison GmbH
Adam-Opel-Straße 21 67227
Frankenthal
