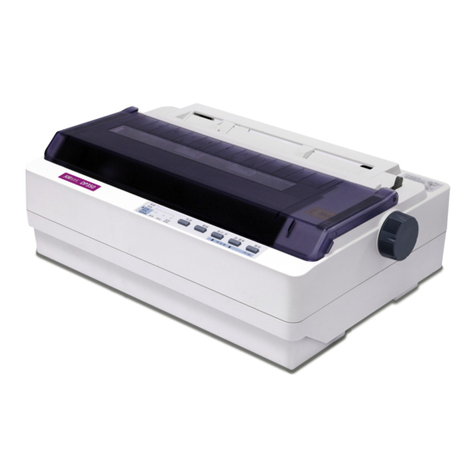

Jolimark DP350 User manual

User's Manual
DP350
Dot Matrix Printer

DP350 User's Manual
- i -
Important Safety Instructions
1. Read all of these instructions carefully and thoroughly and save them for later reference.
2. Follow all warnings and instructions in the manual as well as marked on the product.
3. If the printer has been used just now, please not touch the print head for overheating.
4. Do not put your fingers under the tractor cover of the left and right tractor when install the tractor paper.
5. Unplug this product from the power outlet before cleaning. Do not use liquid or aerosol cleaners. Use a
damp cloth for cleaning.
6. Do not use this product near water.
7. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious
damage to you or the product.
8. Slots and openings on the cabinet and the back or bottom are provided for air ventilation. To ensure
reliable operation of the product and to protect it from overheating, do not block or cover these
openings. The openings should never be blocked by placing the product on a bed, sofa, rug or other
similar surface. This product should never be placed near or over a radiator or heater. This product
should not be placed in a built-in installation or kiosk stand unless proper ventilation is provided.
9. This product should never be placed near or over a radiator or heat origin, and should avoid of direct
sunshine.
10. Do not locate this product where the cord will be walked on. When the cord or the plug is mangled,
please stop using and get a new one replaced. Make sure the old one is far away from the printer, so it
can avoid someone who does not know the inside story getting damage.
11. Do not use in locations subject to high humidity or dust levels. Excessive humidity and dust may cause
equipment damage or fire.
12. Never push objects of any kind into this product though cabinet slots as they may touch dangerous
voltage dots or short out parts.
13. Don’t remove the printer’s out-cover and repair the printer. When needed, call or take it to the
professional.
14. To ensure safety, please unplug this product prior to leaving it unused for an extended period. The wall
outlet you plan to connect to should be nearby and unobstructed.
15. Unplug this product from the power outlet and leave servicing to qualified service personnel under the
following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally when the operating instructions are followed. Adjust only
those controls that are covered by the operating instructions since importer adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the product to normal operation.
E. If the product has been dropped or the cabinet has been damaged.
F. If the product exhibits a distinct change in performance, indicating a need for service.
Note: The contents of this manual may be changed without prior notice.
* All parts of the printer can be recycled. When it is abandoned, we can call it back freely. Please
contact us when you abandon it.

DP350 User's Manual
- ii -
Warnings, Cautions, and Notes
Pay attention to the following promises when using this manual:
Warnings:
Warnings must be followed carefully to avoid bodily injury.
Cautions:
Cautions must be observed to avoid damage to your equipment.
Notes:
Notes contain important information and useful tips on the operation of your printer.
The Guide
First thanks for buying the Jolimark printer. The printer is 24-pin 80-column Dot Matrix Printer, can
satisfy multi-function print requests. It can be widely used in tax, mail, telecom, police, hospital,
insurance, finance, stock, customhouse, cabaret, aviation and transport etc.
The printer feature introduce as follow:
zInstall print paper easily
The install design make you operate easily, install paper rapidly and save your time.
zTear off function
This causes tractor paper to be automatically fed to the tear-off position at the edge of the window
cover, for easy tear-off at the perforations after printing. This zero tear-off capability helps eliminate
paper wastage.
zFacility switch between cut-sheet and tractor paper
Feed the tractor paper back to the installing position through LOAD/EJECT key on the control panel,
pull the paper select lever to the cut-sheet position. Insert the cut-sheet from front to print. If you want
to use tractor paper again, pull the paper select lever back to the tractor paper position after cut-sheet
printing. Then press LOAD/EJECT key, tractor paper may be fed to the printer again.
zEject function
The function allow the user eject the tractor paper through the facility button on the control panel.
zSelect the data transfer interface function automatically
The printer configures with a parallel interface, two USB interfaces, a serial interface and an Ethernet
interface (according to specific interface standards). Connect the printer to the computer with the
correct cables. The printer will switch the correct interface according to the type of data automatically.
zEmulation
The printer supports the Epson ESC/P-K2 emulation as standard.
zEnhance Chinese Character Set
This printer contains GB18030 Chinese character set and also supports 4 bytes Chinese printing.
zBreak pin compensation function
User can set the printer to print using the pin which is in good condition to compensate the break pin.
zPin switch in turn function
User can set pins to switch while printing form transverse line in order to improve print head life.

DP350 User's Manual
- iii -
Table of contents
Important Safety Instructions.....................................................................................................................i
The Guide....................................................................................................................................................ii
Chapter 1 Preparation ................................................................................................................................1
1.1 Unpacking and Checking ....................................................................................................................1
1.2 Dismantling the Protective Materials ...................................................................................................1
1.3 Main Parts of the Printer......................................................................................................................1
1.4 Choosing a Place for the Printer .........................................................................................................2
1.5 Installing the Ribbon Cartridge ............................................................................................................2
1.6 Connect the Power Cord.....................................................................................................................4
1.7 Printer Self-test Function.....................................................................................................................4
1.8 Connecting the Printer to Your Computer............................................................................................5
1.8.1 Connecting to the Parallel Interface..............................................................................................6
1.8.2 Connecting to the USB Interface..................................................................................................6
1.8.3 Connecting to the Serial Interface ................................................................................................7
1.8.4 Connecting to the Ethernet Interface............................................................................................7
1.9 Installing Printer Driver........................................................................................................................7
1.10 Network Settings ...............................................................................................................................9
1.10.1 Connecting Printer......................................................................................................................9
1.10.2 Setting IPAddress....................................................................................................................10
1.10.3 Installing Printer Network Driver ...............................................................................................12
Chapter 2 Control Panel Operations.......................................................................................................20
2.1 Control Panel label............................................................................................................................20
2.2 LED Description ................................................................................................................................20
2.3 Control Panel Basic Function Description .........................................................................................20
2.4 Other Function Descriptions of Control Panel ...................................................................................20
2.4.1 In the Tractor Paper Mode..........................................................................................................20
2.4.2 In the Cut Sheet Mode................................................................................................................21
2.4.3 Print Speed.................................................................................................................................21
2.4.4 Micro-Adjust of the Printing Home Position and the Tear Position..............................................21
2.4.5 Feed Paper to the Tear Position .................................................................................................22
2.4.6 Other Functions of the Control Panel .........................................................................................22
2.5 Paper Select Lever............................................................................................................................22
2.6 Paper Feed Knob ..............................................................................................................................23
2.7 The Gap Adjust Lever .......................................................................................................................23
Chapter 3 How to Use the Printer............................................................................................................24
3.1 Loading the Paper.............................................................................................................................24
3.1.1 Loading Cut Sheets....................................................................................................................24
3.1.2 Loading Tractor Papers ..............................................................................................................25
3.1.3 Multi-part Forms .........................................................................................................................27
3.1.4 Labels.........................................................................................................................................28

DP350 User's Manual
- iv -
3.1.5 Envelopes...................................................................................................................................28
3.2 Changing the Printer Settings ...........................................................................................................29
3.2.1 Setting printer parameter through the control panel....................................................................29
3.2.2 Online-aptitude Parameter Settings............................................................................................31
3.3 Printer Setting Descriptions...............................................................................................................32
3.4 Restore the Default Settings .............................................................................................................34
Chapter 4 Troubleshooting......................................................................................................................35
4.1 Power Supply ....................................................................................................................................35
4.2 Printing Problem................................................................................................................................35
4.3 Paper Handling .................................................................................................................................37
4.4 Alignment Adjust Mode......................................................................................................................38
Chapter 5 Printer maintenance................................................................................................................39
Appendix A Specifications.......................................................................................................................40
A.1 General.............................................................................................................................................40
A.2 Interface Specifications.....................................................................................................................42
A.2.1 Parallel Interface........................................................................................................................42
A.2.2 USB Interface.............................................................................................................................42
A.2.3 Serial Interface...........................................................................................................................42
A.2.4 Ethernet Interface.......................................................................................................................43
A.3 Printable Area ...................................................................................................................................43
Appendix B Command Summary............................................................................................................45

DP350 User's Manual
- 1 -
Chapter 1 Preparation
1.1 Unpacking and Checking
Check the following items in the packing box, if any of these items are missing, please contact your
dealer.
Caution: The fittings please refer the packing list. The packing style above is subject to change
without notice.
1.2 Dismantling the Protective Materials
1. Open the packing box, lift up the printer.
2. Save all the original packing materials, so that it can be used when transport the printer.
1.3 Main Parts of the Printer
Figure1-2 and figure1-3 shown are main parts of DP350.
Figure1-2 main parts of the printer (front view)
Paper feed knob
Ribbon cartridge
Print head
Printer upper cover
Control panel
Gap adjust lever
A: Printer
B: Ribbon cartridge JMR120
C: Power cord
D: Driver CD (Including user's manual and driver)
E: Packing list
F: Facility user’s guide
Figure1-1 Unpacking list
A
F
C
B
DE

DP350 User's Manual
- 2 -
★According to specific interface standards
1.4 Choosing a Place for the Printer
When selecting a place to set up your printer, choose a convenient location that provides the
following:
1. A flat, stable surface.
2. Adequate room around the printer to allow easy operation and maintenance. Make sure it’s close
enough to the computer for the printer cable to reach, and be sure you can easily unplug the power
cord.
3. Moderate environmental conditions. Select a cool, dry area and protect your printer from direct
sunlight, excessive heat, moisture, or dusty.
4. Appropriate power source. Make sure you use a grounded outlet; do not use an adapter plug. Avoid
electrical outlets controlled by timers or wall switches; an interruption in power can wipe out the
information in your computer or printer memory.
If you place the printer on a stand, follow these guidelines:
1. Use a stand that supports at least 9 kg (19 lb).
2. Never use a stand which is slant. Always keep it level.
3. Provide enough clearance below the stand and between the printer rack and the legs of the rack so
the tractor paper flows smoothly.
4. Place cables so they do not interfere with paper feeding; secure them to a leg of the stand if
possible.
1.5 Installing the Ribbon Cartridge
1. Before installing the ribbon cartridge, make sure the printer is turned off.
2. Open the printer upper cover.
Figuer 1-3 main parts of the printer (rear view)
USB interface
Tractor
Power switch
Paper guide slide
Paper feed knob
Printer back cover
Power supply inlet
Serial interface
USB interface
Parallel interface
Ethernet interface
Printer upper cover
Print head
Figure 1-4 open the upper cover

DP350 User's Manual
- 3 -
Ribbon-tighten
knob
Ribbon nip Ribbon guide slice
Print head
3. Put the gap adjust lever to the uppermost position.
4. Slide the print head to the middle of the printer.（shown as figure 1-4）
Note: Never move the print head while the printer is turned on; this can damage the printer.
Also, if you have just used the printer, let the print head cool for a few minutes before
you touch it.
5. Please push out the ribbon nip according to the label on the ribbon cartridge.
6. Hold both sides of the ribbon down firmly to fit the plastic hooks into the printer slots. Then put the
ribbon nip between print head and ribbon guide slice, Press it down until it click into place. (shown as
figure 1-6)
7. Turn the ribbon-tighten knob in the direction of the arrow to remove any slack from the ribbon so it is
easier to install.
8. Slide the print head from side to side several times to make sure it moves smoothly。
9. Please put the gap adjust lever to original place and close the upper cover after the ribbon cartridge
is installed.
NOTE: 1. When your printing becomes faint, you need to replace the ribbon cartridge. Otherwise,
the print quality will be affected and the print head may be damaged.
2. To remove the old ribbon cartridge, first make sure the power is turned off, move the
print head to the center of the printer. Then grasp the ribbon cartridge handle on
either side and lift it out of the printer.
Figure 1-5 ribbon cartridge
Figure 1-6 install ribbon cartridge
Ribbon nip
Ribbon cartridge (JMR120)
Ribbon core
Ribbon-tighten knob

DP350 User's Manual
- 4 -
3. Please use the Jolimark JMR120 ribbon cartridge, our company will not guarantee to
keep the printer in good repair, when it is damaged by unauthorized ribbon cartridge.
1.6 Connect the Power Cord
1. Make sure the power switch on the printer is turned off. It is off when the O side of the switch is
pressed down.
2. Make sure the voltage required by the printer matches that of your electrical outlet.
3. If the power cord is attached to the printer, connect it to the AC inlet on the printer.
4. Plug the power cord into a properly grounded electrical outlet.
Caution: 1. If the rated voltage and your outlet voltage do not match, contact your dealer for
assistance. Do not plug in the power cord.
2. Adopt the electrical outlet connecting the ground properly.
1.7 Printer Self-test Function
The built-in self-test function demonstrates that the printer is working properly. You can run the test with
either tractor paper or cut sheets; this section describes the easier way, with cut sheets.
Note: You should use paper at least 210 mm (8.3 inches) wide to run the self-test; otherwise, the
print head prints directly on the platen.
1. Make sure the printer is turned off and the paper-select lever is pushed back to the cut sheet
position. Raise the back cover.
2. While holding down the TEAR button, turn on the printer. The Paper Out and ONLINE indicator
blink which indicates the printer is out of paper.
3. Adjust the right paper guide of the back cover to the range of the scale. Then adjust the left paper
guide to make the distance match the width of the print paper (as shown below).
Figure 1-8 set paper select lever
Figure 1-7 turn off the printer
Power switch
Electrical outlet
Power cord
Power supply inlet

DP350 User's Manual
- 5 -
4. Slide a piece of cut sheet down firmly between the right and left paper guides until it meets
resistance. The printer loads the cut sheet automatically and begins printing when pressing ONLINE
button.
Warning: Always close the printer cover while the printer is printing.
5. To stop printing temporarily, press the ONLINE button.
6. To end the self test, make sure the printer is not printing. Press LF/FF or LOAD/EJECT button to
eject cut sheet; then turn off the printer.
NOTE: If the self test did not print satisfactorily, see Chapter 4. If it prints correctly, go on to the
next section.
1.8 Connecting the Printer to Your Computer
The printer configures with a parallel interface, two USB interfaces, a serial interface or an Ethernet
interface. (According to specific interface standards) Connect the printer to the computer with the
correct cables. Before you begin, place the printer upright, as shown below. (This makes it easier to
connect the cable.)
Figure 1-9 adjust the right and the left paper guide of the back cover
Figure 1-10 install cut sheets
ASCII Self-test mode
Jolimark DP350 VX.X XXXXXXX/XX/XX SN: 0000000000
!"#$%&’( )*+-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`ab
!"#$%&'( )*+-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcd
"#$%&'( )*+-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`abcde
Figure 1-11 ASCII Self-test mode
