ARRI MAXIMA QL User manual

!
!!1
!
!
!
!
!
!
!
MAXIMA QL
!
!
!
!
!
!
!
!
Date: 29. Jan. 2018
USER MANUAL

!
!!2
!
Imprint!
!
Copyright © 2018 Arnold & Richter Cine Technik GmbH & Co. Betriebs KG.
All rights reserved.
No parts of this document may be reproduced without prior written consent of Arnold & Richter Cine !
Technik GmbH & Co. Betriebs KG. Specifications are subject to change without NOTE. !
Errors, omissions, and modifications excepted. ARRI, ALEXA, AMIRA, LDS and LENS DATA SYSTEM !
are trademarks or registered trademarks of Arnold & Richter Cine Technik GmbH & Co. Betriebs KG. !
All other brands or products are trademarks or registered trademarks of their respective holders and!
should be treated as such. Original version. !
For further assistance:
Arnold & Richter Cine Technik GmbH & Co. Betriebs KG
Türkenstr. 89
80799 München
Germany
www.arri.com
!
!
Document revision history!
!
Version Order Code Release Date!
!
3.0 K4.0019241 F06606 29. Jan 2018!
1.0 01. Oct 2017!
!
!
Scope!
This manual is only focusing on the components and the setup of the MAXIMA QL.
The Control Software the so called GUI is available as a separate manual.
You can find this manual on the USB stick or on the ARRI CSS web page in the download area.
!
Disclaimer !
Before using the products described in this manual, be sure to read and understand all the respective
instructions.
Otherwise the customer must contact ARRI before using the product.
While ARRI endeavors to enhance the quality, reliability and safety of their products, customers agree
and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize the
risk of damage to property or injury (including death) to persons arising from defects in the products,
customers must incorporate sufficient safety measures in their work with the system and heed the
stated conditions of use.
ARRI or its subsidiaries do not assume any responsibility for losses incurred due to improper handling
or configuration of the MAXIMA QL or other system components.
ARRI assumes no responsibility for any errors that may appear in this document. The information is
subject to change without NOTE.
For product specification changes after this manual was published, refer to the latest published ARRI
data sheets or release notes, etc., for the most up-to-date specifications.
Not all products and/or types are available in every country. Please check with an ARRI sales
representative for availability and additional information.
Neither ARRI nor its subsidiaries assume any liability for infringement of patents, copyrights or other
intellectual property rights of third parties by or arising from the use of ARRI products or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted
under any patents, copyrights or other intellectual property right of ARRI or others.
ARRI or its subsidiaries expressly exclude any liability, warranty, demand or other obligation for any
claim, representation, cause, action, or whatsoever, express or implied, whether in contract or not,
including negligence, or incorporated in terms and conditions, whether by statue, law or otherwise. In
no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special,
direct, indirect, incidental, or consequential damages, including, but not limited to lost profits, lost
savings, lost revenues or economic loss of any kind or for any claim by a third party, downtime, good-
will, damage to or replacement of equipment or property, any cost or recovery of any material or
goods associated with the assembly or use of our products, or any other damages or injury of the
persons and so on or under any other legal theory.
In the event that one or all of the foregoing clauses are not allowed by applicable law, the fullest
extent permissible clauses by applicable law are validated. "
Imprint

!
!!3
!
!
Table of contents
1
For your safety
4
2
System Components
5
3
General Safety Instructions
7
4
Camera Preparation
9
5
MAXIMA Preparation
11
6
Changing from Standard to Advanced Mode
13
7
Default User Presets
14
8
Troubleshooting
15
9
MAXIMA Accessories
16
10
Pin Out
19
11
CE / FCC
20
Table of contents

!
!!4
!
!
1 For your safety
!
Before use, please ensure that all users comprehensively read, understand, and follow !
the instructions in this document. !
Risk levels and alert symbols
Safety warnings, safety alert symbols, and signal words in these instructions indicate
different risk levels:!
!
!
Danger indicates an imminent hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not
avoided, may result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
NOTICE
NOTE explains practices not related to physical injury. No safety
alert symbol appears with this signal word.
NOTE
Provides additional information to clarify or simplify a procedure.
!DANGER
!Warning
!CAUTION
For your safety

!
!!5
!
!
!
2System Components
!
!
!

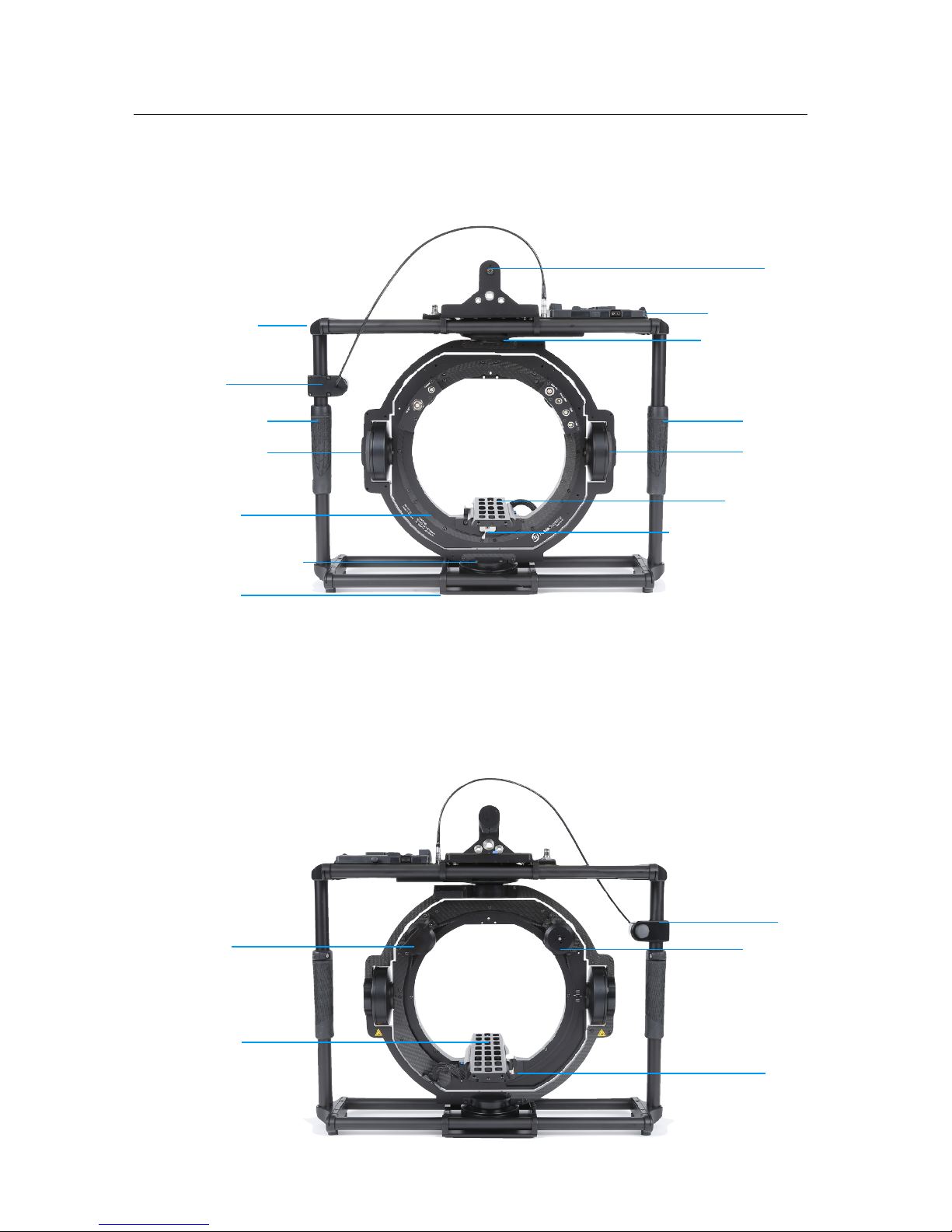

2.1 Functions / Front!
!
!
!
!
!
!
2.2 Functions / Rear
System Components
Joystick
Outer Frame
Lower Pan Axis Motor
Rubber Handle
Pan Axis Motor
Inner Ring
Base Plate
Battery Mount!
Gold Mount or V-Mount
Rubber Handle
Top Handle
Upper Pan Axis Motor
Pan Axis Motor
QL Camera Mount
QL Side to Side Adjustment
Quick Lock
Camera Dovetail Plate
Quick Lock
Fore & Aft Adjustment
Joystick
Roll Axis Motor
Roll Axis Motor

!
!!6
!
!
!

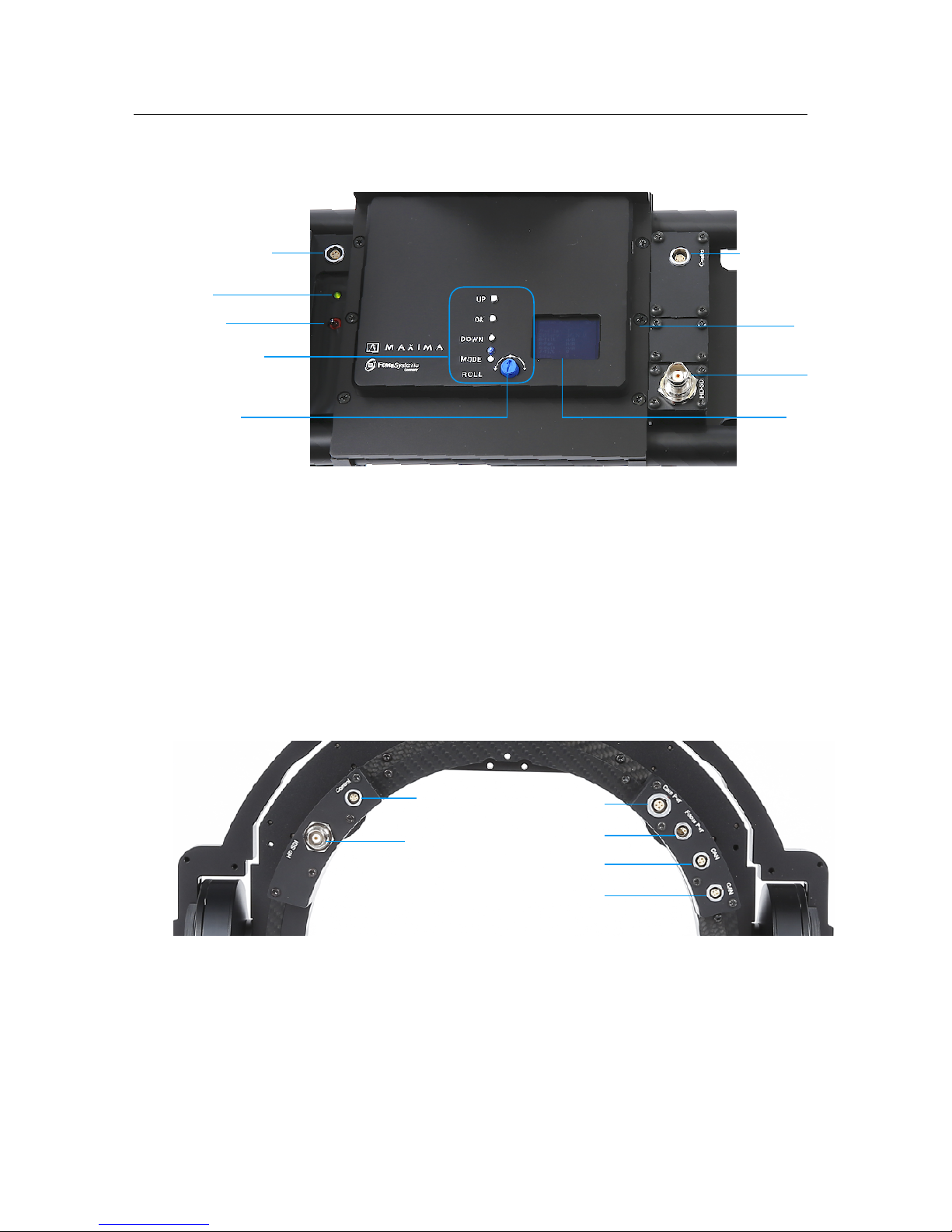

2.3 Functions / Top
!
!
!
!
!
!
!
!
!
2.4 Connectors right and left junction box
!
!
!
2.5 Cam Pwr:!
The 12V high capacity Camera Power (max 10Amp) can be used with following cables:!
!
Cam Power / Cine / 12V HiCap / ALEXA K2.0010538!
Cam Power / Cine / 12V HiCap / ALEXA Mini K2.0010540!
Cam Power / Cine / 12V HiCap / ALEXA Mini / 90° K2.0010565!
Cam Power / Cine / 12V HiCap / Red EPIC K2.0010472
!
!
Control Socket
HD !
SDI Out
USB !
Connector
Display
Joystick Socket
Power Indicator!
LED
Main Power
On/Off
Fine adjustment!
Roll Axis
Control Knobs
HD SDI In
Control
12V High Capacity
Camera Power Out
12V Focus
Power Out
CAN Out
CAN Out
Functions & Connectors

!
!!7
!
!
!
2.6 Focus Pwr:!
The 12V Focus Power (max 10Amp) socket can be used with: !
!
Focus Power / ARRI & cmotion K2.0010548!
!
!
!
!
2.7 HD SDI BNC:!
The 3GHz HD SDI BNC socket can be used with:!
!
BNC Video Cable / HD SDI / 4.5 GHz K2.0010476
!
2.8 Can Bus!
!
NOTE!
This function will be available through future upgrades.!
!
!
!
!
!
!
!
!
!
!
!
2.9 Control:!
!
NOTE!
This function will be available through future upgrades.!
!
!
!
!
!
!
!
!
Functions & Connectors
Do not connect any Video Power Cables to this Socket.!
Do not connect any L-Bus Motors, or other LBUS products.!
to this connector, until your MAXIMA had been updated to LBUS.
!Warning
Do not connect the Joystick plug to this socket!
!Warning

!
!!8
!
!
!
3 Safety Instructions!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Safety Instructions
Please check the MAXIMA QL for proper functioning prior to each use and while
considering the operating instructions. An operation without problems can only
be ensured in this manner. !
!
Only use the lithium batteries provided. Batteries which are not approved can
lead to shorts and to damages of the MAXIMA QL. NiMH batteries must not be
used.!
!
Place the batteries into the holder provided cautiously and with care. !
Check the contacts for damage beforehand.!
Do not subject the MAXIMA QL to humidity and do not immerse it into water. !
Do not short any contacts or modify the power supply or the electronics under
any circumstances.
!CAUTION
The MAXIMA QL contains two separate rings, one for Pan and one for Tilt.!
Both rings can move freely when the MAXIMA is moved out of the hard case and
as long the system is not finally setup.
!Warning
Pay attention during setup that no fingers or other limbs end up between the
outer and inner ring. A high kinetic force can result between the outer and inner
ring, depending on the weight and length of the camera. Serious injuries can
result through negligence.If this does happen then, cut off the power supply
straight away and seek medical attention if necessary.
!DANGER
Ensure that the MAXIMA is switched OFF.!
Under no circumstances push fingers or other limbs in between the moving parts
of the MAXIMA as this can result in injury.
!DANGER

!
!!9
!
!
!
4 Camera Preparation!
!
Foreword!
The entire balancing procedure of the MAXIMA QL system is based on !
SYMMETRY and NEUTRAL BALANCE.!
!
!
!
!
!
!
NOTE!
Only a precisely executed camera preparation will enable you to get the best !
performance out of the MAXIMA QL.!
The camera preparation must meet the following requirements:!
!
!
Compact length!
!
You should keep the COG (center of gravity) of the MAXIMA QL as !
low as possible and the total length of the camera should be as !
compact as possible. !
!
If an ALEXA Mini is being used, a Zoom Lens similar to the ARRI/ !
FUJINON Alura 15.5-45/T2.8 will keep the Camera setup at an !
optimum length.!
If the ARRI ALEXA or AMIRA is being used a Prime Lens will be !
required.!
!
Most box type cameras with a zoom lens are very close to the !
length of a full bodied camera with a prime lens.!
!
!
Low COG (center of gravity)!
!
Any accessories mounted to the camera should be attached as !
low as possible.!
!
!
!
Symmetry!
!
Camera components and accessories that are mounted on the!
camera have to be attached in symmetrically and balanced.!
!
For example:!
If two Focus Motors are needed, use two 15mm rods (equal length !
and same material) and mount them on the base of the camera.!
!
Now place one Focus Motor on each rod. Make sure that the gears are!
facing the front of the lens and the motor housing of the camera body.!
!
If only one Focus Motor is required then two rods are also required. !
Place the Focus Motors vertical below the lens. !
This way you can achieve the need for a low COG and symmetry!
!
!
!
!
!
!
!
Setup with !
two motors
Setup with
one motor
Camera Preparation
Camera Preparation
Camera Preparation

!
!!10
!
!
!
4.1 Secure Component / Accessory Attachment!
!
!
!
!
!
!
!
NOTE!
Make sure that all components of the camera and accessories in the setup are !
fully tightened. !
Ensure that none of the components are loose or have any play to avoid vibration !
and costly performance issues.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

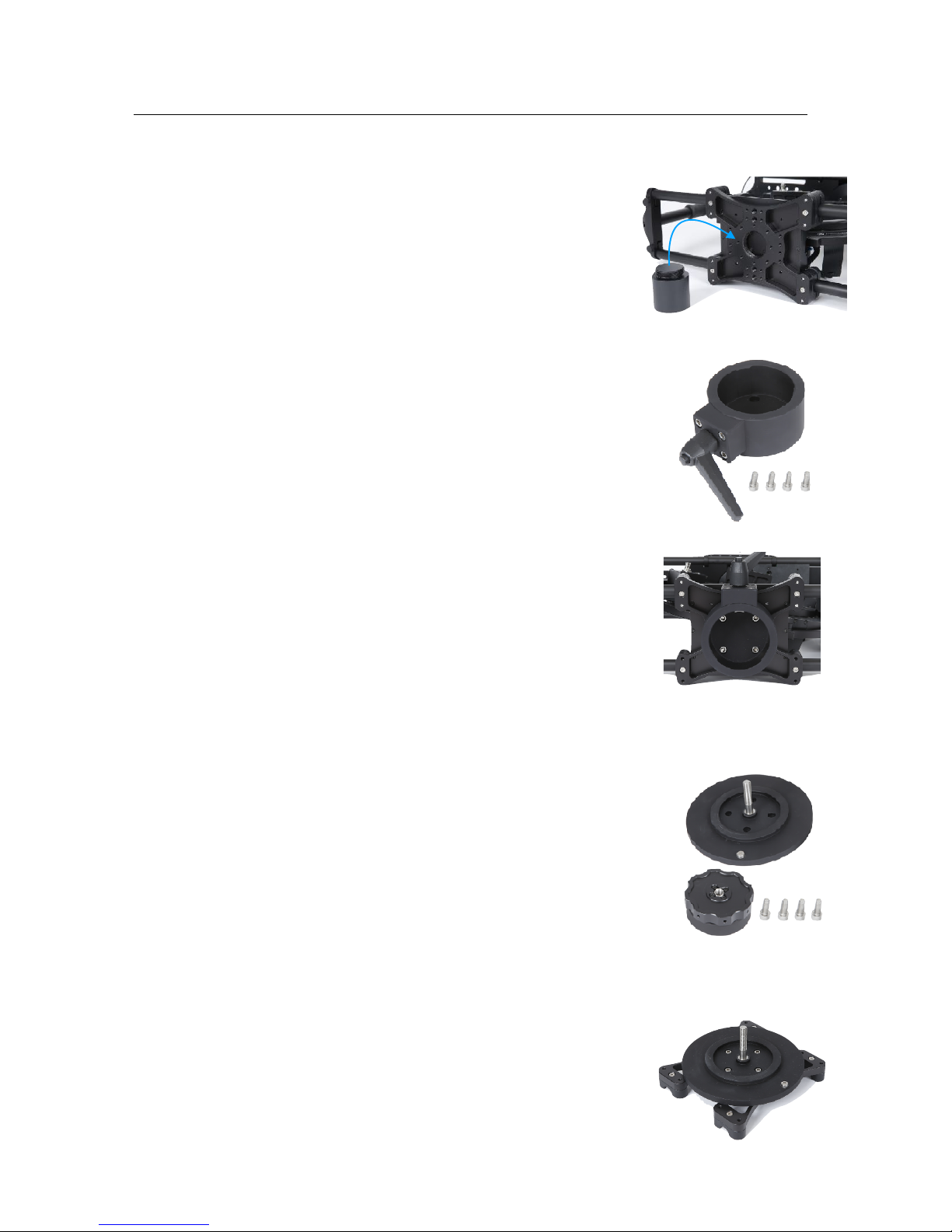

4.2 Mounting the Camera Dovetail Plate!
!
The MAXIMA QL comes with a symmetric camera dovetail plate, the so called !
Quick Lock plate.!
!
!
!
!
!
!
!
!
!
!
NOTE!
Using the SAM1, SAM2 and the SAM3 plates will speed up the later balancing process !
and guarantee the best performance of the MAXIMA QL.
!
!
!
!
!
!
Keep in mind the MAXIMA QL head is a fully stabilized Gimbal with a payload
capacity of 30kg / 66 lb. The amount of available torque is very high.
!CAUTION
Please double check all clamps are tight and that all components are
fitted correctly.!
!
Ensure that MAXIMA QL is switched OFF.
!CAUTION
Always use two 3/8“ or 1/4“ screws to ensure a solid fit. !
Use always two 3/8“ or 1/4“ screw to ensure a solid fit. !
Using only one screw or a short distance between the screws will force !
sidewise rotation of the camera, as also vibration of the entire system. !
So try to maximize the distance in between the camera screws.
!CAUTION
A
Camera Stabilizer Systems (artemis / TRINITY)
Price List - EU 04/2017
Ident Nr Product Description/Weight & Dimensions Price
C-Battery Bracket pre assembledK2.0010297 €350
40x80x130 mm250 gr
Plain bracket to mount transmitters, recorders or other accessories.
Useable area: 12 x 7.5 cm / 4.72'' x 2.95''
For all TRINITY systems / artemis Cine Broadcast / Cine HD Pro / EFP HD
Maxima Mounting PlateK2.0014909 €210
new
Additional cheese plate which can be mounted to the right side at the top of the
MAXIMA. The mounting plate many offers 3/8'' threads.
Length: 12,7 cm Width: 9,2 cm / Length: 5'' Width: 3.62''
For MAXIMA only
Maxima PAN LockK2.0014908 €245
new
Clamp bracket to lock the pan axis of the MAXIMA
For MAXIMA only
SAM-1 Stabilizer Adapter Mount for ALEXAK2.0014022 tba
new
The SAM-1 offers optical-centred mounting of ALEXA Classic, XT and SXT cameras
(not ALEXA Studio, ALEXA M or ALEXA65) on the ARRI Trinity and MAXIMA system.
The SAM-1 is also compatible with third-Party stabilizer systems fitted with a
standard 60mm dovetail.
This product is not available yet. Start of order intake and first customer shipment
date will be announced in an Official Sales Information.
SAM-2 Stabilizer Adapter Mount for ALEXA MiniK2.0014215 tba
new
The SAM-2 offers optical-centred mounting of ALEXA Mini cameras to the ARRI
Trinity and MAXIMA systems. The SAM-2 is also compatible with third party
stabilizer systems fitted with a standard 60mm dovetail.
This product is not available yet. Start of order intake and first customer shipment
date will be announced in an Official Sales Information.
22Page
A
Camera Stabilizer Systems (artemis / TRINITY)
Price List - EU 04/2017
Ident Nr Product Description/Weight & Dimensions Price
C-Battery Bracket pre assembledK2.0010297 €350
40x80x130 mm250 gr
Plain bracket to mount transmitters, recorders or other accessories.
Useable area: 12 x 7.5 cm / 4.72'' x 2.95''
For all TRINITY systems / artemis Cine Broadcast / Cine HD Pro / EFP HD
Maxima Mounting PlateK2.0014909 €210
new
Additional cheese plate which can be mounted to the right side at the top of the
MAXIMA. The mounting plate many offers 3/8'' threads.
Length: 12,7 cm Width: 9,2 cm / Length: 5'' Width: 3.62''
For MAXIMA only
Maxima PAN LockK2.0014908 €245
new
Clamp bracket to lock the pan axis of the MAXIMA
For MAXIMA only
SAM-1 Stabilizer Adapter Mount for ALEXAK2.0014022 tba
new
The SAM-1 offers optical-centred mounting of ALEXA Classic, XT and SXT cameras
(not ALEXA Studio, ALEXA M or ALEXA65) on the ARRI Trinity and MAXIMA system.
The SAM-1 is also compatible with third-Party stabilizer systems fitted with a
standard 60mm dovetail.
This product is not available yet. Start of order intake and first customer shipment
date will be announced in an Official Sales Information.
SAM-2 Stabilizer Adapter Mount for ALEXA MiniK2.0014215 tba
new
The SAM-2 offers optical-centred mounting of ALEXA Mini cameras to the ARRI
Trinity and MAXIMA systems. The SAM-2 is also compatible with third party
stabilizer systems fitted with a standard 60mm dovetail.
This product is not available yet. Start of order intake and first customer shipment
date will be announced in an Official Sales Information.
22Page
A
Camera Stabilizer Systems (artemis / TRINITY)
Price List - EU 04/2017
Ident Nr Product Description/Weight & Dimensions Price
SAM-3 Stabilizer Adapter Mount for AMIRAK2.0014630 tba
new
The SAM-3 offers optical-centred mounting of AMIRA cameras to the ARRI Trinity
and MAXIMA systems. The SAM-3 is also compatible with third party stabilizer
systems fitted with a standard 60mm dovetail.
This product is not available yet. Start of order intake and first customer shipment
date will be announced in an Official Sales Information.
C-Stand Turtle BaseK2.0010433 €195
60x600x950 mm5300 gr
C-Stand with. Removable Turtle Base
Max.󵽱height 155 cm (61´ inch)
For all artemis systems and to park the MAXIMA with mounted Spider K2.0010425.
artemis Post Tool 1.8'' / 1.5''K2.0010461 €125
10x60x150 mm60 gr
Special tool to open the Docking Rings and to adjust the friction of the artemis 1.5''
and 1.8'' gimbals.
4mm Hex Key / 5/32''K2.0010434 €7
10x80x180 mm10 gr
4mm Hex Key - 5/32'' Allen Wrench
6 mm Hex Key (1/4'')K2.0010435 €9
10x100x180 mm10 gr
6 mm Hex Key - 1/4'' Allen Wrench
1.5 mm Hex KeyK2.0010437 €5
10x10x50 mm10 gr
1.5 mm Hex Key
23Page
SAM-1 Stabilizer Adapter Mount for
ALEXA
K2.0014022
SAM-2 Stabilizer Adapter Mount for
ALEXA Mini
K2.0014215
SAM-3 Stabilizer Adapter Mount for
AMIRA
K2.0014630
Camera Preparation

!
!!11
!
!
!
5 Preparing the Quick Lock Camera Mount!
!
The MAXIMA QL comes with a Quick Lock mounting mechanism. !
It offers one clamp mechanism for the Camera Dovetail Plate located at the right
back of the mount and a side to side adjustment located at the front of the mount.!
!
!
!
!
!
!
!
!
!
!
5.1 Centering the Quick Lock Camera Mount!
!
NOTE!
Make sure that the side to side adjustment is in a !
center position before you start with the balancing procedure.!
To move the Quick Lock Camera Mount left and right, the !
clamp leaver at the front Quick Lock Camera Mount has !
tobeopen.!
!
NOTE!
Make sure that the clamp is tightened after the adjustment has been done.!
!
!
!
!
5.2 Opening the Quick Lock Camera Mount!
!
To open the Quick Lock Camera Mount clamp mechanism, !
open the clamp leaver on the right side at the back of the
Quick Lock Camera Mount. !
!
!
After you opened the clamp mechanism you can slide !
in the camera dovetail plate inside the ring.!
!
!
NOTE!
It may be necessary to detach some accessories to mount the camera inside the MAXIMA QL
ring. These can be reattached after the camera is mounted. !
!
NOTE!
When adding or removing components from the camera, adjust the fore and aft to bring the
camera into a neutral and horizontal position.!
!
NOTE!
To remove the camera dovetail plate, you will need to push the safety lock, to be able to
release the plate.!
!
NOTE!
Make sure that the camera is always level front to back with the COG fully neutral when the
camera is horizontally adjusting fore and aft.!
!
NOTE!
When adding or removing components from the camera adjust the fore and aft to bring the
camera into a neutral and horizontal position.!
MAXIMA Preparation
Ensure that the MAXIMA is switched OFF.!
Under no circumstances push fingers or other limbs in between the !
moving parts of the MAXIMA as this can result in injury.
!DANGER

!
!!12
!
5.3 Balancing the camera!
!
Fore and Aft!
To get the entire system in a neutral balance, the !
COG of the camera has to be positioned right in the !
center of the main ring. !
The clamp mechanism allows you to adjust the fore !
and aft adjustments to move the camera in into its !
COG (center of gravity).!
!
NOTE!
Before you finally tighten the camera plate, please move the entire camera !
fore and aft until the camera stays horizontal.!
!
NOTE!
Make sure that the clamp mechanism is fully tighten after the fore and aft adjustment.
A slightly loose screw will produce vibrations.!
!
Side to Side!
At the front of the QL mount, you will find the clamp !
mechanism for the side to side adjustment. !
You should always try to keep the camera setup as !
symmetrical as possible. !
But if the camera is still too heavy on any side, you !
should use the side to side adjustment, to get the !
camera sidewise in perfect COG.!
!
NOTE !
Make sure that the clamp mechanism is fully tighten after the fore and aft adjustment.
A slightly loose clamp will produce vibrations.!
!
!
!
!
!
!
!
!
!
!
5.4 Powering the MAXIMA QL!
!
The MAXIMA QL is available with Gold Mound and with V-Mount battery mounts.!
!
NOTE!
Do not use any low quality batteries from unknown manufactures !
!
To power the MAXIMA QL, the camera and accessories, minimum a 150 Watt !
battery is needed.!
!
!
!
5.5 Connect the camera with the required power cable.!
!
NOTE!
Make sure all power and video cables go through !
the inner ring.!
!
!
!
5.5 Switch on the MAXIMA QL.!
MAXIMA Preparation
Ensure that the MAXIMA is switched OFF.!
Under no circumstances push fingers or other limbs in between the moving
parts of the MAXIMA as this can result in injury.
!DANGER

!
!!13
!
!
!
6 Controls and adjustments operated directly on the MAXIMA QL!
!
!
!
6.1 Changing Profiles !
!
By pressing MODE one time, you will recall profile !
number ONE.!
By pressing MODE twice, you will recall profile !
number TWO.
And so on.!
!
!
!
!
6.2 Changing the Joystick Direction!
!
Operated directly on the TRINITY!
!
• Press OK until Joystick is displayed!
!
• Press OK!
!
• Select: Normal - Inverted - Off by pressing UP or DOWN!
!
• Press OK to confirm your selection!
!
!
!
!
!
!
!
6.3 Paring the Wireless Remote Control!
!
• First switch Off the Remote Control!!
!
• Press OK!
!
• Press Down until you see Remote Pairing!
!
• Press OK!
!
• Now the MAXIMA will start a 10 sec. count down.!
!
• After 5 sec. the MAXIMA will beep.!
!
• Switch ON the wireless Remote Control.!
!
• Now the Remote will be paired!
!
!

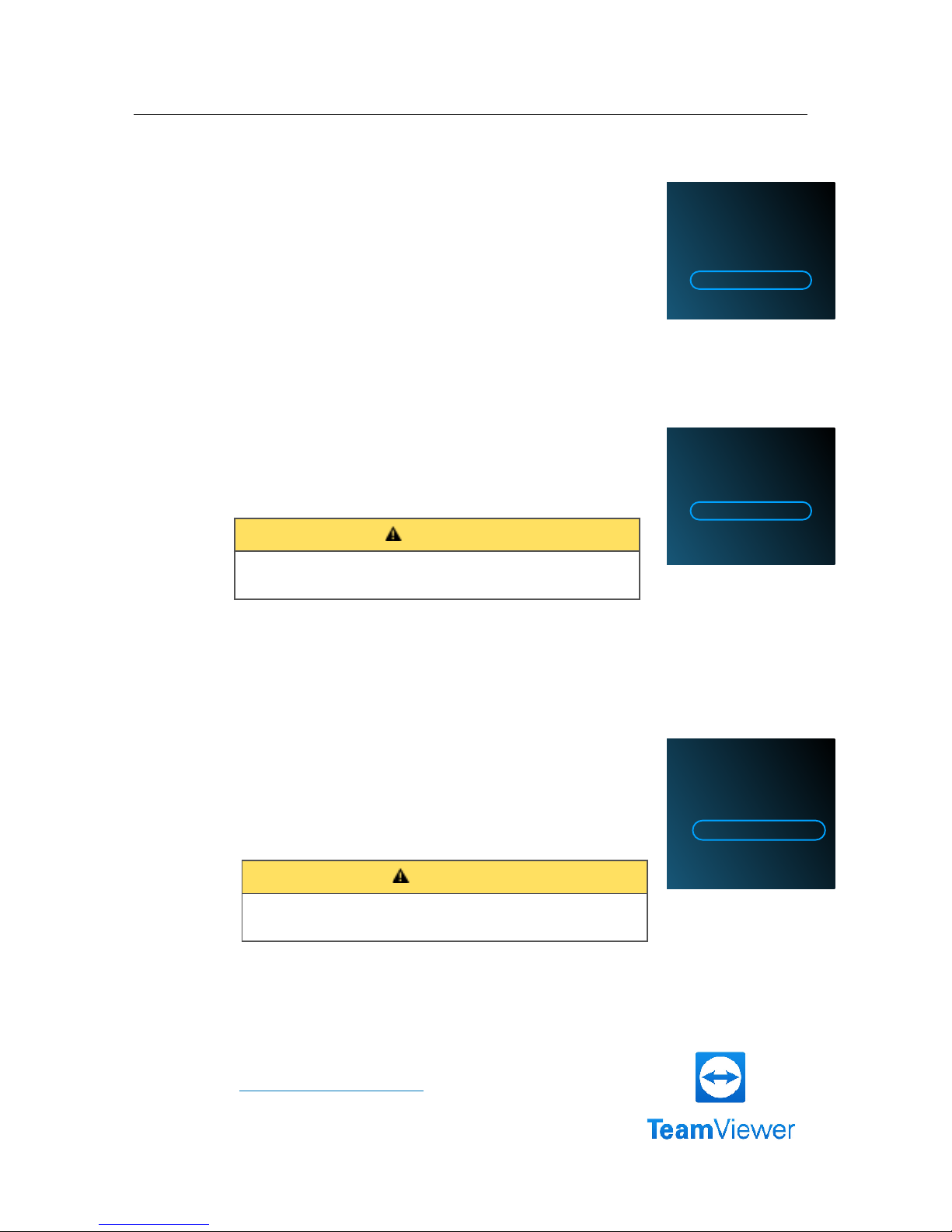

1. Joystick!
2. Remote!
3. Calibration!
4. Remote Pairing!
5. Restore!
6. Info
7. Exit
1. Joystick!
2. Remote!
3. Calibration!
4. Remote Pairing!
5. Restore!
6. Info
7. Exit
On-Board Interface

!
!!14
!
!
!
7 Default User Presets!
!
!
The MAXIMA supplied with this five Default User Presets, which are programmed !
for camera setups up to 10 Kg / 22 lb.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
NOTE!
To be able to change any of this adjustment, you need to install the FoMa Control
software and you need to read the User Manual GUI.!
!
The manual is available on the USB stick and on the ARRI CSS web page in !
the download area.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Profile
Motor
Power
Tilt
Pan
Feels
Good for
1
45
Follow
Follow
Very
direct
Handheld Look
2
45
Fully
Stabilized
Follow
Very
direct
Handheld Look
3
45
Follow
Follow
Less
direct
Easy Rig / running shots
4
45
Fully
Stabilized
Follow
Less
direct
Easy Rig / running shots
5
45
Fully
Stabilized
Fully
Stabilized
Very
direct
To be used with the wireless
control or wheels
Default User Presets

!
!!15
!
!
8 Troubleshooting!
!
8.1 Service Information!
!
For Service and Remote Access we will need to !
know the firmware version and serial number.
•Press OK
•Press DOWN until Info is displayed
•Press OK to confirm
•Now you can see the required information
!
!
8.2 Restore Sensors!
!
If the MAXIMA is hard to control or having troubles !
holding its position, it will be helpful to reset the sensors.
•Press OK
•Press DOWN until Restore is displayed
•Press OK to confirm
•Press DOWN until Sensors is displayed
•Press OK to confirm!
!
!
!
!
!
!
8.3 Restore Settings!
!
If you are working with a rental unit, it will make sense !
to restore the MAXIMA / TRINITY to factory setup. !
!
This will ensure that you will not be confronted with any !
unknown settings.
•Press OK
•Press DOWN until Restore is displayed
•Press OK to confirm
•Press DOWN until Setting is displayed
•Press OK to confirm!
!
!
!
!
!
!
!
!
8.4 Remote Access
!
The service team can remotely access the MAXIMA or TRINITY.
To enable us to access your MAXIMA or TRINITY, you need to !
install the „TeamViewer“ software on your PC first.!
https://www.teamviewer.com
Then you need to contact the ARRI service.
NOTE
You will need a stable internet connection.!
!
1. Joystick!
2. Remote!
3. Calibration!
4. Remote Pairing!
5. Restore!
6. Info
7. Exit
1. Joystick!
2. Remote!
3. Calibration!
4. Remote Pairing!
5. Restore!
6. Info
7. Exit
1. Joystick!
2. Remote!
3. Calibration!
4. Remote Pairing!
5. Restore!
6. Info
7. Exit
Do not touch or move the MAXIMA while you restore !
the Setting! Wait until the MAXIMA is back in operation.
!CAUTION
Do not touch or move the MAXIMA while you restore !
the Setting! Wait until the MAXIMA is back in operation.
!CAUTION
Troubleshooting

!
!!16
!
!
!
9 MAXIMA Accessories!
!
!
!
!
!
!
!
9.1 Mounting the Top Holder (K2.0010336)!
!
NOTE!
A 4mm 5/32” hex key is needed.!
!
!
Open and remove the screw on the top of MAXIMA QL,!
which secures the top handle.!
!
Remove the Top Handle.!
!
Engage both hooks of the Top Mount with the !
rod at the back of the MAXIMA QL.!
!
!
Bring back the screw and tighten it.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
9.2 Mounting the Spider (K2.0010425)!
!
NOTE!
A 4mm 5/32” hex key is needed.!
!
Open all eight M4 screws and remove !
all four top covers of the Spider.!
!
Place the bottom of the MAXIMA QL inside the Spider.!
!
Place the four top covers of the Spider onto !
the bottom rods of the MAXIMA QL and tighten !
the eight screws.!
!
!
!
!
!
!
NOTE!
You can mount three different adapters at the bottom !
of the Spider.!
Accessories
Make sure that the screw is fully tightened.
!CAUTION
Do not over tighten the 8 screws.
!CAUTION

!
!!17
!
!
!
9.3 Cone Mount !
!
If you want to use the MAXIMA QL with an artemis !
spring arm or any other arm using a Ø 5/8'' (15.8 mm) !
arm posts, you need to attached the included Cone Mount.!
!
NOTE!
For use with a spring arm, the 10“ arm post (K2.0010455) !
is needed, to ensure enough clearance between the frame !
of the MAXIMA QL and the arm chassis.!
!
!
!
!
!
!
!
9.4 Euro Mount!
!
If you want to use the MAXIMA QL with an !
Euro Mount (K2.0010426), you need to attach !
the optional Euro Mount to the bottom of the Spider.!
NOTE!
A 4mm 5/32” hex key is needed.!
!
!
Place the Euro Mount right in the center of the spider,!
as shown.!
!
NOTE!
Place the four screws and ensure that all screws are !
tightened.!
!
!
!
!
!
!
9.5 Mitchell Mount!
!
If you want to use the MAXIMA QL with an !
Mitchell Mount (K2.0010427), you need to !
attach the optional Mitchell Mount at the !
bottom of the Spider.!
!
!
!
!
!
NOTE!
A 4mm 5/32” hex key is needed.!
!
Place the Mitchell Mount right in the center of the !
spider, as shown.!
!
Place the four screws and ensure that all screws!
are tightened.!
!
Accessories

!
!!18
!
!
!
9.6 Mounting Plate!
!
!
!
If you need to add more accessories to the top of the !
MAXIMA QL, you need to add the !
Maxima Mounting Plate (K2.0014909).!
!
!
!
!
Place the plate onto the top right of the MAXIMA QL.!
!
The three screws can be reached from the bottom.!
!
!
!
!
!
!
9.7 Pan Lock!
!
From time to time you might need a more „handheld“ look.!
So it will be necessary to lock the pan axis of the MAXIMA QL.!
!
!
!
The Maxima Pan Lock (K2.0014908) will allow you to lock !
the pan axis.!
!
!
!
Open both Clamps and place the bracket onto the rods.!
move the Bracket under the outer ring and tighten the !
clamp screws.!
!
!
!
NOTE!
The lock can also be used for transportation purposes.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Accessories
Before using the Pan Lock, you need to switch
OFF the Pan Motors using the GUI!!
!
!
Using the Pan Lock with an active motor will
cause over heating and possible failure of the !
Pan motors.
!CAUTION

!
!!19
!
!
!

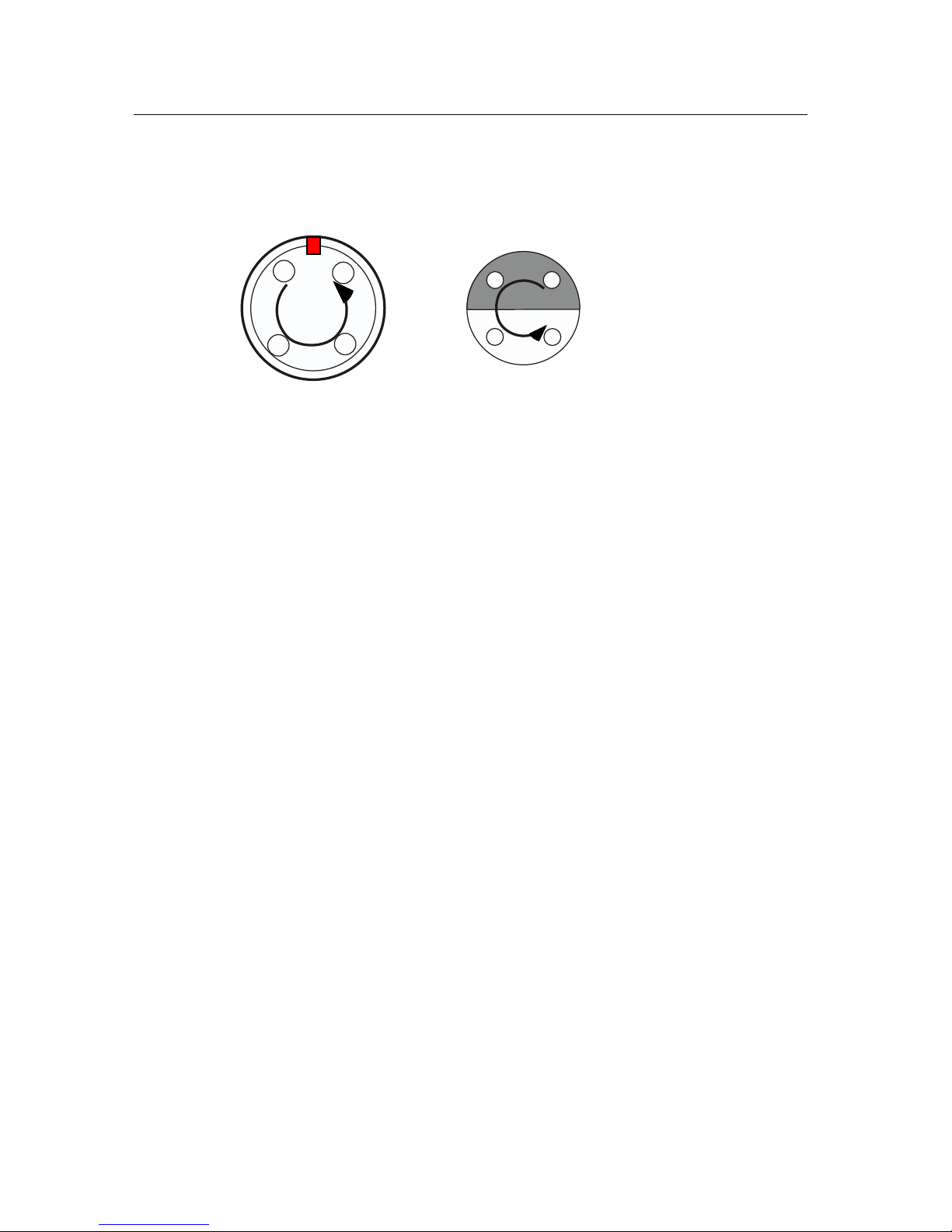

10 Pin Out
1
23
4
Camera Power Out
Lemo 1B 304
Pin 1 12V plus
Pin 2 Ground
Pin 3 Ground
Pin 4 12V plus
1
2
34
Focus Power Out
Lemo 0S 304
Pin 1 12V plus
Pin 2 NC
Pin 3 Ground
Pin 4 NC
1
2
3
Lemo 0S 303
Pin 1 12V plus
Pin 2 Ground
Pin 3 Tally
Aux Power / Tally Out
1
2
Power Out
Lemo 0B 304
Pin 1 Ground
Pin 2 12V plus
1
2
34
Ext. Power In
Lemo 1S 304
Pin 1 12V plus
Pin 2 Ground
Pin 3 Ground
Pin 4 12V plus
5
1
34
2
6
Lemo 0B 306
Pin 1 Can Low ARRI
Pin 2 Can High ARRI
Pin 3 Can Low
Pin 4 Can High
Pin 5 12V plus
Pin 6 Ground
Ext / Control
Pin Out

!
!!20
!
!
!
11 CE / FCC!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
ISO 9001:2009
Hard- und Software Entwicklung
Foltyn Industriesystemelektronik GmbH •Strengenbergstraße 24 •D-90607 Rückersdorf
Foltyn Industriesystemelektronik GmbH •Strengenbergstraße 24 •D-90607 Rückersdorf •Telefon [phone] •Telefax [phone]
Geschäftsführer: Dr.-Ing. Roman Foltyn •HRB 12 398 •DE 811 609 259
Maxima CE.doc Seite 1 / 1
Declaration of Conformity
Product Type Camera Stabilizer Systems
Brand Name MAXIMA
Product Name SMX20 / SMX30 (maybe followed by suffixes)
Address Foltyn Industriesystemelektronik GmbH
Strengenbergstraße 24
D-90607 Rückersdorf
The product complies witch the requirements of the following European directives:
2004/108/EG Directive of the European Parliament and of the council on the approxima-
tion of the Laws of the Member States relating to electromagnetic compati-
bility.
Compliance was proved by the application of the following standards:
EN 55011 : 2009 +A1 : 2010
EN 55022 : 2010 +AC : 2011
EN 61000-6-2 : 2005 +AC : 2005
2011/65/EU Directive of the European Parliament and of the council on the
restriction of the use certain hazardous substances in electrical and elec-
tronic equipment.
Compliance was proved by the application of the following standards:
EN 50581 : 2012
Year of the first marking: 2015
Rückersdorf, 2015-04-20
Roman Foltyn
CEO
CE / FCC
