JVC KA-MR100G User manual

Memory Recorder
KA-MR100G INSTRUCTIONS
LST0838-001A
Thank you for purchasing this JVC product. Before
beginning to operate this unit, please read the
instructions carefully to ensure the best possible
performance.
For Customer Use:
Enter below the Serial No. which is located on the
body. Remain this information for future reference.
Model No. : KA-MR100G
Serial No. :
KA-MR100G_EN.book Page 1 Thursday, February 5, 2009 5:28 PM

I
Getting Started
1.
Readall of these instructions.
2.
Save these instructionsfor later use.
PORTABLE CART WARNING
(symbol provided by RETAC)
S3125A
IMPORTANT SAFEGUARDS
4.
Unplug thisappliance system from the wall outlet before cleaning. Do not use liquid cleanersor aerosol
cleaners.Useadamp cloth for cleaning.
5.
Do not useattachmentsnot recommended by the appliance manufacturer as they maycausehazards.
6.
Do not use thisappliance nearwater - for example, nearabathtub,washbowl, kitchen sink, or laundry tub,inawet
basement, or nearaswimming pool, etc.
7.
Do not place thisappliance on anunstable cart, stand, or table. The appliance mayfall,
causing serious injury to achild or adult, and serious damage to the appliance.
Use only with acart or stand recommended by the manufacturer, or sold with the appliance.
Wall or shelf mounting should follow the manufacturer'sinstructions,and should usea
mounting kit approved by the manufacturer. An appliance and cart combination should be
moved with care.
Quick stops, excessive force, and uneven surfacesmaycause the appliance and cart
combination to overturn.
8.
Slotsand openingsin the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation of
the appliance and to protect it from overheating, these openingsmust not beblocked or covered. The openingsshould
never beblocked byplacing the appliance on abed, sofa,rug, or other similarsurface.
Thisappliance should never beplaced near or over aradiator or heat register.
Thisappliance should not beplaced in abuilt-in installation such asabookcaseunless proper ventilation isprovided.
9.
Thisappliance should be operated only from the type of power source indicated on the marking label. If youare not sure
of the type of power supplied to your home, consult yourdealer or local power company. For appliance designed to
operate from battery power, refer to the operating instructions.
10.
For added protection for thisproduct during alightning storm, or when it isleft unattended and unused for long periods
of time, unplug it form the wall outlet and disconnect the antennaor cable system. Thiswill prevent damage to the
product due to lightning and power-line surges.
These are general IMPORTANT SAFEGUARDSand certain items may not apply to all appliances.
3.
All warningson the product and in the operating instructionsshould beadhered to.
FOR USA
14.
Never pushobjectsof any kind into thisappliance through cabinet slotsasthey maytouch dangerous voltage pointsor
short outpartsthatcould result in afire or electric shock. Never spill liquid of any kind on the appliance.
15.
Do not attempt to service thisappliance yourself as opening or removing coversmay exposeyouto dangerous voltage
or other hazards. Refer all servicing to qualified service personnel.
16.
Unplug thisappliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power cord or plugisdamaged or frayed.
b. If liquid has been spilled into the appliance.
c. If the appliance has been exposed to rain or water.
d.
e. If the appliance has been dropped or the cabinet has been damaged.
f.
If the appliance doesnot operate normally by following the operating instructions. Adjust only those controlsthat
are covered by the operating instructionsasimproper adjustment of other controlsmayresult in damage and will
often require extensive work byaqualified techniciantorestore the appliance to normal operation.
When the appliance exhibitsadistinct change in performance - thisindicatesaneed for service.
17.
When replacement partsare required, besure the service technicianhas used replacement partsspecified by the
manufacturer thathave the same characteristicsasthe originalpart. Unauthorized substitutionsmayresult in fire,
electric shock, or other hazards.
18.
Upon completion of any service or repairsto thisappliance, ask the service technician to perform routine safety checks
to determine that the appliance isin safe operating condition.
13.
Do not overloadwall outletsand extension cordsasthiscanresult in fire or electric shock.
12.
Follow all warningsand instructionsmarked on the appliance.
11.
Do not allow anything to rest on the power cord. Do not locate thisappliance where the cord will beabused by persons
walking on it.
KA-MR100G_EN.book Page I Thursday, February 5, 2009 5:28 PM

II
Safety Precautions
CAUTION:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
FOR USA AND CANADA
TO REDUCE THE RISK OF ELECTRIC
SHOCK. DO NOT REMOVE COVER (OR
BACK).
NO USER-SERVICEABLE PARTSINSIDE .
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
INFORMATION:
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
CAUTION:
CHANGES OR MODIFICAT IONS NOT APPROVED BY JVC
COULD VOID USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
NOTE:
The rating plate (serial number plate) is on this unit.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES.
OPERAT ION IS SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERAT ION.
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to
persons.
POUR CANADA
ATTENTION
RISQUE D’ELECTROCUTION NE
PAS OUVRIR
ATT ENTION: POUR EVITER TOUT RISQUE D’ELECTROCUTION
NE PAS OUVRIR LE BOITER.
AUCUNE PIECE INTERIEURE N’EST A REGLER
PAR L’UTILISATEUR.
SE REFERER A UN AGENT QUALIFIE EN CAS DE
PROBLEME.
Le symbole de l’éclair àl’intérieur d’un triangle
équilatéral est destiné à alerter l’utilisateur sur la
présence d’une “tension dangereuse” non isolée
dans le boîtier du produit. Cette tension est
suffisante pour provoquer l’électrocution de
personnes.
Le point d’exclamation àl’intérieur d’un triangle
équilatéral est destiné à alerter l’utilisateur sur la
présence d’opérations d’entretien importantes au
sujet desquelles des renseignements se trouvent
dans le manuel d’instructions.
Ces symboles ne sont utilisésqu’aux Etats-Unis.
INFORMATION (FOR CANADA)
RENSEIGNEMENT (POUR CANADA)
This Class A digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la Class A est conforme à la
norme NMB-003 du Canada.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION:
This unit should be used with 12V DC only.
To prevent electric shocks and fire hazards, do NOT use any
other power source.
NOTE:
The rating plate (serial number plate) is on the unit.
REMARQUE:
La plaque signalétique (plaque du numéro desérie) est située sur
le cadre inférieur de l’unité.
CAUTION:
To prevent electric shock, do not open the cabinet. No user
serviceable parts inside. Refer servicing to qualified service
personnel.
Due to design modifications, data given in this instruction book
are subject to possible change without prior notice.
The apparatus shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases, shall be placed
close to the apparatus.
.
AVERTISSEMENT:
POUR EVITER LES RISQUES
D'INCENDIE OU D'ELECTROCUTION, NE PAS
EXPOSER L'APPAREIL A L'HUMIDITE OU A LA
PLUIE.
ATTENTION:
Ce magnétoscope ne doit être utilisé que sur du courant
direct en 12V.
Afin d’eviter tout resque d’incendie ou d’electrocution, ne
pasutillser d’autressourcesd’alimentation électrique
KA-MR100G_EN.book Page II Thursday, February 5, 2009 5:28 PM

III
Getting Started
FOR EUROPE
This equipment is in conformity with the provisions and protection
requirements of the corresponding European Directives. This
equipment is designed for professional video appliances and can be
used in the following environments:
●Controlled EMC environment (for example, purpose-built broad-
casting or recording studio), and rural outdoors environments.
In order to keep the best performance and furthermore for
electromagnetic compatibility we recommend to use cables not
exceeding the following lengths:
Safety Precautions
(continued)
Cable Maximum Cable
Length
IEEE1394 CABLE Shield Cable 0.2 m
Caution:
Where there are strong electromagnetic waves or magnetism, for
example near a radio or TV transmitter, transformer, motor, etc.,
the picture and the sound may be disturbed. In such case, please
keep the apparatus away from the sources of the disturbance.
Dear Customer,
This apparatus is in conformance with the valid European directives and
standards regarding electromagnetic compatibility and electrical safety.
European representative of Victor Company of Japan, Limited is:
JVC Technical Services Europe GmbH
Postfach 10 05 04
61145 Friedberg
Germany
Sehr geehrter Kunde, sehr geehrte Kundin,
dieses Gerät stimmt mit den gültigen europäischen Richtlinien und
Normen bezüglich elektromagnetischer Verträglichkeit und
elektrischer Sicherheit überein.
Die europäische Vertretung für die Victor Company of Japan,
Limited ist:
JVC Technical Services Europe GmbH
Postfach 10 05 04
61145 Friedberg
Deutschland
Information for Userson Disposal of Old Equipment
[European Union]
Attention:
Thissymbol indicatesthat the electricaland electronic
equipment should not bedisposed as generalhousehold
waste atitsend-of-life. Instead, the product should behanded
over to the applicable collection point for the recycling of
electricaland electronic equipment for proper treatment,
recovery and recycling in accordance with yournational
legislation.
By disposing of thisproduct correctly, youwill help to conserve
naturalresourcesand will help prevent potential negative
effectson the environment and humanhealth which could
otherwisebecaused byinappropriate waste handling of this
product. For more information about collection point and
recycling of thisproduct, please contact your localmunicipal
office, yourhousehold waste disposalservice or the shop
where youpurchased the product.
Penaltiesmaybeapplicable
for incorrect disposalofthiswaste, in accordance with national
legislation.
(Business users)
If youwish to dispose of thisproduct, please visit ourweb
page http://www.jvc.euto obtain information about the take-
back of the product.
[Other Countriesoutside the European Union]
If youwish to dispose of thisproduct, pleasedosoin
accordance with applicable national legislation or other rules
in yourcountry for the treatment of old electricaland
electronic equipment.
Thissymbol isonly valid in the European
Union.
KA-MR100G_EN.book Page III Thursday, February 5, 2009 5:28 PM

2
This is a memory recorder to record and play back HD-format video
images and audio signals on an SxS memory card via the IEEE1394
interface.
Use of SxS Memory Card
The use of MPEG-2 Long GOP compression format and SxS
memory card enables long-duration recording and high-speed
transfer as described below.
●Supports long-duration recording of HD images up to 180
minutes (when capacity is 32 GB and mode is set to 720p).
●Enables high-speed data transfer to a computer, thus enhancing
workflow efficiency.
Attachment to Professional HD Camcorders
●This memory recorder can be attached to the GY-HD200/HD250
HD camcorder series to enhance shooting that requires a high
level of mobility.
●Besides recording to SxS memory cards, hybrid recording and
series recording through combined use with cassette tapes are
also supported.
Use of MP4 File Format T1
●MP4 file format, compliant file format used on the “XDCAM EX”.
TPlay back compatibility may be not guaranteed on the different
type products, due to variation of supported recording mode.
T1:MP4 File Format
This format adopts the Professional Memory Card System
Format licensed from Sony Corporation.
Getting Started
Safety Precautions ....................................................................... II
Features ....................................................................................... 2
Contents ......................................................................................2
Precautions .................................................................................. 3
Name and Function of Parts ........................................................4
LCD Panel Displays ..................................................................... 5
Setup

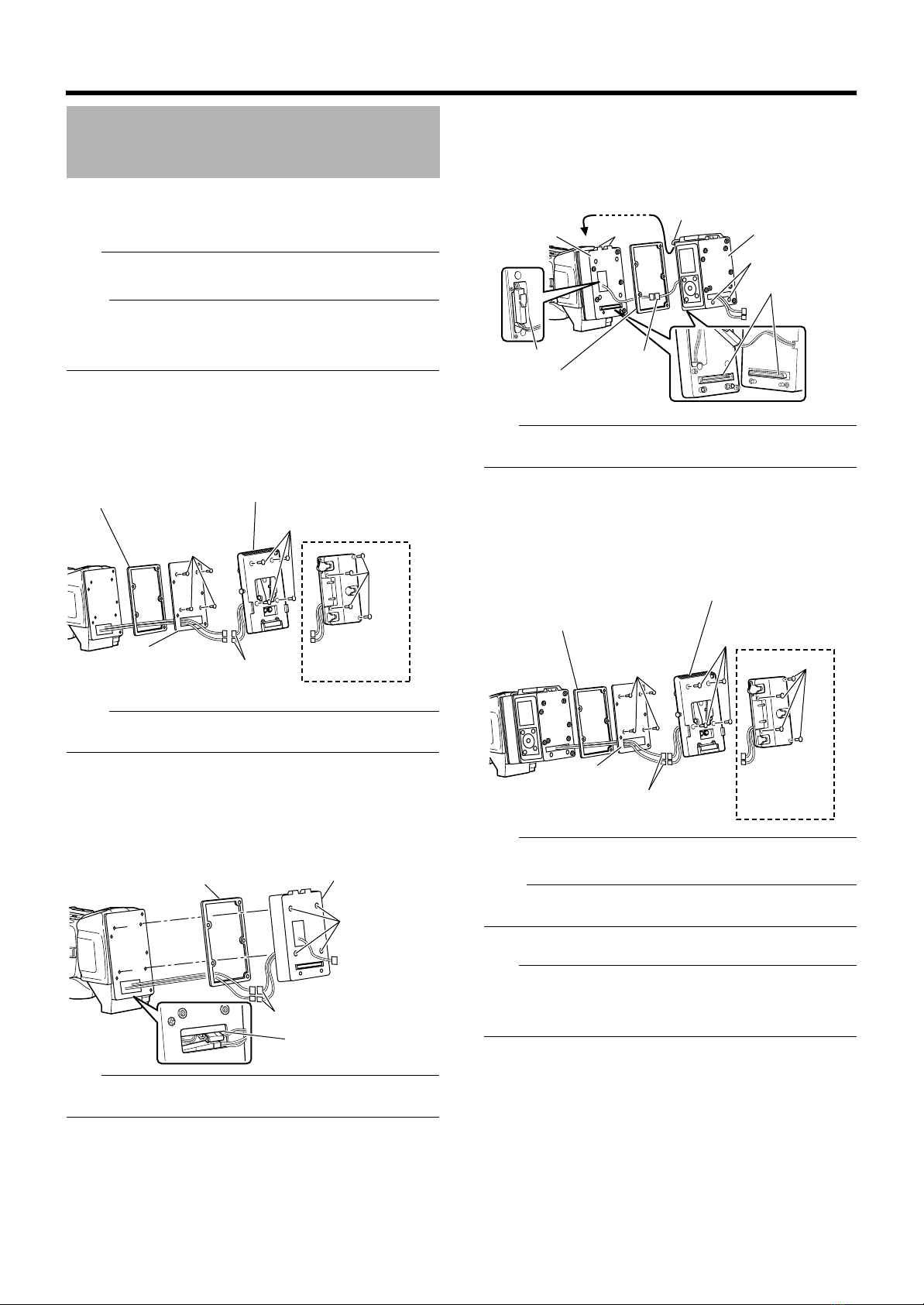

Attaching the Memory Recorder to a Camcorder ........................ 6
Connecting IEEE1394 .................................................................7
Turning On/Off the Power ............................................................ 7
Setting the Date/Time .................................................................. 7

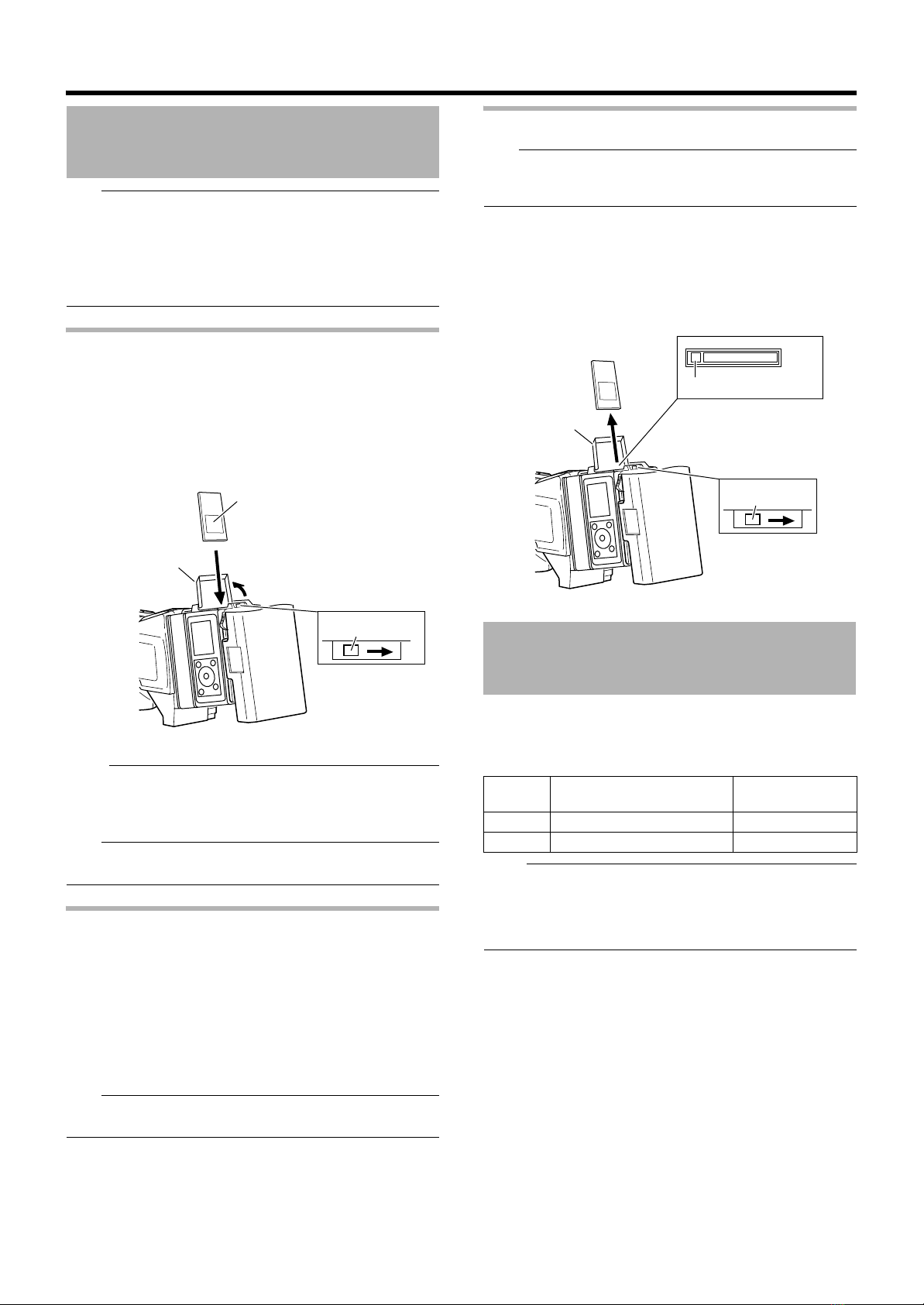

Inserting/Removing the SxS Memory Card ................................. 8
Maximum Recording Time of SxS Memory Card ........................ 8
Operation

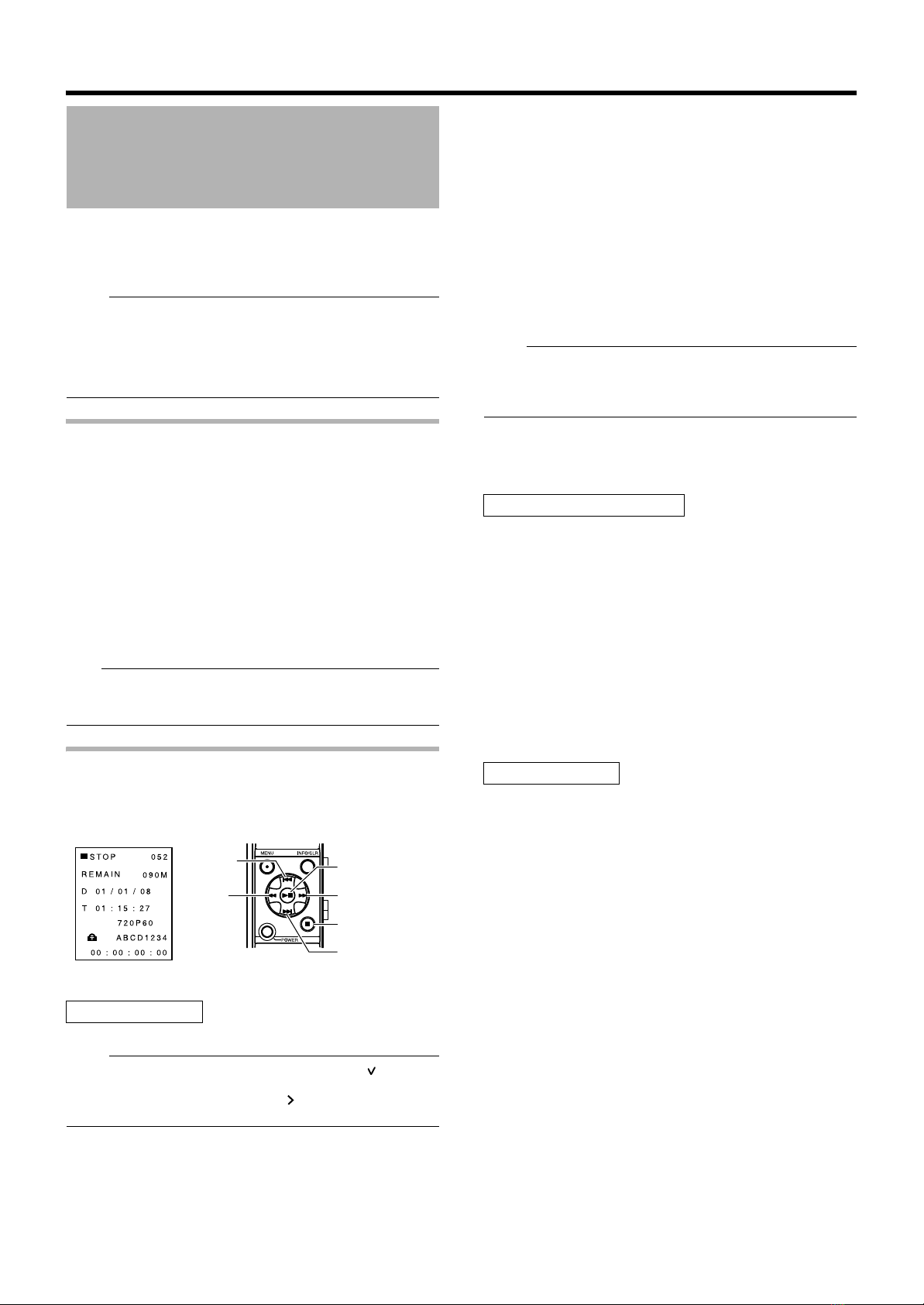

Recording Video Images of the Camcorder Using the Memory
Recorder ...................................................................................... 9
Playing Video Images Recorded in the Memory Recorder ........ 10
Menu
Setting the Menu Screen ........................................................... 11
Menu Screen Configurations and Functions .............................. 12
Others
Warning Messages ....................................................................14
Error Messages ......................................................................... 14
Troubleshooting ......................................................................... 15

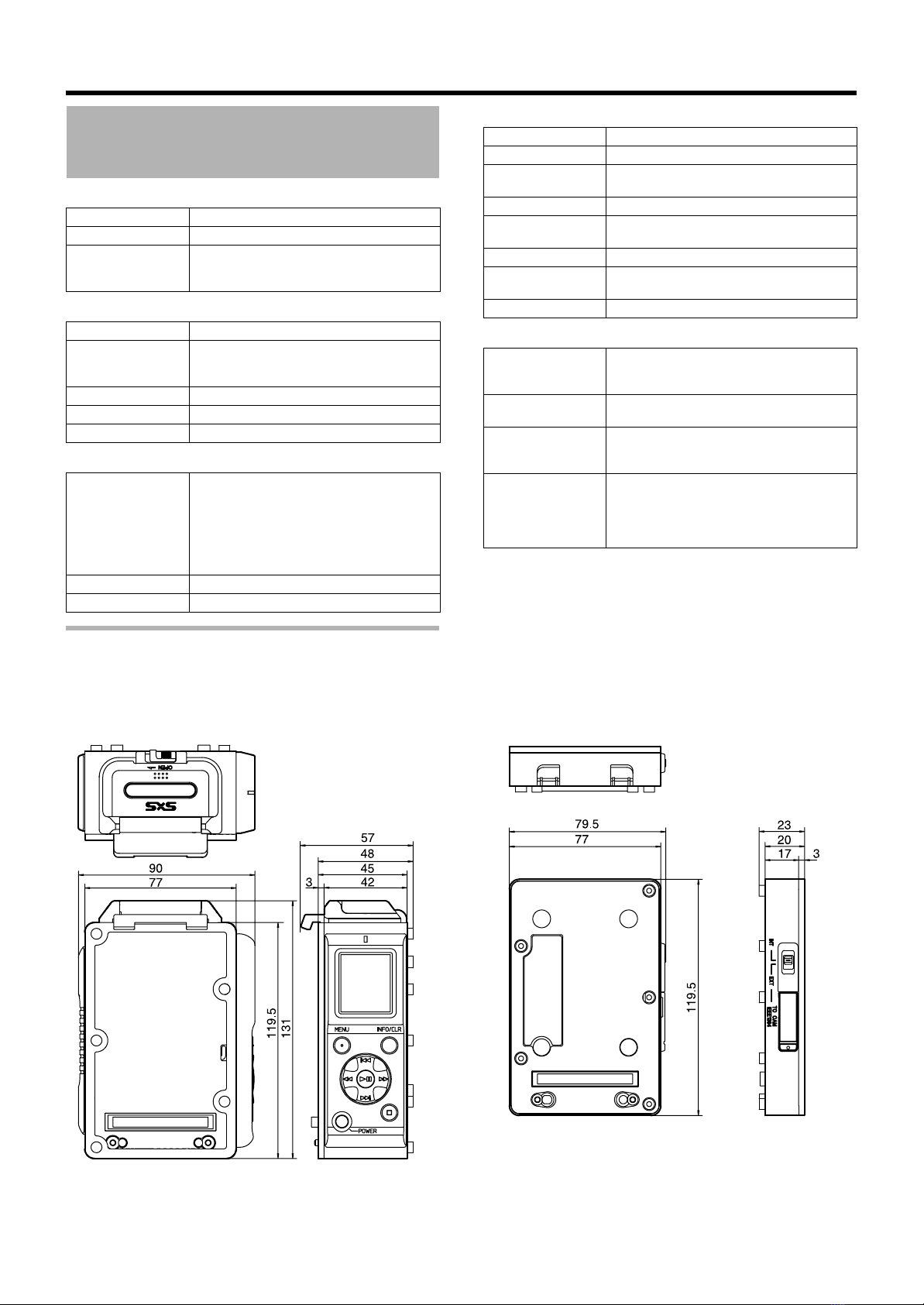

Specifications ............................................................................ 16
UTC Time Difference Chart by Region ...................................... 17
Features
The following are included in the bundled CD-ROM.
<Softwares>
●SxS memory card device driver software for computers
●Computer application software (JVC ProHD Clip Manager)
●Plugin software for Final Cut Pro (JVC ProHD Log and Transfer
Plugin) T1
T1: AFinal Cut ProBis a video editing software developed by
Apple Inc.
<Documents>
●KA-MR100G instruction manual
(Japanese, English, German, French, Italian, Spanish,
Russian, and Chinese versions)
●SxS memory card device driver software installation guide
●JVC ProHD Clip Manager user’s guide/JVC ProHD Log and
Transfer Plugin user’s guide.
For procedures on how to install the application software on a
computer, please refer to the user’s guide or instruction
manual.
Copyrights
●Broadcasting for profit or public viewing of the video and
audio contents recorded using this product may infringe
on authors’ rights protected by copyright law.
●Recorded video and audio contents cannot be used
without the consent of the right-holder under copyright
law, except for personal enjoyment.
Contents
How to Read thisManual
䡵Symbolsused in thismanual
Note : States precautions to be taken during operation.
Memo : States restrictions on the functions or use of this
equipment. For reference purposes.
A: Indicates the page numbers or items to refer to.
䡵Contentsof thismanual
●JVC holds the copyright to this manual. Any part or all of this
manual may not be reproduced without prior consent from the
company.
●Product names of other companies described in this manual
are trademarks or registered trademarks of the respective
companies. Symbols such as 姠, 姞and 姝are omitted in this
manual.
●Design, specifications and other contents described in this
manual are subject to change for improvements without prior
notice.
●XDCAM EX is Sony Corporation’s brand name for its
professional video camera series.
●Windows is a registered trademark of Microsoft Corporation in
the U.S.
●Mac OS and Final Cut Pro are trademarks of Apple Inc.,
registered in the United States and other countries.
KA-MR100G_EN.book Page 2 Thursday, February 5, 2009 5:28 PM

3
Getting Started
Storage and Operating Environment
䡵 Do not store thisproduct in the following environments.
Doing so may result in malfunction or failure.
●Hot or cold locations beyond the allowable operating
temperature range of 0 Ito 40 I.
●Locations beyond the allowable operating humidity range
of 30 % RH to 80 % RH (no condensation)
●Near equipment that emits strong magnetic fields, such as
transformers or motors
●Near equipment that emits radio waves, such as
transceivers and mobile phones
●Locations with excessive dust and sand
●Locations that are subjected to strong vibrations
●Locations prone to moisture, such as window side
●Locations that are subjected to steam or oil, such as
kitchens
●Locations that are subjected to radiation, X-rays, or
corrosive gases
Precautionsfor Handling the
Memory Recorder
●When connecting and recording with a camcorder other
than GY-HD200/GY-HD250, the recording may not work
properly.
●Playing back clips that are created on devices other than
the KA-MR100G Memory Recorder may result in distorted
images and choppy sound.
●Please do not use the battery that cannot be connected
with this product.
●Make sure that the power switch is turned off before
removing the battery. Failure to do so may result in
malfunction of the memory recorder or SxS memory card.
●Do not unplug the IEEE1394 cable during recording or
playback.
●When power is not supplied for a prolonged period of time
(three months or longer), the initial setting screen appears
when the power is next turned on.
●Do not place objects on the memory recorder.
●This product cannot be used by connecting the IEEE1394
terminal of the KA-UM100G adapter (sold separately) to
the computer.
●Please contact our authorized dealers if inspection of the
interior components or repair is required.
Fire Hazard, Electrical Shock and
Injury
●Do not place this product on unstable surfaces as it may
fall and lead to injuries or malfunction of the product. When
this product is attached to a camcorder, carry it by holding
the handle of the camcorder.
●Do not remove or modify the cover of this product. It might
result in fire, electrical shock or malfunction of the product.
●Do not insert objects other than the memory card into the
card slot. Inserting a metallic or flammable object may
result in fire, electrical shock or malfunction of the product.
Accessories
䡵To use the ExpressCard slot on the computer,
installation of the SxS memory card device driver
software isrequired. The driver can be found in
the bundled CD-ROM.
䡵To copy a video clip to the computer,
installation of the computer application software
(JVC ProHD Clip Manager) isrequired. This
program can be found in the bundled CD-ROM.
䡵To load recorded video clipsto Apple Inc.’s
video editing software, Final Cut Pro, installation
of the Final Cut Pro plugin software (JVC ProHD
Log and Transfer Plugin) isrequired. This
software can be found in the bundled CD-ROM.
䡵For procedureson how to install the software,
please refer to the user’sguide and instruction
manual in the bundled CD-ROM.
Precautionsfor Handling SxS
Memory Cards
䡵Make sure that the SxS memory card is
formatted on thismemory recorder. SxS memory
cardsthat are formatted on another product
cannot be used on thismemory recorder.
䡵Formatting an SxS memory card erasesall clips
that are stored on the card.
䡵Make sure to close the card slot cover before
using the memory card.
䡵Do not operate the write-protect switch of the
SxS memory card when it isinserted into the
memory recorder.
䡵For details, please refer to the instruction
manual of the SxS memory card.
Precautionsfor Handling Recorded
Video Clips
䡵We do not guarantee against damage of the
recorded video clipsif the SxS memory card is
removed from the slot while data isbeing
accessed (e.g., during recording, playback or
formatting). Remove the card only when the
access lamp of the memory recorder lightsup in
green.
䡵We do not guarantee against damage of the
recorded video clipsin the following cases:
●when this product is used in places subject to static
electricity or electrical noises;
●when the battery or IEEE1394 cable is removed while data
is being accessed;
●when this product is used in sandy or dusty places, or
when a dirty SxS memory card is used.
䡵The recovery feature doesnot guarantee
successful recovery of the damaged files.
Maintenance
䡵Turn off the power before performing
maintenance.
䡵Wipe thisproduct using a soft cloth. Wiping
with thinner or benzene may melt or tarnish its
surface. For tough stains, wipe using a cloth that
isdipped into a neutral detergent diluted with
water, followed by wiping with a dry cloth.
䡵
Contact with rubber or plastic productsover an
extended period of time may cause the outer surface
of the product to deteriorate or the paint to peel off.
Saving Energy
䡵If thisproduct isnot to be used for a long time,
turn off the power of the system for safety and
energy conservation reasons.
Precautions
JVC shall not be liable for any damage or loss of the
recorded video clips. (We strongly recommend that you
create a backup for important video clips.)
KA-MR100G_EN.book Page 3 Thursday, February 5, 2009 5:28 PM

4
AAccess lamp
Displays the status of the SxS memory card.
Light off : SxS memory card is not inserted
Green light : Data in the card is not being accessed
Red light : Data is currently being accessed (e.g.,
recording, playback or formatting in progress)
●Before removing the SxS memory card, make sure that the
access lamp lights up in green color.
BLCD panel
Displays the status, clip selection and menu screens.
(APage 5, 10, 11)
M
emo:
●The contrast and backlight settings of the LCD panel can
be specified on the [LCD] setting screen of the menu
screen.
“LCD panel contrast and backlight settings” (APage 12)
C[MENU] button
Displays the menu screen. Press this button again to restore
the original screen display.
D[REV]button
●Fast reverses the selected clip.
●When the Time Code, Date/Time or Clip Name setting
screen is displayed, use this button to select a setting.
ECamcorder connector
To connect the memory recorder with a camcorder, connect
this connector to the memory recorder connector of the
KA-UM100G adapter (sold separately).
F[POWER]button
Turns On/Off the power of the memory recorder. To do so,
press and hold the button for at least one second.
G[NEXT] button
●Skips the currently selected clip to the next clip.
●When the clip selection screen is displayed, use this
button to select a clip to play back.
●When the menu screen is displayed, use this button to
select a menu item or setting value.
HBattery connector
For connecting to the battery adapter connector of the
camcorder.
I[STOP] button
●Stops recording or playback.
●When the menu screen is displayed, press this button to
return to the menu screen without altering the settings.
J[FWD] button
●Fast forwards the selected clip.
●When the Time Code, Date/Time or Clip Name setting
screen is displayed, use this button to select a setting.
K[PLAY/STILL]button
●Pauses or starts playback.
●When the menu screen is displayed, press this button to
confirm an item or setting value selection.
L[INFO/CLR] button
●Switches the clip information display. (APage 5)
●When the utility execution screen is displayed, use this
button to execute a process. On other setting screens,
pressing this button restores the default settings.
M[PREV] button
●Skips to the beginning of the selected clip or the previous
clip.
●When the clip selection screen is displayed, use this
button to select a clip to play back.
●When the menu screen is displayed, use this button to
select a menu item or setting value.
NCard slot
Open the cover and insert the SxS memory card.
(APage 8)
Name and Function of
Parts
B
A
F
H
G
E
D
K
I
J
C
L
M
N
KA-MR100G_EN.book Page 4 Thursday, February 5, 2009 5:28 PM

5
Getting Started
During Recording or Stop Mode
Displays the status screen.
AModes
BRemaining capacity
Displays the remaining time (minutes) of the SxS memory card.
CDate
Shows the date of the built-in clock. The month/day/year
display format can be specified on the [CLOCK2]-[DATE
STYLE] screen of the menu screen.
ASetting the Date/TimeB(APage 7, 13)
DTime
Shows the time of the built-in clock. The time display format
(12-hour/24-hour) can be specified on the [CLOCK2]-[TIME
STYLE] screen of the menu screen.
ASetting the Date/TimeB(APage 7, 13)
EVideo format
Shows the video format selected on the [SYSTEM] screen of
the menu screen.
“Video format settings” (APage 12)
FTime code/User bit
Displays the time code or user bit to be recorded. Press the
[INFO/CLR] button to toggle the display.
00:00:00:00 : Time code
0F 0F 0F 0F : User bit
M
emo:
●The time code display differs depending on whether non
drop frame or drop frame mode has been selected in the
[DROP FRAME] setting.
GTotal number of clips
Displays the total number of clips recorded in the SxS
memory card.
HClip name
Displays the name of the clip that is going to be recorded.
The clip name can be specified on the [CLIP NAME] screen
of the menu screen. “Changing clip name or resetting the clip
number” (APage 13)
M
emo:
●A ANO CARDBmessage is shown when an SxS memory
card is not inserted.
●
A A CARD PROTECT B mark is shown before the clip if
the write-protect switch of the SxS memory card is turned
on.
During Playback Mode
Displays the clip selection screen.
IModes
JVideo format
Displays the video format of the selected clip.
“Video format settings” (APage 12)
KClip name
●The clip indicated by the cursor ( ) is the selected clip.
●A ANO CLIPBmessage is shown when no clip is found.
LPlayback position bar
Displays the progress of the currently played clip in the form
of a bar.
“Memory recorder’s time code settings” (APage 12)
MClip information
Displays various information related to the selected clip.
Press the [INFO/CLR] button to toggle the clip information
display.
00:00:00:00 : Playback time code
0F 0F 0F 0F : Playback user bit
RD 09/07/08: Date on which clip is recorded
(month/day/year)
RT 11:11:11 : Time on which clip is recorded
(hour:minute:second)
Dr 00:10:00 : Clip length (duration) (hour:minute:second)
Note:
●The playback time code value is not an accurate
representation. Use it as a guide for the playback position.
NSelected clip/Total number of clips
LCD Panel Displays
--- SxS memory card is not inserted
oSTOP Stop
RREC Recording
WSTBY Standby (pause)
Non drop frame mode 00:00:00:00
Drop frame mode 00:00:00:00
B
A
F
E
D
C
H
G
Card protect mark
WS Still IPPlaying
NF1 Fast forward
(low speed)
OR1 Fast reverse
(low speed)
NF2 Fast forward
(high speed)
OR2 Fast reverse
(high speed)
mark A check mark ( ) appears before clips
that are playable.
ok mark Appears after the clip name. You can
specify the Aok markBon the [OK CLIP]
screen of the menu screen.
“Menu screen’s [OK CLIP] settings”
(APage 12)
K
I
J
L
M
N
KA-MR100G_EN.book Page 5 Thursday, February 5, 2009 5:28 PM

6
Setup
Check the IEEE1394 connection method before attaching
the memory recorder to the camcorder.
For details, please refer to AConnecting IEEE1394B
(APage 7)
Note:
●The KA-MR100G adapter (sold separately) is required to
attach the memory recorder to a camcorder.
M
emo:
●Two different types of battery adapters, manufactured by
IDX and Anton Bauer respectively, are available,
depending on the country/region where the camcorder is
purchased.
1 Remove the battery from the camcorder
2 Remove the battery adapter from the camcorder
Follow the steps illustrated in A_Cbelow to remove the
battery adapter, followed by the plate (for IDX adapters only)
and rubber sheet from the camcorder.
M
emo:
●Battery adapters manufactured by Anton Bauer do not
come with a plate.
3 Attach the KA-UM100G adapter (sold separately)
to the camcorder
Align the screw holes at the back of the camcorder with the
holes on the rubber sheet. Next, follow the steps illustrated in
A_Bto attach the KA-UM100G adapter.
Note:
●Store the connection wires and connectors properly so that
they do not protrude from the groove or recess.
4 Attach the memory recorder to the KA-UM100G
adapter
Align the screw holes at the back of the KA-UM100G adapter
with the holes on the rubber sheet. Next, follow the steps
illustrated in A_Dto attach the memory recorder.
Note:
●Store the connection wires and connectors properly so that
they do not protrude from the groove or recess.
5 Attach the battery adapter to the memory
recorder
Align the screw holes at the back of the memory recorder
with the holes on the rubber sheet. Next, follow the steps
illustrated in A_Cto attach the rubber sheet, plate (for IDX
adapters only) and battery adapter.
Note:
●Store the connection wires and connectors properly so that
they do not protrude from the groove or recess.
M
emo:
●Battery adapters manufactured by Anton Bauer do not
come with a plate.
6 Attach the battery to the camcorder
Note:
●Do not use the battery that cannot be connected with this
product.
For details, please refer to the instruction manual of the
camcorder.
Attaching the Memory
Recorder to a Camcorder
Rubber sheet
(included with the camcorder) Battery adapter
Screw A
Screw
A
Battery adapter
for Anton Bauer
ARemove screw A
(x4)
Connector
Plate (for IDX
adapters only)
BRemove connector (x2)
CRemove screw B (x4)
Screw B
Rubber sheet
(included with KA-UM100G) KA-UM100G adapter
Screws
BMount the
screw (x4)
Connector AConnect the
connector (x2)
Recess
KA-UM100G
adapter
BSet the hook to the guide
Guide
Hook Memory recorder
(KA-UM100G)
Screws DMount the
screws (x2)
Connector A
AConnect
connector A
CConnect
connector B
Rubber sheet
(included with the
memory recorder)
Connector B
Recess
Screw A
Screw B
Screw A
Rubber sheet
(included with the camcorder)
Battery adapter
CMount screw A (x4)
AMount screw B (x4)
Plate (for IDX
adapters only) Connector
BConnect the connector (x2)
Battery
adapter for
Anton Bauer
KA-MR100G_EN.book Page 6 Thursday, February 5, 2009 5:28 PM

7
Setup
There are 2 ways to connect the IEEE1394.
Connecting via IEEE1394 Cable
●Connect the IEEE1394 cable to the KA-UM100G adapter
and the IEEE1394 terminal of the camcorder.
●Set the [INT/EXT] switch to AEXTB.
M
emo:
●When the switch is set to [INT], signal input and output is
disabled.
●For information on where to purchase an IEEE1394 cable,
please consult our authorized dealers.
Connection via Internal Wiring
Changes need to be made to the internal wire connections of
the camcorder.
M
emo:
● When making a connection with the switch set to [INT], it is
necessary to alter the internal wire connections of the
camcorder. For details, please consult our authorized dealers.
●When making a connection with internal wiring, the
IEEE1394 terminal of the adapter is disabled.
Turning On the Power
1 Set the [POWER] switch of the camcorder to “On”
2 Press and hold down the [POWER] button of the
memory recorder for at least one second
● The power of the memory recorder turns on. After a message
indicating
A KA-MR100 POWER ON B appears on the LCD
panel for several seconds, the status screen is displayed.
M
emo:
● It is necessary to set the built-in clock immediately after
purchasing this product or when it has not been used for a
prolonged period of time (three months or longer). After the
power of the memory recorder turns on, a message
indicating
A CLOCK SETUP MENU B appears for several
seconds. Next, the [CLOCK1] setting screen is automatically
displayed. A Setting the Date/Time B ( A Page 7)
Turning Off the Power
1 Press and hold down the [POWER] button of the
memory recorder for at least one second
●The power of the memory recorder turns off.
M
emo:
●You can turn off the power of the memory recorder using
the [POWER] switch of the camcorder by setting [DR-
HD100 A.OFF] on the OTHERS[2/2] menu screen of the
GY-HD200/HD250 series camcorder to AOnB.
Note:
●Make use of a battery to supply power to the memory
recorder. Power cannot be supplied from the DC INPUT
terminal of the camcorder.
Set the time of the built-in clock on the [CLOCK1] setting
screen of the menu screen.
1 Select the item to set (ATIME ZONEB, ADATEBor
ATIMEB)
●Press the [PREV] or [NEXT] button to select an item.
●After making a selection, press the [PLAY/STILL] or [FWD]
button to confirm.
2 Set the respective items
Set the items listed in the table below.
M
emo:
●Be sure to set the ATIME ZONEBbefore setting the
ADATEBand ATIMEB”.
●The memory recorder does not support daylight savings
time.
●Press the [PREV] or [NEXT] button to select a value,
followed by using the [PLAY/STILL] button to confirm the
selection.
●When setting DATE, press the [FWD] or [REV] button to
jump between month, day, and year. When setting TIME,
press the same button to jump between hour, minute and
second.
3 Press the [MENU] button to return to the status
screen
Connecting IEEE1394
[INT/EXT]
Switch Description
INT
●For recording data to or playing data from the
SxS memory card.
●
When the switch is set to [INT], the IEEE1394
terminal on the camcorder is disabled.
EXT
●For connecting the IEEE1394 terminal on the
camcorder to a computer or other devices.
●When the switch is set to [EXT], the internal
connection between the memory recorder
and the camcorder is disabled.
Turning On/Off the Power
KA-UM100G adapter
IEEE1394 cable
[INT/EXT] switch
Setting the Date/Time
Item Description
TIME ZONE
For setting the time difference with the
UTC (Universal Time Coordinate). The
values of the ADATEBand ATIMEBitems
will be automatically adjusted when this
item is altered.
AUTC Time Difference Chart by RegionB
(APage 17)
DATE For setting the date (month/day/year).
TIME For setting the time (hour:minute:second).
<[CLOCK1] Setting Screen> <Buttons to use>
[PREV] button
[REV] button
[PLAY/STILL]
button
[FWD] button
[STOP] button
[NEXT] button
KA-MR100G_EN.book Page 7 Thursday, February 5, 2009 5:28 PM
