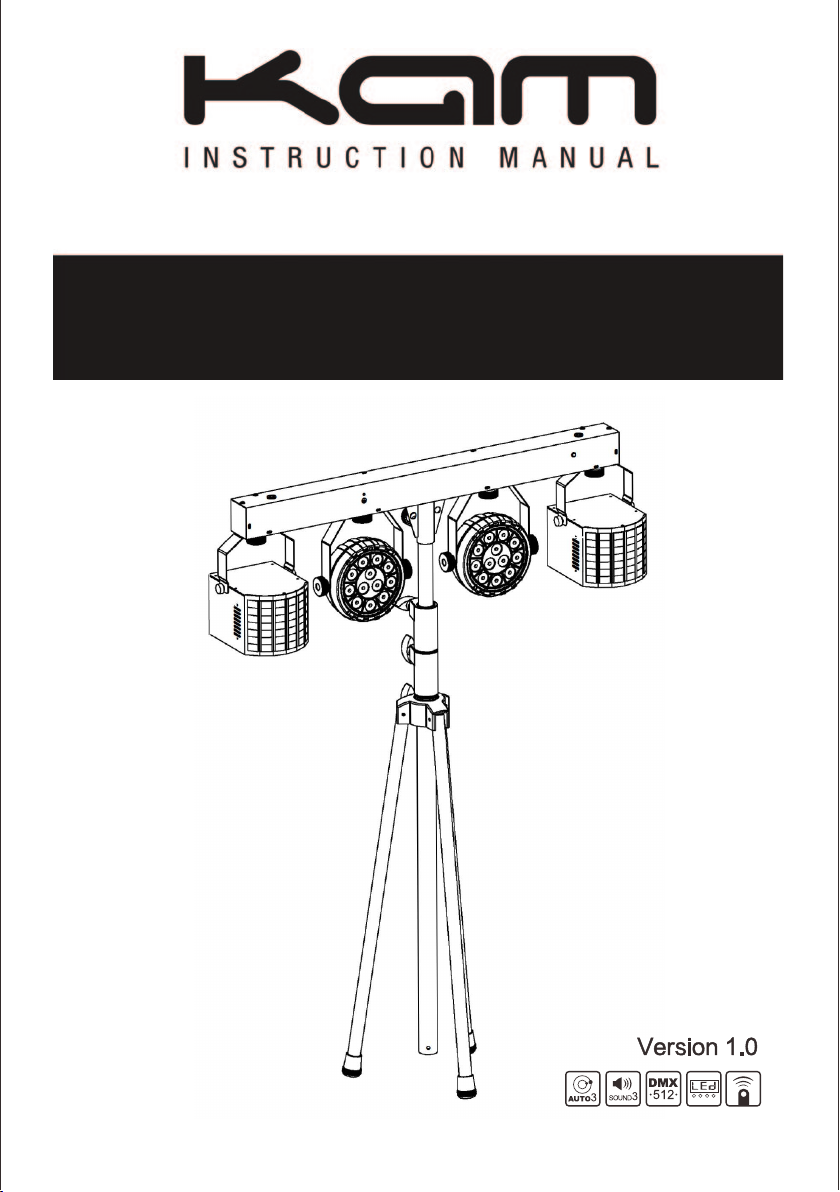

KAM KML407 User manual

Party Set
KML407

Unpacking Instructions
1
QTY
1set
1pcs
1 pcs
1 pcs
1pcs
Before operating this device, please read this manual thoroughly, and retain it for future reference.
Read Manual before Operation
Please note the warnings in bold which will ensure the safe and smooth operation. These warnings are
important to a certain extent.
Attention! Indicates a skill or other useful information for special situations.
Warning Data
Carefully unpacking the carton, checking contents to ensure that all parts are in good condition. Inform the
shipper immediately and retaining packing material for inspection if any parts are damaged from shipping or
device damaged. Keeping packing materials as evidence for shippers confirmation.
Unpacking Instructions
This unit is in perfect condition before delivery, please check all accessories when unpacking the unit. User
should follow this user manual to operate this unit, and make sure that you are clear on all laser safety
information and unit operation before power it on. Any wrong operation will make this unit out of warranty.
Carefully moving after receiving it, checking whether there is any damage from shipping, and all the
accessories in it.
Attention!
Important! Indicates important information to protect personnel from laser incident or injury.
Caution! Prevent damage or injury from incorrect operation.
Warning!
Shields, lenses or ultraviolet screens should be changed if they have become visibly damaged to such an
extent that their effectiveness is impaired, for example by cracks or deep scratches.
The lamps should be changed if it has become damaged or thermally deformed.
NAME
LED system
Power Cord
User manual
Stand
Packaging bag

Safety Instructions
2

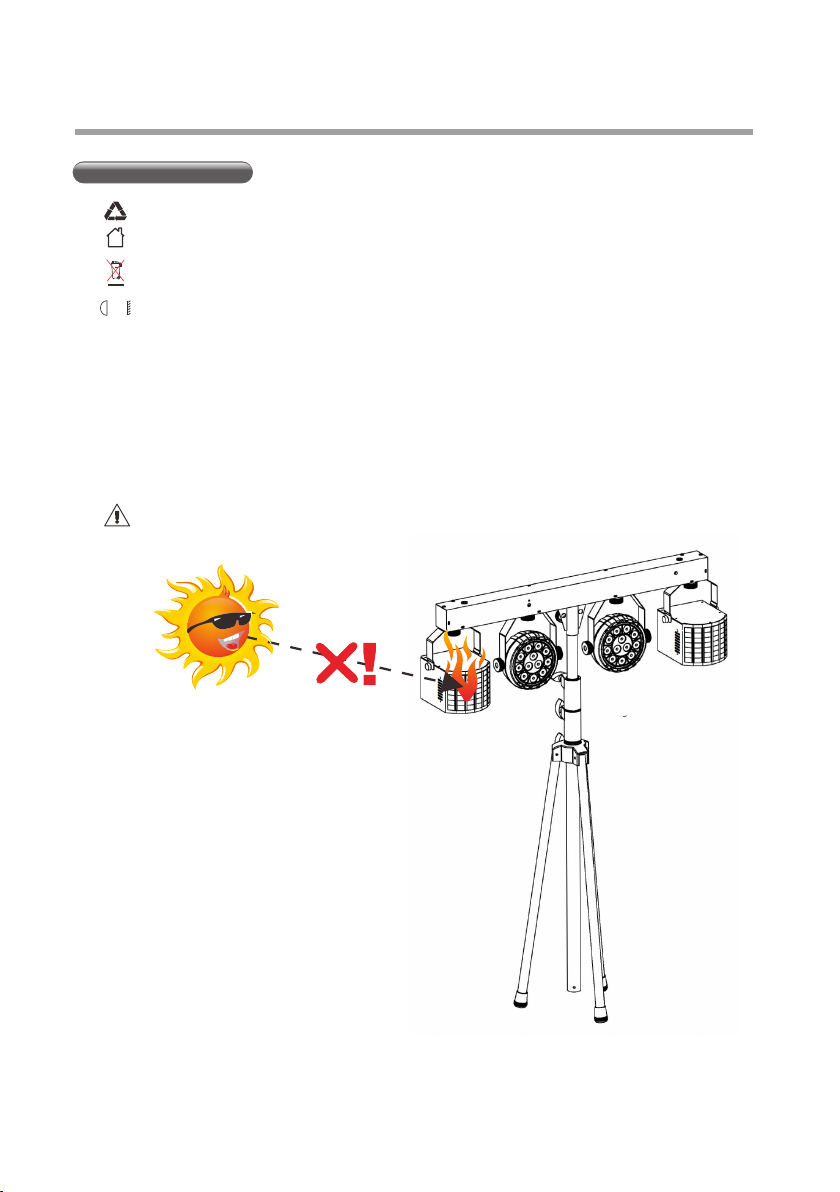

Safety Instructions
0.2m
◆
◆
◆
◆
◆
◆
◆
To protect the environment, please try to recycle the packing material as much as possible.
The KML407 is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain and moisture,
excessive heat, humidity and dust. Do not allow contact with water or any other fluids, or metallic objects.
Don't throw this product away just as general trash, please deal with the product following the abandon
electronic product regulation in your country.
Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be
fixed at least 50cm from surrounding walls.
To avoid condensation to be formed inside, allow this unit to adapt to the surrounding temperatures when bringing it
into a warm room after transport. Condensation sometimes prevents the unit from working at full performance or may
even cause damages.
Don't cover any ventilation openings as this may result in overheating.
Don't install it on flammable object.
Do not use it when maximum ambient temperature is higher than 40 degree.
Unplug the unit when it is not used for a longer time or before replacing the bulb.
Dont open the top cover to avoid unit damage.
Please use the original packing when the device is to be transported.
Never expose the lens to direct sunlight, even for a short period, this may damage the light effect or even cause fire!

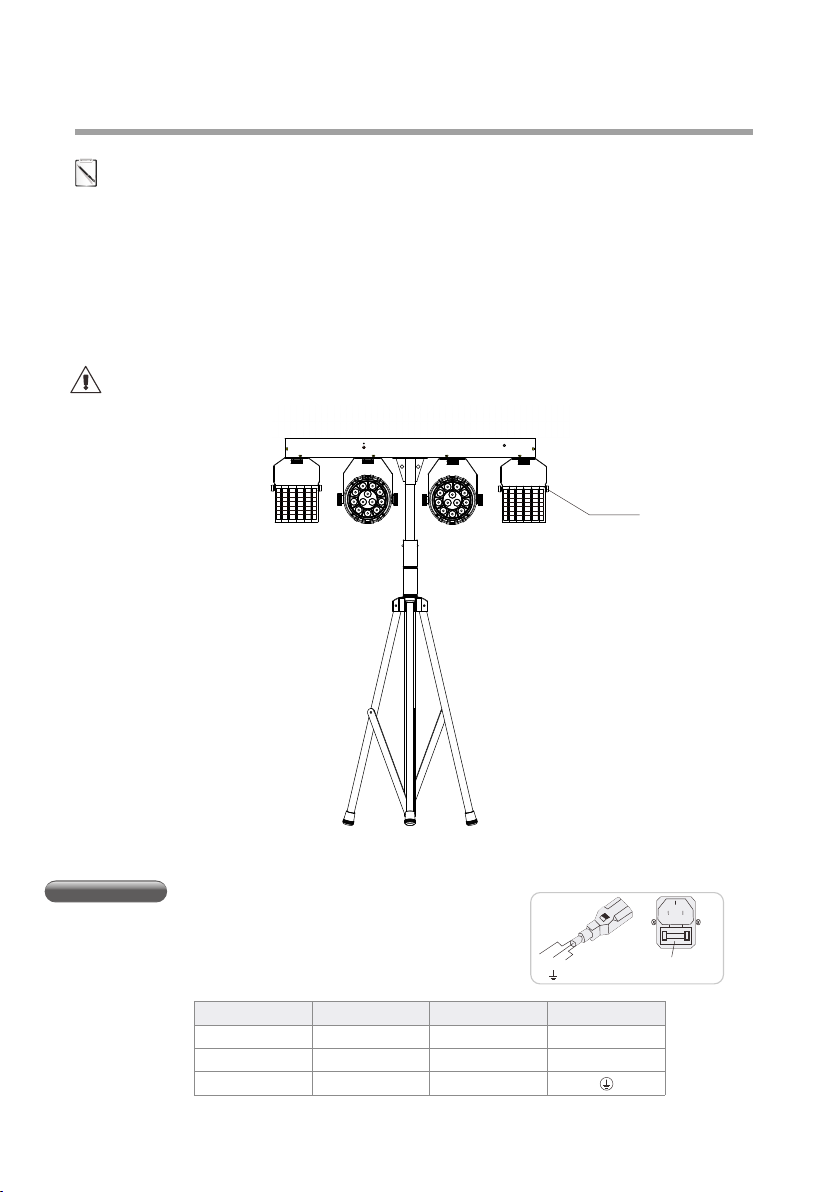

Overhead Rigging &Product Installation
3
Adjust Angle
Attention! The installation must be carried out by qualified service personal only. Improper installation can result in
serious injuries and /or damage to property. Overhead rigging required extensive experience! Working load limits
should be respected, Certified installation materials should be used, the installed device should be inspected
regularly for safety.
Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and
servicing.
Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be
fixed at least 50cm from surrounding walls
The device should be installed out of reach of people and outside areas where persons may walk by or be seated.
The device should be well fixed; a free swinging mounting is dangerous and may not be considered!
Do not cover any ventilation opening as this may result in overheating
Before the first time use, it must be inspected by professional staff to make sure safety, inspection regularly every
year.
Cable(EU)
Brown
Light blue
Yellow/Green
Cable(US)
Black
White
Yellow/Green
Pin
Live
Neutral
Earth
International
L
N
Please use the included power cable, note that power voltage and
frequency are the same as the marked voltage and frequency of device
when connecting power. Every devices power should be connected
separately, so that device can be controlled individually.
Cable spec.：
AC Power
L E N FUSE: 5×20mm
250V 1A slow
◆
◆
◆
◆
◆
◆
Before rigging make sure that installation area can hold the 10 times weight of device. Using the steel rope which can
hold 12 times weight of device, through the eye-bolt for assisting hang installment.

Product Installation
4
Connection between lights and DMX must use the shied cable of diameter more than 0.5mm. Please use the
attached 3 pin XLR plug/socket to connect the DMX output/input interface. The connection between socket and
cable as below( note the plug/socket’s 3 pin number and position).
Note, XLR plug/socket’s 3pin can not be touched by inner hull, connection between pins is not allowed. Except
above connection, XLR plug/socket can not be connected with XLR control line. Device receives international
standard DMX512(1990) control signal.
When using standard DMX512 control signal, the last device’s output interface must be connected to
a DMX plug. This plug is putting a 120 ohm resistance between “canon” plug’s 2 pin and 3 pin.
Showing as below pic. Sticking this plug into the last device’s signal output interface, it will avoid the
interference during the process of signal transmission. PIN3
PIN2
DMX-512 connection
DMX-output
XLR mounting-sockets(rear view):
DMX-input
XLR mounting-plugs(rear view):
1-Shield
2-Shield(-)
3-Shield(+)
12
3
1
2
3
◆
◆
◆

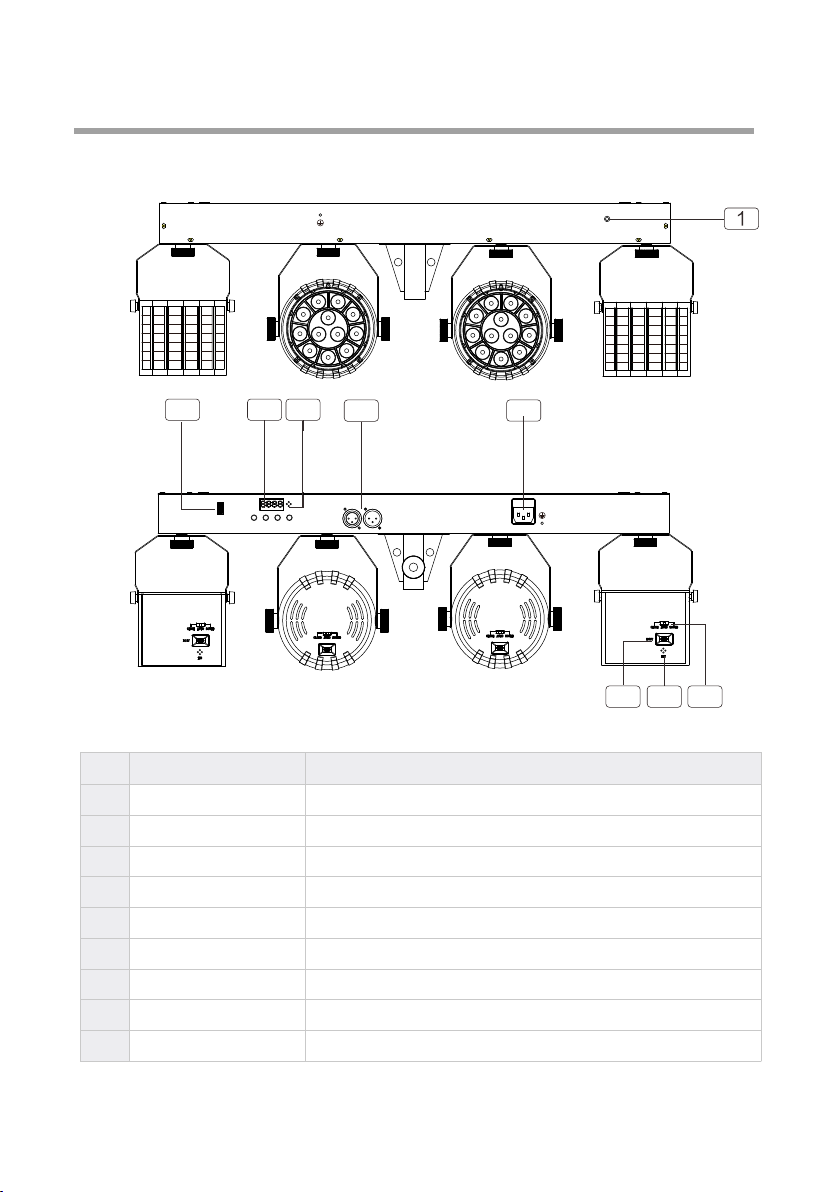

Operation instructions
5
23456
USA
LCD control interface
MIC
DMX input/output
Power input
Close/Auto/Sound
IR receiver
USB Type-C interface
Built-in Mic
NO
1
2
3
4
5
6
7
8
9
FUNCTION DESCRIPTION
Infra-remote control receiver
Output data to external lamp socket
Various mode setting operations of the machine
Receive music signal to activate shows for the T-Bar
3PIN male/female XLR interface ,for DMX communication
AC Power input socket ,built-in fuse
Power input socket, built-in protective tube and spare tube
Par lamp power-on data input
Change the working modes of light unit between Auto,Sound and off.
7 9
8

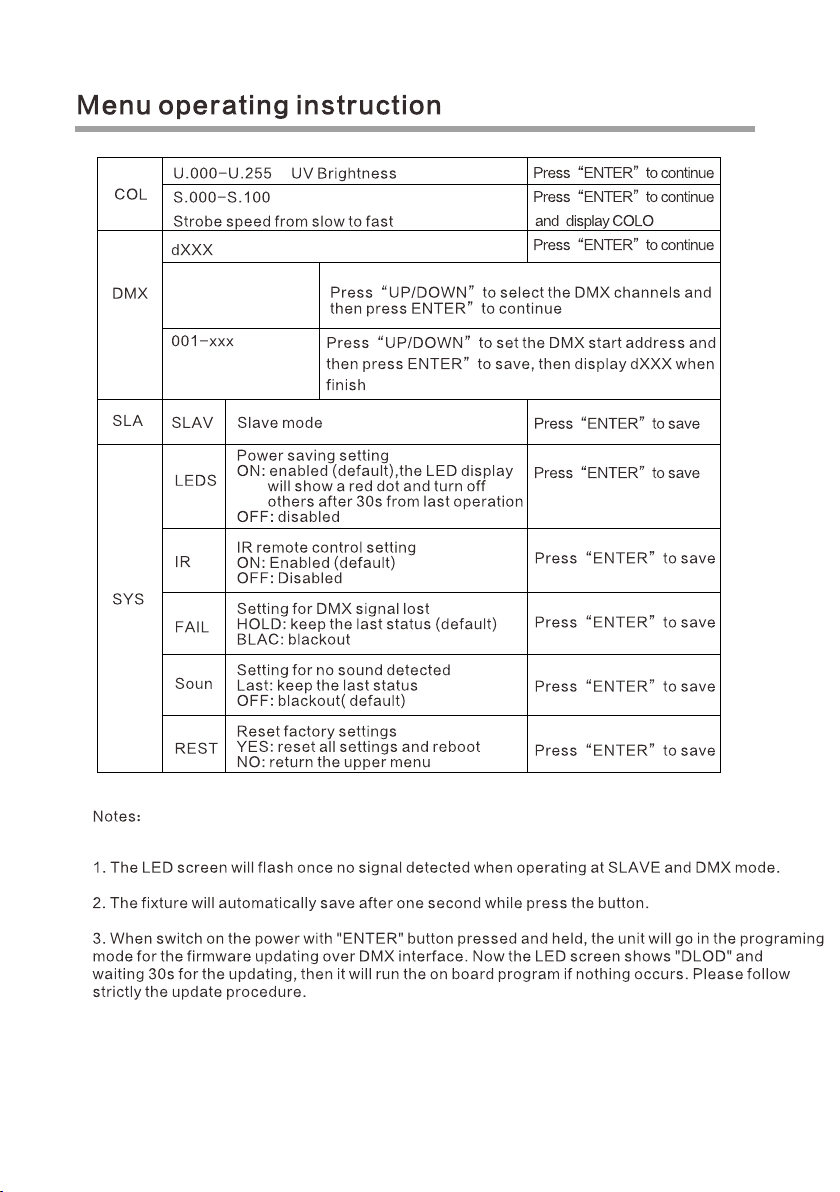

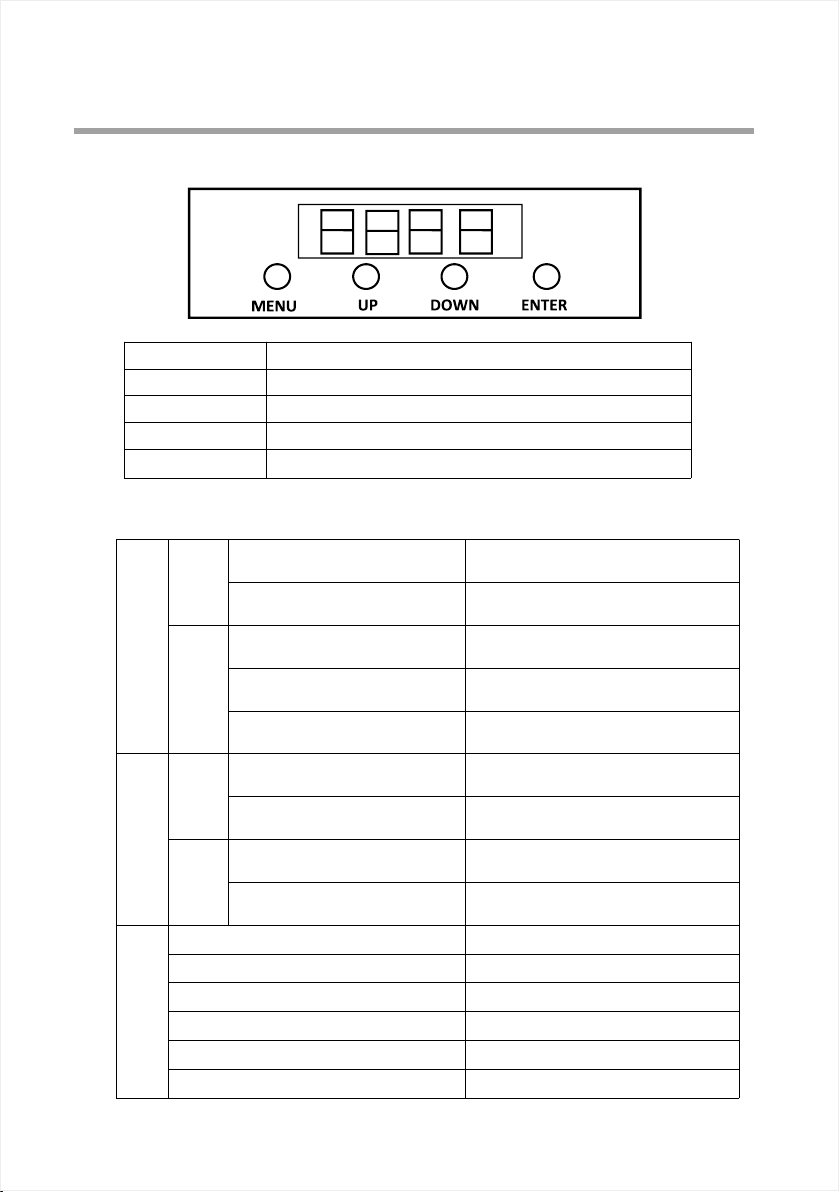

Menu operating instruction
6
Button
MENU
ENTER
UP
DOWN
Function
Mode / Upper menu
Confirm / Sub menu
Move up / +
Move down / -
1、The keys description:
2.Menu description
AUT
SOU
COL
AUTM
AUTP
SOUM
SOUP
COLO
R.000-R.255 Red brightness0%-100%
G.000-G.255 Green brightness0%-100%
B.000-B.255 Blue brightness0%-100%
W.000-W.255 White brightness0%-100%
A.000-A.255 Amber brightness0%-100%
AM01…AM02
Two Auto mixed shows
S.01…S.99
Show speed from slow to fast
AP01…AP18
18 Auto Par shows
S.01…S.99
Show speed from slow to fast
M.00…M.99
Show speed from slow to fast
SM01...SM02
Two Sound mixed shows
U.00…U.99
Sound sensitivity
SP01...SP18
18 Auto Par shows
U.00…U.99
Sound sensitivity
Press "ENTER"to continue
Press "ENTER"to save and display AM**
Press "ENTER"to continue
Press "ENTER"to continue
Press "ENTER"to save and display AP**
Press "ENTER"to continue
Press "ENTER"to save and display SM**
Press "ENTER"to continue
Press "ENTER"to save and display SP**
Press "ENTER"to continue
Press "ENTER"to continue
Press "ENTER"to continue
Press "ENTER"to continue
Press "ENTER"to continue
Press "ENTER"to continue

7
04CH( d001-d509)
07CH( d001-d506)
34CH( d001-d479)

8
Turn ON/OFF lights outputs
Auto mixed shows for AM01,AM02;
Sound mixed shows for SM01,SM02
Auto PAR shows for AP02,AP18
Sound PAR shows for SP02,SP18
To pause the color change effect
Auto show speed from 0-9(Slow to fast)
ON/OFF
Auto Mixed shows
Sound Mixed shows
Auto PAR shows
Sound PAR shows
Pause
Speed
Key Funntion Description
IR remote control

9

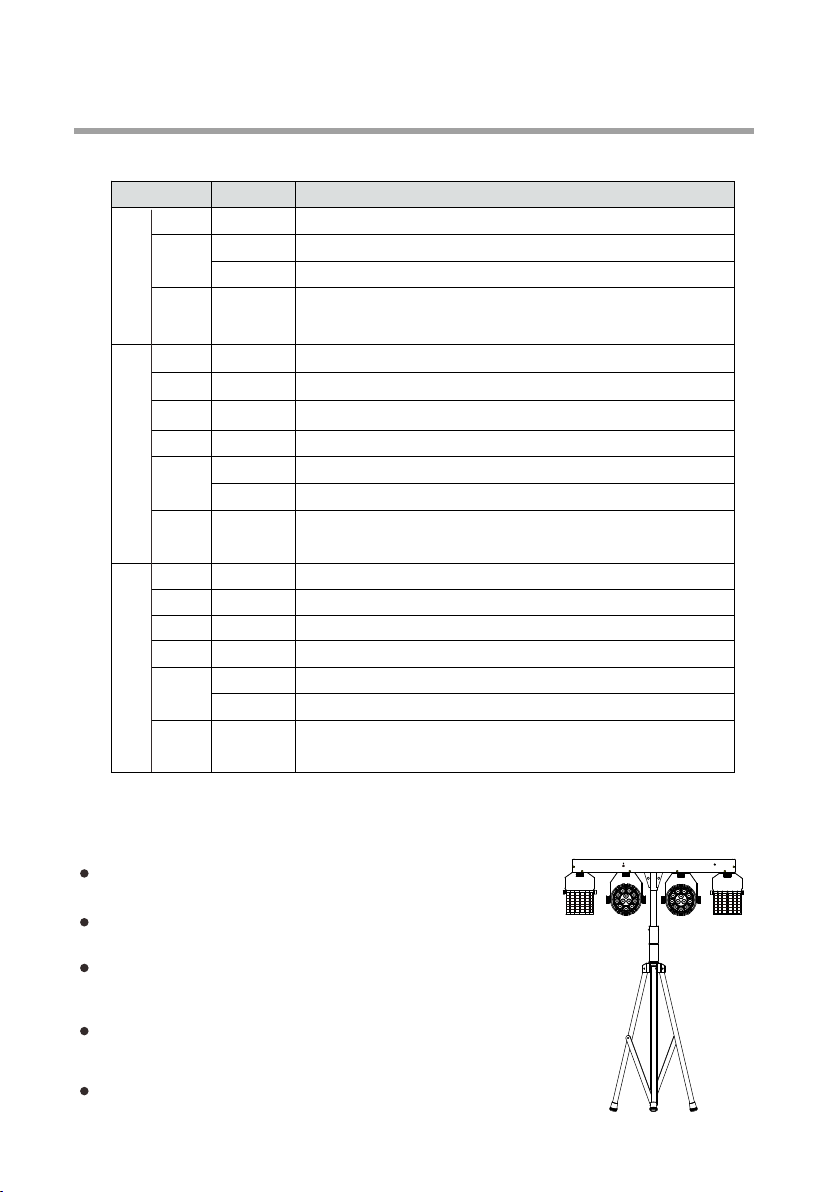

VALUE FUNCTION
CHANNEL
1CH
2CH
3CH
4CH
000-009
010-029
030-059
060-089
090-129
130-159
160-189
190-209
210-255
000-013
014-027
028-041
042-055
056-069
070-083
084-097
098-111
112-125
126-139
140-153
154-167
168-181
182-195
196-209
210-223
224-237
238-255
000-255
000-255
Blackout
Mix auto show 1（AN01）
Mix auto show 2（AN02）
Mix auto show 3（AN03）
Auto show 01-18（AP01-AP18）
Mix sound show 1（SN01）
Mix sound show 2（SN02）
Mix sound show 3（SN03）
Sound show 01-18（SP01-SP18）
Auto/sound program 1（AP1/SP1）
Auto/sound program 2（AP2/SP2）
Auto/sound program 3（AP3/SP3）
Auto/sound program 4（AP4/SP4）
Auto/sound program 5（AP5/SP5）
Auto/sound program 6（AP6/SP6）
Auto/sound program 7（AP7/SP7）
Auto/sound program 8（AP8/SP8）
Auto/sound program 9（AP9/SP9）
Auto/sound program 10（AP10/SP10）
Auto/sound program 11（AP11/SP11）
Auto/sound program 12（AP12/SP12）
Auto/sound program 13（AP13/SP13）
Auto/sound program 14（AP14/SP14）
Auto/sound program 15（AP15/SP15）
Auto/sound program 16（AP16/SP16）
Auto/sound program 17（AP17/SP17）
Auto/sound program 18（AP18/SP18）
Speed of auto program from slow to fast）
All Dimmer
DMX-04CH mode
DMX Assignment
