Kane KANE958 User manual

KANE958
Stock No: MAN00231 Rev: 1.00322 MARCH 2022
© Kane International Ltd
Flue Gas Analyser with direct O2
Measurement and CO sensor protection
KANE LINK

CONTENTS Page No.
KANE958 OVERVIEW 4
ANALYSER FEATURES AND KEYPAD 5-8
KEYPAD BUTTONS 6
ANALYSER LAYOUT 7
BACK OF ANALYSER - PROBE ETC 8
BATTERIES 9
BATTERY TYPE 9
REPLACING BATTERIES 9
TIME AND DATE 9
CHARGING NIMH BATTERIES 9
BATTERY DISPOSAL 9
GENERAL SAFETY 10
FIRST TIME USE 11
GENERAL OPERATING PRINCIPLE 11-15
QUICK START 11
USER INTERFACE 11
STATUS 12
STATUS BAR 12
STATUS BAR LAYOUT 13
STATUS BAR MESSAGE AREA 14
STATUS BAR ICONS 14
STATUS BAR ICONS LEVEL 14
STATUS BAR MENU OPTIONS 15
STANDARD OPTIONS 15
USING MENU 15
MENU ITEMS 16
MEASURING FLUE GASES 17
2 KANE958 MANUAL

CO PROTECTION PUMP OPERATION 18
AUX SCREEN 18
EDITING AUX SCREEN 18
02/EFF SCREEN 18
CO/NO SCREEN 19
STORED MEMORY LOGS 19
MENU OPTIONS 19
VIEWING STORED LOGS 20
LOG VIEW MENU OPTIONS 20
FINDING STORED REPORTS 20
REPORT MENU OPTIONS 21
PRESSURE & TEMPERATURE TESTING 21
TEMPERATURE & PRESSURE DISPLAY 22
VIEWING, SENDING & PRINTING 22
PRESSURE MEASUREMENT GOOD PRACTICE 22
LARGE BORE TUBING ISSUES 23
PRINTING 24-25
KANE INFRARED PRINTER 25
PRINTOUTS 25
KANE LINK 26
SPECIFICATIONS 27-28
EU DECLARATION 29
COLD WEATHER PRECAUTIONS 30
SERVICE - CALIBRATE - RECERIFY 31
KANE ASSET MANAGER (KAM) 32-34
KANE958 MANUAL 3

KANE958 OVERVIEW
Your KANE958 combustion analyser measures:
• Carbon Monoxide (CO)
• Oxygen (O2)
• Pressure
• Differential Temperature
• Temperature
• Differential Pressure
Depending on your options it measures or calculates:
• Carbon Dioxide (CO2)
• Nitric Oxide (NO)
• Nitrogen Oxides (NOx)
• CO/CO2 ratio
• Combustion Efficiency
• Losses
• Excess Air
• Sulphar Dioxide (SO2)
• Nitrogen Dioxide (NO2)
Your KANE958 has a protective rubber cover with magnets for
“hands-free” operation and is supplied with a flue probe with integral
temperature sensor.
Your KANE958 has a low flow detector system to switch off the analyser
pump if it detects water entering from an over filled water trap.
Your KANE958 has a large 6 line display showing data and test results
based on your actions. The display bottom line also highlights analyser
status at all times.
Your KANE958 prints test results using an optional infrared printer or
wirelessly sends them to the KANE wireless APP.
Your KANE958 stores up to 45 logs of any combination of Combustion, AUX,
Temperature & Pressure test results.
You can enter 2 lines of 24 characters on your test results printout.
4 KANE958 MANUAL

ANALYSER FEATURES AND KEYPAD
KANE958 MANUAL 5

KEYPAD BUTTONS
Function Keys
ICON DESCRIPTION
SAVE LOG
Long press to store data
PRINT REPORT
Short press to print a report - Analyser
offers a destination choice when wireless & irda fitted
NAVIGATE UP
Short press to scroll up
ENTER KEY
Use to select current option - also selects torch in
some dial positions
NAVIGATE DOWN
Short press to scroll down
DATA HOLD
Short press to hold current data on screen -
see status bar section on page 13
PUMP ON/OFF
Press to turn pump on or off
6 KANE958 MANUAL Rotary dial

ANALYSER LAYOUT
On/Off
Function keys
- see below
Rotary switch
Water trap &
particle filter
KANE958 MANUAL 7
Flue Probe Temperature Plug -
Into T1
Narrow (+ve) pin must be on
right side
Red connector
- plugs into Flue
Gas Inlet
Flue probe hose
Battery
charger
Inlet T2
Flue gas
inlet
Watertrap drain with
red plug
Inlet T1
Pressure
connection
P2
- Differential
Pressure
Connection P1

8 KANE958 MANUAL
Thermocouple
Stainless steel
shaft
Depth stop
cone
Gas
path
Thermocouple
wire
Water trap drain
with red plug
Magnets x2
Gas
exhaust
(P10)

BATTERIES
BATTERY TYPE
Your KANE958 uses rechargeable Nickel Material Hydride (NiMH) batteries
- Using other battery types may void your analyser’s warranty.
WARNING
Although you can use Alkaline batteries you must not charge your
analyser with Alkaline batteries fitted.
Do not mix NiMH cells with different capacities or from different
manufacturers - All batteries must be identical.
REPLACING BATTERIES
Turn over your analyser, remove protective rubber cover, find battery
compartment & fit 3 NiMH “AA” rechargeable batteries ensuring
correct battery polarity. Replace battery cover & protective rubber cover.
TIME AND DATE
After changing batteries reset your analyser time & date.
CHARGING NiMH BATTERIES
Your KANE958 uses a standard Micro USB connector - For best results
turn off then connect your charger. Charging indicator will illuminate
then turn off when charging is complete.
Your first charge should be for 8 hours - Thereafter NiMH batteries can
be topped up at any time, even for short periods
If your batteries discharge and your analyser enters a low power shutdown,
1 hour charge provides approx. 2 hours continuous use.
BATTERY DISPOSAL
Always dispose of depleted batteries using approved disposal methods to
protect our environment.
KANE958 MANUAL 9

GENERAL SAFETY
SAFETY WARNING
Your analyser extracts combustion gases that may be toxic in relativity low
concentrations. These gases are exhausted from the back of the analyser.
This analyser must only be used in well-ventilated locations by trained and
competent persons after due consideration of all the
potential hazards.
Portable gas detectors should conduct “bump” tests before relying
on units to verify atmospheres are free from hazards.
A “bump” test is a way to check an instrument works within acceptable
limits by briefly exposing it to known gas mixtures to change the output
of all sensors present.
NOTE: This is different from a calibration where your analyser is
exposed to known gas mixtures but allowed to settle to a
steady figure with readings adjusted to the stated gas
concentration of the test gas.
Protection Against Electric Shock (In accordance with EN 61010-1:2010):
This analyser is designed as Class III equipment and should only be
connected to SELV circuits. The battery charger is designated as:
• Class II equipment
• Installation category II
• Pollution degree 2
• Indoor use only
• Altitude to 2000m
• Ambient temperature 0°C -40°C
• Maximum relative humidity 80% for temperatures up to 31°C
decreasing linearly to 50%RH at 40°C
• Mains supply fluctuations not to exceed 10% of the nominal voltage
10 KANE958 MANUAL

FIRST TIME USE
Charge your analyser batteries for 8 hours - an overnight charge
should be sufficient for an average 8 hour day.
Take time to read this manual fully and be aware your analyser
configuration may not support all features explained in this manual.
Before using your analyser ensure it is set up for your requirements.
NOTE: Your analyser STATUS bar displays current time, date and
battery status - Check time & date are correct as they can only be
changed if you have not stored logs in Memory to protect the
integrity of your stored data.
GENERAL OPERATING PRINCIPLE
Using your KANE958 is simple with the rotary dial and user interface.
Most tests can be made with little user activity.
Your analyser status bar offers options based on tasks you are
performing and displays useful information and messages.
QUICK START
Turn on your analyser in fresh outdoor air pressing the button for 2
seconds. Your analyser starts a 60 second zero calibration - once
completed select your tests by turning the analyser rotary dial.
USER INTERFACE
Your analyser display shows 5 lines of tests & a status bar. The
backlight activates on each button press then turns off after 10 seconds.
Navigate through your options and menu choices via 3 dedicated
& buttons.
Button presses are either short or long.
KANE958 MANUAL 11

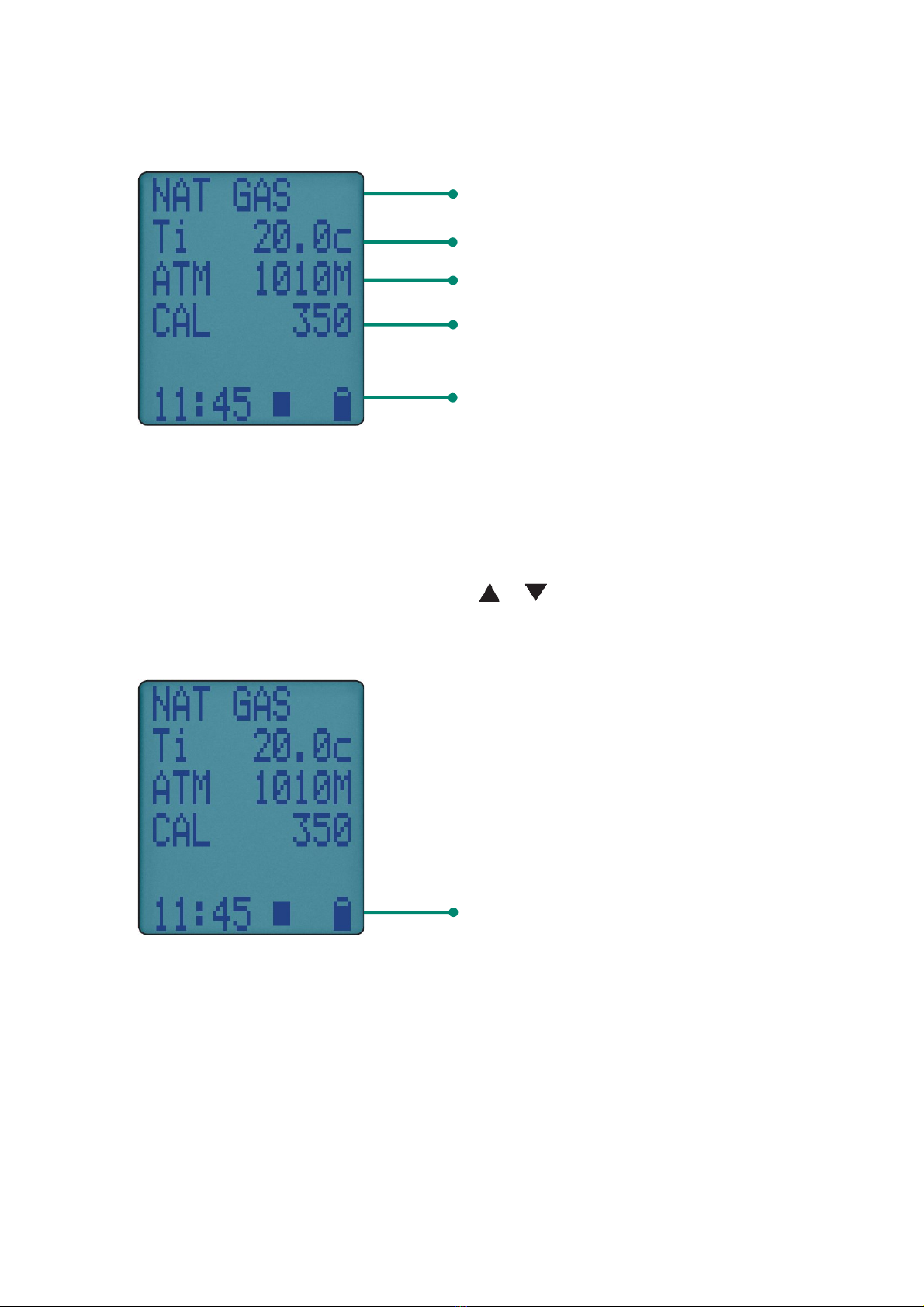

STATUS
Rotate dial to “Status”:
STATUS BAR
Status bar shows analyser status and offers options based on your settings.
Navigate through status bar options via & buttons when status bar is
on display.
12 KANE958 MANUAL
Status bar
Current fuel selection - use status bar
menu to change fuel selection
Current ambient temperature
Current atmospheric pressure (mbar)
No. of days until next calibration due
Status bar

STATUS BAR LAYOUT
Status bar splits into 2 zones, Message & Icons shown below:
STATUS BAR MESSAGE ZONE
CLOCK FUNCTION
DATA HOLD
FUNCTION
CALIBRATION DUE
WARNING MESSAGE
AIR PURGE
“SNOOZE”
TIMER
LOW BATTERY
WARNING
MESSAGE
Displays current time
Display alternates
between hold symbol &
Time stamp of held data
Display alternates
between calibration due
and current time
Display alternates air
purge delay symbol &
Current time
Display alternates
between BAT symbol &
Current time
KANE958 MANUAL 13

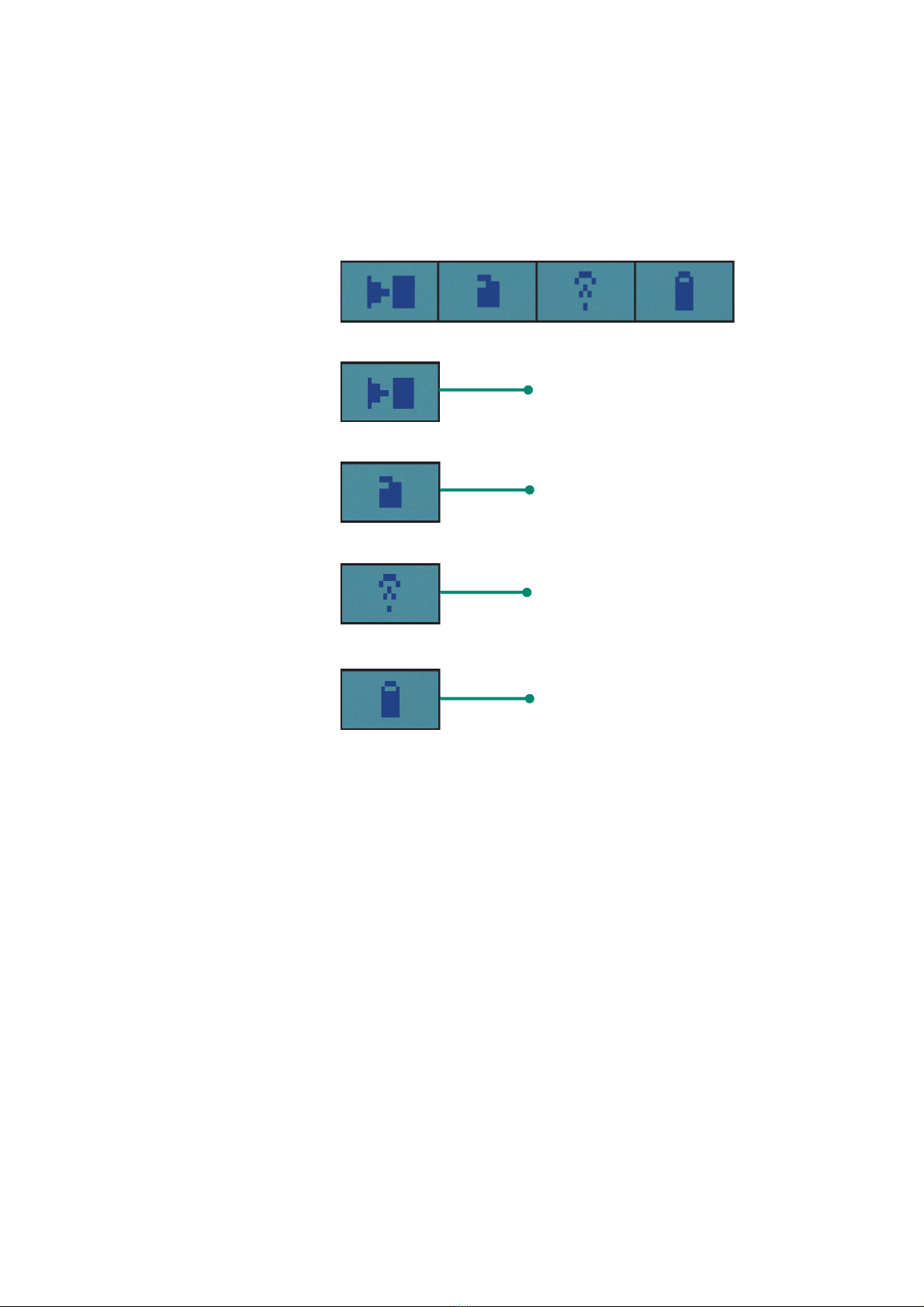

STATUS BAR ZONES
Icons give quick and simple status information:
STAUS BAR ICON LEVEL
ICON LIST
PUMP
LOGGED DATA
SENDING DATA
BATTERY
Pump status On or Off
Analyser has logged/
stored data
Data being sent to
App or Printer
Battery Status indication
14 KANE958 MANUAL

STATUS BAR MENU OPTIONS
Status Bar offers you contextual menu items based on your display screen.
STANDARD OPTIONS
USING MENU
Rotate dial to MENU to customise your analyser default setting to your
requirements.
Navigate through the MENU using these buttons &
As you navigate up or down items will move up or down the screen returning
to the beginning.
Note: To exit menu turn your analyser rotary dial to any position - note any
unsaved changes will be lost.
Date
Displays selected fuel type - to change,
long press button to display
selection Indicators. Press or
buttons to select fuel then press
button
Menu option to edit
KANE958 MANUAL 15

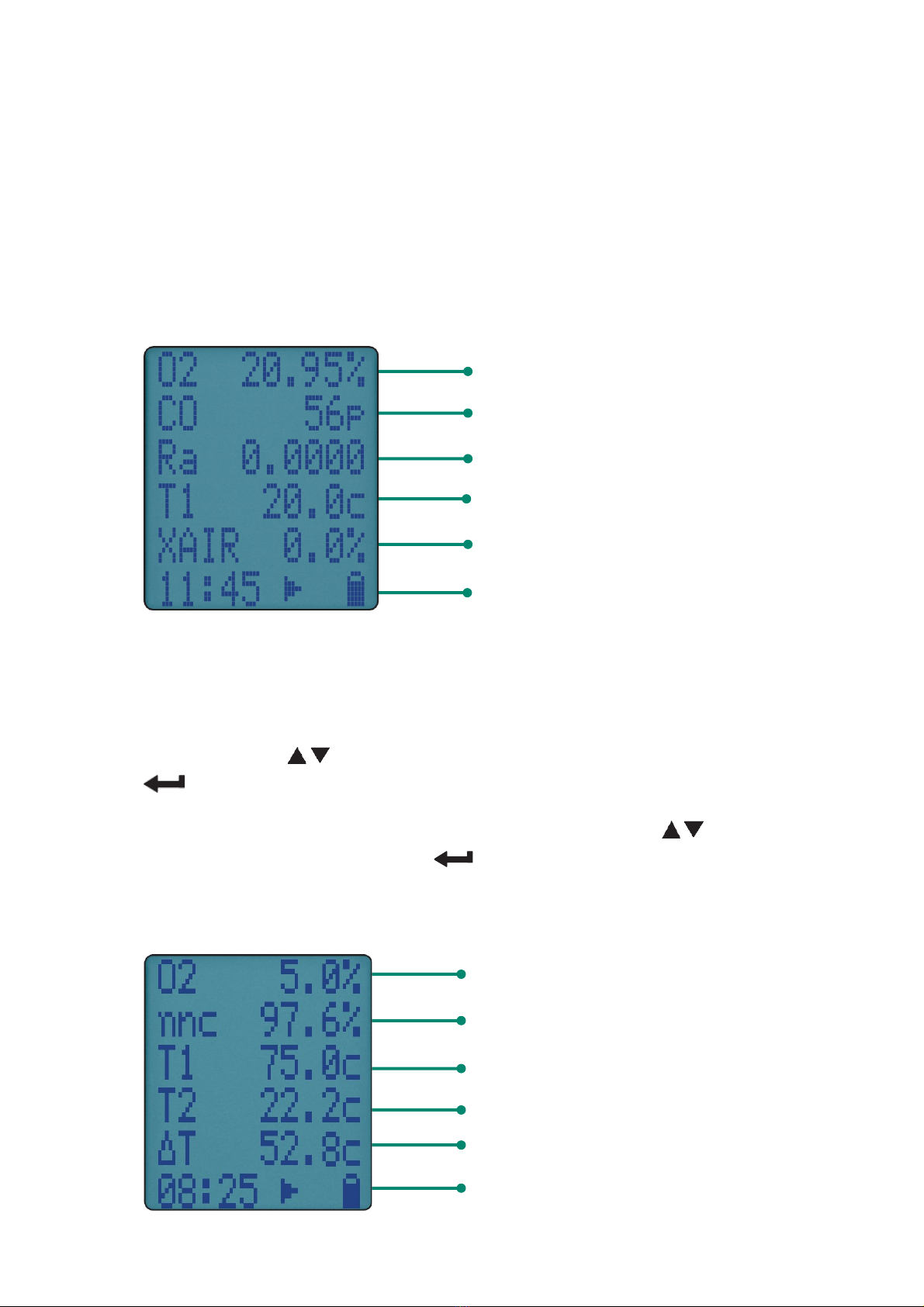

Turn rotary dial to AUX position to make
changes to AUX screen then long press
button until cursor flashes

MENU ITEM MENU TEXT OPTIONS/COMMENTS
TIME TIME HH:MM:SS format
E.G.. 7am = 07:00:00, 7pm = 19:00:00
DATE DATE DD/MM/YY format
HEADER HEADER Edit 2 Line Header on your printouts
PRINTER TYPE IR PRINT Select, KMIRP, IRP-3
GAS SCALE GAS UNIT Select, ppm, mg/m3, Mg/kWh
O2 REF O2 REF
Used for “Normalised” readings.
Default set to 3%, can be adjusted up or
down
IF NO OPTION
FITTED
NOX CALC
Enables selection of NOx equation types
and assumed percentage of NO2.
NOx equations are:
NOx reference to NO
NOx sum equation (NO + NO2)
NOx reference to NO2
LOGS LOGS View current memory usage & stored
logs
AIRFLOW AIRFLOW Change airflow scale and adjust pitot factor
EFF EFF
Efficiency calculation analyser set to
Gross or Net -
Condensing automatically selected
based on selected fuel type
LANGUAGE LANGUAGE Select required language from list
UTIL UTIL
Consists of a sub menu to:
INFO - View firmware information
B’LIGHT - Set backlight timeout (S)
LEAK - Perform system integrity test
CODE CODE Password protected for authorised service
agents only - Default to 000000
MENU ITEMS
16 KANE958 MANUAL

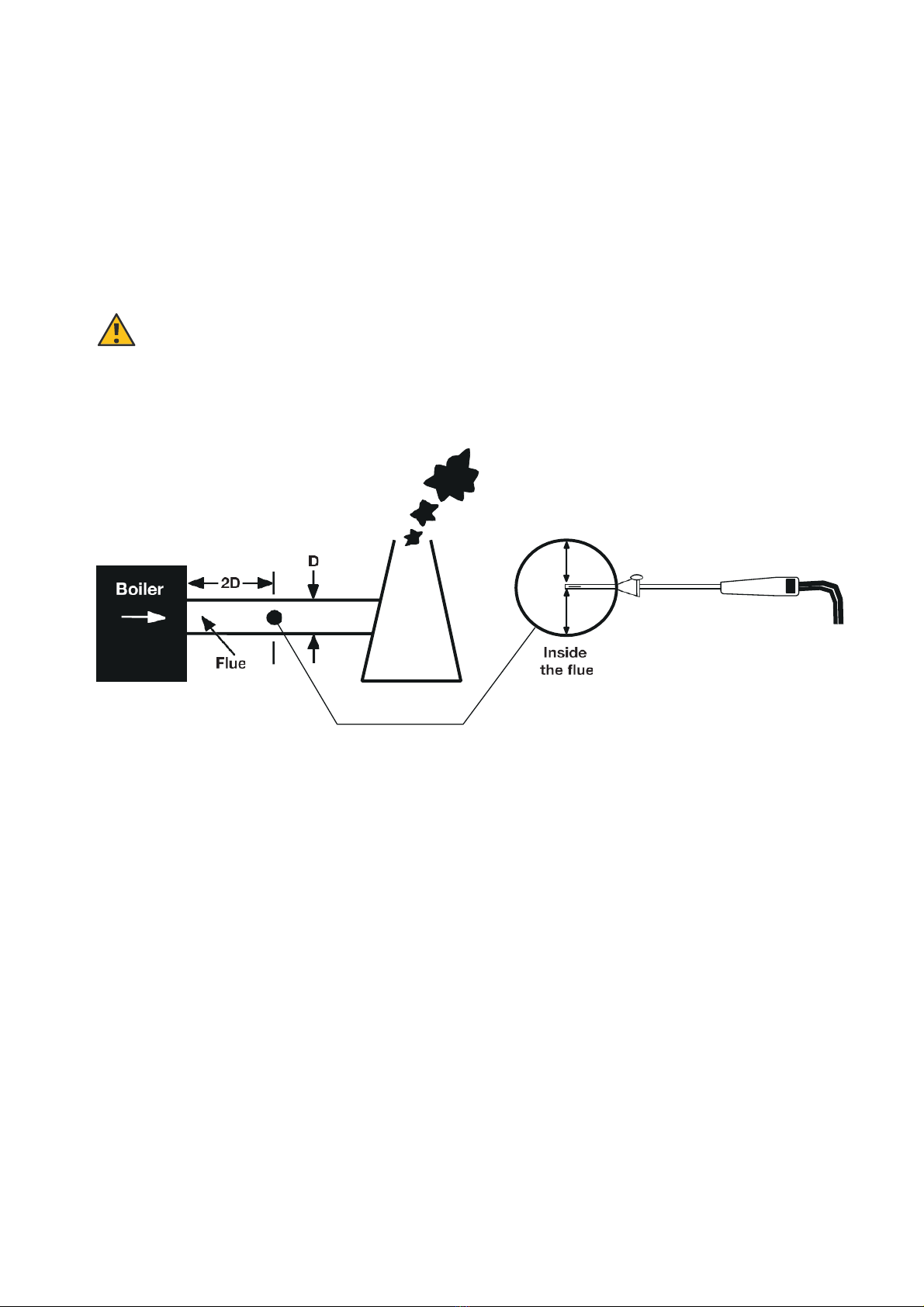

MEASURING FLUE GASES
After countdown is finished and your analyser is correctly set up, put your
flue probe into the appliance sampling point. The probe tip should be in the
flue centre - use flue probe depth stop cone to set position.
With balanced flues, make sure probe is positioned far enough into
the flue so no air can “back flush” into the probe.
SAFETY WARNING
Ensure your flue probe handle does not get hot!
Do not exceed analyser operating specifications - In particular:
• Do not exceed flue probe maximum temperature (600°C)
• Do not exceed analyser internal temperature operating range
• Do not put analyser on a hot surface
• Do not exceed analyser water trap levels
• Do not let analyser particle filter become dirty and blocked
Check readings are stable and within expected range.
KANE958 MANUAL 17

CO SENSOR PROTECTION PUMP OPERATION
Your analyser CO sensor is automatically protected from high levels of
CO. When CO is above the maximum range of your analyser the main pump
stops and CO Purge pump starts.
Your analyser displays - - - - until CO levels fall below the maximum
measurement range.
AUX SCREEN
EDITING THE AUX SCREEN
You can customise lines 1 to 5 of your analyser AUX screen.
To edit a line, press until EDIT appears on the status bar. Press and
hold to select EDIT.
Cursor flashes and line number appears in status bar. Use to select
option to appear on line then press to enter option.
O2/EFF SCREEN
Line 1
Line 2
Line 3
Status bar
18 KANE958 MANUAL
Oxygen reading
Combustion efficiency
T1 Flue Temperature
T2 Inlet Temperature
Nett Temperature
Status bar
Line 4
Line 5

CO/NO SCREEN
STORED MEMEORY REPORTS
Your KANE958 utilises a shared memory system which means stored logs
are not limited by type.
An icon displays when your analyser has stored data.
To view current memory rotate dial to MENU then select LOGS to display.
MENU OTIONS
KANE958 MANUAL 19
CO reading
CO normalised
Excess air reading
Loss reading
Status bar
No. of stored Combustion logs
No. of stored Temperature logs
Total memory used
Menu options
View stored reports if available - enter
sensory menu to select report type
Delete all sorted reports if available -
to delete long press button
Return to main menu
No. of stored Auxiliary logs

VIEWING STORED REPORTS
To view your reports, select VIEW option from LOGS Menu:
LOG VIEW MENU OPTIONS
FINDING STORED REPORTS
Once you select your report type the first stored log is displayed:
List of available LOGS
To navigate and select use
&
20 KANE958 MANUAL
View stored Combustion Reports
View stored Auxiliary Reports
View stored Pressure & Temperature
Reports
LOG Number of that type
Time and date of LOG
Report readings specific to report type
Navigation menu options
Returns to previous menu
