Kellfri 13-WC10 User manual

13-WC10
CHIPPER 100
CAREFULLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE PRODUCT!
OPERATING INSTRUCTIONS TRANSLATED FROM THE ORIGINAL

2
INTRODUCTION
Thank you for choosing a product from Kellfri AB. By following the general safety information
and the instruction manual and by using common sense, you will have a great and safety use
of your Kellfri product for many years. Kellfri designs and delivers eective, aordable ma-
chinery and components for forest, agriculture,construction and gardening in Sweden, other
Nordic countries and Europe.
PRODUCTINFORMATION
Chip wood waste, small trees, branches and twigs and use it as fuel for heating, to cover gar-
den beds, the basis for exercise trails, compost etc. Simple and strong construction without
V-belt for a smooth operation. The wood chipper is mounted on the tractor’s three point link-
age. The Outthrowing part is rotatable. Splintering wood with a maximum of 100 mm in trunk
diameter and brushwood up to 250 mm. The machine comes as standard with PTO shaft.

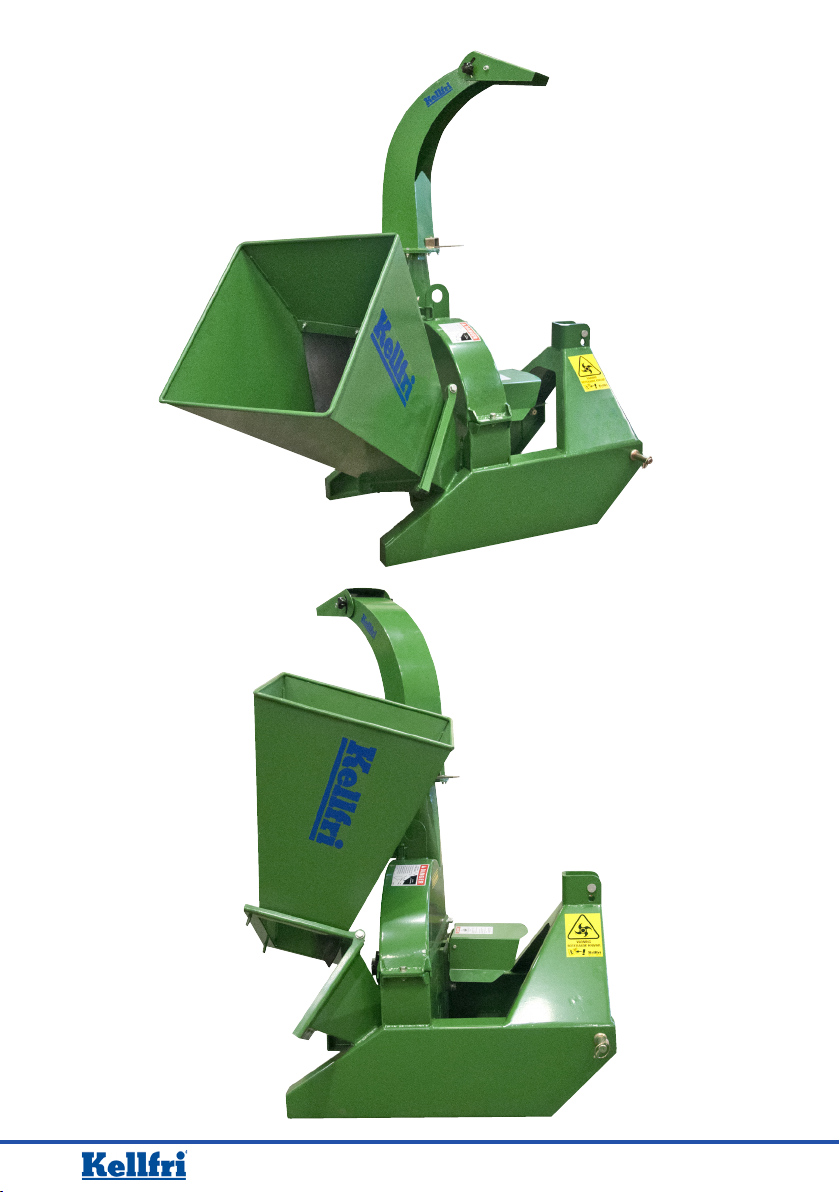

MACHINE
The implement is intended to chip wood waste, twigs and branches.
TECHNICAL DATA 13- WC10
L x W x H 1016 x 1067 x 1524 mm
Cutting disc 635 mm
Knives 4 st mooving och 1 stationary (härdat stål)
MAX diameter of timber upp to 100 mm
RPM 540/ 1 000 rpm
Power requirement 30 - 45 hp
Weight 215 kg
Input opening 500 mm x 500 mm
Output opening 100 mm x 250 mm
Wood chip tube rotation 360 °
Twig breaker No
NOTE! The machine can be dangerous misuse, therefore, it requires that the user of the machine
has sucient knowledge of how the machine is used and works!

3
SAFETYINFORMATION
Before using the product, please read the safety information and instruction manual and under-
stand its contents for your own and others’safety. Always keep the safety information and
instruction manual easily accessible to the user of the product. Remember that it may be good for
your own and others’ safety to read the safety information every now and then. If the instructions
manual is damaged or otherwise unusable, please contact and order a new one from: Your retailer
The general safety instruction is also available from Kellfris website: www.kellfri.co.uk
Do not use this equipment if you are feeling sick, tired or in inuence of alcohol. Nor if you are
under the inuence of strong medications or drugs, suering from strong depression or severe
mental illness. Always follow the general trac rules and regulations and the rules of the Animal
Welfare Act. Persons under 15 years old and people with mental illness may not
use these product.
Warning!
The product must not in any circumstances be
modied without permission from the manufac-
turer. Unauthorized modication of the machine
and/or accessories can cause fatal injuries or death
to operator or others.
PRODUCTSAFETYINFORMATION
• Read the instruction manual carefully before using this product. The product may only be
used in the manner described in this manual.
• Keep the work area free from other people, moving parts, increasing the risk of accidents.
• Respect implement risk zone! Only you who drive should stand near the machine during
operation. Children must never be staying within the work area, never let children play with
the machine.
• The tool works best and safest when it is used in this capacity it is intended for, do not try by
various means to increase machine capacity. Never overload the machine.
• Never leave the machine unattended when it is running. Turn o the tractor engine and
tighten
• parking brake when you leave the piece of equipment, even for a short while.
• Never leave the gear retracted. The hydraulics can lose pressure and as aresoult the imple-
ment could fall down.
• Ensure that all guards are always installed and can not come o before use.
• The PTO shaft must be protected over its entire length. Make sure to anchor the safety chain
well.
• The machine should always be disconnected before maintenance or service.
• The machine may not be used without feeder and hopper.
• Do not drive with the chipper if excessive vibration occurs, stop the machine immediately
and check the maintenance schedule.
• Do not use the machine unless all safety precautions are taken
• Do not climb on the chipper!
• NEVER try to remove things that stuck in the wood chipper while it is running!
• Ensure that the equipment has stopped spinning before any action is taken.
• Never place any body part in the machine while it is running.
• The machine may only be lifted on the designated lifting points. Use only suitable lifting
equipment with the enough lifting capacity to lift the machine.

4
INCASE OF EMERGENCIES
In case of an emergency please dial 112.
Keep cell phone or emergency phone available specially when working alone. First aid kit and
re extinguishers must be kept easily accesable during all work, maintenance and service.
PERSONAL PROTECTION
Always use suitable protection equipment. Do not wear loose clothing or jewellery while
working with the equipment. Long hair should be tied up when working equipment that has
moving parts. Use protective gloves as there is a risk of burns if any hot surfaces are touched
such as exhaust pipes, and avoid getting oil and petrol on skin. Ear defenders must be worn
whilst the engine is running.
SURROUNDINGS
Make sure your working area is clear from people, children and objects before installing and
using the machine. Risk of serious injuries can occur during operation. Take an extra caution
when children are in the area where the equipment/ product is being use or stored. Check
the area for low hanging electrical wires. Be careful when working on slopes and near ditches.
Always work alone with single - purpose tools/products. Never have junk lying in your area.
Keep working areas clean. Always respect the risk zone.
DANGER!
Children in the area should be supervised.

5

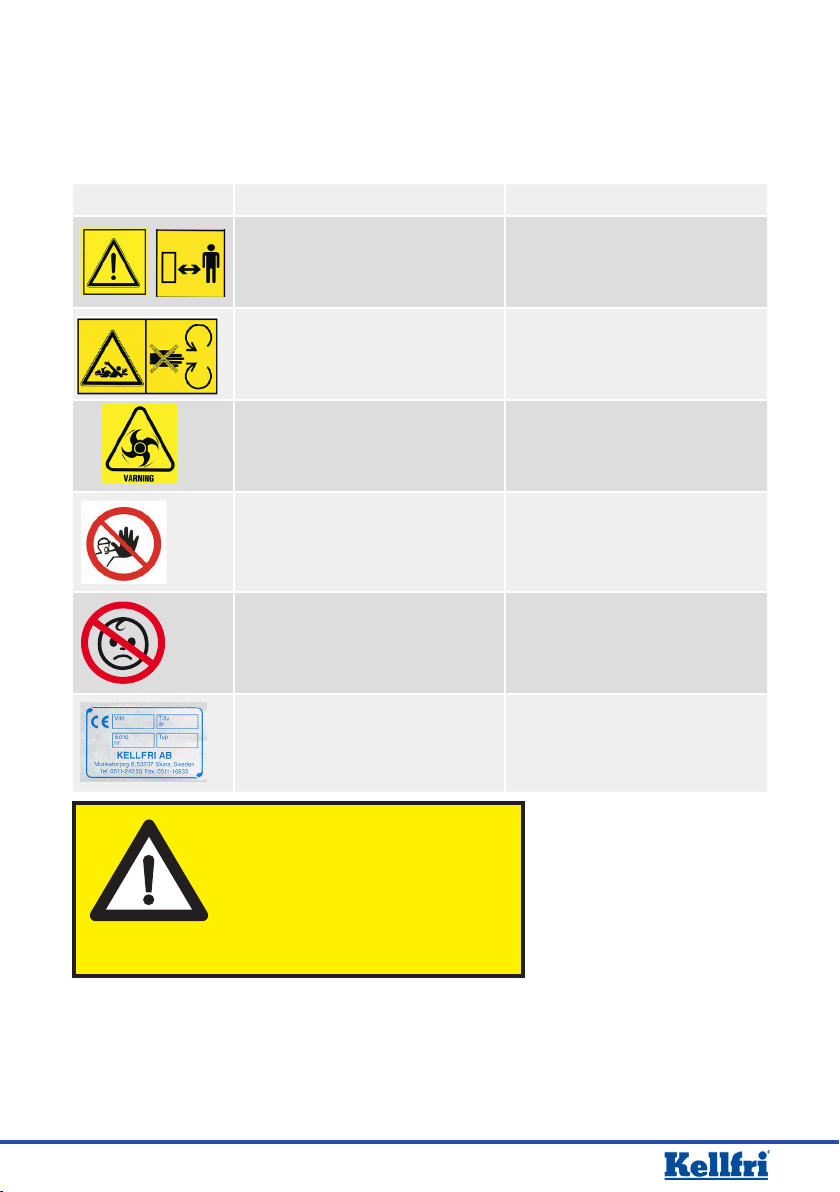

SYMBOL EXPLANATION LOCATION
Warning for ejection of objects
Risk zone 20 m
The side of the machine
Warning! Rotating PTO-shaft
Rotating machine parts
Warning! Keep o the machine!
Warning! Accident risk for chil-
dren!
The product is CE-märkt
WARNING DECALS
Ensure that warning labels are always visible and clean. Clean the warning labels as required.
Do not rinse using pressure washer directly on the warning labels. Any damage/ brokenstick-
ers should be replace. Order new stickers from your supplier.
warning!
For safety, this product should only be used in
the manner described in this manual.The user
is responsible for the instruction to be read
through and followed.

6
SAFETY MEASURES BEFORE OPERATING
Please read the safety information and operating instructions carefully. Make sure that you
understand the safety information, operating instructions and warning decals. Use common
sense when using the implement and use the appropriate personal protective equipment Al-
ways check the performance of the machine combination that will be used. It is important
that these harmonize and match in a satisfactory manner. This is to ensure the implement or
product´s function and your and others’safety.
Visually inspect the gear or the product before use. Fix or replace damaged and worn parts im-
mediately to reduce the risk of injury. Lubricate moving parts and check that all bolts and nuts
are tightened. Fix if necessary. Learn and remember properly working methods. Beginners
should keep a low speed until the person has learned how the machine or the product works.
The user / customer is responsible for the how the user handles the situation. If experiencing
the machine as dangerous for the user, the machine shall not be used.
• Perform a safety check of the machine before each use. If you notice any errors or omis-
sions, the machine should immediately be repaired.
• Make sure they are not any foreign objects in the machine before using it.
• During operation, the machine must be on a hard, at surface. Avoid working on slippery
surfaces, especially in winter.
• Check the PTO-shaft drive shaft and the three point linkage before the coupling and use
of the chipper.
• Check the work area before starting work. Make sure there are not any people or animals
nearby.
USE
Only people who understand the safety information and instructions in this manual may op-
erate the equipment. Be alert and careful when working with the machine and only use the
equipment or product in the manner described in this manual. When working with equipment
that has moving parts, there is always the risk of injury. Be careful when working with equip-
ment equipped with hydraulic hoses ,oil under pressure can penetrate the skin. Seek medi-
cal attention immediately if this occurs. Always work alone with the tools that are dened as
single porpose tools. Respect the equipment’s risk zone.
Warning!
Never use faulty safety equipments!
Warning!
NEVER allow anyone inexperienced to Drive
the tractor or / and machine!

7
COUPLING AND UNCOUPLING
• Couple the implement to the tractor’s rear three-point hitch.
• Connecting PTO-shaft. Adjust the length, if necessary. (See PTO-shaft manual)
• Anchor the chain well.
• Ready for use.
UNCOUPLING
• Reduced tractor engine speed to idle, turn o the engine.
• Make sure the gear shaft has stopped spinning before uncoupling of the PTO shaft .
• Before dismounting the chipper from the tractor, park it on a at, hard surface.
• Make sure it can not tip over.
CHIPPING
• Get familiar with the chipper without starting it.
• It is important that the chipper is stable during work. The chipper must not be lowered
too much in relation to the tractor. The PTO shaft may become loose during operation.
• It is important to always keep a safe distance to the place where the chips are thrown out.
Aim the chute so that the chips that are ejected does not pose a risk to the operator or
anyone else.
• Starting the chipper carefully with the tractor at low speed. Then increase the speed slow-
ly to the right chipping speed (540/1000 rpm) IMPORTANT! When you turn o the chip-
per, the chipper disc continues to rotate, wait until the disc has stopped spinning before
any action is taken on the machine.
• Never put any part of the body into the hopper or into any other part of the chipper while
the machine is running.
• Before feeding material to be chipped, ensure that the wood fed into the chipper is free
of metal, earth, nails, stones, etc.
• For manual input, never work in front of the feed hopper.
• Make sure that no one has hands or arms next to the roller.
• Insert the branches to the chipper and the chipping begins, then let go of the branches
as soon as the process starts
AFTER USE
• Parking is not allowed with the implement above ground, park with the implement rest-
ing on the ground.
• Clear of the implement from dirt if necessary.
N.B.!
The operator must always have a constant
view of the work area. If it is not possible,
the operator must work with an assistant.

8
TRANSPORT AND STORING
Check that the work area is free from bystanders, children and objects before driving o. Al-
ways observe additional caution during transport and moving. Ensure that the equipment or
product is well anchored and existing transport lashings are tted. Always position the load as
low as possible. Respect the risk zone even during transport and moving. Do not permit any-
one to walk under suspended loads when carrying out lifts. Trailers used for transport should
have properly working brakes. Always keep the equipment or product on a dry surface, prefer-
ably underneath a roof when not in use. Ensure that the equipment or product is stable and
cannot fall over. Never permit children to play at the storage site. Be aware of the tipping risk!
If the chipper is to be stored for a long time, lubricate the knives with lubricants.
MAINTENANCE AND SERVICE
Ensure that the unit is stable and cannot tip over during maintenance and service. Replace
damaged or worn parts immediately to reduce the risk of abrasion. Always perform mainte-
nance, service and inspection, as recommended. Use only original replacement parts or spare
parts with equivalent performance to reduce the risk of damage
• Always disconnect the implement from the tractor when the fault remedied.
• May only raise in the special lifting points, only use lifting equipment with sucient lift-
ing capacity.
• Regularly check the condition of the the implement before the break down is a fact. If you
discover cracks, twisting, bending, gaps or fatigue stop the operation and rectify the fault.
• Worn parts should be replaced. Tighten all screws and nuts after a few hours of driving,
and after a day of using the implement.
• Check all bolts and nuts are tightened after maintenance and service. Always test the
machine before opeartion is started.
• Lubricate all lubrication points regularly. Lubrication points are lubricated every 20 hours.
RECYCLING
Disposal of the product, disassemble and transport to the municipality’s recycling station.
Contact your local authority for further information
SERVICE INTERVALL
Knives Before each run Replace any defective blades. Sharp blades provide better
results.When replacing bolts, tightened them properly.
While driving listen for noises
Bearings Regularly
Aftter 50 running hours
lubricate bearings with grease regularly, depending on
how much the machine is used.When the machine is
oftenly use, all bearing should be lubricated every week.
Otherwise, every 50 hours or once a year.
The implement After each run Wash away dirt and grass with water
Safety equippment Before each run Check of safety devices such as safety valves, safety etc.

9
1
2
4
5
11
9
10
6
8
3
7

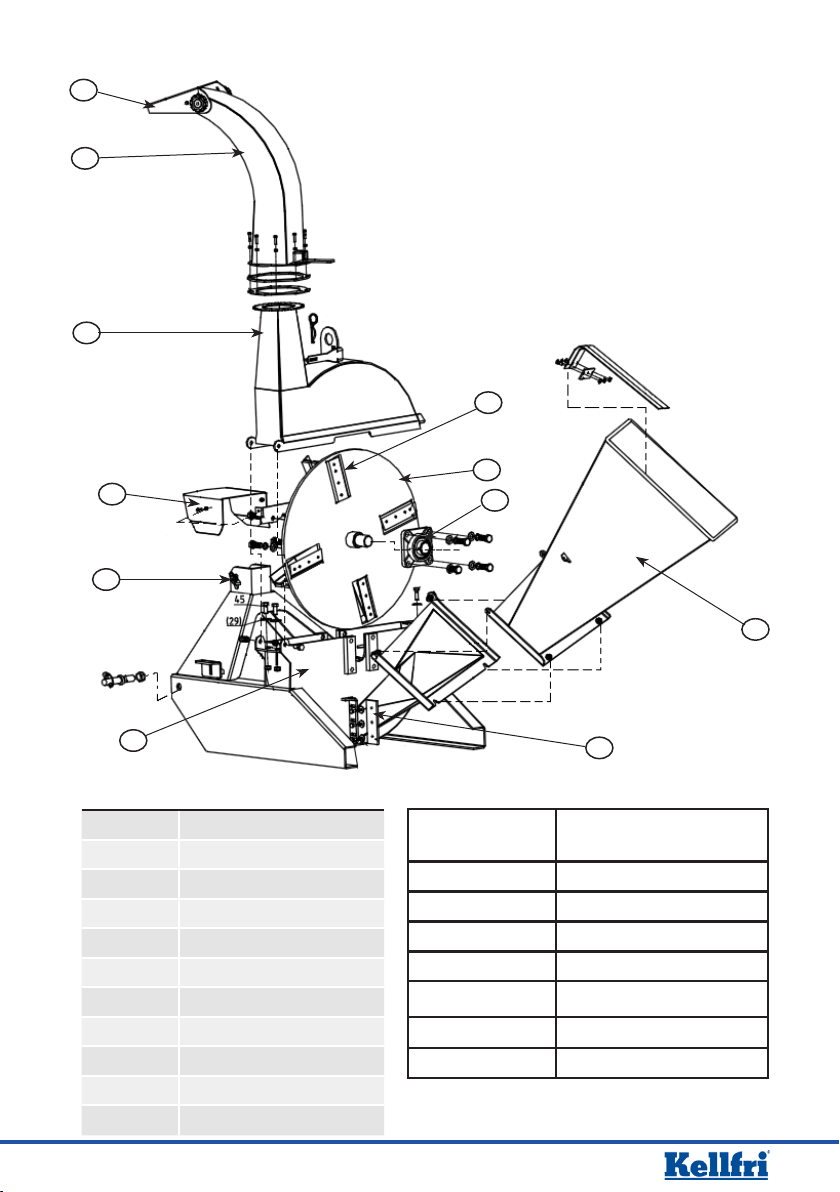

No Description
1 Screen
2 Chute
3 Top cover
4 Lower cover
5 Hopper
6 Cutting disc
7 Knife
8 Stock
9 PTO-shaft protection
10 Three point linkage
11 Counterknife
Replacement parts
ART. NO DESCRIPTION
R13-WC10.001 Knife Chipper 100
R13-WC10.002 Bearing Chipper UCF208
R13-WC10.003 Distance Ring chute
R13-WC10.004 Distance Ring chute
R13-WC10.005 Distance Ring chute
R13-WC10.006 Twig breaker
R13-WC10.007 Counterweight

10
Mount the funnel, tighten all the
bolts (4 pcs)
MOUNTINGINSTRUCTION
ADJUSTING THE CHIP LENGTH
It is the distance between the cutting knives and the counter knife which determines the chip
size. Wood chips size is set by moving the cutting knife inward or outward. The greater the
distance is between the blades, the larger chips you get.
IMPORTANT!
When adjusting the knives, it is important that the cutting blades do not
touch the counter knife and cutting distance is the same on all of them.
Always check that all the xing bolts are tightened
For better chip quality adjust the cutting size to the material. Reduce
chip size when chipping small and tough material such as pine branches.
When chipping larger materials in the machine as logs , the chipping
size should be increased.

11

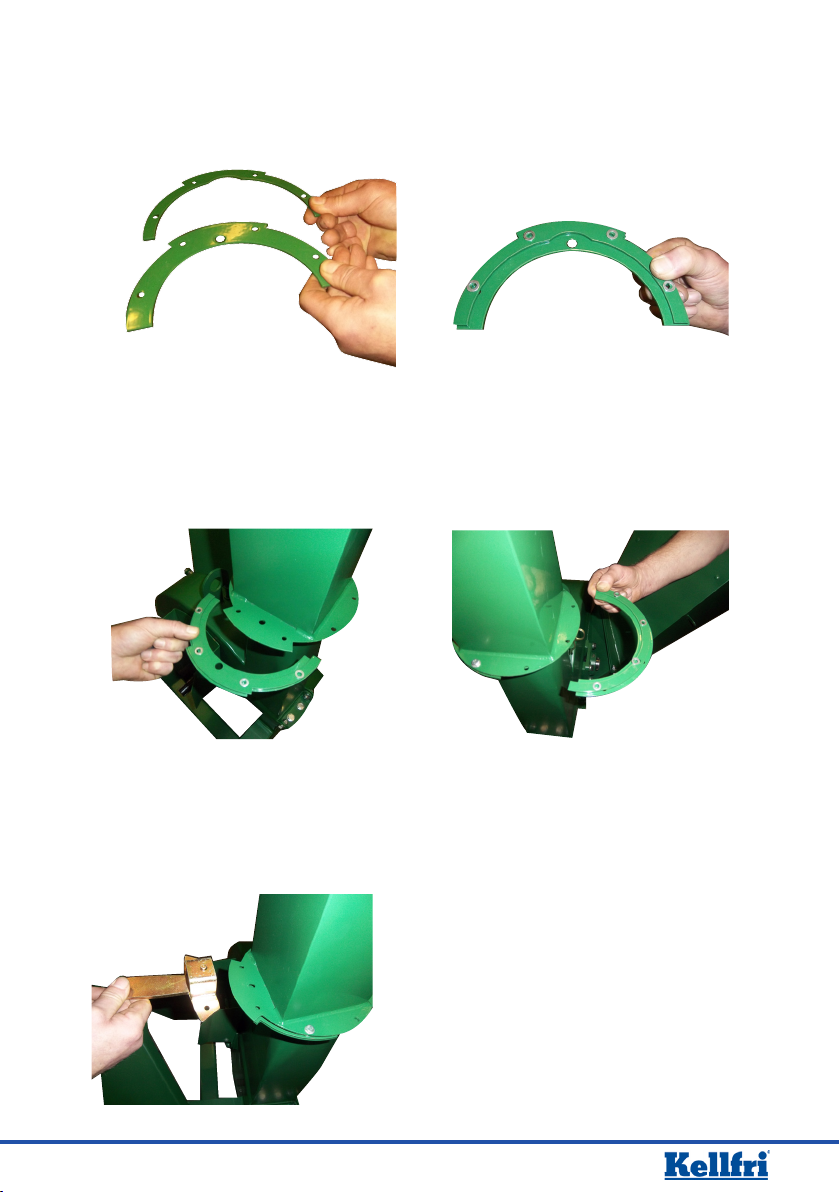

MOUNTING THE CHUTE
It should be 2 spacers between the
discharge chute and lower part of the
ejector. Spacers are divided into two parts
(half moon)
Fit the spacers on the other side
Ejector part is rotatable.
Install ejectors adjustment lever. Install all
bolts (8 pcs) and tighten! NOTE! Do not tight-
en the bolts too tight. Thighten them enough
so you can easily turn the chute. Rotate the
chute by pulling the lever, and then turn the
chute to the desired angle.
The narrow plate must be above the
other and washers must be placed
on top.
Mount the distance, do not forget the washers.
NOTE! Do not tighten the bolts yet.

12

13
No Description Amount
1 Screen 1
2 Locking nut - Screen 2
3 chute 1
4 Bolt M6x25 2
5 Bolt M6x20 6
6 nut M6 10
7 Adjustment lever 1
8 spacer ring 1
9 spacer ring 1
10 spacer ring 1
11 spacer ring 1
12 R-pin Ø4 1
13 top cover 1
14 chipper disc 1
15 Bolt M8x20x1,5 16
16 Lock Washer Ø8 19
17 Washer Ø8 16
18 knife 4
19 Bolt M8x20 3
20 iron plate 1
21 nut M8 8
22 Mud aps 2
23 Feeding hopper 1
No Description Amount
24 ange bearings UCF208 2
25 Washer Ø14 8
26 Lock Washer Ø14 8
27 Bolt M14x40 8
28 Bolt M12x30 5
29 Washer Ø12 3
30 nut M12 6
31 Lower strutt 1
32 Anvils - knife 1
33 Washer Ø8x24x2 3
34 lower cover 1
35 frame 1
36 twig breaker 1
37 3-point linkage 1
38 Nut M22 2
39 speed monitor 2
40 Clamp Ø11 3
41 Locking pin 1
42 knife 1
43 PTO-shaft protection 1
44 Bolt M6x16 2
45 Bolt M12x35 2

14

15
We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint
read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the
machine.
Please ll in the details below and attach photo and other information in order to process your request.
Buyer: Customer number:
Adress: Invoice number:
E-mail: Phone nr:
Defect product / part:
Problem description:
Describe the sequence of events:
Other:
Submit Complaint form and photo to:
Kellfri AB
Division of Services : Contact Kellfri retailer
Or e-mail service.
[email protected]
Signiture: Date:
When was the product delivered? When was the product taken into
operation?
Did the product functioned as it should
upon the rst operation?
Complaint form

Kellfri AB
Telefon: [phone] - 242 50
Fax: 0511 - 168 33
E-mail: [email protected]
EGFÖRSÄKRAN OM MASKINENS ÖVERENSTÄMMELSE, ORIGINAL
EC-DECLARATION OF CONFORMITY
According to 2006/42/EC, Annex 2A
Kellfri AB
Munkatorpsgatan 6
532 37 Skara, Sweden
Declares that the machine
Name: 13-WC 10
Type: Chipper
Complies with all applicable provisions of the Machinery Directive 2006/42/EC.
Other equipment must meet the hardware requirements of the Directive.
Tina Baudtler, VD --
WARRANTY TERMS AND CONDITIONS
Validity of the warranty - Kelifri’s Warranty is valid  months from the date of purchase.
This warranty replaces - Compensation for spare parts after acknowledgment that the
fault lies on the material or manufaturing deects.
This guarantee do not
cover
• Labour costs
• Travel expenses
• Any modication that the buyer himself has/had made.
• Any consequential damages that occured out of damage to
the machine.
• Damage due to normal deterioration of the machine, inade-
quate: service, user inexperience or use of spare parts which
are not original.
• Wear parts such as hoses, seals, oils, and mechanical belts
Kellfri AB is constantly working on further developing their products and therefore reservesthe right
to modify, among other things the design and appearance without notice.
CUSTOMER SERVICE
You are always welcome to give your feedbacks, reviews or ask us about our tools and products.
