Kichler Lighting Lija 330140NI User manual

INSTRUCTION MANUAL
Product images may vary slightly from actual product.
52" Lija™

KICHLER.COM

TABLE OF CONTENTS
SAFETY RULES .................................................................4
TOOLS REQUIRED............................................................5
PACKAGE CONTENTS ....................................................5
MOUNTING OPTIONS.....................................................6
HANGING THE FAN......................................................7-9
INSTALLATION OF SAFETY SUPPORT..................10
ELECTRICAL CONNECTIONS ............................. 11-12
FINISHING THE INSTALLATION................................ 13
ATTACHING THE FAN BLADES.................................14
INSTALLING THE MOUNTING PLATE....................14
INSTALLING THE LIGHT FIXTURE........................... 15
OPERATING INSTRUCTIONS...............................16-17
INSTALLING THE REMOTE
CONTROL HOLDER.......................................................18
TROUBLESHOOTING.............................................19-20
FCC INFORMATION .......................................................21
3
52" Lija™|

SAFETY RULES
1. To reduce the risk of electric shock, ensure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical
Code and local electrical codes. Electrical installation should
be performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of fire, electric shock, or
personal injury, use mounting screws provided with the
outlet box. Most outlet boxes commonly used for the
support of light fixtures are not acceptable for fan support
and may need to be replaced. Due to the complexity of
the installation of this fan, a qualified licensed electrician is
strongly recommended.
4. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of
50 pounds. Use only CUL Listed outlet boxes marked “FOR
FAN SUPPORT”.
5. The fan must be mounted with a minimum of 7 feet
clearance from the trailing edge of the blades to the floor.
6. Do not operate reversing switch while fan blades are in motion.
Fan must be turned o and blades stopped before reversing blade
direction.
7. Avoid placing objects in the path of the blades.
8. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
9. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
10. After making the electrical connections, spliced conductors should
be turned upward and pushed carefully up into outlet box. The
wires should be spread apart with the ground wire and white
(common) wire to one side with the black (load) wire to the other
side of the outlet box.
11. Electrical diagrams are reference only. Light kits that are not
packed with the fan must be CUL Listed and marked suitable for
use with the model fan you are installing. Switches must be CUL
General Use Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)
DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX
MARKED “ACCEPTABLE FOR FAN SUPPORT”.
4 | KICHLER.COM

TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
•Phillips screwdriver
•Blade screwdriver
•11 mm wrench
•Step ladder
•Wire cutters
Unpack your fan and check the contents . You should have the following items:
A. Fan blades (4)
B. Canopy and ceiling mounting bracket
C. Ball/downrod assembly
D. Coupling cover
E. Fan motor assembly
F. Set of 4 blade brackets and
pre-installed mounting screws
G. Mounting plate
H. LED light fixture
I. Glass shade
J. Receiver
K. Transmitter and holder
with mounting screws
L. Part bag contents
1) Mounting hardware: wire nuts (3)
2) Blade attachment hardware:
screws (12), fiber washers (12)
3) Safety cable hardware:
wood screw, spring washer,
flat washer
A
B
C
D
E
F
G
H
I
J
K
L
5
52" Lija™|

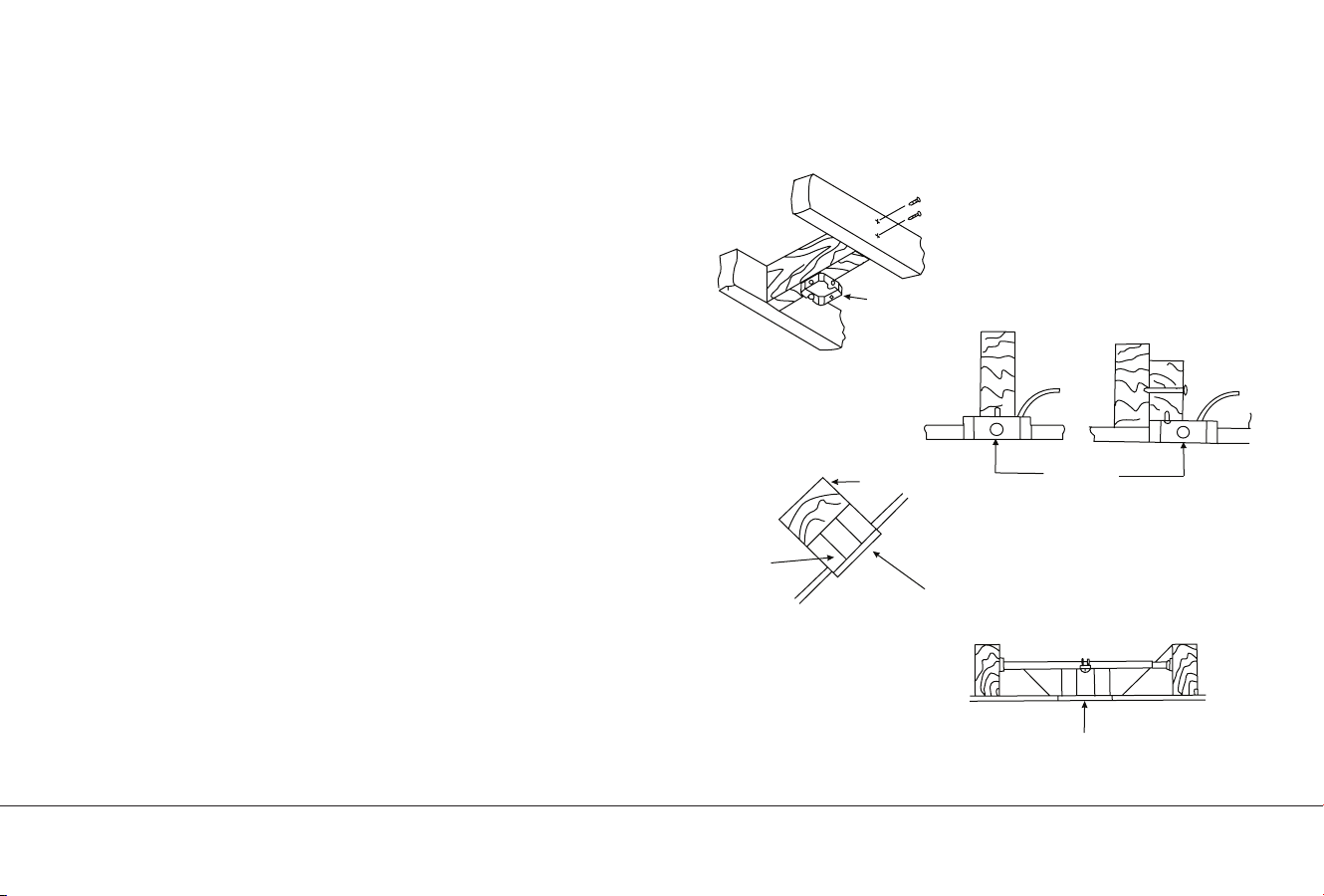

MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist Hanger”
for the support of the outlet box. Make sure the joist hanger you
purchase has been designed for use with ceiling fans. (Fig. 4)
Outlet box
Fig. 1
Outlet box
Fig. 2
Fig. 3
Recessed
outlet box
Provide strong
support
Ceiling
mounting
plane
ANGLED CEILING
MAXIMUM 20° ANGLE
Fig. 4
Outlet box
6 | KICHLER.COM

HANGING THE FAN
REMEMBER to turn o the power before you begin. To properly install your ceiling
fan, follow the steps below.

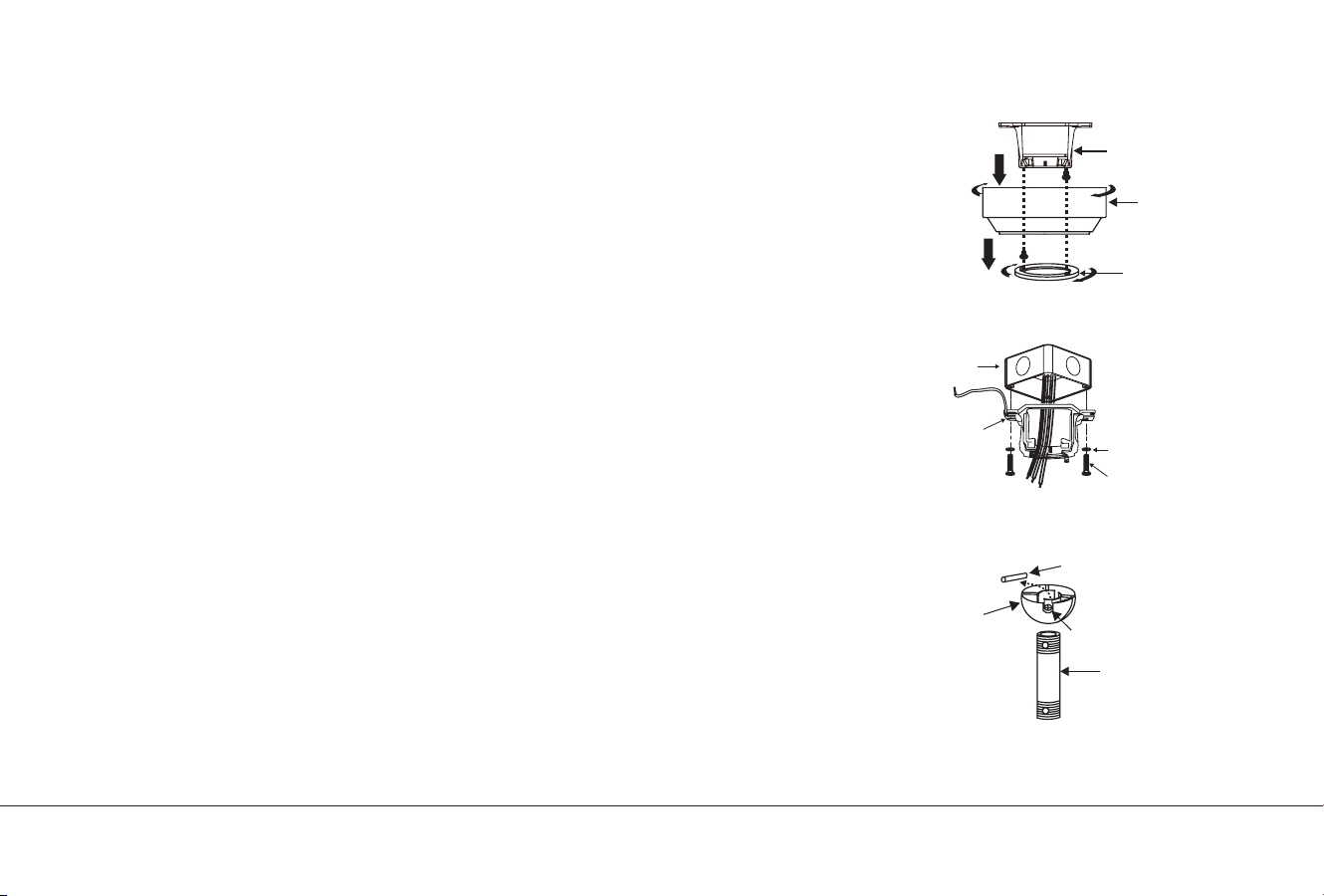

Step 1. Remove the decorative canopy bottom cover from the canopy by turning
the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by removing
(and save one of the two screws. Loosen the remaining screw by a half turn.
(Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the
center of the ceiling mounting bracket. (Fig.6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the screws and
washers included with the outlet box. (Fig. 6)
Step 5. Remove the hanger ball from the downrod assembly by loosening the set
screw, unscrewing and removing the cross pin and unscrewing the ball o the rod.
(Fig.7)
Hanger bracket
Ceiling canopy
Canopy cover
Fig. 6
120V Wires
CUL Listed
outlet box
Washers
Mounting screws
(supplied with electrical box)
Ceiling
mounting
bracket
Fig. 7
Downrod
Set screw
Hanger
ball
Cross pin
Fig. 5
7
52" Lija™|

Fig. 8
HANGING THE FAN
Step 6. Loosen the two set screws and remove the hitch pin and retaining clip from
the coupling on top of the motor assembly. (Fig. 8)
Step 7. Carefully feed the electrical lead wires safety cable from the fan up through
the downrod. Thread the downrod into the coupling until the Hitch pin holes are
aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 8)
Supply wires
Set screw
Retaining clip
Downrod
Set screw
Safety cable
Hitch pin
8 | KICHLER.COM

HANGING THE FAN
Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod.
(Fig. 9)
Thread the hanger ball onto the downrod, insert the cross pin through the
downrod and tighten. Tighten the set screw.
Step 9. Lift the motor assembly into position and place the hanger ball into the
ceiling mounting bracket.
Rotate the entire assembly until the “Check Tab” has dropped into the
“Registration Slot” and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when seated properly.
WARNING: Failure to reattach the cross pin and seat the “Check Tab” can cause
the fan to fall from the ceiling during operation. Take special care to make sure this
pin is reattached.
Registration slot
Fig. 10
Fig. 9
Coupling cover
Retaining clip
Set screws
Hitch pin
Canopy cover
Canopy
Downrod
9
52" Lija™|

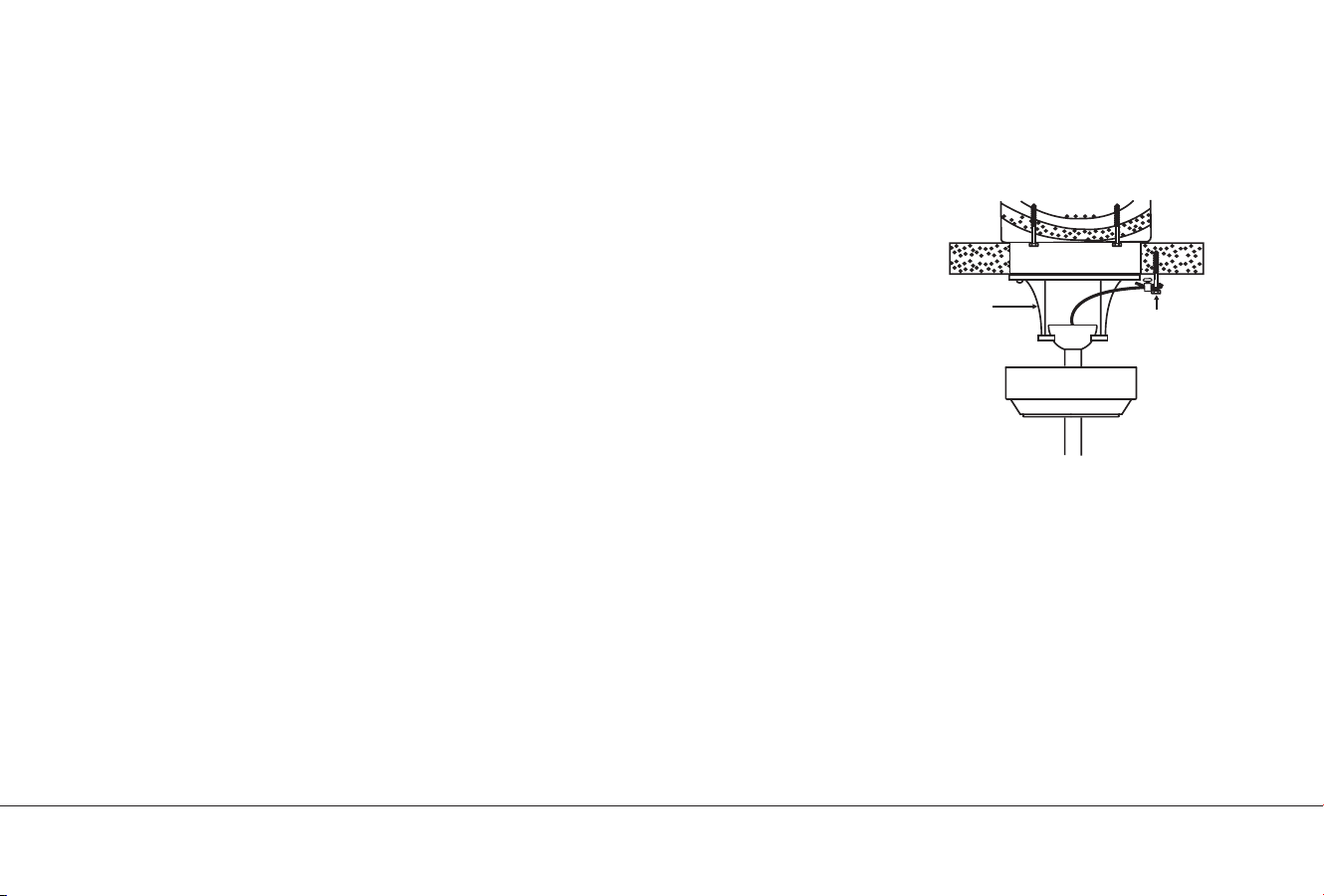

INSTALLATION OF SAFETY SUPPORT
(Required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from falling.
Step 1. Attach the provided wood screw and washers to the ceiling joist next to the
mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and washers by pulling
the extra cable through the cable clamp until the overall length is correct, put the end of
the cable back through the cable clamp, forming a loop at the end of the cable. Tighten
the cable clamp securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian installations only.
It’s a good idea to make the attachment with any installation.
Ceiling
mounting
bracket Attach safety cable
to ceiling joist with
screw and washer
Fig. 11
10 | KICHLER.COM

ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the
power at the main circuit panel.
NOTE: In the Transmitter, Set Dip Switch #4 to the D position.This enables
the dimming function because your ceiling utilizes an LED light fixture that is
dimmable. (See Fig.12)
If this switch is set to the X position it will disable the dimming function of
your fixture.
NOTE: The remote control system is equipped with 16 possible frequency
combinations to prevent interference from or with other remote control units.
The frequency switches on your receiver and transmitter have been preset
at the factory. Please recheck to make sure the switches on transmitter and
receiver are set to the same position, any combination of settings will operate
the fan as long as the transmitter and receiver are set to the same position.
(Fig. 12)
Step 1. Insert the receiver into the ceiling mounting bracket with the flat side
of the receiver facing the ceiling. (Fig. 13) For best performance, make sure the
Black Antenna, on the end of the receiver, remains extended and not tangled
with any of the electrical wires.
Fig. 12
Receiver
Dip switch
Mounting
bracket
ON
1 2 3 4
ON
Fig. 13
11
52" Lija™|

ELECTRICAL CONNECTIONS
Step 2. Motor to Receiver Electrical Connections: (Fig. 14)
• Connect the black wire from the fan to the black wire marked “TO MOTOR L” on
the receiver.
• Connect the white wire from the fan to the white wire marked “TO MOTOR N” on
the receiver.
• Connect the blue wire from the fan to the blue wire marked FOR LIGHT” on
the receiver.
NOTE: If the receiver included with your ceiling fan has an “orange wire”, ensure that it
has a wire nut attached to the end of the wire. No exposed wire should show.
The Orange wire is used for decorative up lighting on some models.
Secure each set of wire connections with the plastic wire nuts provided in the parts bag.
Step 3. (Fig. 14) Receiver to House Supply Wires Electrical Connections:
• Connect the black (hot) wire from the ceiling to the black wire marked
“AC in L” from the receiver.
• Connect the white(neutral) wire from the ceiling to the white wire
marked “AC in N” from the Receiver.
Secure the wire connections with the plastic wire nuts provided.
Step 4. (Fig. 14) If your outlet box has a ground wire (green or bare copper) connect
it to the fan ground wires; otherwise connect the hanging bracket ground wire to
the mounting bracket. Secure the wire connection with a plastic nut provided. After
connecting the wires, spread them apart so that the green and white wires are on one
side of the outlet box and black and blue wires are on the other side. Carefully tuck the
wire connections up into the outlet box.
Note: Fan must be installed at a maximum distance of 30 feet from the CoolTouch™
Remote Transmitter for optimal signal transmission between the transmitter and the
fan’s receiving unit. Fig. 14
Black (motor)
Blue (for light)
Receiver
Black (“to motor L”)
Black (“AC IN L”)
Black (hot)
Outlet box
(Connect to
ground wire on
hanger bracket if
no house ground
wire exists.)
Ground
(green)
White (“to motor N”)
White (“AC IN N”)
Green or bare
copper (ground)
White (neutral)
White (neutral)
Blue (for light)
12 | KICHLER.COM

FINISHING THE INSTALLATION
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one of the
key hole slots over the mounting screw on the mounting bracket. Rotate the
canopy until the screw head locks in place at the narrow section of the key hole.
See figure 15.
Step 3. Align the remaining circular hole on the canopy with the remaining hole
on the Ceiling Mounting Bracket. Insert and tighten the mounting screw you
removed earlier and the mounting screw from Step 2 above. Now, attach the
canopy cover to the mounting screw heads by inserting the screw heads into
the bottom side of the canopy cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary until the canopy and canopy
cover are snug. (Fig. 15)
WARNING: Make sure the “Check Tab” at the bottom of the hanger bracket is
properly seated in the “Registration Slot” on the side of the hanger ball before
attaching the canopy to the bracket.
Fig. 15
Outlet box
Ceiling
mounting
bracket
Screws
Screws
Canopy
Canopy cover
13
52" Lija™|

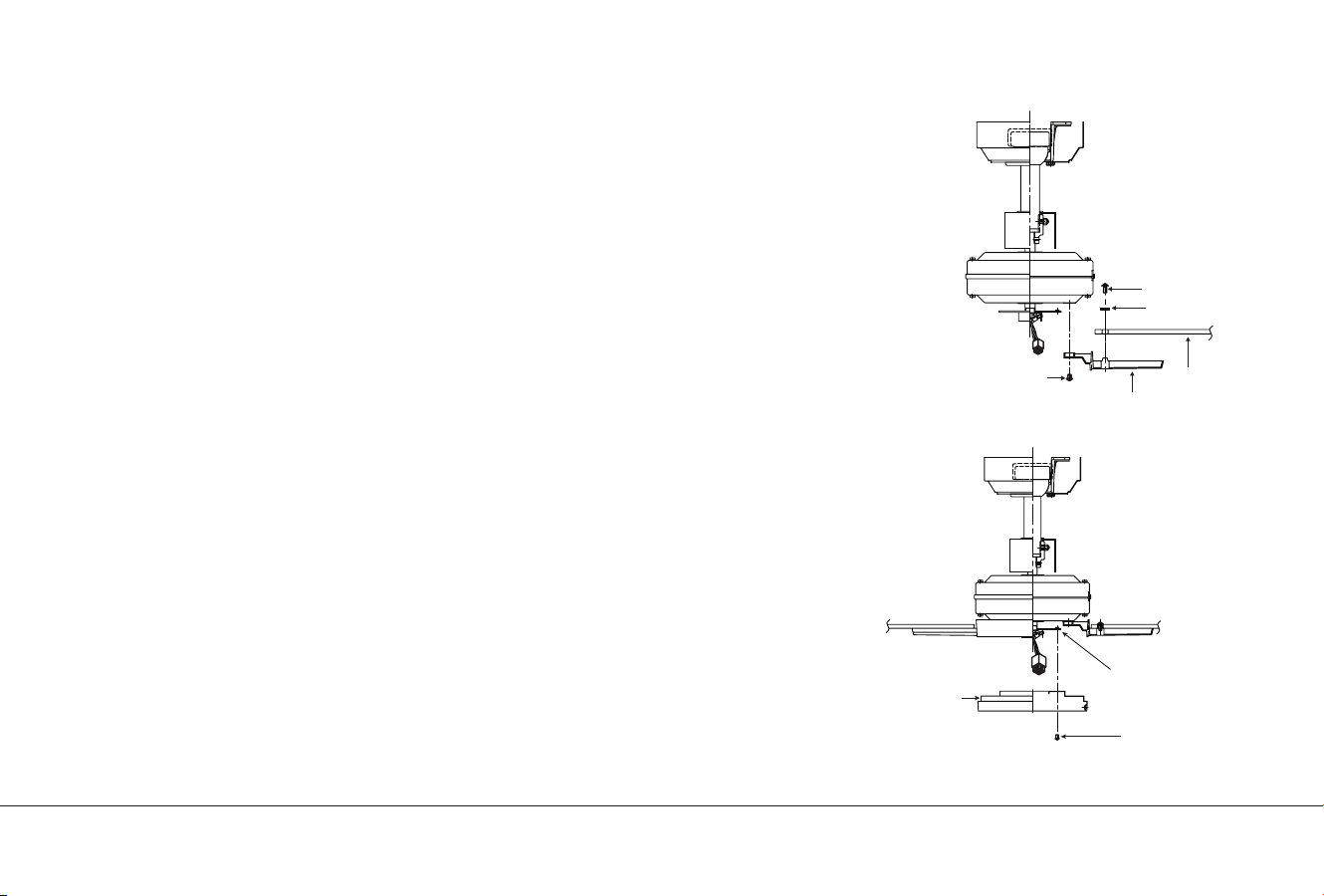

ATTACHING THE FAN BLADES
CAUTION: Remove the five rubber shipping blocks attached to the face of the
motor. These blocks keep the motor from shifting during shipping and MUST be
removed during installation.
Step 1. Attach a blade to a blade bracket using the screws and fiber washers
provided. (Fig. 16)
Make sure the blade is straight when set on the blade bracket. Tighten each
mounting screw until the fiber washer is slightly compressed. Repeat this
procedure for each blade.
Step 2. Attach each blade assembly to the motor using the “Pre-Installed”
mounting screws in the blade bracket. (Fig 16)
INSTALLING THE MOUNTING PLATE
Step 1. Loosen the two screws on the mounting ring attached to the motor shaft
and “remove” and save the third screw. (Fig. 17)
Step 2. Place the key hole slots on the light plate over the two screws previously
loosened on the mounting ring.
Turn the light plate until is locks in place at the narrow section of the key hole slots.
Tighten both key hole screws and replace the third screw previously removed and
tighten securely.
Fig. 17
Mounting ring
Mounting
plate
Screws
Fig. 16
Screws
Fiber
washers
Blade brackets
Screws Blades
14 | KICHLER.COM

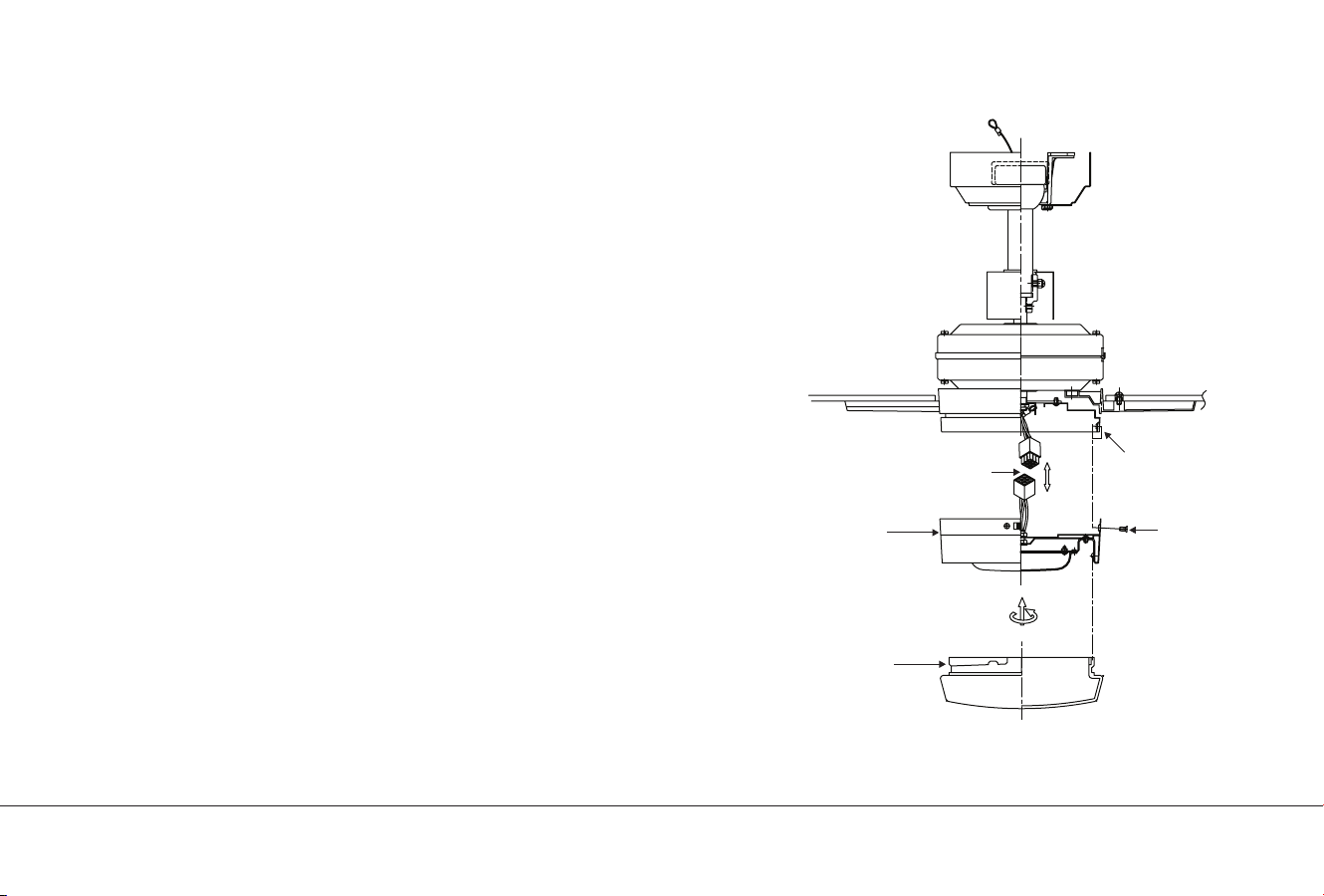

INSTALLING THE LIGHT FIXTURE
NOTE: Before starting installation, disconnect the power by turning o the
circuit breaker or removing the fuse at fuse box.
Step 1. While holding the light fixture/switch housing assembly under your
ceiling fan, push the square wire connectors together. One from the fan and
one from the switch housing. (Fig. 18)
NOTE: These connectors are color coded and will ONLY engage when the
colored strips are matched (aligned).
Step 2. Carefully push all the wires into the switch housing on the light
fixture/switch housing assembly.
Attach the light fixture/switch housing assembly to the mounting plate with
the three screws provided. Make sure each screw is tight. (Fig. 18)
Fig. 18
Screws
Wire connector Mounting plate
Glass shade
Light fixture/
switch housing
assembly
15
52" Lija™|

OPERATING INSTRUCTIONS
Remove the battery compartment cover on the back of the CoolTouch™Transmitter
and insert 9 volt battery provided. (Fig. 19)
Take care during this procedure NOT TO move the frequency dip switches inside
this compartment. The settings MUST remain the same as the settings on the
receiver for proper communication with the control system.
It’s a good idea to remove the battery if your fan is not used for extend periods of
time, (months).
Restore power to ceiling fan and test for proper operation. (Fig. 20)
A. HI, MED, and LOW buttons:
These three buttons are used to set the fan speed as follows:
HI = High speed
MED = Medium speed
LOW = Low speed
B. OFF button: This button turns the fan o.
C. The “ ” button: turns the light ON or OFF and also controls the
brightness setting.
Press and hold button to set the desired brightness level. The next time you turn the
light on, the system will remember this setting.
Press and release button to turn the light ON or OFF.
This control system is NOT designed to “Reverse” the rotation of the blades. to set
the fan blades in reverse, locate the reverse slide switch located on the side of the
Light Kit Assembly. See inset image at right. (Fig. 21)
WARNING: Do not operate reversing switch while fan blades are in motion. Fan
must be turned o and blades stopped before reversing blade direction.
9 Volt
Battery
ON
1 2 3 4
ON
Fig. 19 Fig. 20
Fig. 21
Code Switch
Slide Switch
16 | KICHLER.COM

OPERATING INSTRUCTIONS
The Black Slide Switch on the side of the switch housing controls the
direction of the blades “Forward and Reverse”.
WARNING: Do not operate reversing switch while fan blades are in
motion. Fan must be turned o and blades stopped before reversing
blade direction.

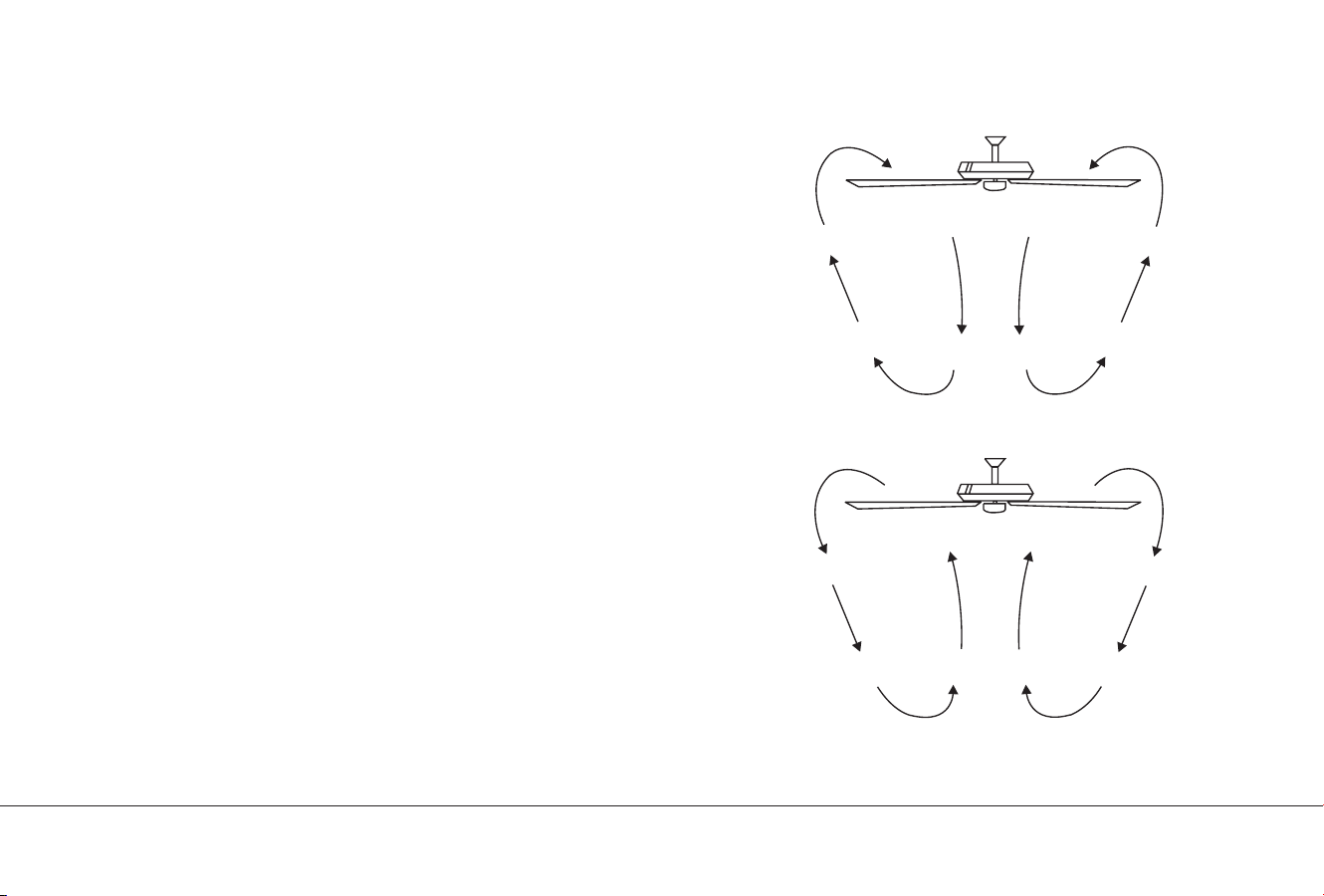

Warm weather - Forward (counter clockwise) A downward airflow
creates a cooling eect as shown in Fig. 22. This allows you to set your
air conditioner on a warmer setting without aecting your comfort.
Cool weather - Reverse (clockwise) An upward airflow moves warm
air o the ceiling area as shown in Fig. 23. This allows you to set your
heating unit on a cooler setting without aecting your comfort.
Fig. 22
Fig. 23
17
52" Lija™|

INSTALLING THE REMOTE CONTROL HOLDER
Step 1. Attach the remote control holder with the two remote
control holder mounting screw provided. (Fig.24)
Step 2. Replace the remote control holder cover into remote
control holder.
Fig. 24
Screws
Remote
Control
Holder
18 | KICHLER.COM

TROUBLESHOOTING
Problem Solution
Fan will not start. 1. Check circuit fuses or breakers.
2. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main
power is OFF when checking any electrical connection.
3. Make sure the transmitter batteries are installed properly.
4. Ensure the batteries have a good charge.
Fan sounds noisy. 1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the
switch housing. CAUTION: Make sure main power is o.
4. Allow a 24-hour “breaking-in” period. Most noise associated with a new fan disappear during
this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure
the light bulbs are not touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). They are not compatible
with ceiling fan motors or remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the
ceiling.
19
52" Lija™|

TROUBLESHOOTING
Problem Solution
Fan wobble. 1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure this distance.
Rotate the fan until the next blade is positioned for measurement. Repeat for each blade. The
distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY AND TO ENUSRE THE PROPER
OPERATION OF YOUR CEILING FAN. NEVER ATTACH THE BLADE ASSEMBLIES UNTIL THE
CEILING FAN HAS BEEN MOUNTING ON THE CEILING. DO NOT BEND THE BLADE ARMS
WHILE INSTALLING, BALANCING OR CLEANING THE FAN. DO NOT INSERT FOREIGN
OBJECTS BETWEEN ROTATING FAN BLADES.
Remote control
malfunction.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any
other control system EXCEPT a basic On/O wall switch, if desired.
2. Make sure the frequency dip switches in the transmitter and receiver have identical settings.
3. Make sure the Black Antenna on the receiver is NOT tangled with any other electrical wires
and is extended around the inside of the ceiling canopy.
20 | KICHLER.COM
