KitchenAid®New Generation
Stand Mixer Service Manual
Intended for Professional Service Technician Only
Domestic Models - Including Commercial - KF26M22,KF26M2C,KF26M2X,KG25H0W,KG25H0X,
KG25H3X,KL26M8X,KM25G0X,KP26KPRA,KP26M1FQ,KP26M1P,KP26M1XA,KP26M1X, KP26M1XEP,
KP26M1XFQ,KP26M1XQ,KP26M8X,KP26N9X,KT2651X,KV25G0X,KV25H0X, KV25MCX,KV25MEX,
InternationalModel–4KB25G1,4KG25H3X,4KP26M1X,4KV25H0X,8KP2670T,





KitchenAid®
New Gen Stand Mixer Service/Repair Manual
Intended for Professional Service Technician Only
© 2016 KitchenAid®
CoversDomesticModel–KB26G1X,KF26M22,KF26M2C,KF26M2X,KG25H0W,KG25H0X,
KG25H3X,KL26M8X,KM25G0X,KP26KPRA,KP26M1FQ,KP26M1P,KP26M1XA,
KP26M1X,KP26M1XEP,KP26M1XFQ,KP26M1XQ,KP26M8X,KP26N9X,KT2651X,KV25G0X,
KV25H0X,KV25MCX,KV25MEX,
InternationalModel–4KB25G1,4KG25H3X,4KP26M1X,4KV25H0X,8KP2670T,
Table of Contents
Subject Page(s)
Color Variation Parts Diagram 4
Base and Pedestal Diagram 6
Commercial Bowl Lift Diagram 7
Case, Gearing and Planetary Diagram 10
Important Service Workplace Safety Recommendations 24
Service Environment 24
Personal Protection 25
Electrical Considerations 25
Important Safeguards 25
Electrical Requirements 26
List of Tools Required 26
Testing the Stand Mixer 26
Service Procedures: 27
Removal of the Trim Band 27
Removal of the Upper Housing 27
Remove Control Board 28
Remove Transmission Housing 28
Remove 1st Stage Gear 28
Remove Motor 29
Remove Planetary 30
Removal of the Lower Housing 30
Remove Base 30
Remove Bowl lift Mechanism 31
Rebuilding the New Generation Stand Mixer 32
Replacing the Bowl Lift Mechanism 32
Replace Lower Housing 32
Replace Planetary 33
Replace Gears 33
Replace Transmission Cover 34
Replace Motor 34
Replace Control Board 35
Replace Upper Housing 35

Appendix Subject Page(s)
A. Tools Required for Stand Mixer Service
Introduction
All KitchenAid Stand Mixers are well designed and carefully built. Normally they will give continual use year after
year without service attention.
Records have been maintained to determine and correct, through improved design, any troubles that might possibly
develop. An effort has been made in preparation of this manual to cover them all.

These units have had many improvements over time, please pay close attention to the following
illustrations. There are multiple gear and motor combinations as well as housings.
Models – KT, KD, all used the 53 tooth 1st stage gear and a 8 tooth motor. If you change the 1st stage gear to the
new 60 tooth 1st stage gear then you must change to the 10 tooth motor. Same as if you change the motor you will
have to change the 1st stage gear because they will not work unless they are paired up right. You may also need to
change the lower housing because the new motor (9706548) will not fit into the original housing (Pictures on
pages 17 and 18).
KitchenAid recommends that the plastic Transmission Housings be replaced with the new Magnesium Housing
and Gasket. (8212396)
The new control board(9706509) can be used on older units as long as you change the cord to the new
cord(W10325656).

5 QT. STAND MIXER
MODELS:
KG25H0XWH5 (White)
KG25H0XBK5 (Imperial Black)
KG25H0XOB5 (Onyx Black)
KG25H0XER5 (Empire Red)
KG25H0XMC5 (Metallic Chrome)
KG25H0XCL5 (Crystal Blue)
KG25H0XCE5 (Copper Pearl)
KG25H0XBU5 (Cobalt Blue)
KG25H0XQG5 (Liquid Graphite)
KG25H0XGA5 (Green Apple)
KG25H0XIC5 (Ice)
KG25H0XAQ5(AquaSky)
KG25H0XBY5 (Boysenberry)
KG25H0XES5 (Espresso)
KG25H0XGC5 (Gloss Cinnamon)
KG25H0XMY5 (Majestic Yellow)
KG25H7XWH5 (White)
KG25H7XOB5 (Onyx Black)
KG25H7XER5 (Empire Red)
KG25H7XSL5 (Silver)
KG25H3XWH5 (White)
KG25H3XOB5 (Onyx Black)
KG25H3XER5 (Empire Red)
KG25H3XSL5 (Silver)
4KG25H3XER5 (Empire Red)
4KG25H3XOB5 (Onyx Black)
4KG25H3XSL5 (Silver)
4KG25H3XWH5 (White)



1
2
5
3
6
ColorVariationParts

ColorVariationParts

Illus.No. PartNo.Descr Illus.No.  PartNo.Descr.
1  MotorHousing  4  BowlSupportandPins
9703311White     9707633White
9703532ImperialBlack     9708853ImperialBlack
9705296OnyxBlack9707876OnyxBlack
9705300EmpireRed9707883EmpireRed
9709571Silver9709582Silver
9703433MetallicChrome   9709123MetallicChrome
W10562403CrystalBlue   W10532418CrystalBlue
9709152CopperPearl    W10625482CopperPearl
9705380CobaltBlue    W10672071CobaltBlue
W10513715LiquidGraphite   W10707409LiquidGraphite
W10342782GreenApple   W10726831GreenApple
W10726426IceW10726436Ice
W10577728AquaSkyW10808334AquaSky
W10342784Boysenberry   W10819157Boysenberry
W10453625EspressoW10808331Espresso
W10114555GlossCinnamon   W10808330GlossCinnamon
9705301MajesticYellow   W10819160MajesticYellow
2 W10749681TrimBand   5  LowerGearcase
3  Planetary9706047White
9708172White9706301ImperialBlack
9708174ImperialBlack9706311OnyxBlack
9708176OnyxBlack    W10343980Boysenberry
9708180EmpireRed9706331EmpireRed
9709575Silver9709578Silver
9708175MetallicChrome   9706306MetallicChrome
W10562408CrystalBlue   W10562412CrystalBlue
9709156CopperPearl9709159CopperPearl
9708182CobaltBlue9706341CobaltBlue
W10513719LiquidGraphite   W10513724LiquidGraphite
W10343681GreenApple   W10343978GreenApple
W10726430IceW10726433Ice
W10577733AquaSkyW10577750AquaSky
W10343683BoysenberryW10453632Espresso
W10114559GlossCinnamon   W10114562GlossCinnamon
9708181MajesticYellow   9706336MajesticYellow



ColorVariationParts
Illus.No. PartNo.Descr Illus.No.  PartNo.Descr.
6  ColumnandPin 7 BaseandFootAssembly
9703673White9703690White
9703526ImperialBlack9703511ImperialBlack
9705320OnyxBlack9705344OnyxBlack
9705324EmpireRed9705348EmpireRed
9709585Silver9709588Silver
9703349MetallicChrome   9703346MetallicChrome
W10562421ChrystalBlue   W10562424CrystalBlue
9709166CopperPearl9709169CopperPearl
9706341CobaltBlue9705388CobaltBlue
W10513737LiquidGraphite   W10513740LiquidGraphite
W10344072GreenApple   W10344173GreenApple
W10726438IceW10726441Ice
W10577769AquaSkyW10577773AquaSky
W10344074Boysenberry   W10344175Boysenberry
W10453639EspressoW10453644Espresso
W10114569GlossCinnamon   W10114572GlossCinnamon
9705325MajesticYellow   9705349MajesticYellow



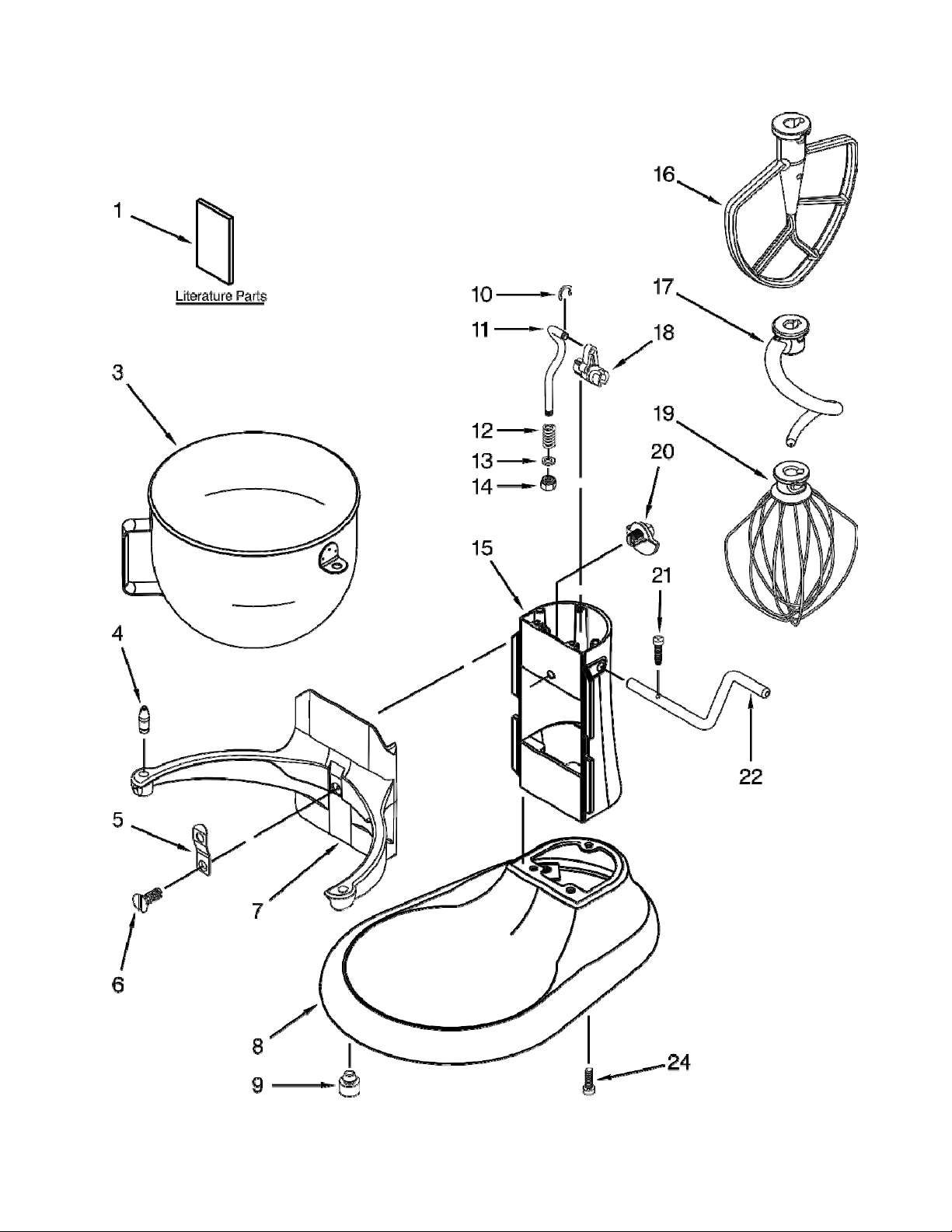

BaseandPedestalUnitParts


BaseandPedestalUnitParts

Illus.No.  PartNo.Description

1  W10581080  UseandCareGuide
2  W10439369  Foot
3   W10354780  Bowl
4  240185  Pin,RetainingBowl
5  W10504114  BowlRetainer
6  3400018  Screw
7  BowlSupportandPins(RefertoColorVariationPartsPageforModelNumber) 
8  BaseandFootAssembly(RefertoColorVariationPartsPageforModelNumber)
9  9708649  Foot
10  9703307  RetainingRing
11  9706787  BowlLiftRod
12  9237LiftRodSpring
13  9703439  Washer
14  8533907  Nut
15  ColumnandPins(RefertoColorVariationPartsPageforModelNumber)
16  W10376294  FlatBeater(Stainless)
17  W10462785  DoughHook(Stainless)
18  9706885  BowlLiftArm
19  W10600940  WireWhip
20  9703426  AdjustingCam
21  3400863  Screw
22  9706788  BowlLiftHandle
23  9706814  VentScreen
24  3400200  Screw


















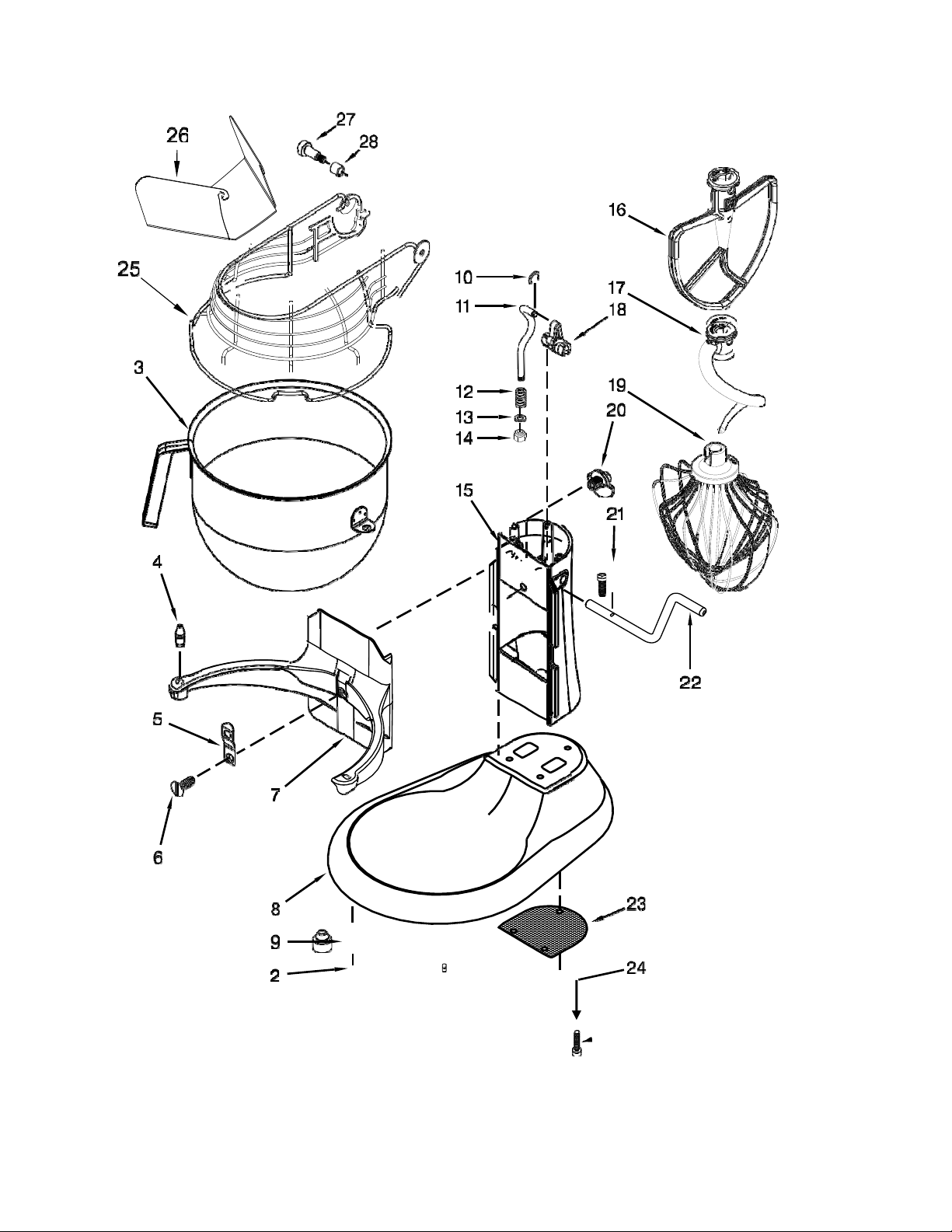

CommercialUnitParts

CommercialUnitParts

Illus.No.  PartNo.Description
1  W10581080  UseandCareGuide
2  W10439369  Foot
3   W10354780  Bowl
4  240185  Pin,RetainingBowl
5  W10504114  BowlRetainer
6  3400018  Screw
7  BowlSupportandPins(RefertoColorVariationPartsPageforModelNumber) 
8  BaseandFootAssembly(RefertoColorVariationPartsPageforModelNumber)
9  9708649  Foot
10  9703307  RetainingRing
11  9706787  BowlLiftRod
12  9237LiftRodSpring
13  9703439  Washer
14  8533907  Nut
15  ColumnandPins(RefertoColorVariationPartsPageforModelNumber)
16  W10376294  FlatBeater(Stainless)
17  W10462785  DoughHook(Stainless)
18  9706885  BowlLiftArm
19  W10600940  WireWhip
20  9703426  AdjustingCam
21  3400863  Screw
22  9706788  BowlLiftHandle
23  9706814  VentScreen
24  3400200  Screw


CaseandGearingParts

CaseandGearingParts
Illus.No.PartNo.Descr Illus.No. PartNo.Descr.
1 GearcaseMotorHousing189709231WormGear
(seecolorvariationpartspage)
29703315CapAttachmentHub(Chrome)199706648ControlAssm.W/blackknob
3W10749681BlackTrimBand 213400200Screw
49709125TransmissionHousing 223400617Screw
59703338AttachmentHubGear 239709194BlackThumbScrew
69709511TransmissionGasket 249703312HallEffectSensor
7 9703680RetainingClip  25W10247536120VMotor
89703337BevelGear  26 Powercord
W10164887White
W10325656Black
99707223RetainingPin  28PlanetaryAssembly(SeeColorVariation)
10 9706529WormFollowerGear 29W10323379FiberWasher
11LowerGearcase(SeeColorVariationPage)309703438RetainingRing
12 16897LowerCenterBearing  319706090Washer
13 9703339InternalGear  329707627PinionGear
143400814Screw338533910Washer
159706247MotorSealShaft 349708191AgitatorShaft
16 Bearing   359704677GroovePin
W10170081Rear
W10170080Front






















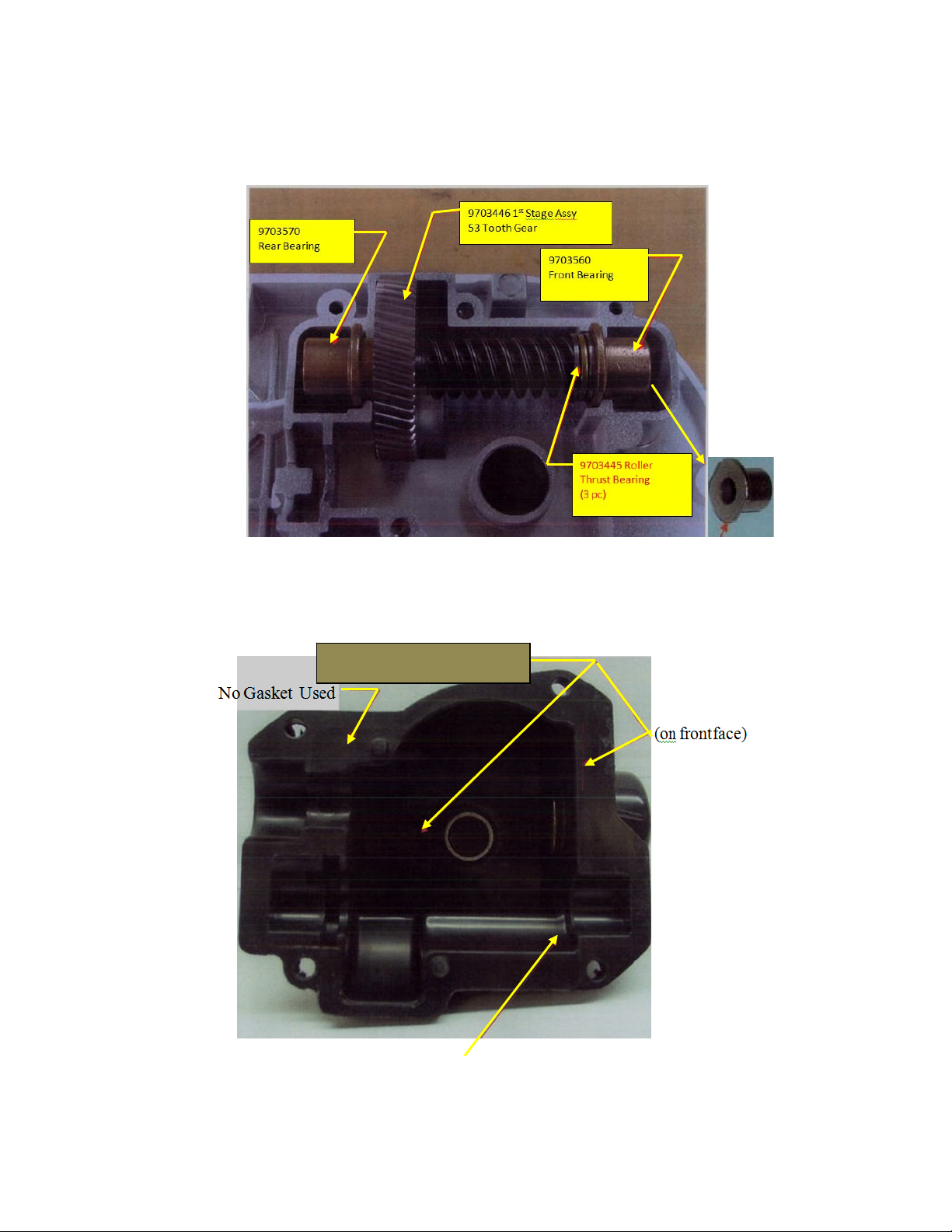

Original 1st Stage Gear
From: Start of Production Through: Date Code WL03
Rear Bearing-9703351(.193” Beyond Flange) 1st Stage Worm Assembly-9703699
Front Bearing-9703351(.193” Beyond Flange) Thrust Washer-9703677
Original Transmission Cover
Single Cavity/No Markings WK08-WL08 (Always inspect for cracks)
.86”
.193” Both Bearings
1pc Thrust Washer
53 Tooth Gear Either Stamped with a
T or Blank.
RibBehindBearingFlange.Not
compatiblewithRollerThrust
Bearing“Enhanced1ststageand
Bearing”

Original Motor (Johnson) KP & 4KP: Serial Numbers WK08 – WK50
KD, KT, 4KD, and 4KT: Serial Numbers WK08 – WL36
8 Tooth Pinion- Smaller U88 Laminations PN9703571
1st Lower Housing Change
Serial Numbers WK51-WL16
*New Motor (9706548)
will not fit in this
housing.
8ToothPinion
LongerShaftLength

Partial Enhanced 1st Stage Gear & Bearings
Serial WL04-WL08 Works With Old and New Transmission Cover
Original Transmission Cover
Single Cavity/No Markings WK08-WL08
(Always inspect for cracks)
.80”
.16”BothBearin
g
s
RibBehindBearingFlange.Not
compatiblewithRollerThrust
Bearing“Enhanced1
st
stageand
Bearing”

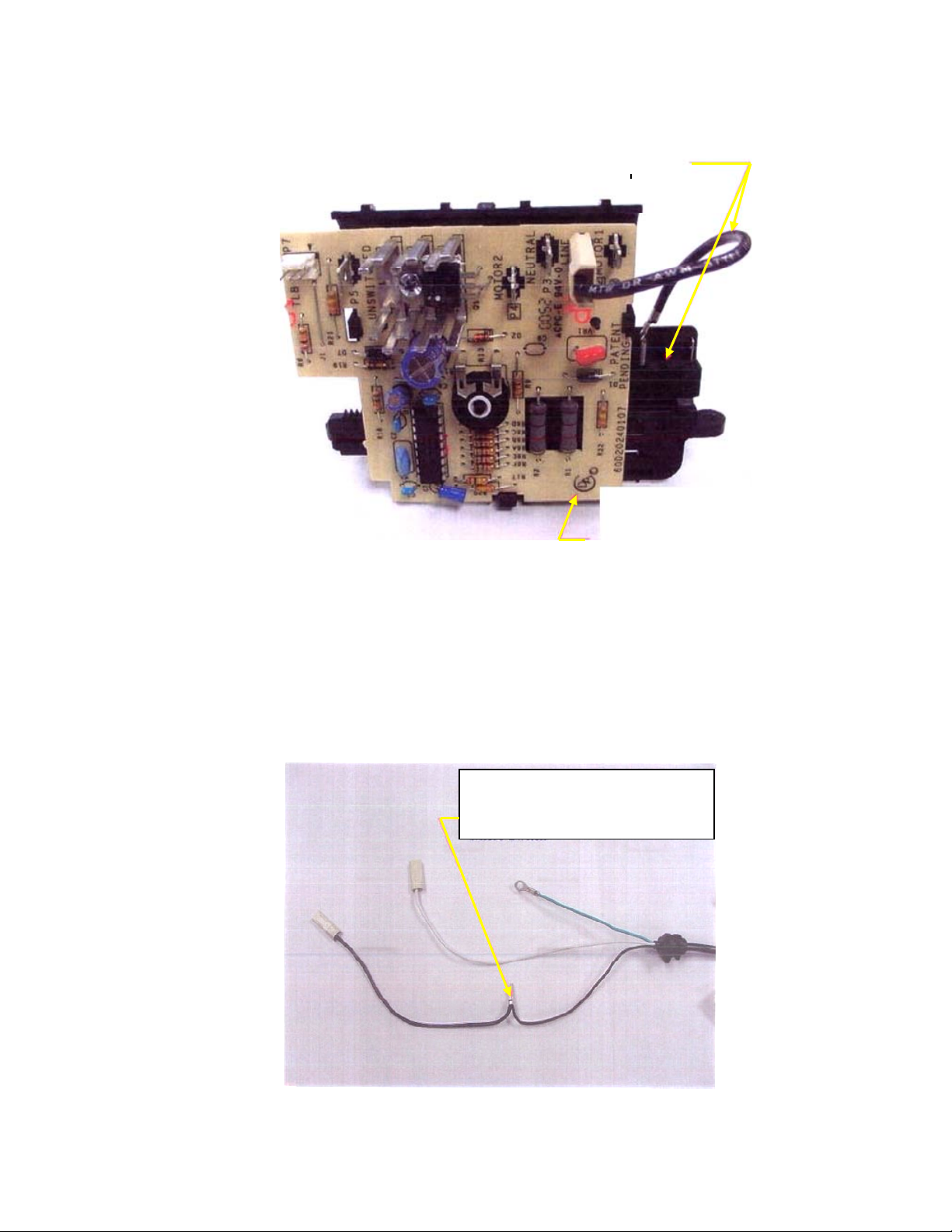

Original Control Board WK08-WL45
*The new Control Board(9706509) will work on the older units, as long
as the Cord is changed as well(W10325656).
Original Cord Terminals
Serial Numbers WK08-WK45
Mi
c
r
o
Sw
i
tc
h
a
n
d
J
u
m
per
DA
C
Co
n
t
r
o
l
Connectorfor2
nd
TerminalonMicroSwitch

Full Enhanced 1st Stage Gear & Bearings
Serial Numbers WL09-WL45 (Requires New 4 Cavity Transmission Cover)
4 Cavity Transmission Cover
Serial Numbers WL09-WL16
(Always inspect for cracks)
Rib Removed
NoBodyBeyondFlange
CavityNumberMarkings

9703672 Johnson Motor
KP&4KP: Serial numbers WK51-WL33
KD,KT,4KD and 4KT: Serial Numbers WK51-WL36
Fits all Lower Housings Except the Original Version - Serial Number up to WL45
Full Enhanced 1
st
Stage Gear & Bearings
Serial Numbers WL46-Present (Requires New 4 Cavity Transmission Cover)
97065901
st
StageGearAssy
60toothgear
