Kleenmaid KCGCT6011 Installation guide

cooking collection
Instructions for use and warranty details
Gas Cooktop
Model No.: KCGCT6011

Dear Customer,
Thank you and congratulations for choosing
Kleenmaid.
Your new appliance has been designed
and meticulously tested to ensure that it
meets all your culinary requirements, and
has been carefully manufactured using top
quality materials to give you years of reliable
performance.
For best results, carefully read the instructions
on how your new appliance is to be installed.
Correct installation will avoid delays and
unnecessary service call costs.
Once installation is complete, please read this
instruction manual carefully and get to know
the controls and the features of your new
Kleenmaid appliance. These simple instructions
will enable you to achieve excellent results from
the very first time you use it.
Again, congratulations and thank you for
choosing The Best You Can Own.
KLEENMAID

The manufacturer shall not be responsible for any damages to persons or property caused by
incorrect installation or use of the appliance.
7KHPDQXIDFWXUHUDOVRUHVHUYHVWKHULJKWWRPDNHDQ\PRGL¿FDWLRQVWRWKHSURGXFWDVPD\
be considered necessary or useful, also in the interests of the user, without jeopardising the
main functional and safety features of the product itself.
The appliance is designed for a domestic environment and not for commercial use.
If you are unsure of any of the information contained in these instructions, please contact our
customer care centre.
Please read carefully

contents
Preface
Instructions for use and maintenance
Safety Warning
Safety Instructions
Installation
Child and People Safety
During Use
Cleaning and Service
8
Environmental Information
Description of the appliance
How to Use the appliance
Safety and Energy saving advice
Cleaning and Maintenance
Using instructions
Positioning
Installing the appliance
Gas Connection
Gas Specifition
Electrical Connection
Gas ad ustment
Technical instructions
6
15
16
17
20
14
12
11
22j
5
4
3
8
9
10
21
23 Trouble shooting
2

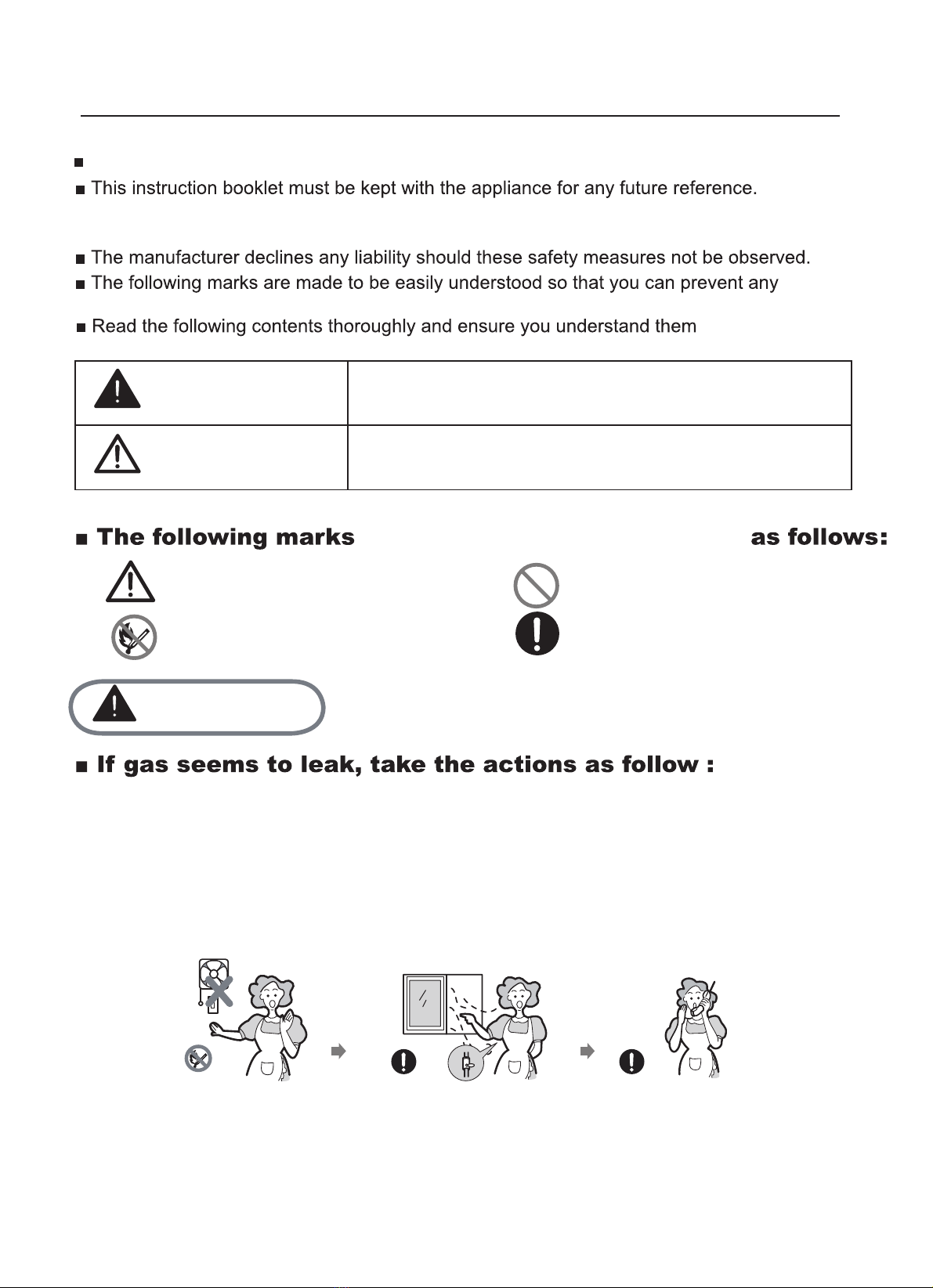

safety instructions
If the appliance is sold or transferred to another person, ensure the booklet is passed on to
the new user.
accident caused by misuse in advance, and use the appliance more conveniently.
Danger/Warning Neglect of this mark may result in severe personal
injury or death.
Caution Neglect of this mark may result in minor personal
injury or property damage.
Caution No Access
No Fire Tool Must Do
Danger
- Do not turn on the light.
- Do not switch on/off any electrical appliance and do not touch any electric plug.
- Do not use a telephone.
1 Stop using the product and close the middle valve.
2 Open the window to ventilate.
3 Contact our service centre by using a phone outside.
cilrag nett
or fo llems( kael sag eht llems nac uoy taht os ,natpacrem sniatnoc sag leuf ehT *
or egg) even where only 1/1000 of the gas is in the air.
Please take the time to read this User Manual before installing or
using the appliance.
are used in the Instruction Manual
.
3

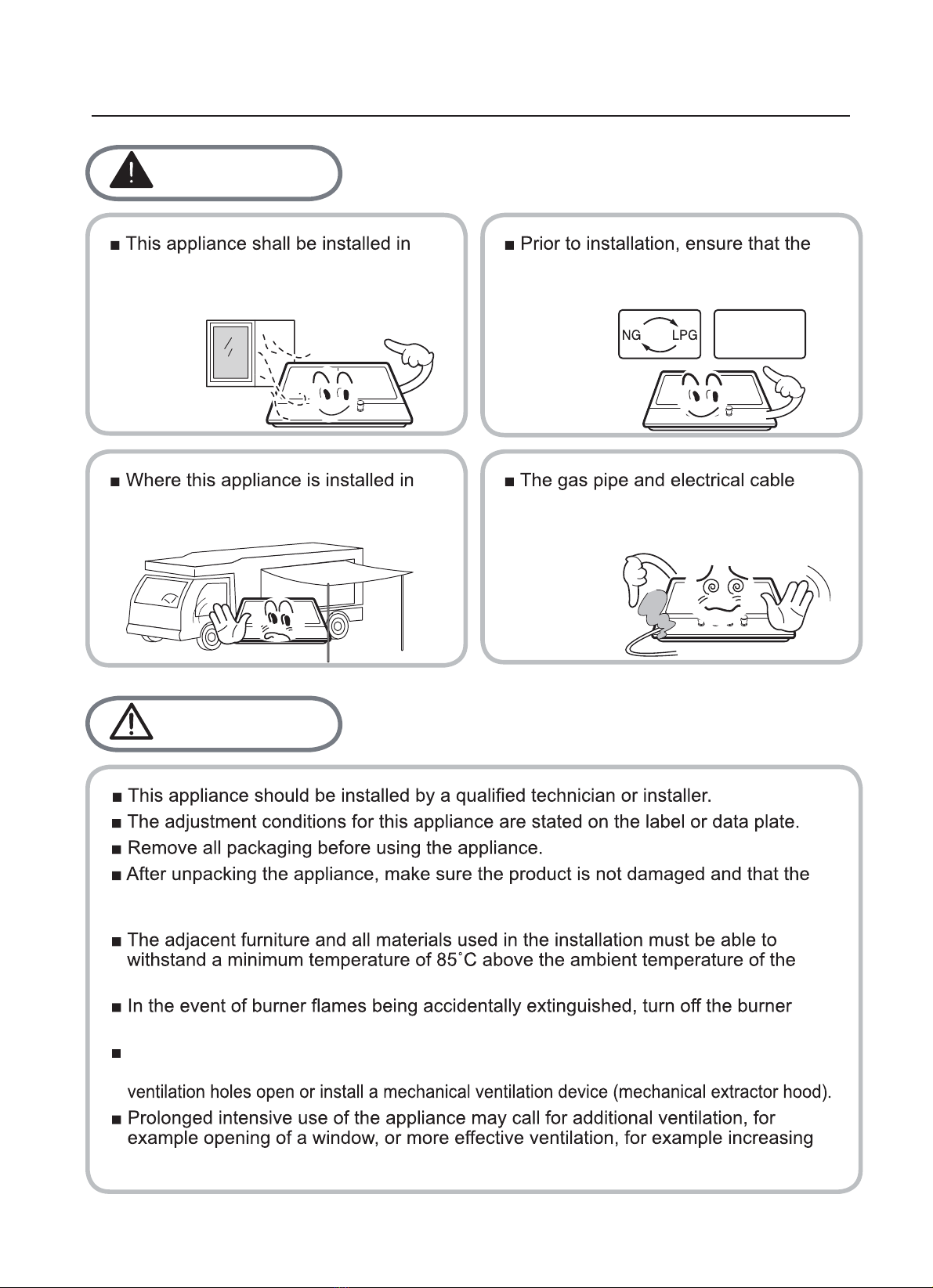

installation
Warning
accordance with regulations in force
and only used in a well ventilated
space.
gas and electrical supply complies
with the type stated on the rating
plate.
marine craft or in caravans, it should not
be used as a space heater.
must be installed in such a way that
they do not touch any parts or the
appliance.
connection cord is in perfect condition. Otherwise, contact the dealer before installing
the appliance.
room it is located in whilst in use.
control and do not attempt to re-ignite the burner for at least one minute.
The use of a gas cooking appliance results in the production of heat and moisture in the
room in which it is installed. Ensure that the kitchen is well ventilated: keep natural
the level of mechanical ventilation where present.
Caution
220V-240V
4

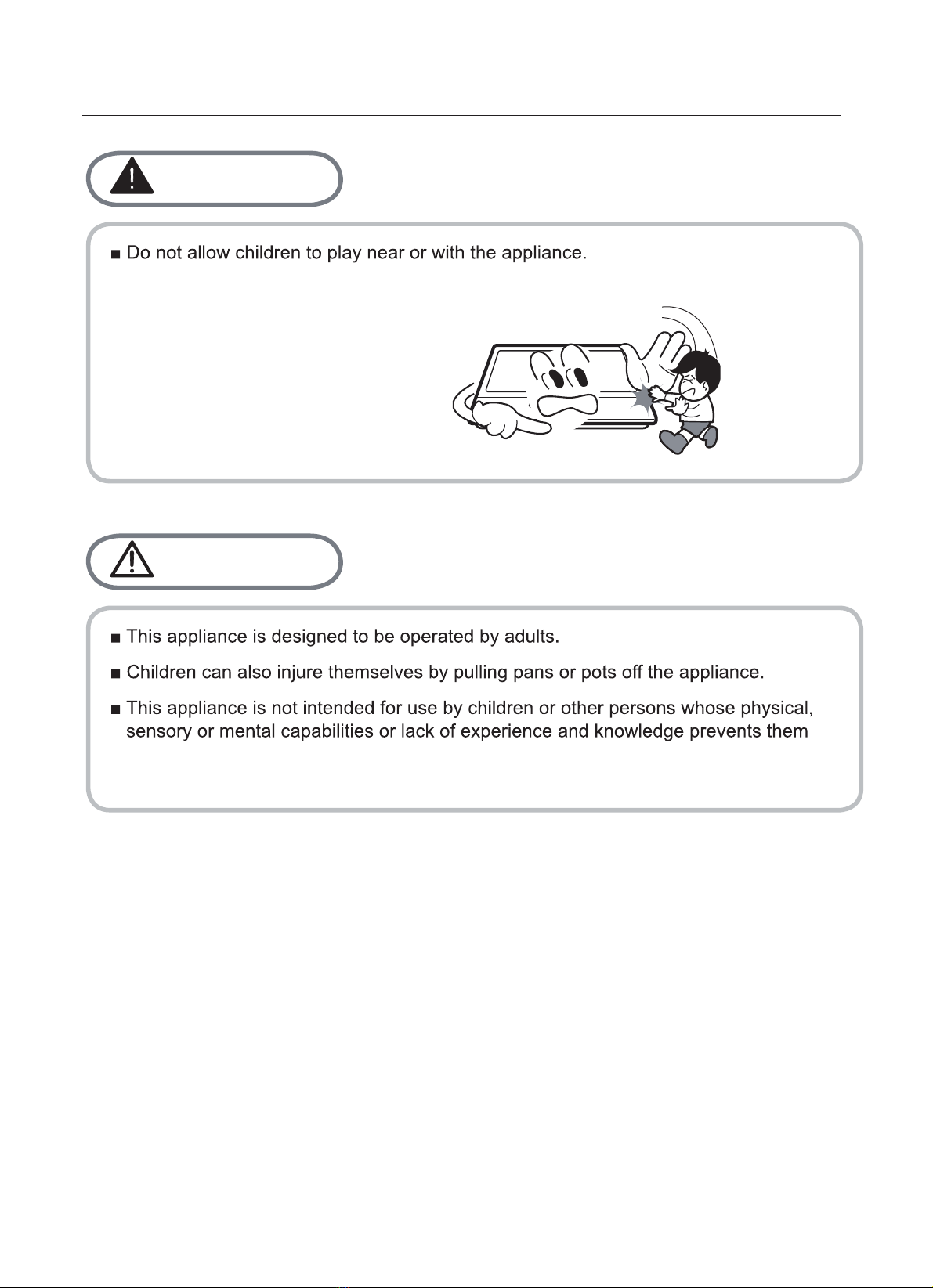

child and people safety
The appliance gets hot when it is in use.
Children should be kept away until it has cooled.
from using the appliance safety without supervision or instruction by a responsible
person to ensure that they can use the appliance safety.
Warning
Caution
5

during use
food.
Warning
The use of a gas cooking appliance results
in the production of heat and moisture in
the room in which it is installed. Ensure
that the kitchen is well ventilated : keep
natural ventilation holes open or install a
mechanical ventilation device
(mechanical
the appliance become hot when they
are in use, take all due precautions.
dednettanu ecnailppa eht evael reveN
when cooking.
contact with water. Do not operate
this appliance with wet hands.
similar as the ends could touch the
not be used on the appliance as they
can cause an accident by tipping or
spillage.
comes
Burner
panel is not designed to operate from
an external timer or separate remote
control system.
6

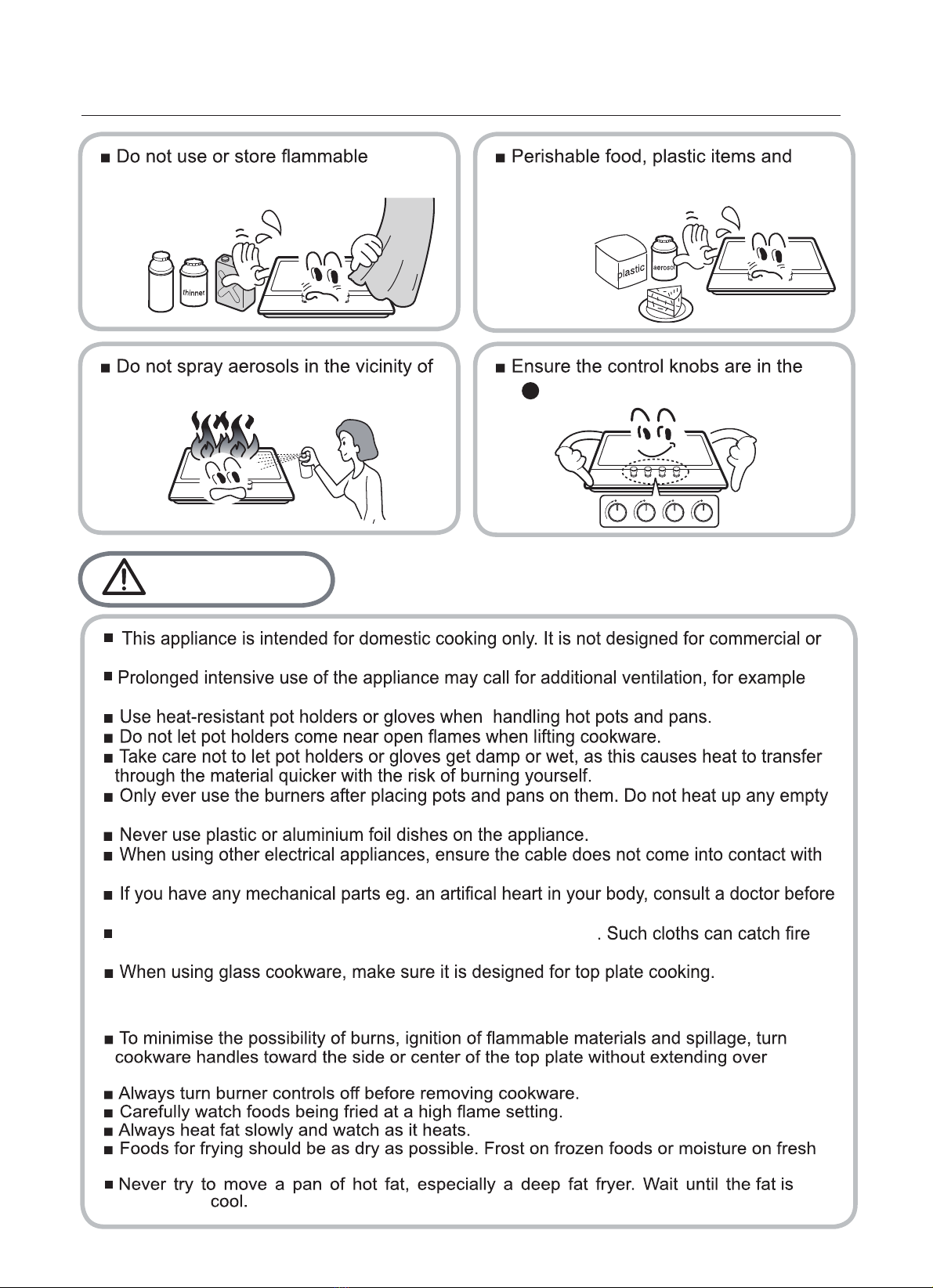

during use
materials in a storage drawer
near this appliance.
this appliance while it is in operaiton.
industrial purposes.
opening of a window, or increasing the level of mechanical ventilation where present.
pots or pans.
aerosols may be affected by heat and
should not stored above or below the
appliance.
‘ ’ position when not in use.
Caution
foods can cause hot fat to bubble up and over the sides of the pan.
completely
the appliance surfaces of the cooking appliance.
using the appliance.
Do not use a tea towel or similar material in place of a potholder
Do not use a tea towel or similar materials in place of a pot holder
on a hot burner.
7
If the cooktop’s glass surface is accidentally cracked, immediately switch off the power to
the appliance to avoid the possibility of electric shock.
adjacent burners.

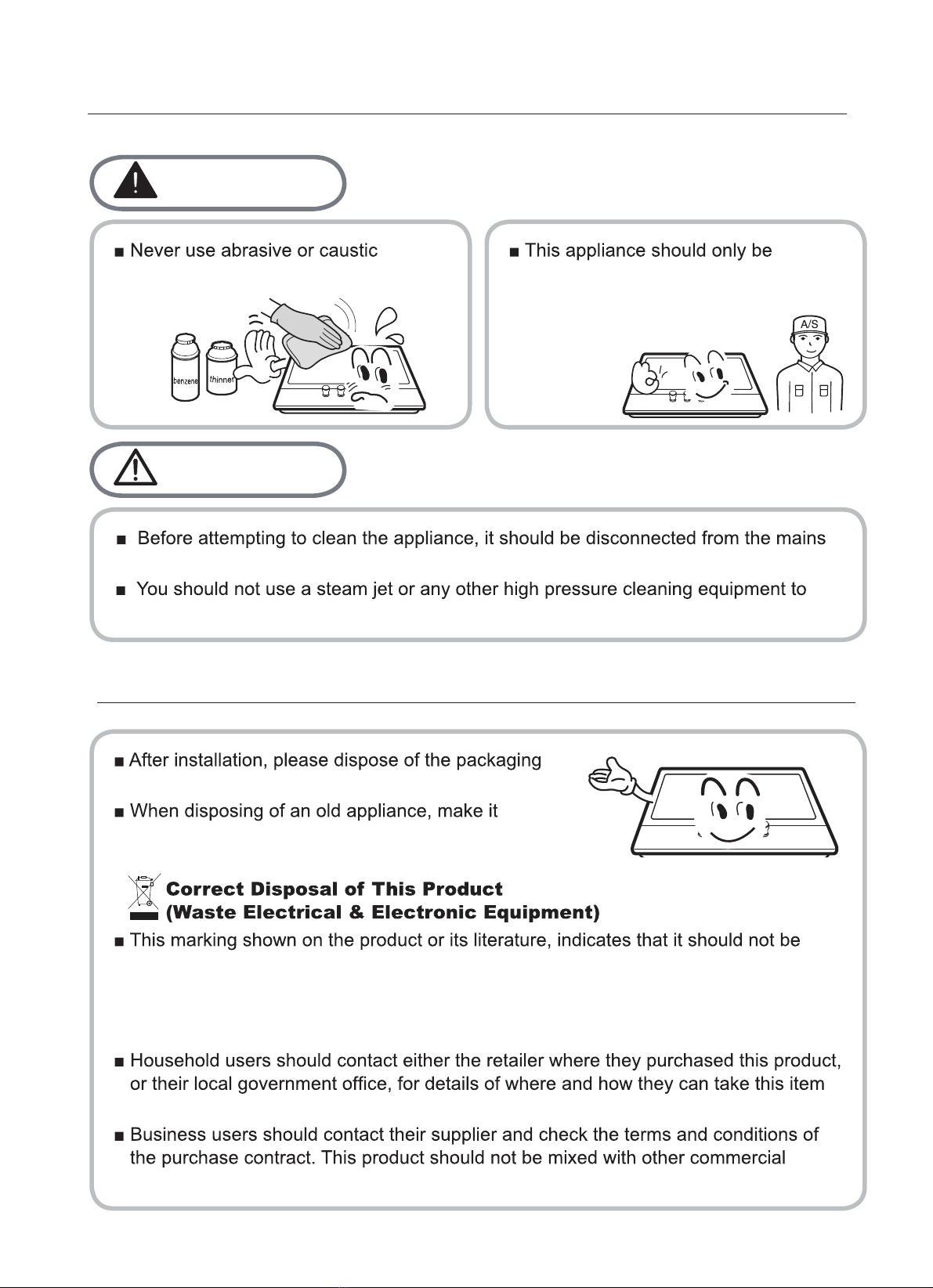

cleaning and service
environmental information
with due regard to safety and the environment.
unusable by cutting off the cable.
disposed with other household wastes at the end of its working life. To prevent
possible harm to the environment or human health from uncontrolled waste disposal,
please separate this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources.
for environmentally safe recycling.
wastes for disposal.
cleaning agents.
Warning
and cooled.
clean the appliance.
repaired or serviced by an authorised
Service Engineer and only genuine
approved spare parts should
be used.
Caution
8

A

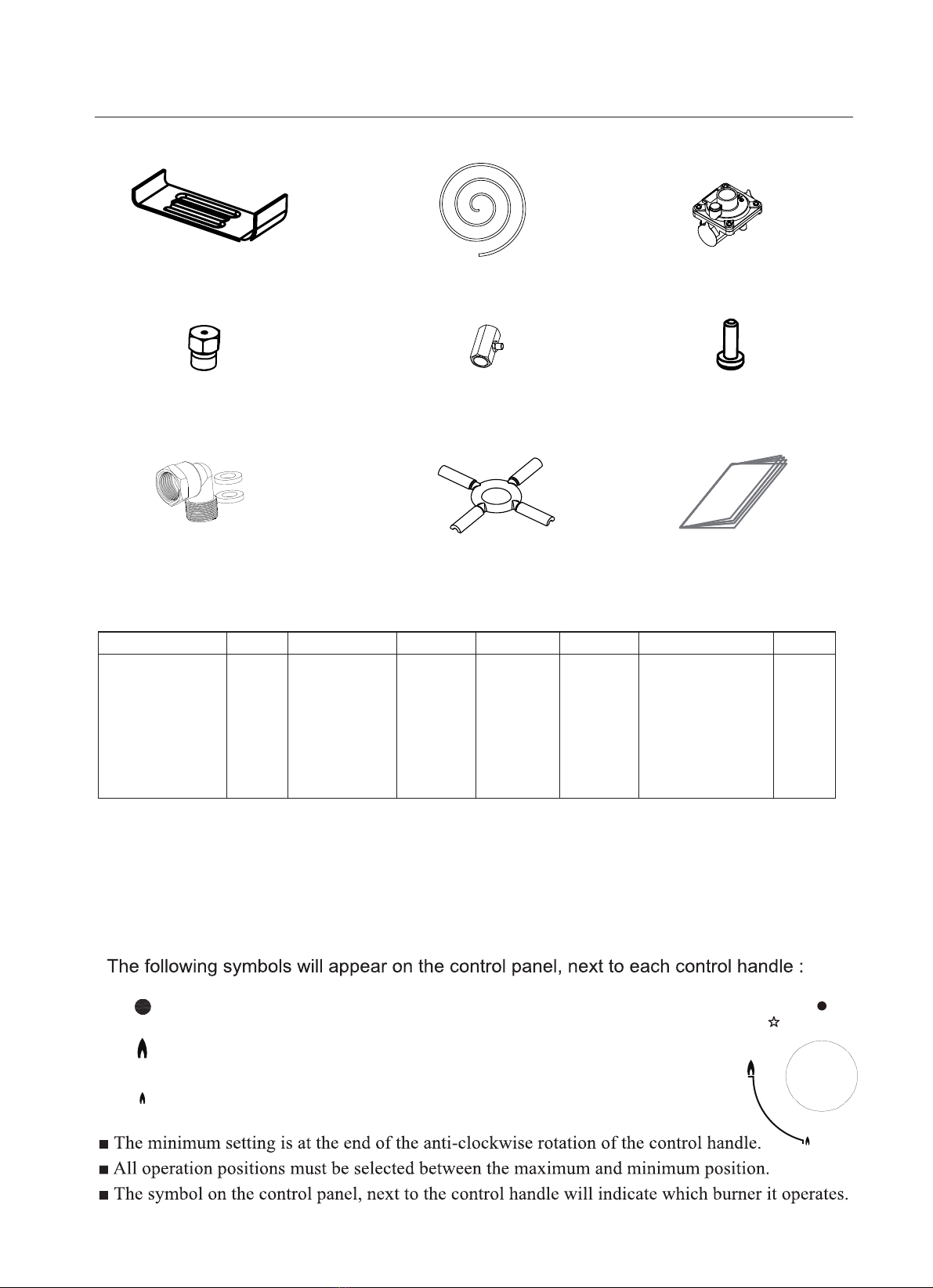

how to use the appliance
ccessories
description of the appliance
Black circle: gas off
Large flame: maximum setting
Small flame: minimum setting
Bracket (4) Sponge
(4)
Screw
(4)
Elbow
(1) Auxiliary pan support (1)
I nj ector (4)
Instruction Manual (1)
Voltage regulator valve (1)
Pressure joint(1)
9
Model Top Plate Ignition device Gas Connection Electric supply Burner Feature ΣQn
Dimension(W*D*H))
Continuous
G
Stainless 590*510*90Ignition
1/2 thread
220-240Vac,
50Hz/60Hz,
Type
0.6W
Steel
Triple-Crown (1),
Semi-rapid (2), Auxiliary (1)8.3kW
KCGCT6011

how to use the appliance
Automatic ignition with flame failure safety device
The appliance is fitted with a flame failure safety device on each burner, which is
designed to stop the flow of gas to the burner head in the event of the flame
going out.
To ignite a burner:
o Press in the control knob of the burner that you wish to light and turn it
anti-clockwise to the maximum position.
o
o
o
o To switch the burner off, turn the control knob fully clockwise to the gas off
position.
o In case of power failure, the burners can be lit by carefully using a match.
If you keep the control knob depressed, the automatic ignition for the
burner will operate.
You should hold down the control knob for 15 seconds after the flame on
the burner has lit. If after 15 seconds the burner has not lit, stop
operating the device and open the compartment door and/or wait at least
1 min before attempting a further ignition of the burner.
After this 15-second interval, to regulate the flame you should continue
turning the control knob anti-clockwise until the flame is at a suitable level.
The operating position MUST be at a position between the maximum and
minimum position.
10

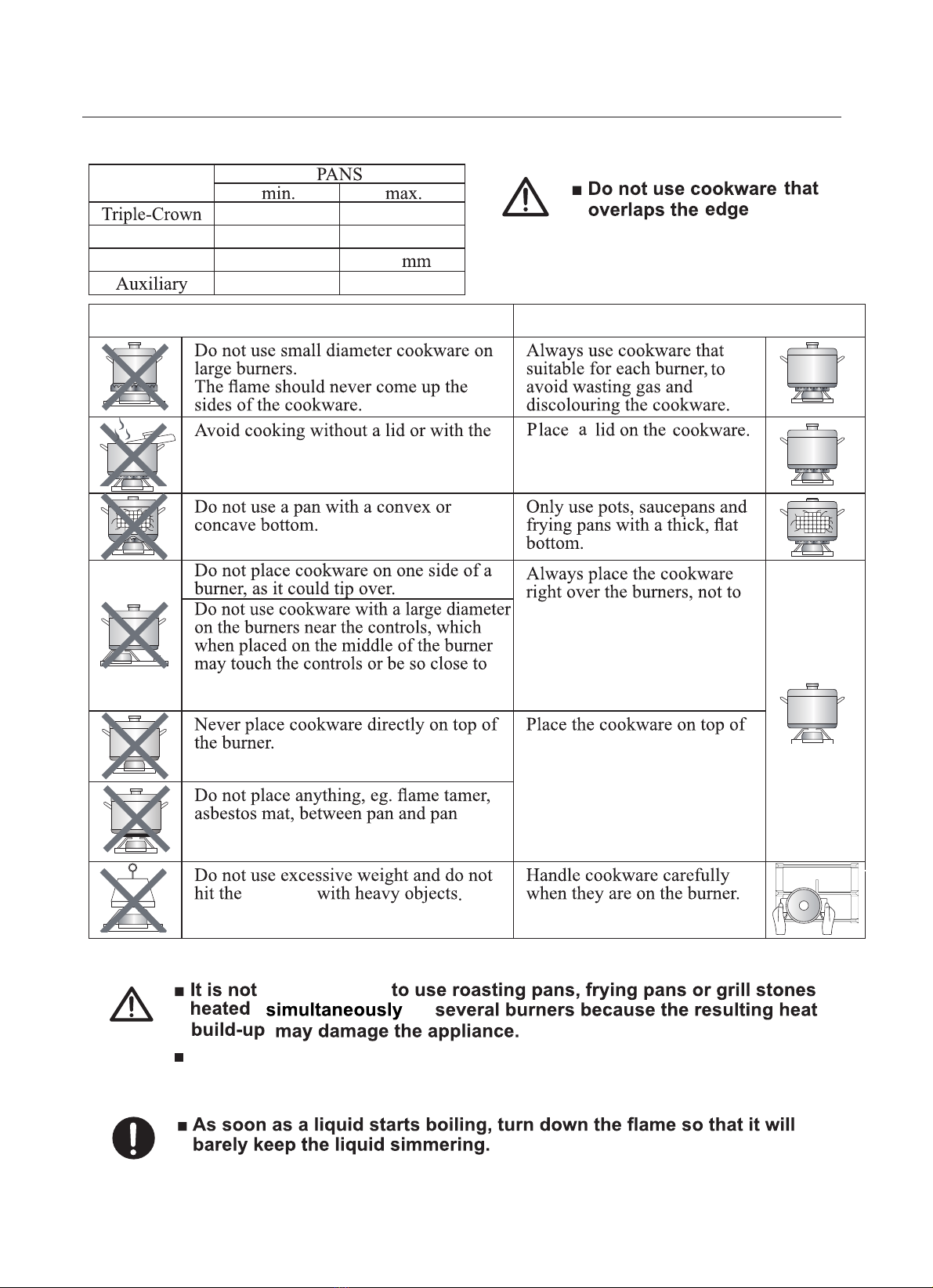

safety and energy saving advice
The diameter of the bottom of the pan should correspond to that of the burner.
BURNERS
200mm 2 0mm
Rapid 200mm 240mm
Semi-Rapid 160mm
NO YES
lid half off as this wastes energy.
one side.
them that they increase the temperature in
this area and may cause damage.
the trivet.
support as serious damage to the
appliance may result.
is
cooktop
recommended
on
Do not touch the top plate and trivet whilst in use or for a time after
use to avoid burn injury.
of the
burner.
120mm 160mm
180
4
11

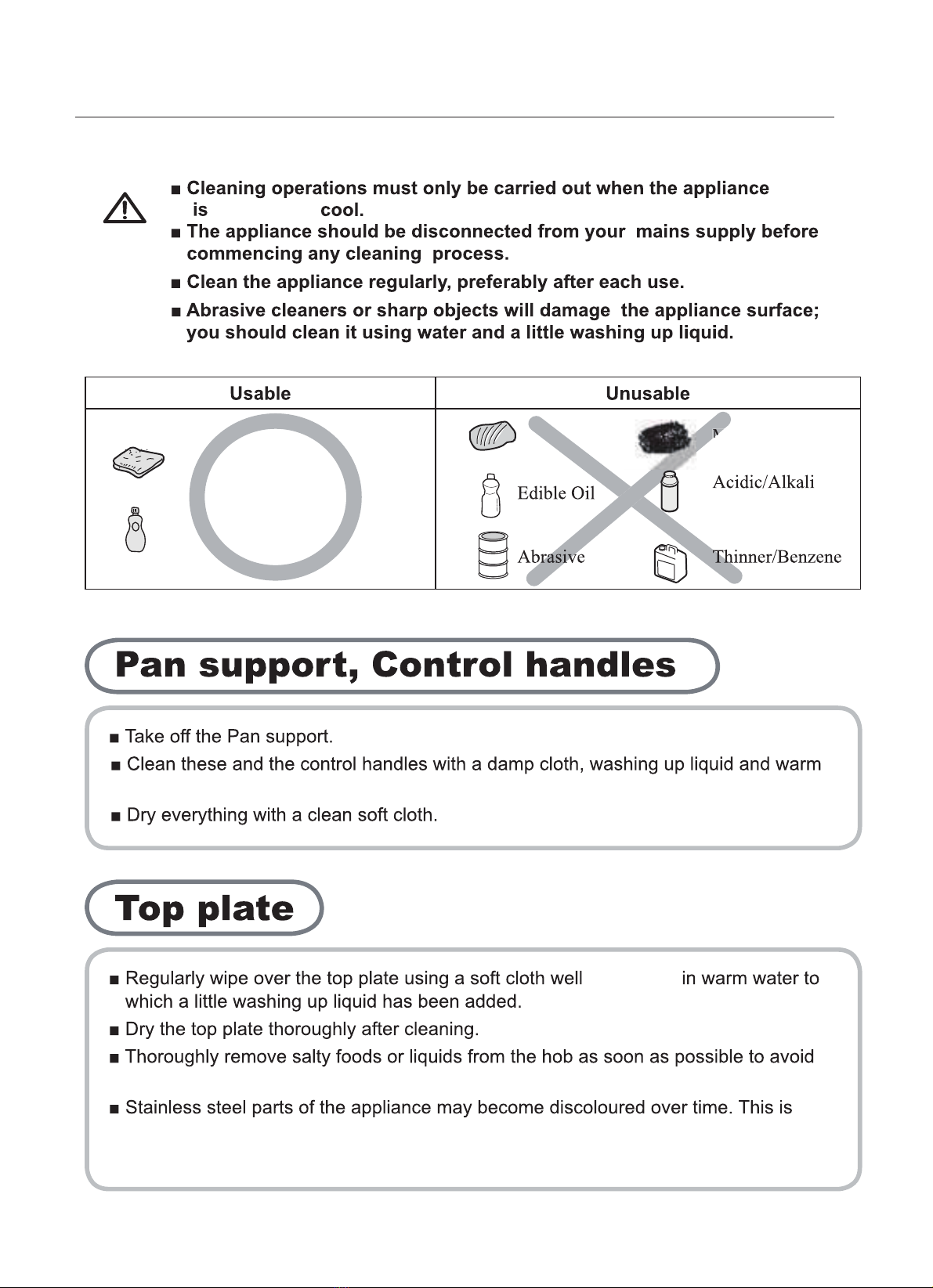

cleaning and maintenance
water. For stubbon soiling, soak beforehand.
the risk of corrosion.
normal because of the high temperatures. Each time the appliance is used these
parts should be cleaned with a product that is suitable for stainless steel.
Metal Brush
Detergent
M
Soft cloth
Neutral Detergent
Nylon Brush
wrung-out
completely
12

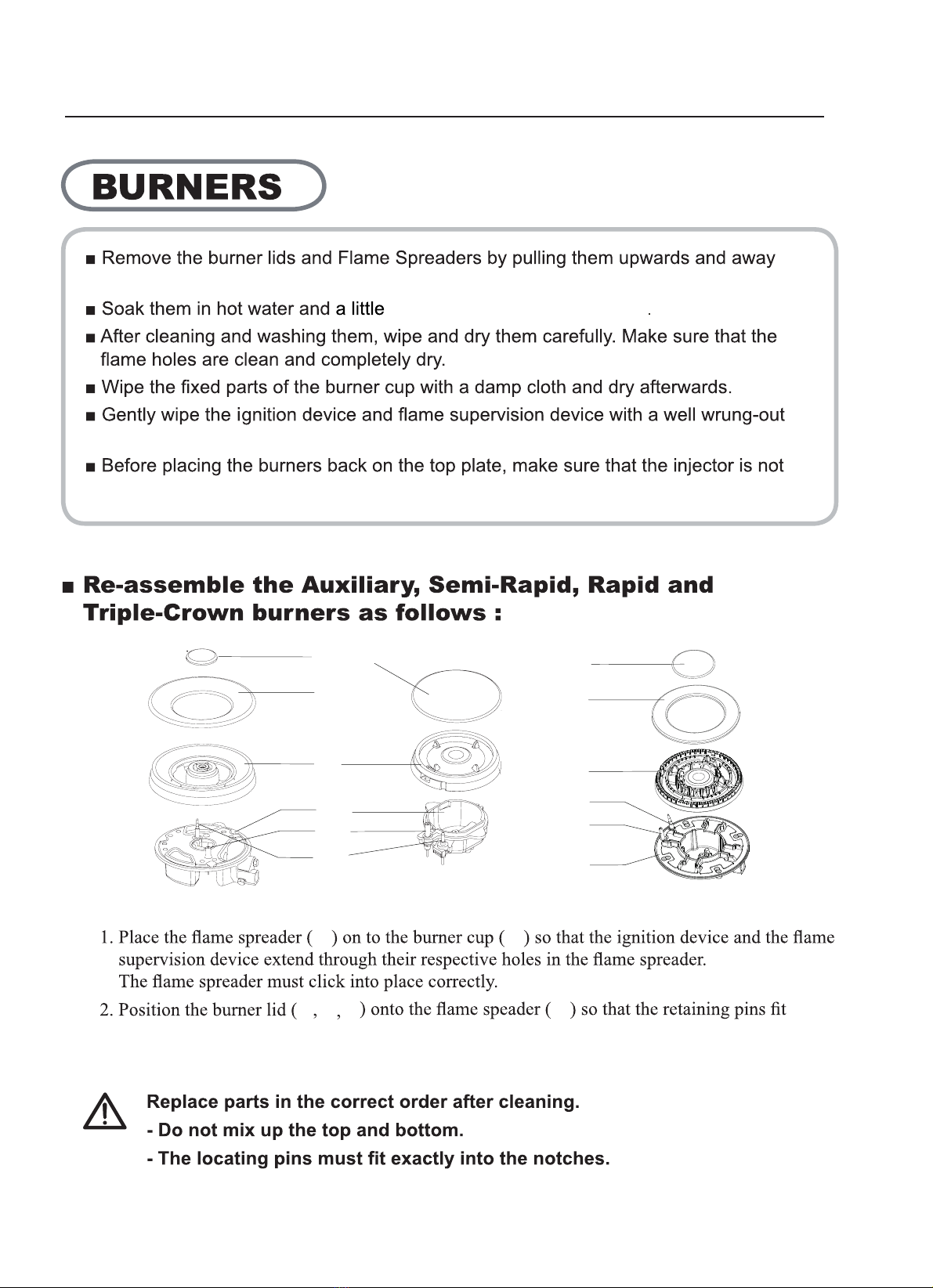

cleaning and maintenance
into
their respective recesses.
from the top plate.
cloth and wipe dry with a clean cloth.
blocked.
45
1234
1
2
3
4
5
6
7
washing up liquiddetergent or
2
3
4
5
6
7
13

Warnings
using instructions
way that they do not touch any parts of the appliance which may
out by the fitter after installation.
14
The grease applied to the valve mechanism at the factory is designed to
last the life of the hob.

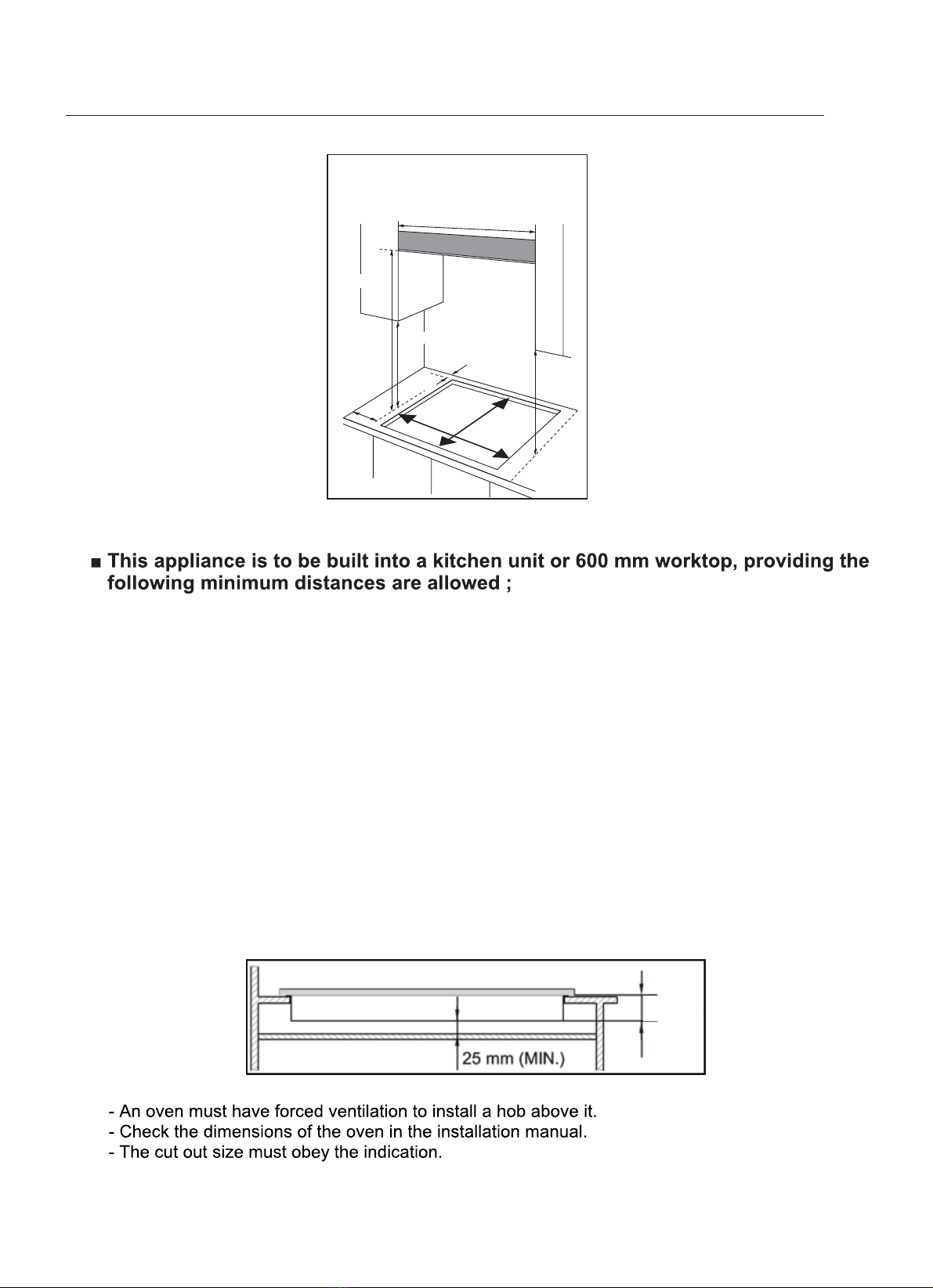

positioning
oThe edges of the hob must be a minimum distance of 60 mm from a side or
rear wall.
o
o400 mm between the hob surfaces, providing that the underside of the
horizontal surface is in line with the outer edge of the hob. If the underside of
the horizontal surface is lower than 400 mm, then it must be at least 50 mm
away from the outer edges of the hob.
o50 mm clearance around the appliance and between the hob surface and any
combustible materials.
oYou must have a gap of at least 25 mm and at most 74 mm between the
underneath of the appliance and any surface that is below it.
FO 0813
400mm
560mm
490mm
400mm
0in.
0mm
&/($5$1&(65(48,5('
:+(1),77,1*7+(+2%
:,7+$&22.(5+22'$%29(
60mm
0mm
M
2
60
15
The safety gap between the hob and the rangehood placed above must comply
with the recommendations of the rangehood manufacturer. In case of no
instructions, a minimum distance of 650mm (or other minimum distance as
may be specified by AS/NZS 5601 and interpreted by a certified installer) should
apply.
650mm
45 mm

installing the appliance
Sponge
Bottom view
The thickness of the sponge is 3 mm.
The width of the sponge is 10 mm.
of the screws.There are one set of screw holes in each
corner of the hob(H).
Slightly tighten a screw(C) through the bracket(B) so
that the bracket is attached to the hob, but so that you
can still adjust the position
.
.2 Carefully turn the hob back over and then gently lower
it into the aperture hole that you have cut out.
.3 On the underneath of the hob, adjust the brackets into
a position that is suitable for your worktop.
Then fully tighten the screws(C) to secure the hob into
position.
(A) SEALING STRIP
(C) SCREW (B) BRACKET
Remove the pan supports, the burner lid and
flame spreader and carefully turn the appliance
upside down and place it on a cushioned mat.
Take care that the Ignition devices and flame
supervision devices are not damaged in this
operation.
2. Apply the sponge provided around the edge
of the appliance.
3. Do not leave a gap in the sealing agent
or overlap the thickness.
1.
16

gas connection
Turn off power for safety and appliance protection.
Close middle valve to prevent gas leakage.
K eep away from inflammable materials around appliance.
Before work, put on gloves.
CAUTION
Cool off the appliance for a while right after using appliance for your safety
because you can get burned by high temperatures from the appliance.
Most of the tools that you might need are shown below. Some are o ptional.
Replacement of gas-type fitting
Tool: Open-end wrench
Steps for operation:
A: Disassemble with a wrench the gas-type fittings from main gas tube.
When you disassemble/assemble gas connection, use 2 spanners. One for fixing gas
connection elbow, the other for tightening gas hose.
B: Tightly lock a replaceable gas-type fitting onto the main gas tube.
17

gas connection
Statutory requirements
This installation must conform with the following:
■ Manufacturer’s Installation instructions
■ Local Gas Fitting Regulations
■ Municipal Building Codes
■ Refer to AS/NZS 5601.1 for Gas Installations
■ S.A.A. Wiring Code
■ Local Electrical Regulations
■ Any other statutory regulations
Preparing to install
Refer to AS/NZS 5601.1 for piping size details. These built-in cooktops are intended to
be inserted in a benchtop cutout. Only an officially authorised technician should connect
the appliance. Before you begin, turn off the gas and electricity supply.

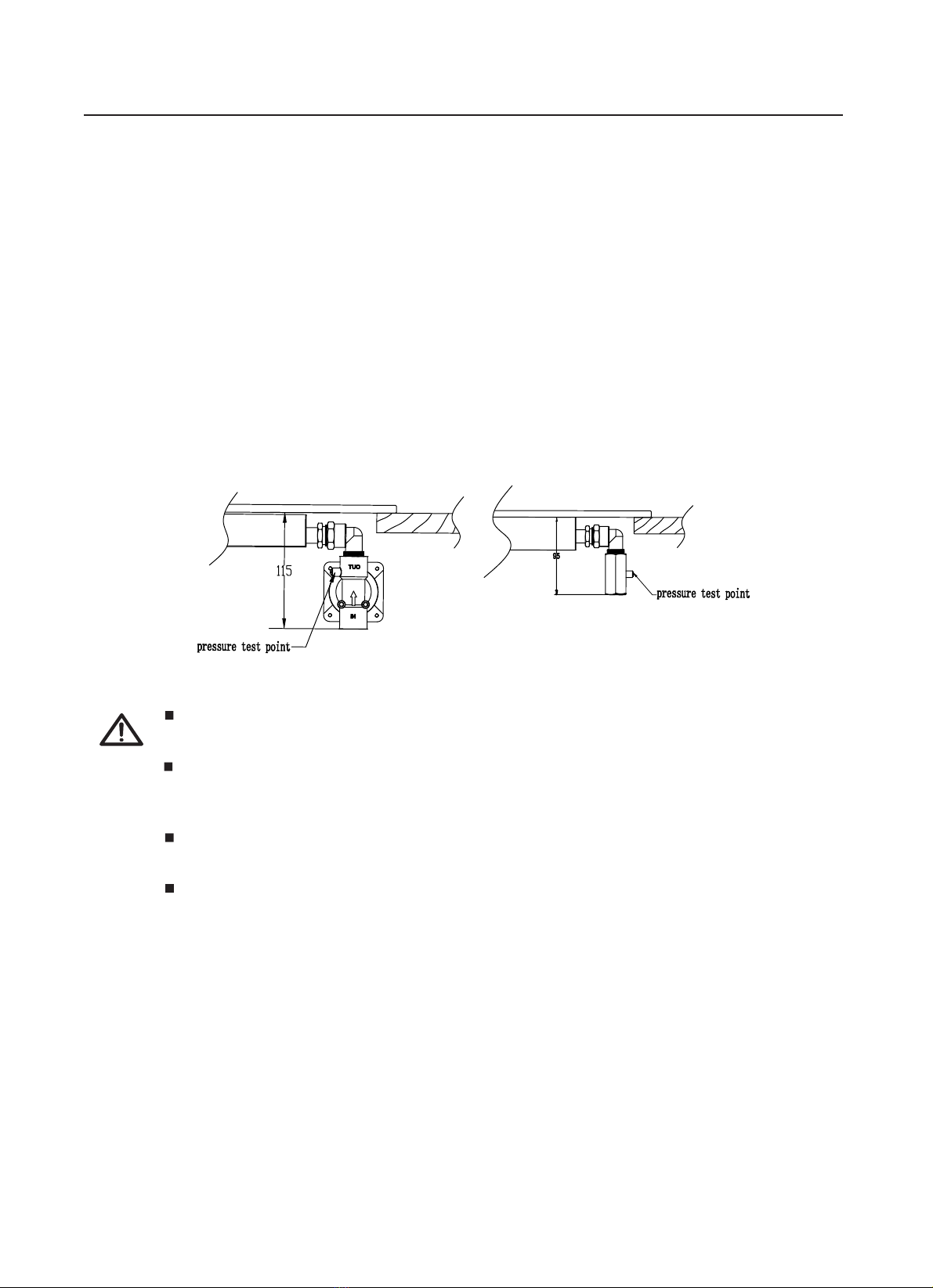

Natural gas connection LPG gas connection
A full operational test and a test for possible leakages must be
carried out by the fitter after installation.
Access to the whole length of the connection hose must be possible
and the gas hose must be replaced before the end of it's service
life (indicated on the hose.)
Before Leaving-Check all connections for gas leaks with soap and
water.
DO NOT use a naked flame for detecting leaks. Ignite all burners both
individually and concurrently to ensure correct operation of gas
valves, burners and ignition. Turn gas taps to low flame position and
observe stability of the flame for each burner individually and all
together. Adhere the duplicate data plate to an accessible location
near the hotplate. When satisfied with the hotplate, please instruct
the user on the correct method of operation. In case the appliance
fails to operate correctly after all checks have been carried out, refer
to the authorised service provider in your area.
