CAUTION: Risk of product damage. Do not lift
the bath with airjets by the piping or blower motor,
or use the piping or blower motor for structural
support of the bath.
installation sequences. Follow the sections that
pertain to your particular installation. This will help
you avoid costly mistakes. In addition to installation
instructions, read all operating and safety
instructions.
described in this manual.
For All Installations
·
·
·
·
·
·
·
We recommend this bath with airjets for drop-in
installation.
Inspect the bath for damage before you begin
installation.
You must install this bath to an adequately
supported, level subfloor.
Please read these instructions carefully to
familiarize yourself with the required tools, material,
and
The variety of installations possible with this bath
may require framing procedures other than those
Both concrete and wood frame construction
techniques are discussed in this manual.
Confirm adequate mounting and connection space
for the faucet specified for your installation.
·
·
·
·
·
·
·
BEFORE YOU BEGINBEFORE YOU BEGIN
IMPORTANT INFORMATION
INSTALLATION INSTRUCTIONS
EXPERIENCE BUBBLE MASSAGE BATH
K-1457T-G, K-1744T-G1P/G58
PORTRAIT
EVOK
-1-
, 2007
Copyright Kohler China Ltd., 2007
DANGER: Risk of electric shock.
WARNING: When using electrical products,
basic precautions should always be followed,
including the following:
WARNING: Risk of electric shock.
WARNING: Risk of electric shock.
WARNING: Risk of injury or property damage.
Connect only
to circuits protected by a Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit-Breaker (ELCB).
A licensed
electrician should make all electrical connections.
Disconnect
power before servicing.
Please read all instructions thoroughly before
beginning installation, including the following
requirements.
(GFCI)
ELCB
1070462-T01-B

Important Information
NOTICE: Follow all local plumbing and electrical
codes.
Grounding is required. The unit should be installed by
a qualified service representative, and grounded.
Building materials and wiring should be routed away
from the blower body and other heat-producing
components of the unit.
Install to permit access for servicing.
A pressure wire connector marked Earth/Ground is
provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the
grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit
conductor supplying this equipment.
Pressure wire connectors are provided on the exterior
of the junction box or control within this unit to permit
connection of a bonding conductor between this unit
and all other exposed metal in the vicinity, as needed to
comply with local requirements.
(cont.)
'' '' / Earth/Groud
()
PRODUCT INFORMATION
Electrical Requirements
The installation must have a Class A Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage
Circuit-Breaker (ELCB). The GFCI or ELCB protect
against line-to-ground shock hazard. Use a 220-240 V,
15 A, 50/60 Hz dedicated service for the bath with
airjets.
A (GFCI)
ELCB GFCI ELCB
220-240
15 50/60
Product Notices
WARNING: Unauthorized modification may
cause unsafe operation or effect performance
of the bath with airjets. Do not relocate the
bath blower motor, or make other modifications
to the bath system in the absence of kit or other
published instructions, as this could adversely
affect the performance and safe operation of the
bath with airjets. Kohler China shall not be liable
under its warranty or otherwise for personal
injury or damage caused by any such
unauthorized modification.
-2-
WARNING: Keep the area around the blower
motor clean and free of debris. Ensure that the
area around the blower motor is free of sawdust,
insulation, dirt, or other small loose debris. Such
material could clog the blower motor air ducts
and reduce the air flow through the blower.
1070462-T01-B

Product Information
Factory Assembled Features
Factory assembled components include a blower motor,
air harness, control, check valve, butterfly valves,
chromatherapy lights (if provided), electrical harnesses,
and an illuminated user keypad. Other than power
wiring and plumbing, no assembly is required.
(cont.) ()
Connections and Service Access
NOTICE: Provide unrestricted service access to the
blower motor.
It is recommended that the finished deck and frame
wall could be movable style for easy service
function.
You must provide access for servicing
the blower motor and controls. The access must be
located immediately next to the blower motor. Study
the roughing-in information packed with the bath with
airjets.
Before installation, ensure that there is proper access
to the blower motor and final connections. If the blower
motor is installed in an enclosed area, an access panel
is required at the blower motor. For the size of this
panel, please refer to the roughing-in.
Silicone Sealant
Measuring Tape
Pencil
Level
Safety Glasses
Pipe Wrench
Conventional woodworking tools and materials or
conventional masonry tools and materials, as
appropriate
Drop cloth
Construction Adhesive (optional)
Cement or Mortar (optional)
2x4's or 2x6's (optional)
Plus:
·
·
·
·
·
·
·
·
·
·2x4' 2x6's
TOOLS AND MATERIALSTOOLS AND MATERIALS
-3-
1070462-T01-B

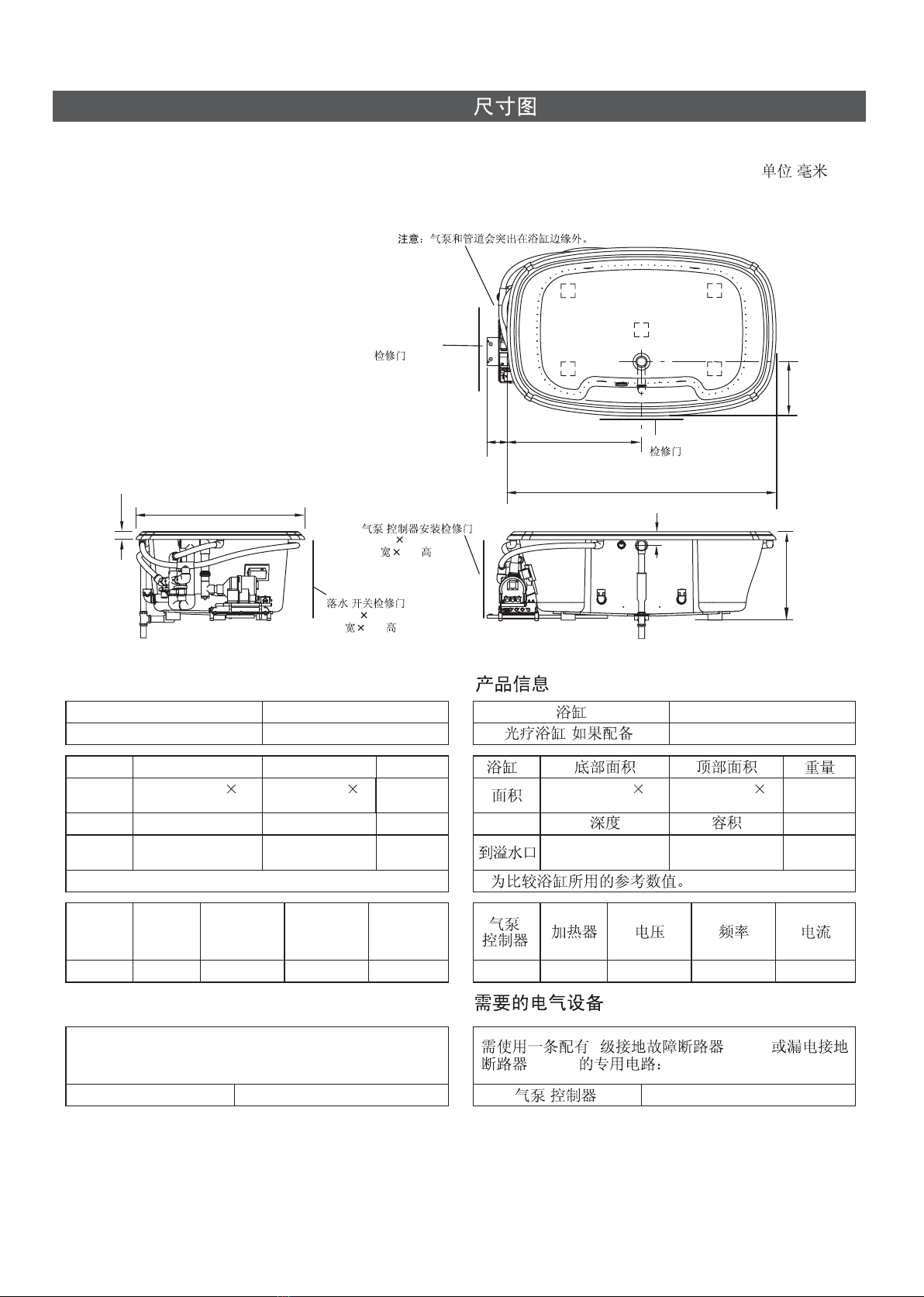

ROUGHING-IN
UNIT:mm
:
K-1457T-G
Note: The blower and piping protrude beyond the rim.
343
914100
1702
Access Panel
Access Panel
Drain/Switch Access Panel
/
864 W 500 H
864 500
Blower/Control Access
/
864 W 381 H
864 381
89
559
1067
51
-4-
Product Information
Required Electrical Service
Bath with chromatherapy K-1457T-GCR
Bath K-1457T-G
Fixture*: Basin area Top area Weight
Bathing
well 1270 mm
737 mm 1549 mm 813 mm
58.1 kg
Water depth
To
overflow 406 mm 378.5 L
* Approximate measurements for comparison only.
Capacity
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Earth-
Leakage Circuit-Breaker (ELCB):
Blower
motor /
control:
Heater Voltage Frequency Amperage
1 Hp 300 W 220-240 V 50/60 Hz 3.2 A
Blower motor/control: 220-240 V, 15 A, 50/60 Hz
A (GFCI)
(ELCB)
/: 220-240 V, 15 A, 50/60 Hz
() K-1457T-GCR
K-1457T-G
*:
1270 mm
737 mm 1549 mm 813 mm
58.1 kg
406 mm 378.5 L
*
/
:
1 Hp 300 W 220-240 V 50/60 Hz 3.2 A
1070462-T01-B

UNIT:mm
:
K-1744T-G1P/G58
-5-
550
433
800
80
90
52
52
25
1800
650
500
Blower/Control Access
/
800W 380H
800 380
Try to avoid the air channel below the rim during the installation.Note:
Product Information
Required Electrical Service
Bath K-1744T-G1P/G58
K-1744T-G1PCR/G58CR
Fixture*: Basin area Top area Weight
Bathing
well 1122 mm
503 mm 1635 mm
680 mm
45 kg
Water depth
To
overflow 393 mm 271 L
* Approximate measurements for comparison only.
Capacity
Dedicated circuit required, protected with Class A
Ground-Fault Circuit-Interrupter (GFCI) or Earth-
Leakage Circuit-Breaker (ELCB):
Blower
motor /
control:
Heater Voltage Frequency Amperage
1 Hp 300 W 220-240 V 50/60 Hz 3.4 A
K-1744T-G1P/G58
K-1744T-G1PCR/G58CR
*:
1122 mm
503 mm 1635 mm
680 mm
45 kg
393 mm 271 L
*
/
:
1 Hp 300 W 220-240 V 50/60 Hz 3.4 A
Blower motor/control: 220-240 V, 15 A, 50/60 Hz
A (GFCI)
(ELCB)
/: 220-240 V, 15 A, 50/60 Hz
Bath with chromatherapy ()
Access Panel
Access Panel
Drain/Switch Access Panel
/
1000 W 500 H
1000 500
1070462-T01-B

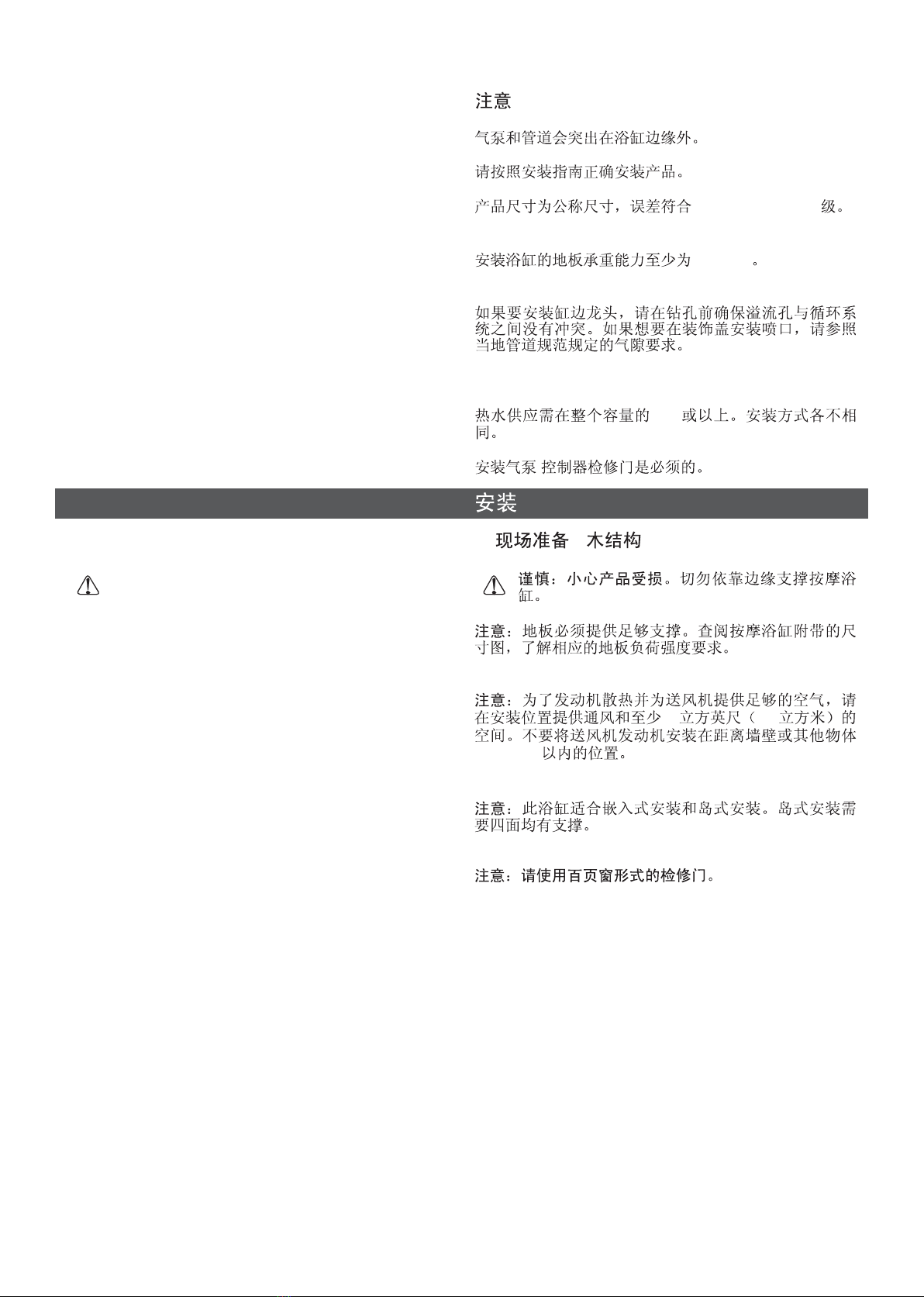

Notes
The blower and piping protrude beyond the rim.
Install this product according to the installation guide.
Fixture dimensions are nominal and conform to
tolerances in GB/T 1804-1992V.
Floor support under bath must provide for a minimum
of 816.5 kg.
If installing a rim mount faucet, make sure there is no
interference with drain overflow and circulating system
before drilling any holes. Consult local and national
codes for minimum air gap requirements if installing a
spout on the faucet deck.
Hot water supply should be 70% of capacity or greater.
Installations will vary.
A blower motor/control access panel is required.
-6-
GB/T 1804-1992V
816.5 kg
70%
/
1. Prepare the Site - Wood Construction
CAUTION: Risk of product damage.
NOTICE:
NOTICE:
NOTE:
NOTE: Please use the shutter-like access panel.
Do not
support the bath with airjets by the rim.
Adequate floor support must be provided.
Consult the roughing-in sheet packed with your bath
for specific floor loading requirements.
Provide adequate ventilation and a minimum
of 15 cubic feet (.4 cubic meters) in the installed
location for cooling the motor and to supply sufficient
air for the blower. Do not install the blower motor
closer than 1 (2.5 cm) from the wall or other objects.
This bath may be installed in a drop-in or an
island installation. An island installation requires a
four side surround.
''
1. -
15 0.4
1''(2.5cm)
INSTALLATION
1070462-T01-B

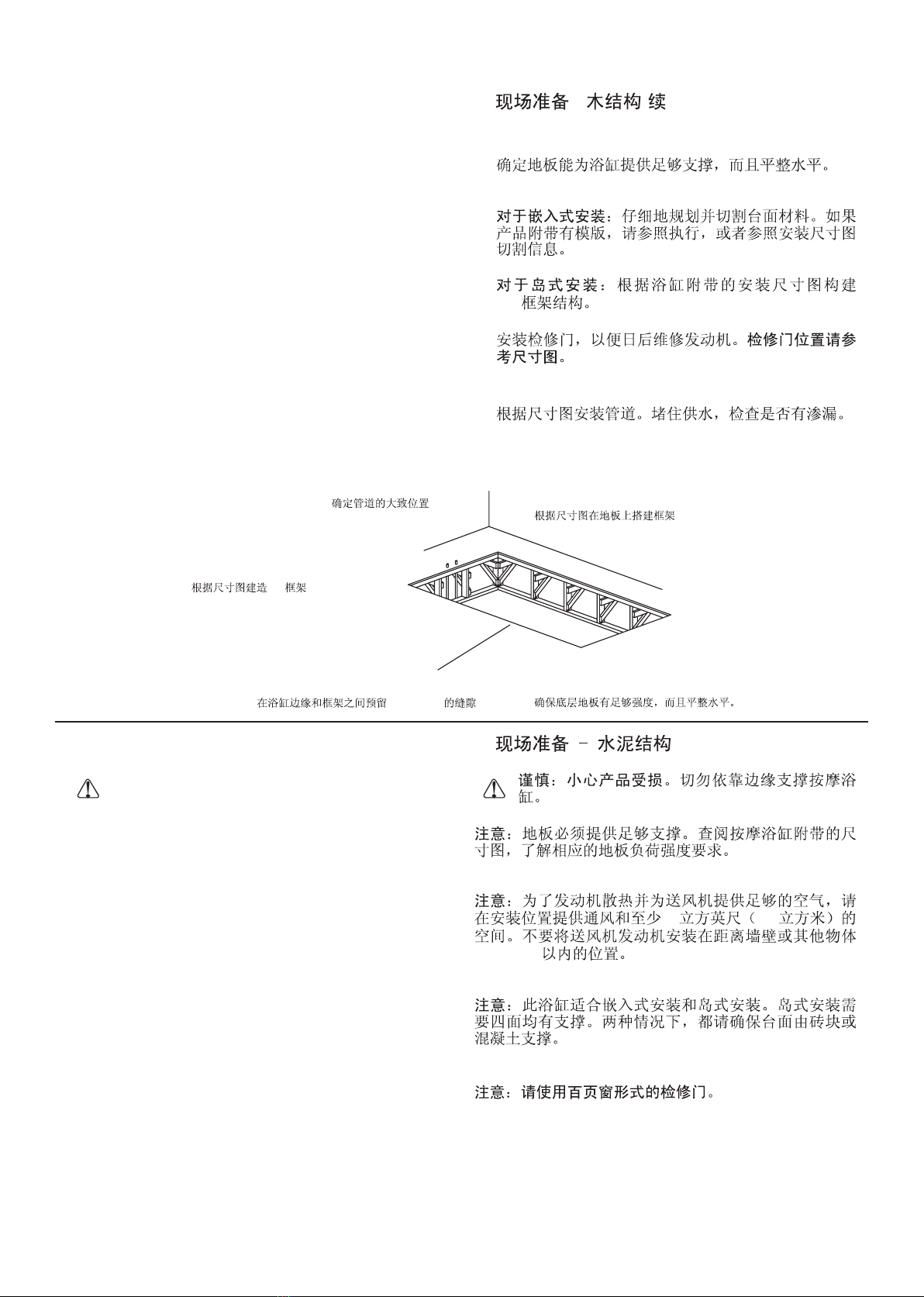

1. Prepare the Site - Wood Construction
·
·
·
·
Make sure the flooring offers adequate support for
your bath, and verify that the subfloor is flat and
level.
Carefully lay out and cut
the rough deck material. Use the cutout
For drop-in installation:
template if
one is provided, or refer to the roughing-in cutout
information.
Construct a 2x4 frame in
accordance with the roughing-in information packed
with the bath.
Provide access panels as required to service the
blower motor and control.
Position the plumbing according to the roughing-in
information. Cap the supplies, and check for leaks.
·For island installation:
(cont.)
Please refer to the
roughing-in to know the location of the access
panel.
1. -
·
·
·
·
·
2x4
()
Construct 2x4 or 2x6 stud framing
according to the roughing-in information.
2x4
Position the rough plumbing. Frame the floor according to the
roughing-in information.
Provide a 1/16" (2 mm) gap between
the bath rim and framing.
1/16''(2mm)
Verify that the subfloor offers adequate
support, and is flat and level.
-7-
2. Prepare the Site - Concrete Construction
CAUTION: Risk of product damage.
NOTICE:
NOTICE:
NOTE:
Do not
support the bath by the rim.
Adequate floor support must be provided.
Consult the roughing-in sheet packed with your bath
for specific floor loading requirements.
Provide adequate ventilation and a minimum
of 15 cubic feet (.4 cubic meters) in the installed
location for cooling the motor and to supply sufficient
air for the blower. Do not install the blower motor
closer than 1 (2.5 cm) from the wall or other objects.
This bath may be installed in a drop-in or an
island installation. An island installation requires a
four side surround. In both instances, make sure the
deck is supported by brick or concrete.
''
NOTE: Please use the shutter-like access panel.
2.
15 0.4
1''(2.5cm)
1070462-T01-B

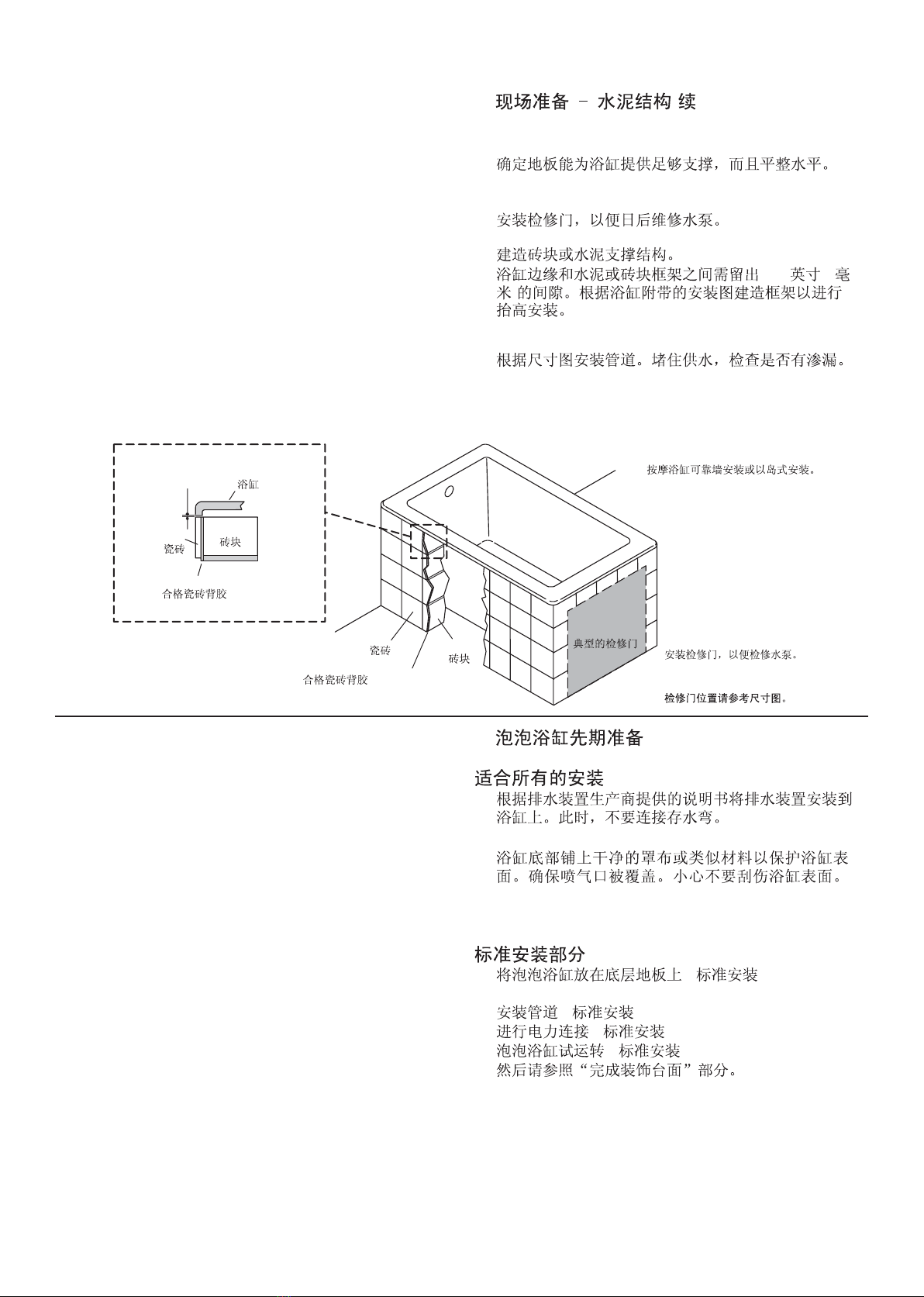

2. Prepare the Site - Concrete Construction
·
·
·
·
·
Make sure the flooring offers adequate support for
your bath, and verify that the subfloor is flat and
Provide access panels as required to service the
blower motor and control.
Construct brick or concrete supports.
Provide a 1/16'' (2 mm) gap between the bath rim
and the concrete or brick framing. Frame the
Position the plumbing according to the roughing-in
information packed. Cap the supplies, and
level.
floor,
or construct a frame for a raised installation, in
accordance with the roughing-in information packed
with the bath.
check for
leaks.
(cont.)
2.
·
·
·
·
·
1/16 (2
)
()
-8-
1/16"
(2 mm)
Tile
Tile
Bath
Brick
Brick
Approved Tile Backing
Approved Tile Backing
Install an access panel to allow
the pump to be serviced.
Bath may be installed next to the
wall or as an island installation.
Typical access
panel
3. Prepare the Bath with Airjets
For All Installations
·
·
Install the drain to the bath according to the drain
manufacturer's instructions. Do not connect the trap
at this time.
Position a clean drop cloth or similar material in the
bottom of the bath to protect the finish. Ensure that
the airjets are covered. Be careful not to scratch the
surface of the bath.
3.
·
·
Please refer to the roughing-in to
know the location of the access panel.
Standard Installation Sections
·
·
·
·
·
Secure the Bath with Airjets to the Subfloor -
Standard Installation
Install the Plumbing - Standard Installation
Make Power Connections - Standard Installation
Test Run the Bath with Airjets - Standard Installation
Then go to the ''Complete the Finished Deck''
section.
·
·
·
·
·
-
-
-
-
1070462-T01-B

-9-
4. Secure the Bath with Airjets to the
Subfloor - Standard
CAUTION: Risk of product damage.
CAUTION: Risk of product damage.
Do not lift
the bath with airjets by the piping or blower motor,
or use the piping or blower motor for structural
support of the bath.
Do not
support the bath with airjets by the rim.
·
·
Choose the installation option that best applies
to your particular installation. Follow the
appropriate instructions.
If the subfloor is not level, shim the bath support
blocks as necessary.
Option for Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall
compound for this application, as they will not provide
an acceptable, durable bond.
will
help secure, level, and support the unit. Clear all the
material away from the four support block locations.
blocks do
not rest in the bed material.
the
sealant to cure as per the manufacturer s
instructions.
·
·
·
·
·
·
Spread a 2'' (5 cm) thick layer of cement or mortar
on the subfloor where the bath will be set. This
Position a piece of plastic drop cloth material on top
of the cement or mortar bed.
With help, carefully lift the bath into place, and make
sure the blower motor control and support
Insert the drain tailpiece into the trap. Make sure the
bath is level and resting on all support blocks.
Remove the protective tape from the rim.
Apply a continuous bead of high-quality silicone
sealant around the entire rim of the bath. Allow
'
Option for Using Construction Adhesive
·
·
·
·
·
Apply a generous amount of high-quality
construction adhesive to the bottom of the support
blocks.
With help, carefully lift the bath into position.
Insert the drain tailpiece into the trap. Make sure the
bath is level and resting on all support blocks.
Remove the protective tape from the rim.
Apply a continuous bead of high-quality silicone
sealant around the entire rim of the bath. Allow
'
the
sealant to cure as per the manufacturer s
4.
·
·
1
·
·
·
·
·
·
25
2
·
·
·
·
·
1070462-T01-B

-10-
Spread a 2'' (5.1cm) layer of
cement or mortar bed material
2 5.1
Clear spaces for support blocks
Apply a bead of silicone sealant
around the entire rim
Or
Apply construction adhesive
to the support blocks
5. Install the Plumbing - Standard
CAUTION: Risk of property damage.
NOTICE:
Ensure a
watertight seal on the bath drain.
Connect the drain to the trap according to the drain
manufacturer s instructions.
An access panel will simplify future
maintenance.
Install the faucet valving according to the faucet
manufacturer s instructions. Do not install the faucet
trim until instructed. Open the hot and cold water
supplies, and check the supply connections for
leakage.
Run water into the bath, and check the drain
connections for leakage.
·
·
·
'
'
6. Connect the Electrical Service -
Standard
WARNING: Risk of electric shock.
WARNING: Risk of electric shock.
To reduce
the risk of electric shock, connect the control to a
properly grounded Ground-Fault Circuit-
Interrupter (GFCI) or Earth-Leakage Circuit-
Breaker (ELCB). This will provide additional
protection against line-to-ground shock hazard. A
220-240 V, 15 A, 50/60 Hz dedicated circuit is
required.
Make sure
the power has been disconnected before
performing the following procedures.
5. -
·
·
·
6. -
(GFCI)
ELCB
220/240 15 50/60
4. Secure the Bath with Airjets to the
Subfloor - Standard (cont.)
Option for Using Silicone Sealant
·
·
·
·
With help, carefully lift the bath into position.
Insert the drain tailpiece into the trap. Make sure the
bath is level and resting on all support blocks.
Remove the protective tape from the rim.
Apply a continuous bead of high-quality silicone
sealant around the entire rim of the bath. Allow the
sealant to cure as per the manufacturer's
instructions.
4.
3
·
·
·
·
1070462-T01-B

-11-
·
·
·
·
·
Connect the electrical service to the junction box.
Provide a separate equipment grounding or earthing
conductor for the spare grounding/earthing lug
located on the junction box. This conductor must not
be connected to any current-carrying conductor.
Follow local electrical codes.
Bond in accordance with national and local codes.
Clean the area of all dust and debris.
Your wiring harness includes an antenna for the
optional remote control. Do not alter or damage
this antenna during installation.
Ensure all wires on the wiring harness are securely
fastened.
NOTE:
·
·
·
·
·
The junction box should be wired as shown.
Brown
Electrician to provide
suitable strain relief.
Supply
Blue
Ground (green with yellow stripe)
Bond in accordance with national and local codes
Wire connectors
From control
Check Valve
Control
Blower Motor Cord
Control Power
Supply
External Power
60Hz 50Hz
L1 L1
L2 N
From Control
Brown
Blue
6. Connect the Electrical Service -
Standard (cont.)
NOTE:
All baths come
equipped with a wiring junction box and will only
operate at 220 V through 240 V and at 50 Hz or 60
Hz.
IMPORTANT!
The bath model number is printed on a label
near the bath blower motor. This label also identifies
the electrical rating of the bath.
The bath controls, bath system, and
wiring harness have been prewired at the factory. A
licensed electrician should make a routine service
connection to the supplied junction box.
6. - ( )
220/240 50 60
1070462-T01-B

-12-
Zone 1
1
Zone 2
2
Zone 3
3
Air Flow Mode
Activates Mode Selected
Rotate Outer Ring to
Access Desired Mode
Power On/Off
/
Chromatherapy Specific
Color (if provided)
Rotating Ring Key Pad
Surge Mode
Increase Flow or Surge
Indicator Bar
Decrease Flow or Surge
Chromatherapy Cycle (if provided)
Purge Mode
7. Test Run the Bath with Airjets - Standard
NOTE: For additional information on operating the bath
with airjets, see the Confirm Proper Operation
Section.
Check all electrical connections. Make sure the
electrical power to the bath with airjets is turned on.
Ensure all PVC piping connections are tightened.
Temporarily remove the protective drop cloth from
the bath, then fill the bath to a level at least 2 (5.1
cm) above the top of the highest airjet.
Operate the bath with air flow in all three zones.
Check all bath PVC connections for leaks.
Stop the blower.
Check for water leakage at the bath, the bath drain,
and the air harness.
Test other features as desired.
Drain the bath to start the automatic purge cycle.
Allow the automatic purge cycle to complete.
Place the protective drop cloth over the bath.
Turn off the power to the unit.
'' ''
''
·
·
·
·
·
·
·
·
·
·
·
7.
PVC
2''(5.1 )
PVC
·
·
·
·
·
·
·
·
·
·
·
1070462-T01-B

8. Complete the Finished Deck
9. Complete the Concrete Installation
For Drop-Installations
For Island Installations
·
·
·
·
·
·
·
If you have not already done so, carefully remove
the protective tape from the bath rim.
Cover the framing with water-resistant deck material.
Seal the joints between the bath rim edge and the
water-resistant deck material with silicone sealant.
Install the faucet trim according to the instructions
packed with the trim.
If you have not already done so, carefully remove
the protective tape from the bath rim.
Apply mortar and tile to any wall, deck, and
surround material as needed.
Apply a bead of sealant where the tile meets the
bath surface.
Install the faucet trim according to the instructions
packed with the trim.
8.
9.
·
·
·
·
·
·
·
10. Clean-Up After Installation
For All Installations
Do not use abrasive cleansers
Do
not use powdered cleaners unless the cleaner is
fully dissolved in water
Do not use bleach or ammonia
cleaning solutions
·
·
Clean the area around the blower motor of all dust
and debris.
Use warm water and a liquid detergent to clean the
surface of the bath. ,
as they may scratch and dull the bath surface.
. Solid substances could
block the airjets.
. Chemically active cleaning
solutions can damage the bath surface. Refer to the
homeowners guide for normal cleaning
recommendations.
10.
·
·
Apply silicone sealant to the edges of the water-resistant
deck material and the finished deck.
Water-Resistant Deck Material
Framing
Bath
Finished Deck Material
-13-
1070462-T01-B

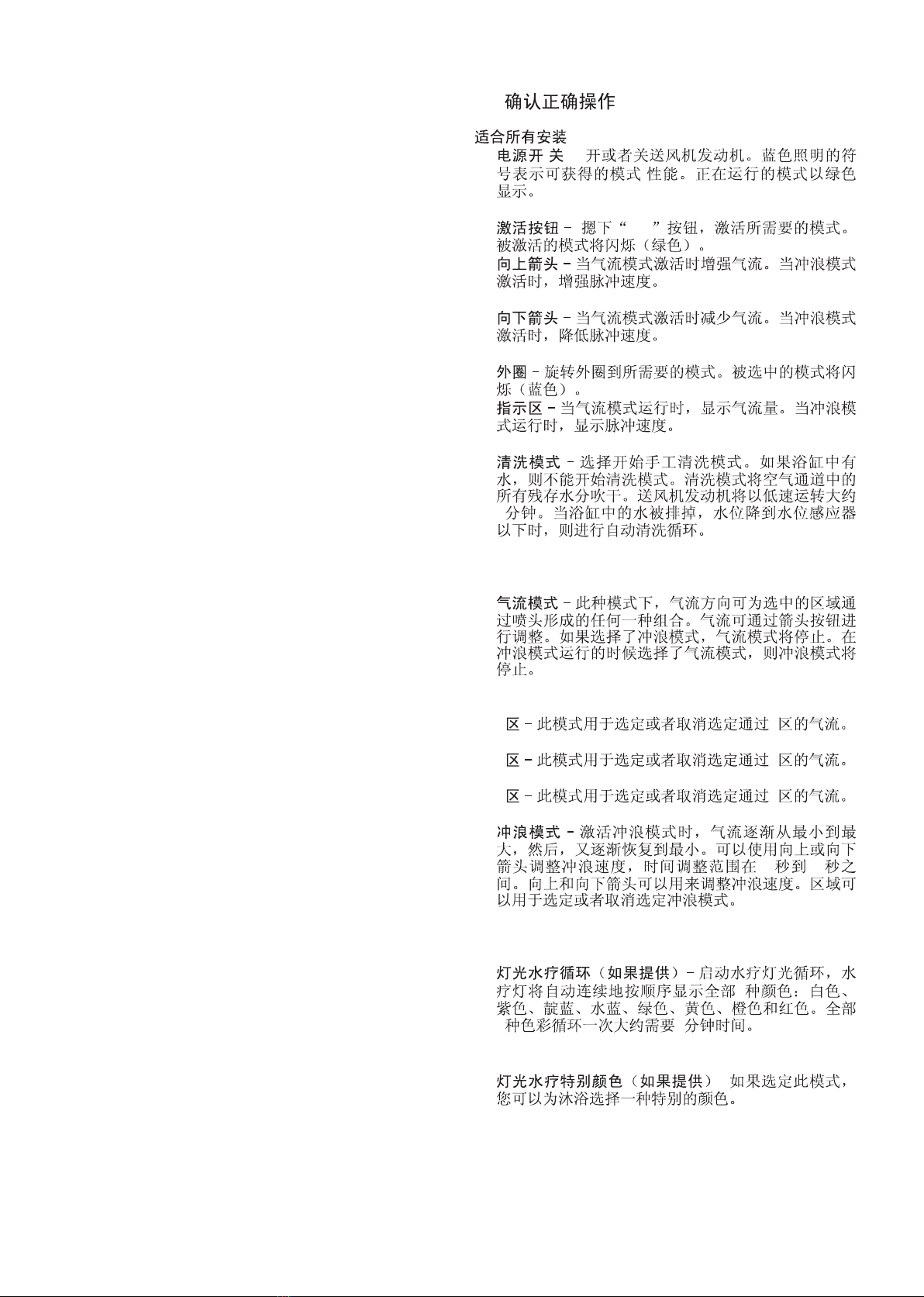

11. Confirm Proper Operation
For All Installations
Power On/Off
Activate Button
Up Arrow
Down Arrow
Outer Ring
Indicator Bar
Purge Mode
Air Flow Mode
Zone 1
Zone 2
Zone 3
Surge Mode
Chromatherapy Cycle (if provided)
Chromatherapy Specific-Color (if provided)
·
·
·
·
·
·
·
·
·
·
·
·
·
·
- Turns the blower motor on and off.
Symbols illuminated in blue indicate available
modes/features. Modes which are operating will
display in green.
- Press OK to activate the
desired mode. The active mode will flash (green).
- Increases the air flow when the air flow
mode is active. Increases the pulse speed when the
surge mode is active.
- Decreases the air flow when the air
flow mode is active. Decreases the pulse speed
when the surge mode is active.
- Rotate the outer ring to the desired
mode. The selected mode will flash (blue).
- Shows the air flow volume when
operating in the air flow mode. Shows the surge
speed when operating in the surge mode.
- Select to initiate the purge mode
manually. The purge cycle will not start if there is
water in the bath. The purge mode blows any
residual water out of the air channels. The blower
motor starts and runs at a low speed for about two
minutes. An automatic purge cycle occurs when the
bath is drained and the water level falls below the
level sensors.
- In this mode, air flow is directed
through any combination of the airjets in the
selected zones. Air flow can be adjusted with the
arrow buttons. When the surge mode is selected,
the air flow mode stops. When the air flow mode is
selected while operating in the surge mode, the
surge mode stops.
- This mode is used to select or deselect the
air flow through Zone 1.
- This mode is used to select or deselect the
air flow through Zone 2.
- This mode is used to select or deselect the
air flow through Zone 3.
- When active, the air flow ramps up
from minimum to maximum and then down again to
minimum. The surge speed is adjustable between
approximately 10 seconds to 60 seconds by using
the up or down buttons. The up and down arrow
buttons can be used to adjust the surge speed.
Zones can be selected or deselected when in the
surge mode.
-
Chromatherapy lights will automatically and
continuously cycle through the eight colors; white,
violet, indigo blue, aqua blue, green, yellow, orange
and red. One cycle through all eight colors takes
approximately one minute.
-
When this mode is selected, you may choose a
specific color for the bath.
'' ''
11.
·
·
·
·
·
·
·
·
·
·
·
·
·
·
/-
/
OK
2
11
22
33
10 60
8
81
-
-14-
1070462-T01-B

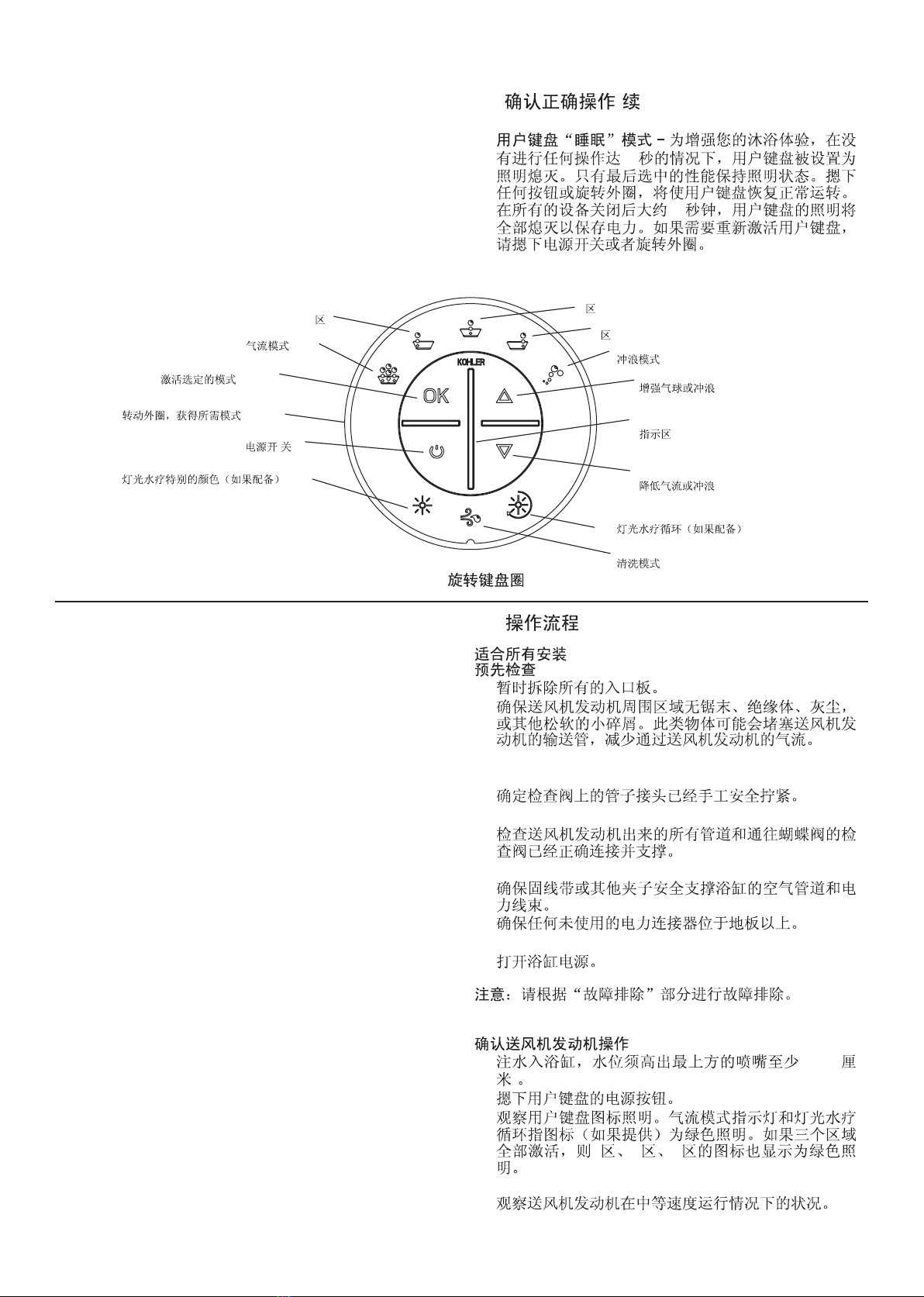

11. Confirm Proper Operation (cont.)
·'' ''User Keypad leep Modes - To enhance your
bathing experience, the keypad is programmed to
darken after approximately 15 seconds of inactivity.
Only the last feature selected will remain illuminated.
To resume normal operation, press any key or turn
the outer ring. Approximately 60 seconds after all
equipment is turned off, the keypad will darken
completely to conserve power. Press the power
button or turn the outer ring to reactivate the keypad.
11. ( )
·
15
60
Zone 1
1
Zone 2
2
Zone 3
3
Air Flow Mode
Activates Mode Selected
Rotate Outer Ring to Access Desired Mode
Power On/Off
/
Chromatherapy Specific Color (if provided)
Rotating Ring Key Pad
Surge Mode
Increase Flow or Surge
Indicator Bar
Decrease Flow or Surge
Chromatheray Cycle (if provided)
Purge Mode
12. Operating Sequence
For All Installations
Preliminary Checks
Confirm Blower Motor Operation
·
·
·
·
·
·
·
·
·
·
·
Temporarily remove all access panels.
Ensure that the area around the blower motor is free
of sawdust, insulation, dirt, or other small loose
debris. Such material could clog the blower motor s
air ducts and reduce the air flow through the blower
motor.
Make sure the union connection at the check valve
is securely hand tightened.
Check that the piping from the blower motor and the
check valve to the butterfly valves is properly
connected and supported.
Ensure that cable ties or other clips support the air
piping and electrical harnesses at the bath.
Ensure that any unused electrical connectors are
supported above the floor.
Turn on power to the unit.
Fill the bath to a level at least 2 (5 cm) above the
top of the highest airjet.
Press the power button on the user keypad.
Observe that the user keypad icons illuminate. The
air flow mode icon and the chromatherapy cycle
icon (if provided) are lighted green. The Zone 1,
Zone 2, and Zone 3 icons are also illuminated green
since all three zones are activated.
Observe that the blower motor starts at a midrange
speed.
'
''
NOTE: Troubleshoot any problems as per the
Troubleshooting section.'' ''
12.
·
·
·
·
·
·
·
·
·
·
·
2''(5.1
)
123
-15-
1070462-T01-B

12. Operating Sequence (cont.)
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
If provided, verify that all four chromatherapy lights
are illuminated. The cycling of colors may not be
readily apparent as the cycle time may be rather
long.
The purge cycle mode cannot be selected while
there is water in the bath.
Rotate the rotating ring through each of the
available icon positions.
Verify that, as each icon is selected, it begins
flashing. If the mode is operating, the light will flash
green. If the mode is not operating, the icon will
flash blue.
Verify that, as each icon is deselected, it stops
flashing.
Select and activate the air flow mode icon.
Press the up or down button to verify the air flow
increases or decreases.
Select and deactivate Zone 1.
Verify that air stops flowing in the corresponding
zone.
Activate Zone 1.
Repeat for Zones 2 and 3.
The surge mode cycles the speed of the blower
motor between maximum and minimum settings
over an adjustable period of time. Six cycle times are
available ranging from about 10 seconds to about
one minute. The up and down buttons control the cycle
time when in the surge mode. The surge mode
will operate with any zone or all zones selected. The
indicator bar shows the speed of the surge mode.
Select and activate the surge mode.
Verify that the air flow cycles between minimum and
maximum.
Increase or decrease the speed of the surge cycle
by pressing the up or down button.
Turn the unit off.
The automatic purge cycle occurs after the bath
is drained. It operates at low speed for about two
minutes to remove any residual water from the air
channels.
If required, fill the bath to a level at least 2 (5 cm)
above the top of the highest airjet.
Drain the bath.
When the water level drops below the level sensor
probes, verify that the blower motor starts at low
speed.
After about two minutes, verify that the blower motor
stops.
NOTE:
Confirm Individual Zone Control
Confirm Surge Mode Operation
NOTE:
Automatic Purge Cycle Operations
NOTE:
''
12. ( )
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
1
1
23
6
10 1
2''(5.1
)
-16-
1070462-T01-B

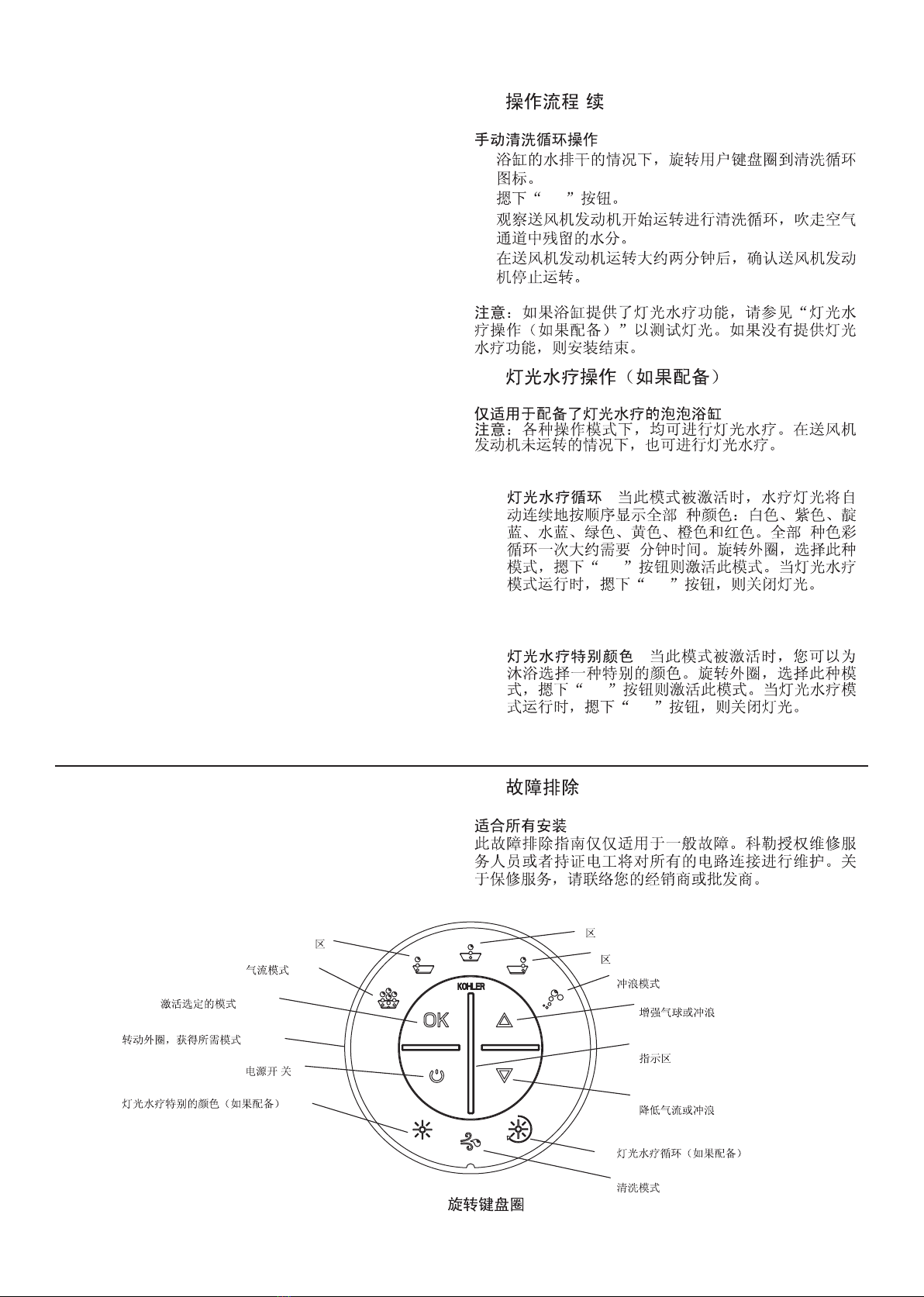

12. Operating Sequence (cont.)
Manual Purge Cycle Operation
NOTE:
·
·
·
·
With the bath drained, rotate the ring on the user
keypad to the purge cycle icon.
Press the OK button.
Observe that the blower motor starts in purge cycle
to blow any residual water from the air channels.
After the blower motor has operated for about two
minutes, observe that the blower motor stops.
If the bath is provided with chromatherapy, go to
Chromatherapy Operation (If Equipped) to test
the lights. If not, the installation is complete.
'' ''
'' ''
12. ( )
·
·
·
·
OK
13. Chromatherapy Operation (if Equipped)
For Bath with Airjets with Chromatherapy Only
NOTE:
Chromatherapy Cycle
Chromatherapy Specific Color Selection
Chromatherapy may be used with all modes of
operation. Chromatherapy may also be used when
the blower motor is not operating.
- When this mode is
activated, the chromatherapy lights will
automatically and continuously cycle through the
eight colors; white, violet, indigo blue, aqua blue,
green, yellow, orange and red. One cycle through all
eight colors takes approximately one minute. Rotate
the outer ring to select this mode and press OK to
activate it. Press OK while the chromatherapy
mode is active, to turn off the lights.
- When
this mode is activated, you may choose a specific
color for the bath. Rotate the outer ring to select this
mode, press OK to activate and use the up/down
arrows to reach the desired color. Press OK while
the chromatherapy mode is active, to turn off the lights.
·
·
'' ''
'' ''
'' ''
'' ''
13.
·
·
-
-
8
8
1
OK
OK
OK
OK
14. Troubleshooting Procedures
For All Installations
This troubleshooting guide is for general aid only. A
Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For
warranty service, contact your dealer or wholesale
Distributor.
14.
-17-
Zone 1
1
Zone 2
2
Zone 3
3
Air Flow Mode
Activates Mode Selected
Rotate Outer Ring to Access Desired Mode
Power On/Off
/
Chromatherapy Specific Color (if provided)
Rotating Ring Key Pad
Surge Mode
Increase Flow or Surge
Indicator Bar
Decrease Flow or Surge
Chromatheray Cycle (if provided)
Purge Mode
1070462-T01-B

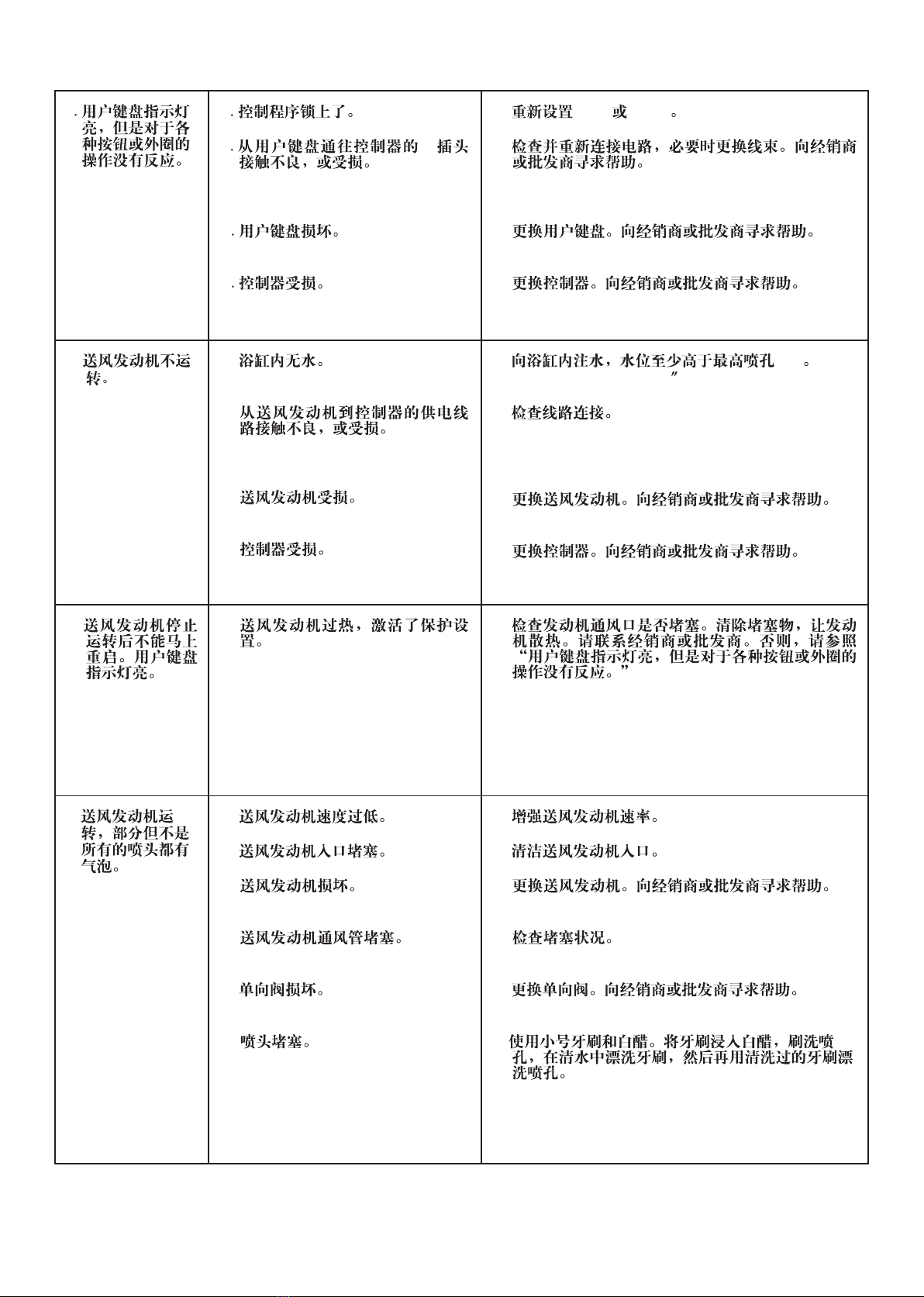

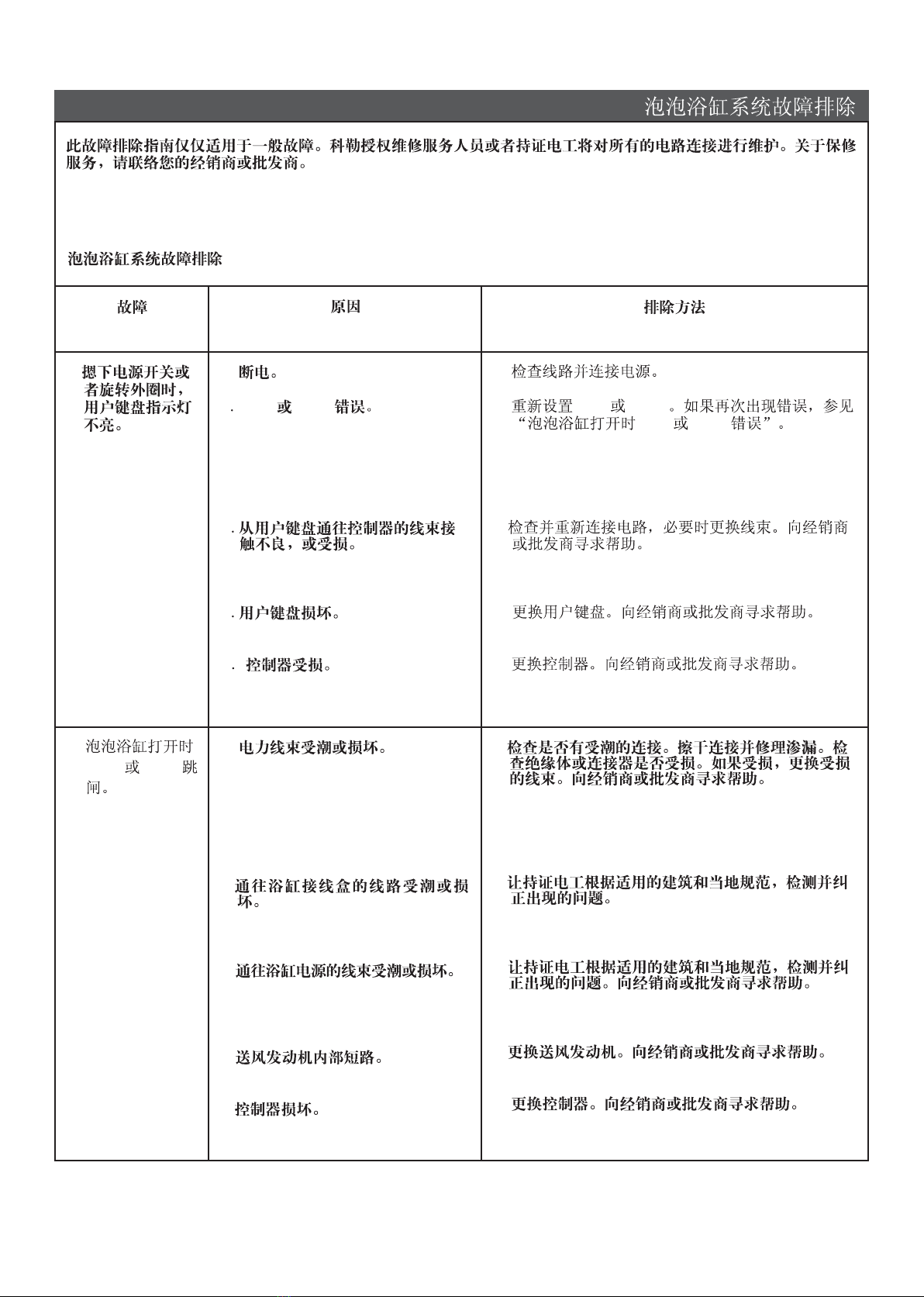

TROUBLESHOOTING THE BATH WITH AIRJETS SYSTEMTROUBLESHOOTING THE BATH WITH AIRJETS SYSTEM
-18-
SYMPTOMS PROBABLE CAUSES RECOMMENDED ACTION
1.
1. User keypad
does not
illuminate when
power button is
pressed or the
outer ring is
rotated.
A.
A. Check wiring and connect power.
B.
B. Reset GFCI or ELCB. If it trips again, refer to
Ground-Fault Circuit-Interrupter (GFCI) or Earth-
Leakage Circuit-Breaker (ELCB) trips when unit is
turned on .
C.
C. Check wiring for proper connections. Replace the
wiring harness if necessary. Refer to your installer
or wholesale Dealer.
D.
D. Replace the user keypad. Refer to your installer
or wholesale Dealer.
E.
E. Replace the control. Refer to your installer or
wholesale Dealer.
GFCI ELCB
GFCI ELCB
“
”
A.
A. No power to control.
B
B. Ground-Fault Circuit- Interrupter
(GFCI) or Earth-Leakage Circuit-
Breaker (ELCB) tripped.
C
C. Wiring harness from user keypad
to control is loose, disconnected
or damaged.
D
D. User keypad does not work.
E
E. Control does not work.
GFCI ELCB
2
GFCI ELCB
.
2. Ground-Fault
Circuit-
Interrupter
(GFCI) or Earth-
Leakage Circuit-
Breaker (ELCB)
trips when unit is
turned on.
A.
A. Check for wet connections. Dry the connections
and repair the leak. Check for insulation or
connector damage. Replace the harness if
damaged. Refer to your installer or wholesale
dealer.
B.
B. Have a qualified electrician diagnose and correct
the problem in accordance with applicable
building and electrical codes.
C.
C. Have a qualified electrician diagnose and correct
the problem in accordance with applicable
building and electrical codes.
D.
D. Replace the blower motor.Refer to your installer
or wholesale dealer.
E
E. Replace the control. Refer to your installer or
wholesale Dealer.
.
A.
A. Electrical harness is wet or
damaged.
B.
B.Electrical wiring to the junction
box is wet or damaged.
C.
C.Electrical wiring to the power cord
is wet or damaged.
D.
D. Blower motor does not work.
E.
E. Control does not work.
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Troubleshooting The Bath System
1070462-T01-B

-19-
3
3. User keypad is
illuminated, but
does not
respond to
buttons or outer
ring.
A.
A. Reset GFCI or ELCB.
B.
B. Check wiring for proper connections. Replace the
wiring harness if necessary. Refer to your installer
or wholesale dealer.
C.
C. Replace the user keypad. Refer to your installer
or wholesale dealer.
D.
D. Replace the control. Refer to your installer or
wholesale Dealer.
GFCI ELCBA
A. Control program is locked.
B
B. P5 plug assembly harness from
user keypad to control is loose,
disconnected, or damaged.
C
C. User keypad does not work.
D
D. Control does not work.
P5
4.
4. Blower motor
will not start.
A.
A. Fill the bath at least 2 (5 cm) above the top of
the highest air jet.
B.
B. Check wiring for proper connections.
C.
C. Replace the blower motor. Refer to your installer
or wholesale dealer.
D.
D. Replace the control. Refer to your installer or
wholesale dealer.
5cmA.
A. No water in the bath.
B.
B. Power cord from blower motor to
control is loose, disconnected, or
damaged.
C.
C. Blower motor does not work.
D.
D. Control does not work.
5.
5. Blower motor
stops running
and will not
immediately
restart. Keypad
is illuminated.
A.
A. Check for blockage at motor vents. Remove
blockage and allow motor to cool. Refer to dealer
or wholesale distributor. Otherwise, refer to User
keypad is illuminated, but does not respond to
buttons or outer Ring .
“
”
A.
A. Blower motor overheated and
protection device activated.
6.
6. Blower motor
starts, some but
not all airjets
are bubbling.
A.
A. Increase speed setpoint to blower motor.
B.
B. Clean blower motor inlet.
C.
C. Replace the blower motor. Refer to your installer
or wholesale dealer.
D.
D. Check blockage.
E.
E. Replace the check valve. Refer to your installer or
wholesale dealer.
F.
F. Use a small between-the-teeth dental brush and
white vinegar. Dip the brush in the vinegar, brush
the hole, rinse the brush in clean water, and then
use the wet rinsed brush to rinse the hole.
A.
A. Blower motor speed is too low.
B.
B. Blower motor inlet is blocked.
C.
C. Blower motor does not work.
D.
D. Blower motor discharge is
blocked.
E.
E. Check valve does not work.
F.
F. Airjets are clogged.
1070462-T01-B

-20-
7.
7. Blower motor
runs but no air
bubbles are
formed.
A.
A. Clean blower motor inlet.
B.
B. Use a small between-the-teeth dental brush and
white vinegar. Dip the brush in the vinegar, brush
the hole, rinse the brush in clean water, and then
use the wet rinsed brush to rinse the hole.
C.
C. Replace the check valve. Refer to your installer or
wholesale dealer.
D.
D. Replace the blower motor. Refer to your installer
or wholesale dealer.
E.
E. Replace the control. Refer to your installer or
wholesale Dealer.
A.
A. Blower motor inlet is blocked.
B.
B. Airjets are clogged.
C.
C. Check valve does not work.
D.
D. Blower motor does not work.
E.
E. Control does not work.
8.
8. Blower motor
operates, air
bubbles are
formed, zone
controls work,
but variable
speed feature
does not work.
A.
A. Clean blower motor inlet.
B.
B. Check wiring for proper connections. Replace the
wiring harness if necessary. Refer to your installer
or wholesale dealer.
C.
C. Replace the user keypad. Refer to your installer
or wholesale dealer.
D.
D. Replace the blower motor. Refer to your installer
or wholesale dealer.
E.
E. Replace the control. Refer to your installer or
wholesale Dealer.
A.
A. Blower motor inlet is blocked.
B.
B. Loose, disconnected, or
damaged wiring harness.
C.
C. User keypad does not work.
D.
D. Blower motor does not work.
E.
E. Control does not work.
9.
9. Blower motor
won t turn off
when the power
button on user
keypad is
pressed.
’
A.
A. Replace the user keypad. Refer to your installer or
wholesale dealer
B.
B. Check wiring for proper connections. Replace the
wiring harness if necessary. Refer to your installer
or wholesale dealer.
C.
C. Replace the control. Refer to your installer or
wholesale Dealer.
A.
A. User keypad does not work.
B.
B. Loose, disconnected, or
damaged wiring harness.
C.
C. Control does not work.
1070462-T01-B
