Kohler K-4107KR Assembly instructions

ฉ࡛ુۉጱᆶ၌ࠅິ
中国上海市宝山区丰翔路1955号 邮编:200444
ᆩࢽ๮֩
C3Toilet Seat with Bidet Functionality
C3ൣ๾Ԑ዇ీፗՍ߃
Homeowners Guide
K-4107KR
English page 2-21
中文页码22-40
한글 페이지 41-60
繁 體 頁 碼61-79
1219876-KR01-C

SAVE THESE INSTRUCTIONS
WARNING: Risk of electric shock, fire, or personal injury.
This product must be grounded. Connect only to a dedicated
220~240V AC, 50/60Hz, 10A circuit protected by Ground-Fault
Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
IMPORTANT! Risk of product damage. Do not install this seat in a location
where water might be splashed on the product.
IMPORTANT! Risk of product damage. Do not install this seat in a location
exposed to excessive moisture where condensation might form on the product
surface. Please ensure sufficient ventilation in your surroundings to prevent
possible damage to electronic components.
IMPORTANT! Risk of product or property damage. Pushing or pulling on the
water connection may cause water leakage.
IMPORTANT! Risk of product damage. Do not apply excessive force on the
spray wands to avoid product damage.
IMPORTANT! Risk of product damage. In areas where water may freeze in the
pipes, make arrangements to keep the pipes warm. Any water remaining in the
seat may freeze during storage during the winter. Allow the unit to warm to room
temperature before reinstalling or using.
IMPORTANT! Risk of product damage. Do not supply electrical power to the unit
until the plumbing installation work has been completed; it could cause the product
to malfunction.
NOTE: The thermal protectors may trip during storage or transportation in warm
weather causing the unit to not operate. Allow the unit to cool to room temperature
before installation or operation.
When using electrical products, especially when children are present, basic
safety precautions should always be followed, including the Following:
IMPORTANT SAFEGUARDS
WARNING: Risk of electric shock or product damage. Do not
immerse or flush the product with water.
Do not place or store this appliance where it can fall or be pulled into
a bath or sink.
Do not place in or drop into water or other liquid.
DANGER - To reduce the risk of electrocution:
1219876-KR01-C
2
Kohler Co.

WARNING - To reduce the risk of low grade burns, electric shock,
fire or injury to persons:
Do not reach for a product that has fallen into water. Unplug
immediately.
IMPORTANT SAFEGUARDS (cont.)
Close supervision is necessary when this appliance is used by or near the
very young, the elderly, or handicapped people. Children should not be
permitted to use or touch this appliance. Do not leave children unattended in
any room where this product is installed.
For children and aged people who are unable to regulate temperature by
themselves, help is required to regulate temperatures of the toilet, water and
wind to the suitable grade.
Use this appliance only for its intended purpose as described in the manual.
Do not use attachments not recommended by Kohler Co.
Do not lean on seat cover when using product.
Never operate this appliance if it has a damaged cord or plug, if it is not
working properly, if it has been dropped, damaged, or dropped into water.
Install this product properly by following the installation procedure.
Only authorized persons can install or repair the unit. Do not attempt to
service this appliance yourself, doing so could void the warranty.
Keep the cord away from heated surfaces.
Never drop or insert any objects into any opening or hose.
Do not use outdoors or where aerosol spray products are being used or
where oxygen is administered.
Always follow the grounding instructions in this manual before plugging in the
unit.
Do not splash water on power plug.
Please avoid long time sitting on the heating-seat for the prevention of low
temperature burns.
If the power cord was damaged, replacement by the manufacturer, the
Maintenance Department or a similar department professional is
necessary, to avoid accidents.
Kohler Co.
3
1219876-KR01-C

ࡀ߭
Specifications
Temperature
adjustments
Wand
spray
flow
Heated
Seat
Seat cover
Seat
Slow close
Electrical power
Rear wash
Front wash
Thermal fuse, heating
element thermal cut-out
Thermal fuse, heating
element thermal cut-out
Water supply pressure
Power cord length
Cleaning water temp
(Room temperature to 39ņ)
Number of nozzle
Safety
devices
Overheating
prevention
Back-flow
prevention
Heater
maximum power
Safety devices
Check valve
Comfort
Cleaning
220~240V AC 50/60Hz
1200W
Outline dimension of product 521mm x 435mm x 157mm
About 3.0Kg
0.40~0.79L/min
0.7kgf/cm (dynamic pressure)~
27.5 kgf/cm 2
(0.07MPa.(dynamic pressure)~ 0.74MPa.)
1~40 ņ
0.40~0.79L/min
Instantaneous heating power
1200W
Five-speed adjustable
300s
1
40W
Five-speed adjustable
5 Positions
Product weight
Operation environment
Spray time (the longest)
Nozzle adjustment
Pulsate cleaning
Oscillating cleaning
On/Off
On/Off
(Room temperature to 39ņ)
200W
Dryer
Maximum fan
air flow
Maximum heater
Temperature
adjustment
Safety
devices
0.19m3/min
Thermal fuse, heating
element thermal cut-out
Maximum fan
air flow
Deodorizer 0.19m3/min
About 1.5m
Slow close
(Room temperature to 39ņ)
Five-speed adjustable
1219876-KR01-C
4
Kohler Co.

Specifications(cont.)
Sanitary Antibacterial material Seat, seat cover
Other Seating sensing Hidden in Seat
Night lighted bowl 2 blue LED s - Auto On/Off
Quick-release body Lever activated by release
button
Self-cleaning nozzle Provided
Nozzle UV germicidal Once a day
Keypad and Panel Diagram Side in Seat
Thank You For Choosing Kohler Company
Thank you for choosing a Kohler product. Kohler craftsmanship offers you
a rare combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We are very proud of our products
here at Kohler and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay special attention
to the care and cleaning instructions.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve the
quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
Kohler Co.
5
1219876-KR01-C

When flushing or heater is activated, the flushing or heater features
can be halted by pressing the STOP button. When the user is seated,
the deodorizer feature is activated automatically. Only when
deodorizer feature is activated can it be deactivated by pressing the
STOP button. After the deodorizer feature is deactivated, it will no
longer be activated before being reseated.
Operation
㞔䚼ކ⋫
஋ఈ⿏ࡼ
ᱪ亢
A - Stop
Press and hold the STOP button for two seconds, the night light will
be turned on or off. When it is turned off (with a long tone), the night
light is deactivated; while it is turned on (with a short tone), the night
light will be controlled automatically by the environment light (if the
environment is dark, the light will be turned on, otherwise it will be
turned off).
E
D
C
B
A
F
G
H
Keypad and Panel Diagram
1219876-KR01-C
6
Kohler Co.

The indicator will display the current heater temperature, and the
temperature of warm air can be changed first from low to high and
then from high to low, stage by stage cyclically by pressing the
HEATER button continuously. This feature will stop automatically after
running continuously for 4 minute.
In the flush state, the bidet wand can be controlled by pressing the
BIDET WAND button, and the distance of bidet wand can be changed
first from short to long and then from long to short cyclically by
continuously pressing the BIDET WAND button.
In the case when nobody is seated, press and hold the BIDET WAND
button for over 2 seconds, the bidet wand will extend. Press and hold
the BIDET WAND button for over 2 seconds again, the bidet wand
will retract. If there is no action on the button for 2 minute, the bidet
wand will retract automatically.
Press REAR WASH button to activate rear wash and the current
flushing intensity will be shown.
In the rear wash state, the flushing intensity can be changed first from
low to high and then from high to low, stage by stage cyclically by
continuously pressing the REAR WASH button. It will stop
automatically after 5 minutes of continuous flushing.
When being seated, the heater feature will be activated by pressing
the HEATER button. If the wash feature is activated, it will be halted
immediately.
๑ᆩݛ݆
㞔䚼ކ⋫
ᱪ亢
ذℶ
೜⏽
C - Bidet Wand Position
D - Rear
㞔䚼ކ⋫
ذℶ
஋ఈ⿏ࡼ
ᱪ亢
ذℶ
೜⏽
∈⏽
B - dryer
Press FRONT WASH button to activate front wash (female exclusive
use) and the current flushing intensity will be shown. In the front wash
state, the flushing intensity can be changed first from low to high and
then from high to low stage by stage cyclically by continuously
pressing the FRONT WASH button. It will stop automatically after 300
seconds of continuous flushing.
E - Front
In the flush state, press this button to activate pulsating flush.
F - Pulsate+Oscillate
Kohler Co.
7
1219876-KR01-C

஋ఈ⿏ࡼ
ᱪ亢
ذℶ
೜⏽
∈⏽

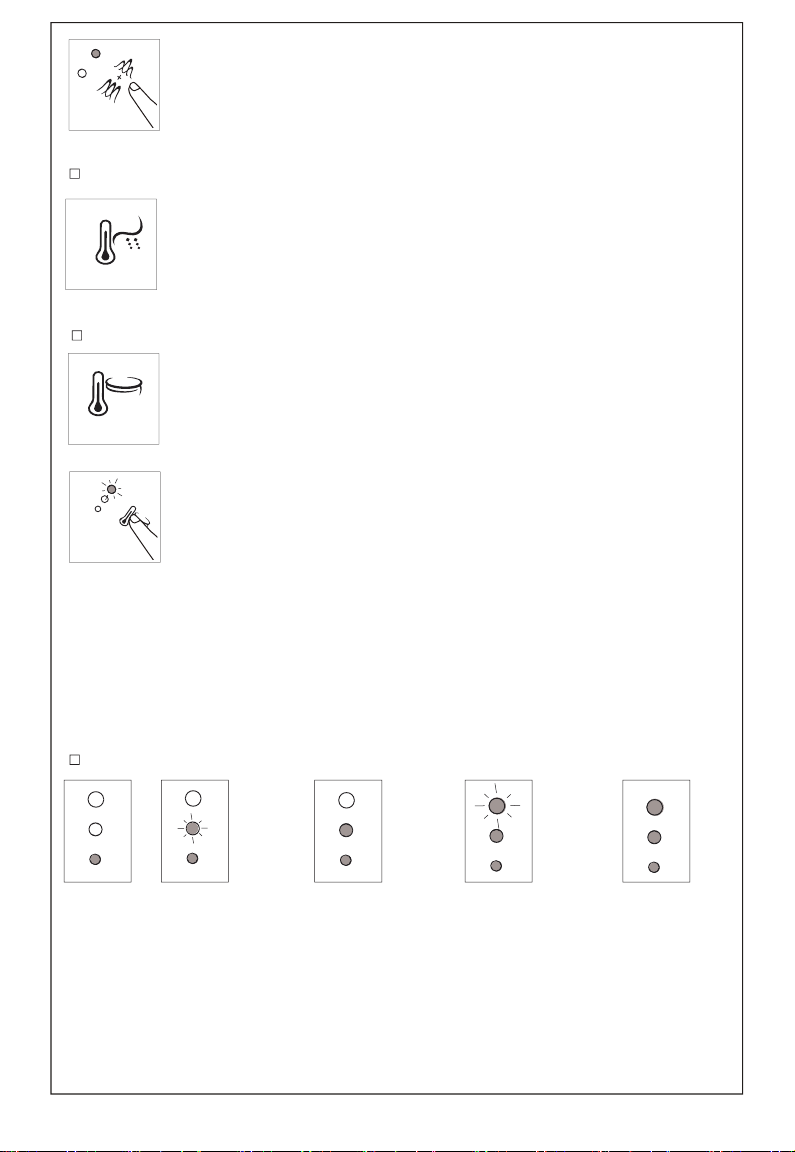

The temperature of flushing water can be changed first from low to high
and then from high to low, stage by stage, and back to off again,
cyclically by pressing the WATER TEMPERATURE button. The
indicators will be lit up to show the parameter of corresponding water
temperature. If it is turned off, the indicator will not light.
G - Water temperature
I - Installation instructions
The temperature of the ring can be changed first from low to high and
then from high to low stage by stage, and back to off again, cyclically
by pressing the RING TEMPERATURE button. The indicators will be lit
up to show the parameter of corresponding ring temperature. If it is
turned off, the indicator will not light.
H - Seat temperature
஋ఈ⿏ࡼ
ᱪ亢
ذℶ
∈⏽
Press and hold the RING TEMPERATURE button for 2 seconds, the
energy-saving feature will be turned on (with a short tone) or turn off
(with a long tone). The ring temperature light flashing indicates that the
energy-saving feature is turned on; while the ring temperature light stop
flashing indicates that the energy-saving feature is turned off, or while
being seated, the cistern and seat heaters will be turned off.
One week after the activation, the ring performs an automatic detection
in user’s habitual routine. Starting from the second week, the ring
automatically gets itself into Power Save mode when it is less used,
depending on the detected user routine of the first week.
During the third week, the ring bases its judgment on the data collected
during the previous week to decide when it enters into Power Save
mode. It works the same for the following weeks.
The feature will be changed cyclically from pulsate, oscillate,
pulsate/oscillate, pulsate/oscillate off (return to front or rear flush), and
the corresponding small lamp will be lit. If the pulsate/oscillate flush is
turned off (return to front or rear flush) the indicator light will not light.
Low-mid
small indicator
lights up and
medium
indicator flashes
Mid
small and
medium indica-
tors light up
simultaneously
Mid-high
small and
medium indica-
tors light up; large
indicator flashes
High
small, medium
and large
indicators light up
simultaneously
Low
small
indicator
lights up
1219876-KR01-C
8
Kohler Co.

Preparation before the First Use
Connect the inlet hose; open the water stop valve and connect the power.
Toilet makes one short beep once it is plugged in. The nozzle stretches out
and draws back once. Backlight on the side keyboard lights up and the night
light flashes. All the actions last until the initialization process completes.
Wait for the host to finish self-checking. During that time, it is normal to hear
rotating sound of the motor and bicker. Self-checking is completed when the
light flashes.
When the unit is used for the first time, the following has been preset.
Front Wash:
Water Temperature: mid
Water Pressure: mid
Position: mid
Rear Wash:
Water Temperature: mid
Water Pressure: mid
Position: mid
Seat temperature: mid
Dryer temperature: mid
Night light: on
Power save: off
Kohler Co.
9
1219876-KR01-C

Test the Functions
Wrap the seat with plastic wrap to prevent water from spraying from the toilet
during testing.

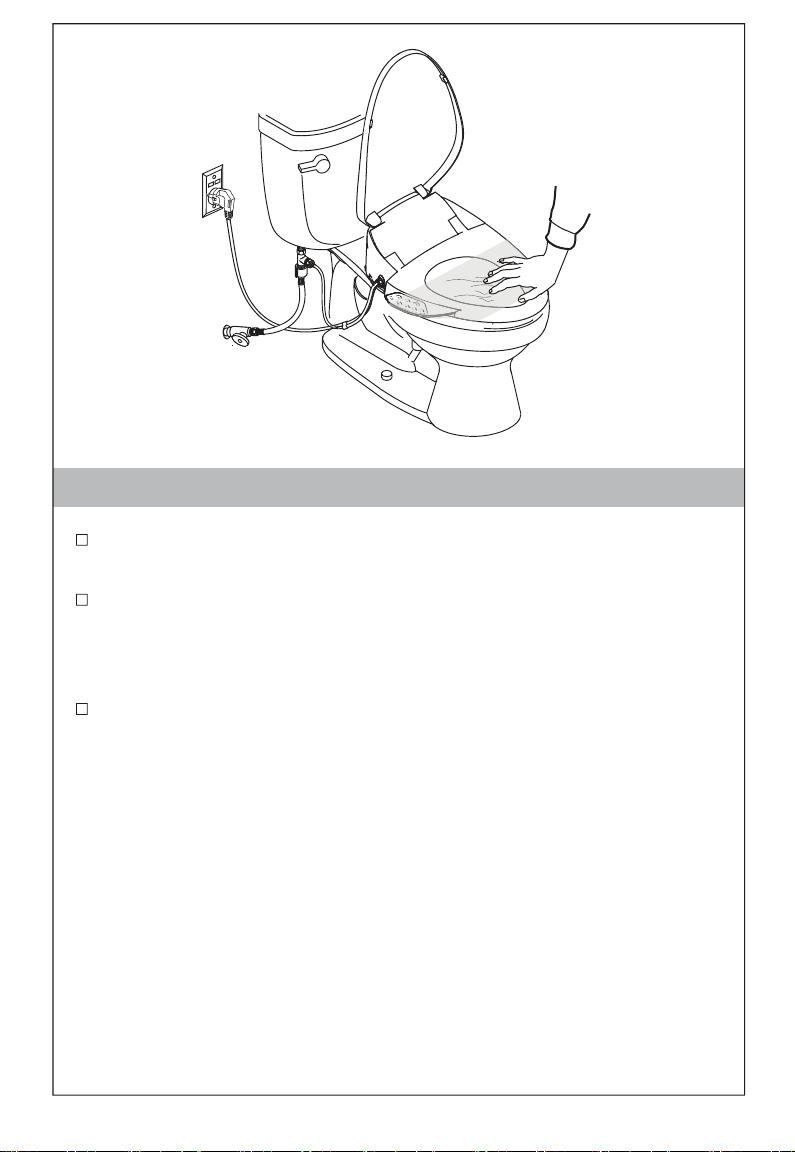

The seat is designed not to function without an occupant. To activate the seat
controls for testing purposes, when facing the toilet, place your hand or a damp
wash cloth on the right side of the seat approximately 1/3 from the front of the
seat (sensor area).
Proceed to the “Keypad and Panel Diagram” and “Operation” Sections to test
the various seat functions.
1219876-KR01-C
10
Kohler Co.

Care and Cleaning
Cleaning Your Seat
Avoid abrasive cleaners, detergents, disinfectants or
cleaning products in aerosol cans.
Care Tip: Clean the seat with a mixture of
dishwashing liquid and water, or any of the
products listed for toilet seats, using a damp soft
sponge or cloth. Dry with a soft towel and let the
seat air dry.
Do not allow abrasive chemicals and cosmetics (such as
fingernail polish and aftershave) to come in contact with the
toilet seat, as they can damage the finish.
NOTICE: Failure to comply with these cleaning instructions may void Kohler’s
warranty obligations.
NOTE: Success with cleaners and procedures is dependent upon such factors
as the hardness and temperature of the water, using exact quantities of
ingredients, changes in cleaning formulas, and the condition of the product
being cleaned. Since there are variations within these factors, Kohler cannot
guarantee the effectiveness of the formulas mentioned.
For best results, keep the following in mind when caring for your Kohler
product:
IMPORTANT! Do not immerse product in water.
Test First - Always test your cleaning solution on an
inconspicuous area before applying it to the entire
surface.
Do Not Let Cleaners Soak - Do not allow cleaners to sit
or soak on the product.
Avoid Abrasive Materials - Use a soft, dampened
sponge or cloth. Never use an abrasive material such as
a brush or scouring pad to clean surfaces.
Wipe Clean - Wipe surfaces clean with a damp cloth
immediately after applying cleaners. Wipe away and dry
any overspray that lands on nearby surfaces.
Kohler Co.
11
1219876-KR01-C

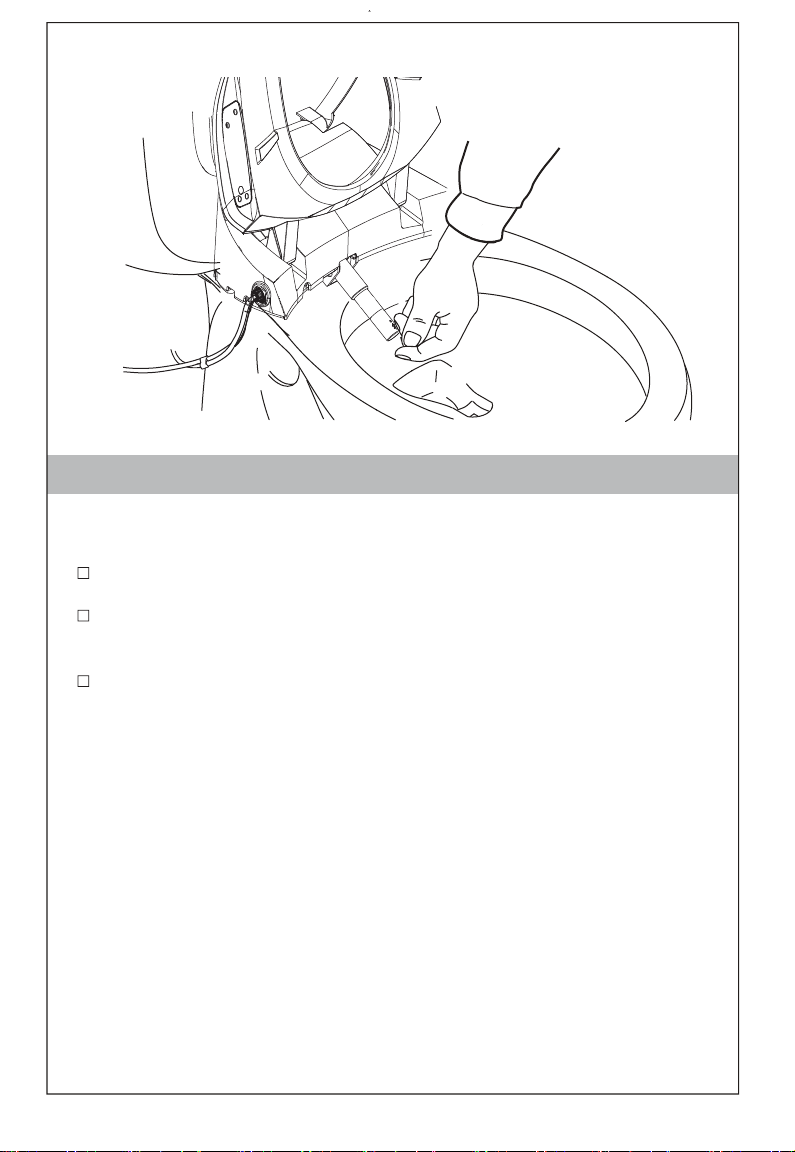

NOTE: The Nozzle can only be extended for cleaning when the seat is not
activated or occupied.
Open the lid and ring.
Press and hold the BIDET WAND button for over 2 seconds, clean the bidet
wand with a soft mane brush until the bidet wand fully extend.
After having the bidet wand cleaned, press and hold the BIDET WAND button
for over 2 seconds, the bidet wand will retract. Otherwise, the bidet wand will
automatically retract after a while.
Clean the Nozzle
1219876-KR01-C
12
Kohler Co.

IMPORTANT! Risk of product damage. Use care not to crossthread
the connection.
Turn off the water supply at the supply stop.
Remove seat inlet pipe.

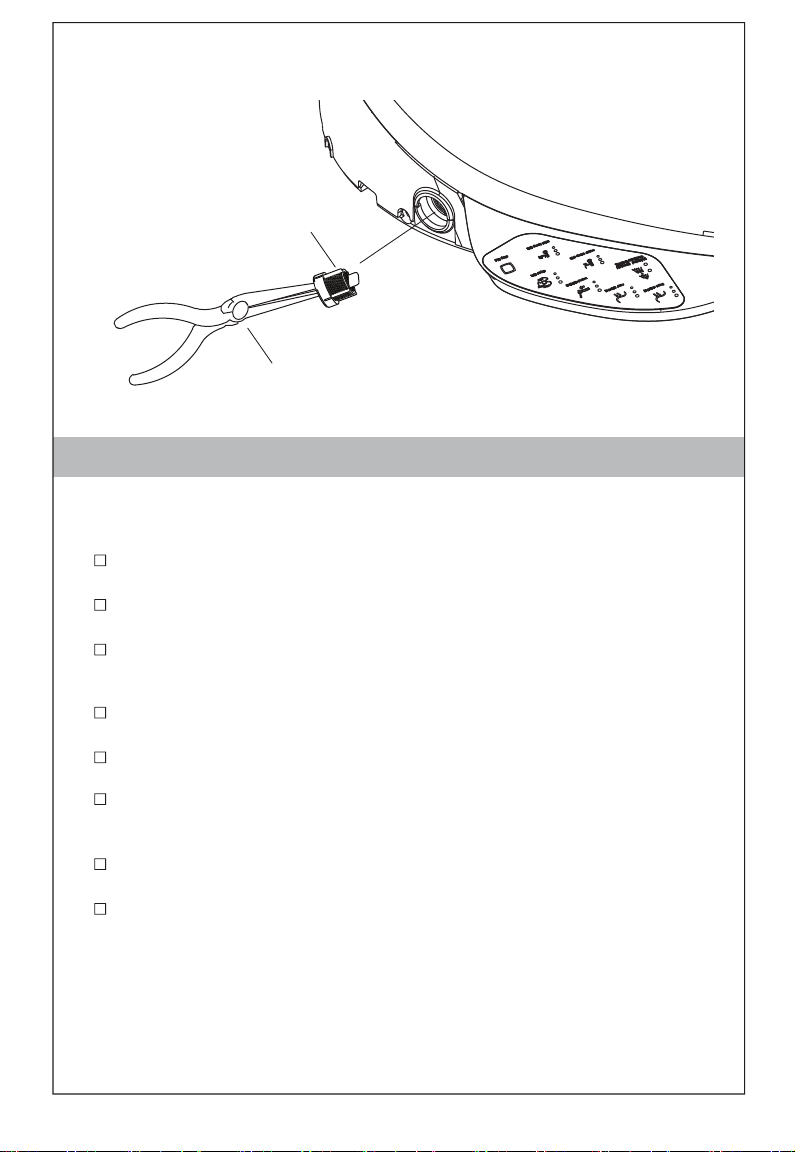

Using a long-nosed pliers carefully remove the screen from the seat
inlet (see illustration).
Clean the screen with a soft-bristled brush.
Reinstall the screen.
Take care to face right in position to the thread. Reconnect the water
supply hose to the seat.
Check all connections for leaks and make any adjustments as needed.
Turn on the water supply.
Clean the Screen
Long-nosed pliers
Screen
Kohler Co.
13
1219876-KR01-C

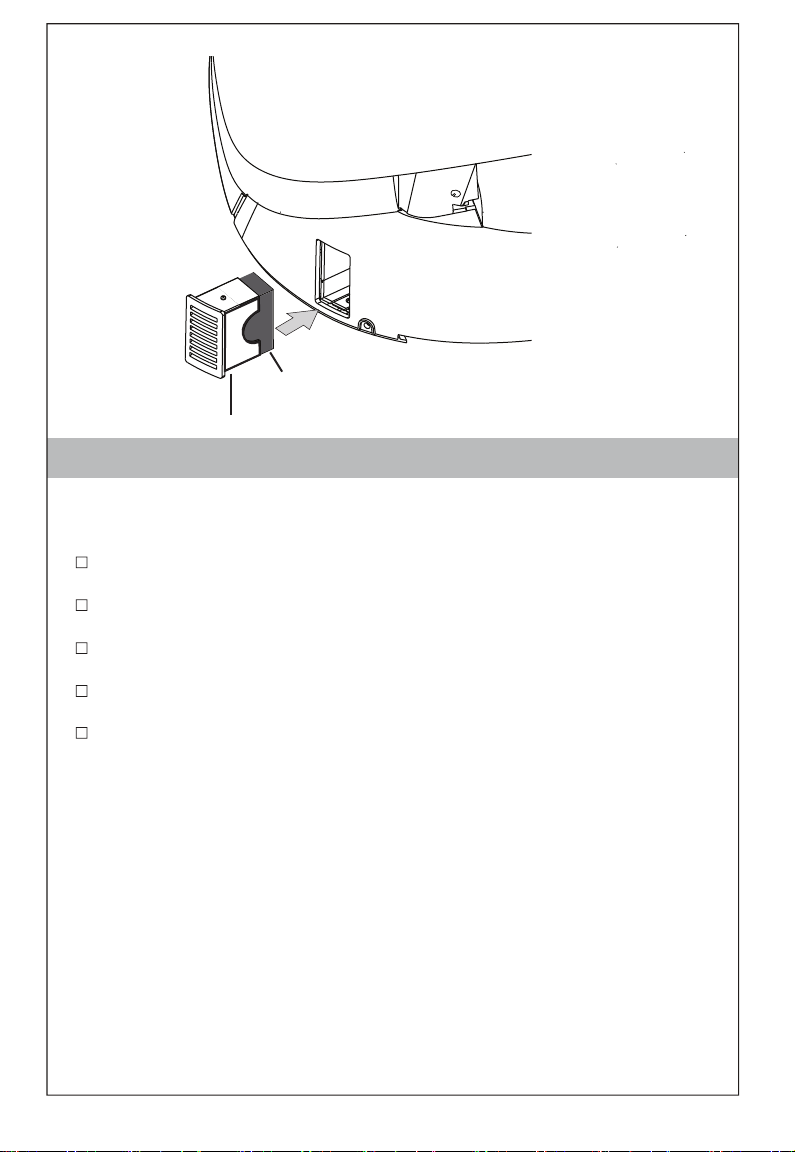

Changing Deodorization Block
IMPORTANT! Risk of product damage. Do not apply excessive force
to the louver while disassembly. Otherwise, it may be damaged.
Unload the jalousie.
Pull out the original deodorization block.
Replace with a new one.
Load the jalousie.
Make sure no impurities in the deodorization assembly before renewing
the deodorization block.
Jalousie
Deodorization block
1219876-KR01-C
14
Kohler Co.

Remove the Seat
NOTE: The seat will contain water until drained. Refer to the “Drain the
water from the seat” section.
Turn off the water supply at the supply stop.
Turn on flush function to relieve any pressure from the water supply hose.
Unplug the seat from the electrical outlet.
Disconnect the water supply hose from the T-valve.
Press the release button(see illustration).
Slide the seat forward to disengage the seat front the mounting plate.
Mounting Plate
Release Button
Kohler Co.
15
1219876-KR01-C

Turn off the water supply and unplug the unit.
Remove the seat from the toilet. Refer to the “Remove the Seat” section.
Drain the water from the seat.
Reinstall the drain plug.
CAUTION! Risk of product damage. When the seat is not used for a
long time or environmental temperature may have dropped to below
freezing, the water should be drained from the seat.

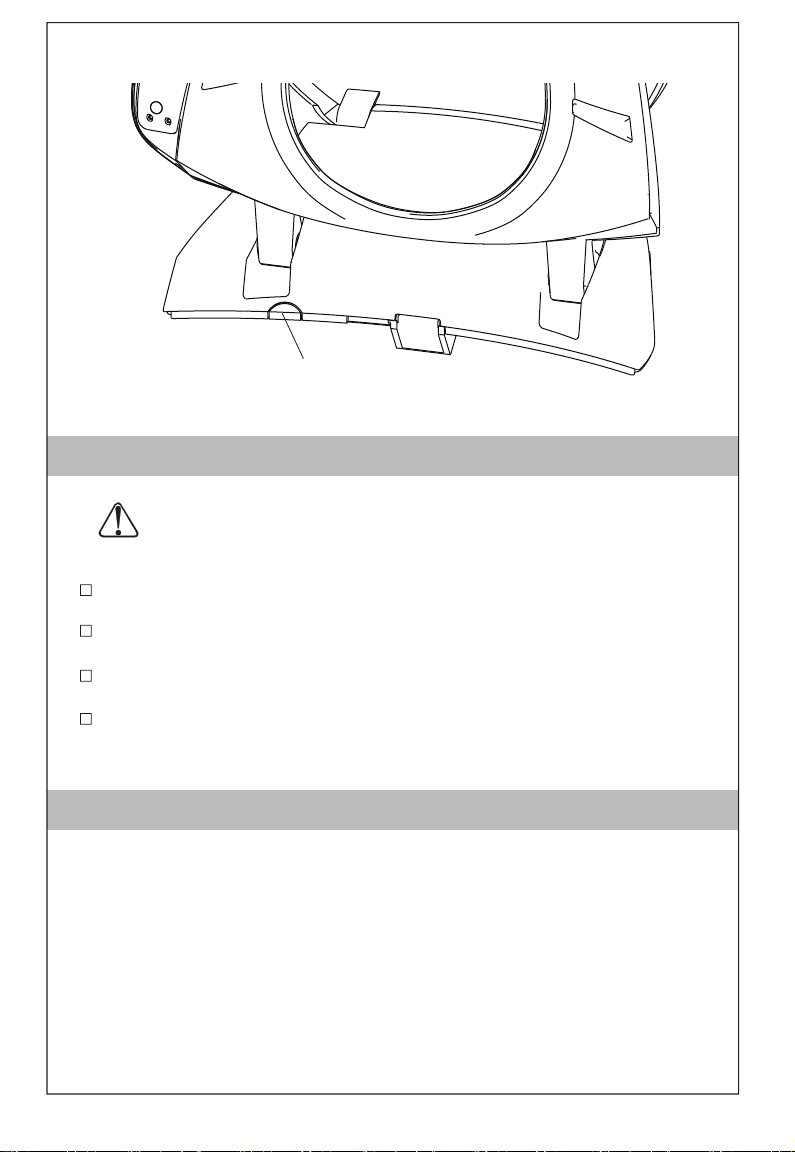

Drain the Water from the Seat
Remove plug with coin.
This troubleshooting guide is for general aid only. A Kohler Authorized Service
Representative or qualified electrician should correct all electrical problems. For
warranty service, contact your dealer or wholesale distributor.
Troubleshooting
1219876-KR01-C
16
Kohler Co.

Symptoms Probable Causes Recommended Action
1. Funtions are not
working
2. Seat is loose
3. No water comes out
of the nozzle
A. Power failure occurred.
B. The power cord is disconnected.
C. Power cord suffers electricity
leakage. Connector plug
is not reset.
D. You have not touched the seat
sensing area.
E. Thermal protector to open
automatically to protect.
F. None of the above actions
correct the symptom.
A. Wait until the power is restored.
B. Insert the power cord into an
electrical outlet.
C. Press the “Reset” icon on the
plug.
D. You have to sit inside the seat
sensing area.
E. Allow the seat to cool to room
temperature.
F. Contact a KOHLER Service
Representative.
A. Screws and nuts are loose. A. Tighten the screws and nuts
according to the installation
guide
A. Seat does not detect user.
B. Water supply stop closed.
C. Water supply screen plugged.
D. None of the above actions
correct the symptom.
A. Sit on the seat.
B. Power off and solve the
problem, power on.
C. Clean the screen according to
the installation guide.
D. Contact a KOHLER Service
Representative.
4. No water flow
6. Water stops flowing
from the spray wand
before I am finished
cleaning
7. Water keeps on
dripping from nozzle
side holes
A. The water supply stop is closed.
B. The seat sensor is not detecting
the user.
A. Open the water supply stop.
B. See activating the seat
information in the
“Test the Functions” section.
5. The water pressure
is low
A. The screen is clogged.
B. Low supply pressure.
A. See the “Clean the Screen”
section.
B. Increase the pressure.
A. One minute after pressing one
of the spray icons,
washing automatically stops.
B. The seat sensor is not detecting
the user.
A. Press the “Rear” or “Front” icon
again.
B. See activating the seat
information in the “Test the
Functions” section.
A. This is to prevent the unit inside
part being over pressured.
A. None
Troubleshooting(cont.)
General Functions
Symptoms Probable Causes Recommended Action
Cleansing Functions
Kohler Co.
17
1219876-KR01-C

A. Due to change in room
temperature.
A. None.
9. The speed of the
seat and cover closure
varies in summer
and winter.
A. The seat sensor is covered by
an object or the seat is wet.
A. Remove any water or object
from the seat sensor
area.
10. Wash, Deodorizer, or
Air functions operate
when you press the
icon while seat is not
occupied.
A. The seat sensor is not detecting
the user.
B. Press “STOP”
A. See activating the seat
information in the
“Test the Functions” section.
B. See activating the seat
information in the
“Operation” section.
13. The deodorizing
blower feature
doesn’t work.
A. Deodorization block is empty.
B. Some people are more
sensitive to odor.
A. Renew deodorization block.
B. None.
14. Odor is not removed.
A. The seat sensor may not be
able to detect you depending
on the way you are sitting.
A. Change your sitting position.
11. Even though the seat
is occupied, the spray
function does not
work.
A. Four minutes after pressing the
“Air Speed” icon,
blower automatically stops.
A. Press the “ AIR TEMP” button
again.
12. The hot blower stops
during use.
A. The bolts for the mounting plate
that secure the main unit are
loose.
A. Tighten the bolts of the
mounting plate.
15. The seat moves both
up and down and right
and left.
Symptoms Probable Causes Recommended Action
Troubleshooting(cont.)
Symptoms Probable Causes Recommended Action
Symptoms Probable Causes Recommended Action
Symptoms Probable Causes Recommended Action
Symptoms Probable Causes Recommended Action
Other
Deodorizer Functions
Air (Blower) Functions
Seat Sensor
Slow Close Cover
A. Residue water in the nozzle will
be automatically discharged
before use if it is not used for
extended time.
A. None.
8. When seated, water
flows out from the
nozzle.
1219876-KR01-C
18
Kohler Co.

K-4107KR
1186590-SP
Dry Centrifugal
Fan

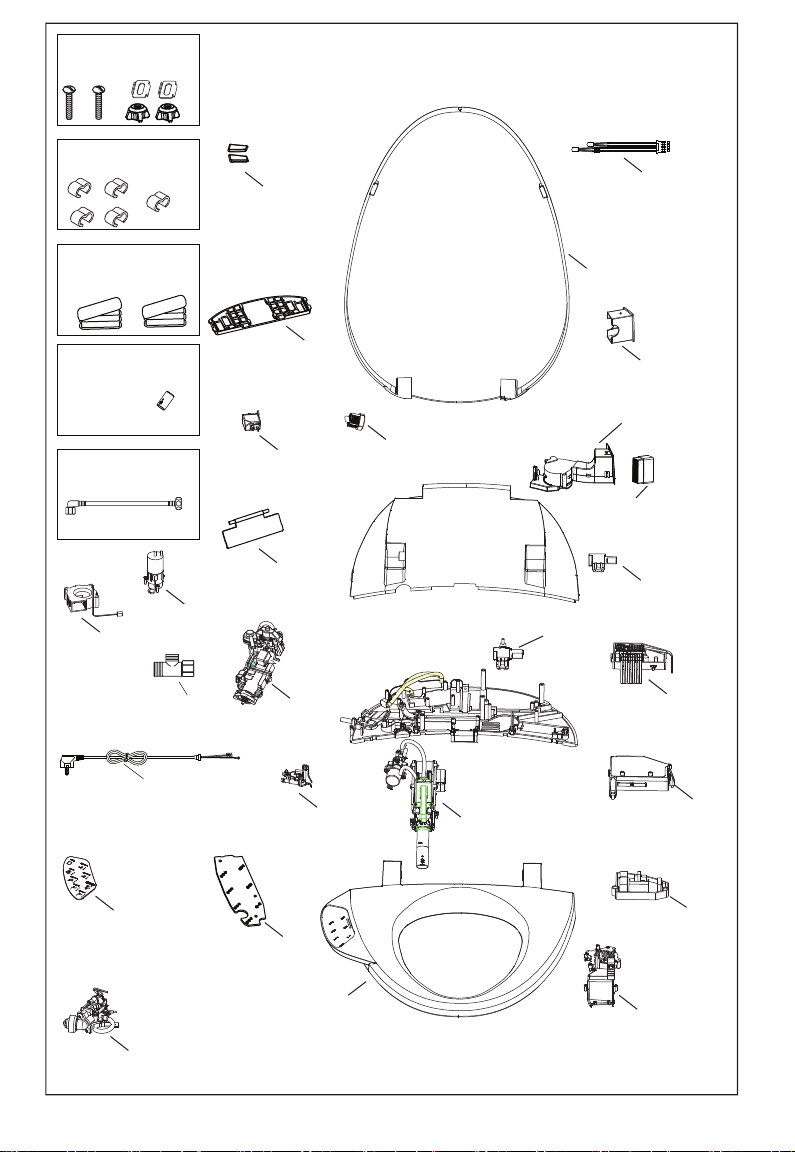

Service Parts
1185019-SP
Installation Screw
Attachment
1102014-SP
Clip Attachment
1183663-SP
Nozzle Gen Assy.
1085189-SP
Inlet Attachment
1085096-SP-*
Fan Door
1184968-SP
Cover Bumper
1185018-SP
Mounting Plate
Assy
1184969-SP
Inlet Filter
1186587-SP
Cable of LED
night lamp
1186595-SP
PCBA Side
Keyboard
1194769-SP
CUSHION assy.
1185010-SP
air pump assy.
1185014-SP-*
LID, COVER assy.
1185006-SP
Water Tank Assy.
1185003-SP
Flowmeter Assy.
1185004-SP
Heater Assy.
1185002-SP
Decompression-
Electromagnetic valve Assy.
1194770-SP
Assign-nozzle Assy.
1207946-SP
Membrane Side
keyboard 1184962-SP-*
DE Back
1185016-SP
Lid Damp Assy.
1185015-SP
Seat Damp Assy.
1150820-SP
FILTER BLOCK
1185012-SP
Deodorizer Assy.
1205946-SP
Control Module Assy.
1185011-SP
Air Dryer Assy.
1220978-SP-*
RING asm.
1186150-SP
Power Module
Assy.
1205727-SP
Power Line With
Gfci Plug
1085187-SP
T-Valve
1182246-SP
Drive Module
Assy.(220V)
*Finish/color code must be specified when ordering.
Kohler Co.
19
1219876-KR01-C

Kohler warrants this plumbing product to be free of defects in material and
workmanship during normal residential use for three years from date of
purchase. This warranty only applies to the plumbing product
purchased and installed in countries/regions as listed below.
If a defect is found in normal residential use, Kohler will, at its election,
repair, replace or make appropriate adjustment where Kohler inspection
discloses any such defects occurring in normal usage within three (3) years
after date of purchase. Kohler is not responsible for labor charges, removal
or installation, or other incidental or consequential costs other than those
noted above.
If the product is used commercially, Kohler warrants that the product will
be free from defects in materials and workmanship for one (1) year from
the date of purchase, with all other terms of this warranty applying except
duration.
IMPLIED WARRANTIES INCLUDING THAT OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY
LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
KOHLER AND/OR SELLER DISCLAIMS ANY LIABILITY FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some countries/regions do not allow limitations on how long an implied
warranty lasts, or the exclusion or limitation of special, incidental or
consequential damages, so these limitations and exclusions may not apply
to you. This warranty gives you specific legal rights. You may also have
other rights which vary from country/region to country/region. This
warranty is to the original consumer purchaser only, and excludes product
damage due to accident, installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer. Improper care and cleaning will void the warranty.
To obtain warranty service, please contact your Dealer or Plumbing
Contractor, or a Kohler Service Center using the information provided
below. Please be sure to provide all pertinent information regarding
your claim, including a complete description of the problem, the
product, model number, color, finish, the date the product was
purchased and from whom the product was purchased. Proof of
purchase (original sales invoice) must be provided to Kohler with all
warranty claims.
THREE-YEAR LIMITED WARRANTY
1219876-KR01-C
20
Kohler Co.
