Kohler Mira Sport Multi-fit J03E User manual

1 1493953-W2-A
These instructions must be left with the user
Mira Sport Multi-t
9.0 and 9.8 kW
Installation and User Guide
For SPARES,
ADVICE or REPAIRS
please call us free
on 0800 001 4040
(UK only)

21493953-W2-A
WARNING - This shower can deliver scalding temperatures, cause
re, electric shock or other personal injury if not operated, or
maintained in accordance with the instructions, warnings and
cautions contained in this guide and on the appliance.
Please read the important safety information and the operation section
of this guide before using the shower. Failure to follow the instructions
provided with this shower will invalidate the guarantee.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
1. Children younger than 3 years should not use this shower. Children
3 years to under 8 years should only use this shower under
continuous supervision. Children aged 8 years and above and
persons with reduced physical, sensory or mental capabilities or
lack of experience or knowledge can use the shower if they are
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
2. Children shall not be allowed to play with the shower.
3. DO NOT restrict the water ow from the shower outlet, temporarily
bending the shower hose or blocking the shower head while in use
can cause a hot shot of water to be discharged.
4. Cleaning and user maintenance shall not be made by children
without supervision.
5. The outlet must not be connected to any tap or tting other than
those specied.
6. The showerhead must be descaled regularly. Any blockage of the
showerhead or hose can cause damage to the shower.
7. Warning! DO NOT switch on if there is a possibility that the water
in the heater is frozen.
8. The shower must be provided with means for local disconnection
from the supply mains having a contact separation in all poles
that provide full disconnection under overvoltage category III,
the instructions state that means for disconnection must be
incorporated in the xed wiring in accordance with the wiring rules.
Important Safety Information

3 1493953-W2-A
9. Installation of the shower must be carried out in accordance with
these instructions by qualied, competent personnel. Read all
instructions before installing the shower.
10.DO NOT switch the shower on if water starts leaking from the shower
case. Isolate the electrical supply to the shower immediately.
11.DO NOT switch the shower on if the case appears to be damaged
or incorrectly tted. Isolate the electrical supply to the shower
immediately.
12.DO NOT increase the power setting or adjust the temperature
control rapidly while using the shower.
13.DO NOT switch the shower o󰀨 and back on while standing in the
water ow.
14.DO NOT change the handset model. Fit only shower heads
recommended by Mira and do no t any additional device to restrict
the water outlet ow.
15.When adjusting the handset mode, point handset away from body
and make sure that the water temperature has stabilised before
continuing to shower.
16.Use caution when altering the water temperature, always check
the temperature before continuing to shower.
17. Switch the shower o󰀨 at the electrical isolating switch when not in
use. This is recommended with all electrical appliances.
18.Installation of the shower must be carried out in accordance with
these instructions by qualied, competent personnel. Read all
instructions before installing the shower.
19.Isolate the electrical and water supplies before commencing
installation. The electricity must be isolated at the consumer unit
and the appropriate circuit fuse removed, if applicable. Mains
connections are exposed when the cover is removed.
20.DO NOT install the shower in areas with high humidity and
temperature (i.e. Steam rooms and saunas).
21.DO NOT install the shower where it may be exposed to freezing
conditions. Ensure that any pipework that could become frozen is
properly insulated.

41493953-W2-A
22.DO NOT connect the outlet of the shower to any tap, control valve,
trigger operated handset or showerhead other than those specied
for use with this shower as the outlet acts as a vent for the tank
body. Only Kohler Mira recommended accessories should be used.
23.DO NOT perform any unspecied modications, or drill or cut holes
in the product other than instructed by this guide. When servicing
only use genuine Kohler Mira replacement parts.
24.DO NOT connect this shower to a Waste Water Heat Recovery
System as this may cause unstable or scalding temperatures to
be delivered from the shower head.
25.Always check the water temperature is safe before entering the
shower.
26.The water supplies to this product must be isolated if the product is
not to be used for a long period of time. If the product or pipework
is at risk of freezing during this period they should also be drained
of water.
27.If the shower is dismantled during installation or servicing then,
upon completion, an inspection must be made to ensure all
electrical connections are tight and that there are no leaks.
28.This appliance is intended to be permanently connected to the
water mains and not connected by a hose set.
29.The water inlet of this appliance shall not be connected to a water
supply obtained from any other water heating system.
30.Warning! This appliance is not to be used to provide a potable
water supply.
31.Maximum Static Pressure is 1000 kPa (10 bar).
32.Minimum Dynamic Pressure is 70 kPa (0.7 bar) 9.0 kW and
9.8 kW.

5 1493953-W2-A

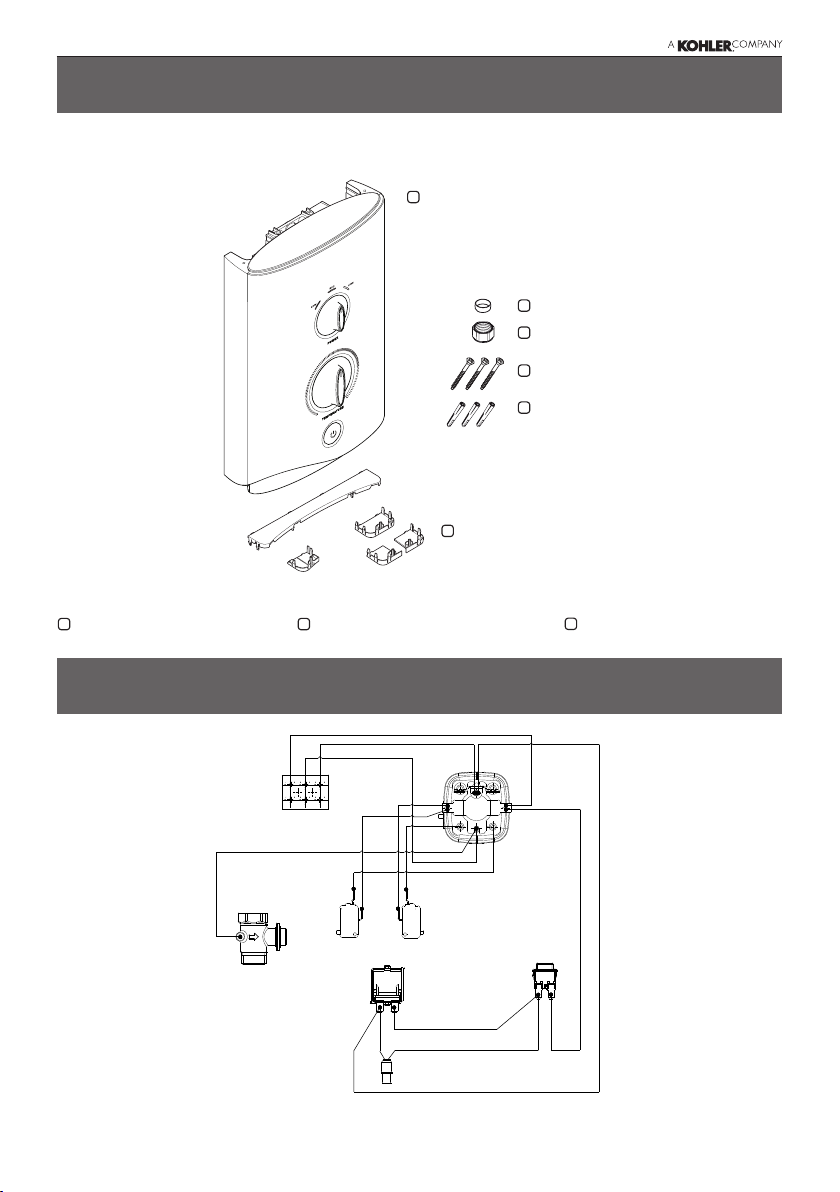

Pack Contents
Tick the appropriate boxes to familiarize yourself with the part names and to conrm
that the parts are included.
Wiring Diagram
Internal Wiring Diagram
3 x Wall Plugs
1 x Compression Nut
3 x Fixing Screws
1 x Olive
5 x Case Inserts
1 x Mira Sport Multi-fit
Electric Shower
INLET
CONNECTOR
TERMINAL
BLOCK
HEATER
TANK
MICRO
SWITCH (L)
MICRO
SWITCH(R)
SOLENOID
LED/LED
HOUSING
PUSHBUTTON
SWITCH
BROWN B
GREEN D
BLUE C
RED K
BROWN J
BROWN G
BLACK M
BLACK L
RED H
BLUE E
BROWN F
BLUE E
BLACK N
GREEN A GREEN A
GREEN D
Documentation
1 x Installation Template 1 x Installation & User Guide 1 x Guarantee Brochure

61493953-W2-A
Design Registration: 001259 287-0001, 001259 287-0004
Patents: GB: 2 341 667, 2 427 460
Ireland: 82835
Patent Application: Ireland: 2006/0462
Thank you for purchasing a quality Mira Sport Multi-t Electric Shower. To enjoy the
full potential of your new shower, please take time to read this guide thoroughly, and
keep it handy for future reference.
Products manufactured by Kohler Mira Ltd are designed to be safe provided, that
they are installed used and maintained in good working order, in accordance with
our instructions and recommendations.
Follow all warnings, cautions and instructions contained in this guide, and on or
inside the shower.
Mira Sport Multi-t electric showers have separate controls for power selection and
for temperature/ow adjustment. A unique ow regulator stabilises any temperature
changes caused by water pressure uctuations, which can result from taps being
turned on or o󰀨 or toilets being ushed.
Domestic Light Commercial 
Heavy Commercial Healthcare 
Product Variant Model No. Colour
Sport Multi-t 9.0 kW J03E White/Chrome
Sport Multi-t 9.8 kW J03F White/Chrome
Introduction
Products Covered
Recommended Usage
Patents and Design Registration

7 1493953-W2-A
Specications
Dimensions
Height 343 mm
Width 237 mm
Depth 95 mm
Plumbing Multi-t Variant
9.0 /9.8
Minimum Dynamic Pressure 70 kPa (0.7 bar)
Maximum Dynamic Pressure * 500 kPa (5 bar)
Minimum Static Pressure 20 kPa (0.2 bar)
Maximum Static Pressure * 1000 kPa (10 bar)
Maximum Inlet Temperature 30°C
Minimum Inlet Temperature 2°C
Inlet Connection 1/2" BSP Male / 15 mm Compression Fitting
Maximum Water Hardness 200 ppm CaCO3
Outlet Connection 1/2" BSP Male
Electrical Multi-t Variant
9.0 9.8
Nominal Power at 230 V ac 8.3 kW 9.0 kW
Nominal Power at 240 V ac 9.0 kW 9.8 kW
Recommended MCB Rating 40 A 45 A
Maximum Supply Cable Size 16 mm²
Recommended RCD Rating 30 mA tripping current
Recommended Isolator Switch 45 A double-pole with 3 mm contact separation
Appliance Sealing Rating IP X4 - Suitable for installation in Zone 1
Maximum Ambient Temperature 30°C
Minimum Ambient Temperature 2°C
*A drop tight pressure reducing valve should be installed where dynamic or static pressure
exceeds the gure stated in the Specications.

81493953-W2-A
European Conformity Information
The Mira Sport Multi-t has been designed for domestic use only, Mira Showers
guarantee the Mira Sport Multi-t against any defect in materials or workmanship
for a period of two years from the date of purchase (shower ttings for one year).
For terms and conditions, refer to the back cover of this guide.
Guarantee
The Mira Sport Multi-t range of showers complies with the following European
directives:
2014/35/EU - Low Voltage Directive (LVD),
2014/30/EU - Electromagnetic Compatibility Directive (EMC),
2011/65/EU - Restriction of Hazardous Substances Directive (RoHS)
The Mira Sport Multi-t range of showers are high power appliances and are subject
to conditional connection. If the main electrical supply fuse is rated less than 80 Amps,
the local electricity supply company must be contacted to conrm if the electrical
supply is adequate.
The Mira Sport Multi-t range of showers complies with the requirements of the
UK’s water regulations.
Disposal and Recycling
End of Product Life
Electrical and electronic devices contain a range of materials that can be separated
for recycling and used in new products.
This product should not be disposed of with your general household
waste. When this product has reached the end of its serviceable life,
please remove any batteries and take it to a recognised WEEE (Waste
Electrical and Electronic Equipment) collection facility such as your local
civic amenity site for recycling.
Your local authority or retailer will be able to advise you of your nearest recycling
facility.

9 1493953-W2-A
Installation Requirements
Plumbing
1. The plumbing installation must comply with all national or local water regulations
and all relevant building regulations, or any particular regulation or practice
specied by the local water supply company.
2. DO NOT use sealing compounds on any pipe tting or joints.
3. DO NOT install the product in a position in which service access is limited.
4. Decide on a suitable position for the shower (minimum distance of 200 mm from
the ceiling to allow for cover t and removal).

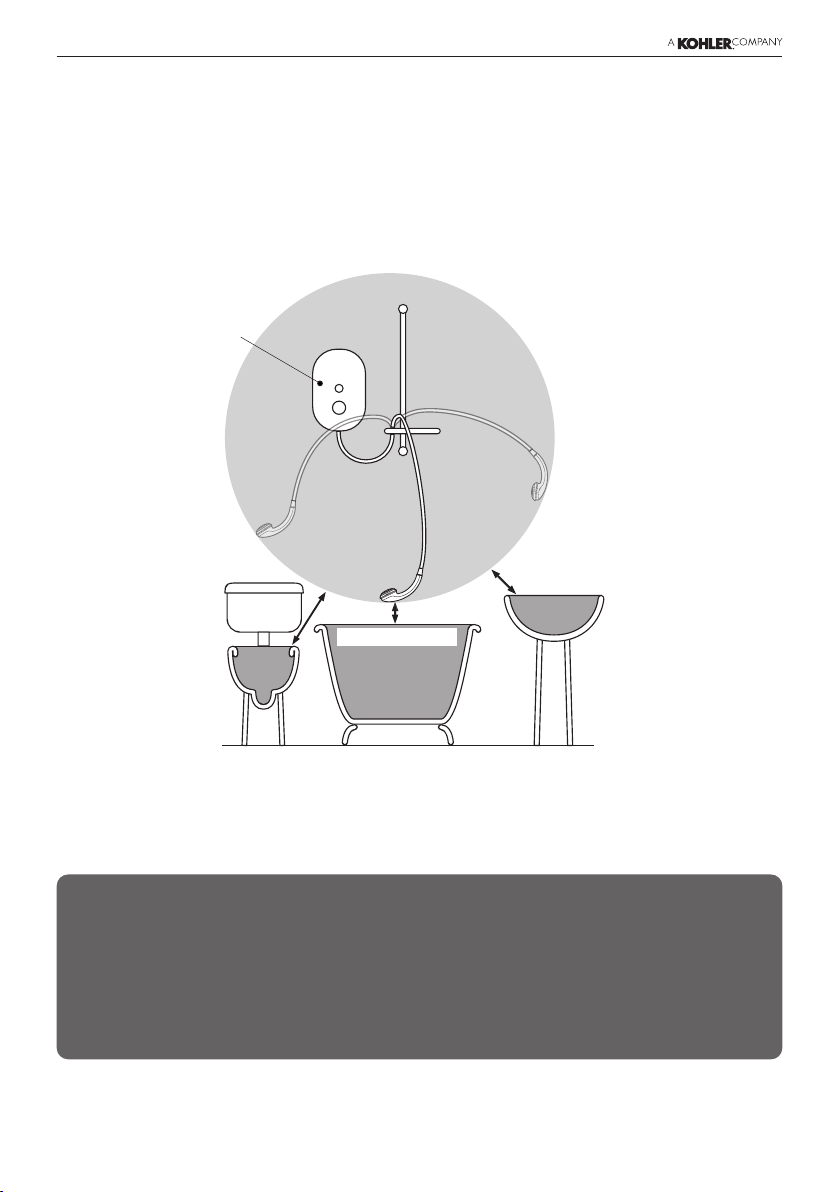

5. The position of the shower and shower ttings must provide a minimum gap of
25 mm between the showerhead and the spill over level of any bath, shower
tray or basin and a minimum gap of 30 mm between the showerhead and the
spill over level of any toilet, bidet or other appliance with a Fluid Category 5
backow risk (see diagram on page 11).
6. The shower is suitable for installation within the shower area and is tted with
a pressure relief valve. It must be positioned over a water catchment area with
the controls at a convenient height for the user.
7. The shower must be tted to a waterproof at and even wall surface.
8. DO NOT t the shower to the wall and tile up to the case.
9. DO NOT seal the gap between the shower and the wall surface.
10. The showerhead should be positioned so that it discharges down the centre
line of the bath or across the opening of a shower cubicle.
11. The showerhead must be directed away from the shower unit, during normal
use the showerhead must not spray directly on to the shower unit.
12. DO NOT apply excessive force to plumbing connections; always provide
mechanical support when making plumbing connections. Any soldered joints
should be made before connecting the shower.
13. This shower is not designed to be plumbed directly from the rear. For rear-entry
supply, add an elbow to the supply pipe and connect as a rising or a falling
supply.
14. If pipework and/or electrical cables enter the shower from the rear through a
hole in the wall provision must be made to prevent water ingress back into the
wall structure.
15. Only use the inlet connector supplied with the shower. DO NOT use any other
type of tting.
16. A full bore/non restrictive servicing valve must be tted in a readily accessible
position adjacent to the shower to facilitate maintenance of the shower.
DO NOT use a valve with a loose washer plate (jumper) as this can lead to a
build up of static pressure.

101493953-W2-A
Zone of
Backflow Risk
30 mm
Minimum
Toilet or Bidet
FC5
Hand Basin
FC3
Bath or Shower
Tray FC3
Electric
Shower
25 mm
Minimum
25 mm Minimum
17. A water treatment device should be installed where the water hardness may
exceed 200 ppm. Malfunctions caused by excessive limescale formation are
not covered by this shower’s guarantee (see back page for details).
18. The installation must not cause the hose to be sharply kinked during normal
use.
19. DO NOT perform the electrical installation until the plumbing has been completed
and checked for leaks.
Hose retaining ring tted and shower ttings xed at a suitable height
preventing dirty water backow
Note: There will be occasions when the hose retaining ring will not provide
a suitable solution for Fluid Category 3 installations, in these instances
an outlet double check valve must be tted, this will increase the required
supply pressure typically by 10kPa (0.1 bar). Double check valves tted in
the inlet supply to the appliance cause a pressure build up, which a󰀨ect
the maximum static inlet pressure for the appliance and must not be tted.
For Fluid category 5 double check valves are not suitable.

11 1493953-W2-A

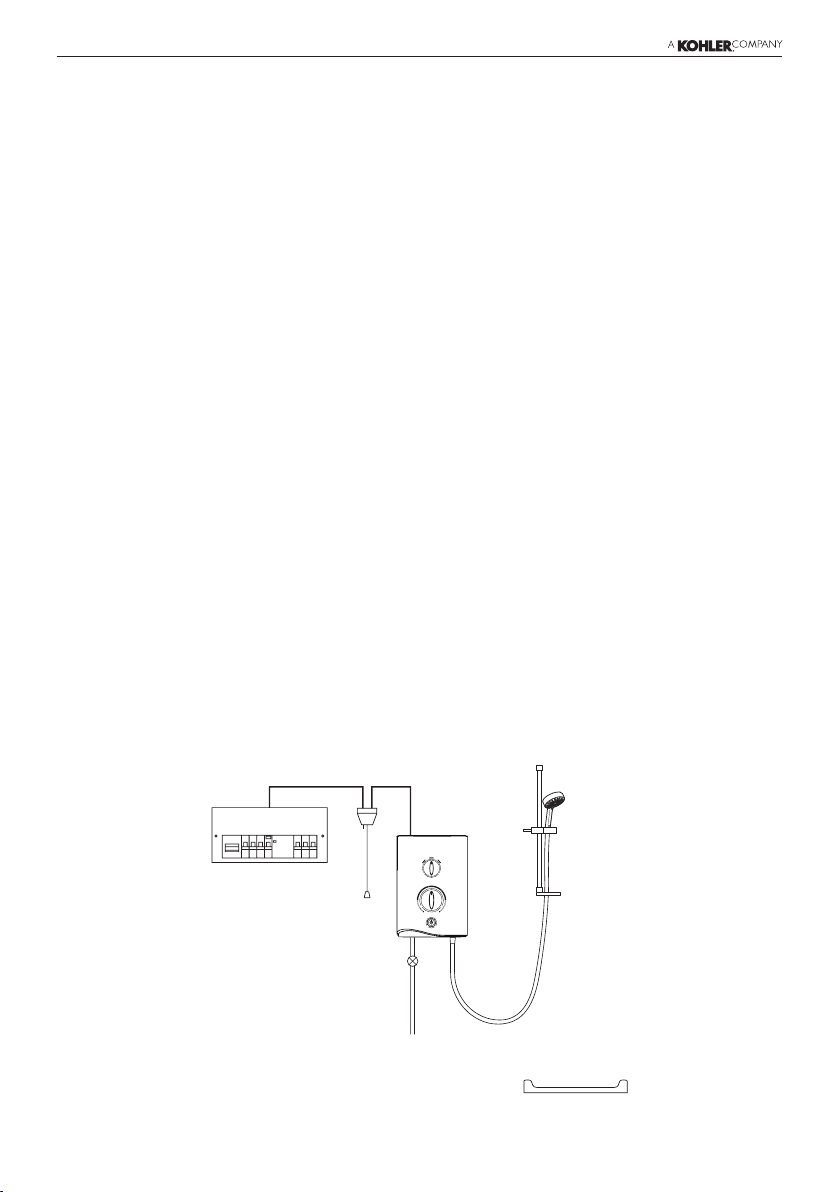

Plumbing and Electrical Schematic
Electrical
1. The electrical installation must comply with BS 7671 (commonly referred to as
the IEE Wiring Regulations) and all relevant building regulations, or any particular
regulation or practice specied by the local electricity supply company.
2. Ensure that all circuit protection devices, switches and cabling is adequate
for the rated current of the shower and that the rating of the electricity supply
company fuse and the consumer unit are adequate for the additional demand.
3. The shower must be earthed. Ensure any supplementary bonding complies
with the relevant regulations.
4. This shower is intended to be permanently connected to the xed electrical wiring
of the mains system. A separate supply must be provided from the consumer
unit to the shower.
5. DO NOT supply any other electrical equipment including extractor fans or pumps
via this product.
6. This shower must be provided with means for local disconnection that is
incorporated into the xed wiring in accordance with the relevant local wiring
regulations. This must be a double pole switch, which has at least 3 mm contact
separation in each pole. The switch can be a ceiling mounted pull-cord type
within the shower room or a wall mounted switch tted in the applicable zone
area.
7. A 30mA Residual Current Device (RCD) must be incorporated into the electrical
supply to this shower in accordance with wiring regulations.
8. DO NOT apply excessive force to the terminal block.
9. All electrical connections should be checked for tightness to prevent overheating
before switching on the electrical supply.
10. DO NOT switch on the electrical supply until the plumbing has been completed
and checked for leaks.
LOWHIGH
ECO
POWER
TEMPERATURE

121493953-W2-A
Replacing an existing shower.
The Mira Sport Multi-t is designed to replace showers of approximately the same
size or smaller. Adjustments to existing pipe work and electrical connections may
be necessary to enable the Mira Sport Multi-t to completely cover the footprint and
screw holes of the previous shower. Note! Make sure you allow su󰀩cient clearance
between the ceiling and walls to allow any future maintenance (cleaning the lter
etc.) to be performed.

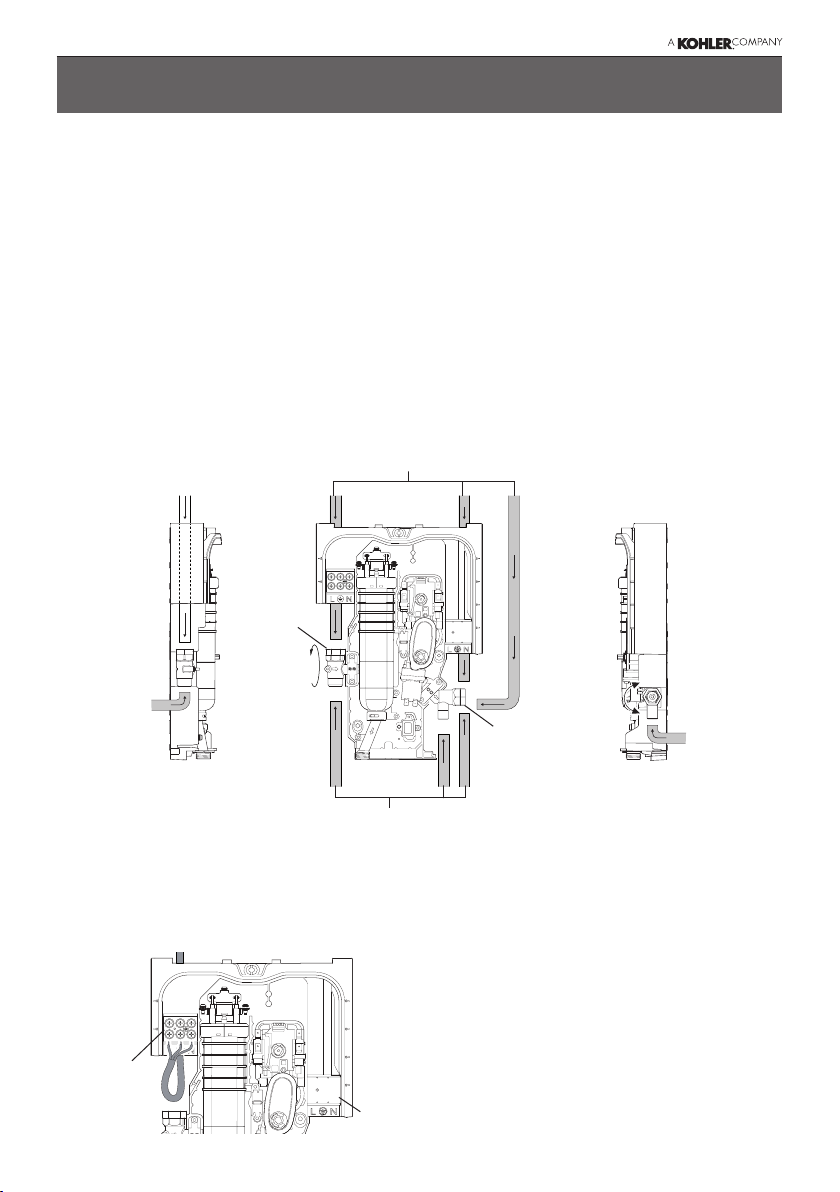

Supply Entry Points
Plumbing - The inlet water supply can enter from the directions shown.
Note! By default the water supply position is set for left hand entry, if the installation
favours right hand entry the LH inlet lter (coloured black) and RH inlet connector
plug (coloured red) must be exchanged. Go to "Adjustment for right hand entry
water supplies"
Rising
Rear fed water supplying
left hand Inlet Connector
Rear fed water supplying
right hand Inlet Connector
Falling
Rotate
inlet to
suit
Rotate
inlet to
suit
Electrical - Terminal Block locations are provided on both the left and right for
convenience when replacing a shower. Note! By default the electrical supply position
is set for left hand entry, if the installation favours right hand entry some adjustment
of the terminal block in the case will be required. Go to "Adjustment for right hand
electrical supplies"
Right Side
Left Side
(Default)
Installation

13 1493953-W2-A

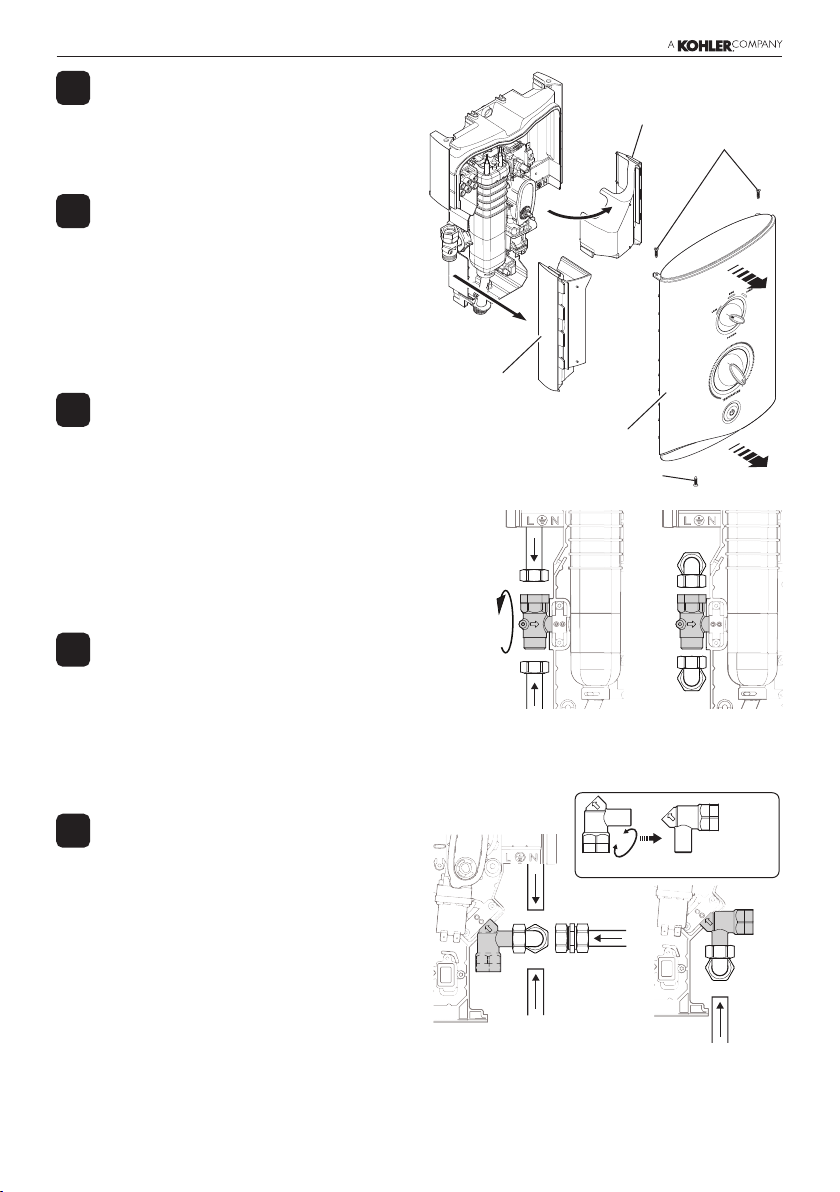

1
2
3
4
5
Disconnect and remove the old
shower from the wall.
Isolate the electrical and water
supplies.
Position the Mira Sport Multi-t
shower on the existing pipework.
Do not connect shower to pipe at
this point.
Note! Use compression elbows
to connect rising and falling
supplies to the Right Inlet
Connector.
Remove the cover and service
tunnels from the Mira Sport
Multi-fit. Keep the retaining
screws (x3) for later use.
Screws
Service
Tunnel (RH)
Cover
Screw
Service
Tunnel (LH)
Rotate
inlet to
suit
Left Inlet Connector Conguration
Right Inlet Connector Conguration
Suitable for water
supplies from below
and the rear.
Position B
Rotate
inlet
to suit
Position A
Suitable for water
supplies from above,
below, from the right
and the rear.
Suitable for water supplies from
above, below and from the rear.
Adjust for RH water supply
and / or RH electricity supply if
required.

141493953-W2-A
6
7
8
9
Make sure the shower is straight
and level, then mark the new
xing holes on the wall.
Remove the shower and drill
the new xing holes. Insert the
supplied wall plugs.
Caution! Do not drill into buried
pipes or cables.
Caution! Do not drill into
buried cables or pipes.
Go to “Connecting Electricity
and Water Supplies” t o
complete the installation
Left side
electrical cable
entry shown.
Feed the electrical cable in
through the back of the shower
and make sure the wires will
connect adequately to the
terminal block.

15 1493953-W2-A

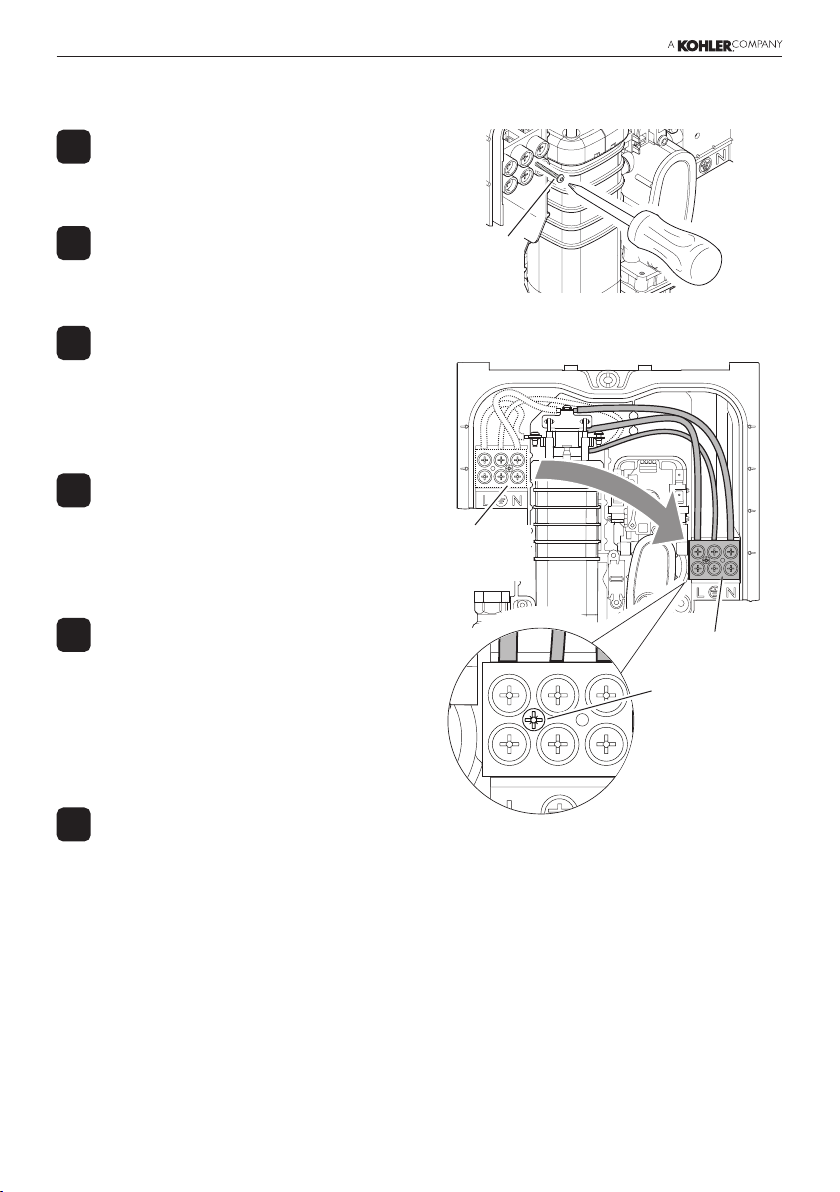

Adjustment for right hand entry electrical supply
1
2
3
4
5
6
Isolate the electrical and water
supplies.
Taking care not to damage the
wires, reposition the terminal
block to the location on the right
hand side of the case.
Ret and tighten the retaining
screw. Note! When the terminal
block is repositioned on the right
hand side, the retaining screw
must be tted to the hole on the
left side of the terminal block.
Check the wiring and ensure that
it has not been damaged and will
not be trapped.
Retaining
Screw
Terminal block
default location
Terminal block
alternative
location.
(Note position of
retaining screw)
Unscrew the terminal block
retaining screw.
Carefully lift the terminal block
from its location on the left of the
case and remove the retaining
screw.

161493953-W2-A
Use a suitable wrench to remove
the inlet plug from the RH inlet
connector. Hold a separate
wrench across the ats of the
inlet connector to support the
connector, whilst removing the
plug.

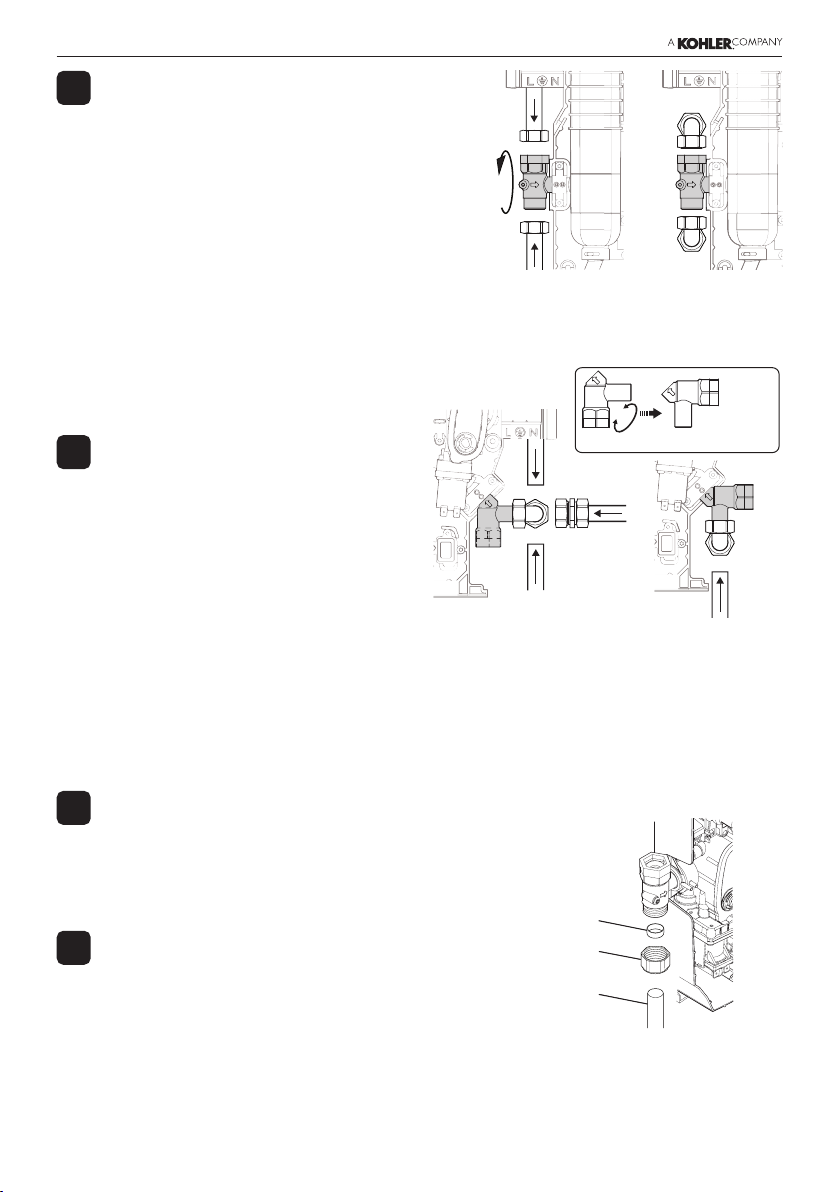

Adjustment for right hand entry water supply
1
2
3
4Ret the lter into the right hand
inlet connector and tighten
with the wrench, support the
connector whilst tightening.
Repeat the procedure to refit
the inlet plug to the LH inlet
connector.
Follow the same procedure to
remove the inlet lter from the
LH inlet connector.
5
6
Isolate the electrical and water
supplies.
Inlet Filter
(coloured black)
Inlet Plug
(coloured red)
This completes the adjustment
for right hand entry water supply.
Inlet
Connector (LH)
Inlet
Connector (RH)
Inlet
Filter
Inlet
Plug

17 1493953-W2-A

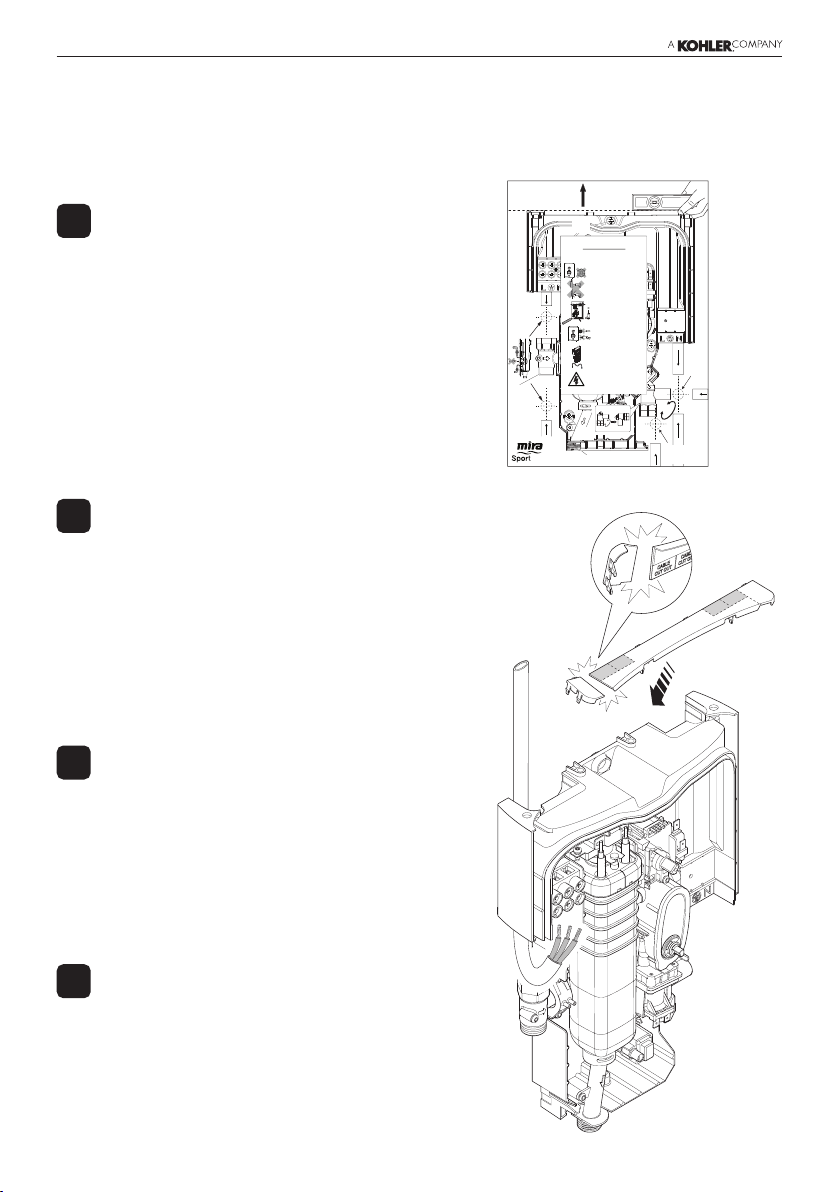

New Installation
While planning your shower installation, make sure you allow su󰀩cient clearance
between the ceiling and walls to allow any future maintenance (cleaning the lter
etc.) to be performed.
Using the installation template
supplied, mark the positions
of the three xing holes.
Note! Ensure that there are
su󰀩cient lengths of supply pipe
and electrical cable to reach the
connection points as shown on
the template.
Place Spirit Level on This Line to
Level Product Before Drilling
Allow at least 200mm
above the appliance to
access cover screws.
See Installation Guide
for further dimensions
especially for a shower
replacement.
Installation
Template &
Checklist
1180328-W7-A
©Kohler Mira Limited, July 2011
PlaceSpiritLevelonThisLineto
LevelProductBeforeDrilling
Installation
Template&
Checklist
MiraSportNGThermostatic
AttentionInstaller
IMPORTANT!Thefollowingkeydetailsshouldberead
inconjunctionwiththeInstallationandUserGuide.
Donotinstalltheappliancewhere
itmaybecomefrozen.
Avoiddustcontaminationofthe
appliancebyusingthistemplate
tomarkanddrillintothewall.Drill
appliancecaseseparately.
Donotusealternativescrewsto
securethecover.
Donotsealanypartofthe
appliance.
Thoroughlyflushthepipework
beforeconnectingtotheappliance.
Usethecorrect
supplycablesize.
RefertoBS7671.
Donotdrillintoburiedcablesor
pipes.
1180327-W7-A
©KohlerMiraLimited,July2011
Mira Sport Multi-fit
Attention Installer
Do not install the appliance where
it may become frozen.
Avoid dust contamination of the
appliance by using this template
to mark and drill into the wall. Drill
appliance case separately.
Do not drill into buried cables or
pipes.
Do not use alternative screws to
secure the cover.
Do not seal any part of the
appliance.
Thoroughly flush the pipework
before connecting to the appliance.
Use the correct
supply cable size.
Refer to BS 7671.
Fixing
Hole(s)
LOWHIGH
ECO
POWER
TEMPERATURE
LOWHIGH
ECO
POWER
TEMPERATURE
Fixing
Hole(s)
Outlet Connector
Fixing
Hole(s)
Rear water
entry point with
Inlet Connector
(RH) rotated to
position A
Inlet
Connector (LH)
IMPORTANT! The following key details should be read
in conjunction with the Installation Guide.
Rear water
entry point with
Inlet Connector
(RH) rotated to
position B
Position B
Position A
Inlet Connector (RH)
1
2
3
Remove the installation template
and drill the xing holes. Insert
the wall plugs (supplied).
Caution! Do not drill into buried
pipes or cables.
Remove the cover and service
tunnels from the Mira Sport Multi-
t. Keep the retaining screws (x3)
for later use.
Snap Off section
of Upper Case
Insert shown.
Note! Greyed out
sections can be
removed to suit
installation.
4Adjust for RH water supply
and / or RH electricity supply
if required, see sections
"Adjustment for right hand
entry water supplies" and
"Adjustment for right hand
electrical supplies".

181493953-W2-A
Depending on the direction and
route of the incoming water
supply, adjust the appropriate
inlet connector to suit.
Note! Use compression elbows to
connect rising and falling supplies
to the right inlet connector.
6Go to “Connecting Electricity
and Water Supplies” t o
complete the installation
5
Rotate
inlet to
suit
Installation Using Left Inlet Connector
Installation Using Right Inlet Connector
Suitable for water
supplies from below
and the rear.
Position B
Rotate
inlet
to suit
Position A
Suitable for water
supplies from above,
below, from the right
and the rear.
Suitable for water supplies from
above, below and from the rear.
2
Connecting Electricity and Water Supplies
1Thoroughly ush the supply
pipe.
Connect the inlet supply pipe to
the inlet connector, using one of
the following methods:
Compression Nut
Inlet Supply
Olive
Left Inlet Connector
Left Inlet Connector - use
the compression nut and olive
(supplied).
Olive
Compression Nut
Inlet Supply
cont...

19 1493953-W2-A
3
4
Secure the shower to the wall
with the supplied screws.
If the water inlet is rear fed,
make sure the elbow fitting
can be removed to allow any
future maintenance (cleaning the
lter etc.) to be performed. See
section "SERVICING - Cleaning
the Inlet Filter".
Turn on the water supply and
check for leaks.
5
Inlet Connector
Compression Nut
Compression Nut
Inlet Supply
Olive
Olive
1/2’’ BSP Nipple
Right Inlet Connector
Olive
Olive
Inlet Connector
Inlet Supply
Compression Nut
Compression Nut
1/2" BSP Nipple
Right Inlet Connector - use a
1/2" BSP nipple with compression
nuts or 1/2" BSP elbow.
6
7
N(Neutral) = Blue wire
L(Live) = Brown wire
(Protective Earth) =
Green /Yellow sleeved wire
Strip back su󰀩cient outer cable
insulation to enable routing to the
terminal block. Fit an earth sleeve
to the earth wire if required.
8
9
Ensure that all wires are secure
and all 6 screws are tight.
Ensure the earth bonding complies
with relevant regulations.
cont...
Insert the wires into the terminal
block connections and tighten
the screws.
For rear fed supplies always
allow enough room for
maintenance to be performed.

201493953-W2-A
LOWHIGH
ECO
Screws
Upper Case
Insert
Cover
Spindles
Service Tunnels
Screw
10
11
12
13
Ret the service tunnels and
the required case inserts.
Note! If water supply pipe
enters from the right hand
side of the shower cut out
the slot on the right hand
service tunnel.
For the upper case insert
and case insert (LH) snap
o󰀨 sections of the inserts
to suit incoming electrical or
water supplies before tting.
Ensure the control dials are
aligned with the spindles and
replace the cover. Tighten the
three cover screws.
Do not use alternative screws to
secure the cover. This can cause
internal damage to the appliance.
Do not seal around the back of
appliance.
This completes the installation,
follow the guidelines in section
'COMMISSIONING' to prepare
the shower for use.
Service
Tunnel
(RH)
Case
Inserts x3
(RH)
Case
Insert
(LH)
Service
Tunnel
(LH)
Upper Case
Insert
