KRESS KUW58 Installation manual

SAFETY AND OPERATING MANUAL
Oscillating Multi-tool KUW58 KUW58.1

3
Oscillating Multi-tool KUW58 KUW58.1
PRODUCT SAFETY
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING Read all safety warnings,
instructions, illustrations and
specifications provided with this power tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric
shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may result
in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the
switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing
or jewellery. Keep your hair and clothing
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
h) Do not let familiarity gained from
frequent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause severe
injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better and
safer at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and any

4
Oscillating Multi-tool KUW58 KUW58.1
other condition that may affect the power
tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier
to control.
g) Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
h) Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool in
unexpected situations.
5) Service
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
SAFETY INSTRUCTION
FOR CUTTING
Hold the power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory may contact
hidden wiring or its own cord. Cutting accessory
contacting a "live" wire may make exposed metal parts
of the power tool "live" and could give the operator an
electric shock.

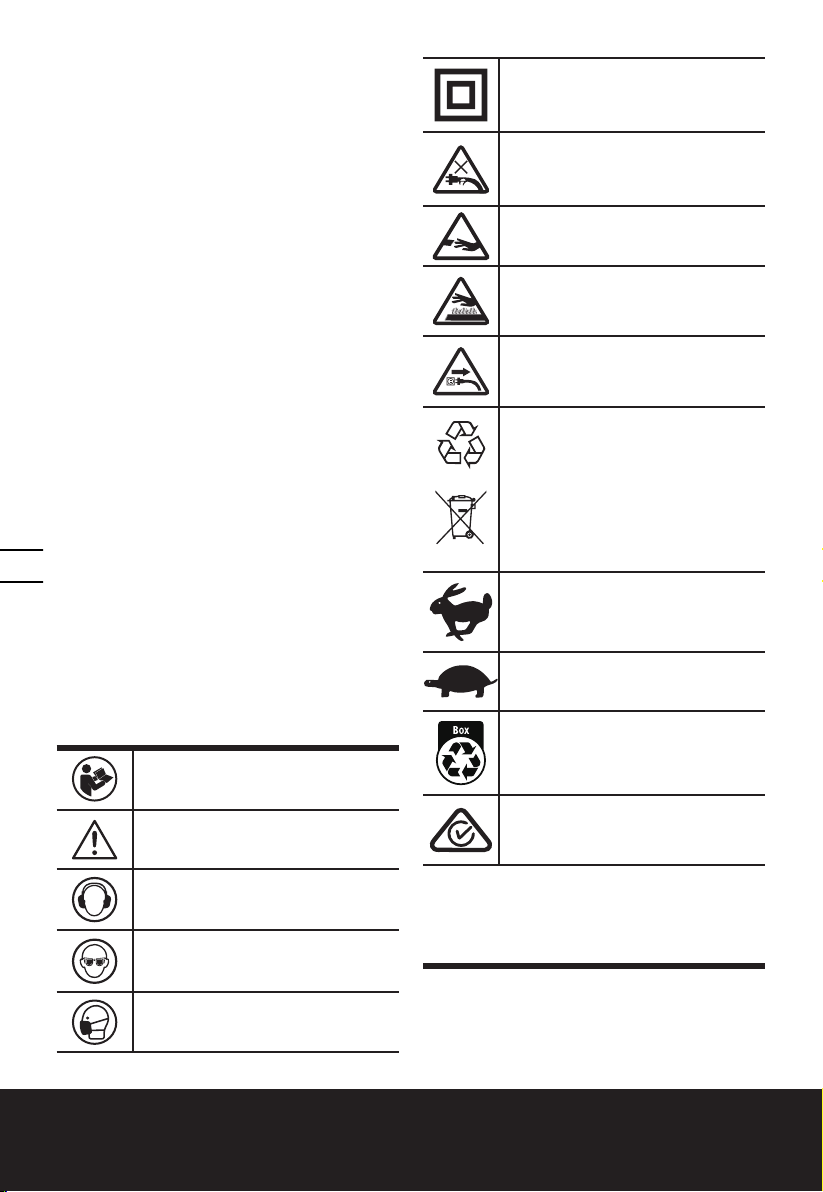

SYMBOL
To reduce the risk of injury, user must
read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation
Before working with your tool make
sure that no power cords will be dam-
aged.
Avoid danger of injury from the sharp
edges of the accessories.
Accessories can become very hot while
working, presenting danger of burns!
Make sure the tool is unplugged prior to
changing accessories.
Li-Ion
Li-Ion
Li-Ion battery. This product has been
marked with a symbol relating to
‘separate collection’ for all battery
packs and battery pack. It will then
be recycled or dismantled in order to
reduce the impact on the environment.
Battery packs can be hazardous for the
environment and for human health since
they contain hazardous substances.
High oscillation frequency
Low oscillation frequency
The box is recyclable at the kerbside.
RCM marking
ABN: Australian Business Number. By this number,
business information such as entity type, status,
business location etc. can be found at website http://
abr.business.gov.au. ABN of Positec Australia Pty
Limited is 14 101 682 357

5
Oscillating Multi-tool KUW58 KUW58.1
31
4
2
5
6
7

6
Oscillating Multi-tool KUW58 KUW58.1
ON
OFF
1
2
2
3
1
FE
DC
B
A

7
Oscillating Multi-tool KUW58 KUW58.1

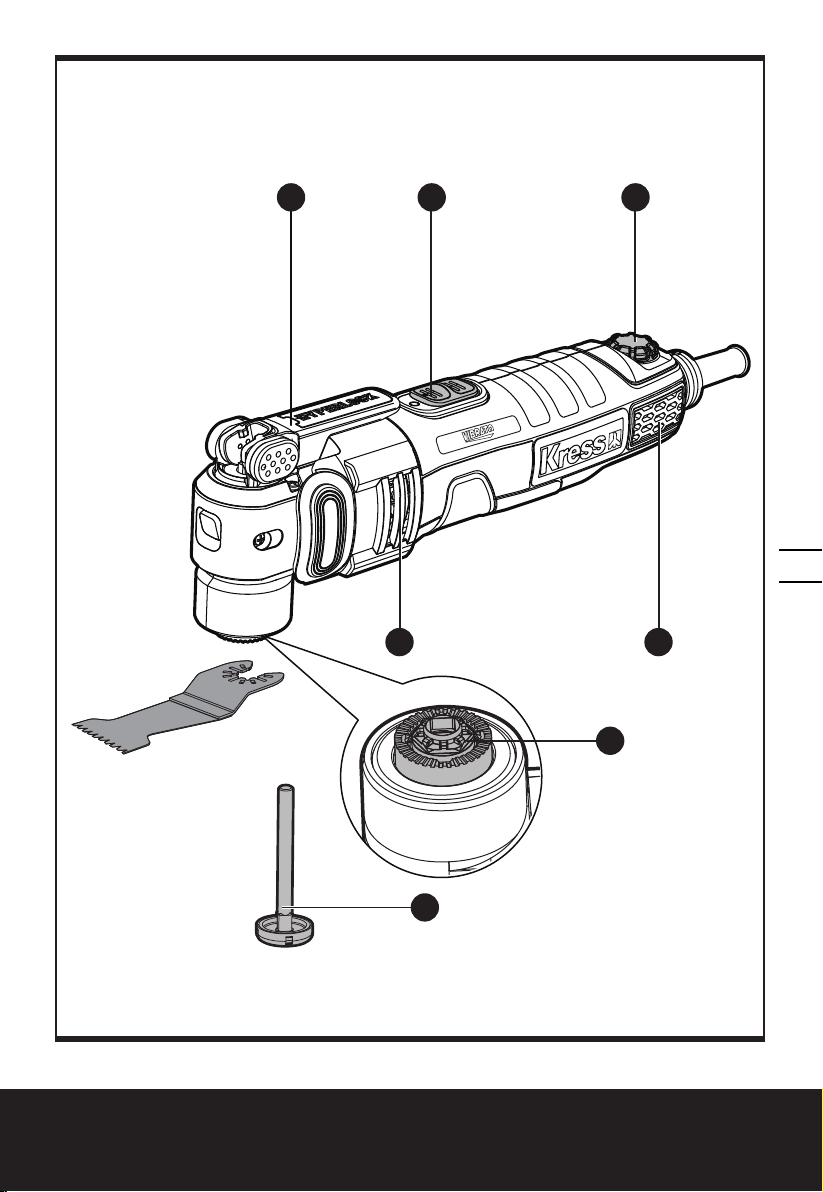

COMPONENT LIST
1.
HYPERLOCK
TM
ACCESSORY CLAMPING
LEVER
2. ON/OFF SWITCH
3. VARIABLE SPEED DIAL
4. CONSTANT SPEED ELECTRONICS
5. VENTING SLOTS
6.
UNIVERSAL FIT
TM
ACCESSORY
INTERFACE*
7. FLANGE
* Works with other oscillating tool brands’ accessories.
The following compatible brands are trademarks
owned by third parties which may be registered by
their respective owners: Black & Decker®, Bosch®,
Chicago Electric®, Craftsman®, Dremel®, Fein®,
Genesis®, Makita®, Mastercraft®, Milwaukee®,
Performax®, Porter Cable®, Ridgid®, Ryobi®, Skil®, and
Tool Shop®.
Not all the accessories illustrated or described
are included in standard delivery.
TECHNICAL DATA
Type Designation KUW58 KUW58.1 (W58 -
designation of machinery, representative of
Sonicrafter)
Rated voltage 220V-240V~50Hz
Power input 480W
Oscillation speed 11000-20000/min
Oscillation angle 5°
Protection class /II
Tool weight (without power
cable) 1.63kg
ACCESSORIES
35mm End Cut Blade UI (KA0782) 1
35mm Precision End Cut Blade UI (KA0781) 1
80mm HSS semicircle saw blade (KA0760) 1
Sanding pad (KA0920) 1
40# Sanding Sheet (perforated) 2
80# Sanding Sheet (perforated) 2
120# Sanding Sheet (perforated) 2
Rigid Scraping Blade (KA0820) 1
35mm Universal end cut blade (KA0780) 1
OPERATING
INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
Intended Use
The power tool is intended for sawing and remodeling
wooden materials, plastic, plaster, non-ferrous metals
and fasteners (e.g. nails and clamps) as well as for
working on soft wall tiles and for dry grinding of small
surfaces. It is especially suitable for working close to
edges and for ush cutting.
Assembly and Operation
ACTION FIGURE
Mounting Accessories See Fig. A-C
Mounting the Sanding Sheet See Fig. D
Operating the On/Off Switch See Fig. E
Using the Variable Speed Dial See Fig. F
The Variable Speed Dial can be used to set the
optimum oscillating frequency according to the
accessories used and the respective application.
Oscillation
frequency
Application
High oscillation
frequency
Sanding, sawing, rasping and
polishing stone and metal.
Low oscillation
frequency Scraping, polishing varnishes.

8
Oscillating Multi-tool KUW58 KUW58.1
APPLICATION
Warning: the sawing teeth are very sharp. Do not touch during mounting and application.
The workpiece must be clamped tightly before it is cut.
Universal-FitTM accessories available from Kress.
Accessories work with other competitive tools.
Pic NAME APPLICATION
Sawing
Bi-Metal Metal/Wood End
Cut Blade
Wood, plastic, berglass, nails, non-
ferrous metals, thin sheet metal,
hardened llers
Standard Wood End Cut
Blade Wood, plastic, drywall
Precision Wood Cut Blade Wood, soft plastics
HSS Semicircle Saw Blade
Thin wood, plastic, berglass, non-
ferrous metals, thin sheet metal,
hardened llers, window glazing
Sanding
Sanding Pad (Perforated) Wood, plastic, hardened llers
Sanding Finger Pad Wood, plastic, hardened llers
Rasping
Triangular Carbide Grit Rasp Wood, hardened adhesives, , thin set,
masonry
Carbide Rasp (Finger
Shaped)
Wood, hardened adhesives, thin set,
masonry
Removing
grout
Carbide Grit Semicircle Saw
Blade Grout, porous concrete, masonry
Diamond-Coated Semicircle
Saw Blade Ceramic and stone tile, backerboard
Scraping
Rigid Scraper Blade
Old paint, hardened adhesives, caulk,
carpet
Flexible Scraper Blade Elastic sealants, paint, adhesive
residues, carpet.
We recommend that you purchase your accessories listed in the above list from the same store that sold you the
tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
NOTE: When plunging and sawing use a slight pendulum motion, to allow sufcient chip removal.
The saw blade lasts longer if the wear is distributed evenly. To ensure an even distribution, loosen the saw blade,
rotate it and retighten rmly.
Cut/Sand with a constant movement and light pressure.
Heavy pressure does not increase the cut/removal rate – the accessory merely wears faster.

9
Oscillating Multi-tool KUW58 KUW58.1
WORKING HINTS FOR
YOUR TOOL
If your power tool becomes too hot, especially when
used at low speed, set the speed to maximum and run
it with no load for 2-3 minutes to cool the motor. Avoid
prolonged usage at very low speeds. Always keep the
blade sharp.
Always ensure the workpiece is rmly held or clamped
to prevent movement.
Any movement of the material may affect the quality of
the cutting or sanding nish.
Start your tool before working and turn it off only after
you stop working.
Do not start sanding without having the sandpaper
tted.
Do not allow the sandpaper to wear away , it will
damage the sanding pad. The guarantee does not cover
sanding pad wear and tear.
Use coarse grit paper to sand rough surfaces, medium
grit for smooth surfaces and ne grit for nishing
surfaces. If necessary, rst make a test run on scrap
material.
Excessive force will reduce the working efciency
and cause motor overload. Replacing the accessory
regularly will maintain optimum working efciency.
MAINTAIN TOOLS WITH
CARE
Remove the plug from the socket before
carrying out any adjustment, servicing or
maintenance.
Your power tool requires no additional lubrication or
maintenance. There are no user serviceable parts in
your power tool. Never use water or chemical cleaners
to clean your power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry place. Keep the
motor ventilation slots clean. Keep all working controls
free of dust. Occasionally you may see sparks through
the ventilation slots. This is normal and will not damage
your power tool.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
Positec Australia Pty Limited
10 Corporate Blvd Bayswater, VIC 3153, Australia

Copyright © 2022, Positec. All Rights Reserved.
AR01651100
