Model 2110
Coulter Chisel
Operator’s Manual

F-479-0310 Edition i
Table of Contents
1 Introduction
Understanding Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 Standard Specifications
3 Assembly Instructions
2110-07/09 Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
2110-11/13/15 Coulter Chisel Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Wheel Lift Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Hitch Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Depth Stop Tube Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Coulter Gang Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Auto Reset Shank and Shovel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Rigid Shear Shank and Shovel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Hydraulic Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Light Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Offset Shank Mount Installation (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Rear Jack Installation (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Rear Tow Hitch Installation (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Tubular Mount Chopper Reel Installation (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
4 Operation and Maintenance
Tractor Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Coulter Chisel Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Attaching To The Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Hydraulic Lift System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Hydraulic Coulter Gang Lift System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Field Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Leveling (Front-to-Rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Variable Ratio Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

ii F-479-0310 Edition
Coulter Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
Depth Stop Adjustment (Manual) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Wheel Bearing Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Hydraulic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Lubrication Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
5 Troubleshooting Guide

1-1
Chapter 1
Introduction
The Landoll Model 2110 Coulter Chisel is a quality product designed to give years of trouble free performance. By
following each section of this manual, your system will perform as designed for you and your operation
CHAPTER 1 gives basic instructions on the use of this manual.
CHAPTER 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques to
be used when servicing this product.
CHAPTER 3 contains assembly instructions for your Model 2110 Coulter Chisel. When these
procedures are correctly followed, your equipment should provide you years of
trouble-free operation and service.
CHAPTER 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
or FAX:
[phone]
CHAPTER 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equipment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL MACHINE CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55

1-2 F-479-0310 Edition
INTRODUCTION
Understanding Safety
Statements
You will find various types of safety information on the
following pages and on the machine signs (decals)
attached to the vehicle. This section explains their
meaning.
The Safety Alert Symbol means ATTENTION! YOUR
SAFETY IS INVOLVED!

DANGER

WARNING

CAUTION
NOTE
Means that failure to follow these instructions could
cause damage to the equipment or cause it to operate
improperly.
NOTE
Make sure you read and understand the information
contained in this manual and on the machine signs
(decals) before you attempt to operate or maintain this
vehicle.
The safety statements contained in this manual relate to
the operation of the Model 2110 Coulter Chisel.
Danger means a life-threatening situation exists.
Death can occur if safety measures or
instructions on this label are not properly
followed.
Warning means serious injury or death can occur
if safety measures or instructions on this label
are not properly followed.
Caution means serious equipment or other
property damage can occur if instructions on this
label are not properly followed.

INTRODUCTION
1-3
Notes

1-4 F-479-0310 Edition
INTRODUCTION
Page Intentionally Blank

2-1
Chapter 2
Standard Specifications
2110 SERIES COULTER CHISEL W/ AUTO RESET SHANKS
MODEL NO. 2110-07 2110-09 2110-11 2110-13 2110-15
WORKING WIDTH 8’-9” 11’-3” 13’-9” 16’-3” 18’-9”
TRANSPORT WIDTH 9’-10” 11’-9” 14’-4” 16’-10” 19’-4”
BLADE DIAMETER 22” 22” 22” 22” 22”
NO. OF BLADES 15 19 23 27 31
NO. OF BEARINGS 44 6 68
TIRE AND WHEELS (2) 12.5L x 15,
12 ply - 6 bolt (4) 12.5L x 15, 12 ply - 6 bolt (4) 12.5L x 15, 12 ply - 6 bolt (4) 12.5L x 15, 12 ply - 6 bolt (4) 12.5L x 15, 12 ply - 6 bolt
ESTIMATED WEIGHT (LBS.) 7,621 10,258 11,200 12,142 13,059
Specifications are subject to change without prior notification.
2110 SERIES COULTER CHISEL W/ RIGID SHEARBOLT SHANKS
MODEL NO. 2110-07 2110-09 2110-11 2110-13 2110-15
WORKING WIDTH 8’-9” 11’-3” 13’-9” 16’-3” 18’-9”
TRANSPORT WIDTH 9’-10” 11’-9” 14’-4” 16’-10” 19’-4”
BLADE DIAMETER 22” 22” 22” 22” 22”
NO. OF BLADES 15 19 23 27 31
NO. OF BEARINGS 44 6 68
TIRE AND WHEELS (2) 12.5L x 15,
12 ply - 6 bolt (4) 12.5L x 15, 12 ply - 6 bolt (4) 12.5L x 15, 12 ply - 6 bolt (4) 12.5L x 15, 12 ply - 6 bolt (4) 12.5L x 15, 12 ply - 6 bolt
ESTIMATED WEIGHT (LBS.) 6,403 8,405 9,347 9,952 10,532
Specifications are subject to change without prior notification.
TIRE INFLATION
TIRE
SIZE TIRE MANUFACTURER PLY/LOAD RATING INFLATION PRESSURE (psi) (max.)
12.5L x 15 Heavy Duty Titan 20 Ply/4940 lbs. 80 psi
12.5L x 15
Farm Highway Service Goodyear F Load 4680 lbs. 90 psi
12.5L x 15 Goodyear 12 Ply/3860 lbs 52 psi

2-2 F-479-0310 Edition
STANDARD SPECIFICATIONS
Table 2-1: General Torque Specifications
LANDOLL CORPORATION
GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED CONDITION).
THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size SAE Grade 2SAE Grade 5SAE Grade 8UNF Size SAE Grade 2 SAE Grade 5SAE Grade 8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1-1/2-6 650 [812] 1460 [1825] 2360 [2950] 1-1/2-12 730 [912] 1640 [2050] 2660 [3325]
1-3/4-5 736 [920] 1651 [2063] 2678 [3347] 1-3/4-12 920 [1150] 2063 [2579] 3347 [4183]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE COATED, ROCKWELL
“C” 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters Foot- Pounds Newton- Meters Foot- Pounds
6 10 [14] 7 [10] 20 385 [450] 290 [335]
7 16 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]

STANDARD SPECIFICATIONS
2-3
Table 2-2: Hydraulic Fitting Torque Specifications
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS
RECEIVED CONDITION).THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM AND MONEL - THREADS ARE TO BE
LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 — 21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 — 310-340
GATES BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 10-11 10-12 14-16
-5 13-15 — —
-6 17-19 18-20 24-26
-8 34-38 32-40 37-44
-10 50-56 46-56 50-60
-12 70-78 65-80 75-83
-14 — 65-80 —
-16 94-104 92-105 111-125
-20 124-138 125-140 133-152
-24 156-173 150-180 156-184
-32 219-243 — —
AEROQUIP BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 — 18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14 — — 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 — —

2-4 F-479-0310 Edition
STANDARD SPECIFICATIONS

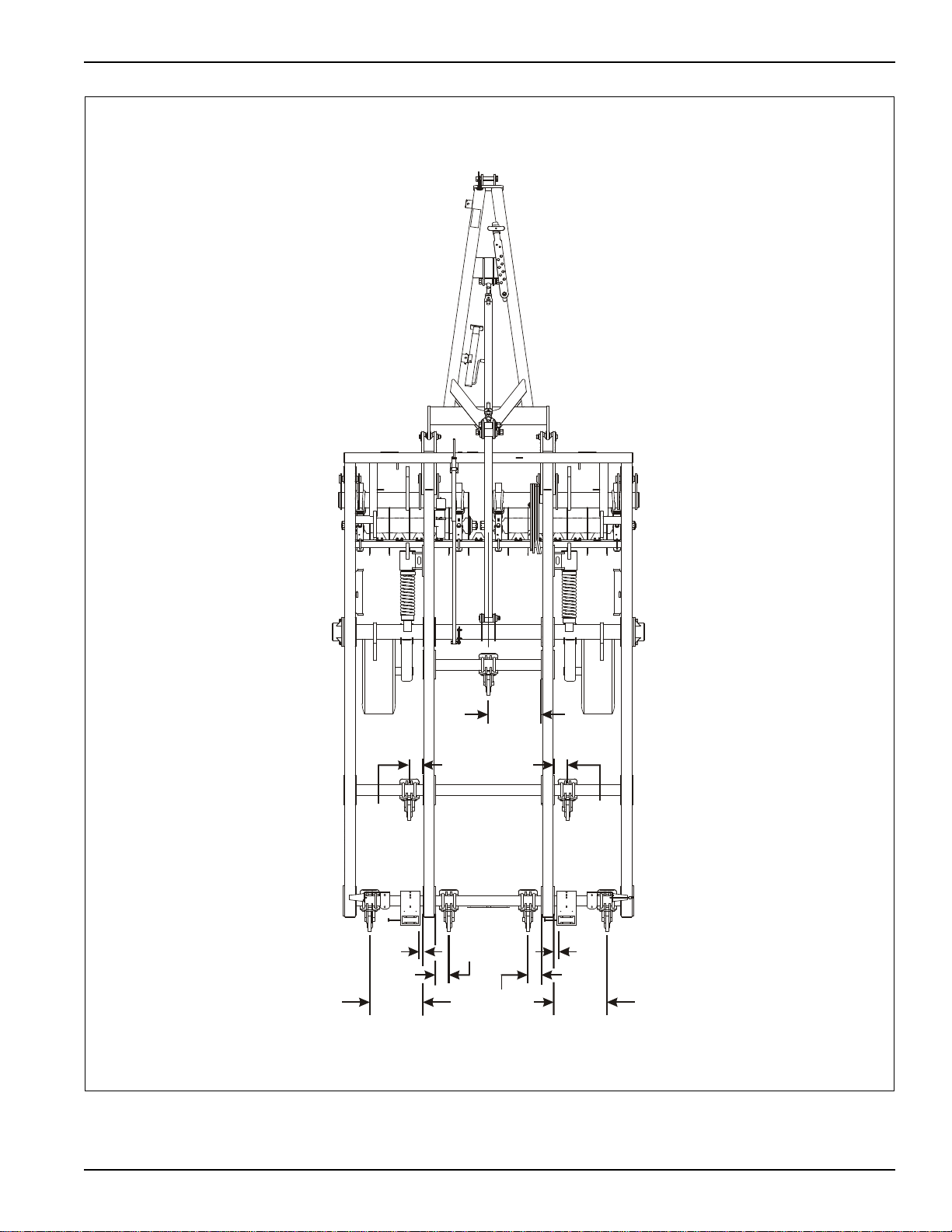

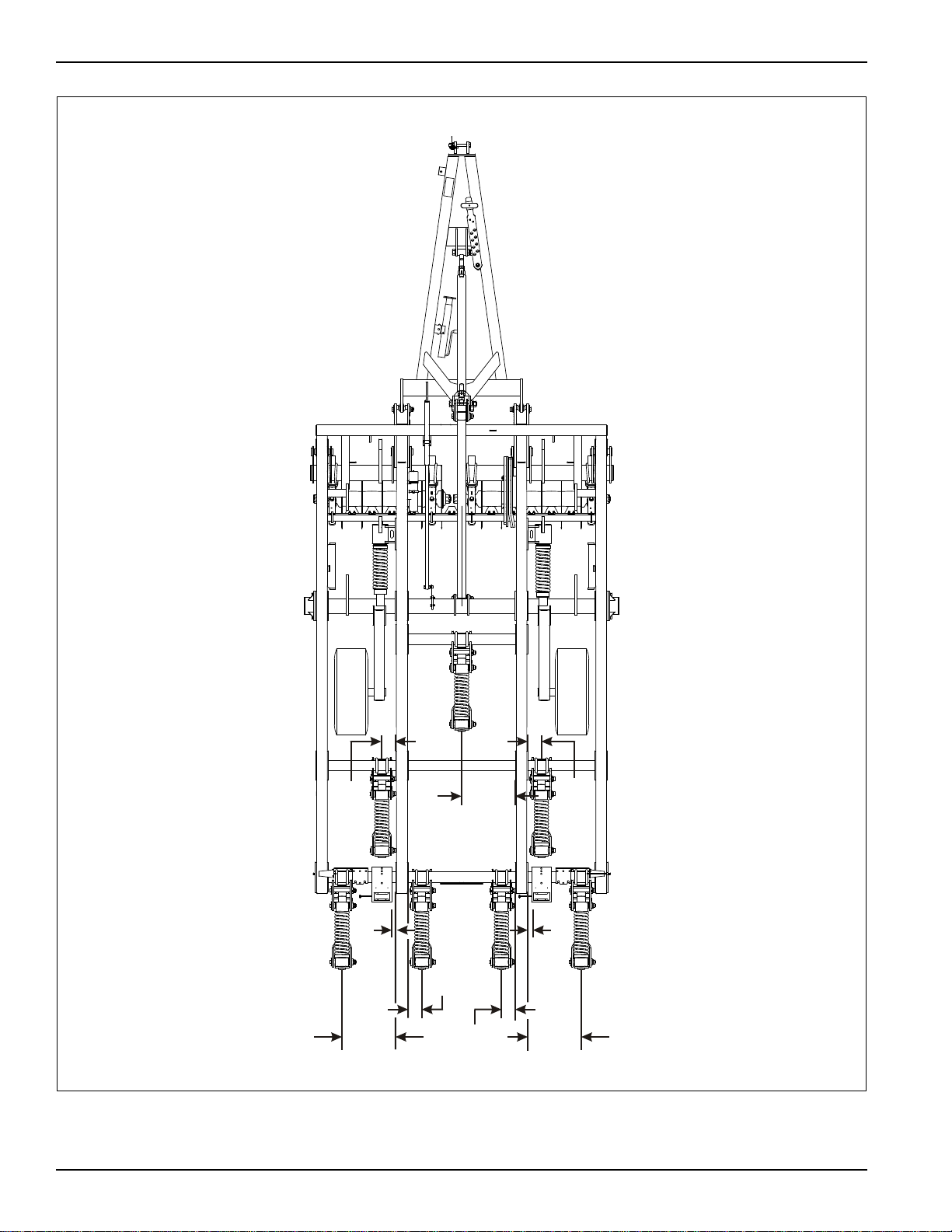

Figure 2-1: Auto Reset Shank and Light Bracket Placement (2110-07)
2110-07 shank-light placement
20-1/8”
5-1/8”
20-1/8”
5-1/8”
5-1/8”
5-1/8”
20-1/8”
1”
1”
NOTE: LT AND RT INDICATES
THE RECOMMENDED PLACEMENT
FOR TWISTED SHOVELS.
RT
LT
RT
RT
RTLTLT

STANDARD SPECIFICATIONS
2-5

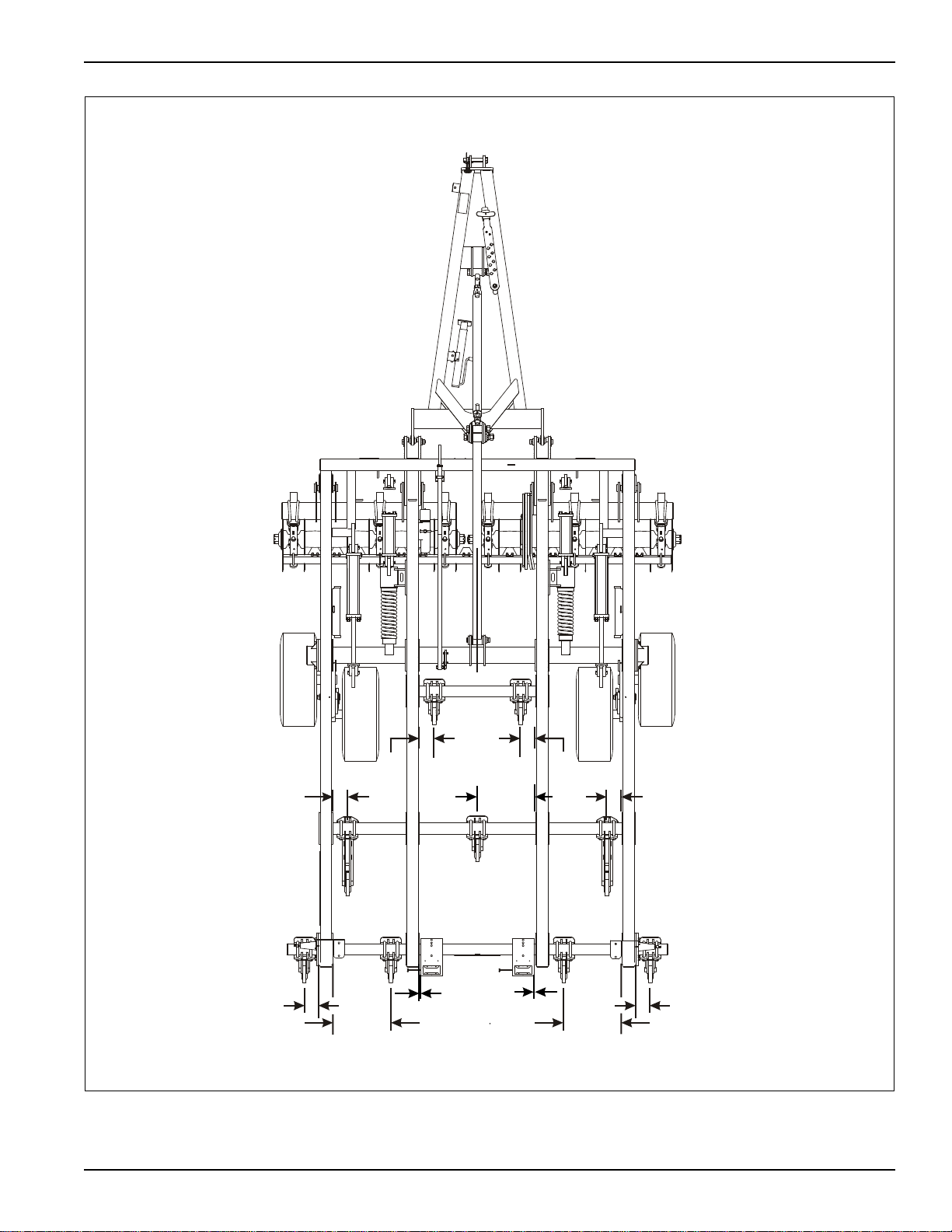

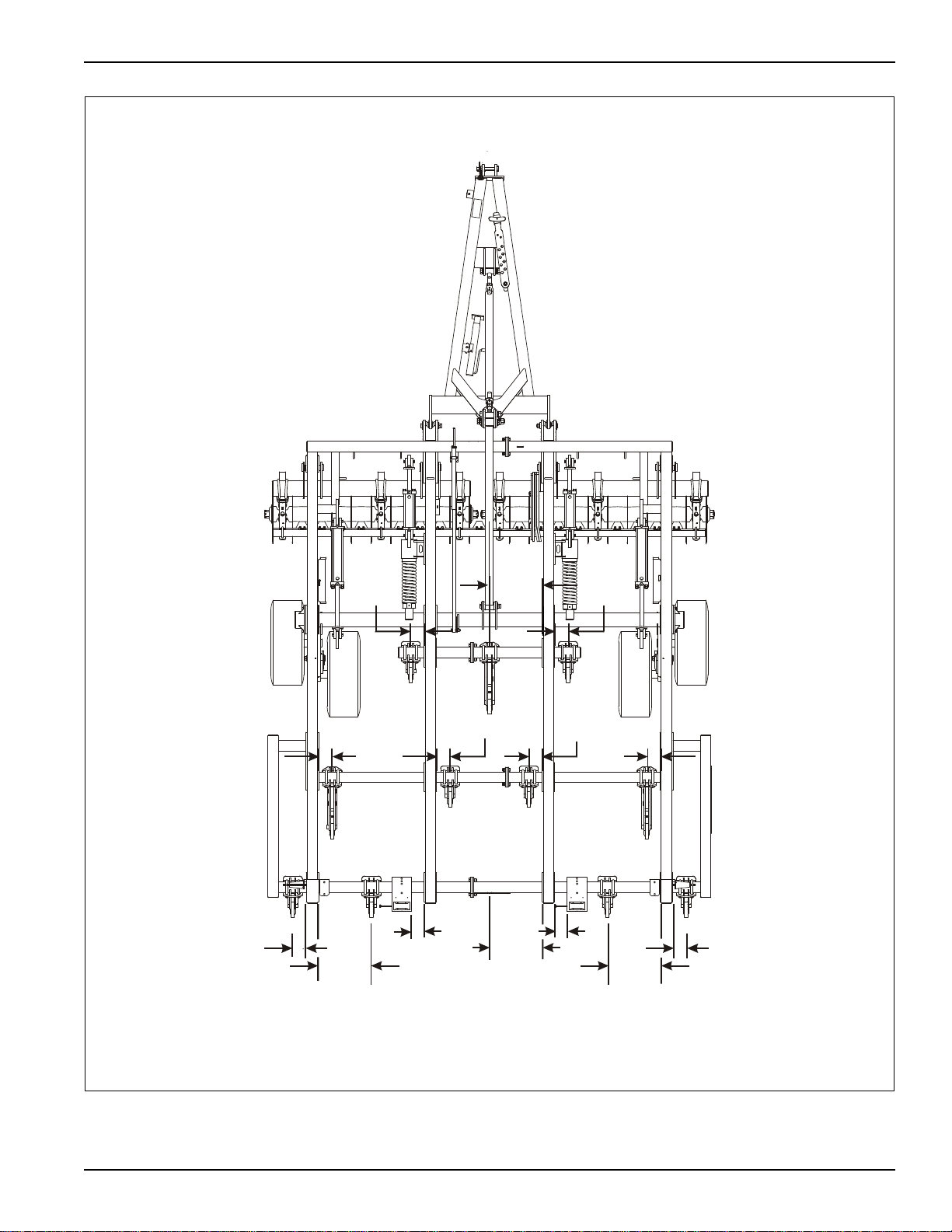

Figure 2-2: Rigid Shear Shank and Light Bracket Placement (2110-07)

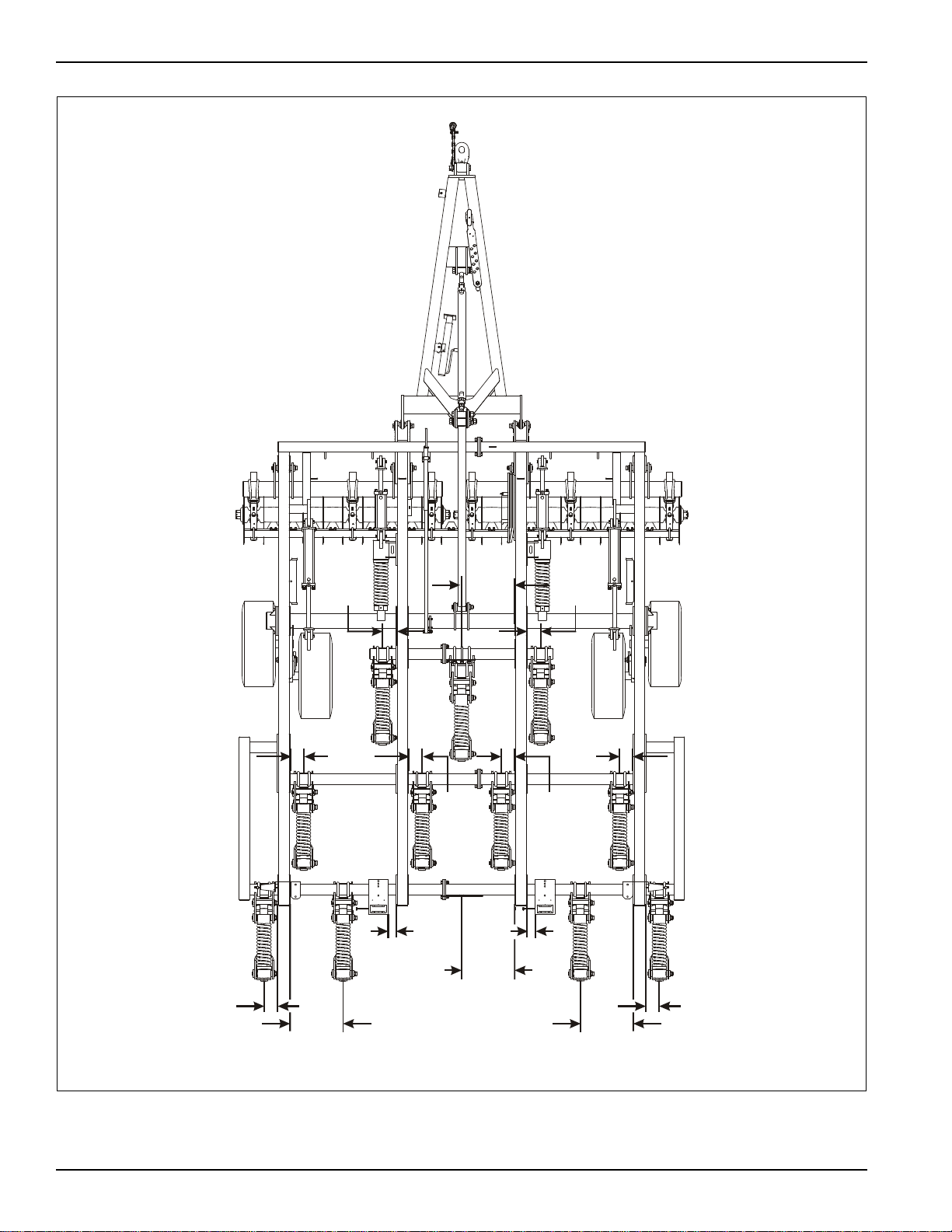

2110-07 rigid shear shank placement
20-1/8”
5-1/8”
20-1/8”
5-1/8”
5-1/8”
5-1/8”
20-1/8”
1”
1”
NOTE: LT AND RT INDICATES
THE RECOMMENDED PLACEMENT
FOR TWISTED SHOVELS.
RT
LT
RT
RT
RTLTLT

2-6 F-479-0310 Edition
STANDARD SPECIFICATIONS
Figure 2-3: Auto Reset Shank and Light Bracket Placement (2110-09)
20-1/8”
1/2”
2110-09 shank-light placement
5-1/8”
20-1/8”
4-1/4”
20-1/8”
4-1/4”
5-1/8”
5-1/8”
5-1/8”
1/2”
LT
LT
RT
RT
RT
LT
NOTE: LT AND RT INDICATES
THE RECOMMENDED PLACEMENT
FOR TWISTED SHOVELS.
RT
RT
LT

STANDARD SPECIFICATIONS
2-7
Figure 2-4: Rigid Shear Shank and Light Bracket Placement (2110-09)
2110-09 rigid shear shank placement
20-1/8”
1/2”
5-1/8”
20-1/8”
4-1/4”
20-1/8”
4-1/4”
5-1/8”
5-1/8”
5-1/8”
1/2”
LT
LT
RT
RT
RT
LT
NOTE: LT AND RT INDICATES
THE RECOMMENDED PLACEMENT
FOR TWISTED SHOVELS.
RT
RT
LT

2-8 F-479-0310 Edition
STANDARD SPECIFICATIONS

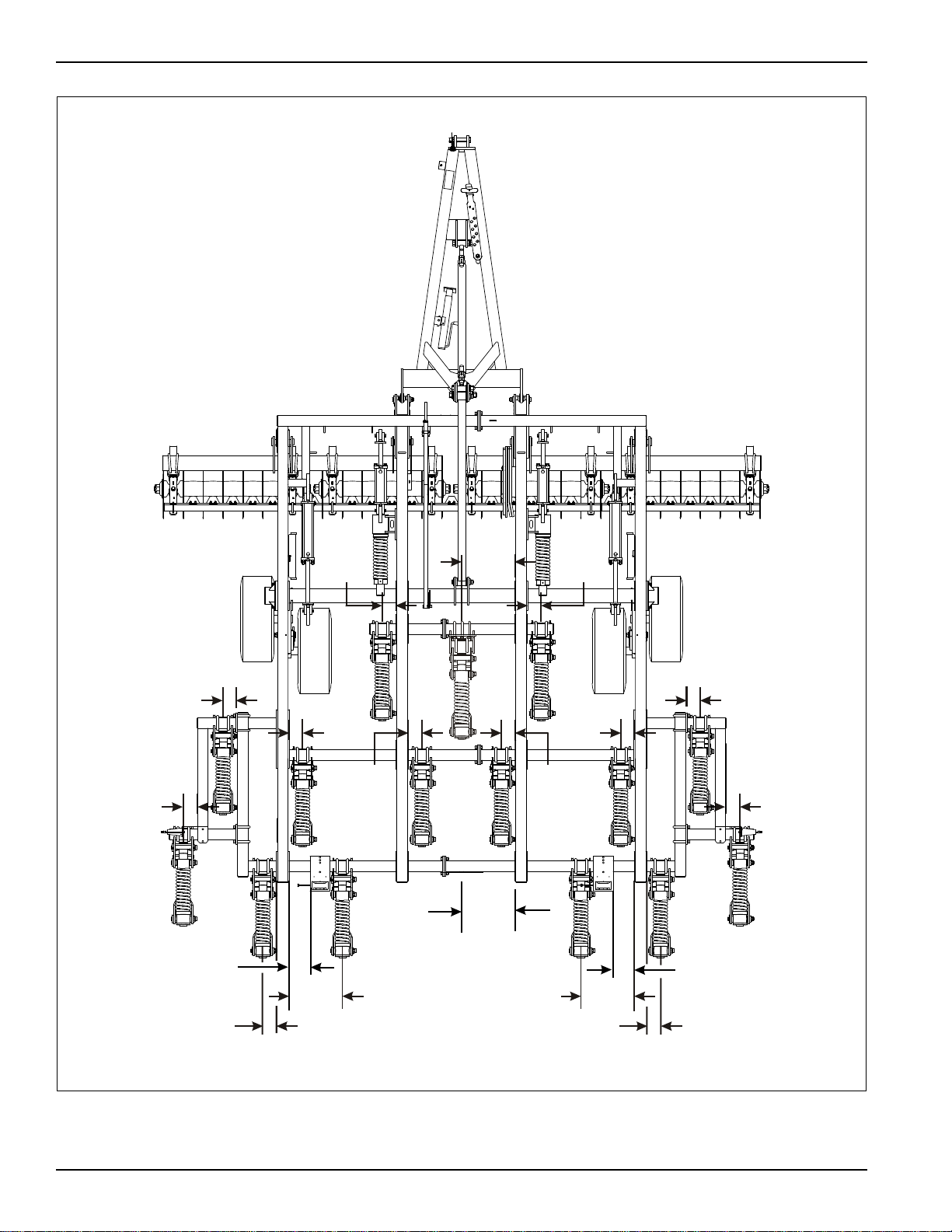

Figure 2-5: Auto Reset Shank and Light Bracket Placement (2110-11)
2110-11 shank-light placement
19-3/4”
3”
5-1/8”
5-1/8”
5-1/8”
20-1/8”
5-1/8”
5-1/8”
5”
5”
20-1/8”
5-1/8”
20-1/8”
3”
RT
NOTE: LT AND RT INDICATES
THE RECOMMENDED PLACEMENT
FOR TWISTED SHOVELS.
LTRT
LTRTLTRT
LT RTLT RT

STANDARD SPECIFICATIONS
2-9
Figure 2-6: Rigid Shear Shank and Light Bracket Placement (2110-11)
2110-11 rigid shear shank placement
19-3/4”
3”
5-1/8”
5-1/8”
5-1/8”
20-1/8”
5-1/8”
5-1/8”
5”
5”
20-1/8”
5-1/8”
20-1/8”
3”
RT
NOTE: LT AND RT INDICATES
THE RECOMMENDED PLACEMENT
FOR TWISTED SHOVELS.
LT
RT
LT
RTLT
RT
LT RTLT RT

2-10 F-479-0310 Edition
STANDARD SPECIFICATIONS

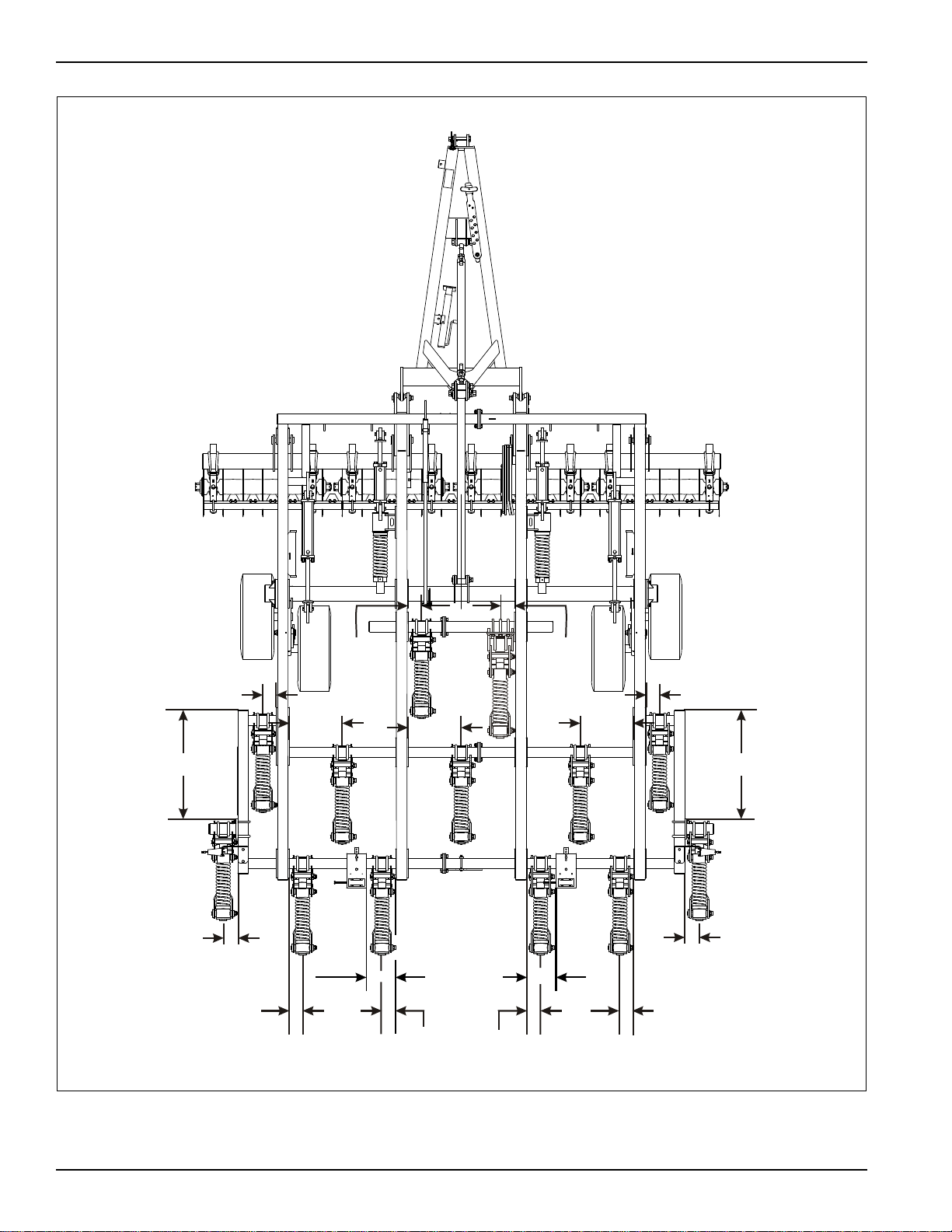

Figure 2-7: Auto Reset Shank and Light Bracket Placement (2110-13)
11”
2110-13 shank-light placement
5”
4-7/8”
5-1/8”
5-1/8”
5-1/8”
20” 20-1/8”
5”
20”
5-1/8”
5-1/8”
5-1/8”
11”
RT
NOTE: LT AND RT INDICATES
THE RECOMMENDED PLACEMENT
FOR TWISTED SHOVELS.
LTRT
LTRT
LTRT
RTLT RT
RTLT
LT
42-3/4”
4-7/8”
42-3/4”

STANDARD SPECIFICATIONS
2-11
Figure 2-8: Rigid Shear Shank and Light Bracket Placement (2110-13)
2110-13 rigid shear shank placement
11”
5”
4-7/8”
5-1/8”
20” 20-1/8”
5”
20”
5-1/8”
5-1/8”
5-1/8”
11”
RT
NOTE: LT AND RT INDICATES
THE RECOMMENDED PLACEMENT
FOR TWISTED SHOVELS.
LT
RT
RT
LT RT
RTLT
LT
42-3/4”
4-7/8”
42-3/4”
5-1/8”
5-1/8”
LT
RT
LT
RT

2-12 F-479-0310 Edition
STANDARD SPECIFICATIONS

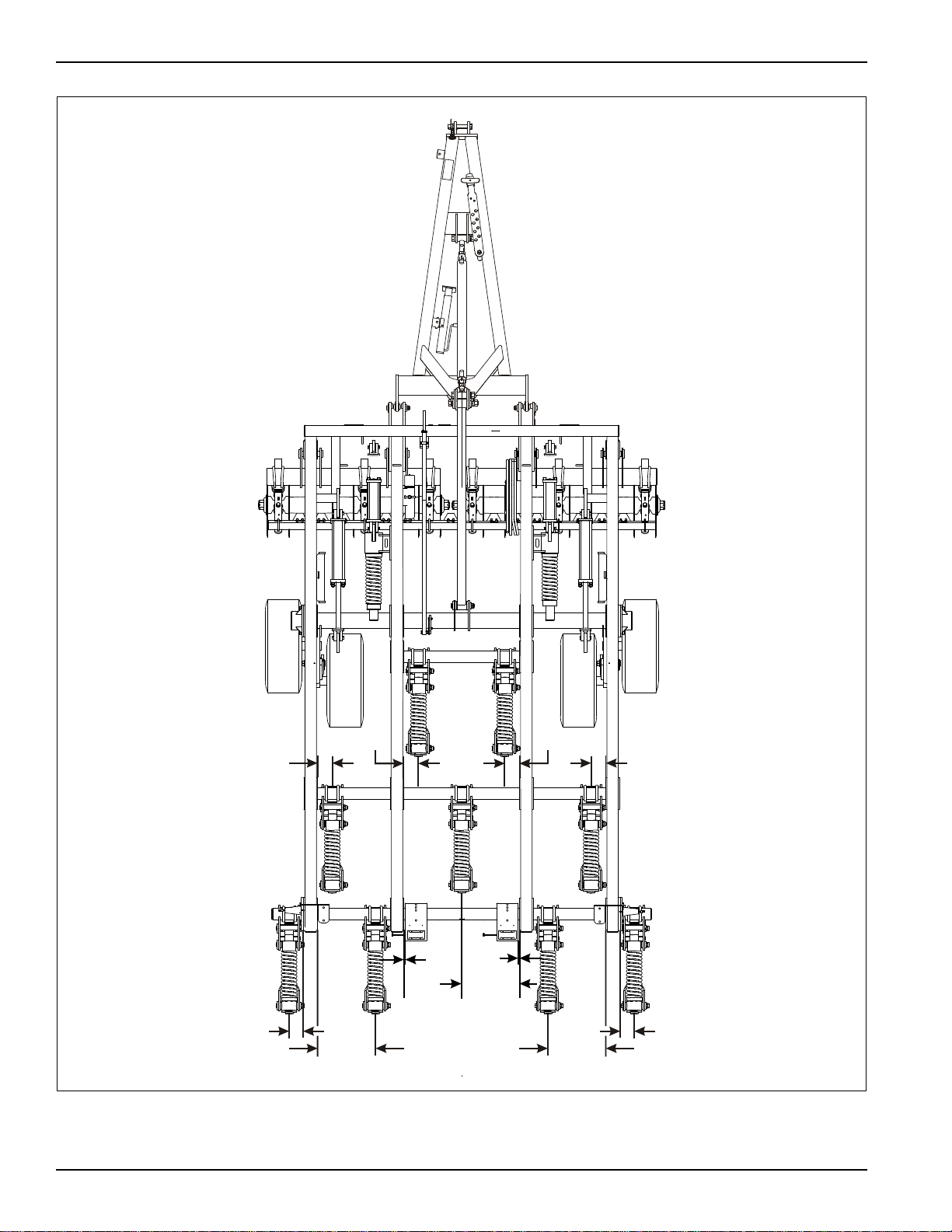

Figure 2-9: Auto Reset Shank and Light Bracket Placement (2110-15)
2110-15 shank-light placement
19-3/4”
8-1/2”
5-1/8”
5-1/8”
20-1/8”
5-1/8”
5-1/8”
5”
5”
4-7/8”
4-7/8”
5-3/8”
5-3/8”
5-1/8”
5-1/8”
20-1/8”
8-1/2”
20-1/8”
NOTE: LT AND RT INDICATES
THE RECOMMENDED PLACEMENT
FOR TWISTED SHOVELS.
LTRT RT
LTRT RT LT
LTRT
LT RT
LT RT
LT RT
