Model 875 Series
Tilloll
Operator’s Manual

F-60-0111 Edition i
Table of Contents
1 Introduction
Understanding Safety Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 Standard Specifications
3 Assembly Instructions
Frame Assembly - Rigid Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Frame Assembly - 15’ Fold Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Frame Assembly - Wing Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Shank, Clamp, and Sweep Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Gauge Wheel Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Hydraulic Lift Installation - Rigid and 15’ Fold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Hydraulic Lift Installation - Fold Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Hydraulic Fold Installation - All Fold Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Disc Gang and Spray Shield Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Reel Assembly Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Harrow Assembly Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Pull Hitch Installation - 15’ Fold Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Pull Hitch Installation - All Other Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Warning Lights Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
4 Operation and Maintenance
Tractor Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Tilloll Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Attaching to the Tractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Field Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Disc Gang Scraper Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Spray Shield Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Spray Boom Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

ii F-60-0111 Edition
Reel Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Harrow Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Wheel Bearing Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Hydraulic Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
5 Troubleshooting Guide

1-1
Chapter 1
Introduction
The Landoll Model 875 Tilloll is a quality product designed to give years of trouble free performance. By following
each section of this manual, your system will perform as designed for you and your operation
CHAPTER 1 gives basic instructions on the use of this manual.
CHAPTER 2 gives product specifications. These specifications supply lengths and measures for your
equipment. A Standard Bolt Torque Table is provided to give guidelines for bolt torques to
be used when servicing this product.
CHAPTER 3 contains assembly instructions for your Model 875 Tilloll. When these procedures are
correctly followed, your equipment should provide you years of trouble-free operation
and service.
CHAPTER 4 instructs how to operate your equipment before using it, and describes adjustments
needed. It also gives practical advice for the care and maintenance of your Landoll
equipment. Drawings in this section locate adjustment points on the equipment.
NOTE: IF THE EQUIPMENT IS IMPROPERLY ASSEMBLED OR MAINTAINED, THE
WARRANTY IS VOID. IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
[phone] or
[phone]
or FAX:
[phone]
CHAPTER 5 is a troubleshooting guide to aid in diagnosing and solving problems with the equipment.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and systems.
Refer to that manual when ordering Landoll replacement parts. Order parts from your
Landoll dealer.
WARRANTY The Warranty Registration form is included with the product documents. Fill it out and
mail it within 15 days of purchase. The Warranty is printed inside the front cover.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL MACHINE CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLICATIONS -DEPT. 55

1-2 F-60-0111 Edition
INTRODUCTION
Understanding Safety
Statements
You will find various types of safety information on the
following pages and on the machine signs (decals)
attached to the vehicle. This section explains their
meaning.
The Safety Alert Symbol means ATTENTION! YOUR
SAFETY IS INVOLVED!

DANGER

WARNING

CAUTION
NOTE
Means that failure to follow these instructions could
cause damage to the equipment or cause it to operate
improperly.
NOTE
Make sure you read and understand the information
contained in this manual and on the machine signs
(decals) before you attempt to operate or maintain this
vehicle.
The safety statements contained in this manual relate to
the operation of the Model 875 Tilloll.
Danger means a life-threatening situation exists.
Death can occur if safety measures or
instructions on this label are not properly
followed.
Warning means serious injury or death can occur
if safety measures or instructions on this label
are not properly followed.
Caution means serious equipment or other
property damage can occur if instructions on this
label are not properly followed.

2-1
Chapter 2
Standard Specifications
875 SERIES TILLOLL
MODEL
NO. WIDTH OF CUT TRANSPORT WIDTH TRANSPORT HEIGHT NO. OF SHANKS NO. OF 20” DISC BLADES ESTIMATED WEIGHT (LBS.)
875-10 10’-6” 12’-0” N/A 14 14 5,059
875-13 13’-6” 15’-0” N/A 18 20 5,753
875-15 15’-0” 16’-6” N/A 20 22 6,090
875-15F 15’-0” 9’-4” 8’-6” * 20 22 6,900
875-18 18’-0” 10’-6” 8’-6” ** 24 26 9,700
875-21 21’-0” 13’-6” 8’-6” ** 28 30 10,050
875-25 25’-6” 15’-0” 8’-6” ** 34 38 10,917
* 180° Single Fold
** 180° Fold
Specifications are subject to change without prior notification.

2-2 F-60-0111 Edition
STANDARD SPECIFICATIONS
Table 2-1: General Torque Specifications
LANDOLL CORPORATION
GENERAL TORQUE SPECIFICATIONS (REV. 4/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR GENERAL PURPOSE APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED NUTS AND CAPSCREWS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS RECEIVED CONDITION).
THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
WHEN FASTENERS ARE DRY (SOLVENT CLEANED), ADD 33% TO AS RECEIVED CONDITION TORQUE.
BOLT HEAD IDENTIFICATION MARKS INDICATE GRADE AND MAY VARY FROM MANUFACTURER TO MANUFACTURER.
THICK NUTS MUST BE USED ON GRADE 8 CAPSCREWS.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
TORQUE IS SPECIFIED IN FOOT POUNDS
UNC
Size SAE Grade 2SAE Grade 5SAE Grade 8UNF Size SAE Grade 2 SAE Grade 5SAE Grade 8
1/4-20 4 [5] 6 [7] 9 [11] 1/4-28 5 [6] 7 [9] 10 [12]
5/16-18 8 [10] 13 [16] 18 [22] 5/16-24 9 [11] 14 [17] 20 [25]
3/8-16 15 [19] 23 [29] 35 [43] 3/8-24 17 [21] 25 [31] 35 [44]
7/16-14 24 [30] 35 [43] 55 [62] 7/16-20 27 [34] 40 [50] 60 [75]
1/2-13 35 [43] 55 [62] 80 [100] 1/2-20 40 [50] 65 [81] 90 [112]
9/16-12 55 [62] 80 [100] 110 [137] 9/16-18 60 [75] 90 [112] 130 [162]
5/8-11 75 [94] 110 [137] 170 [212] 5/8-18 85 [106] 130 [162] 180 [225]
3/4-10 130 [162] 200 [250] 280 [350] 3/4-16 150 [188] 220 [275] 320 [400]
7/8-9 125 [156] 320 [400] 460 [575] 7/8-14 140 [175] 360 [450] 500 [625]
1-8 190 [237] 408 [506] 680 [850] 1-14 210 [263] 540 [675] 760 [950]
1-1/8-7 270 [337] 600 [750] 960 [1200] 1-1/8-12 300 [375] 660 [825] 1080 [1350]
1-1/4-7 380 [475] 840 [1050] 1426 [1782] 1-1/4-12 420 [525] 920 [1150] 1500 [1875]
1-3/8-6 490 [612] 110 [1375] 1780 [2225] 1-3/8-12 560 [700] 1260 [1575] 2010 [2512]
1/1-2-6 650 [812] 1460 [1825] 2360 [2950] 1/1-2-12 730 [912] 1640 [2050] 2660 [3325]
METRIC
COARSE THREAD METRIC CLASS 10.9 FASTENERS AND CLASS 10.0 NUTS AND THROUGH HARDENED FLAT WASHERS, PHOSPHATE COATED, ROCKWELL
“C” 38-45.
USE VALUE IN [ ] IF USING PREVAILING TORQUE NUTS.
Nominal
Thread
Diameter
mm
Standard Torque Nominal
Thread
Diameter
mm
Standard Torque
Newton-
Meters Foot- Pounds Newton- Meters Foot- Pounds
6 10 [14] 7 [10] 20 385 [450] 290 [335]
7 16 [22] 12 [16] 24 670 [775] 500 [625]
8 23 [32] 17 [24] 27 980 [1105] 730 [825]
10 46 [60] 34 [47] 30 1330 [1470] 990 [1090]
12 80 [101] 60 [75] 33 1790 [1950] 1340 [1450]
14 125 [155] 90 [115] 36 2325 [2515] 1730 [1870]
16 200 [240] 150 [180] 39 3010 [3210] 2240 [2380]
18 275 [330] 205 [245]

STANDARD SPECIFICATIONS
2-3
Table 2-2: Hydraulic Fitting Torque Specifications
LANDOLL CORPORATION
HYDRAULIC FITTING TORQUE SPECIFICATIONS
37oJIC, ORS, & ORB (REV. 10/97)
THIS CHART PROVIDES TIGHTENING TORQUES FOR HYDRAULIC FITTING APPLICATIONS WHEN SPECIAL TORQUES ARE NOT SPECIFIED ON PROCESS
OR DRAWING.
ASSEMBLY TORQUES APPLY TO PLATED CARBON STEEL AND STAINLESS STEEL FITTINGS ASSEMBLED WITHOUT SUPPLEMENTAL LUBRICATION (AS
RECEIVED CONDITION).THEY DO NOT APPLY IF SPECIAL GRAPHITE MOLY-DISULFIDE OR OTHER EXTREME PRESSURE LUBRICANTS ARE USED.
BRASS FITTINGS AND ADAPTERS - 65% OF THE TORQUE VALUE FOR STEEL. STAINLESS STEEL, ALUMINUM AND MONEL - THREADS ARE TO BE
LUBRICATED.
TORQUE IS SPECIFIED IN FOOT POUNDS
PARKER BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-13 15-17 13-15
-5 14-16 — 21-23
-6 20-22 34-36 25-29
-8 43-47 58-62 40-44
-10 55-65 100-110 57.5-62.5
-12 80-90 134-146 75-85
-16 115-125 202-218 109-121
-20 160-180 248-272 213-237
-24 185-215 303-327 238-262
-32 250-290 — 310-340
GATES BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 10-11 10-12 14-16
-5 13-15 — —
-6 17-19 18-20 24-26
-8 34-38 32-40 37-44
-10 50-56 46-56 50-60
-12 70-78 65-80 75-83
-14 — 65-80 —
-16 94-104 92-105 111-125
-20 124-138 125-140 133-152
-24 156-173 150-180 156-184
-32 219-243 — —
AEROQUIP BRAND FITTINGS
Dash Size 37 Degree JIC O-Ring (ORS) O-Ring Boss (ORB)
-4 11-12 10-12 14-16
-5 15-16 — 18-20
-6 18-20 18-20 24-26
-8 38-42 32-35 50-60
-10 57-62 46-50 72-80
-12 79-87 65-70 125-135
-14 — — 160-180
-16 108-113 92-100 200-220
-20 127-133 125-140 210-280
-24 158-167 150-165 270-360
-32 245-258 — —

2-4 F-60-0111 Edition
STANDARD SPECIFICATIONS
Figure 2-1: 875-10 Shank Placement Assembly
875-10 shank placement

STANDARD SPECIFICATIONS
2-5
Figure 2-2: 875-13 Shank Placement Assembly
875-13 shank placement

2-6 F-60-0111 Edition
STANDARD SPECIFICATIONS
Figure 2-3: 875-15 Shank Placement Assembly
SHANK SPACING - 9” ON CENTER
875-15 shank placement
DISC GANG AND SPRAY SHIELD LOCATION

STANDARD SPECIFICATIONS
2-7
Figure 2-4: 875-15F Shank Placement Assembly
SHANK SPACING - 9” ON CENTER
875-15f shank placement
DISC GANG AND SPRAY SHIELD LOCATION

2-8 F-60-0111 Edition
STANDARD SPECIFICATIONS

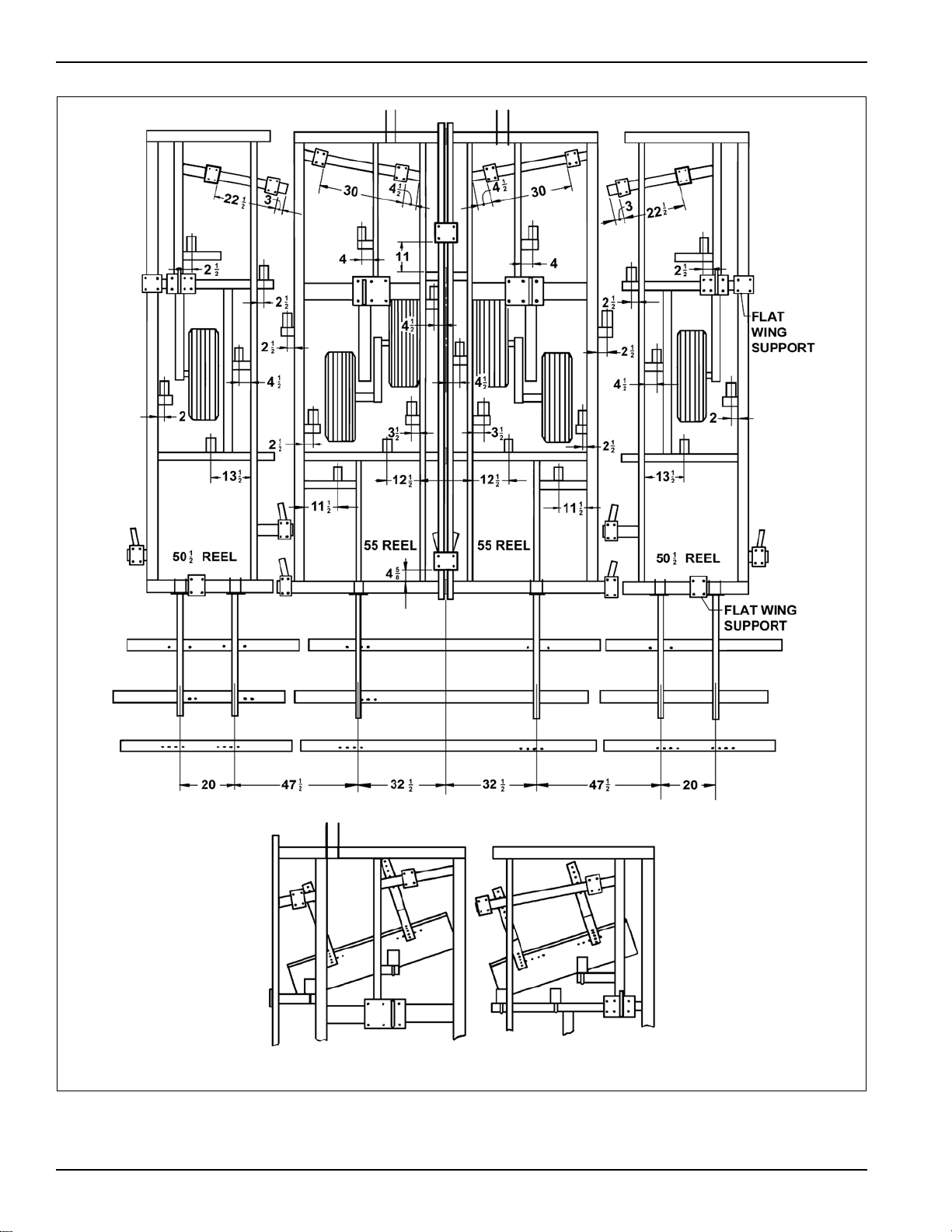

Figure 2-5: 875-18 Shank Placement Assembly
SHANK SPACING - 9” ON CENTER
875-18 shank placement
DISC GANG AND SPRAY SHIELD LOCATION

STANDARD SPECIFICATIONS
2-9
Figure 2-6: 875-21 Shank Placement Assembly
SHANK SPACING - 9” ON CENTER
875-21 shank placement
DISC GANG AND SPRAY SHIELD LOCATION

2-10 F-60-0111 Edition
STANDARD SPECIFICATIONS

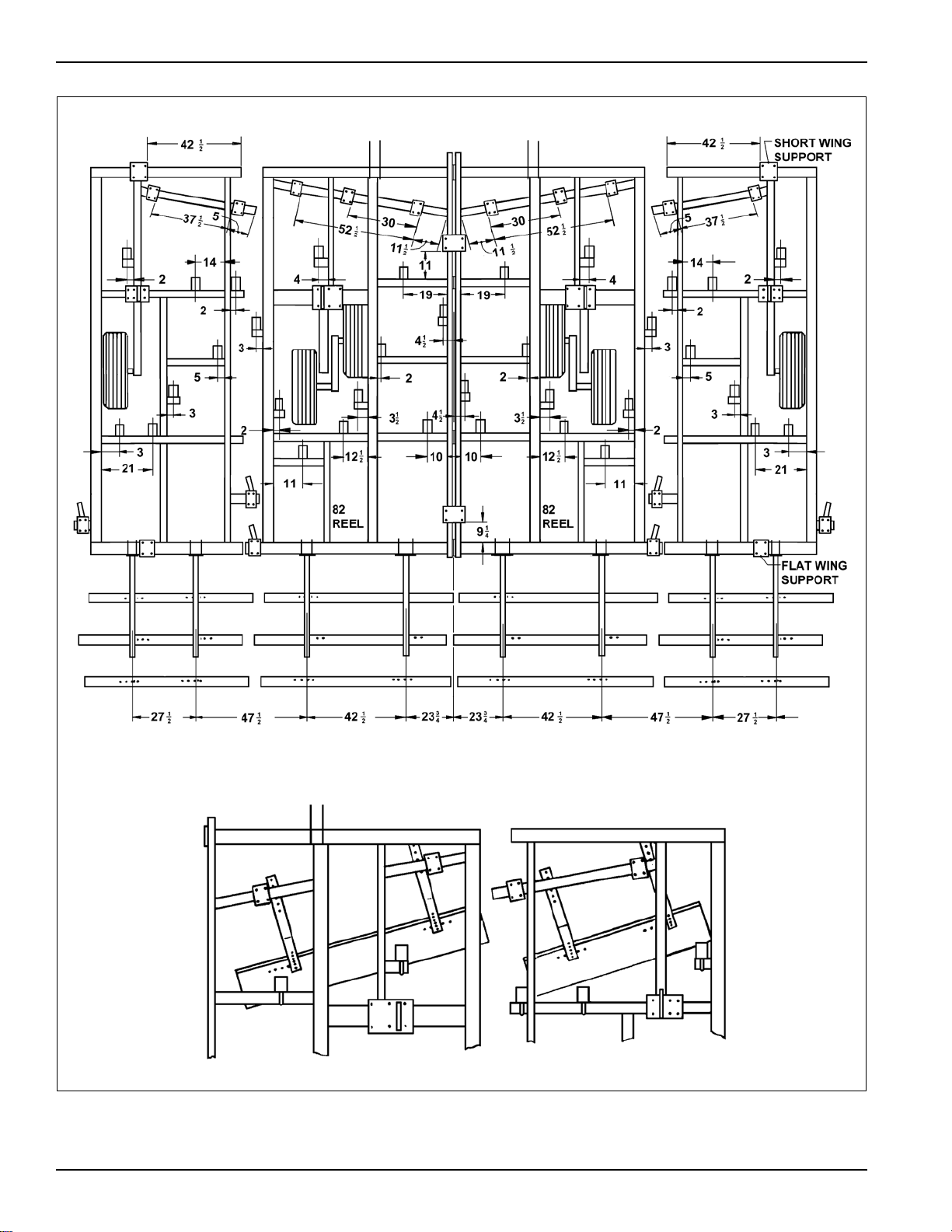

Figure 2-7: 875-25 Shank Placement Assembly
SHANK SPACING - 9” ON CENTER
875-25 shank placement
DISC GANG AND SPRAY SHIELD LOCATION

3-1
Chapter 3
Assembly Instructions
It is very important that your new 875 Series Tilloll be
properly assembled, adjusted and lubricated before use.
Illustrations to assist with the assembly process are
provided in “Standard Specifications” on
page 2-1.They show proper shank, disc gang and
mounting bracket spacings. Illustrations in this section
show proper assembly procedures. Remove paint from
grease fittings. Replace any grease fittings that are
damaged or missing. Be sureto return screws, clips, etc.,
to their original locations.
To insure alignment of assemblies, leave the nuts loose
until completion of final assembly. Use lock washers or
flat washers as specified. Spread all cotter pins.
After completion of final assembly, tighten all nuts
evenly to prevent misalignment, distortion or binding.
Tighten all screws and nuts to the recommended torques
shown in Table 2-1.

DANGER

DANGER

WARNING

CAUTION
To prevent accidental lowering:
1. All hydraulically elevated equipment must be
locked out using the cylinder lockouts:
2. Lower equipment to the ground while servicing
or when it is idle.
Failure to take measures to prevent accidental
lowering may result in serious personal injury or
death.
Disc blades are extremely sharp. Exercise
extreme care when working on or near disc
blades. Do not allow discs to roll over or fall onto
any bodily part. Do not allow wrenches to slip
when working near disc blades. Never push
wrenches toward disc blades. Do not climb over
machine above disc blades. Failure to stay clear
of disc blade edges can cause serious personal
injury or death.
Do not attempt to lift heavy parts (such as the
frame, disc gangs, rock shaft, and pull hitch)
manually. Use a hoist or a fork lift to move these
parts into position.
Be sure to bleed the hydraulic system of all air in
lines after installation. Failure to bleed the system
of all air can result in permanent equipment
damage.

3-2 F-60-1110 Edition
ASSEMBLY INSTRUCTIONS

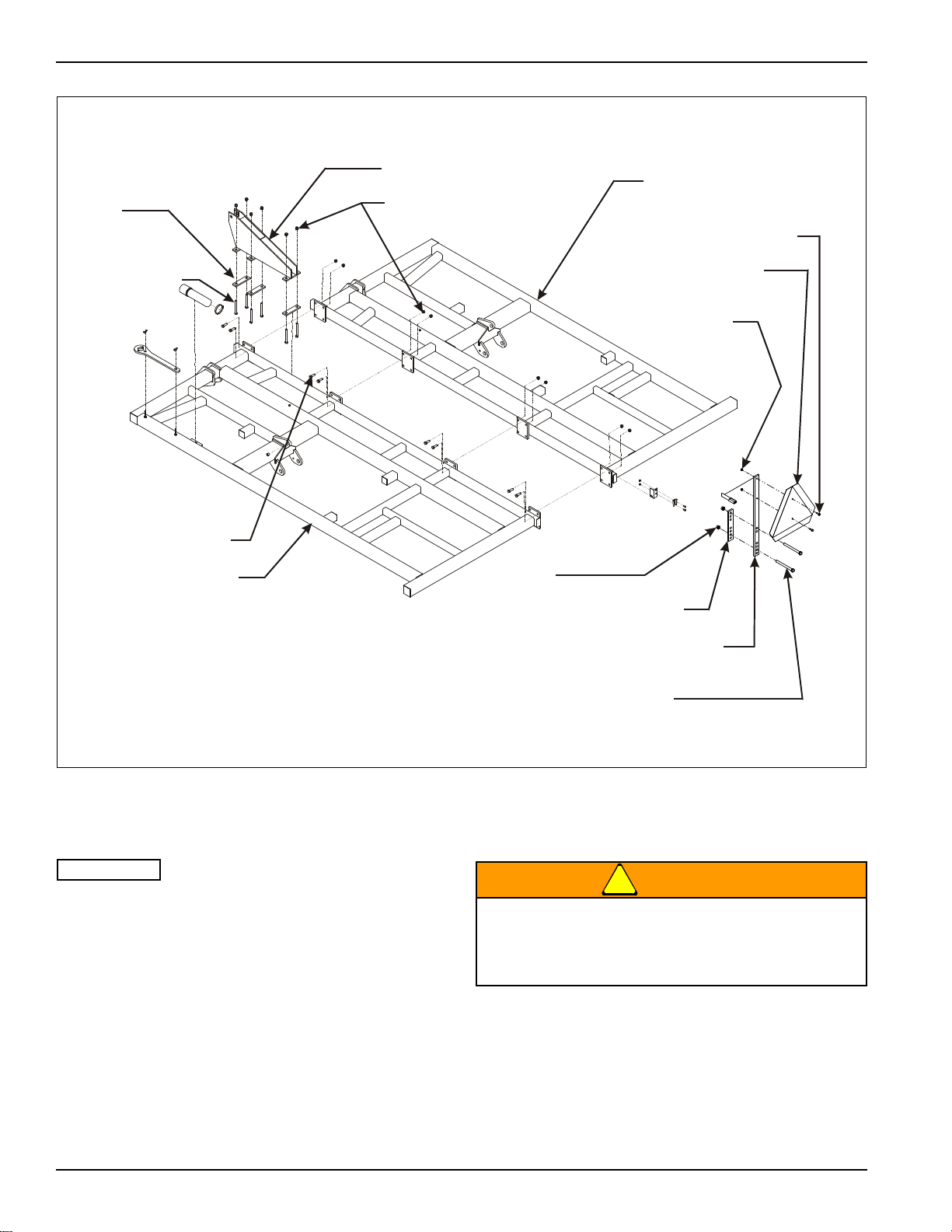

Figure 3-1: Frame Assembly - Rigid Models
Frame Assembly - Rigid Models
IMPORTANT
Read all safety precautions at the front of the section
before attempting any of the following procedures.
1. Bolt frame halves together using 5/8-11 x 2 hex head
cap screws and hex lock nuts (See Figure 3-1.)
2. Attach SMV mounting bracket and warning light bar
to rear frame near the center using 1/2-13 x 5-1/2
hex head cap screw and hex lock nuts.
3. Attach SMV emblem to SMV mounting bracket using
1/4-20 x 1 hex head cap screws and hex lock nuts.
4. Place frame assembly on stands approximately 36"
high.
5. Install mast to frame using coulter support bars,
5/8-11 x 6 hex head cap screws, and hex lock nuts.

WARNING
MAST
5/8-11 HEX LOCK NUT RIGHT HALF FRAME
1/4-20 X 1 HEX
HEAD CAP SCREW
SMV EMBLEM
1/4-20 HEX
LOCK NUT
1/2-13 HEX LOCK
NUT
WARNING LIGHT BAR
SMV MOUNTING BRACKET
1/2-13 X 5-1/2 HEX
HEAD CAP SCREW
COULTER
SUPPORT
BAR
5/8-11 X 6
HEX HEAD
CAP SCREW
5/8-11 X 2 HEX
HEAD CAP SCREW
LEFT HALF FRAME
545-106192-rig
Do not attempt to lift heavy parts (such as the
frame, disc gangs, rock shaft, and pull hitch)
manually. Use a hoist or a fork lift to move these
parts into position.

ASSEMBLY INSTRUCTIONS
3-3

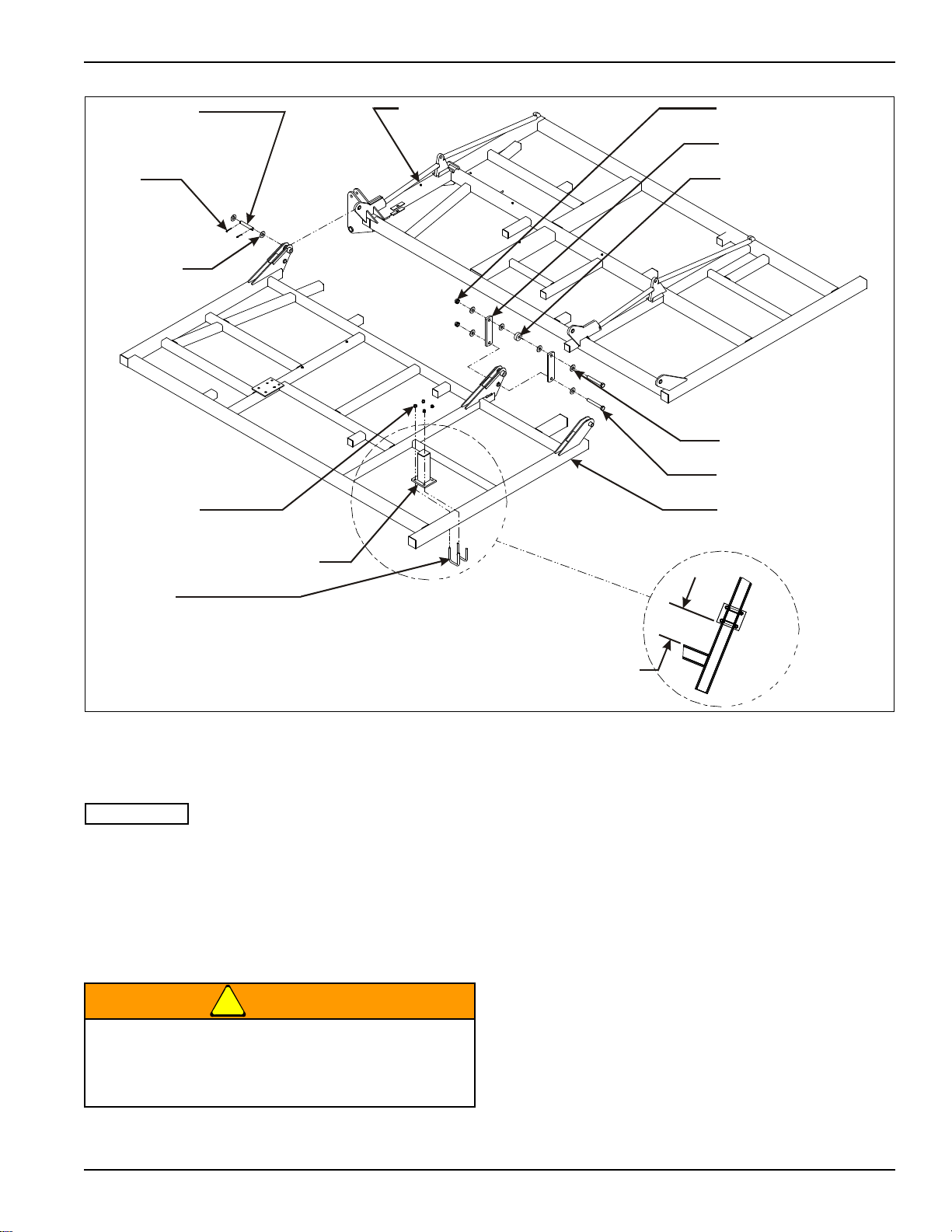

Figure 3-2: Frame Assembly - 15’ Fold Model
Frame Assembly - 15’ Fold Model
IMPORTANT
Read all safety precautions at the front of the section
before attempting any of the following procedures.
1. Connect main frame and folding wing together using
hinge pin, 1" flat washers, and 1/4 x 2 cotter pins
(See Figure 3-2.)
2. Place frame assembly on stands approximately 36"
high.

WARNING
MAIN FRAME
HINGE PIN
1/4 X 2 COTTER
PIN
1” FLAT
WASHER
5/8-11 HEX
LOCK NUT
FLAT WING SUPPORT
(FOR FOLD MODELS ONLY)
U-BOLT
1-8 HEX LOCK NUT
WING BRACKET
ROLLER WING
EXTENSION
1” FLAT WASHER
HINGE PIVOT BOLT
FOLDING WING
10” FOR PLACEMENT
545-106192-op
Do not attempt to lift heavy parts (such as the
frame, disc gangs, rock shaft, and pull hitch)
manually. Use a hoist or a fork lift to move these
parts into position.

3-4 F-60-1110 Edition
ASSEMBLY INSTRUCTIONS

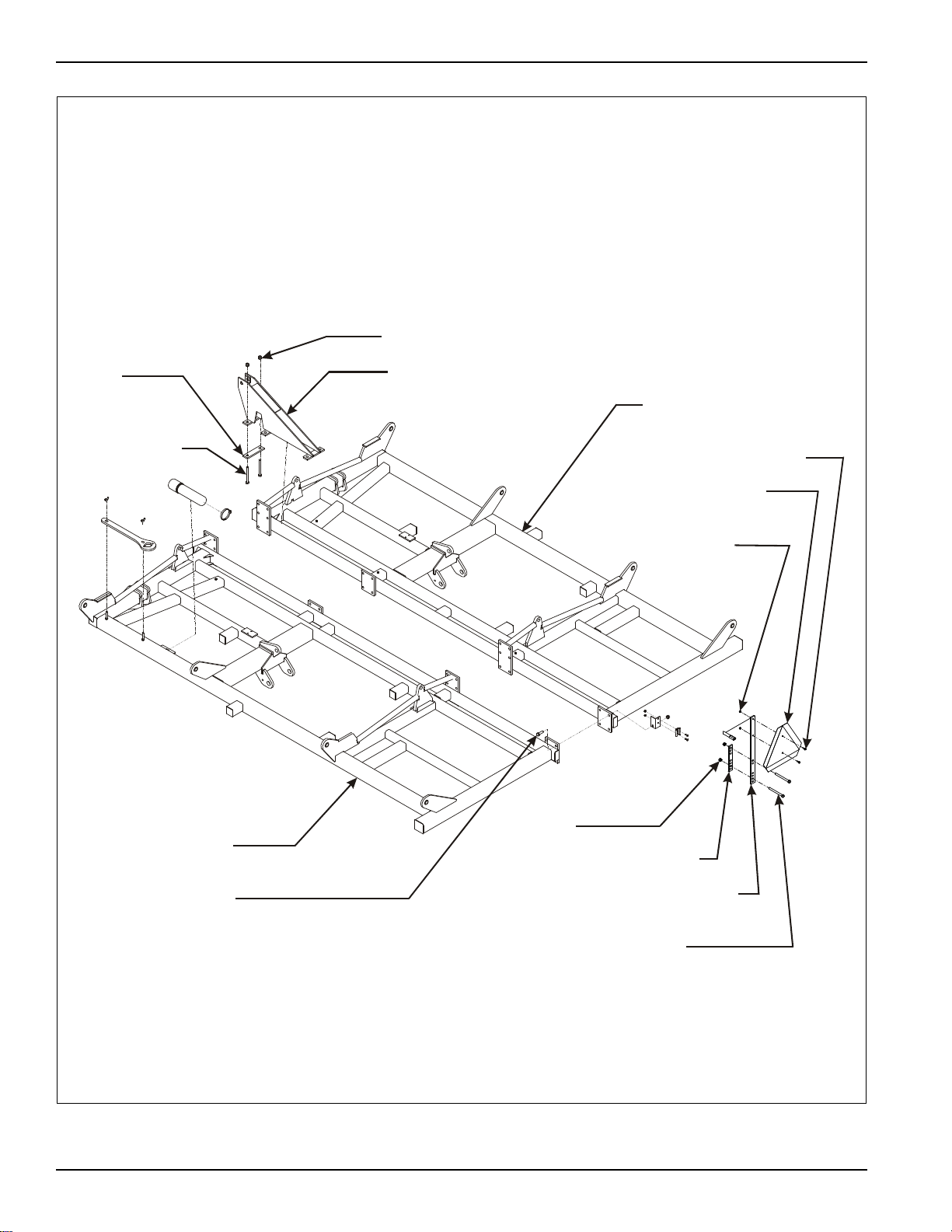

Figure 3-3: Frame Assembly - Fold Models
545-106135-op
5/8-11 HEX LOCK NUT
MAST
RIGHT HALF FRAME
1/4-20 X 1 HEX
HEAD CAP SCREW
SMV EMBLEM
1/4-20 HEX
LOCK NUT
1/2-13 HEX LOCK
NUT
WARNING LIGHT BAR
SMV MOUNTING BRACKET
1/2-13 X 5-1/2 HEX
HEAD CAP SCREW
COULTER
SUPPORT
BAR
5/8-11 X 6
HEX HEAD
CAP SCREW
LEFT HALF FRAME
5/8-11 X 2 HEX
HEAD CAP SCREW
