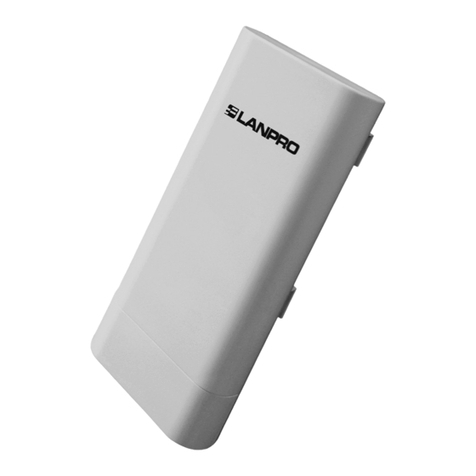

Lanpro LP-1540ai User manual

Wireless – Equipment
www.lanpro.com
123 Manual, LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band for Outdoor service,
PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP of 27dBm (0.5W).
Recovery of the LP-1540ai to its original AP+BRIDGE MODE + DHCP CLIENT default conguration.
LP1540ai_M123_ENC01W
123 Manual, LP-1540ai High Powered 300 Mbps Access
Point for the 2.4 GHz WiFi band for Outdoor service,
PoE powered with Multiple Physical and Virtual
interfaces that supports VLAN
and has an EIRP of 27dBm (0.5W).
Recovery of the LP-1540ai to its original AP+BRIDGE
MODE + DHCP CLIENT default conguration.
www.lanpro.com
Wireless - Equipment - 123 Manual, LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band
for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP
of 27dBm (0.5W). Recovery of the LP-1540ai to its original AP+BRIDGE MODE + DHCP CLIENT default conguration.
2
Please check the package contents which should contain:
Purpose of this 1 2 3 Manual:
1
2
a.- One LP-1540ai Access Point
b.- One AC/DC power converter with 110 V
to 220VA input and 12 VDC output
c.- One Patch Cord
d.- One Documentation CD.
e.- One passive PoE injector.
As shown in Figure 1. Figure 1
In this 123 Manual we will explain how to perform the recovery of the LP-1540ai to its original AP+BRIDGE MODE +
DHCP CLIENT default conguration. On this mode, the LP-1540ai radio would be supplying internet to the surrounding
areas, just plug in ANY port of a given network. No need for special congurations. This is one of the most popular
and versatile congurations available. Also, you can download the template for a faster conguration process.
For other options, please consult the available M123’s in our site: at www.lanpro.com. Please proceed to physically
connect the equipment as per the chosen conguration shown in Figures 2.1, 2.2, 2.3 and 2.4.
Figure 2.1
Figure 2.3
Figure 2.2
Internet
Internet
Figure 2.4
www.lanpro.com
Wireless - Equipment - 123 Manual, LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band
for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP
of 27dBm (0.5W). Recovery of the LP-1540ai to its original AP+BRIDGE MODE + DHCP CLIENT default conguration.
3
3
Please proceed to remove the base as shown in Figure 3
in order to start the installation.
Figure 3
4
5
Fix the equipment on the selected location, as shown in Figure 4.
Figure 4
6
8
7
9
Proceed to connect the LP-1540ai as shown in paragraph
number 4.
Connect the PC or Laptop to the data network where the
LP-1540ai is connected, as shown in Figures 2.1 through
2.4.
Once connected, please proceed to congure it.
Remember that a network connection and AC
mains should be available at the location where the
LP-1540ai is going to be installed or the network plus
PoE power circuit connection.
CAUTION:
You must decide how to power the LP-1540ai, via the AC mains power supply or through the PoE option.
Please take the precaution of not powering the equipment through both ways because the equipment can
be damaged.
www.lanpro.com
Wireless - Equipment - 123 Manual, LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band
for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP
of 27dBm (0.5W). Recovery of the LP-1540ai to its original AP+BRIDGE MODE + DHCP CLIENT default conguration.
4
Real life scenario.
Red cable to Ethernet port on the
computer and to LAN PORT on the PoE
injector, (red cable) and then from the
PoE port on the injector to the POE port
on the LP-1540ai radio. As you see, in
the Figure 6, no power supply needed
to power-up the unit.
PoE POWER SUPPLY CONNECTION MODE
Equipment connection diagram:
Figure 5
Figure 6
10 Please reset the unit, before the following steps:
SMA HOLES FOR EXTERNAL ANTENNA INTERFACE
Reset LED
DC Interface WAN LAN PoE
CAUTION:
Please DO NOT use and external power adapter if you are using de POE injector.
LAN or computer
to Ethernet port
labeled LAN on PoE
Ethernet port on wireless
AP to Ethernet port
labeled PoE on adapter
www.lanpro.com
Wireless - Equipment - 123 Manual, LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band
for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP
of 27dBm (0.5W). Recovery of the LP-1540ai to its original AP+BRIDGE MODE + DHCP CLIENT default conguration.
5
13
12
11
Go to Windows Start When box pops –up type:
Network and Sharing, as shown in Figure 7.
Then select option Control Panel as
shown if Figure 8 and select Network
and sharing Center.
In Network and Sharing Center go to Connect and disconnect and click on the option Local area Connection,
as shown in Figure 9.
In the Local area Connection Status window select Properties, as shown in Figures 10 and 11.
Figure 9
Figure 10 Figure 11
STEP 1. WINDOWS CONFIGURATION / Administrator privileges required.
Figure 7 Figure 8
www.lanpro.com
Wireless - Equipment - 123 Manual, LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band
for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP
of 27dBm (0.5W). Recovery of the LP-1540ai to its original AP+BRIDGE MODE + DHCP CLIENT default conguration.
6
In the Local Area Connection Status window, select the
option Internet Protocol version 4 (TCP/IPv4) and then
Properties, please be sure that everything is checked as
show in Figure 12 in which these are the options by default:
You will be able to manage your LANPRO LP-1540ai by opening your preferred browser in this address: http://192.168.1.1,
as shown in Figure 14, and using these credentials: Username: admin, Password: admin and selecting Login.
The main LanPro LP-1540ai conguration page will pop-up as shown in Figure 15.
Please select option Use the following IP address: and
use these parameters shown in Figure 13 and hit OK.
14 15
16
17
Figure 12 Figure 13
Figure 14
Figure 15
www.lanpro.com
Wireless - Equipment - 123 Manual, LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band
for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP
of 27dBm (0.5W). Recovery of the LP-1540ai to its original AP+BRIDGE MODE + DHCP CLIENT default conguration.
7
the page shown in Figure 16,
select the option Network.
Please follow the next procedure:
Then select the option
AP Bridge and Save as
shown in Figure 17.
Now go to Interfaces and
click on Edit, as shown in
Figure 18.
18
19
20
Figure 16
Figure 17
Figure 18
STEP 2. How to use the LP-1540ai as an Access Point.
www.lanpro.com
Wireless - Equipment - 123 Manual, LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band
for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP
of 27dBm (0.5W). Recovery of the LP-1540ai to its original AP+BRIDGE MODE + DHCP CLIENT default conguration.
8
A new window shown in
Figure 19 called Interfaces-
Lan will pop-up, select
Protocol and scroll to DHCP
Client and select: Switch
Protocol, then select Save
& Apply.
After 15 seconds please
unplug the network cable
from your PC/Laptop and
plug in directly to your
router or switch. Now you
will able to use your subnet
to continue the conguration
process.
In the management page
go to Network and then
to WiFi, as shown in
Figure 20.
In the pop up window shown
in Figure 21, select: Edit.
21
22
23
Figure 19
Figure 20
Figure 21
STEP 3. Wireless Conguration
LanPro is continuously improving its products and reserves the right to change
specications and availability without prior notice.
www.lanpro.com
Wireless - Equipment - 123 Manual, LP-1540ai High Powered 300 Mbps Access Point for the 2.4 GHz WiFi band
for Outdoor service, PoE powered with Multiple Physical and Virtual interfaces that supports VLAN and has an EIRP
of 27dBm (0.5W). Recovery of the LP-1540ai to its original AP+BRIDGE MODE + DHCP CLIENT default conguration.
9
24
Now you can select
Channel and Transmit
Power according to your
requirements. In windows
shown in Figure 22, go and
rename the ESSID, select
an encryption method and
create a key if it is required.
Note: KEY created using
the template= 1234567890,
then go and Save &Apply.
Figure 22
LanPro is continuously improving its products and reserves the right to change
specications and availability without prior notice.
