Lattice Semiconductor iCE40LM4K User manual

January 2014
EB83_01.0
iCE40LM4K Sensor Evaluation Kit
User’s Guide

2
iCE40LM4K Sensor Evaluation Kit
Introduction
Thank you for choosing the Lattice iCE40LM4K Sensor Evaluation Kit. This guide describes how to begin using the
iCE40LM4K Sensor Evaluation Kit, an easy-to-use platform for rapidly prototyping system control designs using an
iCE40LM FPGA. Along with the evaluation board and accessories, this kit includes a pre-loaded demo that allows
communication between the iCE40LM4k Sensor Evaluation Kit and a Qualcomm Snapdragon APQ8060A board
(not included in the package and may be purchased from Intrinsyc). The content of this user’s guide includes an
overview of the features of the board and a step by step guide to using the iCE40LM4K Sensor Evaluation Kit with
the Qualcomm Snapdragon APQ8060A.
Figure 1. iCE40LM4K Daughter Card
CAUTION: Static electricity can severely shorten the lifespan of electronic components. Be careful when handling
the iCE40LM4K Sensor Evaluation Kit to prevent damage from ESD.
IR Tx
Humidity and Temperature
IR Rx
Hall
RGB Ambient Light
Proximity
Barometer
Accelerometer
Gyroscope
iCE40LM4K
Compass

3
iCE40LM4K Sensor Evaluation Kit
Features
The iCE40LM4K Sensor Evaluation Kit includes:
•iCE40LM4K Evaluation Board – The ICE40LM4k Evaluation Board features the following on-board compo-
nents and circuits:
– iCE40LM4K Device in the 25 WLCSP Package
– High-Current LED Output
– Infrared Transmit and Receive
– Barcode LED/Emulation
– Configuration SPI Flash
– On-board FT2232HL for USB Programming/Interface
– Numerous Sensors
– Proximity Sensor (AMS-TAOS TMD27711)
– RGB Color, Infrared, and Temperature Sensors (Maxim MAX44006)
– Barometric Pressure Sensor (Bosch BMP085)
– Accelerometer and Gyro (ST Micro LSM330DLC)
– Magnetometer/Compass/Accelerometer (ST Micro LSM303DLHCTR)
– Humidity and Temperature Sensor (Sensirion SHT20)
– Hall Sensor (Rohm BU52051NVX)
• SMA Connector for External Clock Input
• On-Board Oscillator
In addition to the iCE40LM4K Evaluation Board, an adapter board for connection to Dragon Board and a connector
cable are also included. This secondary PCB connected by a cable allows the iCE40LM4k Sensor Evaluation Kit to
interface with a Qualcomm 8060A Dragon Board (Dragon Board is available separately and not sold by Lattice).
When connected properly, a sensor hub demonstration can be conducted.

4
iCE40LM4K Sensor Evaluation Kit
Sensor Hub Demo Setup
The demo setup consists of the Intrinsyc Dragon Board Gen2, Sensor Fusion Board, and flexible connecting cable.
To set up the Sensor Hub demo, connect the Sensor Fusion Board to the Intrinsyc Adapter board which is placed
on the Intrinsyc Dragon Board Gen2 as shown in Figure 2
Figure 2. Intrinsyc Dragon Board Gen2
Sensor Fusion Flexible Connecting Intrinsyc
Dragon Board
Board Cable
OTG Mini Touch Screen Intrinsyc DragonBoard
Power Supply

5
iCE40LM4K Sensor Evaluation Kit
Sensor Fusion Board Default Jumper Settings
This section provides the details of the Sensor Fusion Board jumper settings:
• Set J2 jumper on OSC mode in EXT CLK.
• Set J4 jumper on BAR.
• Set J5 jumper on HALL.
• Do not set J7 jumper.
• Set J8 jumper.
• Do not set J10 jumper.
• Do no set J11 jumper.
• Set J12 jumper.
• Do not set J15 jumper.
• Set both the J16 jumpers vertically.
• Set jumper on IDD-CORE and IDD-TOP (J18 & J19).
• Set VCCIO0 (J22) to 1.8V.
• Set VCCIO2 (J17) set to 3.3V.
• Set J20 jumper on USB mode.
Connecting the Sensor Fusion Board to the Intrinsyc Dragon Board
To connect the Sensor Fusion Board to the Intrinsyc Dragon Board
1. Power-off the Intrinsyc Dragon Board.
2. Connect the Intrinsyc Dragon Board end of the processor configuration cable to the Intrinsyc Adapter board
mounted on the Intrinsyc Dragon Board.
i. The marked pin of the cable connector should be connected to pin 1 of the connector on the Intrinsyc
Adapter board near the white dot.
3. Connect the smaller connector on other end of the cable to the J21 connector of the Sensor Fusion Board.
i. The marked pin of the cable connector should be connected to pin 1 of the J21 connector near the
white dot.
4. Connect the larger connector on the other end of the cable to the J13 connector of the Sensor Fusion Board.
i. The marked pin of the cable connector should be connected to pin 1 of the J21 connector near the
white dot.
5. Power-on the Intrinsyc Dragon Board after the above connections are completed.
Note: Do not connect the mini USB power cable to the Sensor Fusion Board when it is connected to the Intrinsyc
Dragon Board.

6
iCE40LM4K Sensor Evaluation Kit
Figure 3 shows the connections between the Sensor Fusion Board and the Intrinsyc Dragon Board.
Figure 3. Connecting Sensor Fusion Board to Intrinsyc Dragon Board
5V fly wire (supplied)
to be connected between
+5V on the Intrinsyc Adapter board
(plugged in) and the C1300 right side
terminal (soldered) on the Intrinsyc
Dragon Board
Jumper to be set
at 3.3V
Marked end of cable connected to
pin1 of the Intrinsyc Adapter board
Marked end of smaller connector,
connected to pin1 of J21 on the
Sensor Fusion Board
Marked end of larger connector,
connected to pin1 of J13 on the
Sensor Fusion Board

7
iCE40LM4K Sensor Evaluation Kit
Sensor Fusion Board Details
Figure 4 shows the details of the Sensor Fusion Board.
Figure 4. Sensor Fusion Board
D3 LED
Power
Switch
Mini USB
Connector
J16
Jumpers
J21
Jumper
Switch
PWR
SEL
J20
J13
Jumper

8
iCE40LM4K Sensor Evaluation Kit
Flashing System Image and Boot Image to Intrinsyc Dragon Board
Note that this procedure is not required if the Intrinsyc Dragon Board has already been flashed with the system
image and boot image (cd Lightning_Demos_Drop_WITH_APK_INSTALL/Dragonboard_boot_images/).
To flash the system image and boot image to the Intrinsyc Dragon Board:
1. Connect the Intrinsyc Dragon Board USB port to your host system through the OTG (mini-USB).
i. Download and install android-sdk. Android-sdk for Linux and Windows environment at 
http://developer.android.com/sdk/index.html. 

Set <Installation path>/android_sdk/platform-tools/ to the PATH variable.
2. Run the command below in the terminal/command prompt.
#sudo –s

Note: This command is applicable only for Linux machines. For Windows machine administrative permission is
necessary.
3. Reboot the Intrinsyc Dragon Board in fastboot mode.
i. Keep Button Vol / Zoom + pressed on the Intrinsyc Dragon Board during restart.
If the board is already On in adb mode, use the command below for fastboot mode
#adb reboot bootloader
ii. When the Intrinsyc Dragon Board is in FASTBOOT mode, a white screen comes on with only Intrinsyc
name displayed on it.
iii. Execute the command below in the terminal/command prompt to list the fastboot device number and
its name. 
#fastboot devices
The board is now ready to be flashed with boot.img.
4. Enter the command below to flash system image.
#fastboot flash system system.img
If flashing is successful, OKAY and Finished comments are displayed on the terminal.
5. Enter the command below to flash boot.img
#fastboot flash boot boot.img
If flashing is successful, OKAY and Finished comments are displayed on the terminal.
6. Enter the command below reboot the board for current boot.img.
#fastboot reboot
7. After reboot, go to Settings > Developer options > Stay awake.

9
iCE40LM4K Sensor Evaluation Kit
Installing Sensor Hub apk to Android
To flash the system image and boot image to the Intrinsyc Dragon Board:
1. Connect the Intrinsyc Dragon Board USB port to your host system through the OTG (mini-USB).
2. Run the command below in the terminal/command prompt.
#sudo –s

Note: This command is applicable only for Linux machines. For Windows machine administrative permission is
necessary.
3. Use below commands on the terminal to establish and verify 'adb' connection.
#adb kill-server
#adb start-server
#adb devices
If the connection is successful, the device id is displayed on the terminal.
4. Run the command below to install the Sensor Hub apk to the Intrinsyc Dragon Board.
#cd Lightning_Demos_Drop_WITH_APK_INSTALL/Sensor_Hub_Demo_Quick_Strart
/Android_Apllication
Note: This step should be performed only if not currently in the
Lightning_Demos_Drop_WITH_APK_INSTALL/Sensor_Hub_Demo_Quick_start/Android_Apllication/ folder
#adb install Sensor_Hub_Demo.apk

Demo Procedure
To execute the demo:
1. Restart Intrinsyc Dragon Board by removing and re-plugging in the power supply, with the Sensor Fusion
Board connected to it.

When connecting the Sensor Fusion Board to Intrinsyc Dragon Board, make sure that jumper J20 on the Sen-
sor Fusion Board is in DRG mode.
2. Wait for Android boot sequence to complete and the home screen to appear.
3. Unlock the screen. Go to the Android application menu and open Sensor_Hub_LP3.5k_Intrinsyc.
4. Wait for the Processor Configuration to be completed. This is indicated by the lighting of the D3 LED on the
Sensor Fusion board.
5. The sensor data is displayed on the Sensor_Hub_LP3.5k_Intrinsyc application.

10
iCE40LM4K Sensor Evaluation Kit
Sensor_Hub_LP3.5k_Intrinsyc Application Features
The Sensor_Hub_LP3.5k_Intrinsyc application provides the following features:
• Temperature and pressure data gives the atmosphere pressure in kPa and room temperature in degree Celcius.
• Compass image points to the magnetic north w.r.t the Sensor Fusion Board.
• Light sensor progress bar indicates the intensity of light form 0 – 4000 lux.
• Accelerometer GUI indicates acceleration in x,y and z direction. The dots indicate the direction and acceleration.
• Gyroscope GUI shows the graphical meter to display the angular rate in x,y and z direction.
• Humidity data gives humidity of the environment in %RH(Relative Humidity).
Ambient RGB GUI indicates Red, Green, Blue light values.
Figure 5 shows the Sensor_Hub_LP3.5k_Intrinsyc application interface.

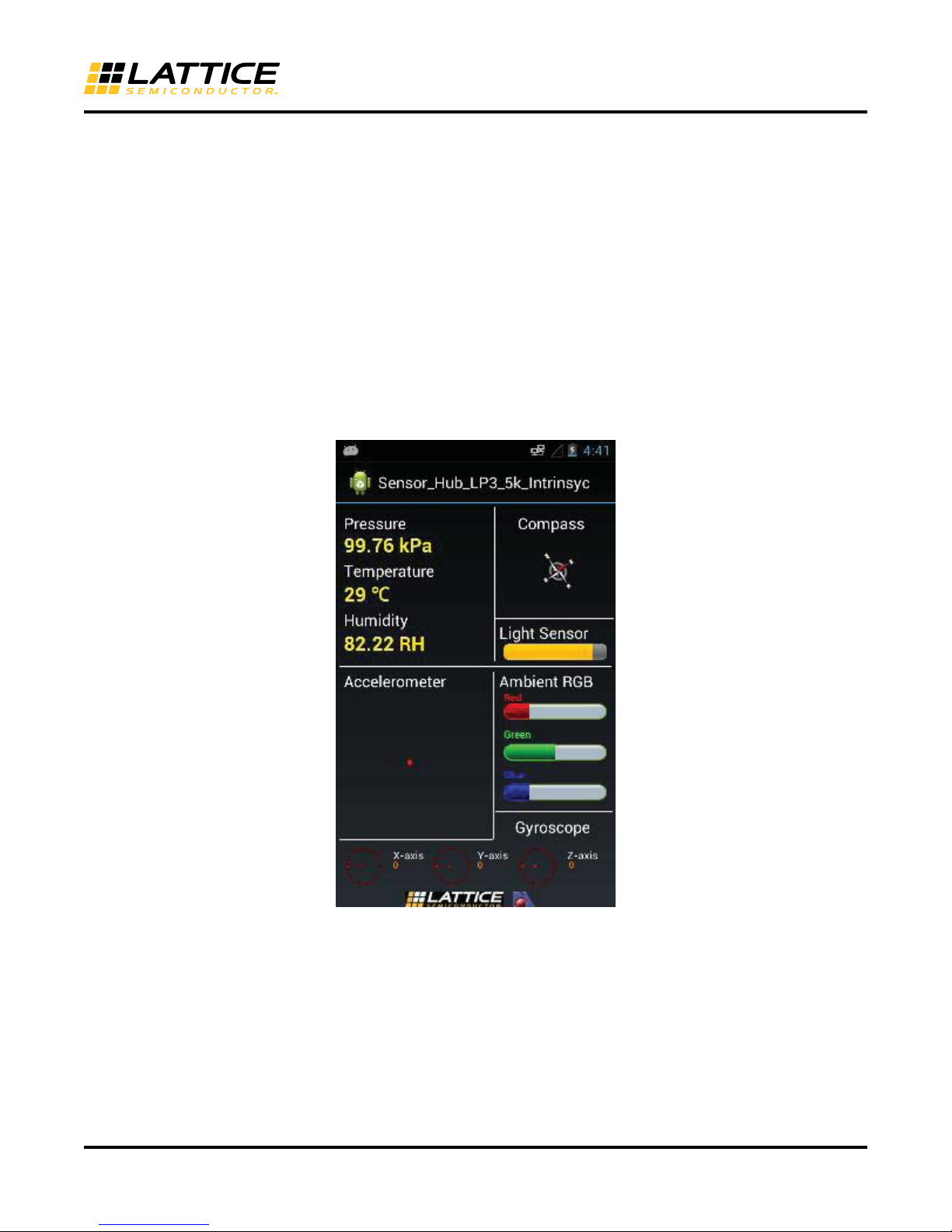

Figure 5. Sensor_Hub_LP3.5k_Intrinsyc Application Interface

11
iCE40LM4K Sensor Evaluation Kit
Troubleshooting
If the Android application does not respond, perform the following procedure:
1. Close the Sensor_Hub_LP3.5k_intrinsyc process running in background.

In the Android menu, go to
Settings > Applications > Manage Applications > Sensor_Hub_LP3.5k_intrinsyc Force Stop
2. Restart the Intrinsyc Dragon Board.
3. Open the Sensor_Hub application from Android menu and application is ready to receive all sensor’s data.
4. If the android application crashes while being opened, it means that the library file has not been copied. 

Run the command below to install the Sensor Hub apk to the Intrinsyc Dragon Board.
#cd Lightning_Demos_Drop_WITH_APK_INSTALL/Sensor_Hub_Demo_Quick_Strart
/Android_Apllication

Note: This step should be performed only if not currently in the
Lightning_Demos_Drop_WITH_APK_INSTALL/Sensor_Hub_Demo_Quick_start/Android_Apllication/ folder
#adb install Sensor_Hub_Demo.apk

12
iCE40LM4K Sensor Evaluation Kit
Technical Support Assistance
e-mail: [e-mail]
Internet: www.latticesemi.com
Revision History
© 2014 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as
listed at www.latticesemi.com/legal. All other brand or product names are trademarks or registered trademarks of
their respective holders. The specifications and information herein are subject to change without notice.
Date Version Change Summary
January 2014 01.0 Initial release.

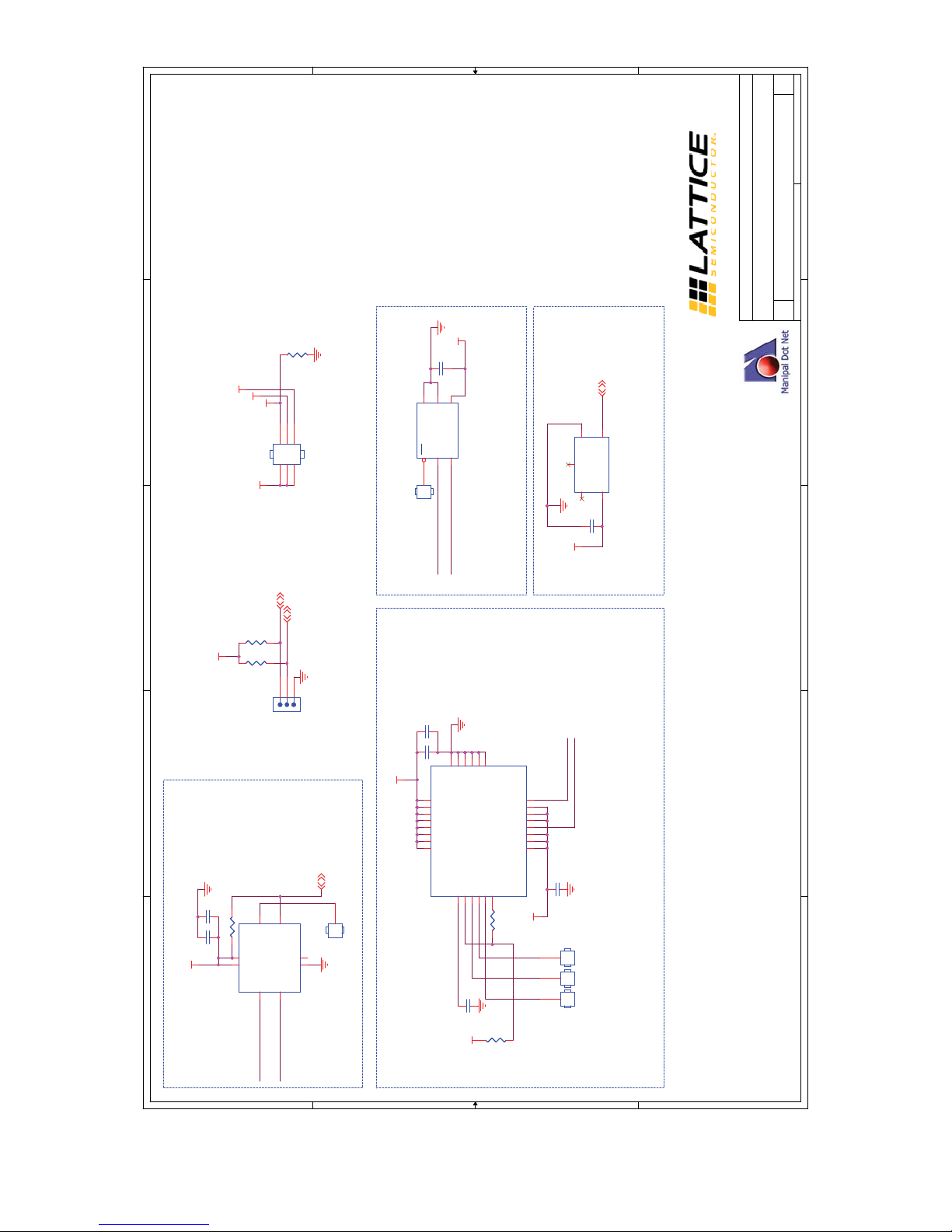

Appendix A. Sensor Fusion Board Schematic Diagrams
5
5
4
4
3 3
2
2
1
1
D D
C C B B AA
iCE40LP3k5-WLCSP25
TOP BANK - at 1.8V
MAX44006 (I2C) RGB ALS LSM303DLHC (I2C) Magentometer
APP PROCESSOR (SPI) (10 pin CONN)
BOT BANK - at 3V3
BMP085 (I2C) Pressure SHT20 (I2C) Humidity &Temp.
IR LED (TX)IR RX TSSOP34338
BAR CODE LED
JUMPER SEL
POOL-B I2C POOL-A I2C
SPI
POWER SUPPLIES (from USB)
CLOCK OSC SMA CONN
JUMPER SEL
FT2232H
SPI
CONFIG FLASH (SPI)
SPI/GPIO
USB
CHEETAH CONN
LATTICE SEMICONDUCTOR CORPORATION CONFIDENTIAL SENSOR FUSION DEMO BOARD (iCE40LP3K5-WLCSP25)
Revision History
Rev 0p0 - 9 July 2013 - Initial draft
TMD27711 (I2C) Proximity & ALS LSM330DLC (I2C) Accel. & Gyro
HALL SENSOR
Rev 1p0 - 16 July 2013 - IR/HALL muxed to free up FPGA pin D3 Rev 1p1- 18July 2013 - Added CRSTb through R41 to AP INTERCONNECT Rev 1p2- 6 Aug 2013 - VCCIO2 default changed Rev 2- 14 Sept 2013 - VCCIO2 default 3V3, Added R42, R43, consolidated VLT adapter in same schematic
Title Size Document Number Rev Date: Sheet of
102-374A-0913 2 Block Diagram
B
15Saturday, October 05, 2013
Title Size Document Number Rev Date: Sheet of
102-374A-0913 2 Block Diagram
B
15Saturday, October 05, 2013
Title Size Document Number Rev Date: Sheet of
102-374A-0913 2 Block Diagram
B
15Saturday, October 05, 2013

5
5
4
4
3 3
2
2
1
1
D D
C C B B AA
PRESSURE SENSOR
Default: VCCIO0 = 1V8
LATTICE SEMICONDUCTOR CORPORATION CONFIDENTIAL
Notes: - Gyro and Accelerometer interfaces are both set to I2C - I2C address LSB for both Gyro and Accelerometer is '1'
- SPI for both Gyro and Accelerometer is disabled
SENSOR FUSION DEMO BOARD (iCE40LP3K5-WLCSP25)
GYROSCOPE & ACCELEROMETER SENSOR HALL SENSOR
RGB ALS SENSOR
LDO reverse current bypass
poolA_sensor_SCL poolA_sensor_SDA
poolA_sensor_SDA poolA_sensor_SCL
poolA_sensor_SDA
poolA_sensor_SCL
Hall_out
VCCIO0
VCCIO0
VCCIO0
VCC1V8
VCC2V5
VCC3V3
VCCIO0
VCC3V3
VCCIO0
VCCIO0
VCCIO0
poolA_sensor_SDA Pg[4]
poolA_sensor_SCL Pg[4]
sensor0_XCLR Pg[4]
Hall_out Pg[4]
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 Pool-A I2C Sensors
B
25Saturday, October 05, 2013
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 Pool-A I2C Sensors
B
25Saturday, October 05, 2013
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 Pool-A I2C Sensors
B
25Saturday, October 05, 2013
R18
DNP
R18
DNP
C9 0.1u C9 0.1u
TP7 INT2G TP7 INT2G
1
BMP085
U6
BMP085
U6
SCL
6
SDA
7XCLR 8
EOC 2
VDDA 3
VDD 4
GND
1
NC
5
TP1
MAXINT
TP1
MAXINT
1
C6 1u C6 1u
TP5
INT2A
TP5
INT2A
1
TP3 BMP EOC TP3 BMP EOC
1
R6
10k R6 10k
U2
MAX44006
U2
MAX44006
VDD 1
GND2
A0 3
INT
4
SCL
5
SDA
6
TP6
INT1G
TP6
INT1G
1
J22
VCCIO0 SEL
J22
VCCIO0 SEL
2
4
6
1 3
5
R11
10k
R11
10k
U1
BU52051NVX
U1
BU52051NVX
OUT 1
GND2
NC
3
VDD
4
TPAD 5
C8 0.1u C8 0.1u
R42
1k
R42
1k
U7
LSM330DLC
U7
LSM330DLC
RES0 2
GND0 1
RES814
RES7 13
RES6 12
RES5 11
RES4 10
VDD0 7
CAP
15
DEN_G
16
DRDY_G/INT2_G
17
INT1_G
18
INT2_A
19
INT1_A
20
VDD_IO_0
21
CS_G
22
CS_A
23
SCL_A/G
24
VDD_IO_1
25
SDO_G
26
RES1 3
RES2 4
RES3 5
GND1 6
VDD1 8
VDD2 9
SDO_A
27
SDA_A/G
28
R16
2k2
R16
2k2
J12
PoolA I2C
J12
PoolA I2C
1
2
3
C10 10u C10 10u
C12
0.01u
C12
0.01u
R19
2k2
R19
2k2
C1
0.1u
C1
0.1u
C7
0.1u
C7
0.1u
C3 1u C3 1u

5
5
4
4
3 3
2
2
1
1
D D
C C B B AA
Humidity, Temperature Sensor
IR RX MODULE
IR EMITTER EXTERNAL CLOCKING
BAR CODE LED
Default: VCCIO2 = 2v5
Default: 1&2 (27 Mhz Osc)
LATTICE SEMICONDUCTOR CORPORATION CONFIDENTIAL
PROXIMITY SENSOR
COMPASS SENSOR
SENSOR FUSION DEMO BOARD (iCE40LP3K5-WLCSP25)
poolB_sensor_SDA
poolB_sensor_SCL
poolB_sensor_SCL poolB_sensor_SDA
GND
poolB_sensor_SCL
poolB_sensor_SDA
VCCIO2
VCCIO2
VCCIO2
VCCIO2
VCCIO2
VCC1V8
VCC2V5
VCC3V3
VCCIO2
VCC3V3
VCCIO2
VCCIO2
poolB_sensor_SDA Pg[4]
poolB_sensor_SCL Pg[4]
IR_INPg[4]
BAR_LED
Pg[4]
IR_LED Pg[4]
clkPg[4]
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 Pool-B I2C Sensors, IR, Bar-Code LEDs & Clocking
B
35Saturday, October 05, 2013
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 Pool-B I2C Sensors, IR, Bar-Code LEDs & Clocking
B
35Saturday, October 05, 2013
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 Pool-B I2C Sensors, IR, Bar-Code LEDs & Clocking
B
35Saturday, October 05, 2013
R1
0
R1
0
Q1
MMBT3904
Q1
MMBT3904
TP9
CMP DRDY
TP9
CMP DRDY
1
R33
10k R33 10k
J7 PoolB I2C J7 PoolB I2C
1 2
3
ASFLMB-27.000MHZ-LC-T U15 ASFLMB-27.000MHZ-LC-T U15
GND
2
VDD
4STDBY# 1
OUT 3
J2
EXT CLK SEL
J2
EXT CLK SEL
1
2
3
R36
2k2
R36
2k2
C26
1u
C26
1u
C34 1u C34 1u
R37
68
R37
68
TMD27711
U4
TMD27711
U4
VDD
1
GND
3
LEDA
4SCL 2
LEDK 5
LDR 6
INT7
SDA 8
C28
0.1u
C28
0.1u
C35 0.1u C35 0.1u
R38 2k2 R38 2k2
C5
10u
C5
10u
R39
150
R39
150
U3
SHT20
U3
SHT20
SDA 1
VSS
2
NC1
3
NC2
4
VDD 5
SCL 6
PAD
7
C2 0.1u C2 0.1u
U5
TSOP34338
U5
TSOP34338
VDD 3
OUT 1
GND2
R5 0R5 0
R32 0 R32 0
R4 0R4 0
C51 0.1u C51 0.1u
R9 2k2 R9 2k2
R34
10k
R34
10k
R3
0
R3
0
R7
47
R7
47
C30 0.22u C30 0.22u
R35
0
R35
0
D2
640nm
D2
640nm
LSM303DLHC
U14
LSM303DLHC
U14
C1
6
RES1
10
RES2
11
SETP
12
SETC
13
SCL 2
SDA 3
INT2 4 INT1 5
DRDY 9
VDDIO 1
VDD 14
GND
7
NC
8
C55 4.7u C55 4.7u
C33
1u
C33
1u
J17
VCCIO2 SEL
J17
VCCIO2 SEL
2 4
6
1 3
5
D1
IRTX
D1
IRTX
J6
STDBY
J6
STDBY
1
2
J1
SMA
J1
SMA
A1
Sh1 2
Sh2 3
Sh3
4
Sh4
5
C4 22u C4 22u
TP2
PROX INT
TP2
PROX INT
1

5
5
4
4
3 3
2
2
1
1
D D
C C B B AA
SPI CONFIGURATION / FLASH
LATTICE SEMICONDUCTOR CORPORATION CONFIDENTIAL
AP (DRAGON BOARD) INTERCONNECT
Note position of pin#1
in reference board
Note position of pin#1 in reference board
Note: Place close to DUT
Note:
Place close
to DUT
Note: Place close to DUT
DUT
Default: Shunt
For programming Flash - Shunt 1,3 and 2,4 (default) For programming iCE - Shunt 3,4 and 1,2
Default: Shunt
Default: Shunt
Default: Open
Default: Shunt
Default: Shunt 1,2 (for IR LED)
SENSOR FUSION DEMO BOARD (iCE40LP3K5-WLCSP25)
proc_sdi
proc_sdo
proc_intr
proc_sclk proc_cs
CRSTb
CDONE
CRSTb
CDONEpoolA_sensor_SCL
poolA_sensor_SDA
flsh_cs
flsh_mosiflsh_sclk
flsh_miso
flsh_mosi
flsh_miso
flsh_sclk
poolB_sensor_SCL
poolB_sensor_SDA
flsh_cs flsh_sclk
proc_sdo
proc_sdi
proc_intr proc_sclk proc_cs
BAR_LED
BAR_LED_MUX_IR_LED IR_LED
BAR_LED_MUX_IR_LED
CRSTb
flsh_cs
flsh_mosi
ice_SO
ice_SI
ice_SO
flsh_miso
ice_SI
IR_IN
GPIO_C5
GPIO_C5
sensor0_XCLR
Hall_out
CRSTb
DRGN5V
VCC3V3
VCCIO0
VCCIO2
VCCIO0
VCC1V2
VCC3V3
poolB_sensor_SDA
Pg[3]
poolB_sensor_SCL
Pg[3]
poolA_sensor_SDA
Pg[2]
poolA_sensor_SCLPg[2]
flsh_cs
Pg[5]
IR_IN
Pg[3]
IR_LEDPg[3]
CRSTbPg[5]
clkPg[3]
flsh_cs
Pg[5]
BAR_LEDPg[3]
CDONEPg[5]
Hall_outPg[2]
flsh_miso
Pg[5]
flsh_sclk
Pg[5]
flsh_cs
Pg[5]
flsh_mosi
Pg[5]
sensor0_XCLR
Pg[2]
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 FPGA, Config Flash, AP Interconnects
B
45Saturday, October 05, 2013
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 FPGA, Config Flash, AP Interconnects
B
45Saturday, October 05, 2013
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 FPGA, Config Flash, AP Interconnects
B
45Saturday, October 05, 2013
J4
BAR_IR_SEL
J4
BAR_IR_SEL
1 2
3
C15
1u
C15
1u
R40 10k R40 10k
R2
0R2 0
J11
FLSH EN
J11
FLSH EN
1 2
SW1
CRST
SW1
CRST
C19
0.1u
C19
0.1u
J8
IDD_BOT
J8
IDD_BOT
1
2
C17
10n
C17
10n
R12
10k
R12
10k
D3
DONE
D3
DONE
J21
AP INTERCONNECT
J21
AP INTERCONNECT
2 4 6 8
10
1 3
5
7
9
C16
10n
C16
10n
C22
1u
C22
1u
R30
2k2
R30
2k2
R41 0R41 0
R10
10k
R10
10k
C18
0.1u
C18
0.1u
J13
SPI PGM
J13
SPI PGM
SS2
1GND1 2
SS3
3NC2 4
MISO
5NC1 6
SCLK
7MOSI 8
SS1
9GND2 10
C21
1u
C21
1u
TOP BANK
BOT BANK
CONFIG SPI
iCE40LP3k5-WLCSP25
iCE40LP3k5-WLCSP25
U11
TOP BANK
BOT BANK
CONFIG SPI
iCE40LP3k5-WLCSP25
iCE40LP3k5-WLCSP25
U11
IOB2
E5
IOB3
D5
IOB4
E4
IOB5
C5
IOB11_G5
E3 IOB12_G4
C4
IOB16
D3
CDONE
C3
CRSTB
B3
IOB22_SO
D2
IOB23_SI
C1
IOB24_SCLK
D1
IOB25_SS
E1
IOT28A1
IOT30 B1
IOT31 C2
IOT45_G1 A3 IOT46_G0 A4
IOT55 B5 IOT56 A5
AVDD/ VCC B4
VCCIO0 A2
GND1 D4
VCCIO2/SPIVCC
E2
GND2 B2
M25P80
U8
M25P80
U8
SDI
5
SCK
6
WP
3
CS
1
SDO 2
HOLD 7
8
VCC
4
GND
J19
IDD_TOP
J19
IDD_TOP
1
2
J18
IDD_CORE
J18
IDD_CORE
1
2
C38
0.1u
C38
0.1u
C14
0.1u
C14
0.1u
J16
MA / SL
J16
MA / SL
3
4
1
2
R8
10k
R8
10k
J5
IR MUX
J5
IR MUX
1
2 3
R22 2k2 R22 2k2
C11
10n
C11
10n
J10
CRST
J10
CRST
1
2

5
5
4
4
3 3
2
2
1
1
D D
C C B B AA
LDO REGULATORSUSB PROGRAMMER
Default: 1&2 (USB 5V)
LATTICE SEMICONDUCTOR CORPORATION CONFIDENTIAL
spread across board, easy access
Default: Open
SENSOR FUSION DEMO BOARD (iCE40LP3K5-WLCSP25)
USB_DM
GND
FT_CRST
EP_CS
FT_CRST
GND
EP_DI
GND
EP_CLK
EP_CS
GND
FT_DI
FT_DI FT_SK
FT_SK
FT_CS
EP_DI
FT_DO
FT_CS
EP_CLK
GND
USB_DP
GND
FT_DO
GND
GND
USB_DP
USB_DM
FT_CDONE
FT_CDONE
VCC3V3
VCC3V3
VCC3V3
FTVCOR
VCC3V3
FTVCOR
VCC3V3
FTVCOR
FTVCOR
VCC3V3
VCC3V3
VCC3V3
VCC3V3
VCC5V
VCC1V2
VCC1V8
VCC2V5
VCC3V3
VCC5V
DRGN5V
USB5V
USB5V
VCC5V
VCC5V
CRSTb
Pg[4]
flsh_misoPg[4]
flsh_sclk
Pg[4]
flsh_csPg[4] flsh_mosi
Pg[4]
CDONE
Pg[4]
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 USB Programming & Power Supplies
B
55Saturday, October 05, 2013
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 USB Programming & Power Supplies
B
55Saturday, October 05, 2013
Title
Size Document Number Rev
Date: Sheet of
102-374A-0913 2 USB Programming & Power Supplies
B
55Saturday, October 05, 2013
C24
27p
C24
27p
C50 0.1u C50 0.1u
C42
0.1u
C42
0.1u
R25
0R25 0
C32
10u
C32
10u
C46 0.1u C46 0.1u
C40 0.1u C40 0.1u
L1
100MHz, 330 ohms
L1
100MHz, 330 ohms
C29 47u C29 47u
J9
GND
J9
GND
1
R27 10R27 10
R15
0R15 0
C52
0.1u
C52
0.1u
C37
10u
C37
10u
C25
47u
C25
47u
L3
100MHz, 330 ohms
L3
100MHz, 330 ohms
C48 0.1u C48 0.1u
R17
0R17 0
R24
0R24 0
C54 0.1u C54 0.1u
C36 0.1u C36 0.1u
Y1
12MHz
Y1
12MHz
MIC5320-SJYD6 TR
U12
MIC5320-SJYD6 TR
U12
3.3VO
4
3.3EN
62.5EN1
2.5VO5
VIN3 GND
2
R13
10k R13 10k
R21
0R21 0
AP7312-1218W6-7
U13
AP7312-1218W6-7
U13
1.8VO
1
1.8EN
31.2EN4
1.2VO6
VIN5 GND
2
C31 47u C31 47u
R202k R202k
R26
1k R26 1k
TP4 SP TP4 SP
1
J3
GND
J3
GND
1
C43
0.1u
C43
0.1u
J14
GND
J14
GND
1
C23
10u
C23
10u
R23
0R23 0
C20 27p C20 27p
C49
0.1u
C49
0.1u
C45
4.7u
C45
4.7u
J20
PWR SEL
J20
PWR SEL
1
2
3
L2
600 ohm, 500 mA
L2
600 ohm, 500 mA R2912k R2912k
SW2
PWR
SW2
PWR
1
2
3
456
78
U9
FT2232H
U9
FT2232H
Gnd_1
1
OSCI
2
OSCO
3
VPHY
4
Gnd_7
5
REF
6
DM
7
DP
8
VPLL
9
AGnd
10
Gnd
11
VCORE_1
12
TEST
13
RESET#
14
Gnd_2
15
ADBUS0
16
ADBUS1
17
ADBUS2
18
ADBUS3
19
VCCIO
20
ADBUS4
21
ADBUS5
22
ADBUS6
23
ADBUS7
24
Gnd_3
25
ACBUS0
26
ACBUS1
27
ACBUS2
28
ACBUS3
29
ACBUS4
30
VCCIO_3
31
ACBUS5
32
ACBUS6 33
ACBUS7 34
Gnd_4 35
SUSPEND# 36
VCORE 37
BDBUS0 38
BDBUS1 39 BDBUS2 40 BDBUS3 41
VCCIO_2 42
BDBUS4 43
BDBUS5 44
BDBUS6 45
BDBUS7 46
Gnd_5 47
BCBUS0 48
VREGOUT 49
VREGIN50
Gnd_6 51
BCBUS1 52
BCBUS2 53
BCBUS3 54
BCBUS4 55
VCCIO_1 56
BCBUS5 57
BCBUS6 58
BCBUS7 59
PWREN#60
EEDATA 61
EECLK 62
EECS 63
VCORE_3 64
C13 0.1u C13 0.1u
R31
680
R31
680
5V D- D+ ID G
USB PWR
J23
5V D- D+ ID G
USB PWR
J23
1
2
3
4
S2
5
S1
S3
S4
TP8
CS
TP8
CS
1
C44 4.7u C44 4.7u
D4
PWR
D4
PWR
C41
0.1u
C41
0.1u
J15
FTRST
J15
FTRST
1
2
R2810R2810
C39
0.1u
C39
0.1u
R14
330
R14
330
C47 0.1u C47 0.1u
C27 47u C27 47u
93LC56BT-I/OT U10 93LC56BT-I/OT U10
GND
2
VCC
6DO 1
DI 3
CLK 4
CS 5
C53 47u C53 47u

Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Lattice:
ICE40LM4K-S-EVN
