LEGRAND Wattstopper IPPAN3-B User manual

IPPAN3-B
Installation Manual
Version 1.0
May 2020

CONTENTS
1.0 OVERVIEW
2.0 IPPAN3-B MODULE
2.1 SPECIFICATIONS
2.2 ANTENNAS
2.3 OPERATING CHANNELS
3.0 MODES OF OPERATION
4.0 INSTALLATION
4.1 DESIGN GUIDELINES
4.2 END USER GUIDELINES
5.0 AGENCYCERTIFICATIONS
6.0 OEM LABELING REQUIREMENTS
7.0 END USER LICENSE AGREEMENT

1.0
OVERVIEW
Thank you for choosing the IPPAN3-B module by Wattstopper. This manual will guide
you through the process of installing the module.
IPPAN3-B embeds wireless IPv6-based communication into each Wattstopper or host
device, and uses wireless mesh networking technology to connect to the internet.
Each IPPAN3-B module has a unique IPv6 address and “smart” functionality which
enables wireless data gathering, communication, and control of the host device.
The IPPAN3-B module is designed to be a self-contained IEEE® 802.15.4 and BLE
compliant wireless interface to be employed in conjunction with a variety of daughter
boards that maintain a stable 2.1-3.3Vdc supply. IPPAN3-B provides a diverse set of
I/O options such as serial interface or general purpose I/O. IPPAN3-B is comprised of
a microcontroller, transceiver, amplifier, and two antennas.
2.0 IPPAN3-B MODULE
FIG 1.0

2.1
SPECIFICATIONS
Specification
IPPAN3-B
Performance
Tuning Range
Internally calibrated for the selected IEEE
channel
Data Rate
250kb/s
Max 802.15.4 Radio Output Power
16.4dBm
Max BLE Radio Output Power
2.0dBm
802.15.4 Receiver Sensitivity
-101dBm
BLE Receiver Sensitivity
-96 dBm
Power Requirements
VCC
2.0 - 3.3Vdc, 0.3A
General
Dimensions
5.7 x 24.3 x 33 mm (H x W x D)
Operating Temperature
-30° C to + 60° C
Humidity
90% RH (max), non-condensing
AgencyApproval
United States (FCC, 15.247)
Q4B-P3B
Industry Canada (IC)
21161-P3B
FIG 2.0

FIG 3.0
PIN #
NAME
DESCRIPTION
1
3v3/VCC
Voltage Supply
2
UART-DOUT
Serial UART Out
3
UART-DIN
Serial UART In
4
GPIO_4
High Drive General Purpose Input/Output
5
RESET
Module Inverted Reset
6
EXT_SPI_MISO
SPI Master Input →Slave Output
7
EXT_SPI_CLK
SPI Clock
8
GPIO_0
General Purpose Input/Output
9
EXT_SPI_MOSI
SPI Master Output →Slave Input
10
GND
Ground
11
SPARE(<10kHz)
General Purpose Input/Output (Low Frequency)
12
SPARE(HI f)
General Purpose Input/Output (High Frequency)
13
IN_SCLK
General Purpose Input/Output
14
IN_BUS_MOSI
SPI Master Output →Slave Input
15
IN_BUS_MISO
SPI Master Input →Slave Output
16
SLEEP_AMP/NFC1
Radio sleep control or Near-Field Communication

17
AMP_BYPASS/NFC2
Front End Bypass or Near-Field Communication
18
CTX
General Purpose Input/Output (Low Frequency)
19
GPIO_6
General Purpose Input/Output
20
SWDCLK
SWD Clock
21
SWDIO
SWD Data
22
GPIO_2
General Purpose Input/Output
23
GPIO_5
General Purpose Input/Output
24
EXT_SPI_CS
SPI CS or General Purpose Input/Output
25
I2C_DATA
I2C Data
26
I2C_CLK
I2C Clock
27
GPIO-3
General Purpose Input/Output
28
GPIO_1
General Purpose Input/Output
29
AtoD PWM GPIO
Analog to Digital Converter or Pulse Width Modulation or General Purpose Input/Output
30
AtoD PWM GPIO
Analog to Digital Converter or Pulse Width Modulation or General Purpose Input/Output
31
AtoD PWM GPIO
Analog to Digital Converter or Pulse Width Modulation or General Purpose Input/Output
32
AtoD PWM GPIO
Analog to Digital Converter or Pulse Width Modulation or General Purpose Input/Output
FIG 4.0

2.2
Antennas
The IPPAN3-B module can have two antennas. ANT1 antenna use ceramic antenna ,
the gain less than 0.5dBi, and the ANT2 antenna can use Dipole antenna and other
wire antennas, but the gain can not higher than 2.0dBi.
2.3 Operating Channels
IPPAN3-B provides a wide range of channels.
IEEE 802.15.4 Operating
Channels
Operating Frequency
[GHz]
11
2.405
12
2.410
13
2.415
14
2.420
15
2.425
16
2.430
17
2.435
18
2.440
19
2.445
20
2.450
21
2.455
22
2.460
23
2.465
24
2.470
25
2.475
FIG 5.0

3.0
Modes of Operation
The final use and application of IPPAN3-B is dependent on the firmware pre-installed
at the factory. However, all applications have common modes of operations that can
be summarized as follows for both the IEEE® 802.15.4 and BLE radios:
NOTE: IEEE® 802.15.4 can be used only when BLE is not in use.
Idle Mode
IPPAN3-B enters idle mode of operation whenever the device is not in transmit, or
receive mode, or when there is no data to process.
Data Processing Mode
When an interrupt, timer, frame reception, or frame transmission event occurs
IPPAN3-B moves out of idle mode and into data processing mode. In this mode
IPPAN3-B can processes information and act on data accordingly.
Receive Mode
When a 802.15.4, or BLE, compliant message is received by the transceiver and it’s
either addressed for IPPAN3-B or broadcast the device can be said to be in receive
mode. In receive mode IPPAN3-B validates data and address before accepting the
message for processing.
Transmit Mode
In this mode IPPAN3-B generates an 802.15.4, or BLE, compliant message that can
be sent directly to another IPPAN3-B or broadcast to all other IPPAN3-B modules
within radio range. Transmission mode is preceded by user interaction, a data logging
event, a network maintenance message or as a response to a message
acknowledgement request.

4.0
INSTALLATION
IPPAN3-B will come pre-programmed from the manufacturer, and in many cases
pre-installed in a device. If you have elected to install IPPAN3-B in house, it is
important to understand how to handle, install, and use properly.

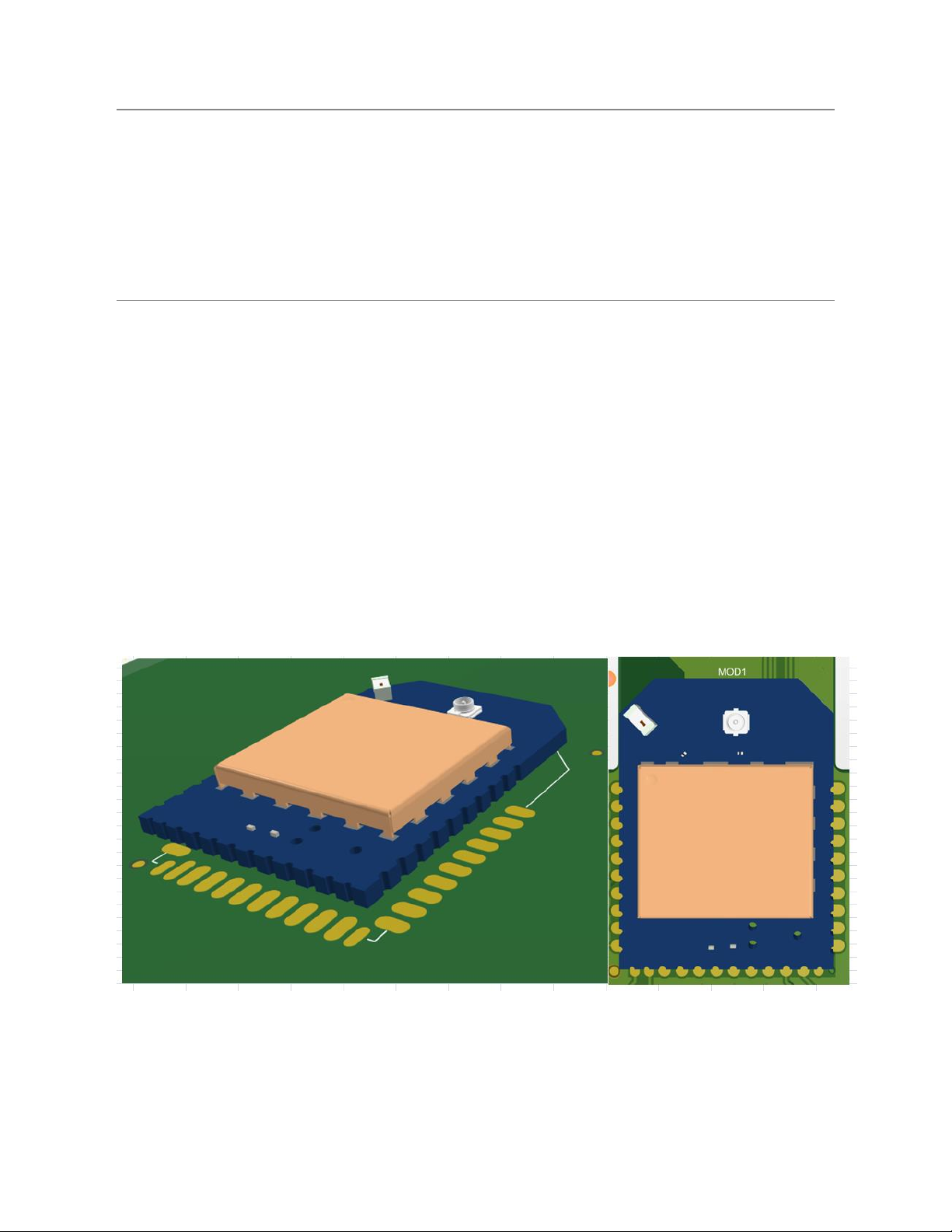

4.1 DESIGNGUIDELINES
●The IPPAN3-B Module is designed either to be surface mounted.
●standard 20 pin footprint using the following sockets:
○Samtec P/N: MMS-110-01-L-SV
○Samtec P/N: SMM-110-02-SM-S
●Standard electrostatic discharge precautions should be taken when handling the
module.
●The socket should be designed in a manner where the radiating structures
(antenna) are away from other sensitive electronics
●No antenna modifications can be made (see section 5.0)
●FCC labeling guidelines must be maintained (see section 5.0)
●All stated electrical maximum and minimum values must be met (see section 2.1)
FIG 6.0

4.2
END USER GUIDELINES
The module is designed to be used in fixed locations. If the end user experiences
communication problems it is recommended to move the transceivers closer to one
another or purchase a repeater.
Objects including, but not limited to, steel reinforced walls, metal electrical boxes,
water, and snow may degrade the working distance between transceivers, and should
be avoided. IPPAN3-B is designed to operate in a mesh network, and in most cases
adding nodes can help overcome communication issues.
FCC requires specific text to be placed within user’s manual or operator instruction
guide for the final commercial product. Specific details on this text can be found in
section 5.0.
