Leica M205 A, M205 C
M165 C & M125
Stereomicroscopes Technical Information

2
Leica M125 Leica M165 C Leica M205 C / M205 A
Optical data 12.5 : 1 manual 16.5 : 1 manual 20.5 : 1 manual/motorized with
FusionOptics™
Zoom
Data with standard optics
(1×objective/10×eyepieces)
– Zoom range
– Resolution
– Working distance
– Object field
8×–100×
max. 432lp/mm
61.5 mm (planapochromat)
∅28.8mm – 2.3mm
7.3×–120×
max. 453lp/mm
61.5mm (planapochromat)
∅31.5mm – 1.92mm
7.8×–160×
max. 525lp/mm
61.5mm (planapochromat)
∅29.5mm –1.44mm
Maximum values
(based on optics combination)
– Magnification
– Resolution
– Visible structural width
– Numerical aperture
– Object field
800×
864lp/mm
579nm
0.288
∅68mm
960×
906lp/mm
551nm
0.302
∅63mm
1280×
1050lp/mm
476nm
0.35
∅59mm
Working distances 135mm (0.5×planachromatic)
112mm (0.8×planachromatic)
67mm (0.63×planapochromatic)
61.5mm (1×planapochromatic)
30.5mm (1.6×planapochromatic)
20.1mm (2×planapochromatic)
135mm (0.5×planachromatic)
112mm (0.8×planachromatic)
67mm (0.63×planapochromatic)
61.5mm (1×planapochromatic)
30.5mm (1.6×planapochromatic)
20.1mm (2×planapochromatic)
135mm (0.5×planachromatic)
112mm (0.8×planachromatic)
67mm (0.63×planapochromatic)
61.5mm (1×planapochromatic)
30.5mm (1.6×planapochromatic)
20.1mm (2×planapochromatic)
Optics Carrier
100% apochromatic optical
system
CMO (Common Main Objective)
lead-free
CMO (Common Main Objective)
lead-free
CMO (Common Main Objective)
lead-free
Coded/motorized function – Zoom, iris diaphragm, objective
nosepiece (coded only)
Zoom, iris diaphragm, objective
nosepiece (coded only)
Specific surface resistivity
(housing)
2×1011 Ω/mm2
discharge time <2 seconds
from 1000V to 100V
2×1011 Ω/mm2
discharge time <2 seconds
from 1000V to 100V
2×1011 Ω/mm2
discharge time <2 seconds
from 1000V to 100V
Engageable zoom notches 10 for repetitive tasks 13 for repetitive tasks 14 for repetitive tasks (M205C)
Continuously variable control with
SmartTouch™or LAS (M205 A)
Double-iris diaphragm for depth
of field control
Built-in Built-in and encoded Installed and coded (M205 C) /
motorized (M205 A)
Technical Data
Performance Characteristics

3
Accessories Leica M125 Leica M165 C Leica M205 C / M205 A
Standard objective (parfocal
in the objective nosepiece)
1×planapochromat
Additional objectives (parfocal
in the objective nosepiece)
2×planapochromat, 1.6×planapochromat, 0.63×planapochromat,
Objective revolver, parfocal
0.63×–2×Planapochromat,
coded
Fast magnification change
5.12×–200×, parfocal
Fast magnification change
4.67×–240×, parfocal
Fast magnification change
4.99×–320×, parfocal
Binocular tubes, ergonomics – Apochr. binocular and trinocular tubes with synchronized interpupillary distance adjustment
–Various ErgoModules™(optional)
Interpupillary distance 50mm–105mm with the new trinocular ErgoTube®
Wide-field eyepieces for
eyeglass wearers
10×, 16×, 25×, 40×,with replaceable eyecups & click stop
Manual coarse/fine focus Focusing range 130mm/130mm, adjustable ease of movement
Microscope carrier AX for
stereo or vertical observation
For convergence-free imaging without lateral shift of the specimen
PC interface – USB USB
Module System
Leica M125, M165 C, M205 C & M205 A
Stands, illuminators
Transmitted-light stands For brightfield, brightfield and darkfield, high-performance base: brightfield, single-side darkfield,
with Rottermann contrast and CCIC
Incident-light stand Large incident-light base with black-and-white stage insert and Antishock™feet
Stages Gliding stage, MATS heating stage, cup stage, rotating polarization stage, Leica IsoPro™mechanical
stage (manual and motorized)
Illuminators LED5000 MCI™, LED5000 CXI™and LED5000 RL, fluorescence, oblique, coaxial, cold-light sources
Misc. accessories
Photography, video Leica DFC digital image capture system, various camera variants, Leica IC D
Leica IC A video module
Various adapters for commercially available CCD cameras
Image archiving,
image processing
Leica Application Suite (LAS), consisting of basic program and various auxiliary modules
Measurement graticules For length measurements and counting
Vertical and oblique
observation
45° side view around the complete object
Drawing tube For both left and right-handed users
Discussion tube for training
for two observers
For two observers

4
Leica M125 Optical Data
Objectives Plan 0.5× Planapo 0.63× Plan 0.8× Plan 1× Planapo 1× Planapo 1.6× Planapo 2×
Working distances 135mm 97mm 67mm 112mm 59mm 61.5mm 30.5mm 20.1mm
Eyepieces
Zoom
setting
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
×mm×mm×mm×mm×mm×mm
10×/23B
0.8
4
57.5
5.12
44.9
6.4
35.9
8
28.8
12.8
18
16
14.4
1
5
46
6.4
35.9
8
28.8
10
23
16
14.4
20
11.5
1.25
6.25
36.8
8
28.8
10
23
12.5
18.4
20
11.5
25
9.2
1.6
8
28.8
10.2
22.5
12.8
18
16
14.4
25.6
8.98
32
7.19
2
10
23
12.8
18
16
14.4
20
11.5
32
7.19
40
5.75
2.5
12.5
18.4
16
14.4
20
11.5
25
9.2
40
5.75
50
4.6
3.2
16
14.4
20.5
11.2
25.6
8.98
32
7.19
51.2
4.49
64
3.59
4
20
11.5
25.6
8.98
32
7.19
40
5.75
64
3.59
80
2.88
5
25
9.2
32
7.19
40
5.75
50
4.6
80
2.88
100
2.3
6.3
31.5
7.3
40.3
5.7
50.4
4.56
63
3.65
101
2.28
126
1.83
8
40
5.75
51.2
4.49
64
3.59
80
2.88
128
1.8
160
1.44
10
50
4.6
64
3.59
80
2.88
100
2.3
160
1.44
200
1.15
16×/15B
0.8
6.4
37.5
8.19
29.3
10.2
23.4
12.8
18.8
20.5
11.7
25.6
9.38
1
8
30
10.2
23.4
12.8
18.8
16
15
25.6
9.38
32
7.5
1.25
10
24
12.8
18.8
16
15
20
12
32
7.5
40
6
1.6
12.8
18.8
16.4
14.6
20.5
11.7
25.6
9.38
41
5.86
51.2
4.69
2
16
15
20.5
11.7
25.6
9.38
32
7.5
51.2
4.69
64
3.75
2.5
20
12
25.6
9.38
32
7.5
40
6
64
3.75
80
3
3.2
25.6
9.38
32.8
7.32
41
5.86
51.2
4.69
81.9
2.93
102
2.34
4
32
7.5
41
5.86
51.2
4.69
64
3.75
102
2.34
128
1.88
5
40
6
51.2
4.69
64
3.75
80
3
128
1.88
160
1.5
6.3
50.4
4.76
64.5
3.72
80.6
2.98
101
2.38
161
1.49
202
1.19
8
64
3.75
81.9
2.93
102
2.34
128
1.88
205
1.17
256
0.938
10
80
3
102
2.34
128
1.88
160
1.5
256
0.938
320
0.75
25×/9.5B
0.8
10
25
12.8
19.5
16
15.6
20
12.5
32
7.81
40
6.25
1
12.5
20
16
15.6
20
12.5
25
10
40
6.25
50
5
1.25
15.6
16
20
12.5
25
10
31.3
8
50
5
62.5
4
1.6
20
12.5
25.6
9.77
32
7.81
40
6.25
64
3.91
80
3.13
2
25
10
32
7.81
40
6.25
50
5
80
3.13
100
2.5
2.5
31.3
8
40
6.25
50
5
62.5
4
100
2.5
125
2
3.2
40
6.25
51.2
4.88
64
3.91
80
3.13
128
1.95
160
1.56
4
50
5
64
3.91
80
3.13
100
2.5
160
1.56
200
1.25
5
62.5
4
80
3.13
100
2.5
125
2
200
1.25
250
1
6.3
78.8
3.17
101
2.48
126
1.98
158
1.59
252
0.992
315
0.794
8
100
2.5
128
1.95
160
1.56
200
1.25
320
0.781
400
0.625
10
125
2
160
1.56
200
1.25
250
1
400
0.625
500
0.5
40×/6B
0.8
16
15
20.5
11.7
25.6
9.38
32
7.5
51.2
4.69
64
3.75
1
20
12
25.6
9.38
32
7.5
40
6
64
3.75
80
3
1.25
25
9.6
32
7.5
40
6
50
4.8
80
3
100
2.4
1.6
32
7.5
41
5.86
51.2
4.69
64
3.75
102
2.34
128
1.88
2
40
6
51.2
4.69
64
3.75
80
3
128
1.88
160
1.5
2.5
50
4.8
64
3.75
80
3
100
2.4
160
1.5
200
1.2
3.2
64
3.75
81.9
2.93
102
2.34
128
1.88
205
1.17
256
0.938
4
80
3
102
2.34
128
1.88
160
1.5
256
0.938
320
0.75
5
100
2.4
128
1.88
160
1.5
200
1.2
320
0.75
400
0.6
6.3
126
1.9
161
1.49
202
1.19
252
0.952
403
0.595
504
0.476
8
160
1.5
205
1.17
256
0.938
320
0.75
512
0.469
640
0.375
10
200
1.2
256
0.938
320
0.75
400
0.6
640
0.375
800
0.3

5
Leica M165 C Optical Data
Objectives Plan 0.5× Planapo 0.63× Plan 0.8× Plan 1× Planapo 1× Planapo 1.6× Planapo 2×
Working distances 135mm 97mm 67mm 112mm 59mm 61.5mm 30.5mm 20.1mm
Eyepieces
Zoom
setting
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
×mm×mm×mm×mm×mm×mm
10×/23B
0.73
3.65
63
4.67
49.2
5.84
39.4
7.3
31.5
11.7
19.7
14.6
15.8
1
5
46
6.4
35.9
8
28.8
10
23
16
14.4
20
11.5
1.6
8
28.8
10.2
22.5
12.8
18
16
14.4
25.6
8.98
32
7.19
2
10
23
12.8
18
16
14.4
20
11.5
32
7.19
40
5.75
2.5
12.5
18.4
16
14.4
20
11.5
25
9.2
40
5.75
50
4.6
3.2
16
14.4
20.5
11.2
25.6
8.98
32
7.19
51.2
4.49
64
3.59
4
20
11.5
25.6
8.98
32
7.19
40
5.75
64
3.59
80
2.88
5
25
9.2
32
7.19
40
5.75
50
4.6
80
2.88
100
2.3
6.3
31.5
7.3
40.3
5.7
50.4
4.56
63
3.65
101
2.28
126
1.83
8
40
5.75
51.2
4.49
64
3.59
80
2.88
128
1.8
160
1.44
10
50
4.6
64
3.59
80
2.88
100
2.3
160
1.44
200
1.15
12
60
3.83
76.8
2.99
96
2.4
120
1.92
192
1.2
240
0.96
16×/15B
0.73
5.84
41.1
7.48
32.1
9.34
25.7
11.7
20.5
18.7
12.8
23.4
10.3
1
8
30
10.2
23.4
12.8
18.8
16
15
25.6
9.38
32
7.5
1.6
12.8
18.8
16.4
14.6
20.5
11.7
25.6
9.38
41
5.86
51.2
4.69
2
16
15
20.5
11.7
25.6
9.38
32
7.5
51.2
4.69
64
3.75
2.5
20
12
25.6
9.38
32
7.5
40
6
64
3.75
80
3
3.2
25.6
9.38
32.8
7.32
41
5.86
51.2
4.69
81.9
2.93
102
2.34
4
32
7.5
41
5.86
51.2
4.69
64
3.75
102
2.34
128
1.88
5
40
6
51.2
4.69
64
3.75
80
3
128
1.88
160
1.5
6.3
50.4
4.76
64.5
3.72
80.6
2.98
101
2.38
161
1.49
202
1.19
8
64
3.75
81.9
2.93
102
2.34
128
1.88
205
1.17
256
0.94
10
80
3
102
2.34
128
1.88
160
1.5
256
0.94
320
0.75
12
96
2.5
123
1.95
154
1.56
192
1.25
307
0.78
384
0.63
25×/9.5B
0.73
9.13
27.4
11.7
21.4
14.6
17.1
18.3
13.7
29.2
8.56
36.5
6.85
1
12.5
20
16
15.6
20
12.5
25
10
40
6.25
50
5
1.6
20
12.5
25.6
9.77
32
7.81
40
6.25
64
3.91
80
3.13
2
25
10
32
7.81
40
6.25
50
5
80
3.13
100
2.5
2.5
31.3
8
40
6.25
50
5
62.5
4
100
2.5
125
2
3.2
40
6.25
51.2
4.88
64
3.91
80
3.13
128
1.95
160
1.56
4
50
5
64
3.91
80
3.13
100
2.5
160
1.56
200
1.25
5
62.5
4
80
3.13
100
2.5
125
2
200
1.25
250
1
6.3
78.8
3.17
101
2.48
126
1.98
158
1.59
252
0.99
315
0.79
8
100
2.5
128
1.95
160
1.56
200
1.25
320
0.78
400
0.63
10
125
2
160
1.56
200
1.25
250
1
400
0.63
500
0.5
12
150
1.67
192
1.3
240
1.04
300
0.83
480
0.52
600
0.42
40×/6B
0.73
14.6
16.4
18.7
12.8
23.4
10.3
29.2
8.22
46.7
5.14
58.4
4.11
1
20
12
25.6
9.38
32
7.5
40
6
64
3.75
80
3
1.6
32
7.5
41
5.86
51.2
4.69
64
3.75
102
2.34
128
1.88
2
40
6
51.2
4.69
64
3.75
80
3
128
1.88
160
1.5
2.5
50
4.8
64
3.75
80
3
100
2.4
160
1.5
200
1.2
3.2
64
3.75
81.9
2.93
102
2.34
128
1.88
205
1.17
256
0.94
4
80
3
102
2.34
128
1.88
160
1.5
256
0.94
320
0.75
5
100
2.4
128
1.88
160
1.5
200
1.2
320
0.75
400
0.6
6.3
126
1.9
161
1.49
202
1.19
252
0.95
403
0.60
504
0.48
8
160
1.5
205
1.17
256
0.94
320
0.75
512
0.47
640
0.38
10
200
1.2
256
0.94
320
0.75
400
0.6
640
0.38
800
0.3
12
240
1
307
0.78
384
0.63
480
0.5
768
0.31
960
0.25

6
Optical data for Leica M205 A / M205 C
Objektive Plan 0.5× Planapo 0.63× Plan 0.8× Plan 1× Planapo 1× Planapo 1.6× Planapo 2×
Working distances 135 mm 97 mm 67 mm 112 mm 59 mm 61.5 mm 30.5 mm 20.1 mm
Eyepieces
Zoom
setting
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
Total
mag.
Object
field ∅
×mm×mm×mm×mm×mm×mm
10×/23B
0.78
3.9
59
4.99
46.1
6.24
36.9
7.8
29.5
12.5
18.4
15.6
14.7
1.0
5
46
6.4
35.9
8
28.8
10
23
16
14.4
20
11.5
1.6
8
28.8
10.2
22.5
12.8
18
16
14.4
25.6
8.98
32
7.19
2.0
10
23
12.8
18
16
14.4
20
11.5
32
7.19
40
5.75
2.5
12.5
18.4
16
14.4
20
11.5
25
9.2
40
5.75
50
4.6
4.0
20
11.5
25.6
8.98
32
7.19
40
5.75
64
3.59
80
2.88
5.0
25
9.2
32
7.19
40
5.75
50
4.6
80
2.88
100
2.3
6.3
31.5
7.3
40.3
5.7
50.4
4.56
63
3.65
101
2.28
126
1.83
8.0
40
5.75
51.2
4.49
64
3.59
80
2.88
128
1.8
160
1.44
10.0
50
4.6
64
3.59
80
2.88
100
2.3
160
1.44
200
1.15
12.5
62.5
3.68
80
2.88
100
2.3
125
1.84
200
1.15
250
0.92
16.0
80
2.88
102
2.25
128
1.8
160
1.44
256
0.90
320
0.72
16×/15B
0.78
6.24
38.5
7.9
19.6
9.98
24
12.5
19.2
20
12
25
9.62
1.0
8
30
10.1
14.0
12.8
18.8
16
15
25.6
9.38
32
7.5
1.6
12.8
18.8
16.1
11.2
20.5
11.7
25.6
9.38
41
5.86
51.2
4.69
2.0
16
15
20.2
9.0
25.6
9.38
32
7.5
51.2
4.69
64
3.75
2.5
20
12
25.2
7.0
32
7.5
40
6
64
3.75
80
3
4.0
32
7.5
40.3
5.6
51.2
4.69
64
3.75
102
2.34
128
1.88
5.0
40
6
50.4
4.5
64
3.75
80
3
128
1.88
160
1.5
6.3
50.4
4.76
63.5
3.5
80.6
2.98
101
2.38
161
1.49
202
1.19
8.0
64
3.75
80.6
3.1
102
2.34
128
1.88
205
1.17
256
0.94
10.0
80
3
100.8
2.8
128
1.88
160
1.5
256
0.94
320
0.75
12.5
100
2.4
126
2.2
160
1.5
200
1.2
320
0.75
400
0.6
16.0
128
1.88
161.3
1.8
205
1.17
256
0.94
410
0.59
512
0.47
25×/9.5B
0.78
9.75
25.6
12.5
20
15.6
16
19.5
12.8
31.2
8.01
39
6.41
1.0
12.5
20
16
15.6
20
12.5
25
10
40
6.25
50
5
1.6
20
12.5
25.6
9.77
32
7.81
40
6.25
64
3.91
80
3.13
2.0
25
10
32
7.81
40
6.25
50
5
80
3.13
100
2.5
2.5
31.3
8
40
6.25
50
5
62.5
4
100
2.5
125
2
4.0
50
5
64
3.91
80
3.13
100
2.5
160
1.56
200
1.25
5.0
62.5
4
80
3.13
100
2.5
125
2
200
1.25
250
1
6.3
78.8
3.17
101
2.48
126
1.98
158
1.59
252
0.99
315
0.79
8.0
100
2.5
128
1.95
160
1.56
200
1.25
320
0.78
400
0.63
10.0
125
2
160
1.56
200
1.25
250
1
400
0.63
500
0.5
12.5
156
1.6
200
1.25
250
1
313
0.8
500
0.5
625
0.4
16.0
200
1.25
256
0.98
25
9.62
400
0.63
640
0.39
800
0.31
40×/6B
0.78
15.6
15.4
20
12
25
9.62
31.2
7.69
49.9
4.81
62.4
3.85
1.0
20
12
25.6
9.38
32
7.5
40
6
64
3.75
80
3
1.6
32
7.5
41
5.86
51.2
4.69
64
3.75
102
2.34
128
1.88
2.0
40
6
51.2
4.69
64
3.75
80
3
128
1.88
160
1.5
2.5
50
4.8
64
3.75
80
3
100
2.4
160
1.5
200
1.2
4.0
80
3
102
2.34
128
1.88
160
1.5
256
0.94
320
0.75
5.0
100
2.4
128
1.88
160
1.5
200
1.2
320
0.75
400
0.6
6.3
126
1.9
161
1.49
202
1.19
252
0.95
403
0.60
504
0.48
8.0
160
1.5
205
1.17
256
0.94
320
0.75
512
0.47
640
0.38
10.0
200
1.2
256
0.94
320
0.75
400
0.6
640
0.38
800
0.3
12.5
250
0.96
320
0.75
400
0.6
500
0.48
800
0.3
1000
0.24
16.0
320
0.75
410
0.59
512
0.47
640
0.38
1024
0.23
1280
0.19

7
10 447 319
DFC295 12 730 209 DFC290 HD 12 730 202
DFC400 12 730 203 DFC420 12 730 077
DFC420 C 12 730 081 DFC490 12 730 078
DFC300 FX 12 730 042 DFC340 FX 12 730 076 DFC360 FX 11 547 000
DFC500 12 730 066
10 447 367
0.63×
10 446 307
0.8×
10 445 929
0.5×
11 543 702 11 543 706
11 541 038 0.55×–1.1×
10 445 930 1.0×
10 446 175
10 445 928
0.32×
Canon-SLR
1
ARTICLE DESCRIPTIONS
Digital camera systems 12 730 209 Leica DFC295 camera kit 12 730 202 Leica DFC290 HD camera kit 12 730 203 Leica DFC400 camera kit 12 730 077 Leica DFC420 camera kit 12 730 081 Leica DFC420 C camera kit 12 730 078 Leica DFC490 camera kit 12 730 042 Leica DFC300 FX camera kit 12 730 076 Leica DFC340 FX camera kit 11 547 000 Leica DFC360 FX camera kit 12 730 066 Leica DFC500 camera kit Digital camera system accessories 12 446 120 FireWire cable, FWa, 3m, 6-pin to 6-pin 12 446 140 FireWire cable, FWa, 4m, 6-pin to 6-pin 12 730 186 FireWire cable, FWb, 3m, 9-pin to 9-pin 12 730 187 FireWire cable, FWab, 3m, 6-pin to 9-pin 12 730 211 HDMI cable, 3m, HDMI on both sides 12 730 183 OHCI FireWire PCI32 card, FWa 12 730 210 OHCI FireWire PCI Express card, FWb 12 447 066 Laptop PCMCIA FireWire interface card for FWa 12 730 188 Laptop power kit, for use with 4-pin or
unfed 6-pin FireWire connectors
Phototubes and C-mounts 11 543 702 B-mount head 1× for TV optics 0.5× HC 11 543 706 C-mount head 1× for TV optics 0.5× HC 11 541 038 Vario TV adapter 0.55×–1.1× 10 447 319 Adapter T2, Canon EOS 10 446 175 SLR projective 2.5, for use with reflex cameras with T2 thread 10 445 928 Video objective 0.32× with C-mount for 1 /3" digital cameras 10 445 929 Video objective 0.5× with C-mount for 1 /2" digital cameras 10 447 367 Video objective 0.63× with C-mount for 2 / 3" digital cameras 10 446 307 Video objective 0.8× with C-mount for 2 / 3" digital cameras 11 541 016 Video objective 0.5× with C-mount for 1 /2" digital cameras 11 541 007 Video objective 0.63× with C-mount for 2 /3" digital cameras 11 541 006 Video objective 1.0× with C-mount for 1" digital cameras 10 445 930 Video/photo objective 1.0× Eyepieces and tubes 10 450 196 Replacement eyecups for wide-field eyepieces for eyeglass
wearers
10 450 023 Wide-field eyepieces for eyeglass wearers 10×/23,
distortion-free, dioptric correction, with eyecups*
10 450 024 Wide-field eyepieces for eyeglass wearers 16×/15,
distortion-free, dioptric correction, with eyecups*
10 450 025 Wide-field eyepieces for eyeglass wearers 25×/9.5,
distortion-free, dioptric correction, with eyecups*
10 450 026 Wide-field eyepieces for eyeglass wearers 40×/6,
distortion-free, dioptric correction, with eyecups*
* replaceable 10 450 117 Graticule, 10mm/0.1mm 10 450 054 Graticule for M series with encoding 10 450 116 Graticule, 5mm/0.05mm 10 450 118 Graticule, 100 scale intervals/0.001" 10 450 119 Graticule, crosshair 10 450 252 Inclined binocular tube, 45° viewing angle 10 450 156 Binocular ErgoTube®with 45° viewing angle and long tubes
10 450 157 Binocular straight tube with 90° viewing angle 10 450 158 Binocular ErgoTube®with variable viewing angle 10° –50° 10 450 042 Trinocular video/phototube 50%, 30° viewing angle 10 450 043 Trinocular video/phototube 100%, 30° viewing angle 10 450 044 Trinocular video/phototube 100%, 5°–45° viewing angle 10 446 123 ErgoWedge®5° – 25°
10 346 910 ErgoWedge®±15 10 446 197 Video/phototube HD-50 10 446 308 Video/phototube HD-F, 50%, 50% 10 446 309 Video/phototube HD-V, 100%, 50%, 50%, 100% 10 446 237 Leica IC A video module with integrated CCD
and camera control, PAL
10 446 238 Leica IC A video module with integrated CCD
and camera control, NTSC
12 730 054 Leica IC D camera kit 12 730 060 Leica IC 3D camera kit 10 447 158 Filter slide housing with 2 filter slides 10 446 180 Coaxial incident light-housing for fiber-optic light 10 445 925 Video/phototube A 10 446 193 Drawing tube 10 479 887 Discussion tube with carrier Zoom systems and accessories 10 450 034 Leica M125, 12.5:1 zoom system, apochromatic 10 450 035 Leica M165 C, 16.5:1 zoom system, apochromatic,
electronically encoded
10 450 036 Leica M205 C, 20.5:1 zoom system, apochromatic,
electronically coded, with FusionOptics™
10 450 037 Leica M205 A, 20.5:1 zoom, apochr. corr., motorized,
with FusionOptics™
10 450 045 Objective nosepiece for quickly changing two objectives 10 450 047 Microscope carrier AX with toggle feature for axial photography 10 450 201 Ergo-Intermediate™adapter
10 450 104 Microscope carrier for MZ-series optics carriers 10 450 265 Arm for attaching waveguides Objectives and optical accessories 10 446 157 0.5× planachr. objective, working distance 135mm, ∅66mm 10 447 075 0.8× planachr. objective, working distance 112mm, ∅66mm 10 445 819 1× planachr. objective, working distance 59mm, ∅66mm 10 446 236 0.63× planapochr. objective, working distance 97mm, ∅66mm Planapochromatic objectives, parfocal 10 450 027 Planapo objective 0.63×, working distance 67mm, ∅80mm 10 450 028 Planapo objective 1.0×, working distance 61.5mm, ∅80mm 10 450 029 Planapo objective 1.6×, working distance 30.5 mm, ∅80mm 10 450 030 Planapo objective 2×, working distance 20.1 mm, ∅80mm Achromat objectives 10 450 191 Achromat objective 0.32×, working distance 303mm, ∅58mm 10 450 192 Achromat objective 0.5×, working distance 188.5mm, ∅58mm 10 450 160 Achromat objective 0.63×, working distance 148mm, ∅58mm 10 450 161 Achromat objective 0.8×, working distance 114mm, ∅58mm 10 450 159 Achromat objective 1.0×, working distance 89.6mm, ∅58mm 10 450 162 Achromat objective 1.25×, working distance 65.5mm, ∅58mm 10 450 163 Achromat objective 1.6×, working distance 46mm, ∅58mm 10 450 164 Achromat objective 2×, working distance 41.5mm, ∅58mm 10 450 296 Adapter with external diameter M65 ×1/internal diameter
M60 × 1.5
10 450 065 Analyzer in rotatable mount, ∅80mm, for planachromatic and
planapochromatic ∅80mm
10 450 066 Quarter-wave plate, ∅80mm, for use with microscope carrier
AX with coaxial incident light
10 367 929 Analyzer in revolving mount for ∅66mm planachromat and
planapochromat
10 446 393 Intermediate ring 10 446 300 Intermediate ring 10 411 589 1× achromatic objective 10 445 156 Attachment for vertical and oblique observation® for
1× achromatic objective
Illuminators 10 450 060 Leica LED5000 MCI™(Multi Contrast Illumination): three
adjustable illumination arcs, each with three LEDs for complete integration in the stereomicroscope; modes fully reproducible with Leica Application Suite including automatic changing of multiple illumination scenarios
10 450 061 Leica LED5000 RL – ring light with ∅80mm and 48 LEDs for
complete integration in the stereomicroscope; modes fully reproducible with Leica Application Suite including automatic changing of multiple illumination scenarios
10 450 168 Leica LED5000 CXI™– coaxial incident light illumination with
integrated LED illumination for M-series, with CTL2 connector and cable
10 450 169 LED3000 NVI™– vertical illumination for M50/M80, for use of
objectives with 58 mm external diameter
10 450 205 Combination waveguide adapter for fitting on the focusing column Incident and transmitted-light bases 10 450 049 Incident-light base 10 450 123 Transmitted-light base TL ST 10 450 124 Transmitted-light base BFDF 10 450 125 Transmitted-light base TL RC™for external cold-light sources
10 450 126 Transmitted-light base TL RCI™with integrated halogen i
llumination
10 450 260 Universal base XL for specimens up to 300 × 300mm 10 450 297 Adapter for universal base 10 450 260 for all swiveling arm
columns
10 450 289 XL extension – for positioning Leica stereomicroscopes
on universal base 10 450 260
Stages 10 447 269 Standard stage for transmitted-light bases TL BFDF, TL RC™
and TL RCI™
10 450 127
Leica IsoPro™manual mechanical stage for transmitted-light
bases TL BFDF , TL RC™, TL RCI™and incident-light base
(with 10 450 122 adapter)
10 450 218
Leica IsoPro™motorized mechanical stage for transmitted-light
bases TL BFDF, TL RC™, TL RCI™and incident-light base
(with 10 450 122 adapter)
10 450 122 Adapter between mechanical stage and incident-light base
10 450 049
10 447 275 Leica MATS TL heating stage insert with control unit for
TL bases
10 447 276 Adapter for stages with ∅120mm 10 447 391 Stage for LifeOnStage accessories 10 447 392 Universal carrier for Petri dishes, specimen slides (up to four) etc. 10 446 301 Gliding stage, ∅120mm 10 446 302 Polarization stage, ∅120mm 10 382 130 Attachable mechanical stage for polarization stage 10 361 719 Sensitive-tint plate for Pol rotating stage 10 446 303 Cup stage, ∅120mm 10 446 228 Glass stage plate with Pol, ∅120mm 10 450 058 Stage plate, b/w for TL bases 10 450 059 Additional buttons for IsoPro™ manual mechanical stage
Focusing drive 10 450 022 Focusing drive, coarse/fine, with 420mm profile column 10 450 257 Focusing drive, coarse/fine, with 620mm profile column 10 450 050 Motorized focus with 420mm profile column 10 450 258 Motorized focus with 620mm profile column 10 450 048 Focusing drive coarse/fine for swiveling arm stand 10 450 128 Focusing drive coarse/fine for M125 Filters 10 447 400 Daylight filter for TL ST base 10 447 394 BG38 filter for TL RC™/RCI™ transmitted-light base
10 447 395 UV filter for TL RC™/RCI™ base
10 447 393 ND filter (gray filter) for TL RC™/RCI™ base
10 450 079 Daylight filter for TL RCI™ base
Controls 10 447 443 Leica USB mouse, freely programmable, five-button mouse for
connection to TL RCI™transmitted-light base or PC
11 505 180 Leica Smart Move control unit for
Leica IsoPro™motorized mechanical stage
10 447 444 Leica PSC control unit for
Leica IsoPro™motorized mechanical stage
10 450 052 SmartTouch™, external control unit with integr. touchscreen for
status control and control of all settings and functions
10 450 298 Manual controller for motor focus Ergonomic accessories 10 447 431 Leica ErgoRest™handrest for fatigue-free working
Leica FireCam
Software
Leica Software
(LAS, IM, DFC Twain)
DFC cameras with compatible chip size 11 541 006, 1.0× 11 541 007, 0.63× 11 541 016, 0.5×
Refer to next page for connec-
tion to main diagram
Cables 12 446 120, 3m, FWa 12 446 140, 4m, FWa 12 730 186, 3m, FWb 12 730 187, 3m, FWab 12 730 211, 3m, HDMI
FireWire card 12 730 183, FWa, PCI-32 12 730 210, FWb, PCI Express 12 447 066, FWa PCMCIA 12 730 188, FWa Powerkit
DFC cameras
Name MPixel Sensor Size Pixel size Cooling Interface
DFC295 3 CMOS-c 1/2" 3.2µm No FWb
DFC290 HD 3 CMOS-c 1/2" 3.2µm No FWb+HDMI
DFC400 1.4 CCD-c 1/2" 4.65µm No FWb + Sync
DFC420 5 CCD-c 1/2" 2.78µm No FWa + Sync
DFC420 C 5 CCD-c 1/2" 2.78µm Yes FWa + Sync
DFC490 8 CCD-c 2/3" 2.7µm Yes FWa + Sync
DFC300 FX 1.4 CCD-c 2/3" 6.45µm Yes FWa + Sync
DFC340 FX 3 CCD-m 1/2" 4.4µm Yes FWa + Sync
DFC360 FX 1.4 CCD-m 1/2" 6.45µm Yes FWb + Sync
DFC500 12 CCD-c 2/3" 6.45µm Yes FWa + Sync
-c: color / -m: monochrome

10 446 12310 346 910 10 446 197HD F 10 446 308
HD V 10 446 309
10 446 237 10 446 238
IC D 12 730 054 IC 3D 12 730 060
10 447 158 10 446 180 10 445 92510 446 193
8
25×
10 450 025
16×
10 450 024
10×
10 450 023
40×
10 450 026
1
10 450 168
ARTICLE DESCRIPTIONS
Digital camera systems 12 730 209 Leica DFC295 camera kit 12 730 202 Leica DFC290 HD camera kit 12 730 203 Leica DFC400 camera kit 12 730 077 Leica DFC420 camera kit 12 730 081 Leica DFC420 C camera kit 12 730 078 Leica DFC490 camera kit 12 730 042 Leica DFC300 FX camera kit 12 730 076 Leica DFC340 FX camera kit 11 547 000 Leica DFC360 FX camera kit 12 730 066 Leica DFC500 camera kit Digital camera system accessories 12 446 120 FireWire cable, FWa, 3m, 6-pin to 6-pin 12 446 140 FireWire cable, FWa, 4m, 6-pin to 6-pin 12 730 186 FireWire cable, FWb, 3m, 9-pin to 9-pin 12 730 187 FireWire cable, FWab, 3m, 6-pin to 9-pin 12 730 211 HDMI cable, 3m, HDMI on both sides 12 730 183 OHCI FireWire PCI32 card, FWa 12 730 210 OHCI FireWire PCI Express card, FWb 12 447 066 Laptop PCMCIA FireWire interface card for FWa 12 730 188 Laptop power kit, for use with 4-pin or
unfed 6-pin FireWire connectors
Phototubes and C-mounts 11 543 702 B-mount head 1× for TV optics 0.5× HC 11 543 706 C-mount head 1× for TV optics 0.5× HC 11 541 038 Vario TV adapter 0.55×–1.1× 10 447 319 Adapter T2, Canon EOS 10 446 175 SLR projective 2.5, for use with reflex cameras with T2 thread 10 445 928 Video objective 0.32× with C-mount for 1 /3" digital cameras 10 445 929 Video objective 0.5× with C-mount for 1 /2" digital cameras 10 447 367 Video objective 0.63× with C-mount for 2 / 3" digital cameras 10 446 307 Video objective 0.8× with C-mount for 2 / 3" digital cameras 11 541 016 Video objective 0.5× with C-mount for 1 /2" digital cameras 11 541 007 Video objective 0.63× with C-mount for 2 /3" digital cameras 11 541 006 Video objective 1.0× with C-mount for 1" digital cameras 10 445 930 Video/photo objective 1.0× Eyepieces and tubes 10 450 196 Replacement eyecups for wide-field eyepieces for eyeglass
wearers
10 450 023 Wide-field eyepieces for eyeglass wearers 10×/23,
distortion-free, dioptric correction, with eyecups*
10 450 024 Wide-field eyepieces for eyeglass wearers 16×/15,
distortion-free, dioptric correction, with eyecups*
10 450 025 Wide-field eyepieces for eyeglass wearers 25×/9.5,
distortion-free, dioptric correction, with eyecups*
10 450 026 Wide-field eyepieces for eyeglass wearers 40×/6,
distortion-free, dioptric correction, with eyecups*
* replaceable 10 450 117 Graticule, 10mm/0.1mm 10 450 054 Graticule for M series with encoding 10 450 116 Graticule, 5mm/0.05mm 10 450 118 Graticule, 100 scale intervals/0.001" 10 450 119 Graticule, crosshair 10 450 252 Inclined binocular tube, 45° viewing angle 10 450 156 Binocular ErgoTube®with 45° viewing angle and long tubes
10 450 157 Binocular straight tube with 90° viewing angle 10 450 158 Binocular ErgoTube®with variable viewing angle 10° –50° 10 450 042 Trinocular video/phototube 50%, 30° viewing angle 10 450 043 Trinocular video/phototube 100%, 30° viewing angle 10 450 044 Trinocular video/phototube 100%, 5°–45° viewing angle 10 446 123 ErgoWedge®5° – 25°
10 346 910 ErgoWedge®±15 10 446 197 Video/phototube HD-50 10 446 308 Video/phototube HD-F, 50%, 50% 10 446 309 Video/phototube HD-V, 100%, 50%, 50%, 100% 10 446 237 Leica IC A video module with integrated CCD
and camera control, PAL
10 446 238 Leica IC A video module with integrated CCD
and camera control, NTSC
12 730 054 Leica IC D camera kit 12 730 060 Leica IC 3D camera kit 10 447 158 Filter slide housing with 2 filter slides 10 446 180 Coaxial incident light-housing for fiber-optic light 10 445 925 Video/phototube A 10 446 193 Drawing tube 10 479 887 Discussion tube with carrier Zoom systems and accessories 10 450 034 Leica M125, 12.5:1 zoom system, apochromatic 10 450 035 Leica M165 C, 16.5:1 zoom system, apochromatic,
electronically encoded
10 450 036 Leica M205 C, 20.5:1 zoom system, apochromatic,
electronically coded, with FusionOptics™
10 450 037 Leica M205 A, 20.5:1 zoom, apochr. corr., motorized,
with FusionOptics™
10 450 045 Objective nosepiece for quickly changing two objectives 10 450 047 Microscope carrier AX with toggle feature for axial photography 10 450 201 Ergo-Intermediate™adapter
10 450 104 Microscope carrier for MZ-series optics carriers 10 450 265 Arm for attaching waveguides Objectives and optical accessories 10 446 157 0.5× planachr. objective, working distance 135mm, ∅66mm 10 447 075 0.8× planachr. objective, working distance 112mm, ∅66mm 10 445 819 1× planachr. objective, working distance 59mm, ∅66mm 10 446 236 0.63× planapochr. objective, working distance 97mm, ∅66mm Planapochromatic objectives, parfocal 10 450 027 Planapo objective 0.63×, working distance 67mm, ∅80mm 10 450 028 Planapo objective 1.0×, working distance 61.5mm, ∅80mm 10 450 029 Planapo objective 1.6×, working distance 30.5 mm, ∅80mm 10 450 030 Planapo objective 2×, working distance 20.1 mm, ∅80mm Achromat objectives 10 450 191 Achromat objective 0.32×, working distance 303mm, ∅58mm 10 450 192 Achromat objective 0.5×, working distance 188.5mm, ∅58mm 10 450 160 Achromat objective 0.63×, working distance 148mm, ∅58mm 10 450 161 Achromat objective 0.8×, working distance 114mm, ∅58mm 10 450 159 Achromat objective 1.0×, working distance 89.6mm, ∅58mm 10 450 162 Achromat objective 1.25×, working distance 65.5mm, ∅58mm 10 450 163 Achromat objective 1.6×, working distance 46mm, ∅58mm 10 450 164 Achromat objective 2×, working distance 41.5mm, ∅58mm 10 450 296 Adapter with external diameter M65 ×1/internal diameter
M60 × 1.5
10 450 065 Analyzer in rotatable mount, ∅80mm, for planachromatic and
planapochromatic ∅80mm
10 450 066 Quarter-wave plate, ∅80mm, for use with microscope carrier
AX with coaxial incident light
10 367 929 Analyzer in revolving mount for ∅66mm planachromat and
planapochromat
10 446 393 Intermediate ring 10 446 300 Intermediate ring 10 411 589 1× achromatic objective 10 445 156 Attachment for vertical and oblique observation® for
1× achromatic objective
Illuminators 10 450 060 Leica LED5000 MCI™(Multi Contrast Illumination): three
adjustable illumination arcs, each with three LEDs for complete integration in the stereomicroscope; modes fully reproducible with Leica Application Suite including automatic changing of multiple illumination scenarios
10 450 061 Leica LED5000 RL – ring light with ∅80mm and 48 LEDs for
complete integration in the stereomicroscope; modes fully reproducible with Leica Application Suite including automatic changing of multiple illumination scenarios
10 450 168 Leica LED5000 CXI™– coaxial incident light illumination with
integrated LED illumination for M-series, with CTL2 connector and cable
10 450 169 LED3000 NVI™– vertical illumination for M50/M80, for use of
objectives with 58 mm external diameter
10 450 205 Combination waveguide adapter for fitting on the focusing column Incident and transmitted-light bases 10 450 049 Incident-light base 10 450 123 Transmitted-light base TL ST 10 450 124 Transmitted-light base BFDF 10 450 125 Transmitted-light base TL RC™for external cold-light sources
10 450 126 Transmitted-light base TL RCI™with integrated halogen i
llumination
10 450 260 Universal base XL for specimens up to 300 × 300mm 10 450 297 Adapter for universal base 10 450 260 for all swiveling arm
columns
10 450 289 XL extension – for positioning Leica stereomicroscopes
on universal base 10 450 260
Stages 10 447 269 Standard stage for transmitted-light bases TL BFDF, TL RC™
and TL RCI™
10 450 127
Leica IsoPro™manual mechanical stage for transmitted-light
bases TL BFDF , TL RC™, TL RCI™and incident-light base
(with 10 450 122 adapter)
10 450 218
Leica IsoPro™motorized mechanical stage for transmitted-light
bases TL BFDF, TL RC™, TL RCI™and incident-light base
(with 10 450 122 adapter)
10 450 122 Adapter between mechanical stage and incident-light base
10 450 049
10 447 275 Leica MATS TL heating stage insert with control unit for
TL bases
10 447 276 Adapter for stages with ∅120mm 10 447 391 Stage for LifeOnStage accessories 10 447 392 Universal carrier for Petri dishes, specimen slides (up to four) etc. 10 446 301 Gliding stage, ∅120mm 10 446 302 Polarization stage, ∅120mm 10 382 130 Attachable mechanical stage for polarization stage 10 361 719 Sensitive-tint plate for Pol rotating stage 10 446 303 Cup stage, ∅120mm 10 446 228 Glass stage plate with Pol, ∅120mm 10 450 058 Stage plate, b/w for TL bases 10 450 059 Additional buttons for IsoPro™ manual mechanical stage
Focusing drive 10 450 022 Focusing drive, coarse/fine, with 420mm profile column 10 450 257 Focusing drive, coarse/fine, with 620mm profile column 10 450 050 Motorized focus with 420mm profile column 10 450 258 Motorized focus with 620mm profile column 10 450 048 Focusing drive coarse/fine for swiveling arm stand 10 450 128 Focusing drive coarse/fine for M125 Filters 10 447 400 Daylight filter for TL ST base 10 447 394 BG38 filter for TL RC™/RCI™ transmitted-light base
10 447 395 UV filter for TL RC™/RCI™ base
10 447 393 ND filter (gray filter) for TL RC™/RCI™ base
10 450 079 Daylight filter for TL RCI™ base
Controls 10 447 443 Leica USB mouse, freely programmable, five-button mouse for
connection to TL RCI™transmitted-light base or PC
11 505 180 Leica Smart Move control unit for
Leica IsoPro™motorized mechanical stage
10 447 444 Leica PSC control unit for
Leica IsoPro™motorized mechanical stage
10 450 052 SmartTouch™, external control unit with integr. touchscreen for
status control and control of all settings and functions
10 450 298 Manual controller for motor focus Ergonomic accessories 10 447 431 Leica ErgoRest™handrest for fatigue-free working
Graticules 10 450 117 10 450 054 10 450 116 10 450 118 10 450 119
For connection to the camera
diagram, see previous page
Trinocular tube 100% 10 450 043
Trinocular tube 50% 10 450 042
Trinocular ErgoTube®
10 450 044
ErgoTube®45°
10 450 156
Straight tube 10 450 157
Binocular tube 45° 10 450 252
Binocular ErgoTube®
10 450 158

M205 C
10 450 036
M165 C
10 450 035
M125
10 450 034
0.63× Planapo
10 450 027
1× Planapo
10 450 028
1.6× Planapo
10 450 029
2× Planapo
10 450 030
SmartTouchTM
10 450 052
10 367 929 LED5000 RL
10 450 061
0.5× Plan
10 446 157
1.0× Plan
10 445 819
0.63× Planapo
10 446 236
0.8× Plan
10 447 075
9
1.0× Achromat 10 411 589 10 445 156
10 446 300
10 446 393
LED 5000 MCI
10 450 060
M205 A
10 450 037
10 450 265
10 450 296
0.32× Achr. 10 450 191 0.5× Achr. 10 450 192 0.63× Achr. 10 450 160 0.8× Achr. 10 450 161 1.0× Achr. 10 450 159 1.25× Achr. 10 450 162 1.6× Achr. 10 450 163 2.0× Achr. 10 450 164
LED3000 NVITM
10 450 169
2
ARTICLE DESCRIPTIONS
Digital camera systems 12 730 209 Leica DFC295 camera kit 12 730 202 Leica DFC290 HD camera kit 12 730 203 Leica DFC400 camera kit 12 730 077 Leica DFC420 camera kit 12 730 081 Leica DFC420 C camera kit 12 730 078 Leica DFC490 camera kit 12 730 042 Leica DFC300 FX camera kit 12 730 076 Leica DFC340 FX camera kit 11 547 000 Leica DFC360 FX camera kit 12 730 066 Leica DFC500 camera kit Digital camera system accessories 12 446 120 FireWire cable, FWa, 3m, 6-pin to 6-pin 12 446 140 FireWire cable, FWa, 4m, 6-pin to 6-pin 12 730 186 FireWire cable, FWb, 3m, 9-pin to 9-pin 12 730 187 FireWire cable, FWab, 3m, 6-pin to 9-pin 12 730 211 HDMI cable, 3m, HDMI on both sides 12 730 183 OHCI FireWire PCI32 card, FWa 12 730 210 OHCI FireWire PCI Express card, FWb 12 447 066 Laptop PCMCIA FireWire interface card for FWa 12 730 188 Laptop power kit, for use with 4-pin or
unfed 6-pin FireWire connectors
Phototubes and C-mounts 11 543 702 B-mount head 1× for TV optics 0.5× HC 11 543 706 C-mount head 1× for TV optics 0.5× HC 11 541 038 Vario TV adapter 0.55×–1.1× 10 447 319 Adapter T2, Canon EOS 10 446 175 SLR projective 2.5, for use with reflex cameras with T2 thread 10 445 928 Video objective 0.32× with C-mount for 1 /3" digital cameras 10 445 929 Video objective 0.5× with C-mount for 1 /2" digital cameras 10 447 367 Video objective 0.63× with C-mount for 2 / 3" digital cameras 10 446 307 Video objective 0.8× with C-mount for 2 / 3" digital cameras 11 541 016 Video objective 0.5× with C-mount for 1 /2" digital cameras 11 541 007 Video objective 0.63× with C-mount for 2 /3" digital cameras 11 541 006 Video objective 1.0× with C-mount for 1" digital cameras 10 445 930 Video/photo objective 1.0× Eyepieces and tubes 10 450 196 Replacement eyecups for wide-field eyepieces for eyeglass
wearers
10 450 023 Wide-field eyepieces for eyeglass wearers 10×/23,
distortion-free, dioptric correction, with eyecups*
10 450 024 Wide-field eyepieces for eyeglass wearers 16×/15,
distortion-free, dioptric correction, with eyecups*
10 450 025 Wide-field eyepieces for eyeglass wearers 25×/9.5,
distortion-free, dioptric correction, with eyecups*
10 450 026 Wide-field eyepieces for eyeglass wearers 40×/6,
distortion-free, dioptric correction, with eyecups*
* replaceable 10 450 117 Graticule, 10mm/0.1mm 10 450 054 Graticule for M series with encoding 10 450 116 Graticule, 5mm/0.05mm 10 450 118 Graticule, 100 scale intervals/0.001" 10 450 119 Graticule, crosshair 10 450 252 Inclined binocular tube, 45° viewing angle 10 450 156 Binocular ErgoTube®with 45° viewing angle and long tubes
10 450 157 Binocular straight tube with 90° viewing angle 10 450 158 Binocular ErgoTube®with variable viewing angle 10° –50° 10 450 042 Trinocular video/phototube 50%, 30° viewing angle 10 450 043 Trinocular video/phototube 100%, 30° viewing angle 10 450 044 Trinocular video/phototube 100%, 5°–45° viewing angle 10 446 123 ErgoWedge®5° – 25°
10 346 910 ErgoWedge®±15 10 446 197 Video/phototube HD-50 10 446 308 Video/phototube HD-F, 50%, 50% 10 446 309 Video/phototube HD-V, 100%, 50%, 50%, 100% 10 446 237 Leica IC A video module with integrated CCD
and camera control, PAL
10 446 238 Leica IC A video module with integrated CCD
and camera control, NTSC
12 730 054 Leica IC D camera kit 12 730 060 Leica IC 3D camera kit 10 447 158 Filter slide housing with 2 filter slides 10 446 180 Coaxial incident light-housing for fiber-optic light 10 445 925 Video/phototube A 10 446 193 Drawing tube 10 479 887 Discussion tube with carrier Zoom systems and accessories 10 450 034 Leica M125, 12.5:1 zoom system, apochromatic 10 450 035 Leica M165 C, 16.5:1 zoom system, apochromatic,
electronically encoded
10 450 036 Leica M205 C, 20.5:1 zoom system, apochromatic,
electronically coded, with FusionOptics™
10 450 037 Leica M205 A, 20.5:1 zoom, apochr. corr., motorized,
with FusionOptics™
10 450 045 Objective nosepiece for quickly changing two objectives 10 450 047 Microscope carrier AX with toggle feature for axial photography 10 450 201 Ergo-Intermediate™adapter
10 450 104 Microscope carrier for MZ-series optics carriers 10 450 265 Arm for attaching waveguides Objectives and optical accessories 10 446 157 0.5× planachr. objective, working distance 135mm, ∅66mm 10 447 075 0.8× planachr. objective, working distance 112mm, ∅66mm 10 445 819 1× planachr. objective, working distance 59mm, ∅66mm 10 446 236 0.63× planapochr. objective, working distance 97mm, ∅66mm Planapochromatic objectives, parfocal 10 450 027 Planapo objective 0.63×, working distance 67mm, ∅80mm 10 450 028 Planapo objective 1.0×, working distance 61.5mm, ∅80mm 10 450 029 Planapo objective 1.6×, working distance 30.5 mm, ∅80mm 10 450 030 Planapo objective 2×, working distance 20.1 mm, ∅80mm Achromat objectives 10 450 191 Achromat objective 0.32×, working distance 303mm, ∅58mm 10 450 192 Achromat objective 0.5×, working distance 188.5mm, ∅58mm 10 450 160 Achromat objective 0.63×, working distance 148mm, ∅58mm 10 450 161 Achromat objective 0.8×, working distance 114mm, ∅58mm 10 450 159 Achromat objective 1.0×, working distance 89.6mm, ∅58mm 10 450 162 Achromat objective 1.25×, working distance 65.5mm, ∅58mm 10 450 163 Achromat objective 1.6×, working distance 46mm, ∅58mm 10 450 164 Achromat objective 2×, working distance 41.5mm, ∅58mm 10 450 296 Adapter with external diameter M65 ×1/internal diameter
M60 × 1.5
10 450 065 Analyzer in rotatable mount, ∅80mm, for planachromatic and
planapochromatic ∅80mm
10 450 066 Quarter-wave plate, ∅80mm, for use with microscope carrier
AX with coaxial incident light
10 367 929 Analyzer in revolving mount for ∅66mm planachromat and
planapochromat
10 446 393 Intermediate ring 10 446 300 Intermediate ring 10 411 589 1× achromatic objective 10 445 156 Attachment for vertical and oblique observation® for
1× achromatic objective
Illuminators 10 450 060 Leica LED5000 MCI™(Multi Contrast Illumination): three
adjustable illumination arcs, each with three LEDs for complete integration in the stereomicroscope; modes fully reproducible with Leica Application Suite including automatic changing of multiple illumination scenarios
10 450 061 Leica LED5000 RL – ring light with ∅80mm and 48 LEDs for
complete integration in the stereomicroscope; modes fully reproducible with Leica Application Suite including automatic changing of multiple illumination scenarios
10 450 168 Leica LED5000 CXI™– coaxial incident light illumination with
integrated LED illumination for M-series, with CTL2 connector and cable
10 450 169 LED3000 NVI™– vertical illumination for M50/M80, for use of
objectives with 58 mm external diameter
10 450 205 Combination waveguide adapter for fitting on the focusing column Incident and transmitted-light bases 10 450 049 Incident-light base 10 450 123 Transmitted-light base TL ST 10 450 124 Transmitted-light base BFDF 10 450 125 Transmitted-light base TL RC™for external cold-light sources
10 450 126 Transmitted-light base TL RCI™with integrated halogen i
llumination
10 450 260 Universal base XL for specimens up to 300 × 300mm 10 450 297 Adapter for universal base 10 450 260 for all swiveling arm
columns
10 450 289 XL extension – for positioning Leica stereomicroscopes
on universal base 10 450 260
Stages 10 447 269 Standard stage for transmitted-light bases TL BFDF, TL RC™
and TL RCI™
10 450 127
Leica IsoPro™manual mechanical stage for transmitted-light
bases TL BFDF , TL RC™, TL RCI™and incident-light base
(with 10 450 122 adapter)
10 450 218
Leica IsoPro™motorized mechanical stage for transmitted-light
bases TL BFDF, TL RC™, TL RCI™and incident-light base
(with 10 450 122 adapter)
10 450 122 Adapter between mechanical stage and incident-light base
10 450 049
10 447 275 Leica MATS TL heating stage insert with control unit for
TL bases
10 447 276 Adapter for stages with ∅120mm 10 447 391 Stage for LifeOnStage accessories 10 447 392 Universal carrier for Petri dishes, specimen slides (up to four) etc. 10 446 301 Gliding stage, ∅120mm 10 446 302 Polarization stage, ∅120mm 10 382 130 Attachable mechanical stage for polarization stage 10 361 719 Sensitive-tint plate for Pol rotating stage 10 446 303 Cup stage, ∅120mm 10 446 228 Glass stage plate with Pol, ∅120mm 10 450 058 Stage plate, b/w for TL bases 10 450 059 Additional buttons for IsoPro™ manual mechanical stage
Focusing drive 10 450 022 Focusing drive, coarse/fine, with 420mm profile column 10 450 257 Focusing drive, coarse/fine, with 620mm profile column 10 450 050 Motorized focus with 420mm profile column 10 450 258 Motorized focus with 620mm profile column 10 450 048 Focusing drive coarse/fine for swiveling arm stand 10 450 128 Focusing drive coarse/fine for M125 Filters 10 447 400 Daylight filter for TL ST base 10 447 394 BG38 filter for TL RC™/RCI™ transmitted-light base
10 447 395 UV filter for TL RC™/RCI™ base
10 447 393 ND filter (gray filter) for TL RC™/RCI™ base
10 450 079 Daylight filter for TL RCI™ base
Controls 10 447 443 Leica USB mouse, freely programmable, five-button mouse for
connection to TL RCI™transmitted-light base or PC
11 505 180 Leica Smart Move control unit for
Leica IsoPro™motorized mechanical stage
10 447 444 Leica PSC control unit for
Leica IsoPro™motorized mechanical stage
10 450 052 SmartTouch™, external control unit with integr. touchscreen for
status control and control of all settings and functions
10 450 298 Manual controller for motor focus Ergonomic accessories 10 447 431 Leica ErgoRest™handrest for fatigue-free working
Ergo-IntermediateTM
10 450 201
AX carrier
10 450 047
Objective
nosepiece
10 450 045
Motorized focus
10 450 050 short
10 450 258 long
Coarse/fine
adjustment
10 450 022 short
10 450 257 long
10 450 128
coarse / fine,
for M125 only
10 450 048
Coarse/fine
for swiveling
arm stand
Combination light
guide adapter
10 450 205
MZ series carrier
10 450 104
Analyzer
10 450 065
Lambda/4 plate
10 450 066
Connection to
XL universal base
Hand- wheel 10 450 298

10
PSC
10 447 444
10 447 393 10 447 394 10 447 395 10 450 079
10 447 27510 447 27610 447 39110 447 39210 446 303 10 446 301 10 446 302 10 446 228
10 450 122
10 450 218 10 450 127 10 447 269
10 450 049
10 447 400
10 447 431
10 447 443
10 447 398
10 446 405
Smart Move
11 505 180
TL ST
10 450 123
TL BFDF
10 450 124
TL RCTM
10 450 125
TL RCITM
10 450 126
10 450 260
10 450 297
XL extension
10 450 289
2
ARTICLE DESCRIPTIONS
Digital camera systems 12 730 209 Leica DFC295 camera kit 12 730 202 Leica DFC290 HD camera kit 12 730 203 Leica DFC400 camera kit 12 730 077 Leica DFC420 camera kit 12 730 081 Leica DFC420 C camera kit 12 730 078 Leica DFC490 camera kit 12 730 042 Leica DFC300 FX camera kit 12 730 076 Leica DFC340 FX camera kit 11 547 000 Leica DFC360 FX camera kit 12 730 066 Leica DFC500 camera kit Digital camera system accessories 12 446 120 FireWire cable, FWa, 3m, 6-pin to 6-pin 12 446 140 FireWire cable, FWa, 4m, 6-pin to 6-pin 12 730 186 FireWire cable, FWb, 3m, 9-pin to 9-pin 12 730 187 FireWire cable, FWab, 3m, 6-pin to 9-pin 12 730 211 HDMI cable, 3m, HDMI on both sides 12 730 183 OHCI FireWire PCI32 card, FWa 12 730 210 OHCI FireWire PCI Express card, FWb 12 447 066 Laptop PCMCIA FireWire interface card for FWa 12 730 188 Laptop power kit, for use with 4-pin or
unfed 6-pin FireWire connectors
Phototubes and C-mounts 11 543 702 B-mount head 1× for TV optics 0.5× HC 11 543 706 C-mount head 1× for TV optics 0.5× HC 11 541 038 Vario TV adapter 0.55×–1.1× 10 447 319 Adapter T2, Canon EOS 10 446 175 SLR projective 2.5, for use with reflex cameras with T2 thread 10 445 928 Video objective 0.32× with C-mount for 1 /3" digital cameras 10 445 929 Video objective 0.5× with C-mount for 1 /2" digital cameras 10 447 367 Video objective 0.63× with C-mount for 2 / 3" digital cameras 10 446 307 Video objective 0.8× with C-mount for 2 / 3" digital cameras 11 541 016 Video objective 0.5× with C-mount for 1 /2" digital cameras 11 541 007 Video objective 0.63× with C-mount for 2 /3" digital cameras 11 541 006 Video objective 1.0× with C-mount for 1" digital cameras 10 445 930 Video/photo objective 1.0× Eyepieces and tubes 10 450 196 Replacement eyecups for wide-field eyepieces for eyeglass
wearers
10 450 023 Wide-field eyepieces for eyeglass wearers 10×/23,
distortion-free, dioptric correction, with eyecups*
10 450 024 Wide-field eyepieces for eyeglass wearers 16×/15,
distortion-free, dioptric correction, with eyecups*
10 450 025 Wide-field eyepieces for eyeglass wearers 25×/9.5,
distortion-free, dioptric correction, with eyecups*
10 450 026 Wide-field eyepieces for eyeglass wearers 40×/6,
distortion-free, dioptric correction, with eyecups*
* replaceable 10 450 117 Graticule, 10mm/0.1mm 10 450 054 Graticule for M series with encoding 10 450 116 Graticule, 5mm/0.05mm 10 450 118 Graticule, 100 scale intervals/0.001" 10 450 119 Graticule, crosshair 10 450 252 Inclined binocular tube, 45° viewing angle 10 450 156 Binocular ErgoTube®with 45° viewing angle and long tubes
10 450 157 Binocular straight tube with 90° viewing angle 10 450 158 Binocular ErgoTube®with variable viewing angle 10° –50° 10 450 042 Trinocular video/phototube 50%, 30° viewing angle 10 450 043 Trinocular video/phototube 100%, 30° viewing angle 10 450 044 Trinocular video/phototube 100%, 5°–45° viewing angle 10 446 123 ErgoWedge®5° – 25°
10 346 910 ErgoWedge®±15 10 446 197 Video/phototube HD-50 10 446 308 Video/phototube HD-F, 50%, 50% 10 446 309 Video/phototube HD-V, 100%, 50%, 50%, 100% 10 446 237 Leica IC A video module with integrated CCD
and camera control, PAL
10 446 238 Leica IC A video module with integrated CCD
and camera control, NTSC
12 730 054 Leica IC D camera kit 12 730 060 Leica IC 3D camera kit 10 447 158 Filter slide housing with 2 filter slides 10 446 180 Coaxial incident light-housing for fiber-optic light 10 445 925 Video/phototube A 10 446 193 Drawing tube 10 479 887 Discussion tube with carrier Zoom systems and accessories 10 450 034 Leica M125, 12.5:1 zoom system, apochromatic 10 450 035 Leica M165 C, 16.5:1 zoom system, apochromatic,
electronically encoded
10 450 036 Leica M205 C, 20.5:1 zoom system, apochromatic,
electronically coded, with FusionOptics™
10 450 037 Leica M205 A, 20.5:1 zoom, apochr. corr., motorized,
with FusionOptics™
10 450 045 Objective nosepiece for quickly changing two objectives 10 450 047 Microscope carrier AX with toggle feature for axial photography 10 450 201 Ergo-Intermediate™adapter
10 450 104 Microscope carrier for MZ-series optics carriers 10 450 265 Arm for attaching waveguides Objectives and optical accessories 10 446 157 0.5× planachr. objective, working distance 135mm, ∅66mm 10 447 075 0.8× planachr. objective, working distance 112mm, ∅66mm 10 445 819 1× planachr. objective, working distance 59mm, ∅66mm 10 446 236 0.63× planapochr. objective, working distance 97mm, ∅66mm Planapochromatic objectives, parfocal 10 450 027 Planapo objective 0.63×, working distance 67mm, ∅80mm 10 450 028 Planapo objective 1.0×, working distance 61.5mm, ∅80mm 10 450 029 Planapo objective 1.6×, working distance 30.5 mm, ∅80mm 10 450 030 Planapo objective 2×, working distance 20.1 mm, ∅80mm Achromat objectives 10 450 191 Achromat objective 0.32×, working distance 303mm, ∅58mm 10 450 192 Achromat objective 0.5×, working distance 188.5mm, ∅58mm 10 450 160 Achromat objective 0.63×, working distance 148mm, ∅58mm 10 450 161 Achromat objective 0.8×, working distance 114mm, ∅58mm 10 450 159 Achromat objective 1.0×, working distance 89.6mm, ∅58mm 10 450 162 Achromat objective 1.25×, working distance 65.5mm, ∅58mm 10 450 163 Achromat objective 1.6×, working distance 46mm, ∅58mm 10 450 164 Achromat objective 2×, working distance 41.5mm, ∅58mm 10 450 296 Adapter with external diameter M65 ×1/internal diameter
M60 × 1.5
10 450 065 Analyzer in rotatable mount, ∅80mm, for planachromatic and
planapochromatic ∅80mm
10 450 066 Quarter-wave plate, ∅80mm, for use with microscope carrier
AX with coaxial incident light
10 367 929 Analyzer in revolving mount for ∅66mm planachromat and
planapochromat
10 446 393 Intermediate ring 10 446 300 Intermediate ring 10 411 589 1× achromatic objective 10 445 156 Attachment for vertical and oblique observation® for
1× achromatic objective
Illuminators 10 450 060 Leica LED5000 MCI™(Multi Contrast Illumination): three
adjustable illumination arcs, each with three LEDs for complete integration in the stereomicroscope; modes fully reproducible with Leica Application Suite including automatic changing of multiple illumination scenarios
10 450 061 Leica LED5000 RL – ring light with ∅80mm and 48 LEDs for
complete integration in the stereomicroscope; modes fully reproducible with Leica Application Suite including automatic changing of multiple illumination scenarios
10 450 168 Leica LED5000 CXI™– coaxial incident light illumination with
integrated LED illumination for M-series, with CTL2 connector and cable
10 450 169 LED3000 NVI™– vertical illumination for M50/M80, for use of
objectives with 58 mm external diameter
10 450 205 Combination waveguide adapter for fitting on the focusing column Incident and transmitted-light bases 10 450 049 Incident-light base 10 450 123 Transmitted-light base TL ST 10 450 124 Transmitted-light base BFDF 10 450 125 Transmitted-light base TL RC™for external cold-light sources
10 450 126 Transmitted-light base TL RCI™with integrated halogen i
llumination
10 450 260 Universal base XL for specimens up to 300 × 300mm 10 450 297 Adapter for universal base 10 450 260 for all swiveling arm
columns
10 450 289 XL extension – for positioning Leica stereomicroscopes
on universal base 10 450 260
Stages 10 447 269 Standard stage for transmitted-light bases TL BFDF, TL RC™
and TL RCI™
10 450 127
Leica IsoPro™manual mechanical stage for transmitted-light
bases TL BFDF , TL RC™, TL RCI™and incident-light base
(with 10 450 122 adapter)
10 450 218
Leica IsoPro™motorized mechanical stage for transmitted-light
bases TL BFDF, TL RC™, TL RCI™and incident-light base
(with 10 450 122 adapter)
10 450 122 Adapter between mechanical stage and incident-light base
10 450 049
10 447 275 Leica MATS TL heating stage insert with control unit for
TL bases
10 447 276 Adapter for stages with ∅120mm 10 447 391 Stage for LifeOnStage accessories 10 447 392 Universal carrier for Petri dishes, specimen slides (up to four) etc. 10 446 301 Gliding stage, ∅120mm 10 446 302 Polarization stage, ∅120mm 10 382 130 Attachable mechanical stage for polarization stage 10 361 719 Sensitive-tint plate for Pol rotating stage 10 446 303 Cup stage, ∅120mm 10 446 228 Glass stage plate with Pol, ∅120mm 10 450 058 Stage plate, b/w for TL bases 10 450 059 Additional buttons for IsoPro™ manual mechanical stage
Focusing drive 10 450 022 Focusing drive, coarse/fine, with 420mm profile column 10 450 257 Focusing drive, coarse/fine, with 620mm profile column 10 450 050 Motorized focus with 420mm profile column 10 450 258 Motorized focus with 620mm profile column 10 450 048 Focusing drive coarse/fine for swiveling arm stand 10 450 128 Focusing drive coarse/fine for M125 Filters 10 447 400 Daylight filter for TL ST base 10 447 394 BG38 filter for TL RC™/RCI™ transmitted-light base
10 447 395 UV filter for TL RC™/RCI™ base
10 447 393 ND filter (gray filter) for TL RC™/RCI™ base
10 450 079 Daylight filter for TL RCI™ base
Controls 10 447 443 Leica USB mouse, freely programmable, five-button mouse for
connection to TL RCI™transmitted-light base or PC
11 505 180 Leica Smart Move control unit for
Leica IsoPro™motorized mechanical stage
10 447 444 Leica PSC control unit for
Leica IsoPro™motorized mechanical stage
10 450 052 SmartTouch™, external control unit with integr. touchscreen for
status control and control of all settings and functions
10 450 298 Manual controller for motor focus Ergonomic accessories 10 447 431 Leica ErgoRest™handrest for fatigue-free working

11
132
275.3
157
83.5 11245112
90
45
36 22
120
ø70 30
153 153
ø80
Dimensions in mm
LED5000 RLLED5000 MCITM

12
497
292
217
187154
max. 370
X = +-75 mm
370
95
300
249
Y = +-50 mm
116 431
547
154 154
277
24
400
455
292
217
Dimensions in mm

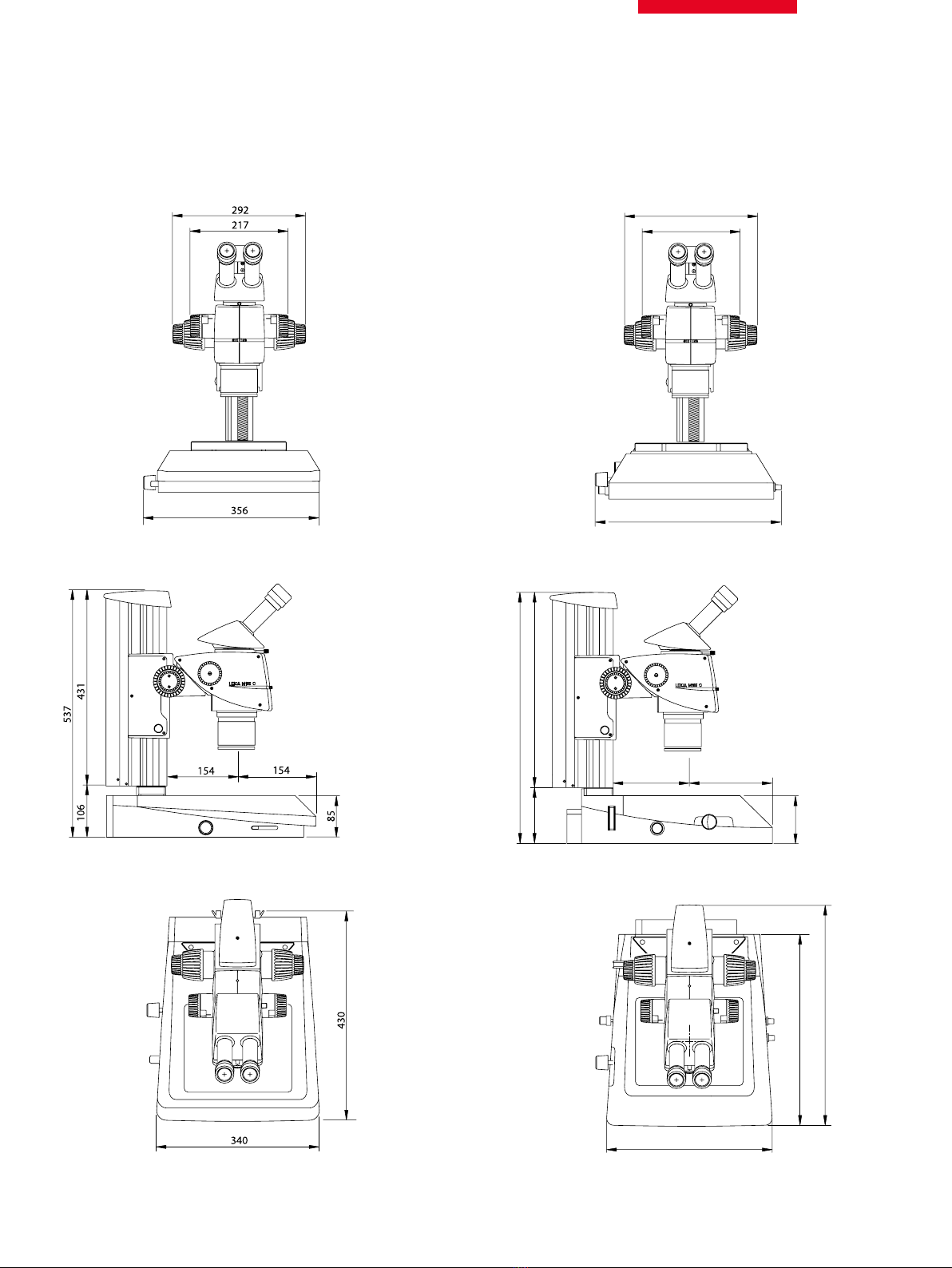

Leica M165 C / M125
with incident-light base and new focusing column

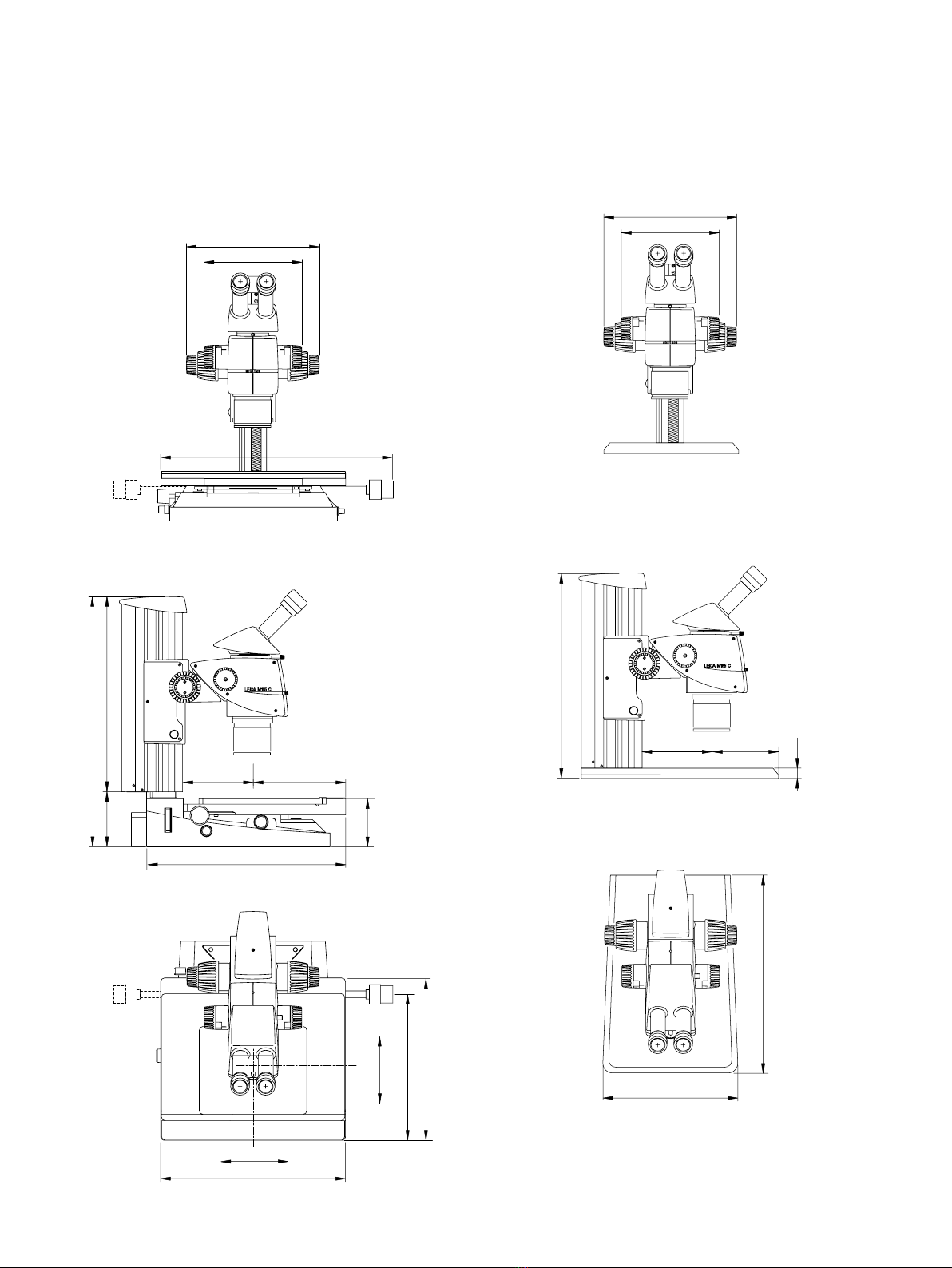

Leica M165 C / M125
with TL RCTM transmitted-light stand, Leica IsoProTM
manual mechanical stage and manual focusing drive

13
385
154
340
390
440
95
154
116 431
547
292
217
Leica M165 C / M125
with TL ST transmitted-light base and manual focus
Leica M165 C / M125
with TL RCTM transmitted-light stand and manual focus
Dimensions in mm

14
370
154
340
390 90
154
292
217
116 431
547
370
154
340
390 90
154
292
217
116 431
547
Leica M205 C
with TL BFDF transmitted-light stand and manual focusing drive
Leica M205 C
with incident-light stand and manual focusing drive
Dimensions in mm

15
385
154
340
54
390
440 95 min. 291
max.451
154
116 431
547
370
300
Y = +-50 mm
187154
max. 410
95 min. 291
max. 451
116 631
747
370
300
Y = +-50 mm
187154
max. 410
95 min. 291
max. 451
116 631
747
370
300
Y = +-50 mm
187154
max. 410
95 min. 291
max. 451
116 631
747
385
154
340
54
390
440 95 min. 291
max.451
154
116 431
547
385
154
340
54
390
440 95 min. 291
max.451
154
116 431
547
Leica M205 A
with TL RCITM transmitted-light stand and motor focus
Leica M205 A
with TL RCITM transm. light stand,
Leica IsoProTM motorized
mechanical stage and
motor focus
Dimensions in mm

www.leica-microsystems.com
Major User Segments
Natural science
Embryology Human medicine: Obstetrics and gynecology
Veterinary science: Animal husbandry
Pharmacology Pharmaceutical research and industry,
pharmacology laboratories
Anatomy Anatomy, histology and pathology departments at
universities and hospitals
Schools for medical and veterinary
sciences
Pharmaceutical research institutes
Cancer research institutes
Microbiology Microbiology departments and laboratories
at universities and hospitals
Food industry
Botany Natural science institutes and museums
Botanical gardens, herbariums
IVF Hospitals, specialist practices
Industry
Earth sciences Departments of geology, mineralogy, paleontology
Physics Departments of experimental physics, optics,
solid-state physics
Semiconductors Quality control, production, process control
Research and development
Microtechnology Mask manufacturers
Integrated circuit manufacturers
Microchip assembly
Materials development Development and test labs,
quality control
Synthetic materials Research and development
Synthetic products manufacturers
Colleges and universities
Criminology
General criminological Crime labs, research and law enforcement
examinations,
evidence and clues
In addition, the high-performance Leica M125, M165 C, M205 C and M205 A stereomicroscopes
are capable of meeting the most stringent requirements in many other applications.
10IDM10020EN •© Leica Microsystems (Switzerland) Ltd • CH-9435 Heerbrugg, 2008 • Printed in Switzerland – IX.2008 – RDV – Illustrations, descriptions and technical data are not binding and may be changed without notice.
