This Getting Started Guide is intended as a quick field reference manual for immedi-
ately getting started with your Leica Viva Series equipment. The manual explains what
you can find in your container, how everything fits together and how to get started
on the basic applications.
Quick references
to specific topics Topic Refer to
What’s in my container? Chapter 1.1
How does the equipment all fit together? Chapter 1.2
What is this first screen I see when I turn on my instrument? Chapter 2.1
How do I get to the Main Menu? Chapter 2.1
How do I select things and move around the screens? Chapter 2.2
What are wizards? Chapter 2.2
How do I get started with jobs and codelists? Chapter 3

Viva GNSS, Introduction 3
myWorld@Leica Geosystems (https://myworld.leica-geosystems.com) offers a
wide range of services, information and training material.
With direct access to myWorld, you are able to access all relevant services whenever
it is convenient for you, 24 hours a day, 7 days per week. This increases your effi-
ciency and keeps you and your equipment instantly updated with the latest informa-
tion from Leica Geosystems.
How to use the applications? Chapter 4
Topic Refer to
Service Description
myProducts Simply add all Leica Geosystems products that you and your
company own. View detailed information on your products, buy
additional options or Customer Care Packages (CCPs), update your
products with the latest software and keep up-to-date with the
latest documentation.
myService View the service history of your products in Leica Geosystems
Service Centers and detailed information on the services performed
on your products. For your products that are currently in Leica
Geosystems Service Centers view the current service status and the
expected end date of service.

4
Viva GNSS, Introduction
mySupport Create new support requests for your products that will be
answered by your local Leica Geosystems Support Team. View the
complete history of your Support and view detailed information on
each request in case you want to refer to previous support
requests.
myTraining Enhance your product knowledge with the Leica Geosystems
Campus - Information, Knowledge, Training. Study the latest online
training material or download training material on your products.
Keep up-to-date with the latest News on your products and
register for Seminars or Courses in your country.
Service Description

Viva GNSS, Table of Contents 5
Table of Contents
In this manual Chapter Page
1 Equipment 8
1.1 Container Contents 8
1.2 Setting up as a Post-Processing Base 15
1.3 Setting up as a Real-Time Base 21
1.4 Setting up as a Real-Time Rover 28
1.5 Setting up Viva Uno 37
1.6 Setting up Viva NetRover 44
1.7 Using the Backpack 47
1.8 Fixing the CS to a Holder and Pole 50
2 SmartWorx Viva and Principles 54
2.1 SmartWorx Viva 54
2.1.1 Screen 56
2.1.2 Icons 60
2.1.3 Main Menu 65
2.1.4 Leica Favourites 68
2.1.5 Active Assist 71
2.2 Operating Principles 73

6
Viva GNSS, Table of Contents
2.3 Webserver 79
2.3.1 Home 79
2.3.2 Icons 81
2.3.3 Go to Work! - Wake-Up 82
2.3.4 Current Status 83
2.3.5 Instrument 84
2.3.6 User 85
3 Jobs & Data 86
3.1 Creating a New Job 86
3.2 Creating a Codelist 88
3.3 Importing ASCII Data into a Job 92
4 Applications 96
4.1 Survey 97
4.2 Stakeout 100
4.3 Reference Line 105
Appendix A Working with Memory Devices 108
A.1 Formatting a Memory Device 108
A.2 Directory Structure of the Memory Device 111

Viva GNSS, Table of Contents 7
Appendix B Uploading System Files 114
Appendix C Leica Geo Office 117

8
Viva GNSS, Equipment
1 Equipment
1.1 Container Contents

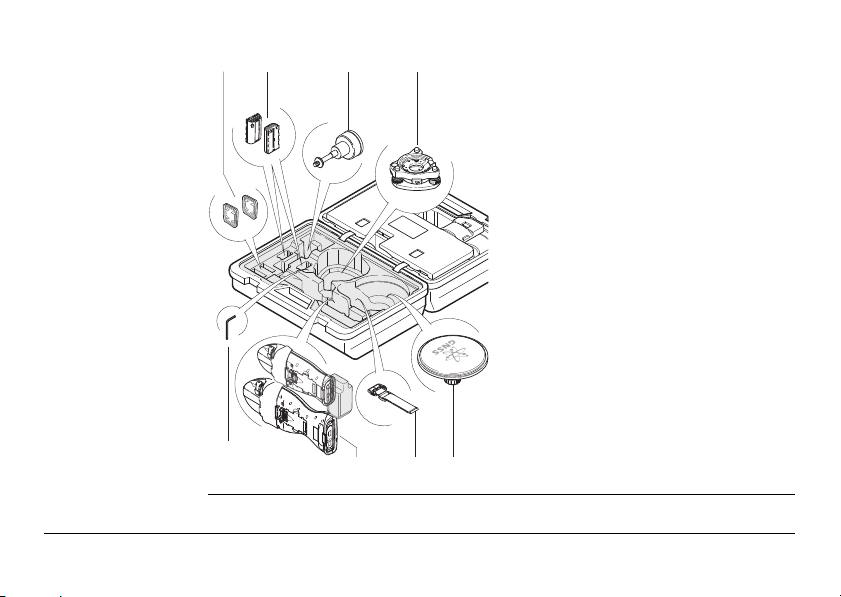

Container for GS10
instrument and
delivered accesso-
ries part 1 of 2
a) GS10 instrument
b) Single/double arm for antennas of
devices
c) GFU device such as radio
d) Antennas of device
e) GAD32 telescopic rod
f) GEB221 batteries
g) Height hook
h) Cables
i) Antenna and GAD31 adapter
j) SD cards
SYS13_21
a
fghij
bc ed

Viva GNSS, Equipment 9
Container for GS10
instrument and
delivered accesso-
ries part 2 of 2
a) CS15 field controller
b) GHT62 holder for CS field controller
on pole
c) Allen key
d) Supplied stylus
e) GHT36 base for telescopic rod
f) GAD33 arm 15 cm
g) GFU device such as radio
h) Manual & DVD
i) Tribrach
j) GRT146 carrier
k) GEB221 battery
l) GHT63 clamp
abcde gf
ihklj
SYS13_022

10
Viva GNSS, Equipment
Container for GS15
instrument and
delivered accesso-
ries part 1 of 2
a) GDC221 car adapter
b) GS15 instrument
c) Cables
d) Tribrach
e) Manuals and DVD
f) TNC QN-adapter
g) GAD31 adapter
h) GRT247 carrier
i) SD cards
SYS13_17
a
fg b h i
bcde

Viva GNSS, Equipment 11
Container for GS15
instrument and
delivered accesso-
ries part 2 of 2

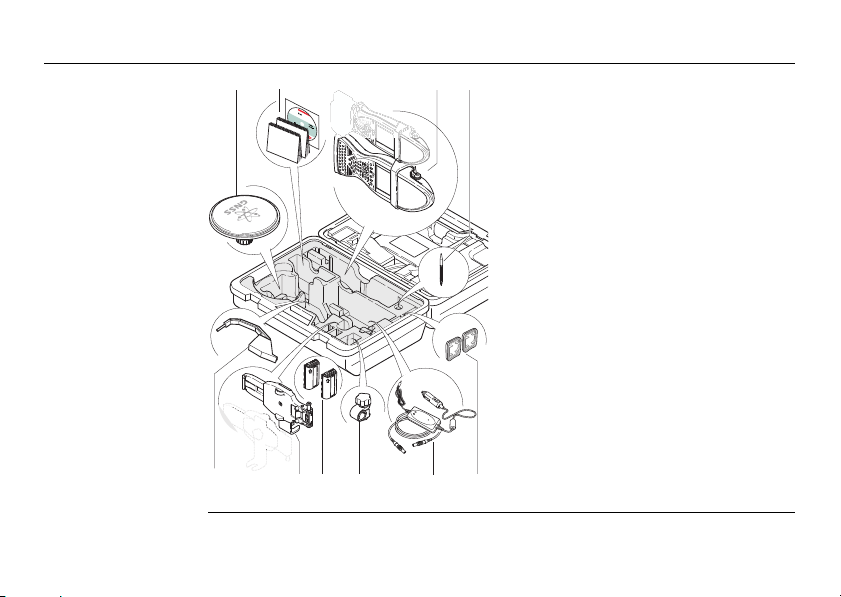

a) GAD108 arm
b) GAD34 arm 3 cm
c) GHT36 base for telescopic rod
d) GEB211/GEB212 batteries
e) Allen key
f) CS field controller
g) GHT62 holder for CS field controller
on pole
h) Antennas of device
i) GAD32 telescopic rod
j) Height hook
k) GHT63 clamp
l) Supplied stylus
SYS13_018
ab c
hi j lk
de f g

12
Viva GNSS, Equipment
Container for Viva
Uno instrument
and delivered
accessories
part 1 of 2
a) Antenna and GAD31 adapter
b) Manual & DVD
c) CS field controller with GS GNSS
antenna cap
d) Supplied stylus
e) Height hook
f) GHT62 holder for CS field controller
on pole
g) GEB211 batteries
h) GHT63 clamp
i) GDC221 car adapter
j) SD cards/CompactFlash cards
SYS13_31
a
egf i
hj
bcd

Viva GNSS, Equipment 13
Container for Viva
Uno instrument
and delivered
accessories
part 2 of 2

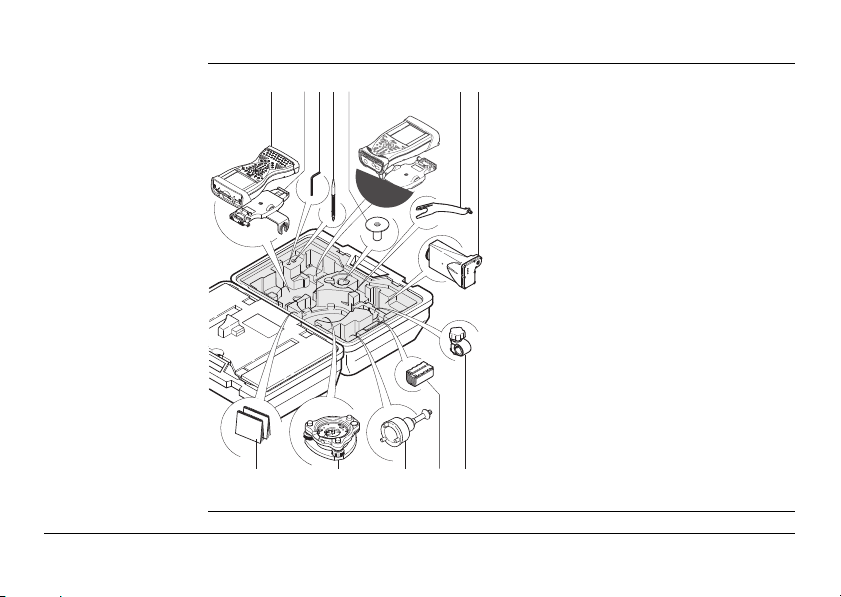

a) SD cards/CompactFlash cards
b) GEB211 batteries
c) GRT146 carrier
d) Tribrach
e) Allen key
f) Viva Uno instrument (CS field
controller with GS GNSS antenna cap)
g) GHT61 hand strap
h) Antenna and GAD31 adapter
SYS13_32
ab c d
e
f g h

14
Viva GNSS, Equipment
Container for Viva
NetRover instru-
ment and delivered
accessories
a) CS10 field controller
b) GHT62 holder for CS10 field controller
on pole
c) GDC221 car adapter
d) Cable
e) Manual & DVD
f) Supplied stylus
g) GEB211 batteries
h) GHT63 clamp
i) GS08 GNSS antenna
j) SD card/CompactFlash card
SYS_035
aebc d
fgh ij

Viva GNSS, Equipment 15
1.2 Setting up as a Post-Processing Base
Use The equipment setups described following are to be used for static operations over
markers.
Description The instrument can be programmed with the CS field controller before use which can
then be omitted from the setup.
)• GNSS antenna/GS12 instrument/GS15 instrument is mounted directly using
screw fitting. If using stub and adapter, procedures can vary slightly.
• When using the adapter and carrier, ensure that the GNSS antenna/GS12 instru-
ment/GS15 instrument and the adapter assembly slide down the full length of
the carrier stub. An incorrectly mounted GNSS antenna/GS12 instrument/GS15
instrument will have a direct effect on the results.
• GNSS antennas are AS05 or AS10. Procedures/setup can vary if AR10, AR25 or
AT504 GG is used.
)If the instrument is left in the container during use in high temperatures, the lid
should be left open. Refer to the GS10/GS15 User Manual for operating and storage
temperatures.
)Use an external battery such as GEB171 to ensure operation for a full day.

16
Viva GNSS, Equipment
Equipment setup -
GS10

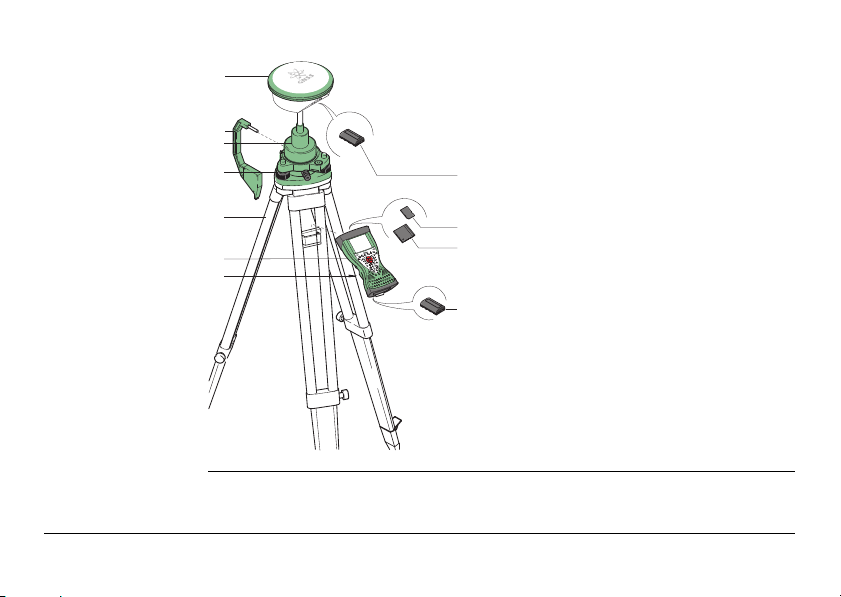

a) GNSS antenna AS05/AS10
b) GRT146 carrier
c) Height hook
d) Tribrach
e) 2.8 m antenna cable
f) GS10 instrument
g) Tripod
h) GEB221 batteries
i) SD card
j) CompactFlash card
k) CS field controller
l) GEB211/GEB212 battery
a
c
d
e
fh
i
i
j
k
l
b
g
GS_107

Viva GNSS, Equipment 17
Equipment setup -
GS12
a) GS12 instrument
b) Height hook
c) GRT146 carrier
d) Tribrach
e) Tripod
f) CS field controller
g) GHT61 hand strap
h) GEB211/GEB212 battery
i) SD card
j) CompactFlash card
h
j
i
h
e
a
c
b
d
g
f
GS_125

18
Viva GNSS, Equipment
Equipment setup -
GS15
Equipment setup
step-by-step
a) GS15 instrument
b) Height hook
c) GRT247 carrier
d) Tribrach
e) Tripod
f) CS field controller
g) GHT61 hand strap
h) SD card
i) GEB211/GEB212 batteries
j) CompactFlash card
k) GEB211/GEB212 battery
e
a
k
j
h
h
i
c
b
d
g
f
GS_111
Step Description
1. Set up the tripod.
2. Mount and level the tribrach on the tripod.
3. Ensure that the tribrach is over the marker.

Viva GNSS, Equipment 19
4. Place and lock the carrier in the tribrach.
GS10 GS12/GS15
5. Screw the GNSS antenna onto the
carrier.
Insert the SD card (only GS15) and
the batteries into the GS12/GS15.
6. Check that the tribrach is still level. Screw the GS12/GS15 onto the
carrier.
7. Insert the batteries into the instru-
ment.
Check that the tribrach is still level.
8. Insert the SD card into the instru-
ment.
Insert the SD card or CompactFlash
card and the battery into the CS field
controller.
9. Connect the instrument to the GNSS
antenna using the antenna cable
and port ANT on the instrument.
-
10. Switch on the CS field controller and connect it to the instrument if neces-
sary.
)Mandatory for the GS12 and optional for the GS10/GS15.
Step Description

20
Viva GNSS, Equipment
11. To hang the instrument on the
tripod leg, use the hook on the rear
of the unit. Or place the instrument
in the container.
To hang the CS field controller on
the tripod leg, use the hook on the
hand strap. Refer to the CS10/CS15
User Manual.
12. Insert the height hook into the carrier.
13. Measure the antenna height using the height hook.
14. Press the ON/OFF button on the instrument for at least 2 s to switch on
the instrument .
Step Description
