Leister NOVOLAS Basic AT User guide

System Manual
NOVOLAS Basic AT
Version 2.1 09/2010
Subject to change without notice
Änderungen vorbehalten

Leister Process Technologies
Galileo -Strasse 10
CH-6056 Kägiswil
Switzerland
phone: [phone]
fax: [phone]
e-mail: [e-mail]
http:// www.leister.com
This is a translated version. Original language version: German.
Sales and Service
USA Germany China
Leister Technologies, LLC
1253 Hamilton Parkway
Itasca, Illinois 60143
phone:
[phone]
fax:
[phone]
e-mail:
[e-mail]
http://
www.leisterlaser.com
Leister Technologies GmbH
Steinbachstrasse 15
D-52074 Aachen / Germany
phone:
[phone]
fax:
[phone]
e-mail:
[e-mail]
http://
www.leister-technologies.de
Leister Technologies Ltd.
Building A, 1588 Zhuanxing Road
Shanghai 201 108 PRC
phone:
[phone]
fax:
[phone]
e-mail:
[e-mail]
http://
www.leister.cn
Leister reserves the right to update the content of this manual at any time without prior notification.
Copyright
This document may not be copied. All rights reserved, including those of translation, reprinting and
reproduction of the document or parts thereof. No part of the document may be reproduced or
distributed without the permission of the author (or the board of management), in any form, including
for purposes of conference, presentation and advertising.

Version 2.1
09/2010 NOVOLAS Basic AT
General 3
Contents
1General 4
1.1 About this Manual 4
1.2 Specialist personnel 4
1.3 Proper Use 5
1.4 Proper handling / Warranty 5
1.5 rganizational Measures 6
1.6 Reporting Requirement 6
2Safety Instructions 7
2.1 General Introductory Remark 7
2.1.1 Laser Safety Class 8
2.2 Safety of the N V LAS Basic AT system 8
2.2.1 Hazards from Laser Light 9
2.2.2 Hazards from electrical energy 11
2.2.3 Hazards from gases or vapours 12
2.3 N V LAS Basic AT Safety Devices 13
2.3.1 Laser safety interlock (external) 13
2.3.2 Laser enable key switch (internal) 13
2.3.3 Emergency stop button (internal and external) 13
2.3.4 Laser Warning device 13
3System Description 14
3.1 Hardware verview 14
3.2 System States 17
4Interfaces 18
4.1 verview 18
4.2 Terminal block (X90, X91-94) 19
4.2.1 Common Control Interface (X 90) 19
4.2.2 Individual Laser Unit Control Interface (X91-X94) 20
4.3 Customer I/ 21
4.3.1 Digital Inputs (X14) 21
4.3.2 Digital outputs (X15) 22
4.3.3 Interface pin assignements X15, including good/bad
evaluation 23
4.3.4 Analogue Inputs (X16) 24
4.3.5 Analogue utputs (X17) 24
4.3.6 Serial Interface RS232 (X18) 25
4.3.7 Serial Interface RS422 (X36) 25
4.4 External Laser Interface (X80/81, Coolant) 26
4.4.1 High Current Connector (X 80.+, X80.-) 26
4.4.2 Interlock To Laser Module (X81) 27
4.4.3 Cooling Supply To External Laser Modules 27
5Installation 28
5.1 Important notices 28
5.2 Transportation 28
5.2.1 Local transportation 28
5.2.2 Long-distance transportation 29
5.2.3 Transport damage 29
5.2.4 Packaging materials 29
5.3 Location 29
5.4 Conditions for setting-up 30
5.5 Installation instructions 30
5.5.1 Time scheme for typical Integration 37
5.5.2 Typical wiring of a Basic AT with an external laser unit
(I.e. Linebeam) 38
6Operation 39
6.1 Switching on the N V LAS Basic AT 39
6.2 Configuring the N V LAS Basic AT 40
6.3 peration modes and modifications of the Basic AT
6.3.1 Current Setting Mode 46
6.3.2 Activating the Laser (Register 3) 48
6.3.3 n- ff Temperature Regulator (Register 1 and 6) 48
6.4 Switching off the N V LAS Basic AT 49
6.5 Behaviour during operations 49
6.6 Diagnostics LEDs 50
6.6.1 Diagnostic Lamp L1 50
6.6.2 Diagnostic Lamp L2 50
7Service and Troubleshooting 51
7.1 Repair / Service 51
7.2 System faults 51
7.3 Laser Module Faults 53
7.4 ptics fault 53
8Maintenance 54
8.1 Time intervals 54
8.2 Spare parts 55
8.3 Disposal of replacement parts 55
9Warning Notices and
Abbreviations 56
9.1 Symbols in the manual 56
9.2 Abbreviations and terms 57
9.3 Labels on the N V LAS Basic AT 58
10Technical Data 60
10.1 Installation data 60
10.2 Dimensions and weight 60
10.3 Environmental conditions 60
10.4 Laser power supply and laser module 61
10.5 Liquid Cooling System 61
10.6 Conductor cross-sections 61
11Notes 62

NOVOLAS Basic AT Version 2.1
09/2010
4 General
1 General
1.1 About this Manual
This manual describes the NOVOLAS Basic AT laser system.
This manual includes information on the equipment’s:
•Safety
•Installation
•Interfaces
•Operation
•Troubleshooting
•Maintenance
The meaning of the symbols and Warning labels used on the NOVOLAS Basic AT
system may be found in chapter 9 of this manual. Checklists for installation found in
Chapter 5.5 , for maintenance in chapter Maintenance of this Manual.
1.2 Specialist personnel
This manual, with the following stipulations, is addressed to specialist personnel
Transportation:
Personnel with the relevant knowledge
Installation:
End user having read and understood this manual
Wartung:
End user having read and understood this manual
Repair:
Only through verifiably trained persons authorized by Leister Process Technologies
and with knowledge of Laser safety regulations.

Version 2.1
09/2010 NOVOLAS Basic AT
General 5
1.3 Proper Use
The NOVOLAS Basic AT system may not be operated as a standalone system. It
must be integrated into equipment, which complies with the applicable directives and
standards. The Basic AT may only brought in to service after a laser warning lamp or
other warning device complying with EN60825-1 has been installed.
The NOVOLAS Basic AT system is exclusively designed for plastics welding in
combination with suitable plastics or soldering. Regarding question about the
material, please contact your material supplier.
Any other use or extension of use is considered as improper use. The manufacturer is
not liable for resulting damages and the risk lies solely with the user.
The materials and components processed as well as the parameters set are to be
selected such that no emissions (vapors, smoke, etc.) arise during proper use of the
system. If this cannot be avoided, care must be taken that the emissions arising are
completely extracted and filtered (observe the relevant regulations). The NOVOLAS
Basic AT system must not be used for welding of materials that are flammable or
explosive.
Proper use also involves:
•following the manual
•observance of the inspection and maintenance measures
1.4 Proper handling / Warranty
NOTICE:
Some components of the NOVOLAS Basic AT are delicate and/or have sensitive
elements. Warranty is void in case of damage if the component is not handled
carefully and in the manner described / according to specifications prvided in theis
manual and in the Technical Data.

NOVOLAS Basic AT Version 2.1
09/2010
6 General
1.5 Organizational Measures
Always keep this manual with your NOVOLAS Basic AT. In addition to this manual,
please observe the generally applicable legal and other statutory regulations
pertaining to accident prevention and environmental protection and instruct all
NOVOLAS Basic AT operators accordingly. Some important standards and
regulations are listed in chapter 2.1 of this manual.
Observe all safety and hazard warnings on the laser system. No warning signs are to
be removed. Replace damaged or illegible ones immediately.
Those persons entrusted to work on the NOVOLAS Basic AT must have read and
understood the manual, especially the chapter on safety, prior to commencing work.
This also applies to persons who only occasionally come into contact with the
NOVOLAS Basic AT, e.g. when maintaining the system.
No alterations should be carried out on the NOVOLAS Basic AT without prior
consultation and written approval from Leister Process Technologies. The safety of
the NOVOLAS Basic AT is compromised at best as a result of modifications. The user
is exclusively liable for all damages arising from alterations, which are not expressly
approved by Leister Process Technologies.
Replacement parts must conform to Leister Process Technologies’ specified technical
requirements. This is always ensured with original replacement parts.
Do not carry out any alterations on the operating system and control program of the
NOVOLAS Basic AT. Take care when testing and initial implementing newly generated
programs and be aware of potential collisions and emissions.
1.6 Reporting Requirement
The NOVOLAS Basic AT is a Laser Class 4 laser system. The emitted radiation
(direct radiation and/or scattered radiation) is partly invisible and can cause
irreparable damage to the eye or skin
As the owner, you might be obliged to report the operation of Class 4 equipment to
the authorities responsible.
Observe the statutory local laws and regulations governing the operation of laser
products.

Version 2.1
09/2010 NOVOLAS Basic AT
Safety Instructions 7
2 Safety Instructions
2.1 General Introductory Remark
The NOVOLAS Basic AT is an OEM product intended for integration into equipment.
The NOVOLAS Basic AT must not be operated as a stand-alone system.
The equipment into which the NOVOLAS Basic AT is integrated must comply with all
applicable directives and standards. In Europe the following European directives will
apply to the equipment.
•Machinery directive 2006/42
•Low voltage directive 2006/95
•Electromagnetic compatibility directive 2008/108
It is the responsibility of the integrator to ensure that the equipment into which the
NOVOLAS Basic AT is integrated complies with all requirements of these and/or other
local directives and applicable standards in their entirety. Only when this is ensured,
the NOVOLAS Basic AT may be put into operation as a component of the entire
equipment. Pay special attention to the hazards arising from the NOVOLAS Basic AT
itself, as described in this manual.
The NOVOLAS Basic AT should particularly only be put into operation if:
• The accessibility to the laser radiation has been prevented beyond the limit
value of Laser Safety Class 2M (protective guards, protection of the danger
zone etc., see EN60825-1)
• The NOVOLAS Basic AT is correctly connected to a separate power supply
fused by a line
The NOVOLAS Basic AT is designed and built according to state-of-the-art technology
and accepted safety rules. Nevertheless, operation of the machine can endanger life
and limb of the operator or other persons. Similarly, damage can arise to the
NOVOLAS Basic AT or to other property.
The NOVOLAS Basic AT may only be used if:
• All safety regulations are respected
• The system is in a technically perfect condition
• The system is operated properly
• The operator is trained and is fully aware of safety and hazard issues.
• The instructions in this manual and the other supplied manuals are read,
understood and observed

NOVOLAS Basic AT Version 2.1
09/2010
8 Safety Instructions
Faults, especially those compromising safety, must be eliminated without delay.
Below, several standards are listed, which could be relevant for the use of the
NOVOLAS Basic AT and/or of the equipment in which the Basic AT is integrated. The
list is purely informative. Leister Process Technologies accepts no responsibility for
the completeness of this list.
Standard Brief description
EN 14121 Safety of machines, guidelines for risk assessment
EN 12626 Safety of machines: laser processing machines
EN 12100-1
EN 12100-2 Safety of Machinery. Basic concepts, general principles for design. Basic terminology and methodology.
EN 60204 Electrical equipment of industrial machines
EN 13849 Safety-related control systems
EN60825-1 Safety of laser products: Equipment classification, requirements and
user’s guide
2.1.1 Laser Safety Class
The NOVOLAS Basic AT system itself is a Laser Class 4 laser system in accordance
with EN60825-1:2007. The emitted radiation (direct radiation and/or scattered
radiation) is partly invisible and can cause irreparable damage to the eye or skin
(warning labels – see chapter 9 ).
It is the responsibility of the system integrator to integrate the system such that no
hazardous laser radiation escapes from any part of the equipment. The entire
equipment must at least conform to Laser Class 2M in accordance with EN 60825-
1:2007.
2.2 Safety of the NOVOLAS Basic AT system
Only operate the NOVOLAS Basic AT system if all protective and safety devices - e.g.
removable guards, EMERGENCY STOP devices – are present and functional. It is in
the operating company's responsibility to install a laser warning lamp or other warning
device complying with EN60825-1 is installed prior to commissioning.
In the case of functional faults, switch off the NOVOLAS Basic AT immediately and
remove the mains plug. Have the fault corrected by an authorized specialist without
delay.
Carry out the setting-up, maintenance and inspection work as described in this
manual and observe the instructions on replacing parts. Repairs may only be carried
out by Leister Process Technologies or its authorized sales partners or certified
trained persons.
Particular hazards, which may arise from the NOVOLAS Basic AT, are described in
the following sections.

Version 2.1
09/2010 NOVOLAS Basic AT
Safety Instructions 9
2.2.1 Hazards from Laser Light
Laser diodes, as fitted in the NOVOLAS Basic AT, generate intense radiation in the
invisible, near infrared spectral range (800 – 1000 nm). Direct laser light and/or
scattered radiation can be hazardous to eyes and skin.
• Laser light can reach your skin or eyes if the laser aperture and processing
area are not under a laser safety guard. Direct laser light and/or scattered
radiation can burn your skin or permanently damage your eyes.
• Do not put your NOVOLAS Basic AT into operation until all safety measures
required in the standard EN60825-1 have been implemented.
• For fiber-coupled laser modules: Never put the NOVOLAS Basic AT into
operation without having connected the optical fiber at both ends (Laser
module and processing optics).
• Wear EN207/208 compliant laser protection goggles – eye protection for laser
radiation – when you disable the laser protection devices for repair work.
The most important protective measures when dealing with laser radiation are
contained in the standard EN60825-1 – Radiation safety of laser products.
An important aspect of the regulations is the division of laser devices into different
Laser Safety Classes, dependent on the hazard presented by the emitted light.
Leister Process Technologies’ NOVOLAS Basic AT conforms to Laser Class 4 on
delivery.
Laser Class 4
Laser Class 4 means that the direct and scattered radiation is hazardous to skin and
eyes. It can lead to burns and irreversible damage of eyes. The invisible radiation
from the NOVOLAS Basic AT high power lasers is assigned to Laser Class 4.

NOVOLAS Basic AT Version 2.1
09/2010
10 Safety Instructions
The NOVOLAS Basic AT must not be operated without additional protective guards or
alarmed danger zone. If this really is required, the relevant protective measures
(Laser protective goggles with adapted optical density for the wavelength range
described in EN 207/208, protective clothing etc.) must be implemented (see
EN60825-1).
• Direct laser light and/or scattered radiation can burn your skin or permanently
damage your eyes.
• Implement the necessary protective measures in the danger zone of the
NOVOLAS Basic AT in order to avoid exposure of eyes or skin from direct or
scattered radiation and to warn of hazards (also see the standard EN60825-
1).
• Observe the statutory and local laws & regulations governing the operation of
laser products.
Laser Class 2M
The aiming laser, which is installed in the NOVOLAS Basic AT, belongs to Laser Class
2M (according to EN60825-1, wavelength 635-670nm, power ≤5 mW).
This laser radiation is generally harmless to the eye as the eyelid reflex prevents long
exposure. It is however not advisable to stare directly into the beam.

Version 2.1
09/2010 NOVOLAS Basic AT
Safety Instructions 11
2.2.2 Hazards from electrical energy
Shut down the NOVOLAS Basic AT immediately, if there are faults in the electric
energy supply. Regularly inspect the electrical equipment of the NOVOLAS Basic AT.
Defects, e.g. loose connections or damaged cables, must be rectified without delay.

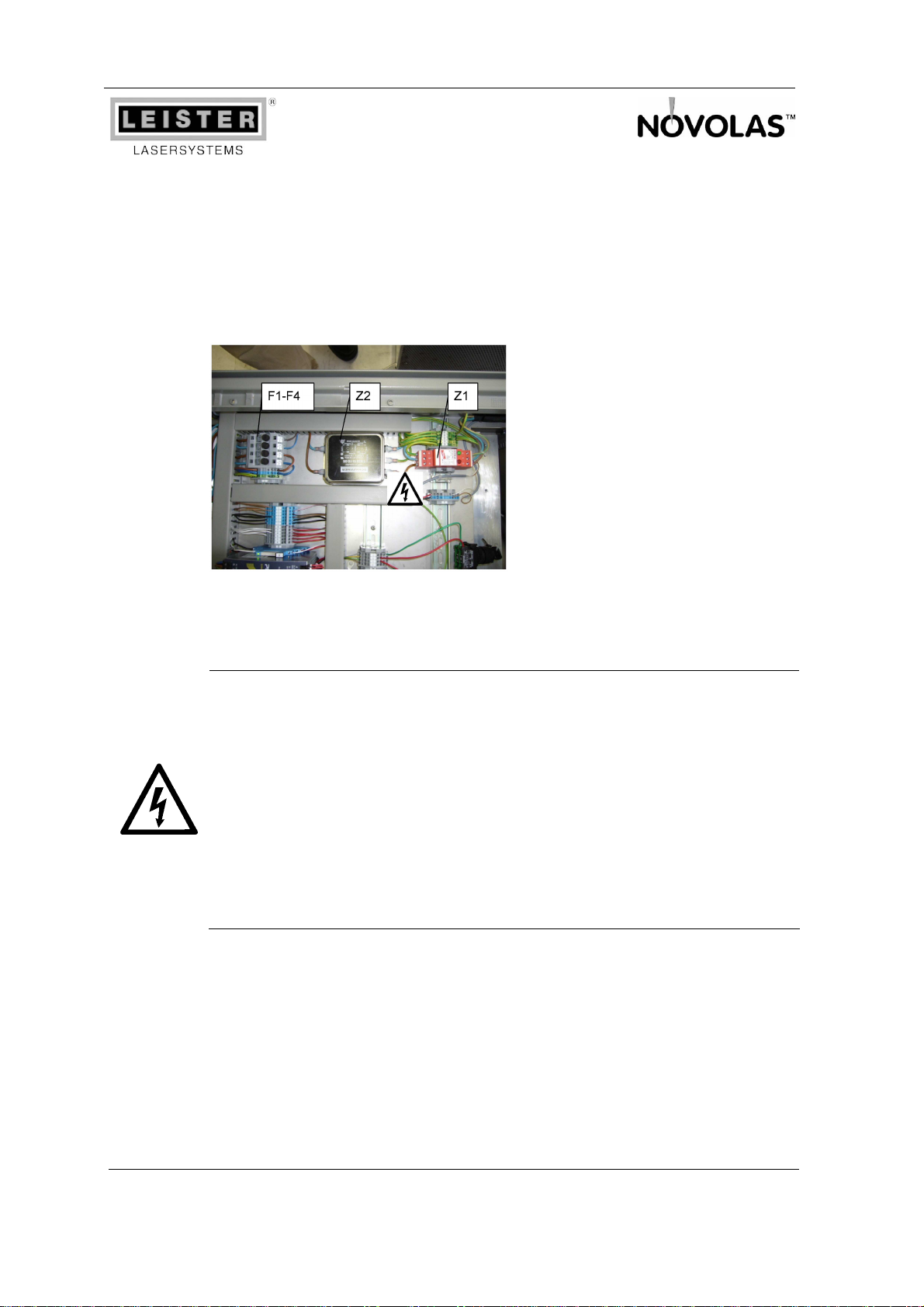

Figure 1: Mains power supply section. Z1 and Z2 are always connected to mains even
when mains switch is off.
• When carrying out repair work, you can come into contact with parts, which
conduct hazardous voltage. Touching live parts can be fatal.
• Be aware that the overvoltage protection Z1 and the filter Z2 are always
connected to mains even when main switch is off.
• Fuses F1-F4 may only be exchanged, when mains switch is off, because both
contacts carry live hazard voltages.
• Work on electrical equipment or operating materials may only be carried out by
electricians or from trained personnel under the management and supervision
of an electrician, in accordance with regulations.
• Switch off the NOVOLAS Basic AT before commencing repair work and protect
it against unauthorized use.
• Remove the mains plug before commencing repair work on Basic AT.
• Check whether parts, which could be live during operation, are live.

NOVOLAS Basic AT Version 2.1
09/2010
12 Safety Instructions
The following points should also be observed when operating the Basic AT.
• The mains voltage must agree with the specifications on the type plate on the
equipment.
Low voltage hazard points
• The NOVOLAS Basic AT conforms to Safety Class 1 and it is imperative that it
is connected to a continuous earth connection.
The NOVOLAS Basic AT earth leads are connected to the mains connection terminals
inside the supply unit and are marked with the appropriate symbol.
The NOVOLAS Basic AT is delivered without plug on the mains cable. It is the
responsibility of the operating company to correctly connect the mains cable and to
ensure a continuous earth connection.
2.2.3 Hazards from gases or vapours
When processing certain materials using the NOVOLAS Basic AT, toxic or non-toxic
gases and/or fumes can be emitted as a by-product. Please contact your material
supplier.
• Ensure complete extraction and filtration of the gases/vapours produced. The
gases/vapours can be hazardous to health or cause irritation.
In the case of toxic gases and/or fumes, a vapour extraction system must be used to
completely extract and filter any emitted vapours.
The filters from the vapour extraction system may contain deposits of toxic
substances and may therefore require special handling and disposal procedures.
• Observe the local standards and regulations for the disposal of toxic waste
material.

Version 2.1
09/2010 NOVOLAS Basic AT
Safety Instructions 13
2.3 NOVOLAS Basic AT Safety Devices
The following safety devices are provided with the NOVOLAS Basic AT.
•Laser safety interlock (Laser safety)
•Laser enable key switch
•Emergency stop button
Safety device functions are described as follows.
2.3.1 Laser safety interlock (external)
See chapter 4.2 for connection detail. The laser safety interlock will securely avoid
laser emission by shorting and disconnecting the laser diode from the supply current
unless the laser safety interlock is unblocked. Unblocking is accomplished by closing
the two electrical interlock circuits independently. The operability of the interlock is
being checked at every activation of the system. The interval of this check may be
configured differntly, according to the requirements of the customer.
2.3.2 Laser enable key switch (internal)
The laser enable key switch must be activated in order to operate the laser modules.
Disabling the key switch will disconnect the current sources from the mains supply
and block the laser safety switches.
2.3.3 Emergency stop button (internal and external)
See chapter 4.2.1 for connection details. The activation of the laser emergency stop
will immediately intercept the energy distribution to the laser current sources, block
the laser safety switches and stop operation of the cooler (On request, this can be
adapted by Leister Service Personal). After an emergency stop the laser safety stop
has to be released and the reset button has to be pushed in order to start the system
again.
2.3.4 Laser Warning device
The commisioning of the system may only be done after installation of a laser warning
device conforming to EN60825-1.

NOVOLAS Basic AT Version 2.1
09/2010
14 System Description
3 System Description
3.1 Hardware Overview
The NOVOLAS Basic AT is based on the Leister NOVOLAS AT platform. This platform
consists of a variety and growing number of modules, which can be easily combined
to build a customized laser systems optimized for plastic welding applications. The
figure below represents the structure of the NOVOLAS Basic AT.
NOVOLAS BASIC AT
Control Unit Novolas Basic AT
Customer I/O #A
System Master AT
Customer I/O #m
Cooler AT
Laser unit #n
Optics Head (Cabezal óptico)
Current Source
Laser Module
Laser unit #A, fiber coupled
Optics Head
Current Source
Laser Module
Figure 2: Systematic Outline of a fiber-coupled system configuration.

Version 2.1
09/2010 NOVOLAS Basic AT
System Description 15
NOVOLAS BASIC AT
Control Unit Novolas Basic AT
Customer I/O #A)
System Master AT
Customer I/O #m
Cooler AT
Laser unit #n, Linebeam
Current Source
(Fuente de alimentación)
Linebeam (haz lineal)
Módulo láser
Cabezal optico
Laser unit #A, Linebeam
Current Source
Linebeam
Laser module
Optics
Figure 3: Systematic Outline of system configuration featuring at least one linebeam.
NOVOLAS BASIC AT
Control Unit Novolas Basic AT
Customer I/O #A
System Master AT
Customer I/O #m
Laser unit #n, air cooled
Módulo laser
systema de
refigeración
Fuente de
alimentación
Cabezal optico
Laser unit #A, air cooled
Laser module
Cooling
System
Current
Source
Optics
Figure 4: Systematic Outline of system configuration featuring air cooled laser
module.

NOVOLAS Basic AT Version 2.1
09/2010
16 System Description

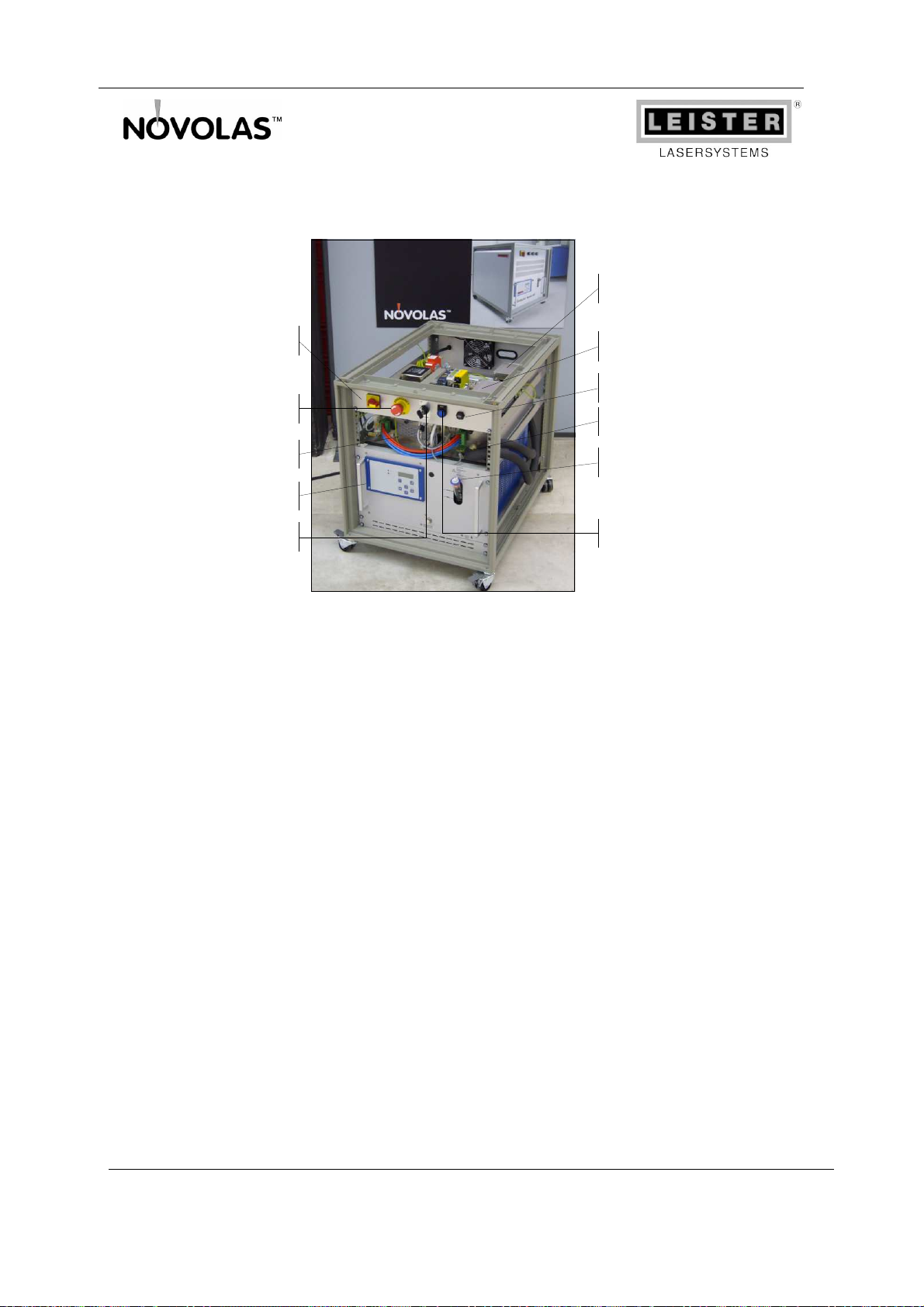

The following image depicts the corresponding hardware:
Image Legend:
1
Customer I/O 7 Laser Enable key switch
2 System Master AT 8 Cooler
3 USB 9 Current Source AT
4 Laser module 10 Emergence Stop (E-Stop)
5 Filling neck for cooling water 11 Main Switch
6 Reset Button / System Start
From the above mentioned diagrams, it can be seen that the laser units build the
central part of the system. The laser units contain a current source and alternatively a
laser head or a laser module with an attached optics head. The surrounding modules
support the operation of the laser unit. The central cooler assures the cooling of the
laser diodes. The Customer I/O builds the interface to the surrounding customer
specific environment. The System Master is responsible for the configuration and
integrity checks during setup and the surveillance of the system during operation. The
NOVOLAS Basic AT control module contains the 24V DC power supply, the
emergency stop circuitry, the Ethernet switch, control switches and other common
parts to make the modules work. All this is assembled in a standard 19” rack.
For a typical integration you will find a time scheme in chapter 5.5.1 of this manual.
6
1
2
3
4
5
7
8
9
10
11
Figure 5: NOVOLAS Basic opened. Overview

Version 2.1
09/2010 NOVOLAS Basic AT
System Description 17
3.2 System States
The NOVOLAS Basic AT possesses the following states:
• System not started
• System Initialization
• System Ready
• System Error
When main power is applied to the NOVOLAS Basic AT the system is in not started
state. After about 45 seconds, the System Master starts its programs and the system
is set in initialization state. The System Master communicates with the cooler and
waits until the cooling liquid temperature will be lower than 23°C. After that, the
System Master sets all other modules to initialization state. The Ready-state will be
entered, when the laser modules are cooled down. If Error State is reached, the
system can only be reset by powering down and up the whole system.
Each individual laser unit (module) has additional states:
• Laser Unit Not Started
• Laser Unit Initializing
• Laser Unit Ready
• Laser Unit Ready Inactive
• Laser Unit Ready Active
• Laser Unit Error
The Laser Unit Ready state will persists until the reset button is pressed, and
therefore the current sources are powered up. The laser unit enters then Laser Unit
Ready Inactive.
The laser unit goes into Laser Unit Ready Active state when the gates and trigger
signals are active and the interlock is unblocked. The interlock is unblocked by closing
both interlock circuits independently.
The Laser Unit Error state will be entered when an error state of one of the laser
units modules is detected, which will not interfere with the whole system.
You will find a Signal scheme for an example of a typical integration in chapter 5.5.1
of this manual.

NOVOLAS Basic AT Version 2.1
09/2010
18 Interfaces
4 Interfaces
4.1 Overview
The NOVOLAS Basic AT provides electrical interfaces to
• start the system
• stop the system (Emergency Stop)
• unblock the interlock of the laser modules,
• set laser module current
• activate the laser diodes
• monitor system state
These interfaces are provided on terminal blocks (X90-X94) and on connectors of the
Customer I/O module.

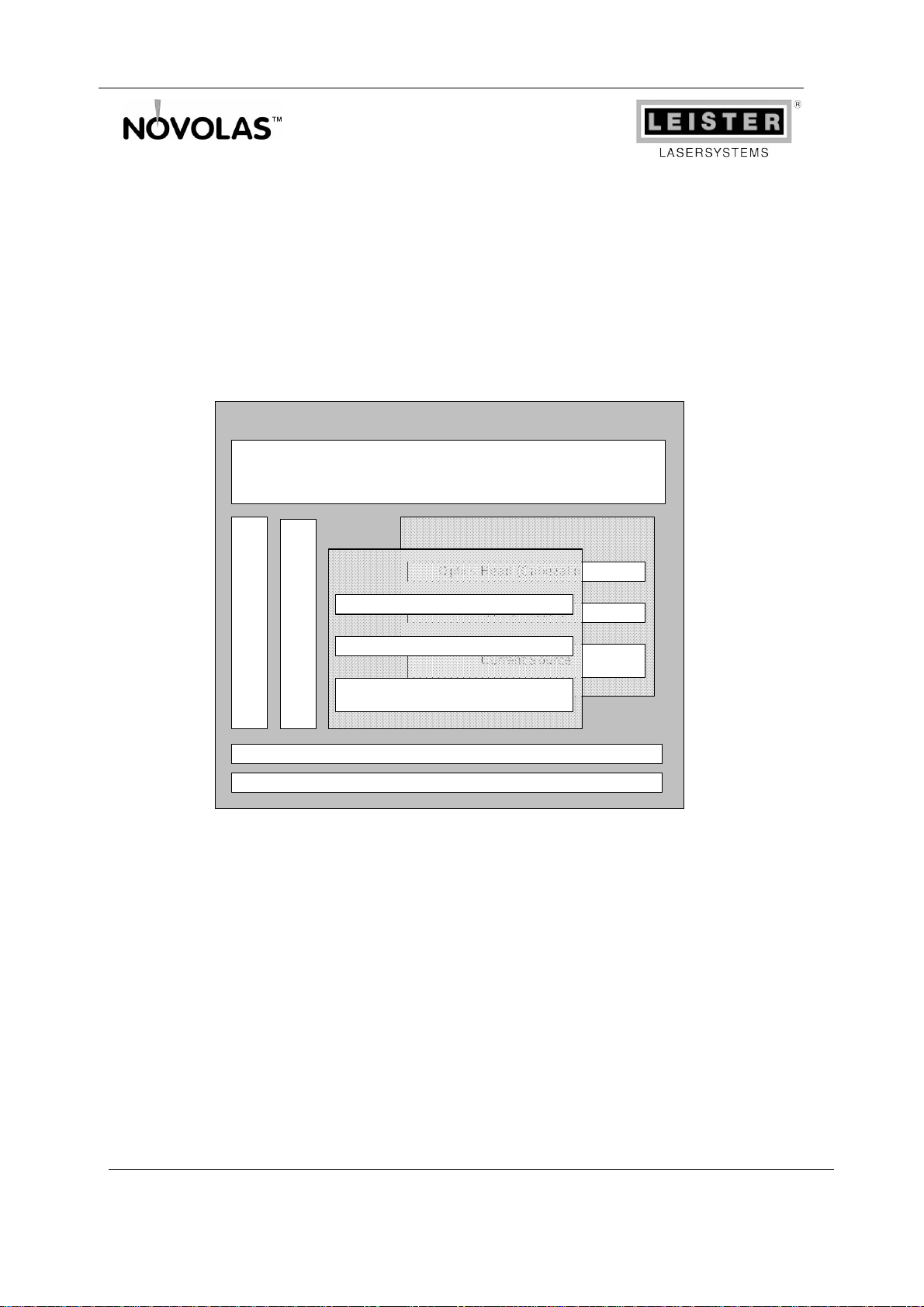

Figure 6: Connecting Array of NOVOLAS Basic AT

Version 2.1
09/2010 NOVOLAS Basic AT
Interfaces 19
4.2 Terminal block (X90, X91-94)
Terminal blocks are located on the back side of the control slot. The control slot can
be accessed by removing the top cover of the Basic AT.
4.2.1 Common Control Interface (X 90)
Emergency Stop and Laser Enable
The NOVOLAS Basic AT includes a common safety gate, which builds the
emergency-stop control unit for all installed laser units. This control unit provides two
independent electrical channels that will interrupt the power supply of the current
sources when the emergency stop is active. It also assures that the current sources
are not automatically started after a power-up or an emergency-stop event. Only use
external potential free switches.
Terminal Designation Description
Terminal X90 belongs to the common control interface
X90.1 Reset
X90.2 Reset
These contacts are in parallel to the blue push button on the front of the
NOVOLAS Basic AT. After main power on, shorting these two contacts
for more than 100 ms will enable the power supply of the laser diode
and start the cooling system (depending on factory setting, the cooler
might start immediately after main power is applied).
X90.3 Emergency-
Stop
channel#A
X90.4 Emergency-
Stop
channel#A
These terminals connect to channel#A of the emergency stop control
unit. If these contacts (or the ones from channel #B) are open, the
system will go into emergency stop state. The power supply for the
laser diode will be disabled. Potential free switches have to be used.
X90.5 Emergency-
Stop
channel#B
X90.6 Emergency-
Stop
channel#B
Same as channel #A.
X90.7 Laser
Enabled
Channel#A
X90.8 Laser
Enabled
Channel#B
These two terminals will be active (24V referenced to X90.9) whenever
the emergency stop control unit is active (Reset signal or button
pressed) and the laser enable key is enabled.
X90.9 Internal
supply 0V Reference potential of the 24 V Versorgung

NOVOLAS Basic AT Version 2.1
09/2010
20 Interfaces
Reset: Terminals 1/2
To start the system, the terminals 1 and 2 have to be closed with a potential free
switch for at least 100 ms. Only use external potential free switches (dry contacts).
The laser can only be enabled after test of safety relais has been completed, ca. 3
sec after starting the main power supply.
Emergency-stop channel#A and #B: Terminals 3, 4 and 5, 6
The emergency stop button on front of the unit is connected in serial to the external
emergency stop switches. After an emergency stop, the blue reset button needs to be
pressed in order to restart the machine. Make sure that the emergency stop buttons
are released before the blue reset button is pressed. Only use external potential free
switches.
4.2.2 Individual Laser Unit Control Interface (X91-X94)
The following terminals are provided for each laser module:
Terminal of laser module
#A #B
(opt.) #C (opt.) #D (opt.) Name Description
X91.1 X92.1 X93.1 X94.1 IL Channel
#A
X91.2 X92.2 X93.2 X94.2 IL Channel
#B
X91.3 X92.3 X93.3 X94.3 IL Channel
#B
X91.4 X92.4 X93.4 X94.4 IL Channel
#A
The individual laser module can only be enabled, if
both interlock circuits are closed simultaneously.
Only dry contacts are allowed! Be aware that the
terminals are not consecutive numbered! Delays
during opening or closing the contacts of the two
channels of more than 100 ms will cause a module
error. Shortage between the two circuits will be
detected. If one of the channels is electrically
opened, the interlock circuitry will short the current
input terminals immediately and the laser module
stops laser emission.
The interlock circuits are designed to provide a safe and software independent
possibility to switch off the laser diodes. If any of the two interlock channels is
electricaly open, the laser modules inputs are electrically shorted and therefore no
laser emission is possible. Terminals X91.1/X91.4 and X91.2/X91.3 have to be closed
by dry contacts. The two channels are checked for cross shortages and for
simultaneous activation. An error will be caused, if the circuits are not in the same
state for more than 100 ms or if they are not truly independent.
Only use switches appropriate for your safety needs.
Only use switches with dry contacts.
Please note that for safety reasons the terminals of the two circuits are not
consecutive.
