4
WELDPLAST 600/605
hot air welder extruder
Congratulations on your purchase of the WELDPLAST 600/605.
You have chosen a first-class hot air welder extruder.
It was developed and produced in accordance with the latest state-of-the-art technology in the plastics-process-
ing industry. It has also been manufactured using high-quality materials.
You can find more information on the WELDPLAST 600/605 at www.leister.com
We recommend that you always keep the instruction manual with the device.
1. Important safety instructions
In addition to the safety instructions contained in the individual sections of this instruction manual, the following
regulations must always be observed.
Read through the operating instructions before using for the first time. Always store these operating
instructions with the device.
Do not pass the device on to anyone else without the operating instructions.
Warning
Hazardous voltage, danger to life
There is a danger to life from electric shock due to electrical voltage. The extruder must therefore only
be connected to sockets and extension cables with a protective earth conductor. Protect the extruder
from moisture and wet conditions. Before starting the device, check the power cord, the plug and the
extension cable for electrical and mechanical damage. The extruder may only be opened by instructed,
qualified personnel.
Risk of burning
Do not touch exposed metal parts or escaping material while they are hot. The device should always
first be allowed to cool down. Never point the hot air flow at people or animals.
The local supply voltage must match the nominal voltage specified on the device. In case of doubt,
the responsible power company must be consulted.
The main switch must be switched o in the event of a mains voltage failure.
Risk of glare
Direct eye contact with the LED light beam must be avoided.
The device should only be operated by trained specialists or under their supervision. Children are not
permitted to operate the device.
Operating Manual (Translation of the Original User Manual)

5
The WELDPLAST 600/605 is designed for professional welding of thermoplastic materials made from PE and PP
in the fields of
• Vessel construction
• Pipeline construction
• Equipment construction
• Landfill construction
• Repairs
Use only original Leister spare parts and accessories; otherwise, any warranty or guarantee claims will be invali-
dated.
Welding procedures and types of materials
• Use the WELDPLAST 600/605 for welding thermoplastic materials based on polyethylene and polypropylene only.
(PE-LD, PE-LLD, PE-HD, PP)
1.1 Intended use
Any use other than the use specified in 1.1 or beyond the intended use is deemed to be improper use.
1.2 Non-intended use
Toxic gases or vapors may be hazardous when welding with incorrect materials or when welding at too
high a temperature.

6
Subject to change without prior notice.
2. Technical data
WELDPLAST 600
230 V
WELDPLAST 605
230 V
Voltage V~ 230 230
Power W 3680 3680
Frequency Hz 50/60
Temperature °C plastic
°F Air
Max. 260
Max. 300
Air volume % 45 – 100
Drive % 60 – 100
Noise level LpA (dB) <70 (K = 3 dB)
Vibration level ah(m/s2)< 2.5 (K = 1.5 m/s2)
Weight (without power
cord)
kg
lbs
12.2
26.9
12.6
27.8
a
b
cWeight (not inc. welding
shoe)
a) mm
inch
809
31.9
b) mm
inch
140
5.5
c) mm
inch
273
10.7

7
Use the hot air welder extruder’s transport box included with delivery only (see scope of delivery [4.2]).
3. Transport
Comply with applicable national regulations regarding the carrying or lifting of loads.
The weight of your WELDPLAST 600/605 including the transport box is 18 kg (14 kg without transport
box).
The hot air blower (15) and jacket heating (10) must be allowed to cool down suciently before
transport
Do not store flammable materials (e.g. plastic, wood, or paper) in the transport box.
Never use the carrying handle (5) on the device or on the transport box for transporting with a crane.

8
4. Your WELDPLAST 600/605
4.1 Type plate and identification
4.2 Scope of delivery (standard equipment in the case)
Example:
The model and serial number are indicated on your device's type plate (20). Transfer this information to your
operating instructions; in the event of any inquiries to our representatives or authorized Leister service center,
please always refer to this information.
Model:..............................................................................................................................................................
Serial no.:.........................................................................................................................................................
1 x WELDPLAST 600/605
1 x Welding shoe
1 x Additional handle (WELDPLAST 600 only)
1 x stand (WELDPLAST 600 only)
1 x specialized handle (WELDPLAST 605 only)

9
8
17
2
3
7
15
9
10
622 1
18
19
5
11
21
12
13
14
4
16
20
22
23
24

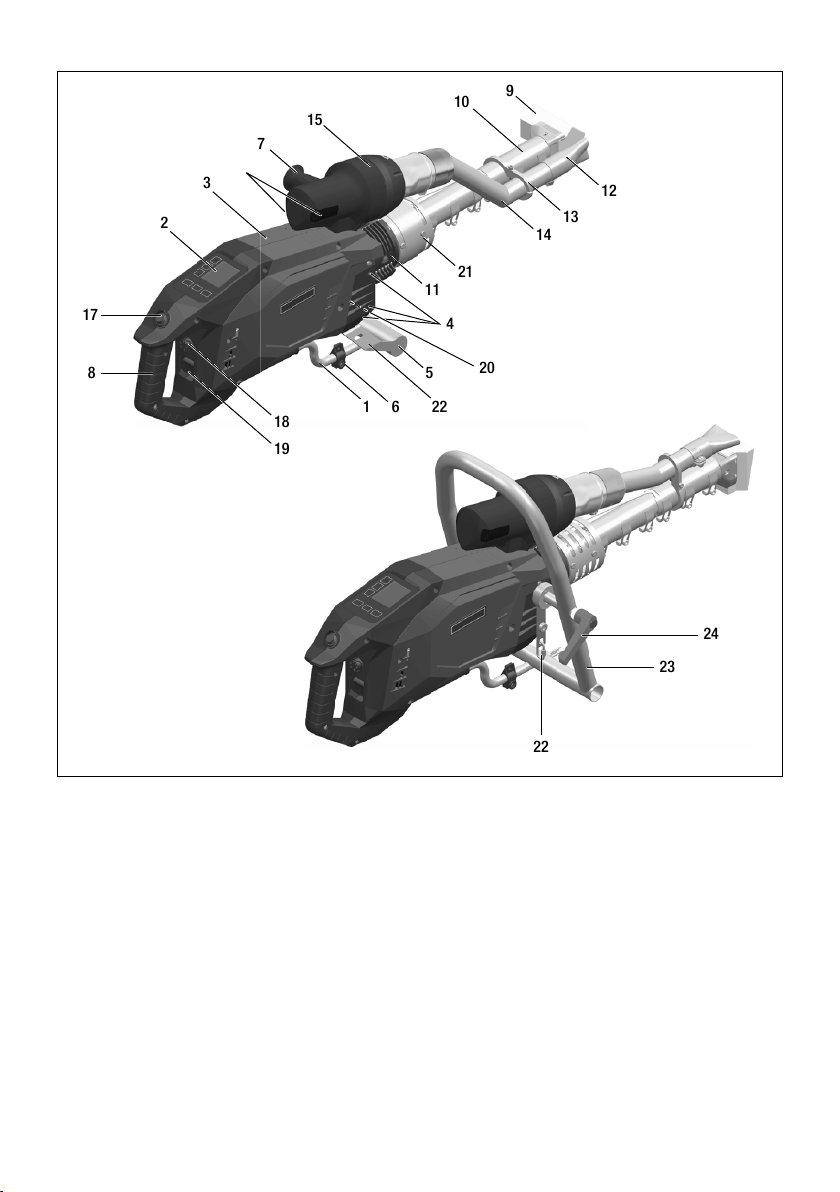

WELPLAST 600
WELPLAST 605
1. Mains connection cable
2. Control panel
3. Housing
4. Fixing thread (8 x M8)
5. Stand
6. Stand for mains connection cable
7. Adjustable Handle
8. Device Handle
9. Welding shoe
10. Jacket heating
11. Welding rod entry (bilateral)
12. Pre-heating nozzle
13. Pipe clamp
14. Hot air duct
15. Hot air blower
16. Filter
17. Drive on/o switch
18. Potentiometer
19. Main switch
20. Type plate
21. Protective tube
22. Fastening point carabiner power cable
23. Guide handle
24. Locking screw Guide handle
4.3 Overview of device parts

10
33
32
35
32
31
34
30

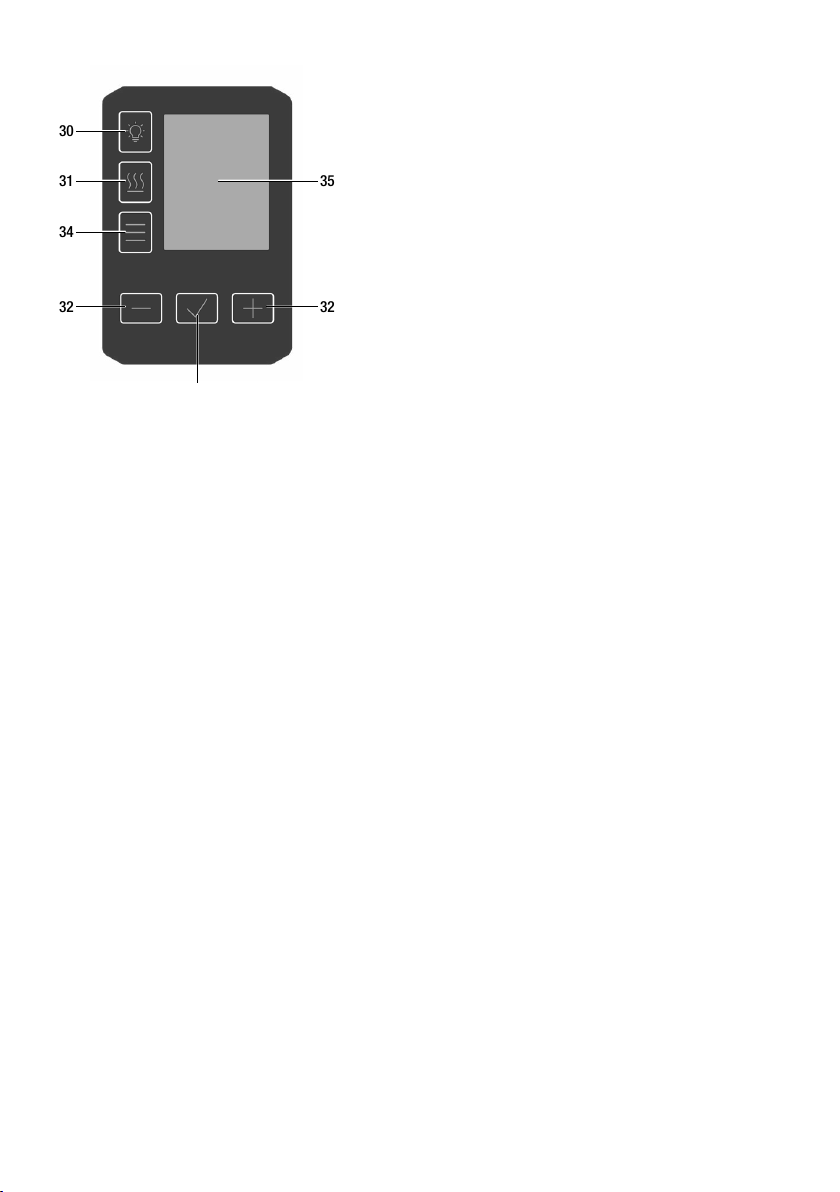

Figure 1/Control panel (2)
30. Button Work light On/50%/O
31. Button Heating On/O
32. Button Reduce/Increase
33. Button Confirm
34. Button Menu
35. Display

11
1
:
1
1
:
1

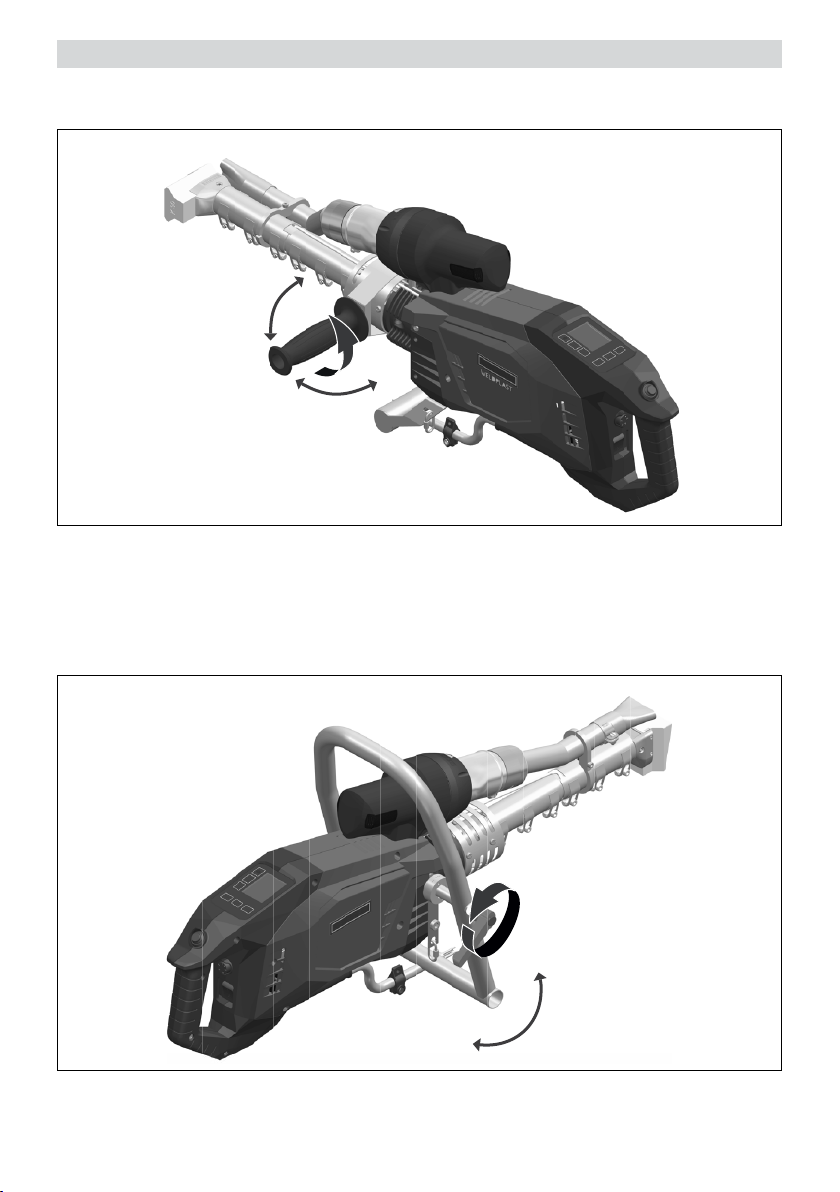

Loosen the adjustable handle (7) with a counterclockwise turn. Set the position of the adjustable handle (7)
on the protective tube and fasten it again with a clockwise turn of the adjustable handle (7).
Loosen the locking screw (24), adjust the guide handle (23), tighten the locking screw (24).
5. Settings on the WELDPLAST 600/605
5.1 Adjusting the handle (7)

12
6. Commissioning and operation of the WELDPLAST 600/605
6.1 Work environment and safety
Warning
Caution
Hazardous voltage, danger to life
There is a danger to life from electric shock due to electrical voltage. The extruder must therefore only
be connected to sockets and extension cables with a protective earth conductor. Protect the extruder
from moisture and wet conditions. Before starting the device, check the power cord, the plug and the
extension cable for electrical and mechanical damage.
Risk of burning
Do not touch exposed metal parts or escaping material while they are hot. The device should always
first be allowed to cool down. Never point the hot air flow at people or animals.
Risk of fire and explosion
Caused by improper use of the extruder (e.g., material overheating), and particularly in the vicinity of
flammable materials and explosive gases.
Never use the hot air welder extruder in explosive or readily inflammable surroundings. Maintain su-
cient distance from combustible materials or explosive gases at all times.
Place the handheld extruder exclusively on fireproof surfaces. Hot metal parts and the warm air jet
must be kept at a sucient distance from the support and walls.
The device must be monitored continuously during operation. Waste heat can come into contact with
flammable materials that are not in view.
Ensure that you are in a stable position while working. The connection cables and welding rod must be
able to move freely and must not hinder the user or third parties while working. (Tripping hazard).
Comply with national statutory requirements regarding occupational safety (securing personnel or
devices).
If the device is being used on construction sites, a fault current circuit breaker must be used to
protect site personnel.
The device should only be operated by trained specialists or under their supervision. Children are not
permitted to operate the device.

13
Power cord and extension cable
Power supply with autonomous power generators
• The nominal voltage specified on the device (see Technical data [2]) must match the supply voltage.
• The extension cables must be authorized for the utilization site (such as, outdoors) and be marked accordingly.
Take the necessary minimum cross-section for extension cables into account. Recommendation at least 2.5
mm2.
• When using autonomous power generators, they must be grounded and equipped with residual current circuit
breakers.
To prevent possible damage to the electronics, Leister recommends power generators that have a maximum
total harmonic distortion (THD) of 5% or less.
• The formula "2 x nominal power of the hot air extruder" applies to the design of the nominal power of power
generators.
• The device may only be switched on and o when the generator is running, otherwise the electronic compo-
nents may be damaged.
• Disconnect the device from the mains before starting or switching o the generator.
• Place the hot air welder extruder on a suitable surface so that the device is stable and safe. Make sure that
nothing flammable is radiated by the heat of the extruder.
• Check whether the material to be welded is clean.
• Then check whether the welding shoe (9) is clean.
• Check the preheating nozzle (12) is in the right position and tightened.
• Check the power cord (1) and plug for electrical and/or mechanical damage.
6.2 Prepare device
6.3 Starting the device
• Once you have prepared the working area and the hot air welder in accordance with
the description, connect the hot air welder to the supply voltage.
• Use the main switch (18) to switch the hot-air welder extruder on.

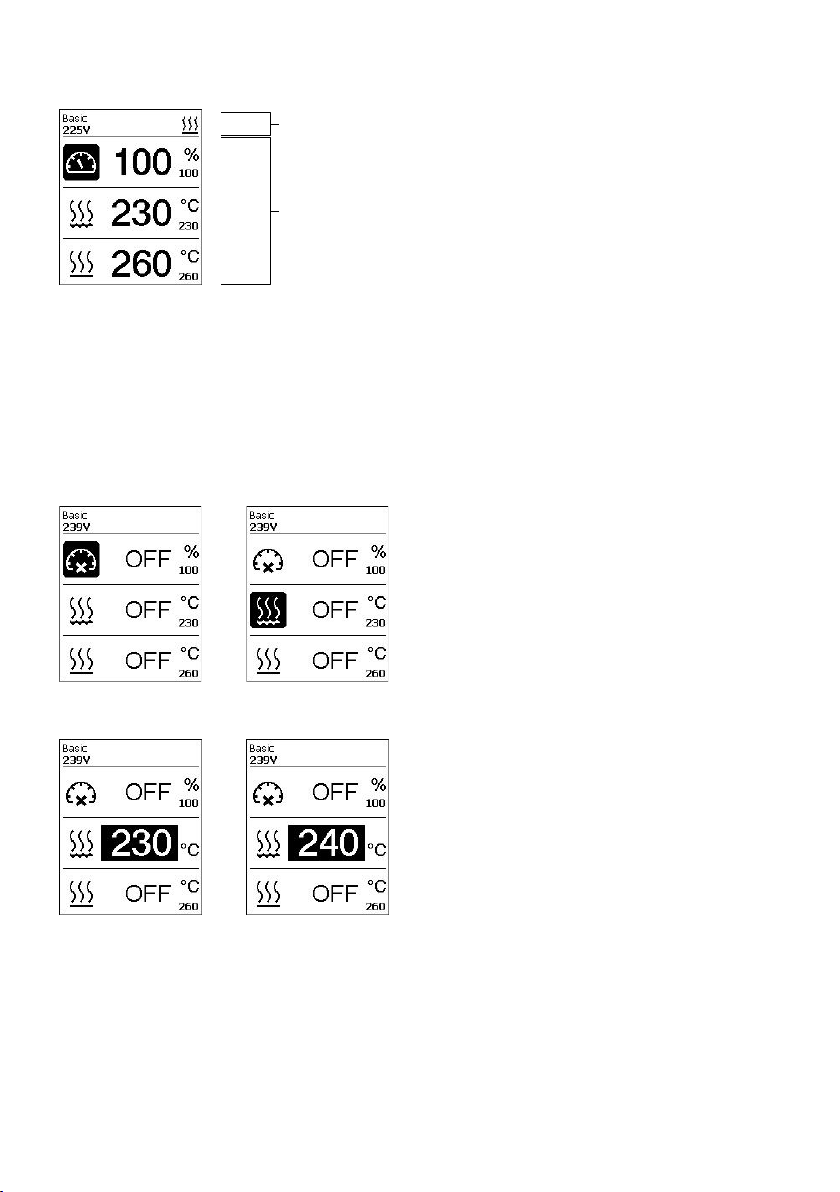

After startup, the Start screen will appear briefly in the display with the
version number of the current software release and the device designation.
If the device was allowed to cool down beforehand, this will be followed by a static
display of the setpoints of the most recently used profile (the Basic profile is displayed
when the device is first commissioned).
The heating is not yet switched on at this stage.
• Now select the appropriate welding formula (see 9.3) or set the welding parameters
individually.
• Now control the heating with the Heating On/O button (31).

14
6.4 Welding sequence
Preparing for welding
• Now carry out test welds in accordance with the welding instructions of the material manufacturer and/or
national standards or regulations and inspect the results. Adjust the welding profile as required.
• By pressing the drive on/o switch (16), the plastic drive starts extruding the inserted welding rod.
• Extrude some material without welding before the actual welding process.
• Guide the extruder during the welding process keeping it stable. The preheating nozzle must heat the
surfaces to be welded.
• Never feed the welding rod into both welding rod insertion points (11) at the same time. Always operate the
extruder with the welding rod.

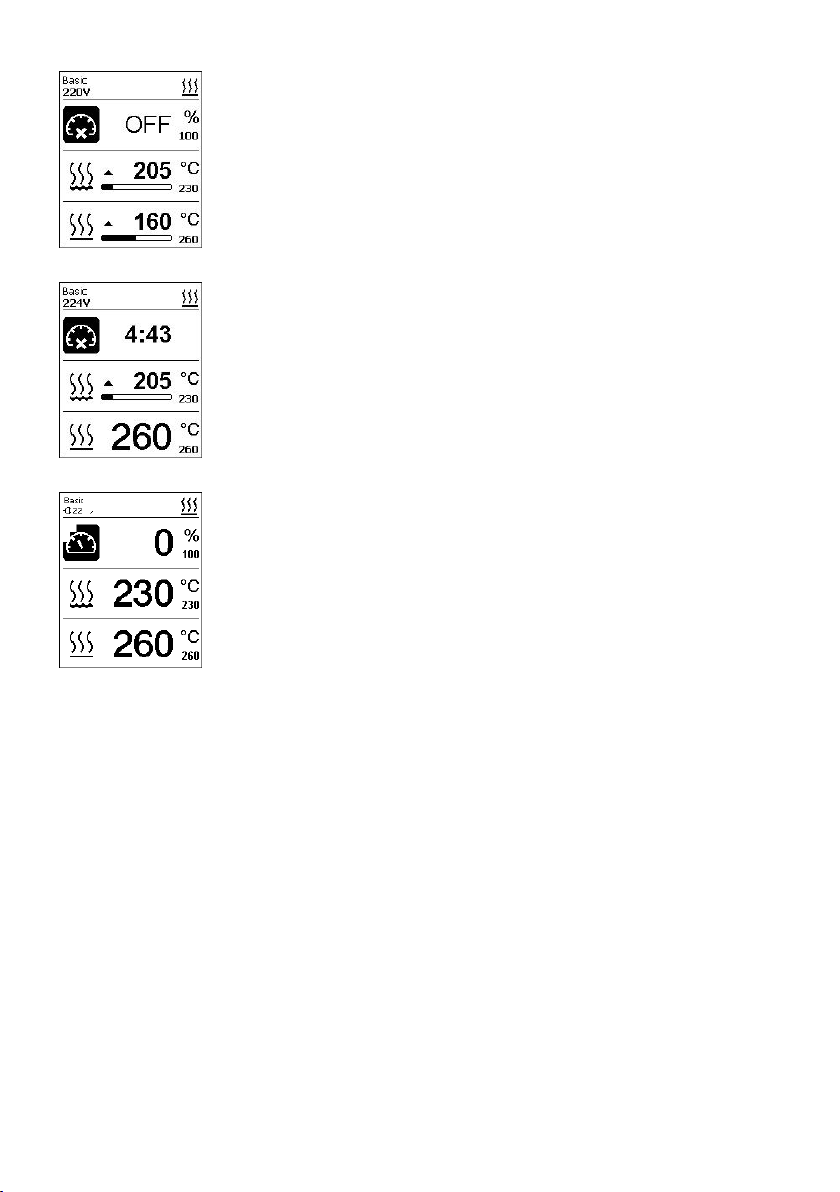

As soon as you have switched on the heating (Button 31 Heating On/O), you will
see adynamic display of the current air and plastic temperature with a prog-
ress bar (setpoint and actual values).
The plastic drive is still locked.
If the ACTUAL temperature of the plastic is 30°C below the DESIRED temperature,
the 5-minute timer starts. When the timer has expired, the plastic drive is enabled.
The plastic and air temperatures have now been reached. The plastic drive is
enabled.

15
6.5 Finishing welding
6.6 Switching off the device/Maintenance
• To stop the plastic output, press the drive on/o switch (16). Slowly swivel the welding shoe away from the
welding seam.
• Pull out any material left over in the welding shoe hole.
• Cut o the welding rod.
• Pull out any remaining material in the welding shoe hole.
Switch o the air/plastic heaters with the button (31). The cool-down mode is
activated.
• Note that the jacket heater (10) remains hot for a certain time after the cool-
down mode has been completed.
• The blower switches o automatically after approx. 6minutes.
• Now switch o the device with the main switch (18) and disconnect the power
cord (1) from the electrical network.
• Wait until the device has cooled down fully.
• Check the power cord (1) and plug for electrical and/or mechanical damage.

16
QG WELDPLAST 600/605 / Art. 170.895 / 06.2021
User Manual:
leister.com/DLP-Weldplast-605
WELDPLAST 600/605
Quick Guide
Download
myLeister App
1 5
1
2 3
5
42
3
6 min
4
10 min
7. Quick Reference Guide WELDPLAST 600/605
7.1 Switching on/Starting
7.2 Switching off
1. Ensure that the main switch (18) is switched o and connect the plug from the power cable
2. Switch on the main switch (18).
3. Switch on the heating with the heating On/O (31) button; wait 10minutes until the desired temperature is
reached and the drive is released.
4. Guide the welding rod into the welding rod entry point (11) and switch on the plastic drive (16) with the
drive on/o switch
1. Cut o the welding rod.
2. Clean the opening of the welding shoe when the plastic drive is switched o.
3. Switch o the heating with the Heating On/O button (31) and wait for the cooling process to finish (approx.
5minutes).
4. Switch o the main switch (18).Caution: Jacket heating remains hot for some time.
5. Pull out supply voltage plug

17
33
32
32
31
34
30
35
8. The control panel of the WELDPLAST 600/605
8.1 Function buttons
The control panel (2) is comprised of the function buttons with which you control the various menu functions,
and the display where the respectively selected setting, menu options or the values valid for the running time are
displayed.
Multiple allocation of function buttons Control panel (2)/Symbols Display
Symbol Name In the work display In the menu, after pressing
the button (33)
Button Work light
On/50%/O (30)
Button Heating On/O (31)
Buttons Reducing/increasing (32)
Press briefly Setting the required setpoint in
5°C or 5% steps
Changing the position/
changing the menu, setting
parameters
Press and hold Fast setting of desired setpoint
values
Changing the position/
changing the menu, setting
parameters
Button Confirm (33) The set value is applied and
shown in the Menu selection.
The desired function or menu
is executed.
Button Menu (34) Switching to the menu area Back to working display
30. Button Work light On/50%/O
31. Button Heating On/O
32. Button Reduce/Increase
33. Button Confirm
34. Button Menu
35. Display

18
8.2 Display
8.3 Setting the welding parameters
The display is subdivided into two display areas:
To adjust a welding parameter before welding, proceed as follows:
Example for setting the welding temperature
• Press the Minus button (32) to select the plastic
temperature,
• then press the Confirm button (33).
• set the desired target temperature value with the
Minus/Plus buttons (32)
• cursor automatically jumps back to the temperature
symbol
• with the Minus/Plus buttons (32) select the next
welding parameter
41 Working display
40 Status display

19
8.4 Display symbols of the status display (Display 40)
The Status display is subdivided into a left-hand (1) and a right-hand area (2).
Warning present Data recording Overvoltage
Eco mode GPS data reception Undervoltage
HeatingWLAN Stop Device on Alert
switched on
• during the welding process, plastic extrusion can be adjusted at any time using
the potentiometer (18)
• between 60 and 100% to adjust other parameters during the welding process,
press the Minus/Plus button (32) to select the parameters to be adjusted
• Press the Confirm button (33)
• then set the desired target value with the Minus/Plus button (32)
• without further input, the cursor automatically switches back to the temperature symbol
Status display 1/Left
Profile name
Displays the name of the selected currently valid welding profile (such as Basic). If
a profile name contains more than 6 characters, the first 6 characters are shown
first, one after the other, followed by the remaining 6 characters. The system
presents the first 6 characters afterwards.
Voltage Display of the supply voltage
Status display 2/Right

20

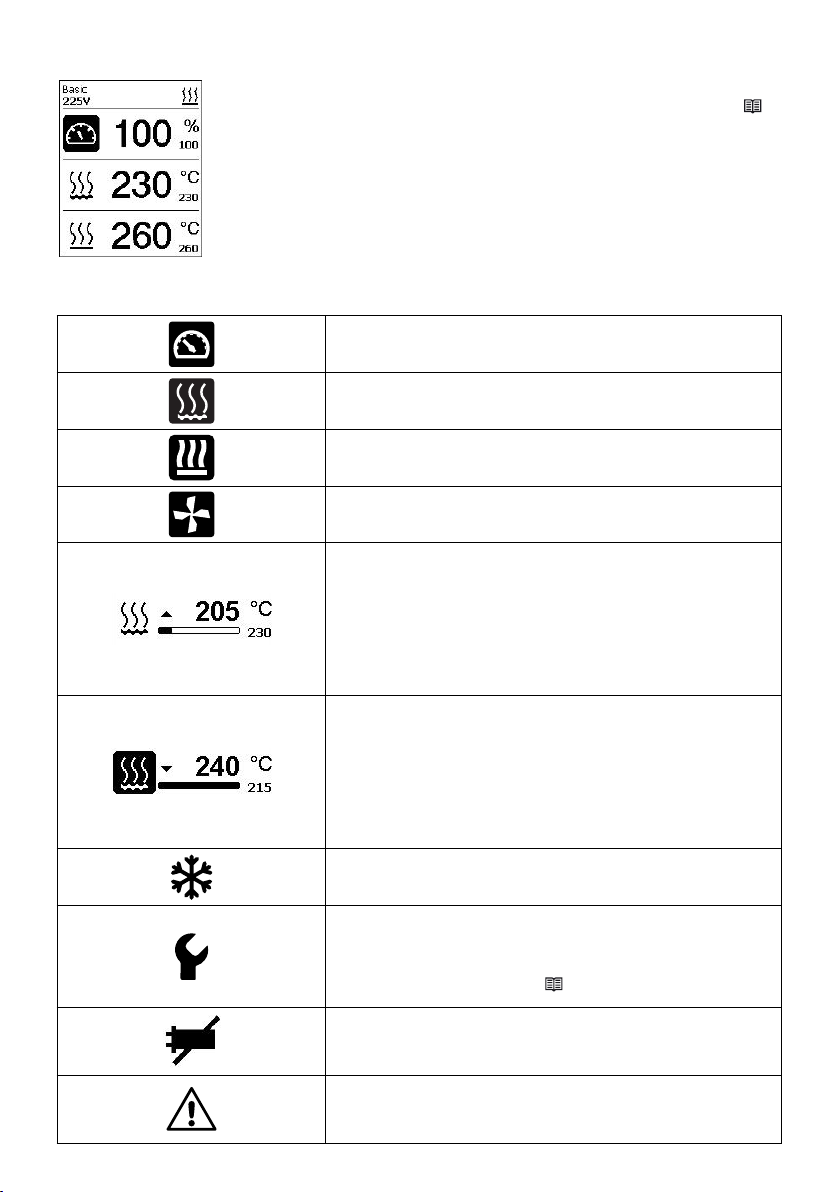

8.5 Display symbols of the work display (Display 35)
During operation, the setpoints of the welding parameters (ejection in %, tem-
perature in °C or °F, air volume in % and, if necessary, information notes (see
Application Mode: Showing current values).
• Change welding parameters by pressing the Minus/Plus button (32)
• after pressing the Confirm button (33), the selected parameter can be individually
adjusted by pressing the Minus/Plus button (32)
Plastic ejection symbol [%]
Plastic temperature symbol [°C or °F]
Symbol air temperature [°C or °F]
Symbol air volume [%]
Welding temperature too low, heat-up process.
• Upward arrow and progress bar indicate if higher temperature
has not yet been reached
• Flashing value over progress bar indicates current actual value
(205)
• Value to the right of bar (230) indicates setpoint of the selected
welding profile or individual setting
Temperature too high, cool-down process.
• Down arrow and progress bar indicate that if the desired lower
temperature has not yet been reached, the
• flashing value above the bar indicates the currently reached
actual value (240)
• value to the right of the bar (215) indicates the target value of the
selected welding profile or individual setting
Symbol for Cool-down mode
Symbol for hardware error message
• Device no longer ready for use
• Contact your authorized Leister Service Center (note the respec-
tive error code in the section Warning and error messages)
Symbol for Hardware error message (heating element is defective).
• Device no longer ready for use
• Contact Leister Service Center
Symbol for Overtemperature warning message.
• Allow the device to cool down.
