O2C Dual Relay Multi-Technology Occupancy Sensors
O2C Dual Relay Multi-Technology
Occupancy Sensors
DESCRIPTION

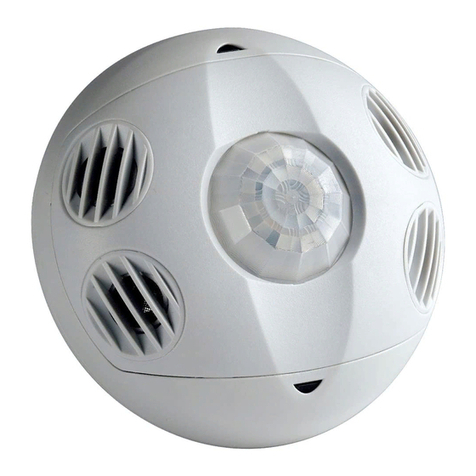

The Leviton O2C Dual Relay Occupancy sensors
combines line voltage occupancy sensors
and photocells into a self-contained unit. The
integrated design alleviates the need for separate
power pack and occupancy sensor wiring making
it a low-cost, efficient energy solution for new
construction and retrofits. For true Daylight
Harvesting applications, an integrated photocell
provides consistent Daylight Design Levels by
actively switching the connected load(s) ON
and OFF in response to available natural light
to maximize energy savings. Vacancy timers
continually analyze and adjust to changing
conditions using the latest microprocessor-based
technology to optimize performance. Auto ON/
Auto OFF automatically turns lights ON and
keeps them ON when occupancy is detected and
automatically turns lights OFF when the space
is vacant or unoccupied. Wire terminals allow for
simple connection to a line-voltage circuit and are
ideal for existing buildings with limited access to
wiring and new construction.
APPLICATIONS
• Daylight Harvesting
• CA Title 20/24 Compliant Occupancy Sensor
• Auto-ON/Auto-OFF
• Manual-ON/Auto-OFF
• Dual Relay Modes Include:
- Fan Control
- Auto ON/Manual ON
- Stairwell Control
- Step Dimming - Alternating Daylighting Levels
- Step Dimming - Load 1 Primary
FEATURES
• Sensors combine both PIR and U/S technol-
ogy for unrivaled performance and reliability
• Sensors use PIR technology to initially turn
lights ON, and use U/S technology to keep
the lights ON
• Exclusive false-detection software assures
lights are ON only when needed
• Auto temperature – adjusts tech sensitivity
for optimal detection/operation
• Auto-Adapting: Time delay and sensitivity
are continually adjusted to occupancy
pattern of use
• Vacancy Sensing Time Outs
- Delayed OFF Timer
- Exclusive Walk-through Feature
• False Detection Timer: (M/T) PIR scans for
movement and shuts lights off after 31
minutes without movement, preventing false
triggers from HVAC systems
- Time delay and saved settings are protected
during power outages and will return to the
last known state
• Output short circuit protection
• Industry-exclusive self-configuring local
manual switch input: Momentary or
maintained switches are supported
• Presentation Mode allows user to turn lights
OFF and keep them OFF while the room is
occupied
• Adjustable Time Delay: 30s, 5min, 10min,
20min, 30min
• Test Mode for simplified commissioning
• Manual Switch and Emergency Override are
Class 1 and Class 2 circuits. Class 2 circuits
provided for flexibility
• Industry-exclusive “fail-safe” circuitry: In the
event of product failure, Return-to-Closed
feature causes the relay to default ON which
eliminates life safety concerns
Light Pipe

PRODUCT DATA
O2C Dual Relay Multi Technology Occupancy Sensors
FEATURES
• Industry-exclusive H.I.S. (High Inrush Stability)
technology designed to handle today’s high inrush
electronic ballast loads and offer unmatched durability
and service
• Robust and reliable mechanically held latching
relay provides dependability and robust performance
for all load types and provides energy savings over
electronically held relays
• Field of View: Units from 500 to 2000 square feet
available
• Lenses are easily replaceable and color-coded red
(mid-range), black (extended range) and blue (high
denisty) for contractors and end-users to easily iden-
tify lenses from the ground
• Visual LED indicators for all states:
- Red - Blinks when infrared is detecting motion and
during photocell manual calibration; solid during
device malfunction
- Green - Blinks when U/S is detected; solid during
auto calibration
- Yellow - Blinks during test mode; solid with
emergency/BMS input
- Blue - Blinks when knob settings are changed and
during photocell override
RATINGS AND TESTING
• Zero-crossing circuitry for extended life of the relay
• Tested to exceed 1 million switching cycles under
standard loads
• Multiple compliance and regulatory UL testing -
consult factory for details
• Passed rigorous NEMA 410 testing for electronic ballast
rating
• BMS Input/Emergency Override: UL 924 listed for
Emergency and Egress lighting control
Photocell Features
• Daylight Harvesting Applications:
• Auto-Calibration (Automatic Daylight
Calibration): Photocell intelligently measures
light levels to determine optimal daylight
design levels for closed loop applications
- Closed loop: Photocell detects total
photometric light from daylight or electric
sources in the space
- Open loop: Photocell detects measurement
of natural light only (sunlight from window or
skylight)
• Adjustable daylight design levels: Normal (OFF),
Manual (ON/OFF) and Auto Calibration
• Integrated photocell tested to less than 1 Fc
accuracy
INSTALLATION
• Easy installation into junction boxes with Leviton-
exclusive screw guides, coasters and terminal
blocks
• Front cover snaps on and off for ease of
installation
CLOSED LOOP
Noon
1.25x DDL
Zone ON
2.5x DDL
Zone OFF
Lights ON
DDL
Dawn
0
1
2
3
4
5
6
7
Dusk
Closed Loop - Flat Light Pipe
PHOTOCELL PLACEMENT*
Window
Peak Sensitivity
68°
O2C04
Typical Dayligt Zone,about 10’
Light Fixture
9’
4’
Closed Loop Application - Flat Light Pipe
Peak
Sensitivity
O2C04
Light Fixture
9’
45°
4’
Open Loop Application - Angled Light Pipe
OPEN LOOP
Noon
ON trigger point
Lights turn ON
OFF trigger point
Lights turn OFF
DDL
Lights ON
Night time Dawn
0
1
2
3
4
5
6
7
Dusk
PHOTOCELL OPERATION
Note: Long side of angled light pipe must
face toward natural light source (window)
Open Loop - Angled Light Pipe
*May require more than one occupancy sensor for total room coverage

Sidebar Title Goes Here
ODC Series Multi-Technology Occupancy Sensors
O2C Dual Relay Multi Technology Occupancy Sensors
PRODUCT DATA
Leviton Mfg. Co., Inc. Lighting & Energy Solutions
20497 SW Teton Avenue, Tualatin, OR 97062 1-800-736-6682 Tech Line: 1-800-959-6004 Fax: [phone] www.leviton.com/les
© 2013 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
DIMENSIONS
INSTALLATION
Sensors conveniently mount to a standard
4” x 4” square or octagon electrical box per
NEC standards.
4”x4” Cosmetic Adapter
Angled light pipe
Screw Guides
Flat light pipe
FIELD OF VIEWS
TOP VIEW
20
11.5
8.5
0
8.5
Major Motion, IR
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
11.5
20
8
0
035.6 9111517 20 23
SIDE VIEW
TOP VIEW
Major Motion, IR
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
20
11.5
16
0
8.5
11.5
20
8
0
0 335.55.599 1111 1515 22.522.5 2020 3232
SIDE VIEW
15
15
10
10
20
0510 15 20 2530 25 20 15 10
53
0
5
5
0
TOP VIEW
SIDE VIEW
O2C05-MDW Multi-Range Lens (Included with all
PIR and Multi-Tech Models)
O2C20-MDW
O2C10-MDW
TOP VIEW
Major Motion, IR
Minor Motion, Ultrasonic
Major Motion, Ultrasonic
20
11.5
8.5
0
8.5
11.5
20
8
0
0 335.65.699 1111 1515 1717 2020 2323
SIDE VIEW
4.80”
(121.92mm)
1.13”
(29.91mm)
0.94”
(24.06mm)
2.39”
(60.71mm)
1.16”
(29.60mm)

PRODUCT DATA
Sidebar Title Goes Here
O2C Dual Relay Multi Technology Occupancy Sensors
ORDERING INFORMATION
ELECTRICAL
Input Voltage 120V, 50/60Hz 230V, 50Hz 277V, 50/60Hz
Load Rating
8A, Electronic
Ballast, 800W,
Tungsten,
800VA Ballast,
1/4 HP Motor
6A/6AX, Electronic
Ballast, Magnetic
Ballast, Tungsten,
1/3 HP Motor
5A, Electronic
Ballast,
1200VA Ballast,
1/3 HP Motor
Current Consumption 60-30ma
ENVIRONMENTAL
Operating Temperature 32° to 104° F (0° to 40° C)
Storage Temperature -15° to 160° F (-26° to 71° C)
Relative Humidity 0% to 90% non-condensing
OTHER
Listings CA Title 20/24 Compliant, UL 773A (Occupancy Standard),
UL 924 (Emergency Equipment), cUL Listed, CE Compliant,
NOM Certified, RoHS Compliant, NY LLC48 Compliant
Warranty 5-Year Limited Warranty
SPECIFICATIONS
Leviton Manufacturing Co., Inc. Global Headquarters
201 N. Service Rd. Melville, NY 11747-3138 • Tech Line: 1-800-824-3005 • Fax: [phone]
Leviton Manufacturing Co., Inc. Lighting & Energy Solutions
20497 SW Teton Avenue, Tualatin, OR 97062 • Tele: 1-800-736-6682 • FAX: [phone] • Tech Line (6:00AM-4:00PM P.S.T. Mon-Fri): 1-800-959-6004
Leviton Manufacturing of Canada, Ltd.
165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9 • Telephone: [phone] • FAX: [phone]
Leviton S. de R.L. de C.V.
Lago Tana 43, Mexico DF, Mexico CP 11290 • Tel. [phone] • FAX: [phone] • www.leviton.com.mx
Visit our Website at: www.leviton.com/les
© 2013 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice. G-9149/K13-aa
CAT. NO. DESCRIPTION
O2C05-MDW
Multi-Technology Ceiling Mount Line Voltage Dual Relay
Occupancy Sensor w/Integrated Photocell, 500SF, 120-
277V, Extended Range Lens installed
O2C10-MDW
Multi-Technology Ceiling Mount Line Voltage Dual Relay
Occupancy Sensor w/Integrated Photocell, 1000SF, 120-
277V, Extended Range Lens installed, Mid-Range included
O2C20-MDW
Multi-Technology Ceiling Line Voltage Dual Relay Mount
Occupancy Sensor w/Integrated Photocell, 2000SF, 120-
277V, Extended Range Lens installed, Mid-Range included
