Life Span EXER-60H User manual

EXER-60H
Dual Action Exercise Bike
USER MANUAL
NOTE:
This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary
from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available
through our website at www.lifespanfitness.com.au
Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
IMPORTANT
All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and
other moving parts. Failure to do so may cause damage to your threads and void your warranty.

2
TABLE OF
CONTENTS
I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
II. Care Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
III. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
IV. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06
V. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07
VI. Computer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
VII. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
VIII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
IX. Hand Pulse Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
| TABLE OF CONTENTS

3IMPORTANT SAFETY INSTRUCTIONS |
I. IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all instructions before using this machine.
It is important your machine receives regular maintenance to prolong its useful life. Failing to
regularly maintain your machine may void your warranty.
Please always keep this manual with you.
•It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained, and used properly.
PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions.
•Before starting any exercise program, you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk, or prevent you from
using the equipment properly. Your doctor’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
•Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you
do experience any of these symptoms, you should consult your doctor before continuing with your
exercise program.
•Keep children and pets away from the equipment. This equipment is designed for adult use only.
•Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 meters of free space around it.
•Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assembly, stop immediately. Do not use
the equipment until the problem has been rectified.
•Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught
vin the equipment or that may restrict or prevent movement.
•This equipment is designed for indoor and family use only.
•Care must be taken when lifting or moving the equipment so as not to injure your back.

4
•Always keep this instruction manual and assembly tools at hand for reference.
•The equipment is not suitable for therapeutic use.
•The pulse or heart rate sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
| CARE INSTRUCTIONS
II. CARE INSTRUCTIONS
a. Batteries are to be installed or replaced by adult
only.
b. Do not use rechargeable batteries. Do not mix
different battery types. Do not mix old and new
batteries. Do not mix alkaline, standard (Carbon
Zinc), or rechargeable (Nickel-Cadmium) batteries.
c. Remove batteries when product is not in use.
d. Remove exhausted batteries from product and
dispose of in accordance with the manufacturer’s
recommendation.
IMPORTANT
a. All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other
moving parts. Failure to do so may cause damage to your threads and void your warranty.
b. Lubricate moving joints after periods of usage.
c. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
d. The machine can be kept clean by wiping it down using dry cloth.

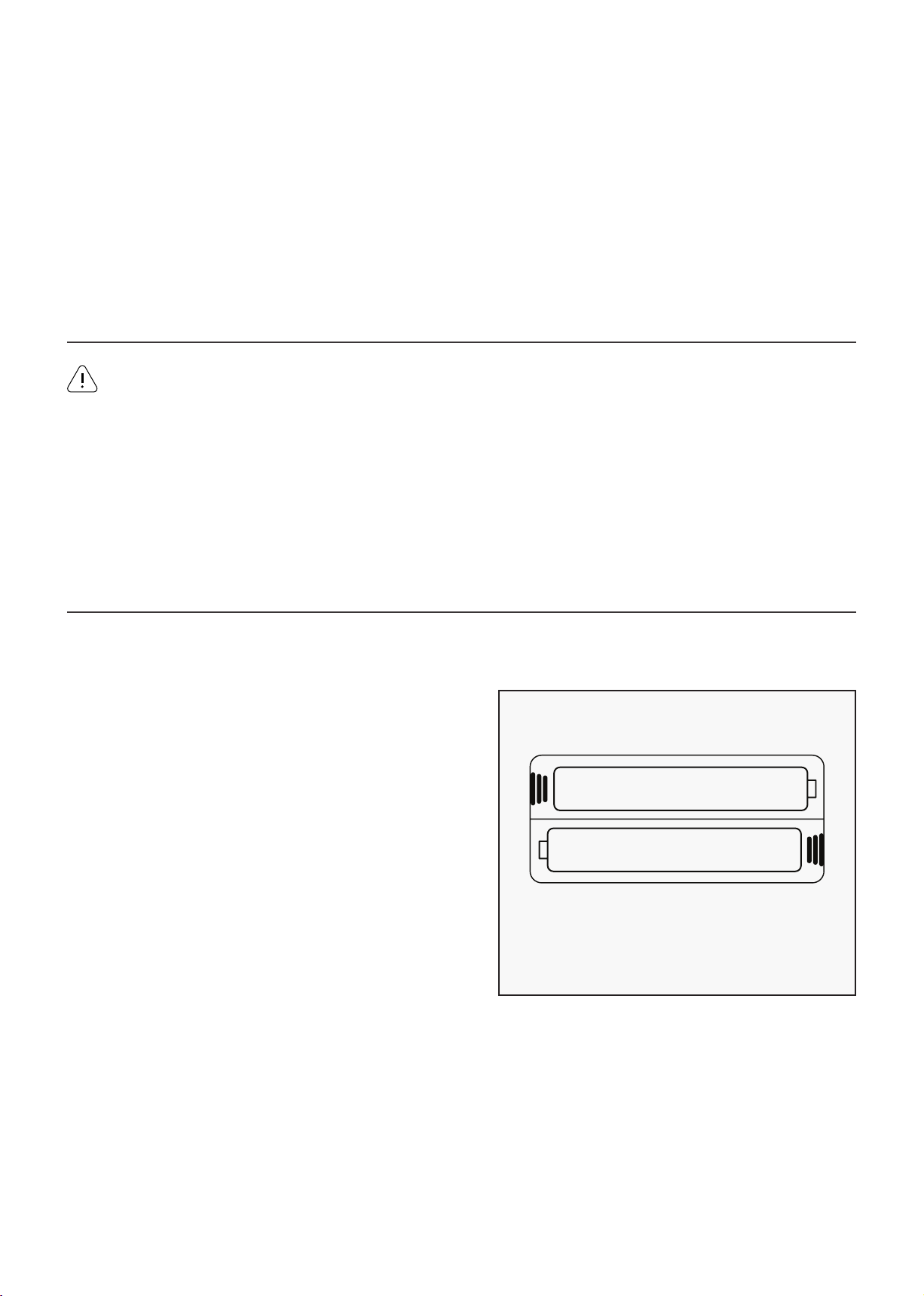

BATTERY USAGE
+-
+-
BATTERY
e. Do not attempt to recharge non-rechargeable batteries.
f. Batteries are to be inserted with correct polarity.
g. The supply terminals are not to be short-circuited.
h. Do not dispose of batteries in fire, batteries may explode or leak.

5EXPLODED DIAGRAM |

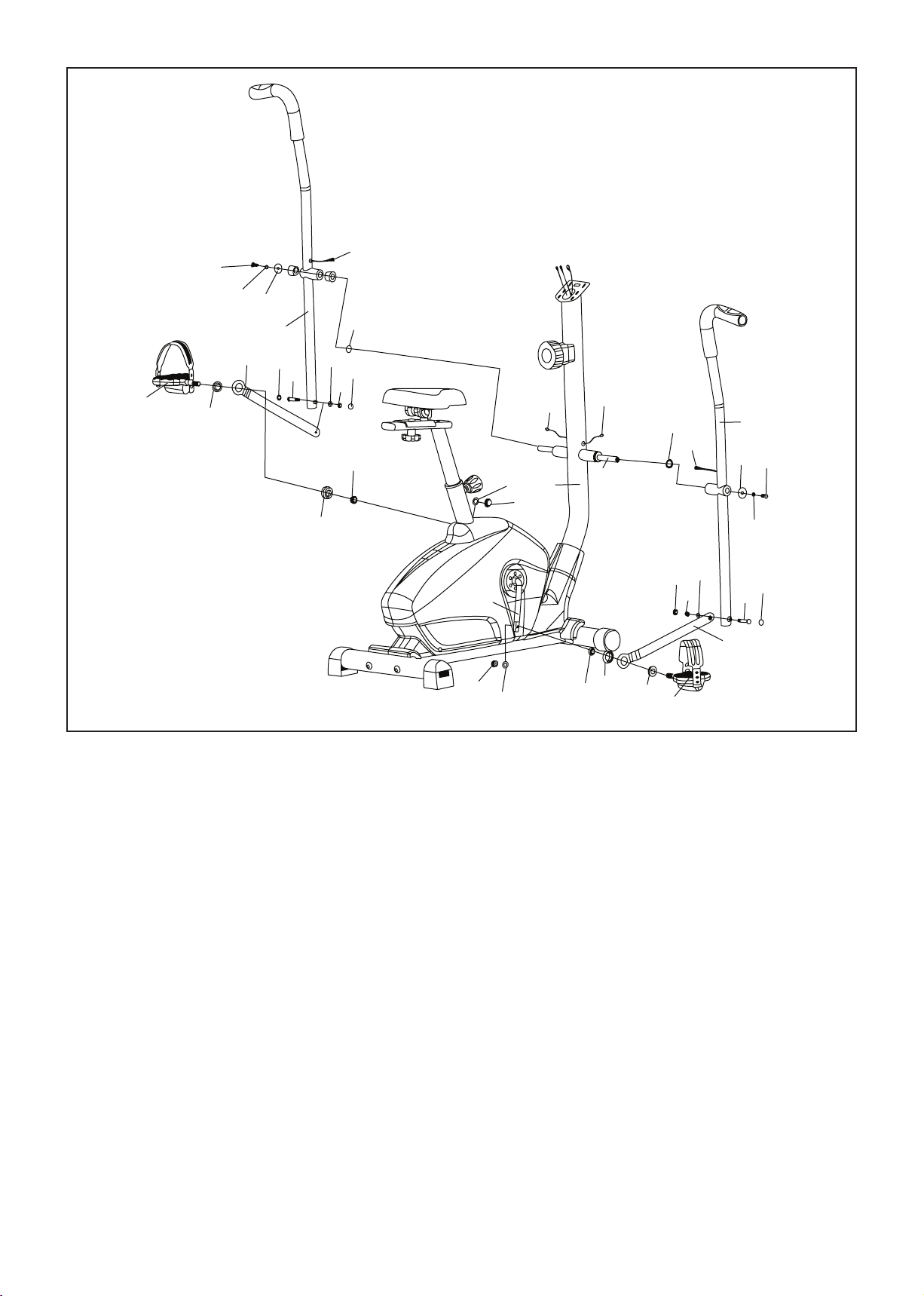

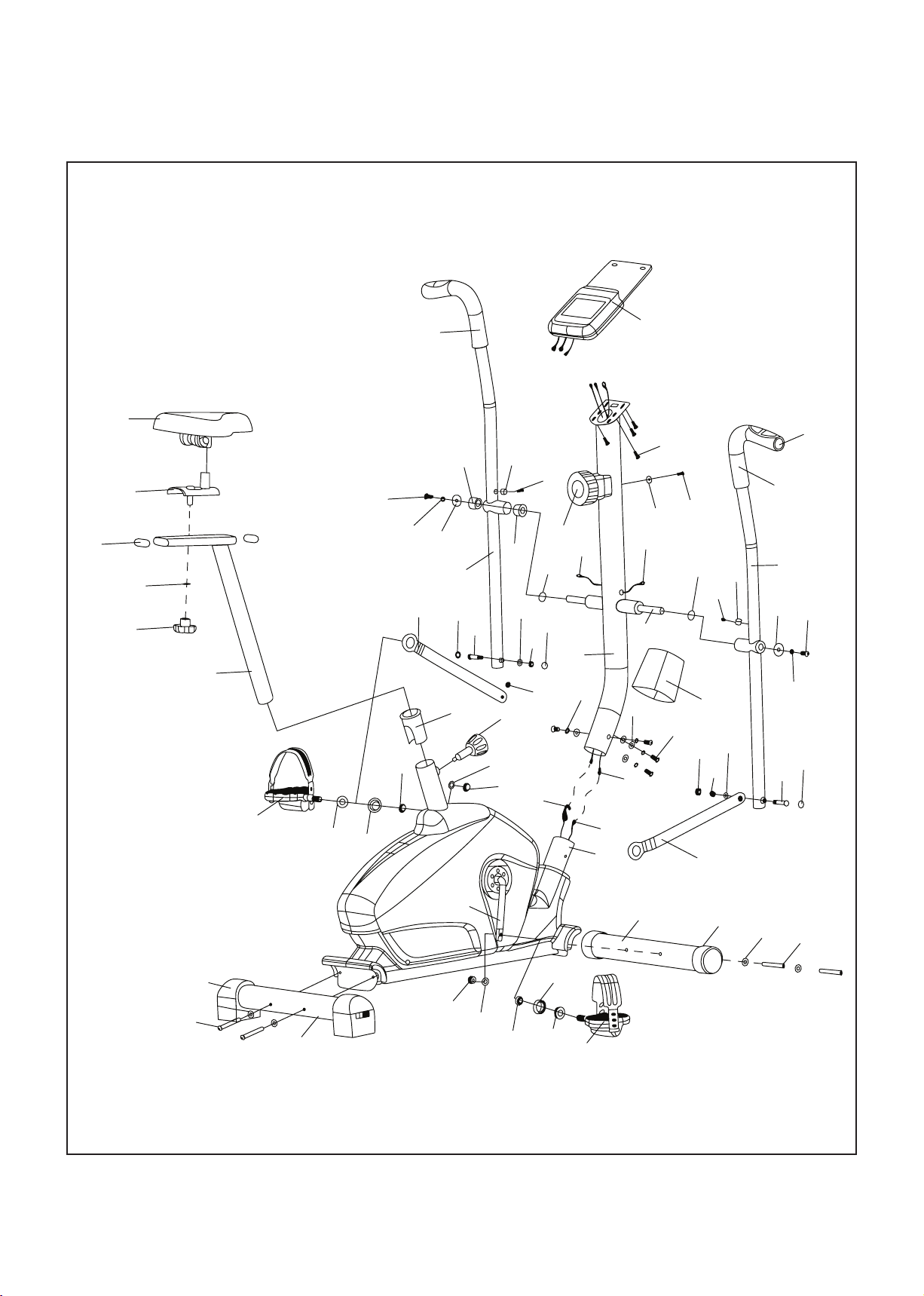

III. EXPLODED DIAGRAM
29
30
31
32
33
34
37L 25 24
23
5
6
7
3
21R 22
23 25 37R
24
2867
39
1
9
10
42
45
44
43 41
11
21L
22
36
48
40 35 13
12
14
4
35
49 47
39 41 43 44
45
42
51
50
46L
49
35
47
50 53
20
15 19 19
52
51
20
53 46R
27
26
18
16 17
28
27

6| PARTS LIST
IV. PARTS LIST
No. Description Qty
1Main Frame 1
2Front Bottom Tube 1
3Rear Bottom Tube 1
4Handlebar Post 1
5Rear End Cap 2
6Arc Washer Φ8xΦ25xR33 4
7Allen Bolt M8x75 4
8Front End Cap 2
9Sensor Wire 1
10 Tension Cable 1
11 Extension Sensor Wire 1
12 Allen Bolt M8x16 4
13 Arc Washer Ф8.5xФ20xR30 4
14 Handlebar Post Cover 1
15 Tension Controller 1
16 Arc Washer D5 1
17 Cross Screw M5x55 1
18 Cross Screw M4x10 4
19 Extension Wire 2
20 Pulse Sensor Wire 2
21L/R Nylon Nut B0.5x20 1PR
22 Spring Washer Ф13xB2 2
23 Bushing 2 2
24 Spacer 2
25 Bearing 2
26 Round End Cap 4
27 Foam Grip 2
No. Description Qty
28 Console 1
29 Saddle 1
30 Saddle Slider 1
31 Oval End Cap 2
32 Flat Washer D10 1
33 Knob Nut M10 1
34 Saddle Post 1
35 Spring Washer D8 6
36 Pop-pin Knob 1
37L/R Pedal (L/R) 1PR
38 Crank 1
39 Connection Plate 2
40 Bushing 1 2
41 End Cap 2
42 End Cap 2
43 Hex bolt M8x55 2
44 Flat Washer D8 2
45 Nylon Nut M8 2
46L/R Swing Bar 1PR
47 Allen Bolt M8x20 2
48 Plastic Bushing 1
49 Big Flat Washer D8xФ30x2 2
50 Bushing 6
51 Waveform Washer 2
52 Long Axle 1
53 End Cap 4

7
V. ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS |

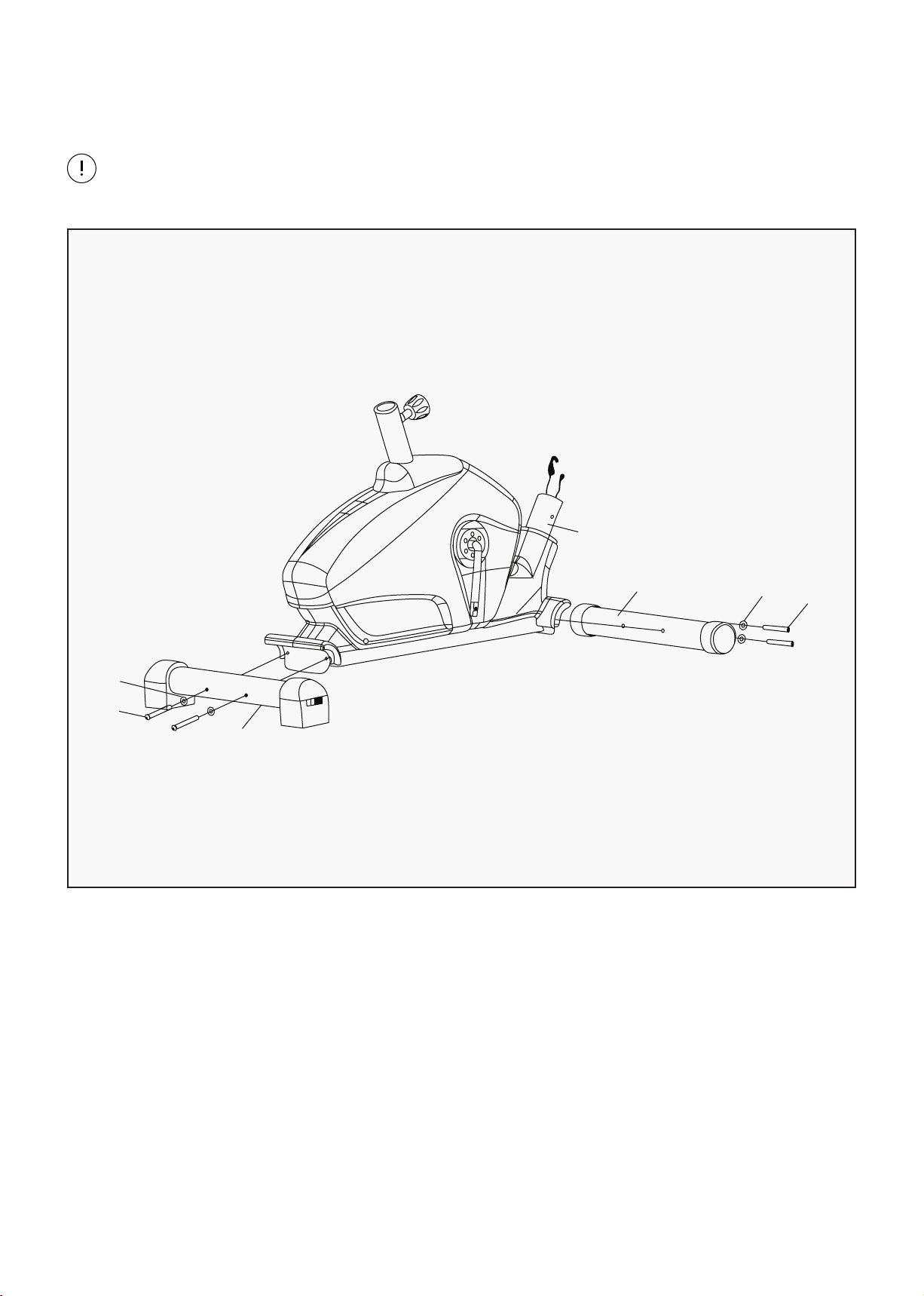

1. Fix the Front bottom tube (2) and the Rear bottom tube (3) onto the Main frame (1) with the Allen
screw (7) and the Arc washer (6) as shown.
STEP 1
NOTE: Before assembly ensure there is enough space around the item. Some nuts and bolts
may be already attached to the machine.
1
267
3
6
7

8

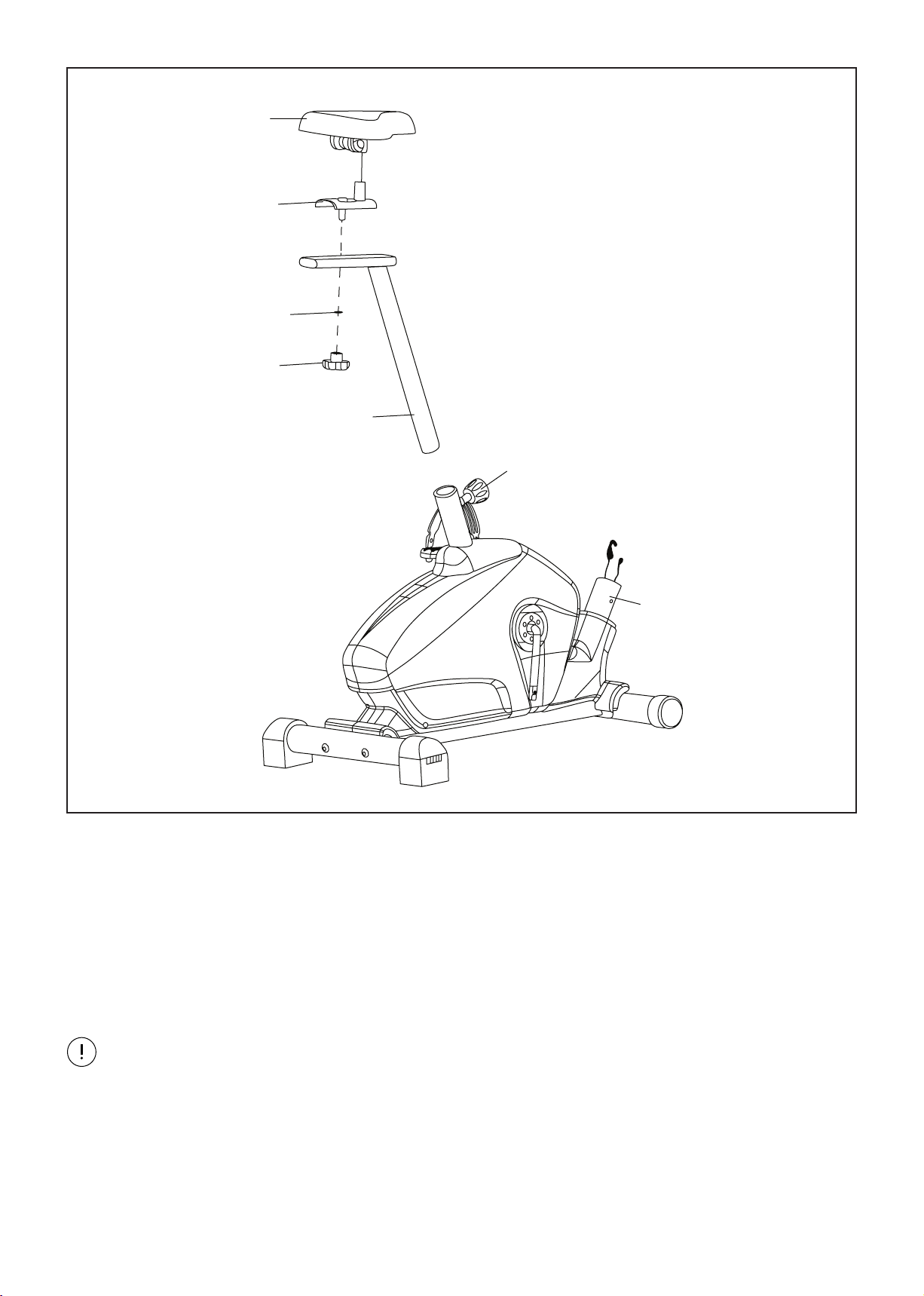

1. Attach the Saddle (29) to the Saddle slider (30) with wrench.
2. Attach the Saddle slider (30) to the Saddle post (34) with the Knob nut (33) and the Flat washer (32).
3. Insert the Saddle post (34) with Saddle into the post of Main frame (1), and then secure the Pop-pin
Knob (36) after adjusting to a suitable height.
STEP 2
| ASSEMBLY INSTRUCTIONS
29
30
32
33
34
36
1
NOTE: Keep the Saddle (29) locked tightly to the Saddle slider (30) before exercising.

9ASSEMBLY INSTRUCTIONS |
1. Insert the Handlebar post cover (14) onto the Handlebar post (4). Connect the Extension sensor wire
(11) with the Sensor wire (9). Then connect the Tension cable (10) with the wire from the Tension
controller (15) as shown in picture A.
2. Fix the Handlebar post (4) on the post of the Main frame (1) with the Allen screw (12), spring washer
(35) and the Arc washer (13) as shown.
3. Cover the Handlebar post cover (14) to the joint of Handlebar post (4) and the Main frame (1).
STEP 3
15
A
10
4 3 2 1
4
14
35 13 12
15
11
10
9
1
NOTE: Set the Tension controller to the highest setting (8), this will provide a little more slack in
the cable and allow you to assemble the cable easier.
Video Tutorial for Connecting a Tension Cable: https://youtu.be/hsoOD0sCxRI

10 | ASSEMBLY INSTRUCTIONS
1. Fix the Swing bar (46L/R) to the Handlebar post (4) with Allen bolt (47), Spring washer (35), Flat
washer (49),Long axle (52) and Waveform washer (51). Then connect the Pulse sensor wire (20) well
with Extension wire (19).
2. Fix the Pedal (37L/R) and Connection plate (39) to the Crank (38) with Nylon nut (21L/R), Spring
washer (22), Bearing (25), Bushing 2 (23) and Spacer(24).
NOTE: Both pedals are labeled L FOR LEFT and R FOR RIGHT. Lock the Right pedal along Clockwise and
the Left pedal along Anticlockwise (as shown in the diagram). Check that the pedals are secured
tightly prior to exercising to prevent any possible damage.
3. Fix the Connection plate (39) to the Swing bar (46L/R) with Hex bolt (43), Flat washer (44) and Nylon
nut (45), and the cover the End cap (41&42).
STEP 4
47
35 49
46L
20
51
37L 25
39 41
43 44
45
42
23
24
22
21L
452
19
19
38
21R 22 2324 25 37R
39
42
45
44
4341
35
47
49
46R
20
51

11ASSEMBLY INSTRUCTIONS |

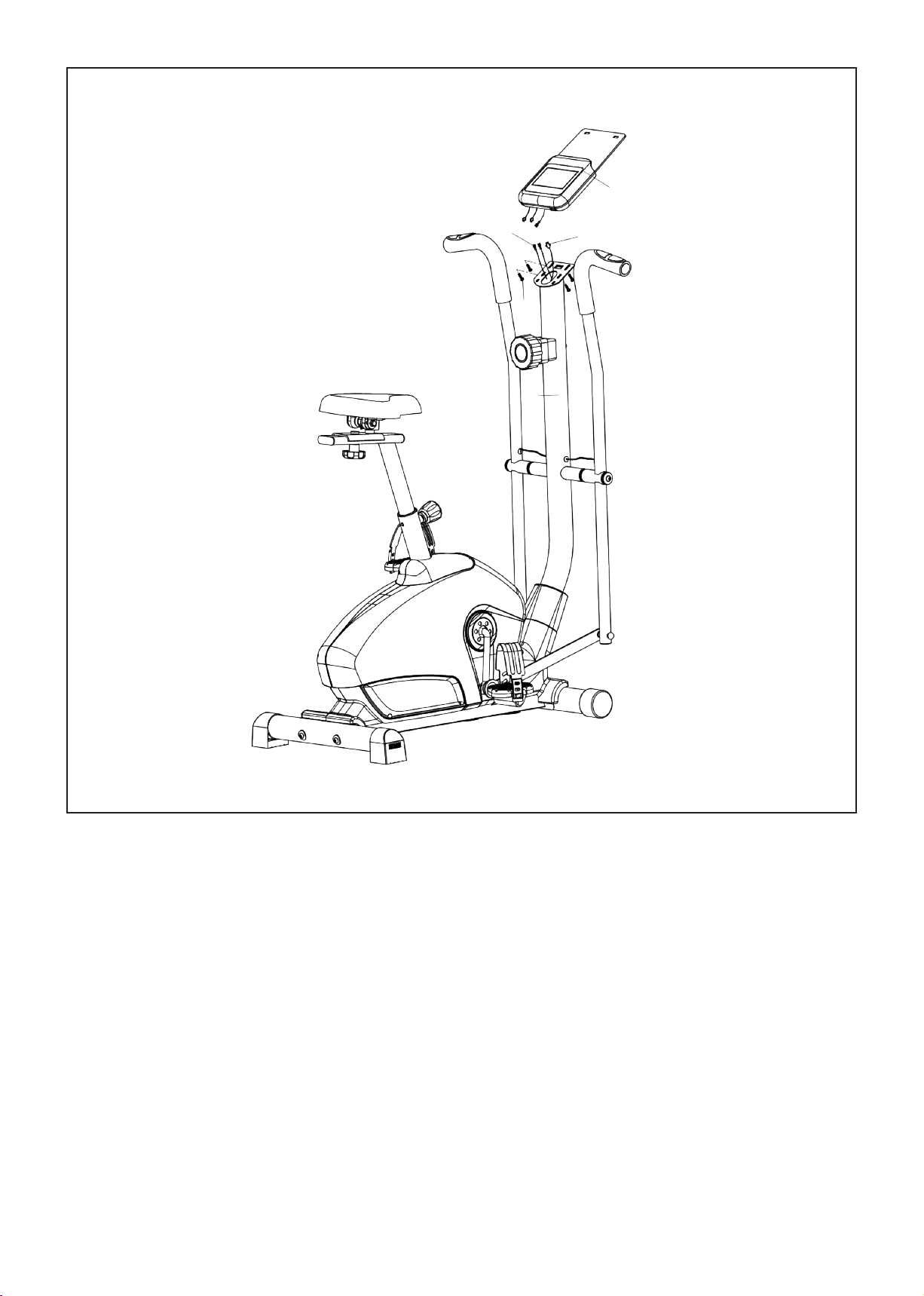

1. Connect the Extension wire (19) and the Extension sensor wire (11) to the wires of Console (28)
respectively, and then fix the Console (28) to the console bracket of the Handlebar post (4) with the
Cross screw (18).
STEP 5
28
19 11
18
4

12 | ASSEMBLY INSTRUCTIONS

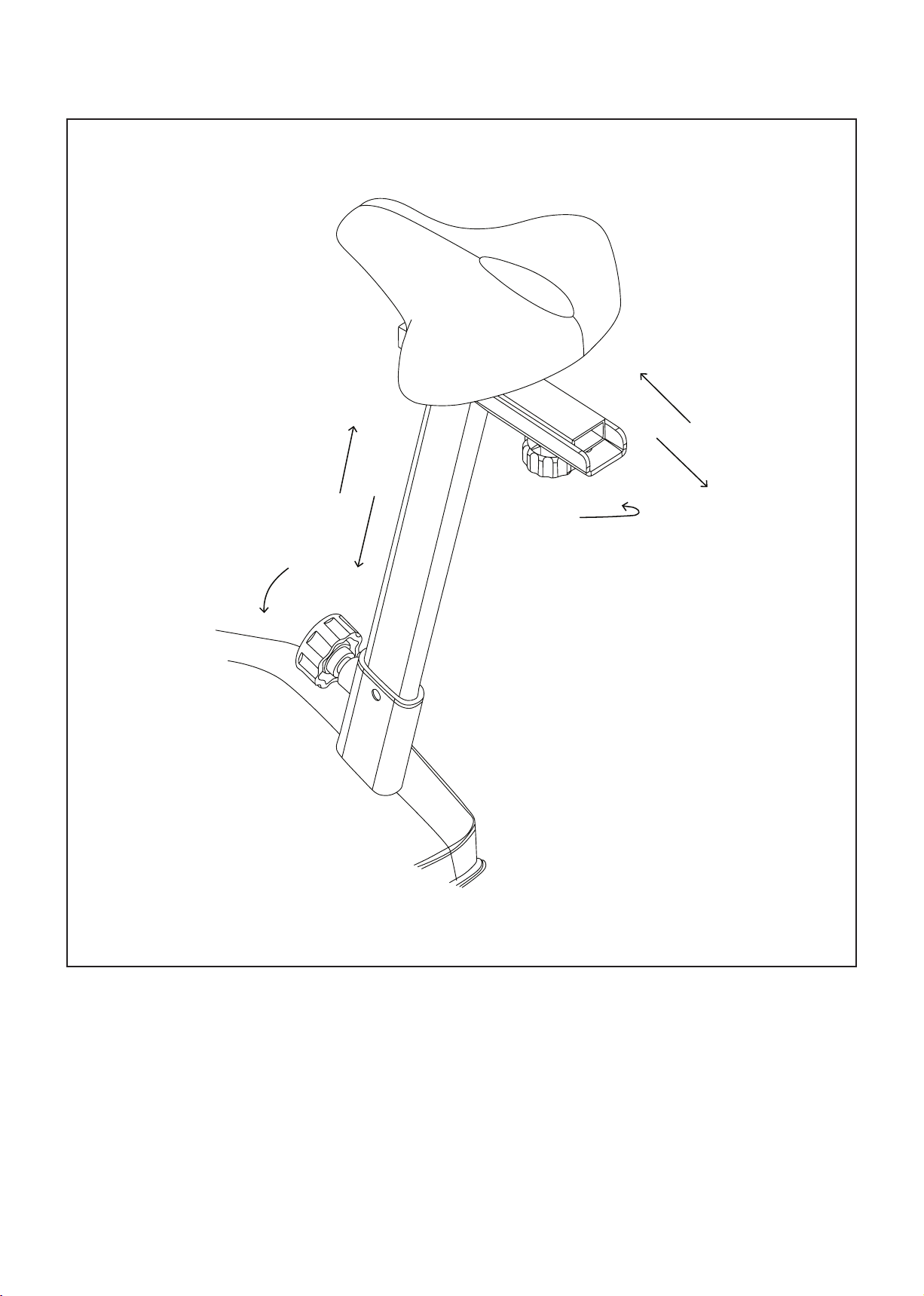

Adjustment of the Seat Tube

13
VI. COMPUTER OPERATION
BUTTONS
1. MODE
a. Press to change over display mode or choose the window needs to be set.
2. RECOVERY / UP
a. In setting status, press this button to increase setting value in the relevant flashing window for
TIME, DIST, CAL and TEMP.
b. In non-exercise or non-setting status, press this button to enter/exit pulse recovery function.
3. DOWN
a. In setting status, press this button to decrease setting value in the relevant flashing window for
TIME, DIST, CAL and TEMP.
4. RESET / GO
a. In setting status, press this button to reset the value in relevant flashing window for TIME, DIST
and CAL.
b. In parameters setting status for body fat, press this button to enter body fat test.
c. In monitor status, hold this button for 3 seconds to reset all values to zero.
5. BODYFAT
a. In non-exercise status, press this button to enter/exit body fat parameters set-up.
COMPUTER OPERATION |
FUNCTIONS
1. SPEED / BODYFAT RATIO / RPM WINDOWS (IF APPLICABLE)
a. Displays instantaneous speed and the range is 0.0~99.9KM/H. The maximum pickup signal is
1500rpm.
b. Displays current revolutions per minute (RPM) during exercise. It reflects the pedal frequency.
The range is 0~1500 rate per minute. (if applicable)
c. Displays Body fat ratio.
2. TIME / BMI
a. Counts the total time from exercise start to the end. Range is 0 ~ 99M59S.
b. Exercise time can be set in advance, when it approaches the present time, the monitor will alarm
for 10 seconds. The maximum pre-set time is 99 minutes.
c. Display Body Mass Index (BMI).
3. DISTANCE / BMR
a. Counts the total distance from exercise start to the end and the range is 0.00 ~ 9.99 ~ 99.9KM.
b. Exercise distance can be set in advance, when it approaches the pre-set distance, the monitor will
alarm for 10 seconds. The maximum pre-set distance is 99.9KM.
c. Displays Basal Metabolic Rate (BMR).

14 | COMPUTER OPERATION
4. CALORIES / TEMPERATURE
a. Count the total calories consumed from exercise start to end. Range is 0.0 ~ 99.9 ~ 999KCAL.
b. The calorie value can be set in advance, when it approaches the pre-set calorie, the monitor will
alarm for 10 seconds.
c. Displays room temperature (TEMP).
5. PULSE
a. Hold the pulse sensor and read your heart rate per minute. The range is 40 ~ 240bpm.
b. It will display "P" to pause the pulse test if there is no pulse signal over 60 seconds. You can press
UP or DOWN to enter the pulse test again.
6. ALARM
a. The monitor will "Beep" when pressing "MODE" "RECOVERY/UP" "DOWN", RESET/GO or "BODYFAT"
buttons.
7. AUTO ON / OFF & AUTO START / STOP
a. Without any signal of exercise or operation for 8 minutes, the power will turn off automatically and
all the memory will be cleared excluding body fat parameters and temperature.
b. Once receive exercise or operation signal, the monitor will turn on automatically.
OPERATION
1. SET
a. Press MODE to choose the display window that needs to be pre-set.
b. The value in relevant window will flash. Then press UP/DOWN to increase/decrease the value to
reach desired workout time, distance, or calories.
c. Hold UP/DOWN to increase/decrease the value rapidly. Press RESET to reset value in relevant
flashing window.
2. PULSE RATE
a. Before measuring your pulse rate, press any button to change "P" into " " in the window to enter
pulse mode.
b. Place both your palms on the contact pads and the monitor will show your current heart beat rate
in beats per minute (BPM) on the LCD after 3~4 seconds.
c. NOTE: During the process of pulse measurement, the measurement value may be higher than the
virtual pulse rate during the first 2~3 seconds. After which, it will return to normal level.
The measurement value must not be used for medical purposes.
3. PULSE RECOVERY
a. In non-setting and non-exercising status, first test your pulse as above mentioned.
b. Press RECEOVERY/UP to enter pulse recovery function.
c. The display will show 1 minute count-down as well as your pulse rate.
d. Hold on the pulse sensor until it counts down to zero.
e. The display will show your pulse recovery score from F1 to F6. F1 being the fastest and F6 being the
slowest.
f. Press RECOVERY/UP again to exit pulse recovery function.

15COMPUTER OPERATION |
4. BODYFAT, BMI & BMR
a. In non-exercising status, press BODYFAT to enter body fat parameters settings.
b. You can set from the following sequence:
i. User No.( 1 ~ 8 ), weight( KG ), height( CM ), age ( YEAR ), gender.
ii. Press MODE to proceed to next parameter setting.
iii. Press RECOVERY/UP to increase the setting value or DOWN to decrease.
c. After setting, hold the pulse sensor and press RESET/GO. The display will then show your body fat in
6 seconds.
d. Press BODYFAT again to exit body fat test.
e. NOTE:
i. During parameter setting, the computer will exit body fat test automatically if detects no
operation signal over 10 seconds.
ii. During body fat test, Er.1 will show if no pulse is detected for 10 seconds.
BODYFAT GUIDE TABLE
GENDER/AGE
Male/ ≤30
Male/ > 30
Female/≤30
Female/ > 30
UNDERWEIGHT
< 14%
< 17%
< 17%
< 20%
HEALTHY
14%~20%
17%~23%
17%~24%
20%~27%
SLIGHTLY OVERWEIGHT
20.1%~25%
23.1%~28%
24.1%~30%
27.1%~33%
OVERWEIGHT
25.1%~35%
28.1%~38%
30.1%~40%
33.1%~43%
OBESE
> 35%
> 38%
> 40%
> 43%
BATTERY REPLACEMENT
When the display becomes dim or illegible, remove the battery and replace with SIZE AAA UM4 R03.

16
VII. EXERCISE GUIDE
PLEASE NOTE:
Before beginning any exercise program, consult your physician. This is important especially if you are
over the age of 45 or individuals with pre-existing health problems.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in
determining heart rate trends in general.
Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and
stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.
The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to
your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough
energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work
so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.
So as you can see, the fitter you are, the healthier and greater you will feel.

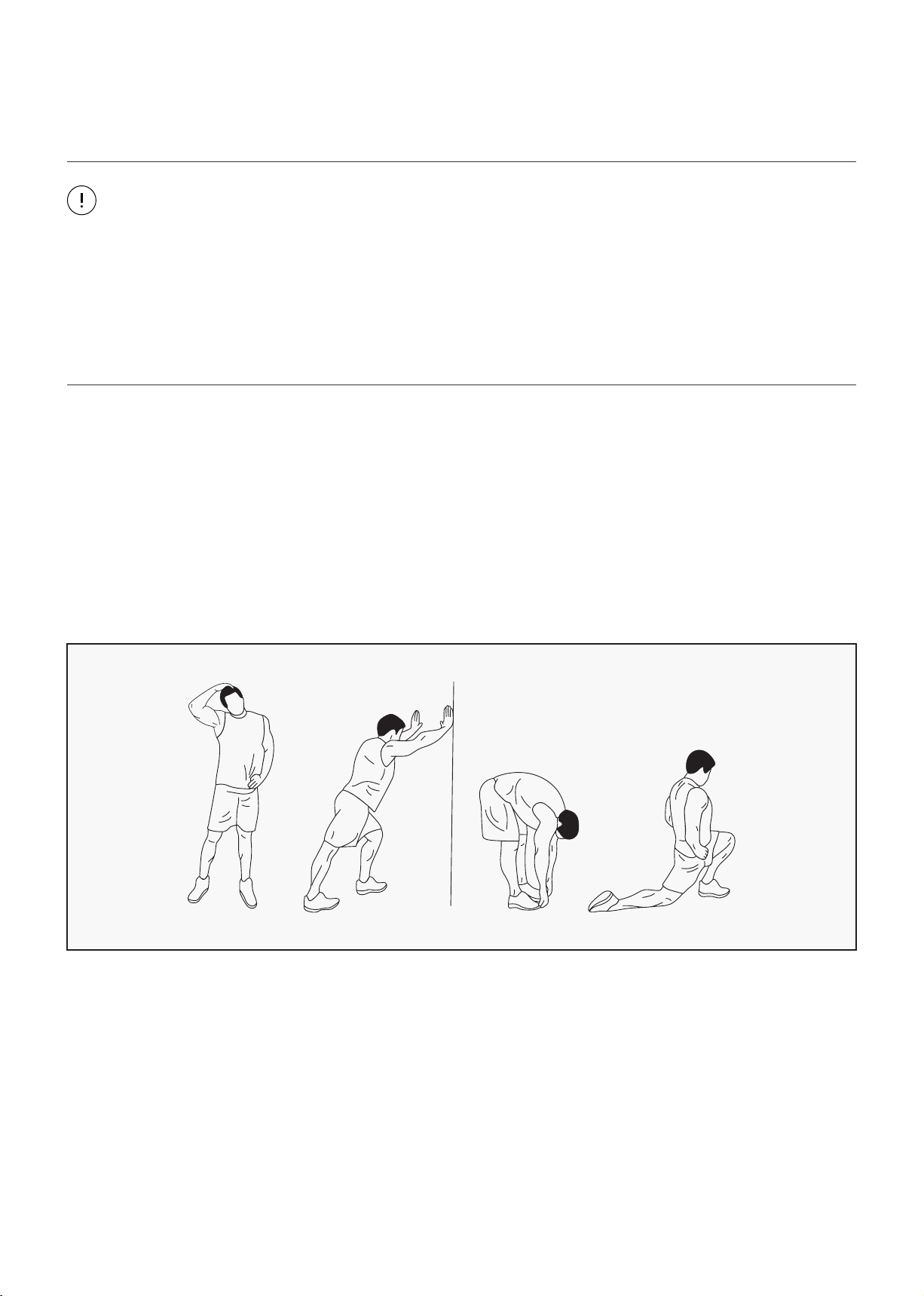

WARM UP
Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up
increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your
exercise.
After warming up, increase the intensity to your desired exercise program. Be sure to maintain your
intensity for maximum performance. Breathe regularly and deeply as you exercise.
| EXERCISE GUIDE

17
COOL DOWN
Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of
stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-
exercise problems.
WORKOUT GUIDELINES
This is how your pulse should behave during general fitness exercise. Remember to warm up and
cool down for a few minutes.

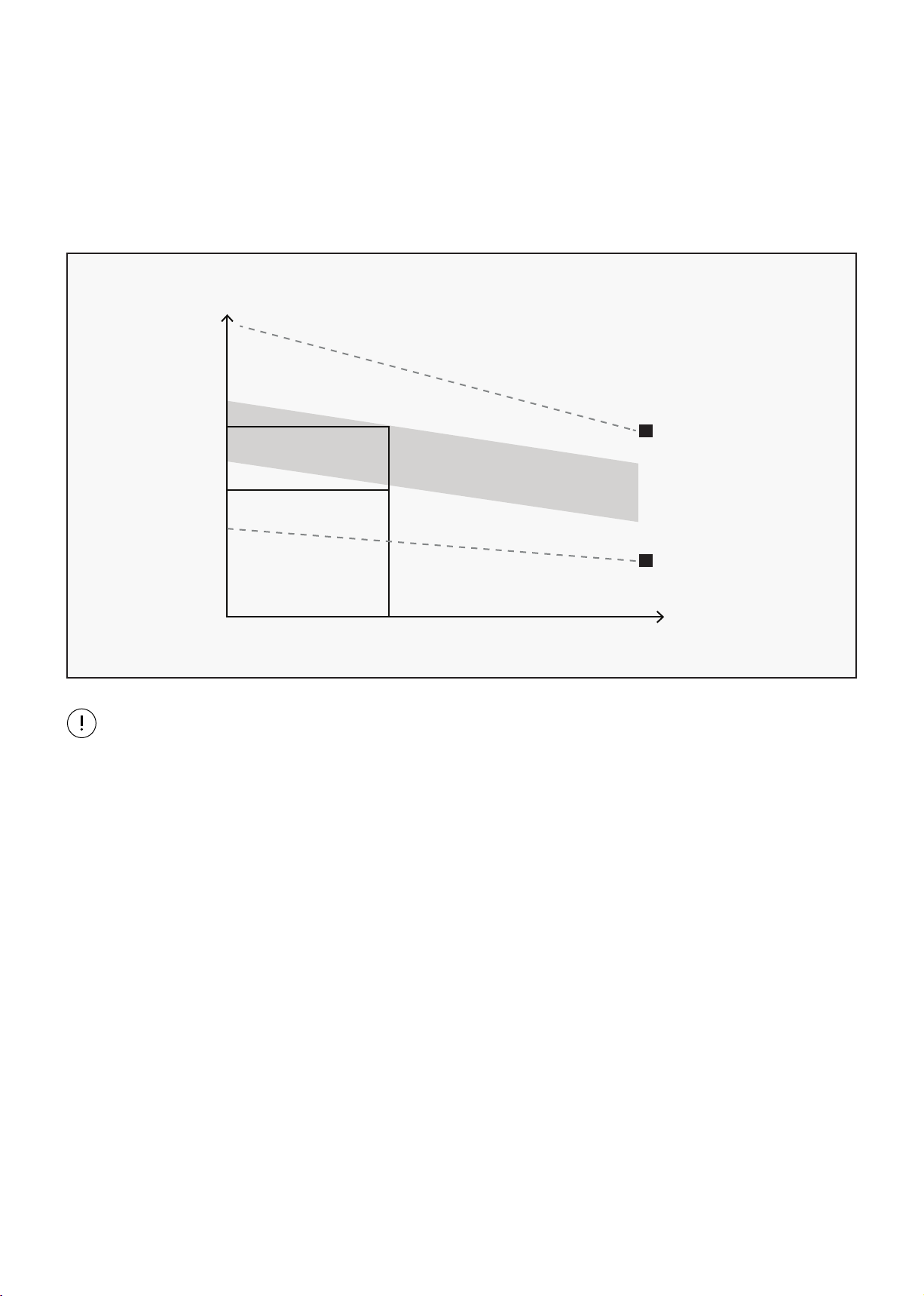

TARGET ZONE
MAXIMUM
85%
70%
COOL DOWN
AGE
HEART RATE
200
180
160
140
120
100
80
20 25 30 35 40 45 50 55 60 65 70 75
EXERCISE GUIDE |

18
VIII. WARRANTY
| WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come
with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss
or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au.
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
WARRANTY AND SUPPORT
Any claim against this warranty must be made through your original place of purchase.
Proof of purchase is required before a warranty claim may be processed.
If you have purchased this product from the Official Lifespan Fitness website, please visit
https://lifespanfitness.com.au/warranty-form
For support outside of warranty, if you wish to purchase replacement parts or request a repair or
service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service
Request Form or Parts Purchase Form.
Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form

19
IX. HAND PULSE TECHNOLOGY
HAND PULSE TECHNOLOGY |
This product comes equipped with hand pulse sensors which are used to pick up tiny EKG/ECG signals
that run through the body when your heart beats. These electrical EKG/ECG signals are very small and
must be amplified 1000 times to make the signal viable for the computer to display your pulse.
To ensure proper operation:
•The user must maintain good, consistent contact on all four sensors.
•The users skin cannot be too dry or too wet.
Other factors that could affect the reading:
•Change of grip on the sensors (during slow pace walking and up to running).
•Tightening of hand muscles will produce small electrical signal.
•Static electricity charges from the air or from walking on the treadmill.
EKG/ECG Sensors may filter through actual EKG/ECG signals and "Noise" factors that may affect the
reading. This will cause the pulse reading to be delayed and will take longer to update the display as the
heart rate changes. Too much noise will create an incorrect reading. Medical conditions or having no
electrical signal in the hands are other factors that may also affect pulse readings.
These are limitations of hand pulse technology and even the most expensive systems (which can
cost upwards of $3,000) used in hospitals have the same problems. The difference is that a patient
in a hospital is not running on a treadmill. Hand pulse technologies work well on stationary exercise
machines like bikes and even elliptical cross trainers but are not perfect on a treadmill. We offer
treadmills with a wireless heart rate receiver which may be the more accurate option.
To test if your hand pulse sensors are working up to specification, hold them while standing on the
sidestep rails, not walking, and see if the reading is more in line with what you would expect. This will
eliminate the movement and static electricity factors. If your hands are dry, then wet them slightly
(saliva works as a great conductor if this doesn’t bother you).

WWW.LIFESPANFITNESS.COM.AU
