Rev: 06.14.2016 Page 1 IN-WALL® Slide-out Service Manual
IN-WALL® Slide-out
SERVICE MANUAL

Rev: 06.14.2016 Page 2 IN-WALL® Slide-out Service Manual
TABLE OF CONTENTS
Safety Information 3
Operation 3
Prior to Operation 3
Extending Slide-out Room 4
Retracting Slide-out Room 4
Controller Overview (B Version) 5
Controller Overview (C2 Version) 6
Motor and Controller Compatibility 7
Motors and Harnesses 8
Resynchronizing the Slide-out Motors 8
Extend and Retract Switch Connections 8
Power and Ground Connections at the Controller 8
Visual Inspections 9
Measurements 9
Floor Rollers 10
Gear Racks 10
V-Rollers 10
Troubleshooting 11
Checking Circuit Breakers 11
Obstructions 11
Debris in the rack 11
Error Codes 11
Electronic Manual Override (Controllers C-1 and C-2 Only) 12
Motor Disengagement Procedure 12
Low Voltage 12
Motor Direction Switches 12

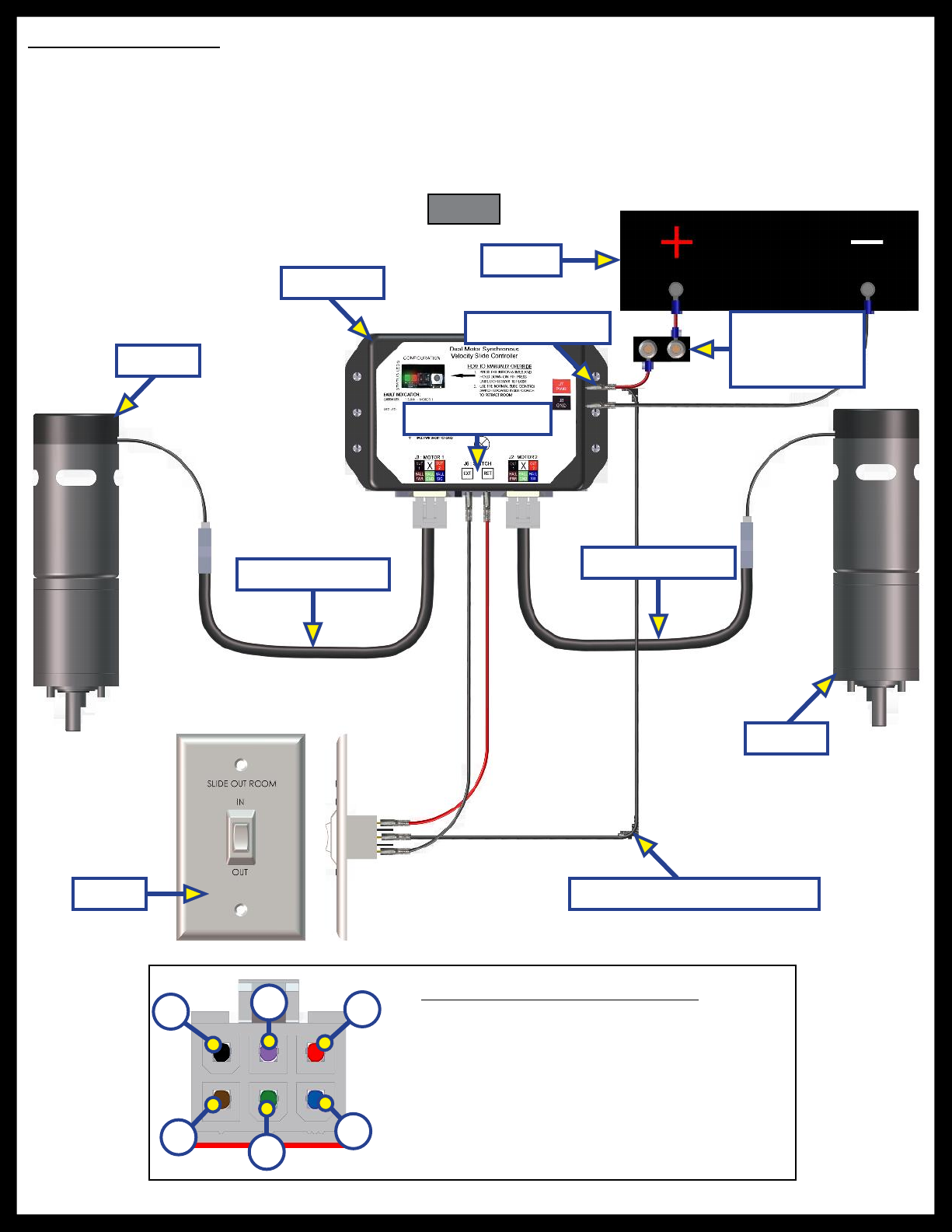

Rewiring Instructions 13
Wiring Color Code Information 13

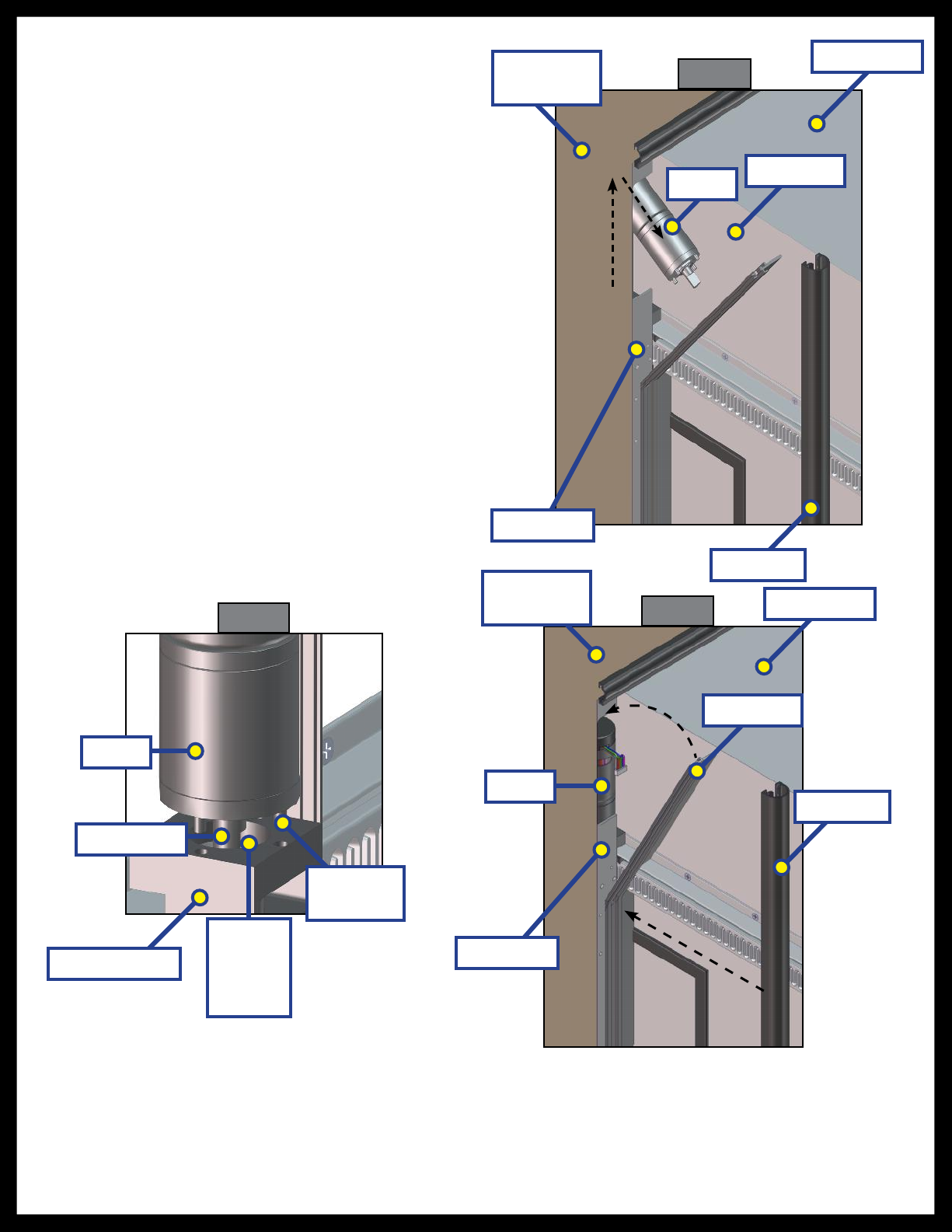

Motor Replacement 14
Tools Required 14
With Motor Notch (Current Style) 14
Without Motor Notch (Old Style) 16
Assembly Removal Procedure 18
Tools Required 18
Procedure 18
Assembly Installation Procedure 20
Synchronizing The Slide-Out Motors 21
In-Wall® Slide-out assembly 22
In-Wall® Slide-out Controllers 23
In-Wall® Slide-out Motors 24
In-Wall® Slide-out Components 25 - 28

Rev: 06.14.2016 Page 3 IN-WALL® Slide-out Service Manual
Safety Information
Failure to act in accordance with the following may result in death, serious injury,
coach or property damage.
The IN-WALL® Slide-out System is intended for the sole purpose of extending and retracting the slide-out room. Its
function should not be used for any purpose or reason other than to actuate the slide-out room. To use the system
for any reason other than what it is designed for may result in death, serious injury or damage to the coach.
Before actuating the system, please keep these things in mind:
1. Parking locations should be clear of obstructions that may cause damage when the slide-out room is
actuated.
2. Be sure all persons are clear of the coach prior to the slide-out room actuation.
3. Keep hands and other body parts away from slide-out mechanisms during actuation.
4. To optimize slide-out actuation, park coach on solid and level ground.
Operation
Prior to Operation
1. Coach should be parked on the most level surface available.
2. Leveling or stabilizing system should be actuated to ensure coach will not move during operation of
slide-out system.
NOTE: In the case of a motorized unit, ignition MUST be off to operate the slide-out.
3. Be sure to keep all persons and pets clear of slide-out system during operation.
NOTE: Install transit bars (if so equipped) on the slide-out room during storage and transportation.
Always make sure that the slide-out room path is clear of people and objects before and during
operation of the slide-out. Always keep away from the gear racks when the room is being operated.

Rev: 06.14.2016 Page 4 IN-WALL® Slide-out Service Manual

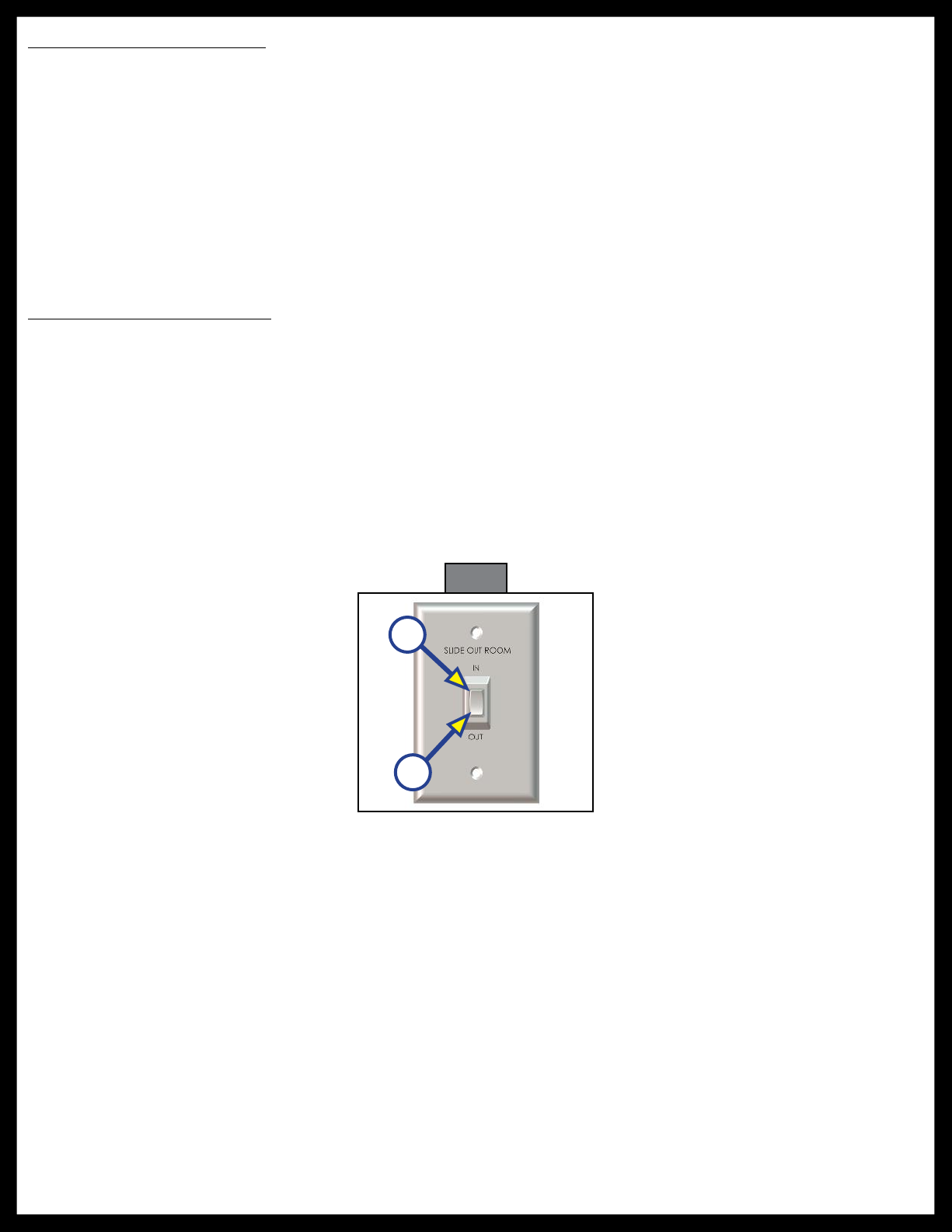

Fig. 1
A
B
Extending Slide-out Room
1. Level the unit.
NOTE: In the case of a motorized unit, ignition MUST be off to operate the slide-out.
2. Remove the transit bars (if so equipped).
3. Press and hold the IN/OUT switch (Fig. 1B) in the OUT position until the room is fully extended and
stops moving.
NOTE: It is important to continue to press the slide-out switch for a few seconds after the room is fully
extended until the motor shuts off. The control will sense that the room has stopped and will shut
off the motor after a few seconds.
4. Release the switch, which will lock the room into position.
Retracting Slide-out Room
NOTE: In the case of a motorized unit, ignition MUST be off to operate the slide-out.
1. Press and hold the IN/OUT switch (Fig. 1A) in the IN position until the room is fully retracted and stops
moving.
NOTE: It is important to continue to press the slide-out switch for a few seconds after the room is fully
retracted until the motor shuts off. The control will sense that the room has stopped and will shut
off the motor after a few seconds.
2. Release the switch, which will lock the room into position.
3. Install the transit bars (if so equipped).

Rev: 06.14.2016 Page 5 IN-WALL® Slide-out Service Manual
Controller Version
Controller Overview (B Version)
Status LEDs: 2 LEDs, 1 green and 1 red, are provided to indicate current controller status and faults.
Power Connection: 12V DC input. Unit will operate from 8V DC to 18V DC.
Switch Connection: Spade connection for the switch wiring.
Motor 1 Connector: Power and encoder input for motor 1.
Motor 2 Connector: Power and encoder input for motor 2.
NOTE: Version B motor harnesses have five wire in-line connectors at the controller and the molded
connector at the motor end (Figs. 3 and 4). Wire colors match with color codes on control board. It
does not matter which motor is 1 or 2.
Fig. 2
Switch
Connection
Mode
Button
Fig. 3 - Controller Connections
Fig. 4 - Motor Harness
Green LED
Red LED
Motor 1 Connector Motor 2 Connector
Power Connection

Rev: 06.14.2016 Page 6 IN-WALL® Slide-out Service Manual

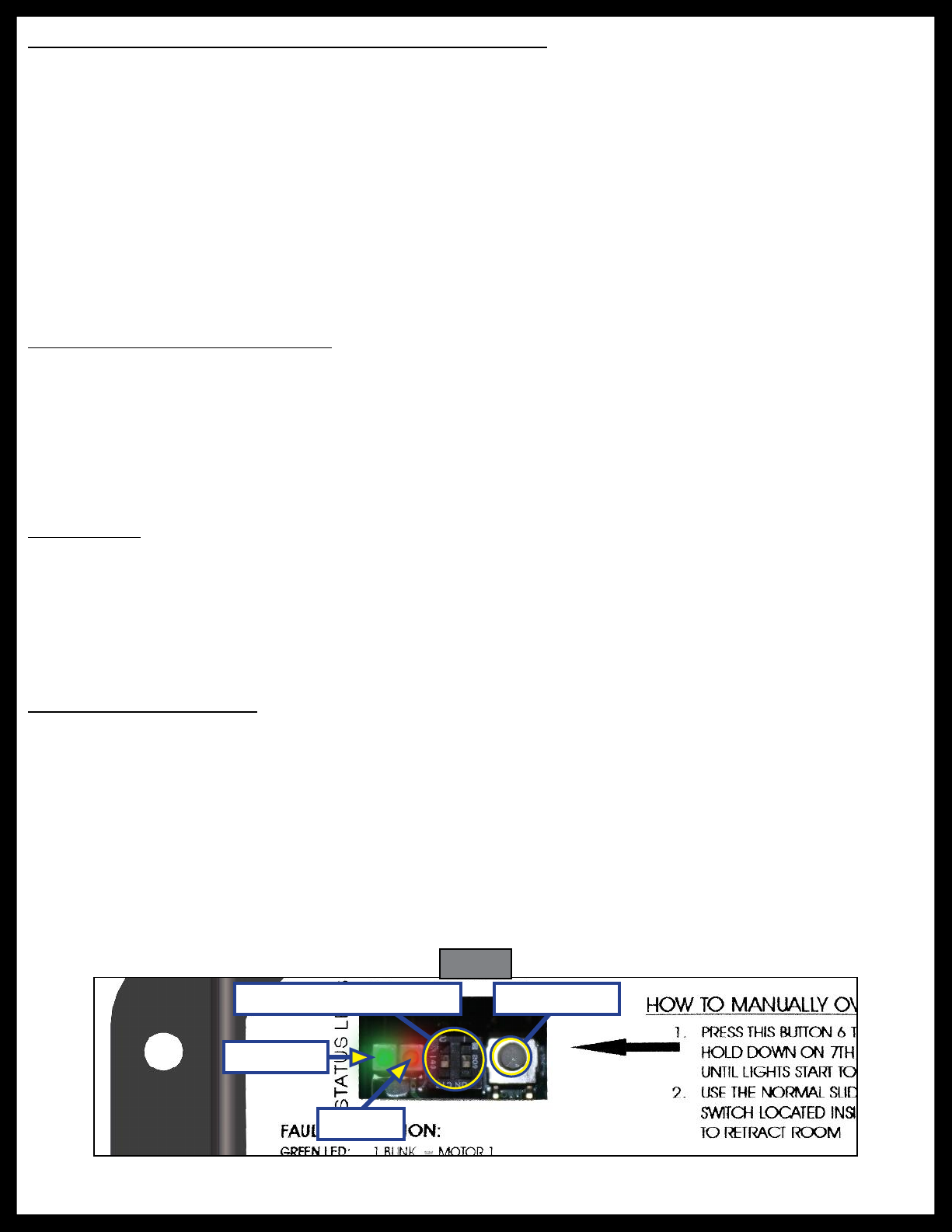

Controller Overview (C2 Version)
Controller Version
Fig. 5
Fig. 6 - Controller Connections
Fig. 7 - Motor Harness
Status LEDs: 2 LEDs, 1 green and 1 red, are provided to indicate current controller status and faults.
Mode Button: Used to engage the electronic manual override.
Power Connection: 12V DC input. Unit will operate from 8V DC to 18V DC.
Switch Connection: Spade connection for the switch wiring.
Motor 1 Connector: Power and encoder input for motor 1.
Motor 2 Connector: Power and encoder input for motor 2.
NOTE: Motor harnesses have Molex® connectors at the controller and a molded connector at the motor
end (Figs. 6 and 7). Wire colors match with color codes on control board. It does not matter which
motor is 1 or 2.
Mode
Button
Green LED
Red LED
Motor 1 Connector
Switch Connection
Motor 2 Connector
Power Connection

Rev: 06.14.2016 Page 7 IN-WALL® Slide-out Service Manual
Motor and Controller Compatibility
Part # Controller Version Controller
Replacement Motor(s) Used
239657 A (Daisy Chain) (Fig. 8) A Only Round-Square (Fig. 14), Round-
Round (Fig. 15A)
211852
B (Fig. 9) B/C2* Only Round Square (Fig. 14)
C (Fig. 10) C/C2* Only Round-Round (Fig. 15A, 15B), Round-
Square Plate (Fig. 16)
C1 (Fig.11) C1/C2* Only
C2 (Fig. 12) C2
326876 8 Amp (Fig. 13) 8 Amp Only Round-Round (Fig.15B)
NOTE: Always replace the motor in the system with the same motor except the Round-Square Plate
(Fig. 16), which is obsolete. That motor will be replaced with the Round-Round (Fig. 15A, 15B).
NOTE: (*) denotes that (2) new motor harnesses MUST be ordered, and re-wiring instructions MUST be
used. See page 13.
Fig. 8 Fig. 9 Fig. 10 Fig. 11
Fig. 12 Fig. 13 Fig. 14 - 229466
Fig. 15A - 236575, 300:1 Fig. 16 - Obsolete Fig. 15B - 287298, 500:1
NOTE: Ensure that a 300:1
motor is replaced with a
300:1 motor (Fig. 15A),
and that a 500:1 motor
is replaced with a 500:1
motor (Fig. 15B).

Rev: 06.14.2016 Page 8 IN-WALL® Slide-out Service Manual

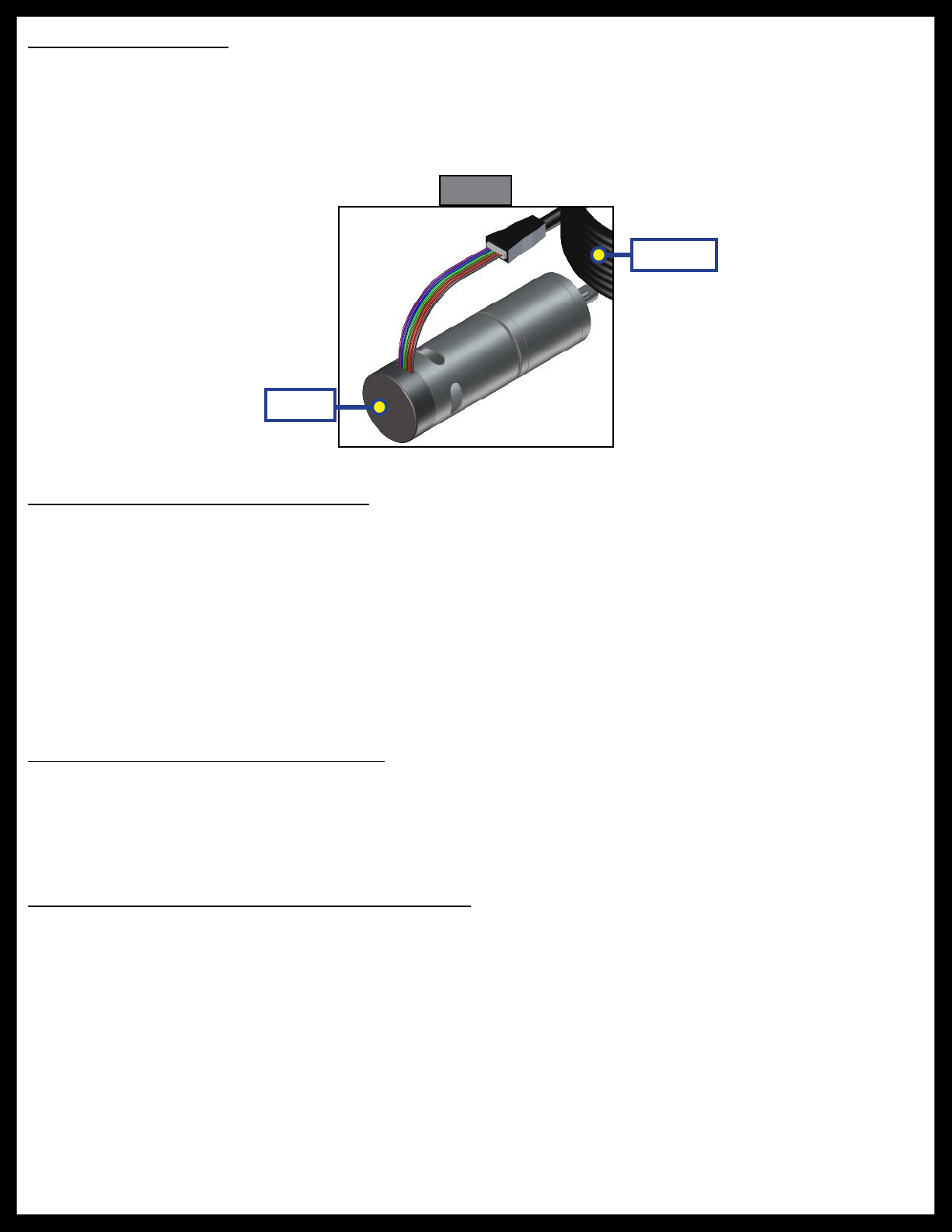

Motors and Harnesses
1. Check for proper connections between the motors and harnesses (Fig. 17).
2. Visually inspect the exposed harnesses to ensure they are not pinched or damaged.
NOTE: Ribs on motor connector line up with notch inside of female connector on wiring harness. Color
codes on wires also match (black to black, red to red, etc.)
Resynchronizing the Slide-out Motors
1. Fully extend the slide room using the switch. Keep the switch engaged until the motors shut down on
their own.
2. Retract the room 1-2 inches.
3. Repeat steps 1 and 2 until both motors shut down at the same time. In many cases, two or three
repetitions are necessary to re-sync the system.
4. Fully extend the slide-out and keep the switch engaged until the motors shut down on their own.
Fully retract the slide-out, again keeping the switch engaged until the motors shut down on their own.
If both motors shut down at the same time at full extension and full retraction, the room is properly
synchronized. If they do not shut down at the same time, repeat the process until they do.
Extend and Retract Switch Connections
Rev. A - Rev. C1 Controllers: Common connection on controller goes to common connection on extend and retract
switch.
Rev. C2 and 8 amp Controllers: Extend and retract connections on the controller go to the extend and retract
terminals on the switch. Switch is powered by the OEM supplied 12V DC power source.
Power and Ground Connections at the Controller
Power and ground are supplied to the controller through the spade terminals located on the right-hand side
of the controller (Figs. 2 and 5 - Power Connection). 12V DC is recommended. A 10ga wire is the minimum size
recommended. A 30 amp resetting or blade fuse is required (OEM supplied).
Fig. 17
Motor
Harness

Rev: 06.14.2016 Page 9 IN-WALL® Slide-out Service Manual
Gear Rack
Visual Inspections
Measurements
1. Measure from the outside edge of the column to the face of the gear rack (Fig. 18 and 19). The
standard measurement should be 2 ½" plus or minus ⁄". Take this measurement when the room is
fully extended and again when the room is 3" from fully retracted.
NOTE: For units with non-standard installations, contact the OEM for their specific measurements.
2. Measure the gear racks for parallel. There should be less than ⁄" difference between the parallel
measurements.
3. Check for proper seal engagement (no binding, ¼" nominal overlap).
4. Check for damage to gear rack.
Fig. 18 - Gear Rack Measurements
Fig. 19 - Column and Gear Rack
Column
Gear Rack
2.5" +/- .125"
(Standard)
Column

Rev: 06.14.2016 Page 10 IN-WALL® Slide-out Service Manual
Floor Rollers
1. Check that the seals are not getting caught in the rollers, which could cause binding of the slide-out.
2. Check for proper roller engagement (Fig. 20):
A. Rollers should not be digging into the floor of the slide-out.
B. Rollers should not spin freely beneath slide-out.
Callout Description
A Motor
B Gear Rack
C Shoe
D V-Roller
Gear Racks
1. Check to make sure the screws in the gear rack are secured flush and not getting caught in the seals
(Fig. 21B).
2. Gear Racks MUST be parallel.
V-Rollers
1. Visually inspect V-roller (Fig. 21D) for obstructions or damage.
Fig. 20
Fig. 21 - Bearing Block Detail
Floor of Unit
Floor of Slide-out
Floor Roller
B
D
C
A

Rev: 06.14.2016 Page 11 IN-WALL® Slide-out Service Manual
Troubleshooting
Checking Circuit Breakers
The IN-WALL® Slide-out requires a minimum of a 30-amp circuit breaker. Check the 12-volt circuit breaker box for
blown circuit breakers, and replace any if necessary. Consult the RV manufacturer's documentation for the location
of the 12-volt circuit breaker box, and the location of the IN-WALL® Slide-out controller’s circuit breaker. If the
circuit breaker blows immediately upon replacement, there is a problem with the wiring to the IN-WALL® Slide-out
controller. Have qualified service personnel check and repair.
Obstructions
Check outside the RV for possible obstructions: tree, post, car, etc. Check inside the RV for any obstructions:
luggage, furniture, open cabinets, etc. Also, check for smaller objects that may be wedged under the floor or in the
sides of unit. Remove obstructions before proceeding.
Debris in the rack
Check the sides of the slide room for any dirt or debris. Small dirt clumps or metal shavingscan cause the spur gear
to bind up and stop the movement of the slide-out. Usecompressed air or a dry brush to remove any dirt or debris
from the rack beforeattempting to actuate the system again.

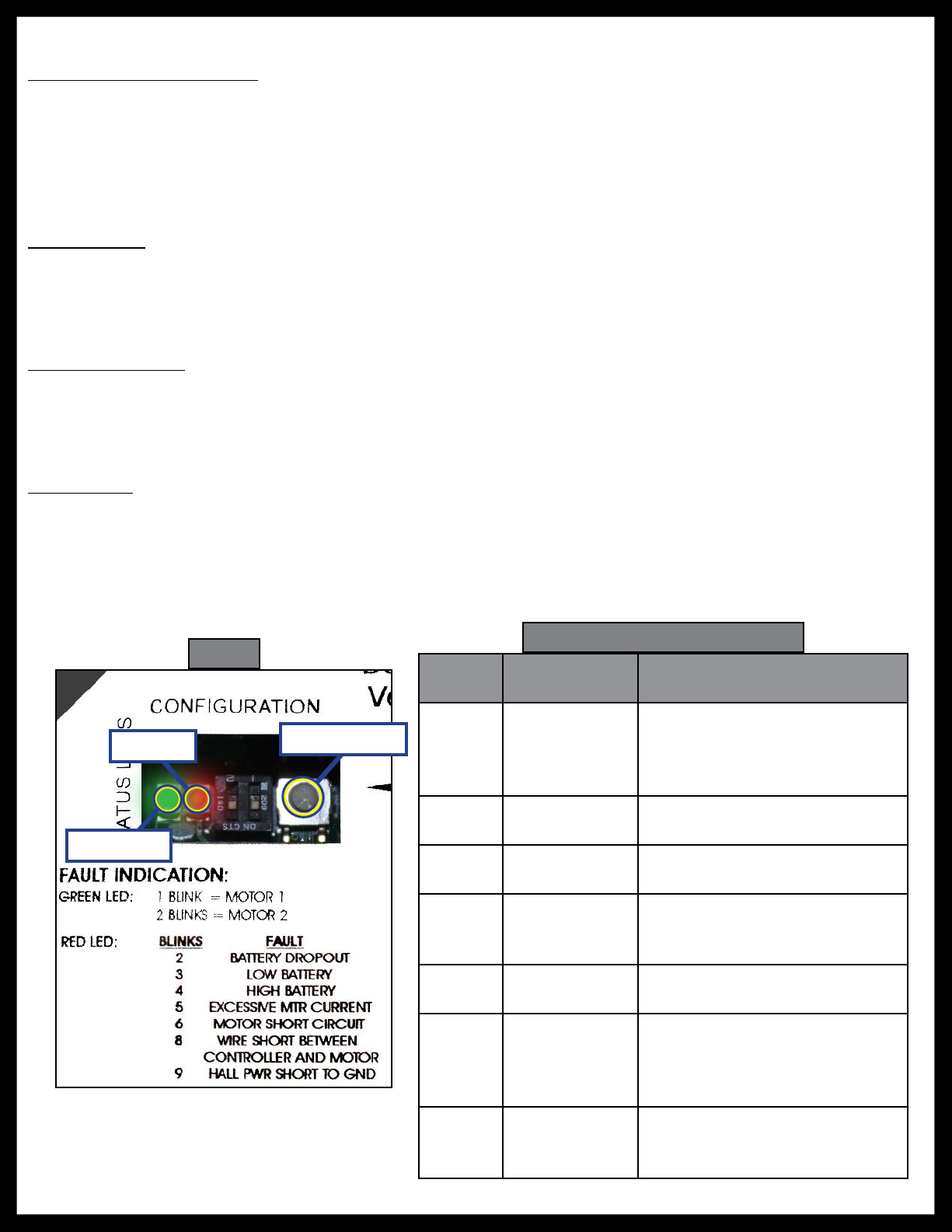

Error Codes
During operation when an error occurs, the board will use the LEDs to indicate where the problem exists (Fig. 22).
For motor-specific faults the green LED will blink 1 time for motor 1, and 2 times for motor 2. The red LED will blink
from 2 to 9 times depending on the error code (Fig. 23).
When an error code is present, the board needs to be reset. Energizing the extend/retract switch (Fig. 1) resets the
board. Energize the extend/retract switch again for normal operation.
Error
Code Name Description
2Battery
Drop Out
Battery capacity low enough
to drop below 6 volts while
running or short in switch
wiring.
3 Low Battery Voltage below 8 volts at start
of cycle.
4High
Battery Voltage greater than 18 volts.
5
Excessive
Motor
Current
High amperage, also
indicated by 1 side of slide
continually stalling.
6Motor Short
Circuit
Motor or wiring to motor has
shorted out.
8
Wire Short
Between
Controller
and Motor
Encoder is not providing a
signal. This is usually a wiring
problem.
9
Hall Power
Short To
Ground
Power to encoder has been
shorted to ground. This is
usually a wiring problem.
Fig. 22 Fig. 23 - Error Code Descriptions
Red LED
Green LED
Mode Button

Rev: 06.14.2016 Page 12 IN-WALL® Slide-out Service Manual
Fig. 24
Green LED
Red LED
Motor Direction Switches Mode Button
Electronic Manual Override (Controllers C-1 and C-2 Only)
NOTE: See (Fig. 24) for locations of the mode button and LEDs.
1. Press the mode button on the controller six times and hold on the seventh for five seconds to enter
electronic manual override mode.
2. Use the extend/retract switch to move both motors in or out.
NOTE: Over-current and short circuit detection are still enabled. Electronic manual override provides 12V
directly to both motors.
3. To exit the mode, push and hold the mode button until the LEDs begin to blink simultaneously. Exiting
the override mode resets the motor positions (you will have to resync motors).
NOTE: During this override procedure the motors are not synchronized. Visually watch the room: if one
side is moving significantly slower than the other (or not at all) then immediately stop and use the
"Motor Disengagement Procedure" below.
Motor Disengagement Procedure
1. Remove motor retention screws located near the top of each vertical column on the outside of the
coach (under bulb seal if equipped with bulb seal on column).
2. Locate motor.
A. On units built prior to 2011: Bend back wipe seal from outside of coach.
B. On units from 2011 to current: See slot in H-column on the inside of the coach.
3. Pull motor up until disengaged (roughly ½"). A flat-head screwdriver can be used to pry the motor up.
4. Reinstall motor retention screw to hold motor in place or remove motor.
Low Voltage
The Lippert IN-WALL® Slide-out Controller is capable of operating the room with as little as 8 volts. But at these
lower voltages the amperage requirement is greater. Check voltage at the controller, see Figs. 2 and 5 for the
location of power connections. If the battery is low, it needs to be charged or the unit should be plugged into shore
power or the generator can be run, if equipped. It may be possible to "jump" the RV's battery temporarily to extend
or retract the room. Consult the RV manufacturer's owners manual.
NOTE: Always connect directly to the battery and never to the controller power connections.
Motor Direction Switches
Motor direction switches (Fig. 24) are used to change the direction of individual motors. If when trying to extend
or retract the room, one side goes in and the other side goes out, then there is a problem in the wiring. The motor
direction switches can be used to correct this problem. The left switch controls motor 2 and the right switch
controls motor 1. If motor 1 is going in the wrong direction then change switch 1’s position. If motor 2 is going in
the wrong direction then change switch 2’s position.
The motor direction switches can also be used to change the direction of the extend/retract switch. If the room
extends when the extend/retract switch is moved to the retract position, its direction can be reversed by moving
both switch 1 and switch 2 to their opposite positions. This feature can be used if it is more convenient to change
the motor direction switches than to rewire the extend/retract switch.

Rev: 06.14.2016 Page 13 IN-WALL® Slide-out Service Manual
Wiring Color Code Information
A. Black - Power/Ground
B. Purple - Not Used
C. Red - Power/Ground
D. Brown - Hall Effect Power
E. Green - Hall Effect Ground
F. Blue - Hall Effect Communications
C
AB
E
DF
Rewiring Instructions
If it is necessary to replace a malfunctioning Rev. B, C, or C1 controller, it is recommended that the customer
do so with a new Rev. C2 controller. In order to properly rewire a Rev. B, C, or C1 controller to a new Rev. C2
controller, the customer will need two new motor harnesses (one for each motor.) Additionally, it will be
necessary to modify the power wire from the controller to the extend/retract switch by adapting the wire to
piggyback the connection at the power junction. This wire comes from the positive side of the buss bar to
the controller (Fig. 25).
Fig. 25
Power Junction
Modified Switch Power Wire
Switch Junction
Battery
OEM Supplied
Circuit
Interruption
Motor 1
Motor 1 Harness Motor 2 Harness
Motor 2
Controller
Switch

Rev: 06.14.2016 Page 14 IN-WALL® Slide-out Service Manual
Motor Replacement
Tools Required
• Drill or cordless screw gun
• Fast-bonding adhesive
With Motor Notch (Current Style)
NOTE: There MUST be access to both the interior and exterior of the coach to perform this procedure.
1. Extend the slide-out to halfway out of the coach.
2. On the exterior, slide the bulb seal down to access the motor retention screw (Fig. 26).
3. Remove the motor retention screw (Fig. 26).
4. Inside the coach, remove the bulb seal from the wipe seal (Fig. 27.
5. Peel back the wipe seal and disconnect the wiring harness from the motor (Fig. 27).
Fig. 26 Fig. 27
Slide Room
Slide Room
Outside Wall
of Coach
Motor Retention
Screw
Bulb Seal
Bulb Seal
H-Column
Inside Wall
of Coach
Motor
Wipe Seal

Rev: 06.14.2016 Page 15 IN-WALL® Slide-out Service Manual
6. Pull motor up and tip the bottom of the motor
out of the notch to remove it (Fig. 28).
7. Place new motor into the H-column, making
sure that the wiring is facing the back of the
H-Column.
NOTE: Look into the column and note the orientation
of the coupler and set screw holes in the
bearing block. Rotate the drive shaft on
the motor to approximately align with the
coupler before sliding the new motor into
the column.
8. While applying pressure to the top of the motor,
push on the room, which will slowly rotate the
torque shaft so the coupler and torque shaft can
line up with the motor shaft. Once they are lined
up, the motor will drop into place (Fig. 29).
9. Reattach the wiring harness.
10. Push the wipe seal back into position (Fig. 30).
11. Fasten the wipe seal to the H-column with fast-
bonding adhesive.
12. Replace the bulb seal (Fig. 30).
13. Replace the motor retention screw on the
outside of the H-column.
Fig. 28
Fig. 29 Fig. 30
Motor
Motor
Drive Shaft
Bearing Block
Coupler
(Inside
Bearing
Block)
Set Screw
Pins
Inside Wall
of Coach
Inside Wall
of Coach
Slide Room
Slide Room
Wipe Seal
Wipe Seal
H-Column
H-Column
Bulb Seal
Bulb Seal
Motor

Rev: 06.14.2016 Page 16 IN-WALL® Slide-out Service Manual
Without Motor Notch (Old Style)
NOTE: There MUST be access to both the interior and exterior of the coach to perform this procedure.
1. Extend the slide-out to halfway out of the coach.
2. Adequately support the slide room, but do not lift it.
3. From the exterior, slide the bulb seal down to access the motor retention screw (Fig. 31).
4. Remove the motor retention screw (Fig. 31).
5. Remove the screws out of the H-column from top to bottom (Fig. 32).
6. Unplug the wiring harness from the motor.
Fig. 31 Fig. 32
Slide Room Slide Room
Outside Wall
of Coach
Outside Wall
of Coach
Motor Retention
Screw
Bulb Seal
H-Column
H-Column
H-Column
Attachment
Screw

Rev: 06.14.2016 Page 17 IN-WALL® Slide-out Service Manual
Fig. 33
Fig. 34
Fig. 35
Fig. 36
7. From the inside of the unit, push the slide-out
out until the top of the H-column is accessible
(Fig. 33).
8. Pull the motor up and out of the H-column
(Fig. 34).
9. Place new motor into the H-column, making
sure that the wiring is facing the back of the
H-Column.
NOTE: Look into the column and note the orientation
of the coupler and set screw holes in the
bearing block. Rotate the drive shaft on
the motor to approximately align with the
coupler before sliding the new motor into
the column.
10. While applying pressure to the top of the motor,
push on the column, which will slowly rotate the
torque shaft so the coupler and torque shaft can
line up with the motor shaft. Once they are lined
up, the motor will drop into place (Fig. 35).
11. Reattach the wiring harness to the motor.
12. Push the slide-out back into place.
13. Replace all screws into the H-column to reattach
the slide-out to the unit (Fig. 36).
14. Replace the motor retention screw (Fig. 36).
15. Slide the bulb seal back up into position (Fig. 36).
16. Reseal H-column according to RV manufacturer
recommendations.
17. Re-glue wipe seal.
Motor Retention
Screw
Bulb Seal
Motor
Motor
Drive
Shaft
Bearing
Block
Coupler
(Inside
Bearing
Block)
Set Screw
Pins
Slide Room
Slide Room
Slide Room
Outside Wall
of Coach
Outside Wall
of Coach
H-Column
H-Column
H-Column
H-Column
Attachment
Screws

Rev: 06.14.2016 Page 18 IN-WALL® Slide-out Service Manual
Assembly Removal Procedure
Tools Required
• Electric drill or cordless screw gun
• Rubber mallet
• 2x4 (length=gap between T-molding and side of unit-¼”)
• Razor knife
• Floor jack
Procedure
NOTE: If the slide will not move by use of the switch it may
be necessary to use one of the three methods (A, B,
or C) described below:
A. Use electronic override mode on the IN-WALL®
controller.
I. Press the “mode button” 6 times quickly,
press a 7th time and hold for approximately 5
seconds (Fig. 37A).
II. The red and green LED lights will begin to flash
indicating system is in override mode (Fig.
37B).
III. Using the wall switch, press and hold the “IN”
button until the unit comes completely in.
B. Disconnect the motor harnesses from the IN-WALL®
controller to allow the slide room to be manually
pushed into position (Fig. 38A).
C. Disengage the motors to allow the slide room to be
manually pushed into position (Fig. 38B).
1. Remove first 3 sets of screws in each rack on the interior
side of slide room.
2. Extend the slide room until about 8" of the room is left
inside the unit.
3. Support the slide room with a floor jack or other
adequate support before continuing.
4. Place the 2x4 block on top of the slide room (standing
on its edge between the T-molding and side of the
unit.)
5. Reach inside the top of the slide column to disconnect
the wiring harness from the motor.
6. Using a razor knife, carefully cut the caulk bead along
the edge of the slide column.
7. Remove the screws from the slide column attaching it
to the side wall of the unit.
8. Create a jumper wire from an extra wiring harness: Cut
a 3-foot length of the harness (with the motor wire
connector attached) and strip the ends of the red and
black wires (Fig. 39).
9. Plug the jumper wire into the motor wire.
10. Holding the black and red wires against the terminals
of your cordless screw gun battery, determine which
polarity actuates the motor in the retract direction. The
slide column should slide away from the side of the unit.
Fig. 37
Fig. 38
A
B
Fig. 39
A
B

Rev: 06.14.2016 Page 19 IN-WALL® Slide-out Service Manual
11. Remove all screws from the gear racks (Fig. 40).
Upper Gear Rack
#10 Pan Head Screws
Slide Room Fig. 40
12. You may need to pry the gear racks away from the sides of the slide room with a flathead screwdriver
or putty knife. Do this carefully so you don’t damage the finish on the side of the slide room.
13. Carefully slide the ends of the gear racks past the bulb seal on the T-molding.
14. Pull the full system out and set aside.
NOTE: LCI recommends that inspection and repair of the assembly be done on a clear workbench to
prevent further damage to the system.

Rev: 06.14.2016 Page 20 IN-WALL® Slide-out Service Manual
Assembly Installation Procedure
1. Prepare the slide room and side of the unit for the new install by cleaning the surfaces of any adhesive
residue using a putty knife and a solvent, being careful not to damage the finishes on the unit.
2. Prepare the new system for installation: measure the distance (center to center) from one gear rack to
the next gear rack along the slide column. Write these measurements down.
3. Apply OEM recommended sealant to the entire length of the H-column along the inside edge where it
will contact the side face of the unit.
NOTE: If installing a new assembly, remove the shipping angles before continuing this procedure.
4. Gently slip the system through the opening between the slide room and the side wall opening. Tuck
the gear racks inside the bulb seal attached to the T-molding.
5. Align the bottom lip (alignment flange) of the lower gear rack with the bottom edge of the slide room
(Fig. 41).
6. Push the bottom gear rack tight against the bottom of the slide room and put a screw into each end of
the gear rack.
Fig. 41
Slide Room
Lower Gear Rack
Alignment Flange
Bottom Edge
of Slide Room
