LIVARNO LUX LSS 520 A1 Instruction sheet

V 1.2
English........................................................................................................................ 2
Français.................................................................................................................... 15
Nederlands .............................................................................................................. 30
Deutsch..................................................................................................................... 44

LIVARNO LUX LSS 520 A1
2 - English
Table of contents
Introduction................................................................................................................ 3
Intended use............................................................................................................... 3
Package contents ....................................................................................................... 3
Specifications ............................................................................................................. 4
Safety instructions ...................................................................................................... 5
Copyright ................................................................................................................... 7
Before start-up ........................................................................................................... 7
Proper mounting location................................................................................................................................8
Required tools..................................................................................................................................................8
Before starting assembly.................................................................................................................................8
Assembly..........................................................................................................................................................9
Initial start-up ........................................................................................................... 10
Configuring the motion sensor..................................................................................................................... 10
Configuring the illumination time (TIME):.................................................................................................... 10
Configuring the sensor sensitivity (SENS)................................................................................................... 10
Configuring the photosensitivity (LUX) ........................................................................................................10
Maintenance/Cleaning ............................................................................................. 11
Troubleshooting ....................................................................................................... 11
Environmental and waste disposal information........................................................ 12
Conformity ............................................................................................................... 12
Guarantee and service ............................................................................................. 13

LIVARNO LUX LSS 520 A1
English - 3
Introduction
Thank you for choosing a LIVARNO LUX product.
Intended use
This solar LED spotlight is not intended for commercial use. It is suitable for outdoor use, in particular in
places without a mains outlet (e.g., a garage or garden shed). The built-in LED lamp provides ample
illumination. The motion sensor detects movement and automatically turns the solar LED spotlight on or off.
The device meets the requirements of all relevant standards related to CE conformity. Conformance to
these standards is no longer guaranteed if a change is made to the solar LED spotlight without the
authorisation of the manufacturer.
Package contents
Unpack the device and all accessories. Remove all packaging materials and check all parts for
completeness and for signs of damage. If any parts are missing or damaged, please contact the
manufacturer.
Solar LED spotlight LSS 520 A1
Solar panel
Mounting materials for solar LED spotlight (2x large screw and 2x large dowel)
Mounting materials for solar panel (4x small screw and 4x small dowel)
User manual including safety instructions

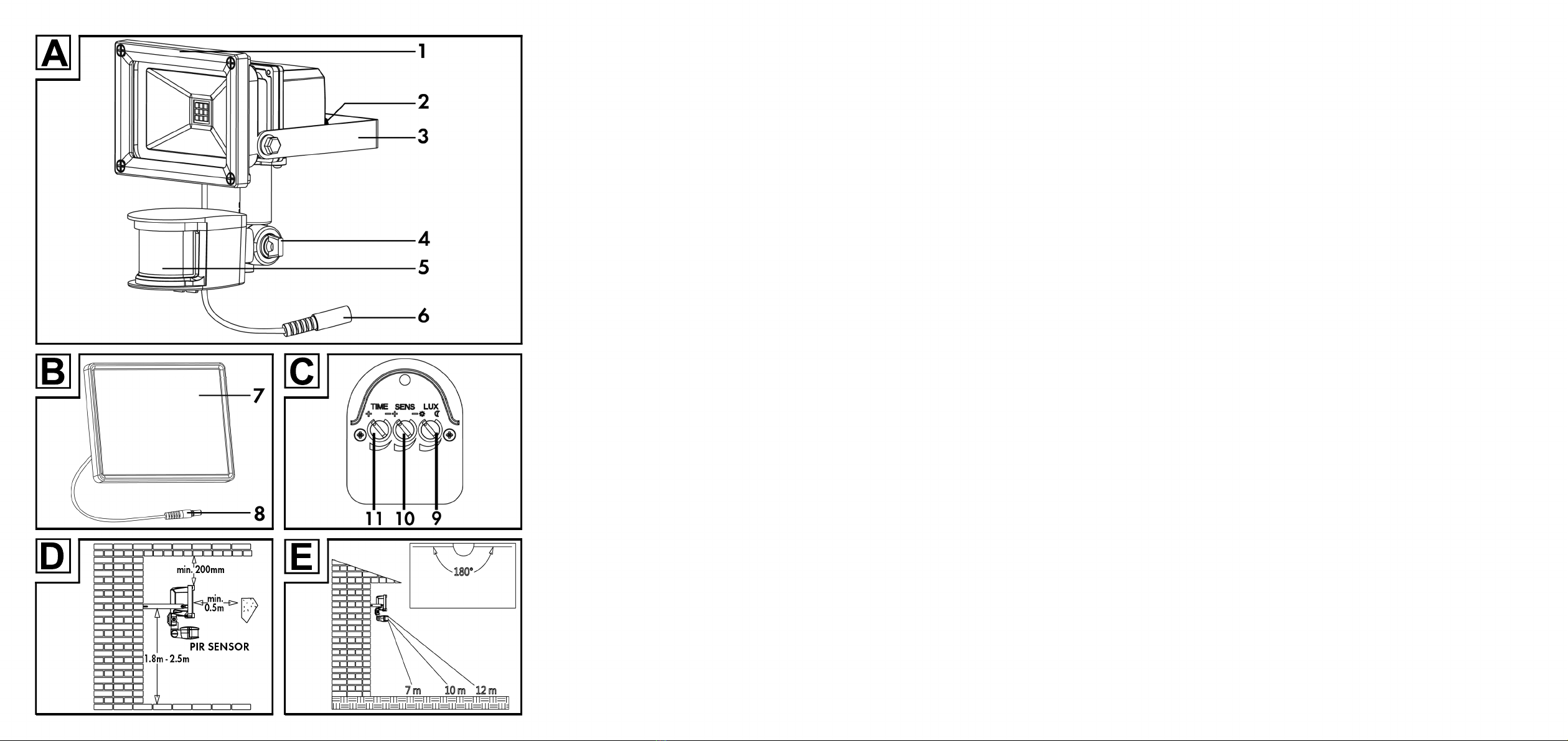

This user manual contains a cover that can be unfolded. The inside of the cover provides a schematic of
the solar LED spotlight and a number legend. The numbers identify the following parts/functions:
1 Solar LED spotlight LSS 520 A1
2 On/Off switch
3 Mounting bracket
4 Arresting screw
5 Motion sensor
6 Cable (with socket)
7 Solar panel
8 Cable (with plug)
9 LUX knob
10 SENS knob
11 TIME knob

LIVARNO LUX LSS 520 A1
4 - English
Specifications
Solar LED spotlight (1):
Brand: LIVARNO LUX
Model designation: LSS 520 A1
Lamp type: LG LED: 9 x 1 W max.
LED colour temperature: 5000 K +/-500 K
Ra (colour rendering index of the LED) 80
LED light emission angle: Approx. 120°
LED service life: approx. 25,000 hrs
Max. illumination duration (fully charged
battery):
approx. 1.3 hrs
Operating voltage: 12 V (power supply via solar panel only)
Lithium-ion battery: 1,800 mAh / 7.4 V
Power consumption of entire spotlight unit 8.6 W +/-10% (given 520 lm and a fully charged
battery)
Complete power consumption of LEDs 6.0 W +/-10% (given 520 lm and a fully charged
battery)
Total luminous flux (with cover) 520 lm +/-5% (when battery is fully charged)
Protection class: IP44 (splash protection)
Dimensions (W x H x D): approx. 11.4 x 16.5 x 15.6 cm (incl. mounting bracket)
Weight: approx. 677 g
Solar panel (7):
Type: Polycrystalline / 3.5 W / 14.5 V
Length of connection cable: approx. 3 m
Dimensions (W x H x D): 21 x 16 x 1.6 cm (without mounting plate)
Weight (incl. mounting plate): approx. 540 g
Motion sensor (5):
Sensor detection angle: Max. 180°
Sensor range (adjustable): max. 12 m
Twilight switching level: 5 lux +/- 5 lux to 20,000 lux +/- 10 lux

LIVARNO LUX LSS 520 A1
English - 5
Swivelling (mechanically): approx. 150° horizontally / approx. 180° vertically
Illumination time (adjustable): approx. 10 sec +/- 5 sec to 4 min +/- 1 min
The specifications and design are subject to change without notice.
Safety instructions
Before using the solar LED spotlight (1) for the first time, please read
the following instructions carefully and observe all warnings, even if
you are familiar with using electronic devices. Keep this user manual
in a safe place for future reference. If you give the solar LED
spotlight (1) away or sell it, please ensure that you also pass on this
user manual as it is part of the device.
DANGER! This icon, together with the word
‘DANGER’, indicates an impending dangerous
situation which, if not prevented, can lead to serious
injuries or even death.
WARNING! This icon, together with the word
‘WARNING’, indicates important information for the
safe operation of the solar LED spotlight (1) and for
user safety.
This icon indicates further information on the topic.
Fire hazard: Mount the solar LED spotlight (1),
observing a minimum clearance of 0.5 m to materials
exposed to the light. Excessive heat can cause a fire.
A shattered protective cover must be replaced.

LIVARNO LUX LSS 520 A1
6 - English
DANGER! Keep electrical equipment out of reach of
children. Also, people with reduced mental, sensory or motor
abilities should use electrical devices within the limits of their
capabilities only. Ensure that children and people with
reduced mental, sensory or motor abilities never use electrical
devices unsupervised, unless they have been properly
familiarised with the equipment or are being supervised by a
person in charge of their safety. Children should generally be
supervised to ensure they do not play with this device. Keep
children away from the working area when mounting the solar
LED spotlight (1). The package contents include various small
parts that can result in serious injuries or even death when
swallowed. Children are not always able to identify possible
threats. Therefore, also keep the packaging film away from
children. There is the risk of suffocation.
DANGER! If you notice any smoke, unusual noises or smells,
immediately switch off the solar LED spotlight (1). In these
cases, you must not continue to use the device until it has been
checked by a specialist. Do not inhale smoke possibly caused
by a burning device. If you inhaled smoke, consult a
physician. Inhaling smoke can be harmful to your health.
DANGER! The housing of the solar LED spotlight (1) and the
solar panel (7) must be free of damage. A damaged housing
can result in risk of injury.

LIVARNO LUX LSS 520 A1
English - 7
DANGER! Do not operate the solar LED spotlight (1) in a
potentially explosive atmosphere due to the presence of
combustible gases, vapours or dust, as this would result in risk
of explosion.
DANGER! Never look directly into the light beam with the
aid of optical instruments, such as a magnifying lens. There is
the risk of injuring your eyes. If you suspect that you may have
injured your eyes, immediately consult a physician.
WARNING! Do not attach any objects to the solar LED
spotlight (1) or the
solar panel (7). The housing is not designed to carry any
weights. Ignoring this warning may result in damage to the
solar LED spotlight (1) or the solar panel (7).
Copyright
All contents of these operating instructions are subject to copyright law, and are provided to the user
solely as a source of information. Any form of copying or reproduction of data and information is
prohibited without the express written permission of the author. This also concerns commercial use of the
contents and data. The text and illustrations describe the technical status at the time of printing. All
information is subject to change.
Before start-up
Remove the solar LED spotlight (1) and the mounting materials from the packaging.
Check the solar LED spotlight (1) for signs of damage. If the solar LED spotlight (1) is damaged, it must not
be put into operation.
Fully charge the built-in lithium-ion battery before initial start-up. Please make sure that the On/Off switch
(2) is set to ‘OFF’.
The duration of the charging process depends on the intensity of the solar radiation. In sunny
weather, charging takes approx. 3 days (given about 4 hours daily and approx. 60,000 lux).

LIVARNO LUX LSS 520 A1
8 - English
Proper mounting location
Carefully choose the mounting location and thoroughly prepare for assembly.
Systematically arrange all individual parts, required tools and mounting materials and place them
within easy reach.
The solar LED spotlight (1) may only be mounted on a sturdy support, such as a masonry wall etc.
Do not mount the solar LED spotlight (1) above a heat source or within direct proximity of other light
sources. Also account for Figure [D] on the cover page when selecting the mounting location.
The built-in battery of the solar LED spotlight (1) is exclusively charged via the solar panel (7) part of
the delivery scope. The cable (8) is approx. 3 m long. Therefore, the mounting location of the solar
panel (7) must be chosen such that the plug can be connected to the cable (6) socket of the solar LED
spotlight (1) without difficulty. When doing so, lay the cable (8) in a manner so it does not obstruct
people or become a tripping hazard. Ideally, mount the solar panel (7) at a bright location exposed
to direct sunlight.
Choose a mounting location that protects the solar LED spotlight (1) from wind, rain and soiling.
Determine in advance which mounting materials are suitable for the designated mounting location.
The solar LED spotlight (1) is delivered with mounting materials suitable for concrete.
Required tools
The package does not include the following tools. This list is provided to offer general orientation. The
precise characteristics of the required tools depend on the chosen mounting location.
Ladder
Spirit level, yardstick, pencil
Drilling machine and drill
Phillips screwdriver, flat-tip screwdriver
Open-ended spanner, combination pliers, wire cutter
Before starting assembly
When drilling holes, ensure you do not damage any
hidden cables or pipes.
Mount the device using the proper tools.
Before assembly, make yourself familiar with the individual parts of the solar LED spotlight (1) as well as
with the instructions and illustrations, and observe them during assembly.

LIVARNO LUX LSS 520 A1
English - 9
Assembly
Solar LED spotlight (1):
Detach the mounting bracket (3) from the solar LED spotlight (1).
Utilise the mounting bracket (3) as a template for marking the position of the two outer drill holes.
Then drill these holes and attach the mounting bracket (3) using the supplied large dowels and
screws.
Now attach the solar LED spotlight (1) to the mounting bracket (3) using the previously removed
screws, spring washers and flat washers. Please make sure that the spring washers are located
between the solar LED spotlight (1) and the mounting bracket (3). The flat washers must be located
between the screw head and the mounting bracket (3).
Solar panel (7):

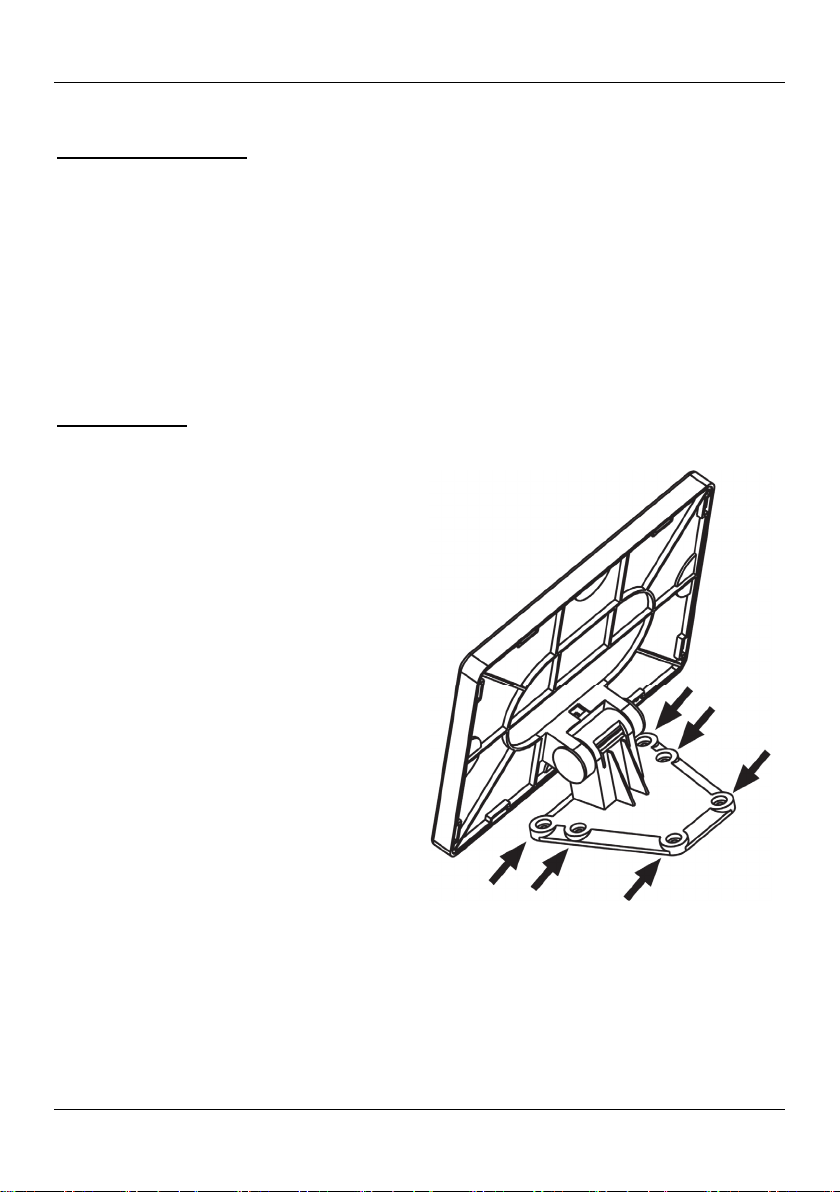

A mounting plate with 6 drill holes for screws is located at the back of the solar panel (7).
Mount the solar panel at the designated
location using the 4 small screws and dowels.
Depending on the topography of the mounting
location, you can freely choose 4 of the drill
holes in the mounting plate; however, you
should ideally select 2 drill holes on the right
and left each. The solar panel (7) is connected
to the mounting plate via a swivel joint. Align
the mounting plate such that you can fasten
the 4 small screws with ease.
Then lay the cable (8) and connect the plug to
the cable (6) socket of the solar LED spotlight
(1).
The solar panel (7) is connected to the
mounting plate via a swivel joint. Orient the
solar panel in a manner that ensures maximum
exposure to sunlight.

LIVARNO LUX LSS 520 A1
10 - English
Initial start-up
Turn on the solar LED spotlight (1) using the On/Off switch (2) by putting it into the ‘ON’ position.
Configuring the motion sensor
Ensure that no places where traffic is common (e.g.,
sidewalks, streets) are located within the motion sensor’s (5)
range.
When setting the photosensitivity of the motion sensor (5), you
should do so at a time when the lighting conditions configured
to trigger the solar LED spotlight (1) are prevalent.
Align the motion sensor (5) so as to ensure maximum coverage of the area to be monitored. This means
that no obstructing objects should be present in the path.
You can change the horizontal position of the motion sensor (5) by pivoting it.
If you wish to change the vertical alignment of the motion sensor (5), first loosen the arresting screw (4).
Once the motion sensor (5) is aligned as desired, retighten the arresting screw (4).
Configuring the illumination time (TIME):
Use the TIME knob (11) at the bottom of the motion sensor (5) to adjust the illumination time (approx.
10 sec to 4 min). Turn the TIME knob (11) clockwise (+direction) to increase the illumination time, or turn
it counter-clockwise (-direction) to reduce the illumination time.
Please note:
In order to minimise battery consumption, set the illumination time to as short a
duration as meets your needs.
The device is preset to an illumination time of approx. one minute.
Configuring the sensor sensitivity (SENS)
Use the SENS knob (10) at the bottom of the motion sensor (5) to adjust the sensor sensitivity. Turn the
SENS knob (10) clockwise (+direction) to increase the sensitivity, or turn it counter-clockwise (-direction)
to reduce the sensitivity. The higher the sensitivity, the larger the detection range (max. 12 metres).
Configuring the photosensitivity (LUX)
Use the LUX knob (9) at the bottom of the motion sensor (5) to adjust the photosensitivity. This setting
determines what ambient light level will trigger the twilight sensor to turn the solar LED spotlight (1) on or
off.

LIVARNO LUX LSS 520 A1
English - 11
Turn the LUX knob (9) clockwise (  direction) to make the motion sensor (5) trigger in brighter ambient
conditions.
Turn the LUX knob (9) counter-clockwise (
 direction) to make the motion sensor (5) trigger in darker
ambient conditions.
Maintenance/Cleaning
Maintenance
The lamp component of the solar LED spotlight (1) comprises 9 long-life LEDs. These cannot be replaced
and thus do not require maintenance.
Cleaning
Ensure that no liquids enter the housing of the solar LED
spotlight (1) as this might damage the solar LED spotlight (1).
Clean the solar LED spotlight (1) and the solar panel (7) using a soft, dry cloth, and never use cleaning
agents or solvents that react with plastic. If the device is heavily soiled, slightly moisten the cloth before
cleaning.
Troubleshooting
The light does not go on
The On/Off switch (2) is set to ‘OFF’.
The motion sensor (5) is not properly aligned. Correct its alignment.
The built-in battery is fully discharged. Ensure that the solar panel (7) is properly aligned, and fully
charge the battery. If necessary, shorten the illumination time to reduce the power consumption. In
order to fully charge the battery, set the On/Off switch (2) to ‘OFF’ for the duration of the charging
process. After charging is complete, switch the On/Off switch (2) back to the ‘ON’ position.
The duration of the charging process depends on the intensity of the solar radiation. In sunny
weather, charging takes approx. 3 days (given about 4 hours daily and approx. 60,000 lux).
The light goes on and off in rapid succession
The sensor is experiencing interference caused by an external light source or bright, reflecting
surfaces. Remove the external light source or the surfaces that cause interference.

LIVARNO LUX LSS 520 A1
12 - English
The light does not go off
There are persons or objects in the sensor range of the motion sensor (5). Remove these.
The solar LED spotlight (1) is swaying in the wind, causing the motion sensor (5) to trigger
continuously. Make sure the solar LED spotlight (1) is firmly attached to a sturdy surface.
Environmental and waste disposal information
Devices marked with this symbol are subject to the European Directive 2012/19/EU. All
electrical and electronic equipment must not be put in the household waste, but must be
disposed of via designated public disposal centres.
By properly disposing of the old device, you can avoid environmental damage and
hazards to your health. Further information regarding proper disposal of the old device
can be obtained from your local authority or the shop where you purchased the device.
The built-in battery cannot be removed for disposal!
Make sure the packaging is disposed of in an environmentally friendly manner. Cardboard packaging
can be put out for waste-paper collection or taken to public collection points for recycling. The plastic
packaging used for your device is collected by your local waste management company and disposed of
in an environmentally sound manner.
Conformity
This device complies with the basic and other relevant requirements of the EMC
Directive 2014/30/EU, the Low-voltage Directive 2014/35/EU, the ErP Directive
2009/125/EC and the RoHS Directive 2011/65/EU.
To obtain a complete EU Declaration of Conformity, send an e-mail to the following
e-mail address: [email protected]

LIVARNO LUX LSS 520 A1
English - 13
Guarantee and service
Warranty of TARGA GmbH
Dear Customer,
This device is sold with three years warranty from the date of purchase. In the event of product defects,
you have legal rights towards the seller. These statutory rights are not restricted by our warranty as
described below.
Warranty conditions
The warranty period commences upon the date of purchase. Please keep the original receipt in a safe
place as it is required as proof of purchase. If any material or manufacturing faults occur within three
years of purchase of this product, we will repair or replace the product free of charge as we deem
appropriate.
Warranty period and legal warranty rights
The warranty period is not extended in the event of a warranty claim. This also applies to replaced and
repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the
product has been unpacked. Any repairs required after the warranty period will be subject to charge.
Scope of warranty
The device was carefully manufactured in compliance with stringent quality guidelines and subjected to
thorough testing before it left the works. The warranty applies to material and manufacturing faults. This
warranty does not cover product components which are subject to normal wear and which can therefore
be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries
or components made of glass. This warranty is void if the product is damaged, incorrectly used or
serviced. To ensure correct use of the product, always comply fully with all instructions contained in the
user manual. The warnings and recommendations in the user manual regarding correct and incorrect use
and handling of the product must always be observed and complied with. The product is solely designed
for private use and is not suitable for commercial applications. The warranty is rendered void in the event
of incorrect handling and misuse, if it is subjected to force, and also if any person other than our
authorised service technicians interfere with the device. No new warranty period commences if the
product is repaired or replaced.
Submitting warranty claims
To ensure speedy handling of your complaint, please note the following:
-Before using your product for the first time, please read the enclosed documentation carefully.
Should any problems arise which cannot be solved in this way, please call our hotline.
-Always have your receipt, the product article number as well as the serial number (if available)
to hand as proof of purchase.
-If it is not possible to solve the problem on the phone, our hotline support staff will initiate further
servicing procedures depending on the fault.

LIVARNO LUX LSS 520 A1
14 - English
Service
Phone: 020 – 70 49 04 03
E-Mail: [email protected]
Phone: 01 - 4370121
E-Mail: [email protected]
Phone: [phone]
E-Mail: [email protected]
Phone: 02 – 20 09 025
E-Mail: [email protected]
IAN: 275085
Manufacturer
Please note that the following address is not a service address. First contact the service point stated above.
TARGA GmbH
Coesterweg 45
59494 SOEST
GERMANY

LIVARNO LUX LSS 520 A1
Français - 15
Contenu
Introduction.............................................................................................................. 16
Utilisation conforme ................................................................................................. 16
Conditions de livraison ............................................................................................. 16
Caractéristiques techniques ...................................................................................... 17
Consignes de sécurité ............................................................................................... 18
Droits d’auteur ......................................................................................................... 21
Avant mise en service............................................................................................... 21
Le lieu de montage idéal .............................................................................................................................21
Outils nécessaires......................................................................................................................................... 22
Avant le montage......................................................................................................................................... 22
Montage .......................................................................................................................................................23
Mise en service......................................................................................................... 24
Ajustement du détecteur de mouvement..................................................................................................... 24
Réglage de la durée d’éclairage (TIME).................................................................................................... 24
Réglage de la sensibilité du capteur (SENS) .............................................................................................24
Réglage de la sensibilité à la lumière (LUX)............................................................................................... 25
Entretien/nettoyage ................................................................................................. 25
Résolution des problèmes ........................................................................................ 25
Directives environnementales et indications concernant l’élimination des déchets ... 26
Conformité ............................................................................................................... 27
Remarques concernant la garantie et le service après-vente .................................... 28

LIVARNO LUX LSS 520 A1
16 - Français
Introduction
Nous vous remercions d’avoir choisi un produit LIVARNO LUX.
Utilisation conforme
Le spot solaire à LED n’est pas prévu pour une utilisation commerciale. Il convient pour une utilisation en
extérieur, en particulier dans les lieux dépourvus de connecteur d’alimentation électrique (garage ou
cabane de jardin, par ex.). L’ampoule LED intégrée garantit un bon éclairage. Le spot solaire à LED
s’allume et s’éteint automatiquement grâce au détecteur de mouvement. L’appareil satisfait à toutes les
normes et standards applicables en matière de conformité CE. En cas de modification du spot solaire à
LED effectuée sans l’accord du fabricant, le respect de ces normes n’est plus garanti.
Conditions de livraison
Retirez l’appareil et tous les accessoires de leur emballage. Enlevez tous les matériaux d’emballage et
vérifiez que toutes les pièces sont présentes dans leur intégralité et qu’elles sont en bon état. En cas de
livraison incomplète ou détériorée, veuillez vous adresser au fabricant.
Spot solaire à LED LSS 520 A1
Panneau solaire
Matériel de montage pour le spot solaire à LED (2 grandes vis et 2 grandes chevilles)
Matériel de montage pour le panneau solaire (4 grandes vis et 4 petites chevilles)
Mode d’emploi et consignes de sécurité
Le présent mode d’emploi est doté d’une enveloppe pliable. Une illustration chiffrée du spot solaire à LED
est reproduite sur la face interne de l’enveloppe. Les chiffres désignent les éléments suivants :
1 Spot solaire à LED LSS 520 A1
2 Bouton marche/arrêt
3 Étrier de montage
4 Vis de fixation
5 Détecteur de mouvement
6 Câble (avec douille)
7 Panneau solaire
8 Câble (avec fiche d’alimentation)
9 Régulateur LUX
10 Régulateur SENS
11 Régulateur TIME

LIVARNO LUX LSS 520 A1
Français - 17
Caractéristiques techniques
Spot solaire à LED (1) :
Marque : LIVARNO LUX
Modèle : LSS 520 A1
Ampoule : LED LG 9 x 1 W max.
Température de couleur LED : 5000 K +/-500 K
Ra (indice de rendu des couleurs des LED) : 80
Angle de départ LED : env. 120°
Durée de vie LED : env. 25 000 heures
Durée d’éclairage max. (batterie pleinement
chargée) :
env. 1,3 heure
Tension : 12 V (alimentation par le panneau solaire
uniquement)
Batterie Li-Ion : 1 800 mAh / 7,4 V
Puissance totale consommée par le spot : 8,6 W +/-10 % (pour 520 lm, batterie pleinement
chargée)
Puissance totale consommée par les LED : 6,0 W +/-10 % (pour 520 lm, batterie pleinement
chargée)
Flux lumineux global (avec le cache) : 520 lm +/-5 % (batterie pleinement chargée)
Protection : IP44 (protection anti-éclaboussure)
Dimensions (L x h x p) : env. 11,4 x 16,5 x 15,6 cm (avec étrier de montage)
Poids : env. 677 g
Panneau solaire (7) :
Type : polycristallin / 3,5 W / 14,5 V
Longueur du câble de raccordement : env. 3 m
Dimensions (L x h x p) : 21 x 16 x 1,6 cm (sans plaque de montage)
Poids (plaque de montage incluse) : env. 540 g
Détecteur de mouvement (5) :
Angle de détection du capteur : max. 180°
Portée du capteur (réglable) : max. 12 m
Valeur crépusculaire : 5 lux +/- 5 lux jusqu’à 20 000 lux +/- 10 lux

LIVARNO LUX LSS 520 A1
18 - Français
Rotation (mécanique) : env. 150° à l’horizontale / env. 180° à la verticale
Durée d’éclairage (réglable) : env. 10 s +/- 5 s jusqu’à 4 min +/- 1 min
Les caractéristiques techniques ainsi que la conception peuvent être soumises à modifications sans
avertissement préalable.
Consignes de sécurité
Préalablement à la première utilisation du spot solaire à LED (1),
veuillez lire attentivement les instructions suivantes et respectez tous
les avertissements, même si la manipulation d’appareils
électroniques vous est familière. Conservez ce mode d’emploi
soigneusement en vue d’une consultation ultérieure. Si vous vendez
ou transmettez le spot solaire à LED (1) à une autre personne, vous
devez absolument fournir le présent mode d’emploi qui fait partie
de l’appareil.
DANGER ! Ce symbole, avertissant d’un
« DANGER » désigne une situation à caractère
dangereux qui, si elle n’est pas évitée, peut provoquer
des blessures graves, voire présenter un danger de
mort.
AVERTISSEMENT ! Ce symbole, servant d’
« AVERTISSEMENT », indique des consignes
importantes pour un fonctionnement en toute sécurité
du spot solaire à LED (1) et pour la protection de
l’utilisateur.
Ce symbole attire l’attention sur des informations
complémentaires sur le sujet.
