LOCKLY GUARD DEADBOLT 728F Z User manual

USER MANUAL
MANUEL D'UTILISATION
Z-Wave Edition
DEADBOLT
(728F Z)
FOR COMMERCIAL USE & PROFESSIONAL INSTALLATION
WWW.LOCKLYPRO.COM
PGD728F Z

Table of Contents
TABLE OF CONTENTS
2.1 Product Overview - Exterior
2.2 Product Overview - Interior
2.3 Understanding Your New Lock
2.4 Reset Button
2.5 Keypad Display Switch
2.6 Rebooting Your Lock
2.7 Low Battery
2.8 Changing The Battery
Section 1 - Product Highlights
Section 2 - Product Overview
Section 3 - Using Your Smart Lock
3.1 Configuring Access
3.2 Entering Programming Mode
3.3 Adding an Access Code
3.4 Deleting an Access Code
3.5 Checking an Access Code
3.6 Z-Wave Settings
3.7 Adding a Fingerprint
3.8 Fingerprint Scanning Directions
3.9 Fingerprint Scanning Tips & Troubleshoot
3.10 Deleting Stored Fingerprints
3.11 Adding Secure Link
Section 4 - Locking and Unlocking
1.1 Product Features
4.2 Unlocking with Fingerprints
4.3 Locking / Unlocking with LocklyPro App
4.4 Locking / Unlocking with Physical Key
4.5 Unlock with QR Code
4.6 Safe Mode
4.7 Rain Mode
4.8 Shine Mode
4.9 Welcome Mode
Section 5 - Advanced Features
5.1 Offline Access CodeTM (OAC)
Section 6 - Important Notes
6.1 Important Notes
Section 7 - Cleaning
7.1 Cleaning
Section 8 - Safety Precautions
8.1 Safety Precautions
For additional support, visit http://LocklyPro.com/support
or email [email protected]
1
2
3
4
5
5
6
7
8
9
10
11
13
15
18
16
21
22
23
24
25
26
27
28
28
29
31
32
32
33
34
35
36
4.1 Unlocking with Access Codes

Patented Hack-Proof PIN Genie Keypad
Digits are randomly displayed on the keypad ensuring access codes to be undetectable to
intruders after repeated use. Numbers are randomly distributed across 4 buttons, with 3
numbers in each button. Users can press any button showing their number. Location of the
numbers are always different every time someone uses the keypad, making it hard for prying
eyes to guess the correct code.
Multiple Access Codes & Monitoring
Store up to 18 Access Codes for family, friends and guests, as well as monitor entry and exit
records.
Advanced 3D Fingerprint Recognition
Biometric Fingerprint Recognition protocol allows up to 99 registered fingerprints to be used
and accepts only actual fingerprints - preventing lifted prints from being used.
Live Monitoring and Voice Control
Through your smartphone, monitor door access from anywhere in the world and securely
control who comes and goes with the Secure Link Wi-Fi Hub.
Complete Privacy
The exterior displayed keypad can be locked and switched off using the simple ON/OFF
toggle from the inside panel. The owner can prevent others trying to input the passcode
from the outside and entering the home
Offline Access Code™ (OAC)
The Offline Access Code™ can allow owners to issue access codes, set the allowed access
duration, all without Lock ever connecting to the internet, so in case of power outage, you
can still magically and remotely issue Access Codes without any connection to the web.
Auto-Lock
Users no longer have to worry about forgetting to lock the door. With Auto Lock enabled,
Lock will automatically auto-lock the door based on your customized timing set between
5-300 seconds.
Backup Keys and 9V Battery Socket
The door can be opened with physical backup keys. There is also a 9V battery connection
socket for emergency power backup to access the keypad in case your smart lock runs out
of battery.
1.1 Product Features
SECTION 1.1 1
ENG

2.1 Product Overview - Exterior
SECTION 2.12
ENG
Reboot
Welcome/Safe Mode
Bluetooth Indicator
Battery Indicator
OK Button
Key Hole Cover
9V Battery Socket
Key Hole
Fingerprint Sensor

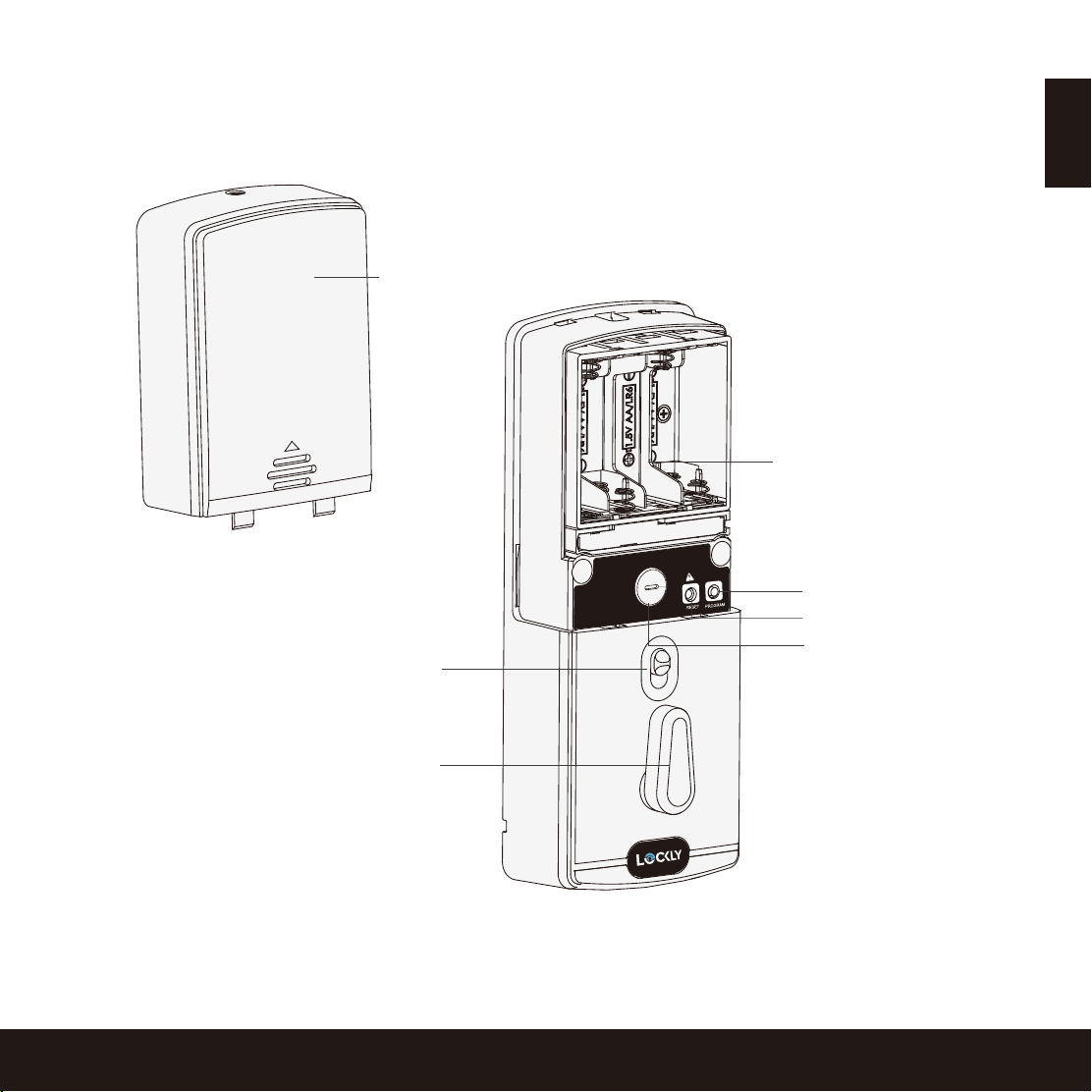

2.2 Product Overview - Interior
SECTION 2.2 3
ENG
Battery Compartment
( Operated by
2 x 4 x AA Batteries)
Battery Cover
Display Keypad Switch
Thumbturn
Beep Alert
Program Button
Reset Button

2.3 Understanding Your New Lock
SECTION 2.3
After the installation of your new Lockly Guard, understanding some key functions of operating
your smart lock is important. The following guides will walk you through resetting a lock,
adding Access Codes, deleting Access Codes, adding and deleting fingerprints, and how
to configure your OAC (Offline Access Code™).
For any questions you can always visit http://LocklyPro.com/support for assistance.
Don’t forget that Lockly Guard works best with our iOS and Android app. Please download
the app by visiting the link below.
4
Scan or visit LocklyPro.com/app
ENG

2.4 Reset Button
SECTION 2.4 ~ 2.5
If Never Paired
Press Reset Button for
three (3) seconds
5
Reset Button
2.5 Keypad Display Switch
The exterior keypad screen can be locked
and turned off by using the ON/OFF switch
at the back panel (interior) of the smart
lock. When it is switched off, people who
are outside cannot enter any access codes
to unlock the door.
OFF ON
In order to setup the Lockly Guard to another smart phone,you must have your “Activation
Code” available. The Activation Code can be found on the Activation Code Card (PART U)
that came with your smart lock.
After you have the Activation Code ready, push the reset button on the back panel of the
Lockly Guard to perform your reset. See below to see which Reset Process applies for you.
Once the smart lock has been reset, all the data previously stored will be deleted.
Press Reset Button for
one (1) second or till
you hear a short beep
Open the LocklyPro smartphone app to add your
lock using the Activation Code
ENG

2.6 Rebooting Your Lock
SECTION 2.6
NOTICE Reboot Lockly Guard in case of dead battery or malfunction.
No settings will be changed and all Access Codes will still be
stored within Lockly Guard.
Press and release the reboot button when you want to reboot the lock. Your Lockly Guard
will beep once after reboot. Only reboot when necessary.
To reboot, find the reboot button located on the bottom of the exterior side of Lockly
Guard. The reboot button is located in the middle of the two 9V battery backup sockets.
You will need something small such as a paperclip, to press the reboot button. Insert the
paperclip and press down firmly and let go. Your screen should restart and the lock should
reboot automatically.
Reboot Button
6
ENG

ENG
2.7 Low Battery
SECTION 2.7
When the battery is in seriously low condition, Lockly Guard will make continuous beeping
sounds in addition to the flashing low battery icon on the touch screen. You should replace
batteries immediately to avoid your smart lock from shutting down.
When your smart lock low-battery warning alert finally dies, you will have 3 chances to
unlock your smart lock either by a password, APP or fingerprint. If the unlock was successful,
the low-battery warning alert will be on for 1 minute. After which, the smart lock will go to
dead-battery mode and will lock auto lock in 5 seconds and the screen will display a
low-battery icon.
Dead Battery
Condition Indicator Solution
Low Battery
Battery Icon on the display keypad
will light up to indicate low battery .
At the same time, Lockly logo on
the interior panel will flash red to
reminder users that battery is low.
Replace batteries immediately
to avoid battery failure. Lockly
Guard can still operate up to 300
cycles in low battery condition.
When there is no display and
sounds; and screen is non-functional.
Replace batteries immediately.
Supplied physical backup keys
can be used to unlock the door.
Alternatively, use a 9V battery
as shown below to temporarily
activate the lock.
Your Lockly Guard will automatically detect
battery polarity. So hold your 9V battery lead
in place against bottom of the Lockly Guard to
temporarily activate the screen to enter your
Access Code. Be sure to hold the 9V battery
against the contact points located at the
bottom of the lock until you have successfully
unlocked your door with your Access Code.
Once unlocked, batteries should be replaced
immediately.
7
9V Battery
-
+

ENG
RESET PROGRAM

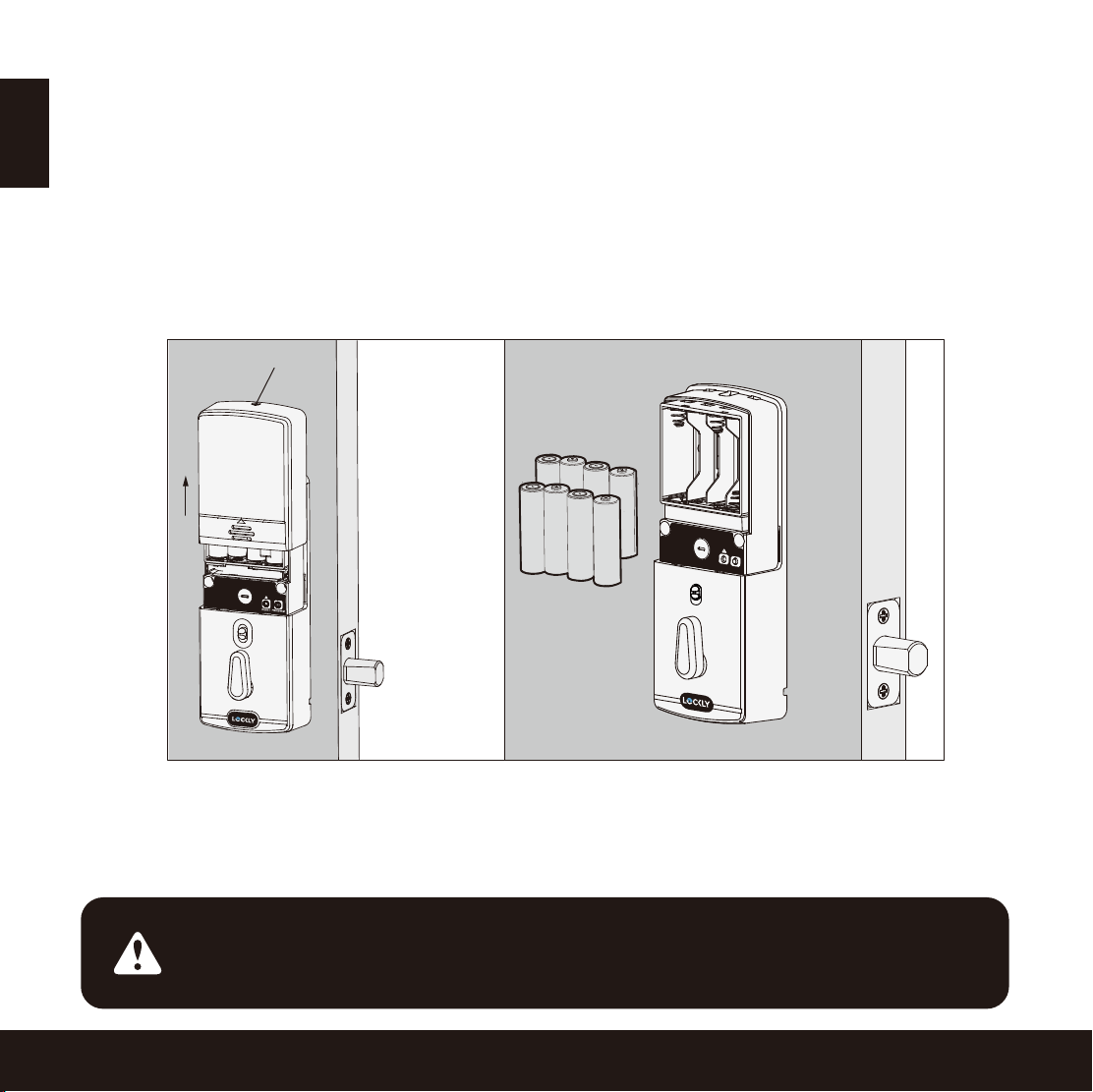

2.8 Changing The Battery
SECTION 2.8
Under normal use, the Lockly Guard battery will last up to a year. Please check battery levels
regularly and change your batteries when the low battery notification is issued. For best
practice, always use new batteries by a major brand.
Open the battery compartment cover and insert eight (8) new AA alkaline batteries as
shown. Be sure to unscrew the screw located on the top of the cover first by unscrewing
counterclockwise before sliding the cover up.
- Make sure the batteries are oriented correctly by matching the orientation displayed.
- Replacing the batteries do not reset stored Access Codes.
- To see a list of recommended brands, please visit http://LocklyPro.com/support.
8
Whenever batteries are replaced, reconnecting the smart lock to
your smartphone app is required. If you have not yet downloaded
the app, visit: LocklyPro.com/app
NOTICE
Screw
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-

ENG
3.1 Configuring Access
SECTION 3.1
The Default Access Code is
NOTICE 1 2 3 4 5 6
Your new Lockly Guard Access Code can be any combination of 4 to 10 digits. Once a
new Access Code is entered, the Default Access Code of 123456 would be deleted. This
model supports up to 10 passcodes. If connected to the Secure Link Wi-Fi Hub (sold sepa-
rately), it can store up to 18 passcodes that can be shared with guests and configured with
different permissions. To learn more about the different access codes, visit:
www.support.lockly.com/faq/accesscodes/
9

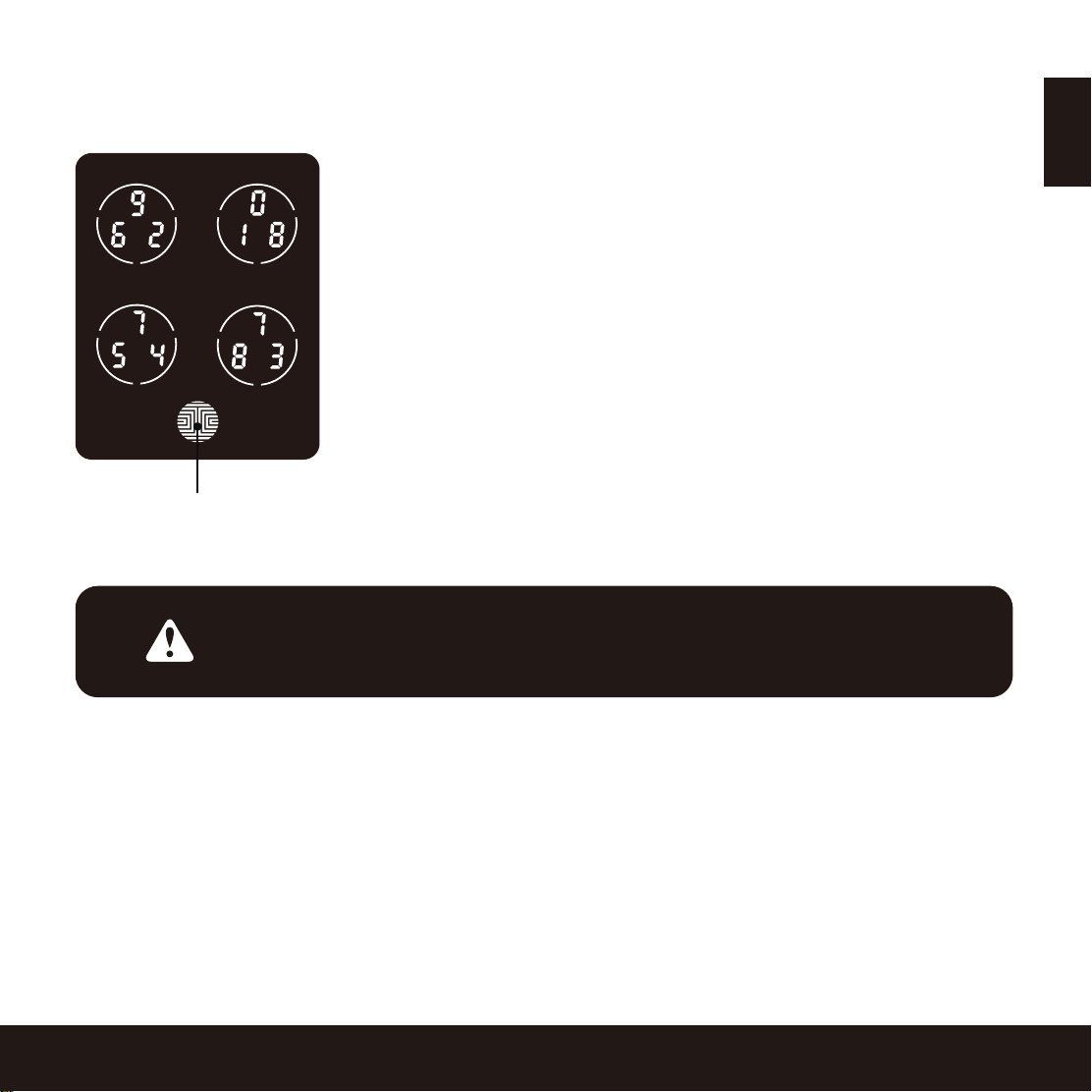

There are a total of five (5) buttons on the keypad as shown
in the example image to the left. The numbers in each button
may differ than what is shown on your device than what is
displayed here.
To enter your required digit, just simply press the circle where
your number is shown. You do not need to press the actual
number as anywhere within the circle will suffice.
The button on the bottom is the OK button. You will be pressing
this button when you are done entering your Access Code.
OK Button

ENG

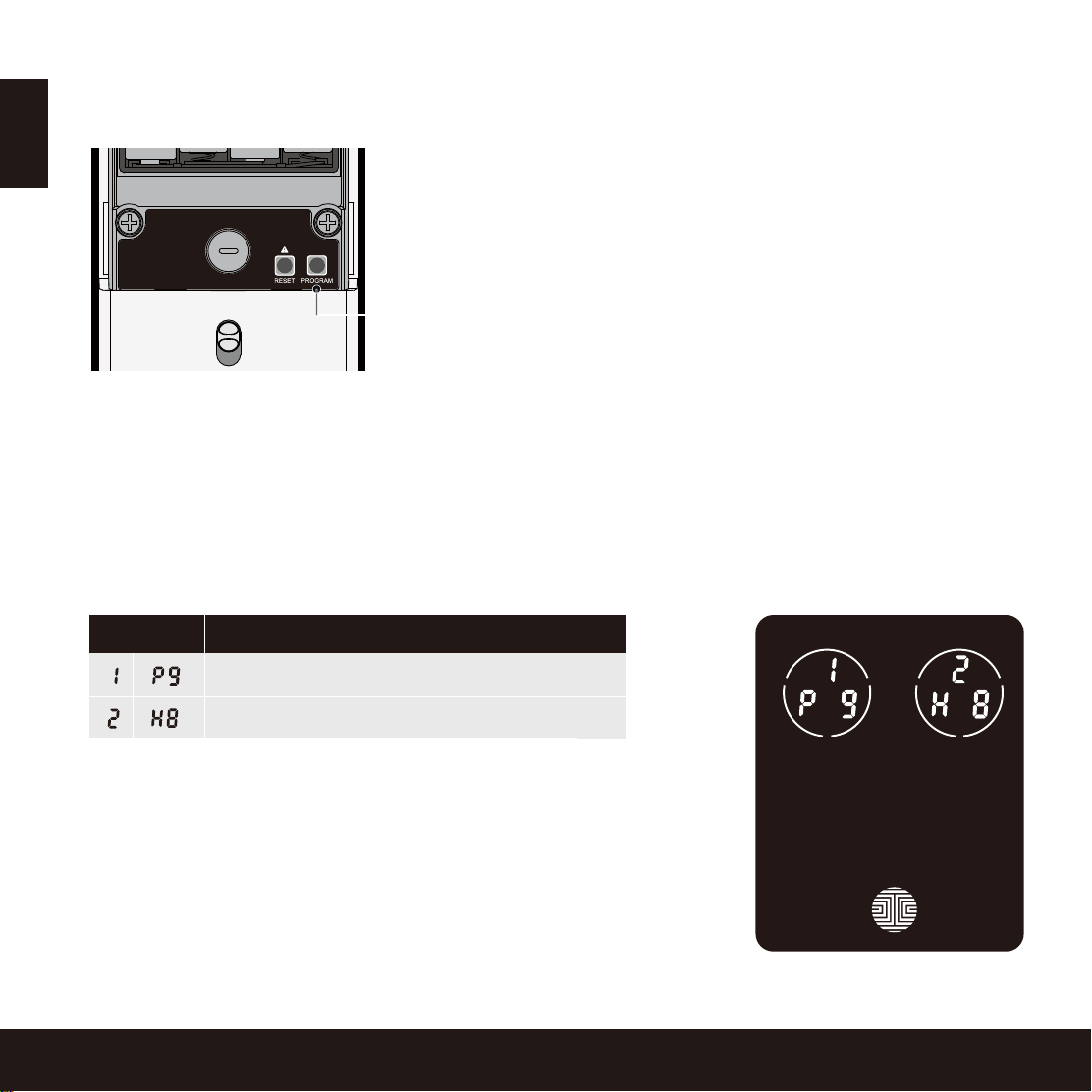

3.2 Entering Programming Mode
SECTION 3.2
Add / Delete Access Code or Fingerprint
ModeNumber
Z-Wave™ program settings
To enter Programming Mode, remove
the battery compartment cover on the
interior side of the Secure to expose the
Reset and Program buttons (See page 8).
Simply press the Program button to enter
programming mode.
Note: Program button will be disabled
once synced to a smart phone. Configure
all settings via synced smart phone. Access
Codes previously added by Programming
mode will be cleared.
To end Programming Mode, press the Program button anytime. Programming Mode will
automatically exit if the keypad is inactive for more than thirty (30) seconds.
After entering Programming Mode, you should see
the screen as displayed to the right on your Lockly
Guard keypad. Follow the steps to add, delete, check
your Access Codes, or turn Fingerprint on/off.
For Z-Wave program settings, Please see the Z-Wave
Module User Manual included in your package.
10
Program Button

ENG
3.3 Adding an Access Code
SECTION 3.3

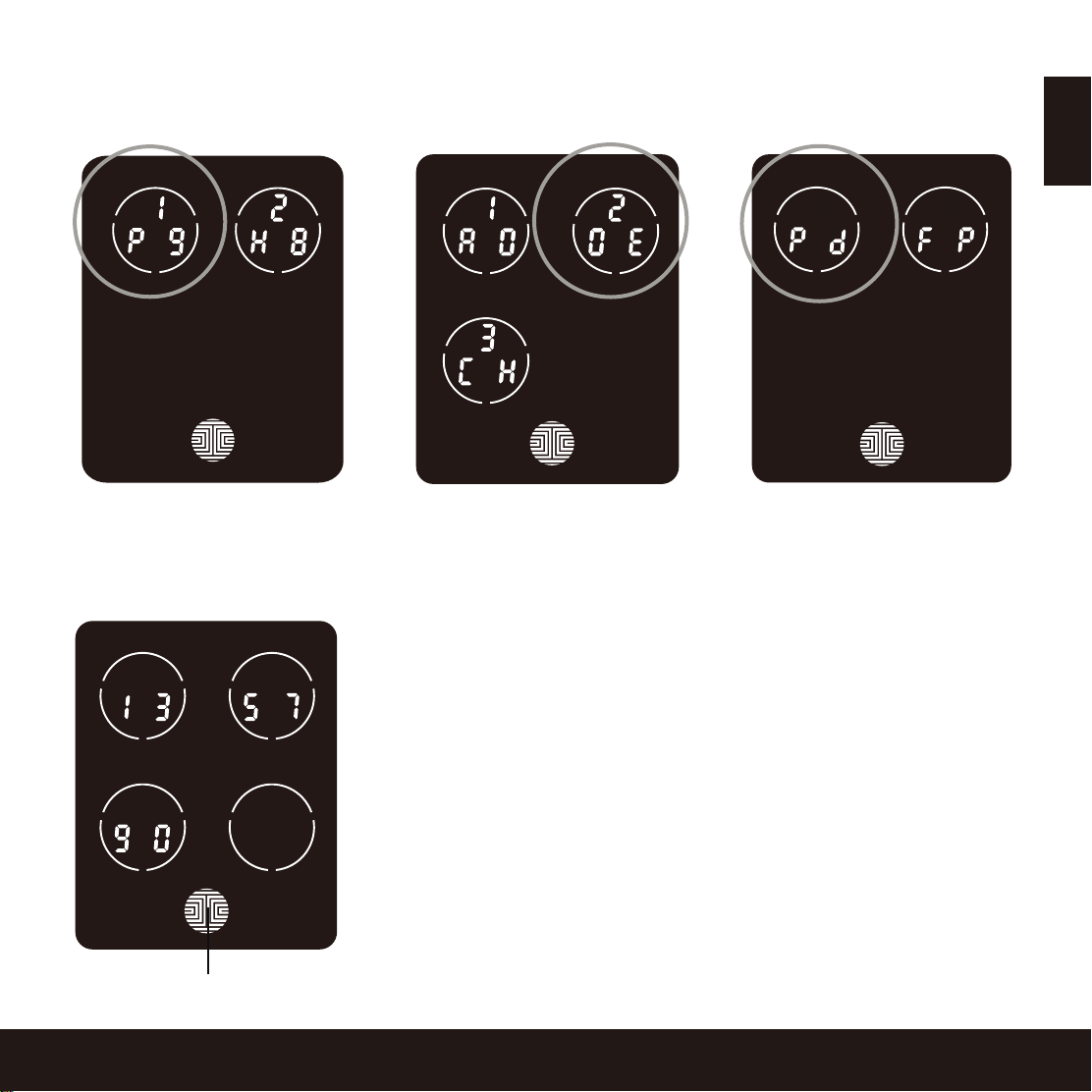

While in Programming Mode, select “1PG” to add an Access Code. If you are not in
Programming Mode, please see Section 3.2 to enter Programming Mode.
After pressing “1PG” press “1AD” and select "Pd" to add an Access Code.
Enter your new 4 to 10 digit Access Code and press when
you are finished. You will then re-enter the code to confirm
your new Access Code.
Remember, just touch the digit you need within the circle
around each 3 numbers. There is no need to touch the exact
location of the number. For example, based on the example
image to the left, if you need “1”, you can touch the upper
left button. For “6”, you would touch the upper right button.
11

ENG
3.3 Adding an Access Code (Continued)
SECTION 3.3
If you have successfully entered your new Access Code
twice, you will see the new code displayed here. In this

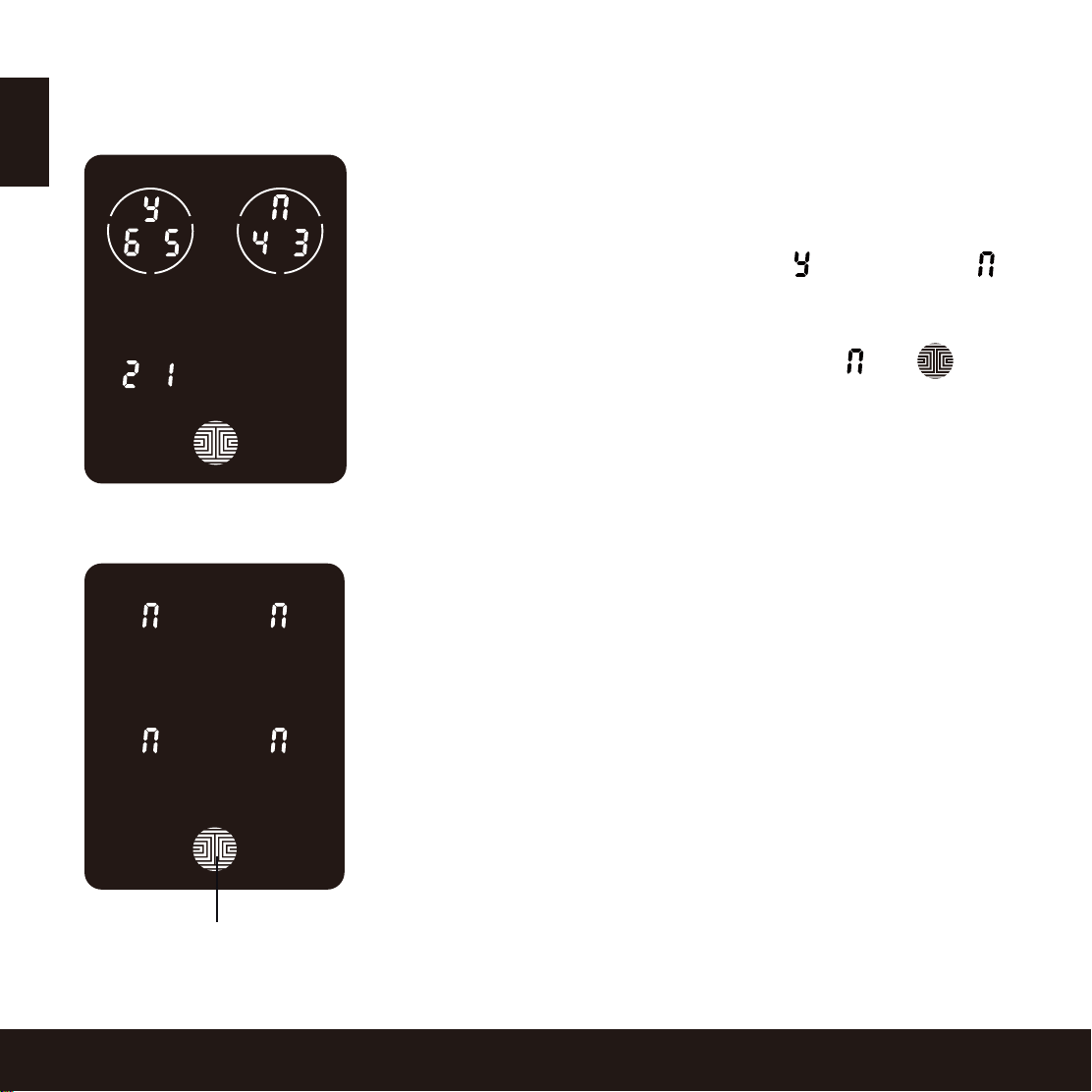

example, we chose 654321. Press to Confirm or
to cancel.
To exit or cancel, you can always press or
If the two (2) Access Codes you entered does not match,
an error message will appear on the screen (As shown to
the left). Press OK Button to return to the Programming
Screen and try again.
OK Button
12

ENG
3.4 Deleting an Access Code
SECTION 3.4
OK Button
Active Access Codes will then be displayed on the screen in
sequence from left to right, top to bottom. In the example
shown on the left, the Access Code displayed is 1 3 5 7 9 0 .
Rotate through different Access Codes shown by touching
any number on the screen. If you find the Access Code you
want to delete, simply hold the OK Button for 3 seconds.
(Continue on next page)
13
While in Programming Mode, select “1PG” to delete an Access Code. If you are not in
Programming Mode, please see Section 3.2 to enter Programming Mode.
After pressing “1PG” press “2DE” and select "Pd" to delete an Access Code.

ENG

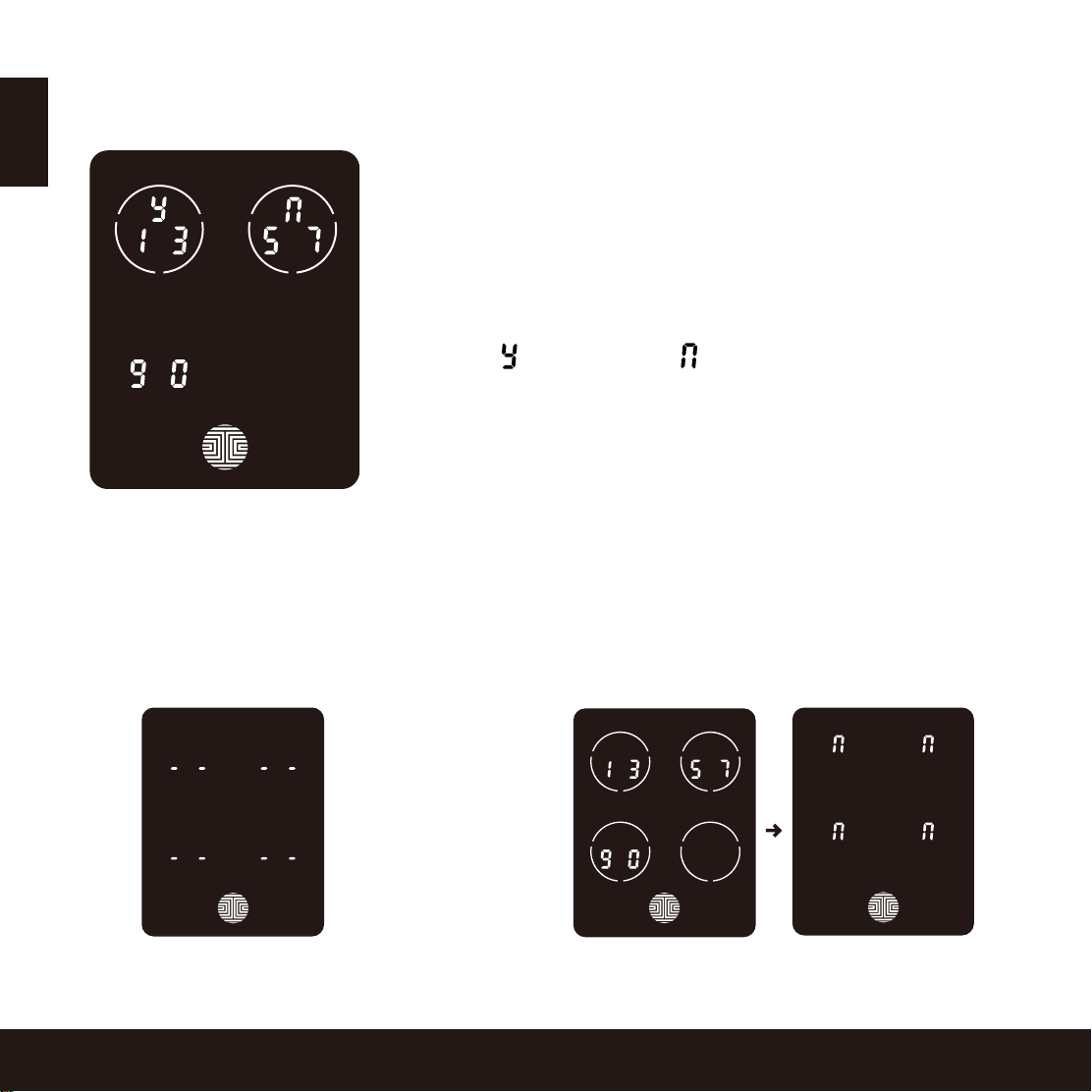

3.4 Deleting an Access Code (Continued)
SECTION 3.4
Once you have selected the Access Code you want to
delete, Lockly Guard will ask you to confirm deletion by
showing you the Access Code you are deleting, in this
example, 1 3 5 7 9 0.
Press to delete, or to cancel.
NOTE There are two incidents where your Access Code cannot be deleted.
Only one Active Access CodeNo Access Codes Set
There are no Access Codes set.
The factory default Access Code
cannot be deleted.
There is only one (1) Access Code saved in
the smart lock. At least one code must be
registered. Please add another Access Code
before attempting to delete the existing code.
14

ENG

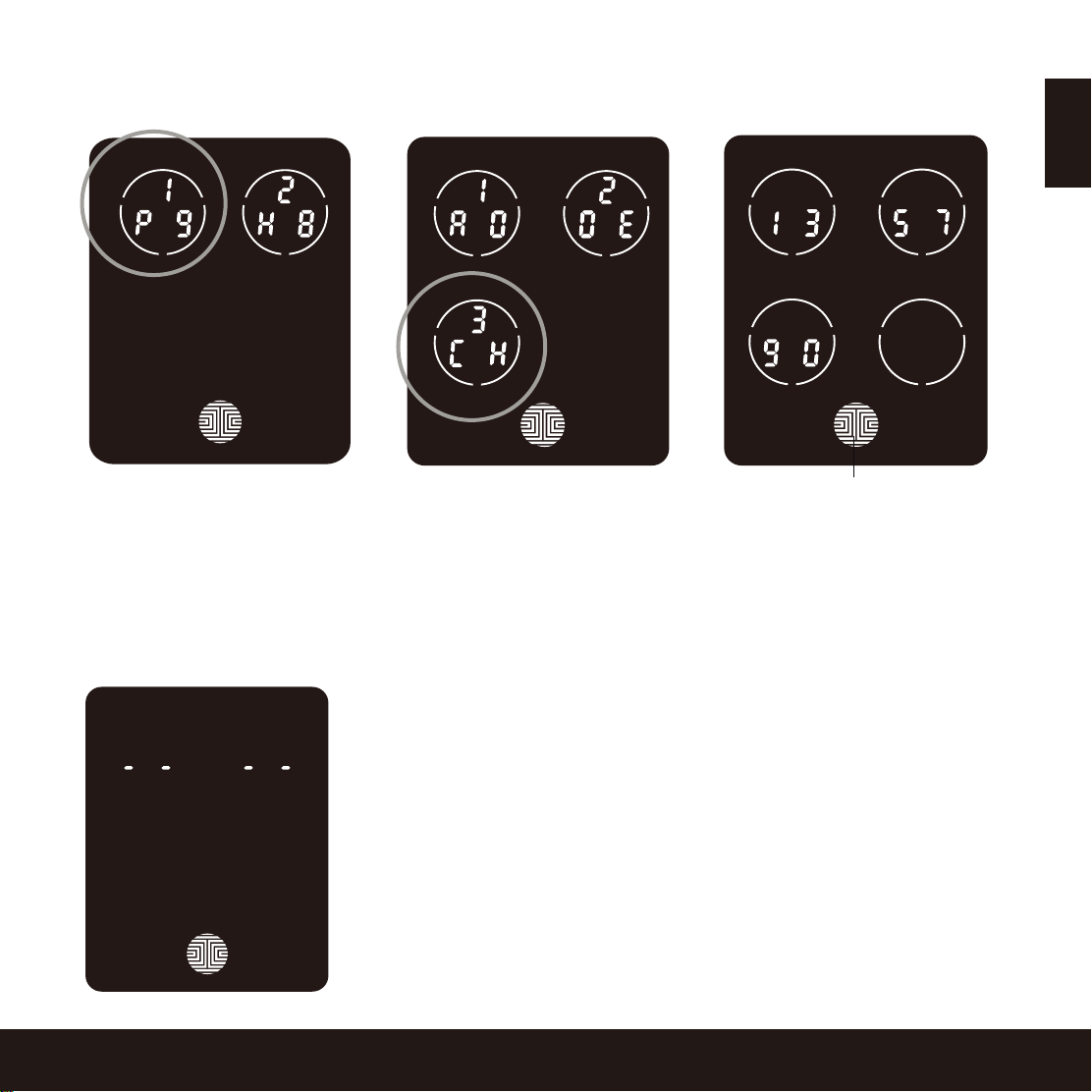

3.5 Checking the Access Code
SECTION 3.5
While in Programming Mode, select "1PG" then select "3CH" to check registered
Access Codes. If you are not in Programming Mode, please see Section 3.2 to enter
Programming Mode.
Active Access Codes will then be displayed on the screen in sequence from left to
right, top to bottom. In the example shown on the left, the Access Code displayed is 1
3 5 7 9 0 .
Rotate through the different Access Codes by touching
any number on the screen.
To exit Check Access Code screen, simply press the OK
Button.
If there are no Access Codes registered in your smart
lock, Check Access Code mode will be invalid. The
default Access Code will not be shown on the display
keypad, and you will see the following screen shown to
the left instead.
15
OK Button

ENG
SECTION 3.616
3.6 Z-Wave Settings
In the programming mode, select "2HB" to enter
the Z-Wave setting mode. If you are not in
programming mode, refer to Section 3.2 to enter
programming mode.
1. Methods added by Z-Wave
After entering the device into the add mode, select "AD", Smart Lock will enter the Z-Wave
add mode, as shown in the picture, wait for the Z-Wave to be added, after the addition is
successful, the Smart Lock will make a long Beep and display the "PASS" interface. Note: You
can only bind one Z-Wave device, please delete the old one before binding the new
Z-Wave device.

ENG
SECTION 3.6 17
3.6 Z-Wave Settings
You can click the "CH" menu to query the paired
Z-Wave devices.
2. How to delete Z-Wave
3. Methods of Z-Wave query
If you need to delete the binding relationship of Z-Wave, please enter the Z-Wave device
into delete mode and click the "DE" menu of Smart Lock, as shown in the picture, wait for
Z-Wave to delete, after successful deletion, Smart Lock will Beep for a long time One beep
and the "PASS" interface is displayed.

ENG
3.7 Adding a Fingerprint
In this section, you will learn how to register a fingerprint to your new smart lock.
We are using an advanced biometric sensor, providing the most secure fingerprint
authentication. For security reasons, Lockly Guard will only accept fingerprint patterns
that consist of cross intersection points. Patterns with no cross intersection points will not be
acceptable.
Please check your fingers before registration to make sure the finger you want to register will
be acceptable by our system. Otherwise, use an alternative finger to ensure successful
registration.
The following examples show which types of fingerprint patterns will be acceptable. It is
highly recommended to enroll at least one finger from each hand in case the hand you
are using is unavailable, such as, in instances like if you are holding items in that hand or
have sustained an injury.
Your smart lock can register up to ninety-nine (99) fingerprints. Please read the following sections
if you want to add or delete fingerprints. We recommend using your app to add fingerprints,
however, the following section can show you how to add and remove fingerprints if you did not
pair your lock with a smart phone.
Fingerprint Pattern with Cross
Intersection Lines
Concentric or Parallel Pattern
with no Cross Intersection Lines
Fingerprint with Scars or
Worn Out Ridges
OK Not OK Not OK
SECTION 3.718
