LOCKLY GUARD VISION DUO User manual

INTERCONNECTED EDITION
INSTALLATION
GUIDE
VISION DUO (698D)
FOR COMMERCIAL USE & PROFESSIONAL INSTALLATION
WWW.LOCKLYPRO.COM
PGD698D
(application in progress)

GET THE MOST OUT OF YOUR
LOCKLY GUARD™
Get the latest user/installation manuals , instructional videos, and FAQs
SCAN or VISIT
Locklypro.com/698D

Reference installation parts overview foldout on back page
Welcome!
This guide will walk you through step-by-step how to install
and get Lockly Guard™up and running. Installation generally
takes less than 30 minutes. If you have any questions please
call our VIP hotline [phone] for help.

3
Preparation
Phillips Screwdriver
To complete the installation you will need:
Flathead Screwdriver Tape measure or ruler
Pliers
Optional
Screwdriver with drill bits
Drilling maybe required to install this lock. If you are installing your lock on a
brand new door, a drill is required if there are no holes prepared for lock
installation. Use provided template to bore holes on door.

4
Measure and confirm
your door is between
1-3/8" - 2" ( 35mm -
50mm).
Measure and confirm
the hole in the door is
2-1/8" (54mm) .
Measure and confirm
that the backset is be
-tween 2 -3/8" (60mm)
to 2 -3/4" (70mm).
Measure and confirm
that hole in the door
edge is 1" (25mm).
Remove existing door hardware, latch or deadbolts before installing the
new lock. Use provided template to bore new holes if needed.
1
2
3
4
Measure and confirm
that distance between
front door holes is
4"(101.6mm) or
5.5"(139.7mm)
5
1- 3/8"—2"
(35mm—50mm)
2-3/8"(60mm)
or
2-3/4"(70mm)
1"
25.4mm
*Optional
IMPORTANT NOTICE
* Use goggles to protect eyes if you need to drill door holes.
Preparation continued
2-1/8"
54mm
2-1/8"
54mm
1"
25.4mm
4"(101.6mm)
or
5.5"(139.7mm)

5

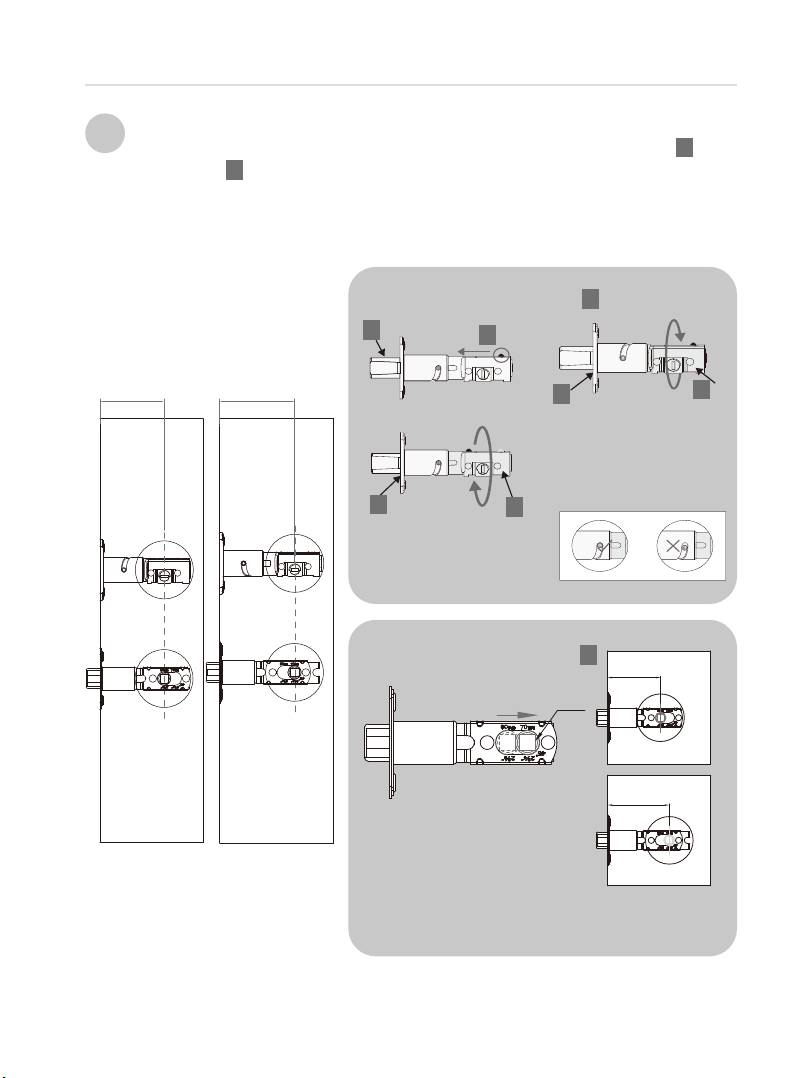

INSTALLING THE LOCKSET
Step 1
1
2-3/8"(60mm) 2-3/4"(70mm)
(a)
I. Push the crank (a) to
extend the deadbolt (b)
Push the shaft (a) to adjust
the lockset to 2-3/8"(60mm)
or 2-3/4"(70mm).
II. Hold the metal plate (c)
and
twist the deadbolt
body (d)
clockwise till it
snaps to 2-3/8"
III. To return to default status,
while the deadbolt (b) is
extended, hold the metal
plate (c) and twist the dead
bolt body (d) counter-clock-
wise
till it snaps to 2-3/4"
2-3/4"
(70mm)
2-3/8"
(60mm)
Note: the shaft's horizontal
and vertical aligment must be sustained during
installation to ensure latch will fully extend and
lock securely.
Measure the distance between center of front door hole to the edge
of your door hole to determine the backset. Adjust latchbolt Fand
deadbolt J according to the backset of your door.
Deadbolt Adjustment J
ba
cd
cd
Latchbolt Adjustment F

6
LEFT OUT-SWING DOOR
LEFT IN-SWING DOOR
RIGHT OUT-SWING DOOR
RIGHT IN-SWING DOOR
Inside
Inside
Outside
Outside
Inside
Outside
Inside
Outside
INSTALLING THE LOCKSET
Step 1 continued
Optional: Stainless steel mortise slot cover, 4" or 5.5" Face Plates available.
To purchase, please call our Customer Service hotline [phone] or
email [email protected]
PGA018
PGA019 PGA019S
For mortise slot
5.5” 4”
3
2

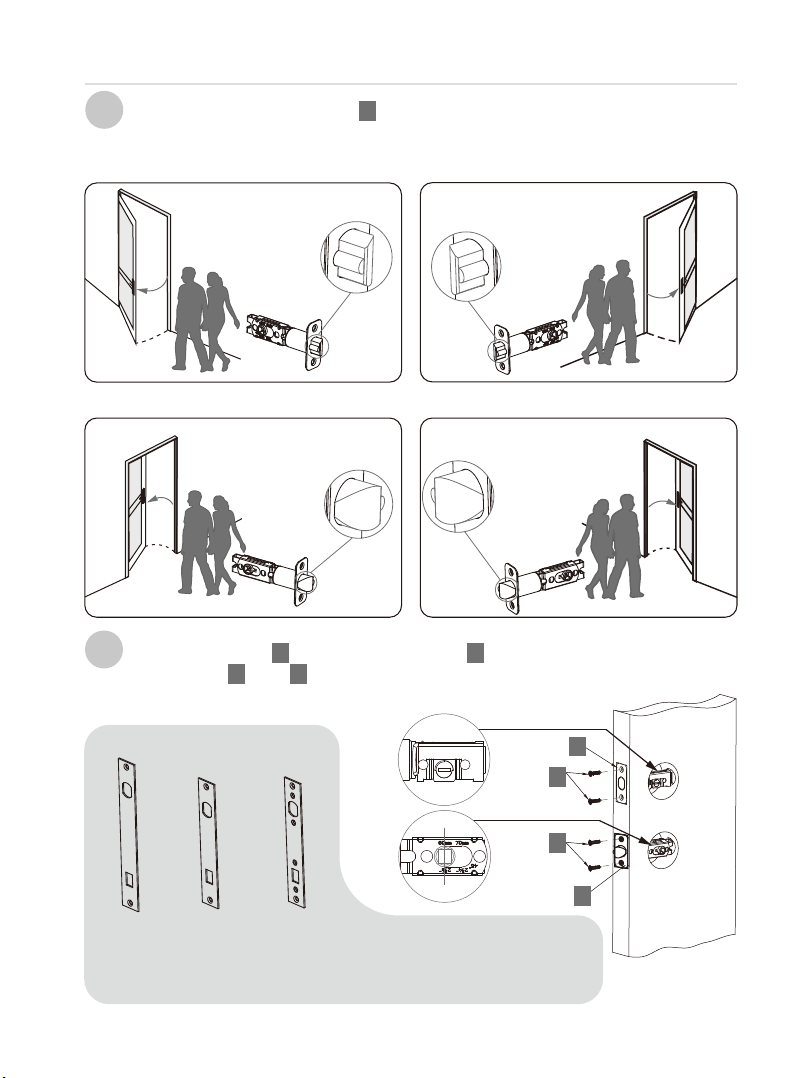

After adjusting the latchbolt F, determine the orientation of the latchbolt.
Determine the orientation of latchbolt. Facing the door exterior, install
the latchbolt according to the opening direction of your door.
Install deadbolt J (top) and latchbolt F(bottom) to door and secure
with screws K and G. Retract deadbolt, make sure bore hole is horizon-
tally
positioned and the spindle shaft is centered.
J
K
G
F

7
Changing the Exterior Handle Orientation
(Right handle)
Insert key and rotate so
that the two white dots
align as shown.
12
The lock ships with handle default for right in-swing or left out-swing door.
Check
the diagram below if you are unsure of you door orientation.
Hinge
Side
RIGHT IN-SWING DOOR
LEFT OUT-SWING DOOR RIGHT OUT-SWING DOOR
LEFT IN-SWING DOORINTERIOR
EXTERIOR
No need to change door handle
orientation. Skip Step 2.
LEFT-IN SWING and RIGHT OUT-SWING
DOORS require changing the door
handle orientation. Continue to
follow Step 2 to change exterior
and interior door handle orientation.

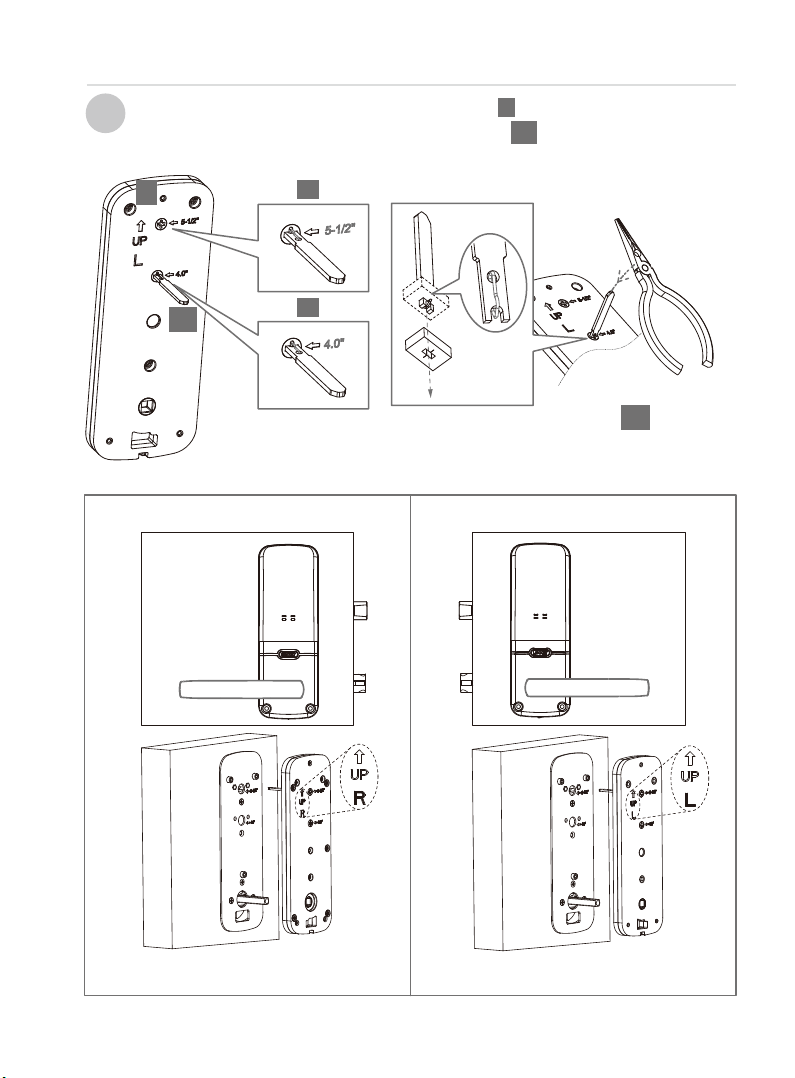

CHANGING HANDLE FOR RIGHT OR LEFT SWING DOORS Step 2
R
Use the provided pin insert Rto
push the metal pin located at the
3 o’clock of the the base handle,
then the other pin at 9 o’clock
position. Remove the handle once
the pins are compressed.

8
3
Twist key back to horizontal position.
The key can be taken out once it
goes back to the horizontal position.
4
56
Rotate the handle 180° to the other
side
of the lock.
Using your fingers, press the two pins
located on the left and right side of
the the lock to insert the handle back
onto the lock.
Check that your handle works smoothly
by giving it a turn up and down.
Confirm that your installation was
complete by checking if the pins
are flush against the handle, and
has popped out. Adjust the handle
accordingly to make sure the pins
are fully decompressed and sits flush
against the surface.
CHANGING HANDLE FOR RIGHT OR LEFT SWING DOORS Step 2 continued

9
CHANGING HANDLE FOR RIGHT OR LEFT SWING DOORS Step 2 continued
7
8

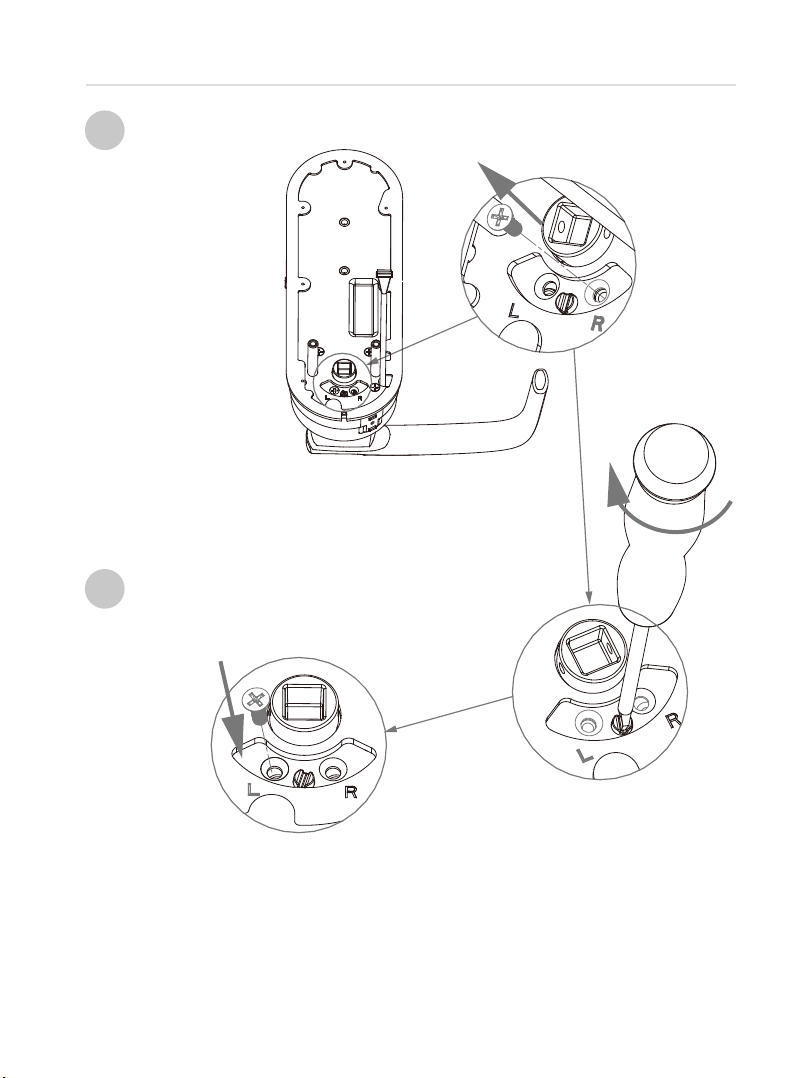

Align the screw hole on point "L"
then insert the removed screw
and tighten.
At the back of the exterior assembly, remove the screw on point "R".

10
Changing the Interior Handle Orientation
1
2
Remove the handle retaining screw
and detach the handle. Rotate
the handle 180° as shown.
Insert the handle retaining screw
and tighten using a screw driver.
CHANGING HANDLE FOR RIGHT OR LEFT SWING DOORS Step 2 continued

11
4
12
PREPARING LOCK FOR INSTALLATION
Step 3
Carefully prepare the lock and ensure the required parts ( C, D, E) have
been properly attached before installing to door.
E
Slotted Barrel Extension E
should be installed accor-
ding to upper door hole
distance to the bottom
door hole (4" or 5.5"). Use
a flathead screwdriver to
secure tighten Eclockwise.

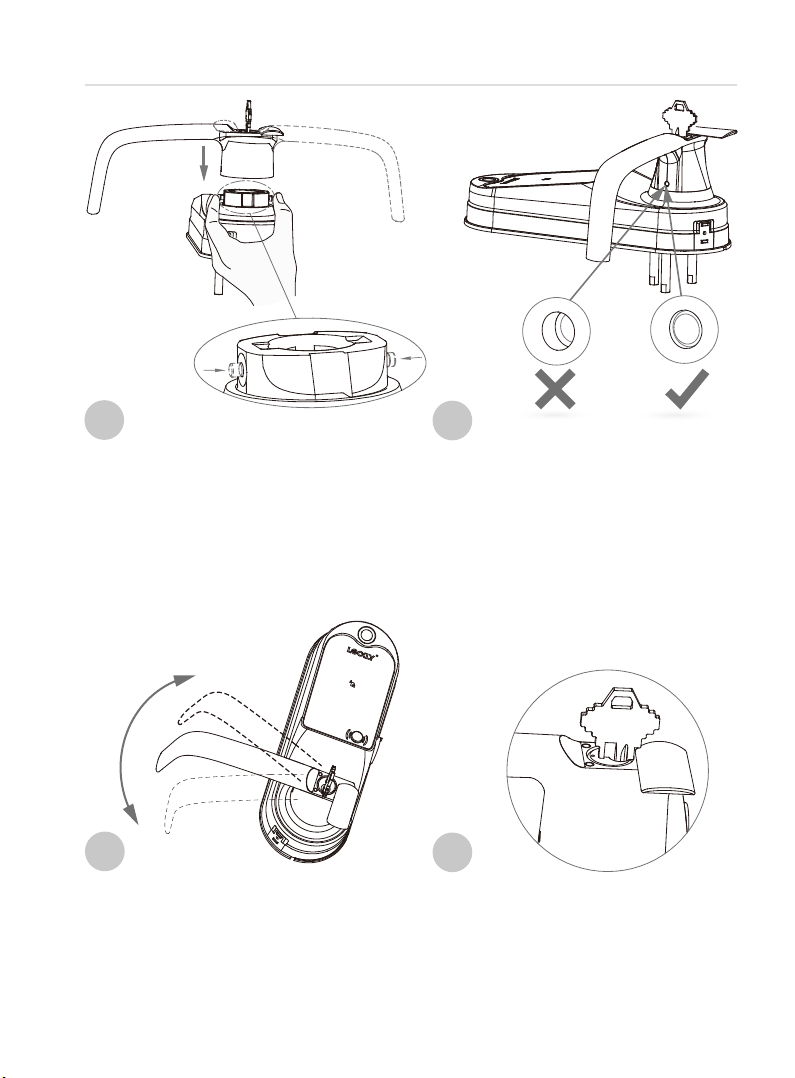

Install Spindle C
with the holes side
into the base of the
lock and align the
holes locate in the
3 o’clock and 9
o’clock position.
Insert locking pin
D in to the hole as
shown above.
D
3
Carefully bend the
end of the locking
pin D with a needle
nose pliers.
Failure to bend the
locking pin and turn
the handle freely
without obstruction
will result to malfunc-
tion.

12

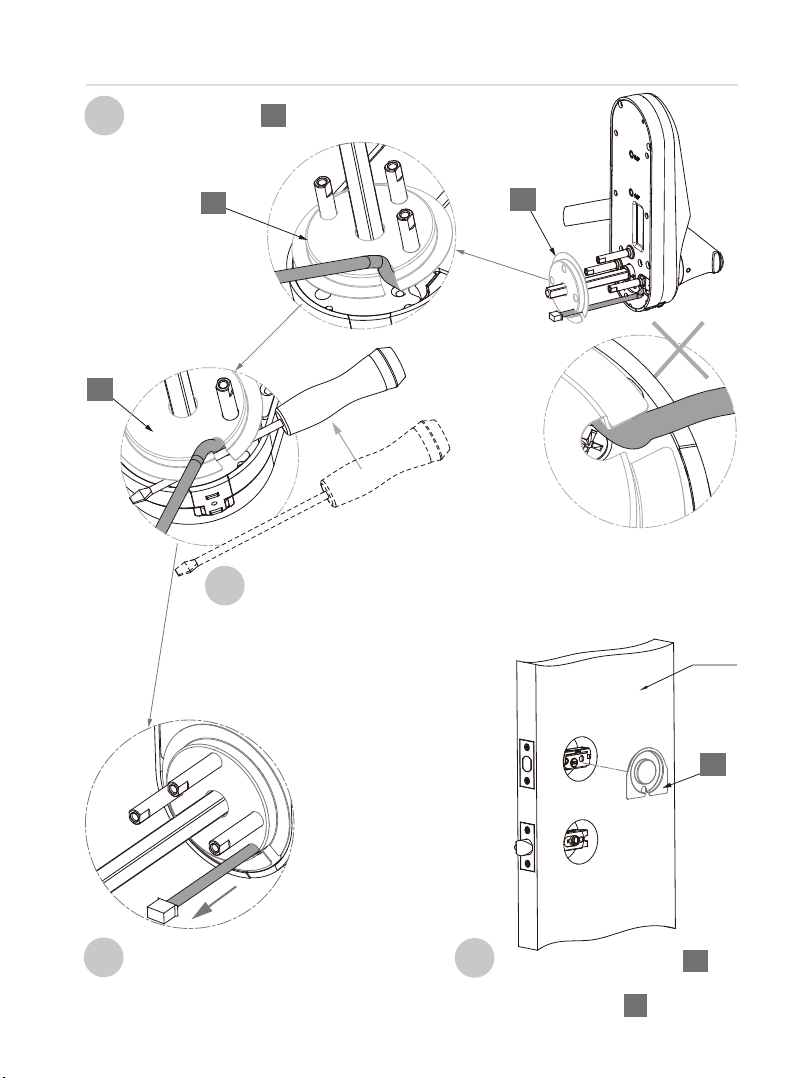

INSTALLING THE LOCK (EXTERIOR)
Step 4
Exterior
Note: The fire hood should
not press the wire.
1
Install fire shield N1 as shown.
2
Use a screwdriver to secure the cables in the fire hood.
Ensure that the cables are routed out of the U-shaped
slot and the fire hood does not press cables.
3
Pull the connecting wire in the
direction of the arrow.
4
Install the fire shield N2 on
the outside of the door, on
the deadbolt J.
N1
N1
N1
N2

C
13
INSTALLING THE LOCK (EXTERIOR)
Step 4 continued
Check lock alignment and
ensure that it is sitting flat and
aligned straight.
5
6
7
8
Exterior
Exterior
Ensure Eis securely installed on the correct
position, then insert Eto top door hole,
passing through below part J
E
B
While aligning the lock straight up-and-down, pass
the wiring cable under the latchbolt Fthen ensure
the Slotted Barrel Extension Epasses through the
hole on the lower part of the deadbolt Jbody as
shown.
Pass the spindle Cthrough the center
of the latchbolt, and the round rods
through the sides in their respective
holes. The cable should run underneath
the lockset.

14
INSTALLING INTERCONNECTION PLATE GEAR Step 5
1
4” use cover plate 5.5” use cover plate
4"(101.6mm)
5.5"(139.7mm)
2
Select interior cover plate U1 or U2 according to door hole distance
and install on to door.
U1 U2
Insert Positioning Rods Vinto the holes to the left and right of the Spindle
C. The holes are located at the 3 o’clock and 9 o’clock positions.
C
V

15
INSTALLING INTERCONNECTION PLATE GEAR
Step 5 continued
or
4
3
N1
Install fire shield N1 as shown. Ensure that
the cables are routed out of the U-shaped
slot and the fire hood does not press
cables.
Ensure the rods on interior cover plate U1 or U2 is inserted on the
holes of the deadbolt. and the cable and spindle Cpassed through
part U .
C
U1 U2

16
KM4 x 25mm, for door thickness, 1-3/8"~1-2/3"(35~43mm)
KM4 x 32mm, for door thickness, 1-2/3"~2"(43~50mm)
O1
O2
INSTALLING INTERCONNECTION PLATE GEAR
Step 5 continued
5
Hole for O1 or O2 screw for 5.5"
Hole for O1 or O2 screw for 4"
Secure with O1 or O2
Remove the position rods V
and replace them with screws
OTighten clockwise until the
mounting plate is secure.
V
O
Secure interior cover plate Uwith screws O . Remove the position rods
Vand replace them with screws OTighten clockwise until the mounting
plate is secure.

17
INSTALLING INTERCONNECTION PLATE GEAR
Step 5 continued
Select the correct side of the interconnection gear.
6
You may strike AD with pliers
to insert it to 4' or 5.5" hole.
For right swing door For left swing door
The R side should be facing in front of
you after inserting the torque blade
The L side should be facing in front of
you after inserting the torque blade
Select the side of the interconnection gear Paccording to door handle
orientation Left or Right . Insert torque blade AD to plate according the
distance between the latchbolt and deadbolt .
Insert AD for 5.5"
Insert AD for 4"
P
AD

18
INSTALLING INTERCONNECTION PLATE GEAR
Step 5 continued
7
X3
Install interconnection plate Ponto door. Ensure the torque blade AD
is inserted horizontally to the deadbolt. The spindle must pass through the
plate. Secure the
plate with screws M.
AD
P
M

19
INSTALLING INTERIOR ASSEMBLY (N)
Step 6
1
Secure the lock interior
with 3 screws
Do not touch pins inside*
Call our Customer Care Hotline
[phone], for help if the
pins are not centered or bent.
X
C
AE

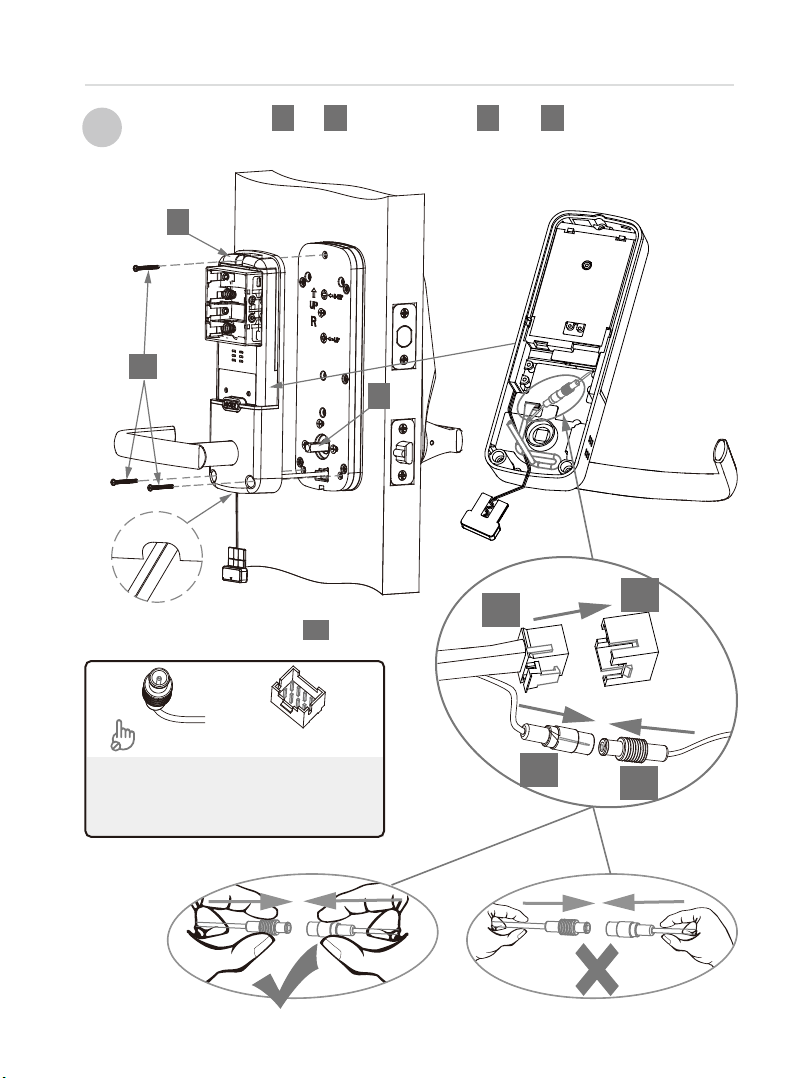

Connect cable A1 to A2 by hand. Plug B1 into B2 , match red side of
plug with red on socket - insert tightly.
A1
B1 B2
A2
AE
