LUCCI Air AERO Series Owner's manual

V 1.0 published on 12. 2016
AERO SERIES
CEILING FAN
INSTALLATION
OPERATION
MAINTENANCE
WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

AERO Fan Installation Instructions
2 | Page
THANK YOU FOR PURCHASING
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read
all instructions before using the product and keep all instructions for future reference
SAFETY PRECAUTIONS
1. In Europe: This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a safe way and understand the hazards
involved. Cleaning and maintenance shall not be undertaken by children without supervision.
2. In Australia: The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local wiring
rules.
IN AUSTRALIA
WARNING:
FOR SAFE USE OF THIS FAN AN ALL-
POLE DISCONNECTION
MUST BE INCORPORATED INTO THE FIXED WIRING IN
ACCORDANCE WITH THE WIRING RULES.
As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the
minimum electrical safety of this standard.
Please note warranty will be void if installation is without a means for
an all-pole disconnection incorporated in the fixed wiring in
accordance with the wiring rules.
Example: If a fan is connected to a circuit that can be isolated via an

AERO Fan Installation Instructions
3 | Page
all-pole safety switch at the switchboard, then this is considered to be
an all-pole disconnection to the ceiling fan electrical circuit, meeting
the requirements of clause 7.12.2 of AS/NZS 60335.1.
A single-pole switch on the active of the receiver input of remote
control must also be included in the wiring, and located the same
room as the ceiling fan.
5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact your local government for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water and
get into the food chain, damaging your health and well-being.
6. The structure to which the fan is to be mounted must be capable of supporting a weight of 30kg.
7. The fan should be mounted so that the blades are at least 2.3 m above the floor in Europe or 2.1 m above the
floor in Australia.
8. This fan is suitable for indoor, alfresco and coastal areas where the fan is fully undercover with a minimum of 2
walls. This fan is not waterproof. When installed in an alfresco or coastal area, the ceiling fan must be
positioned in a location protected from water, wind and dust. Exposure to these elements will void the warranty.
Mounting the fan in a situation where it is subject to water or moisture is dangerous.
9. Only a licensed electrician should execute the installation.

AERO Fan Installation Instructions
4 | Page

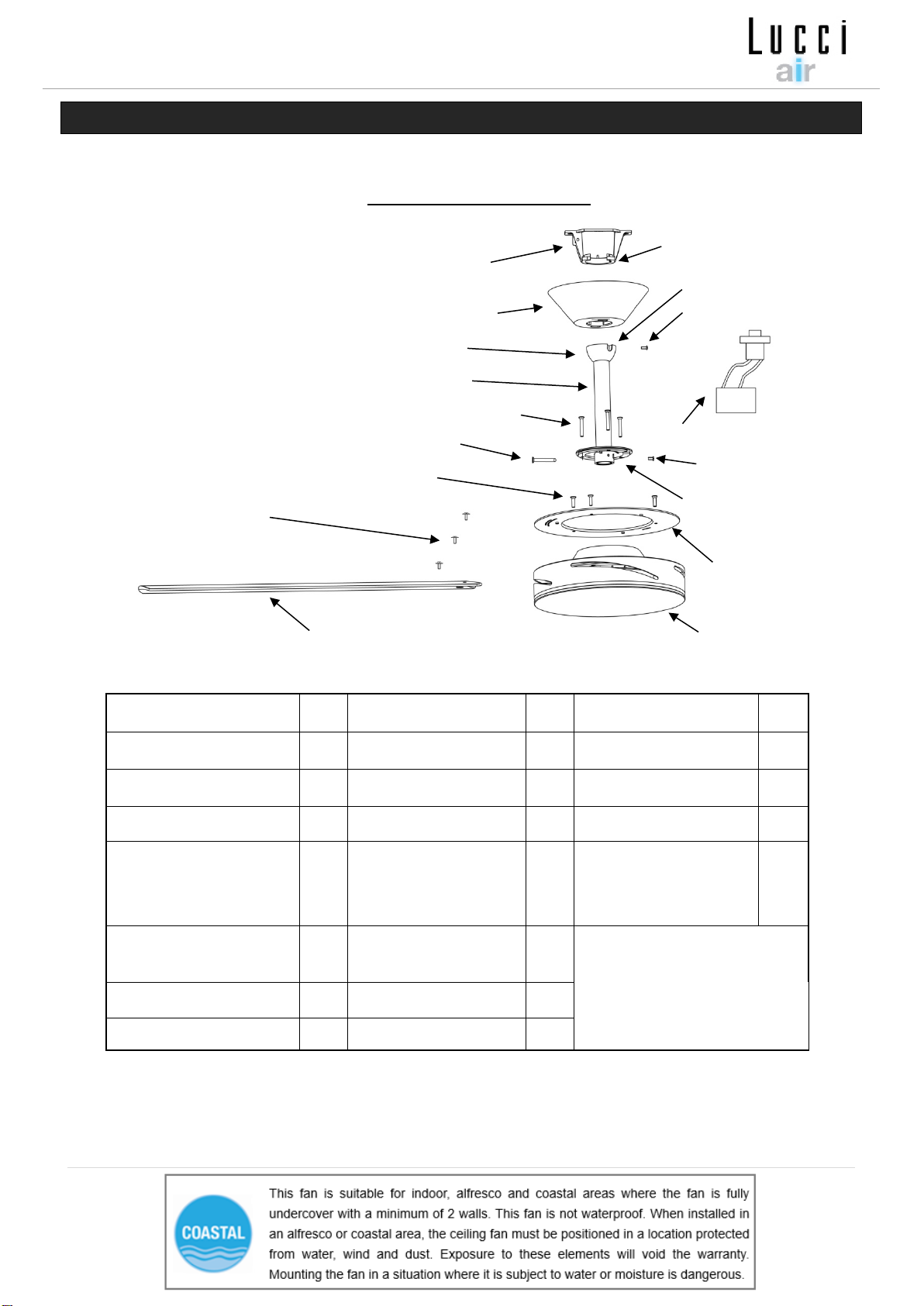

BEFORE INSTALLATION
Unpack your ceiling fan carefully. Remove all parts and hardware. Examine all parts, you should have
the following:
Part Qty Part Qty Part Qty
Hanger Bracket 1 Down Rod Pin 1 Motor Housing 1
Bracket Mounting Screw 2 Down Rod (ø26mm) 1 Blade 4
Ceiling Canopy Screw 2 Down Rod Screw 2 Blade Screw 12
Ceiling Canopy 1 Down Rod Knuckle 1
Wall Control Assembly
(comprising of wall switch,
wall knob and capacitor )
1
Ball Joint Pin 1 Down Rod Knuckle
Screw 3
Ball Joint Screw 1 Blade Cover 1
Ball Joint 1 Blade Cover Screw 3
Hanger Bracket
Ceiling Canopy
Motor Housing
Blade Screw
Blade
Ball Joint Screw
Down Rod Pin
Ball Joint
Down Rod Knuckle Screw
Down Rod
Aero fan without light
Down Rod Screw
Wall Control Assembly
Blade Cover
Blade Cover Screws
Down Rod Knuckle
Ball Joint Pin (hidden)
Ceiling Canopy Screw
Fig 1

AERO Fan Installation Instructions
5 | Page
Part Qty Part Qty Part Qty
Hanger Bracket 1 Down Rod Pin 1 Motor Housing 1
Bracket Mounting Screw 2 Down Rod (ø26mm) 1 Blade 4
Ceiling Canopy Screw 2 Down Rod Screw 2 Blade Screw 12
Ceiling Canopy 1 Down Rod Knuckle 1
24W LED light, 3000K
Warm White
(dimmable)
1
Ball Joint Pin 1 Down Rod Knuckle
Screw 3
Wall Control Assembly
(comprising of wall switch,
wall knob and capacitor)
1
Ball Joint Screw 1 Blade Cover 1
Ball Joint 1 Blade Cover Screw 3
Aero fan with LED light
Hanger Bracket
Ceiling Canopy
Ball Joint Screw
Down Rod Pin
Ball Joint
Down Rod Knuckle Screw
Down Rod
Down Rod Screw
Wall Control Assembly
Down Rod Knuckle
Ball Joint Pin (hidden)
Ceiling Canopy Screw
Motor Housing
Blade Screw
Blade
Blade Cover
LED Light
Fig 2

AERO Fan Installation Instructions
6 | Page

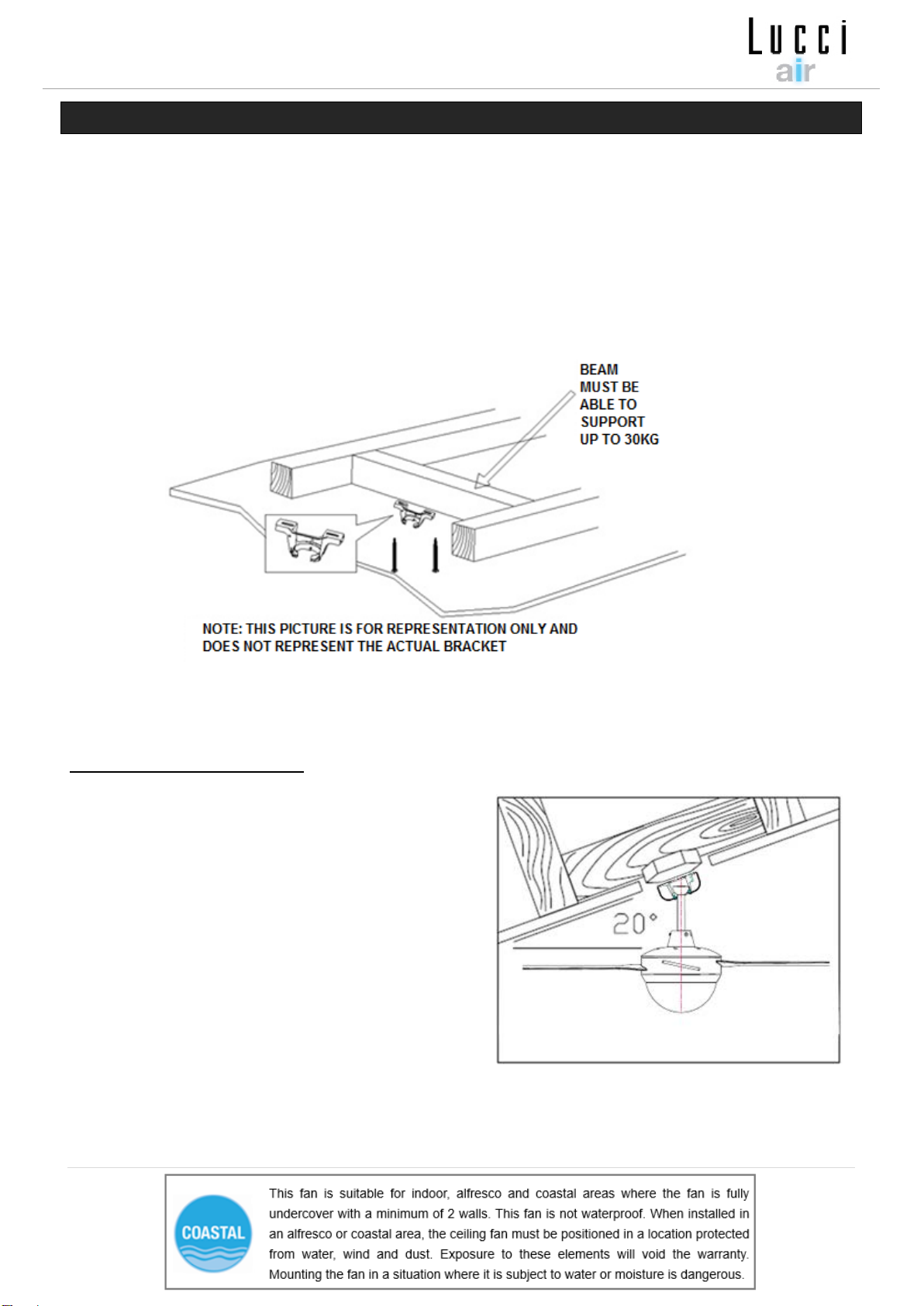

INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing
from the tip of the blade to the nearest objects or walls, including angle ceiling panels.
•Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at
least 30kg, with the two long screws provided. Ensure at least 30mm of the screw is threaded into
the support and the bracket is aligned ‘down’ (not across) the slope of the ceiling.
NOTE: The bracket screws provided are for use with wooden structures only. For structures
other than wood, the appropriate screw type MUST be used.
Angled Ceiling Installation
This fan hanging system supports a maximum 20
degree angled ceiling installation.
Fig. 3
Fig. 4

AERO Fan Installation Instructions
7 | Page
BLADE INSTALLATION
Note: Never use power tools when assembling the fan
Fit the blades before suspending the fan motor from the ceiling.
Remove the blade cover screws and lift up the blade cover (Fig 5)
Locate the blade screw packet and unpack the blades (look for damage before proceeding).
Insert the blades through the side slot of the motor and align with the 3 holes.
Secure the blades with the 3 blade screws, and ensure that the screws are tightened evenly. Do not
over tighten the screws as this can damage the blades. Repeat this process for all blades (Fig.6)
Replace the blade cover and the blade cover screws (Fig 7)
Fig. 5
2
1
1
2
Fig. 6
Fig. 7
1
2

AERO Fan Installation Instructions
8 | Page
HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is
positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in
operation. (Fig.8)

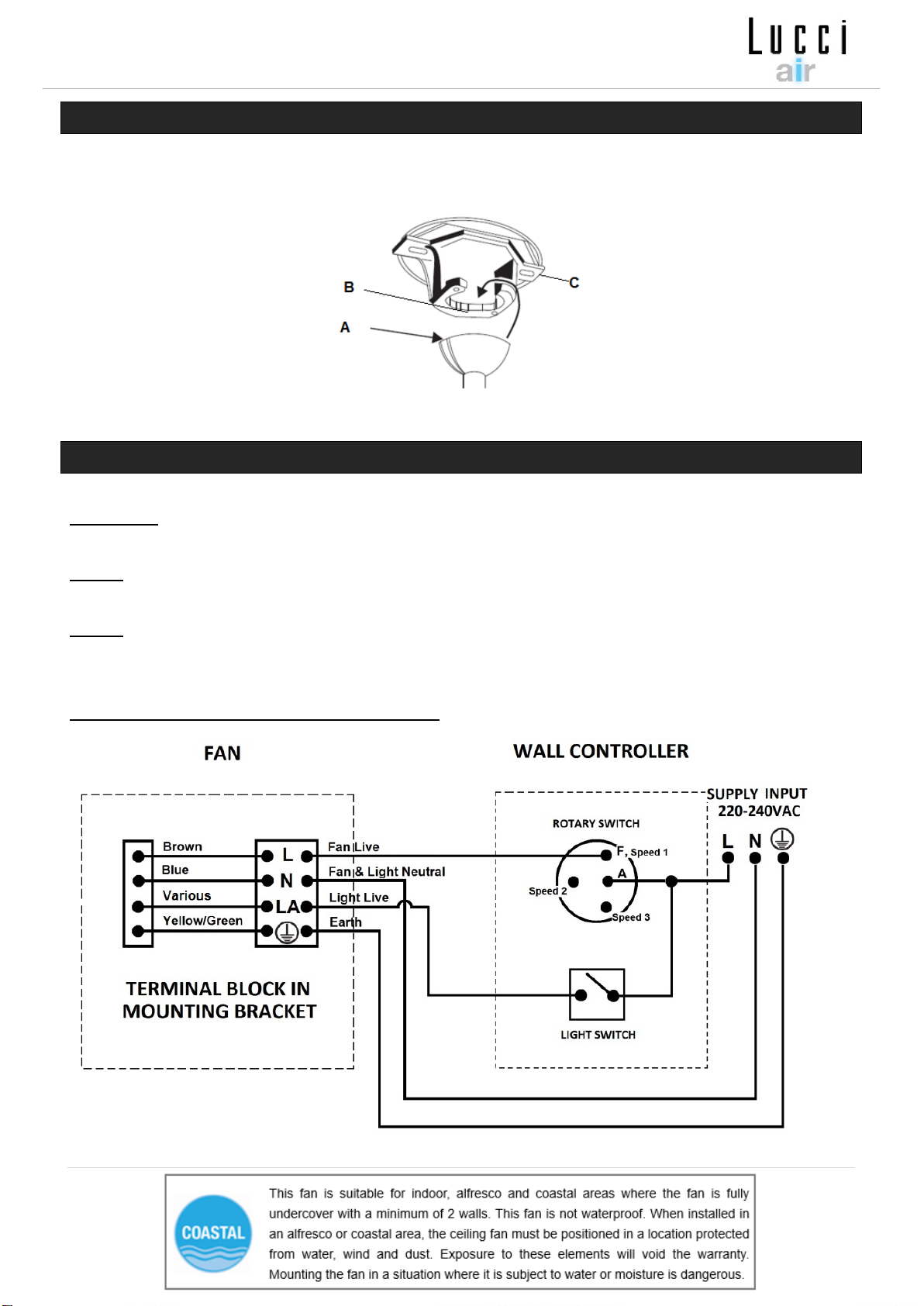

ELECTRICAL WIRING DIAGRAM
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
NOTE: AN ADDITIONAL ALL POLE DISCONNECTION MUST BE INCORPORATED IN THE FIXED
WIRING IN ACCORDANCE WITH THE WIRING RULES AND PRODUCT SAFTY STANDARD.
NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted when
no light kit is used with the ceiling fan.
USE WITH WALL SWITCH WIRING DIAGRAM:
Fig. 9
Fig. 8

AERO Fan Installation Instructions
9 | Page
COMPLETING THE INSTALLATION
After completing the electrical connection at the mounting bracket terminal block, connect the ceiling
fan wiring by the quick connector plug.
Loosen the screws in the bottom of the bracket then cover the mounting bracket with the canopy (1).
Ensure all electrical wiring is tucked inside the canopy and that the wires are not damaged during
this step. Secure the canopy to the hanger bracket using the screws provided (2).
USING YOUR CEILING FAN
FAN WALL CONTROL
Turn on the power and check the operation of the fan.
• OFF Position – Fan off
• 3rd Position – High fan speed
• 2nd Position – Medium fan speed
• 1st Position – Low fan speed

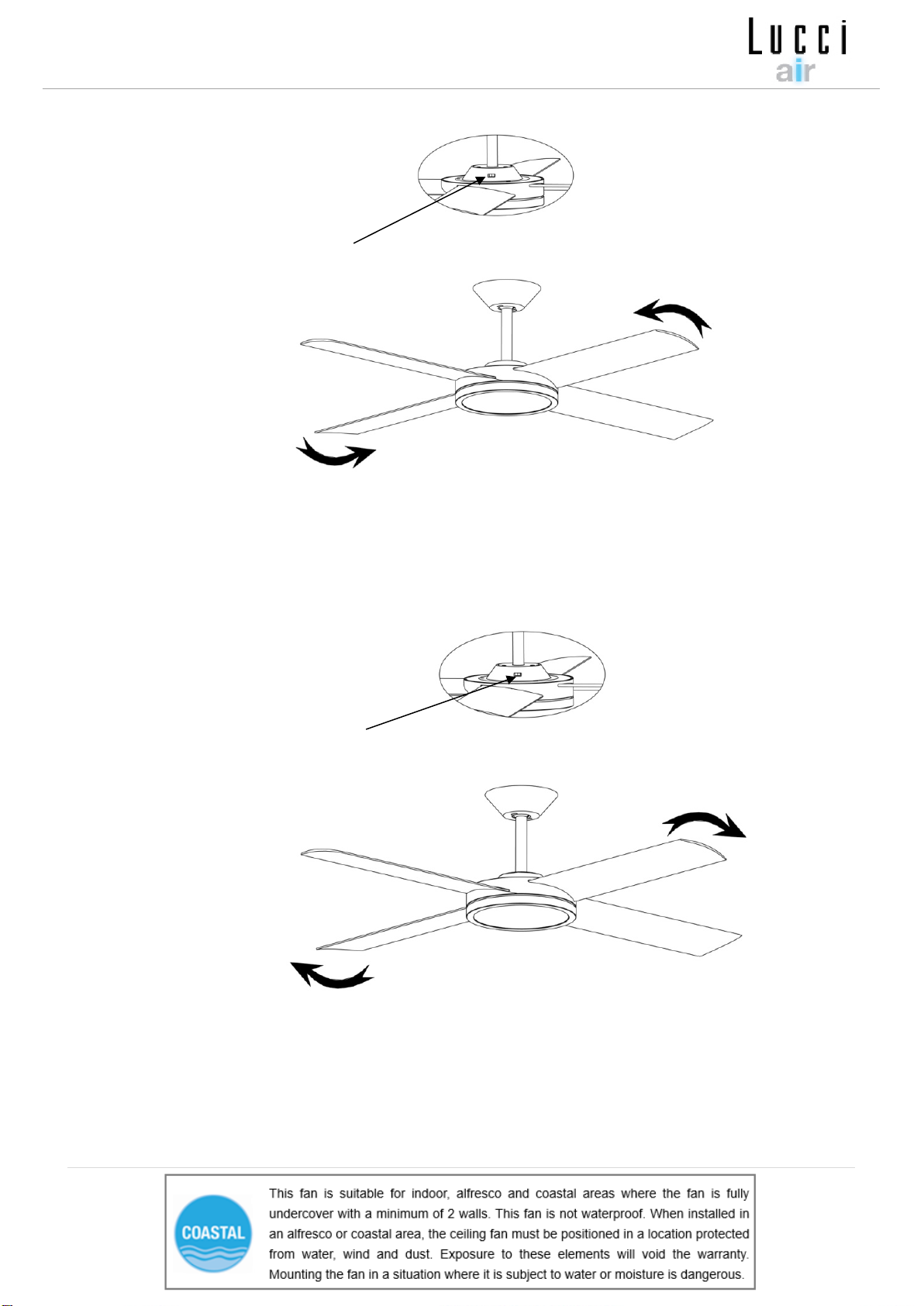

REVERSE FUNCTION
Your ceiling fan can operate either in fan mode or reverse fan mode.
SUMMER Mode: The reverse switch should be in the “left” (SUMMER) position to rotate the fan in an
anticlockwise direction. The airflow will be directed downwards, for cooling in summer (Fig 12).
WINTER Mode: The reverse switch should be in the “right” (WINTER) position to rotate the fan in a
clockwise direction. The airflow will be directed upwards, for energy conservation in winter (Fig 13).
Fig 11
1
2
Fig 10

AERO Fan Installation Instructions
10 | Page
Fig. 15
Direction fan will spin in REVERSE (Winter) mode when viewed from underneath
Direction fan will spin in FWD (Summer) mode when viewed from underneath
Reverse Switch to the left
Reverse Switch to the right
Fig 12
Fig 13

AERO Fan Installation Instructions
11 | Page
INSTALLING AN EXTENSION ROD
When using extension rods the lower edge of the fan blades
must be more than 2.1m above floor level in Australia and more
than 2.3m in Europe.
Loose the ball joint screw (1)
Lower the ball joint slightly and remove pin (2)
Remove ball joint from down rod (3)
Remove ceiling canopy from down rod (4)
Drill a 6.5mm diameter hole through the down rod 11.0mm
below the top edge. The hole must be in the exact centre of the
down rod and drilled straight through (if drilled at an angel the
fan may wobble).
2
4
1
3
11mm
Ø6.5mm
Top
Fan
5
Fig. 14
2.1m Minimum

AERO Fan Installation Instructions
12 | Page
Remove the 3 down rod knuckle screws (1)
Lift the knucke assembly from the motor (2)
Loosen the 2 down rod screws (3)
Remove the down rod pin (4)
Withdraw the down rod from the knuckle (5)
Fit the new down rod into the knuckle (1)
Put the down rod pin back into position (2)
Note: resinstall cotter pin in down rod pin
Tighten the 2 down rod screws (3)
Place knuckle assemply back onto the motor (4)
Refit and tighten the 3 knuckle screws (5)
Warning: Never tighten screws using power tools
as this may damage the threads in the die cast
parts and cause the fan to wobble. Stripped
threads are not covered by warranty.
1
2
3
4
1
5
3
2
4
Fig. 15

AERO Fan Installation Instructions
13 | Page
AFTER INSTALLATION
WOBBLE:
NOTE: Ceiling fans tend to move during operation due to the fact that they are mounted on a ball joint. If
the fan was mounted rigidly to the ceiling it would cause excessive vibration and damage to the fan or
ceiling. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem.
TO REDUCE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod
are secure. Do NOT use counter sunk screws to secure the bracket to the ceiling as they will allow the
bracket to move and the create fan wobble no matter how tightly they are secured. Most wobbling is
caused by incorrect fan installation or due to objects, ceilings or walls being too close to the fan, or air
currents cause the fan to move. A balancing kit is not required as the ceiling fan motor is balanced during
production and the blades are injection moulded.
NOISE:
When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and
frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in
fan motor noise. This is normal. Please allow a 24-hour “breaking-in” period, most noises associated
with a new fan disappear during this time. All electric motors are audible to some extent. Please note
that this is not a product fault, and as such is not coverd under warranty.
CARE AND CLEANING:
•Periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush or lint free
cloth to avoid scratching the paint finish. Please turn off electricity power when you do so.
•Do not use water when cleaning your ceiling fan. It could damage the motor or the blades and create
the possibility of an electrical shock.
•The motor has a permanently lubricated ball bearing so there is no need to oil.
NOTE: Always turn OFF the power at the mains switch before attempting to clean your fan.
Ceiling Fan model Rated Voltage Rated Power
(motor) Rated Power (lamp)
AERO 52” without light 220-240 VAC 60W
n/a
AERO 52” with LED light 220-240 VAC 60W LED , 24W dimmable
TECHNICAL INFORMATION

AERO Fan Installation Instructions
14 | Page
NOTES AND INFORMATION
Please use this page to record information about your fan and its
installation that may not be covered elsewhere.
Examples are:
- The circuit breaker or safety switch number supplying power to this fan
- An inspection schedule (if mounted outdoors we recommend fans should
be checked for damage every 12 months or after severe weather)
________________________________________________________________
________________________________________________________________
________________________________________________________________

AERO Fan Installation Instructions
15 | Page
LUCCI CEILING FAN WARRANTY DETAIL
LUCCI WARRANTY HOTLINE- 1800 602 243
THIS WARRANTY IS VALID IN AUSTRALIA ONLY
In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am
& 5pm (EST) Monday to Friday. Please make sure you have all the ceiling fan details filled out at the end of the
manual before making the call.
Every Lucci ceiling fan is thoroughly inspected and tested before being released for sale. In addition to any
warranty rights or conditions under statutory regulations, Lucci warrants all of its ceiling fans against defective
workmanship and faulty materials for twenty four (24) months from the date of purchase. Lucci undertakes, at its
option, to repair or replace, free of charge, each product or part thereof on condition that;
1. The fan or relevant part has not been subjected to misuse, neglect, or been involved in an accident.
2. The repairs are not required as a result of normal wear and tear.
3. The product was installed by a licensed electrical contractor.
4. A copy of the original receipt of purchase is presented.
5. 12 month warranty applies when used in any non-domestic applications.
6. This warranty does not cover stains, scratch and scuff marks, or dents if the product is purchased through
a factory outlet or to refurbished items.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to
a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Lucci Design cannot be held responsible for any repair other than those carried out by it or one of its
Authorised Service Agents. Please keep this warranty information in a safe place. This information must
be produced in the event of service being required.
Distributed by:
Beacon Lighting
140 Fulton Drive
Derrimut, Victoria, 3030
Australia
Ph [phone]
Fax [phone]
Email: [e-mail]

AERO Fan Installation Instructions
16 | Page
CEILING FAN WARRANTY INFORMATION
LUCCI WARRANTY HOTLINE- 1800 602 243
Complete and retain this form for your personal records and warranty purposes.
NAME…………………………………………………………………………………
ADDRESS……………………………………………………………………………
……………………………………………………POSTCODE……………………
MODEL NUMBER……………………………………………………………………
(PO# + DATECODE Sticker here)
PO NUMBER or DATECODE ………………………………………………………
DATE OF PURCHASE………………………………………………………………
INSTALLING LICENSED ELECTRICAN……………………………………………
…………………………………………………………………………………………
LICENCE No…………………………………………………………………………
ATTACH PROOF OF PURCHASE HERE
THIS COMPLETED DETAIL PAGE SHOULD BE PRODUCED AND FAXED TO
THE WHOLESALER OR THEIR AUTHORISED AGENTS BEFORE OBTAINING
WARRANTY SERVICE
