LUCCI Air Aria-WS-WH User manual

V1.1 WS-
AU (03/ 2022)
LUCCI
AIRFUSION ARIA
CEILING FAN
⚫INSTALLATION
⚫OPERATION
⚫MAINTENANCE
⚫WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

Aria Installation Instructions
1 | P a g e
THANK YOU FOR PURCHASING
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read
and save all instructions before using the product.
SAFETY PRECAUTIONS
1. The appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local
wiring rules.
IN AUSTRALIA
WARNING:
FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION
MUST BE INCORPORATED INTO THE FIXED WIRING IN
ACCORDANCE WITH THE WIRING RULES.
As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the
minimum electrical safety of this standard.
Please note warranty will be void if installation is without a means for
an all-pole disconnection incorporated in the fixed wiring in
accordance with the wiring rules.
Example: If a fan is connected to a circuit that can be isolated via an
all-pole safety switch at the switchboard, then this is considered to be
an all-pole disconnection to the ceiling fan electrical circuit, meeting
the requirements of clause 7.12.2 of AS/NZS 60335.1.
A single-pole switch on the active of the receiver input of remote

Aria Installation Instructions
2 | P a g e
control must also be included in the wiring, and located the same
room as the ceiling fan.
4. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems available. If
electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the
ground water and get into the food chain, damaging your health and well-being.
5. The structure to which the fan is to be mounted must be capable of supporting a weight of 20kg.
6. The fan should be mounted so that the blades are at least 2.1 m above the floor.
7. This fan is suitable for indoor, alfresco and coastal areas where the fan is fully undercover with a
minimum of 1 wall. This fan is not waterproof. When installed in an alfresco or coastal area, the
ceiling fan must be positioned in a location protected from water, wind and dust. Exposure to these
elements will void the warranty. Mounting the fan in a situation where it is subject to water or
moisture is dangerous and may increase the risk of damage, injury or electrical shock and will void
the warranty.
8. Must be assembled and installed by a licensed electrician.
9. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the
ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.
10. The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.
11. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the
suspension system shall be performed by the manufacturer, its service agent or suitably qualified
persons

Aria Installation Instructions
3 | P a g e
BEFORE INSTALLATION
•Unpack your ceiling fan carefully. Remove all parts and hardware.
•Lay out all the components on a smooth surface and make sure there are no components missing
before assembling. If parts are missing, return the complete product to the place of purchase for
inspection or replacement.
•Check whether the ceiling fan has been damaged during transport. Do not operate/install any
product which appears damaged in any way. Return the complete product to the place of purchase
for inspection, repair or replacement.

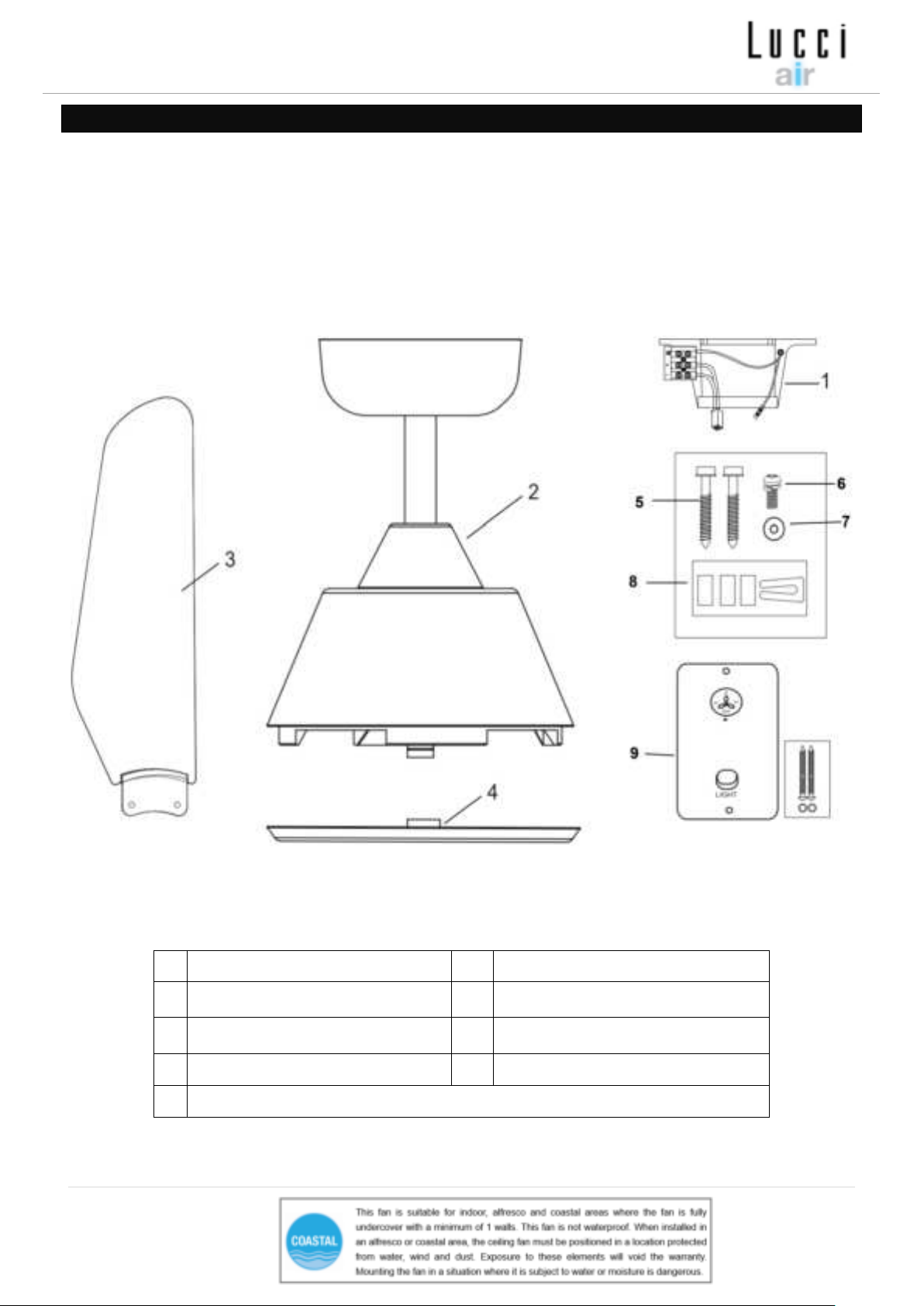

•Examine all parts, you should have the following:
1
Mounting bracket x 1
5
Mounting screws x 2
2
Fan assembly x 1
6
Spare Motor screw for blade x 1
3
Blades x 4
7
Spare Flat washer for blades x 1
4
Bottom cover x 1
8
Balancing kit x 1
9
Wall controller x 1 (included 2 pcs wall switch screws)
Fig. 1

Aria Installation Instructions
4 | P a g e
INSTALLING THE FAN
TOOLS REQUIRED:
- Phillips / flat head screwdriver
- Pair of pliers
- Adjustable spanner
- Step ladder
- Wire cutter
- Wiring, supply cable as required by local provincial and national wiring codes and regulations

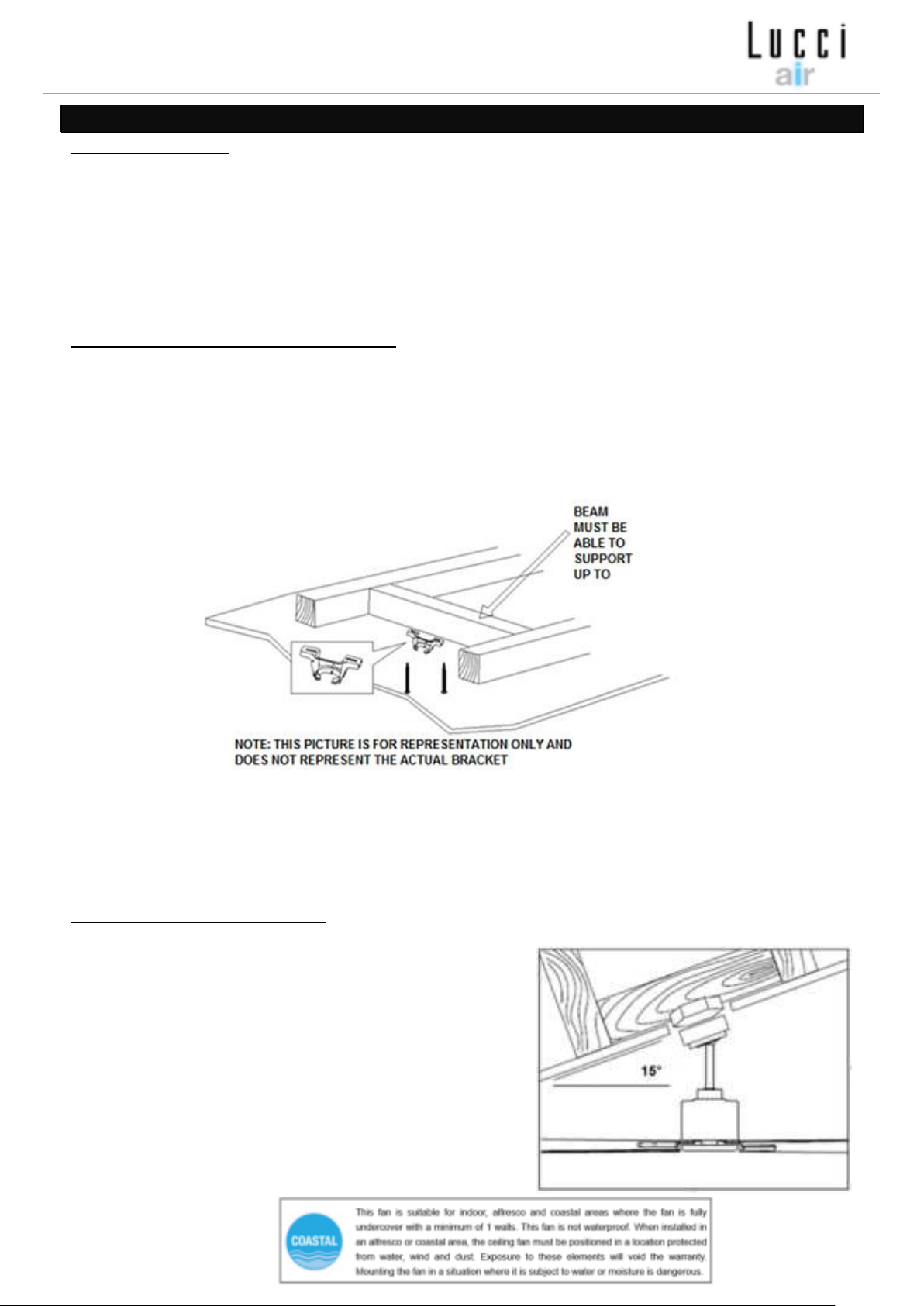

INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to
the nearest objects or walls.
•Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 20kg,
with two long screws provided. Ensure at least 30mm of the screw is threaded into the support.
NOTE: The bracket screws provided are for use with wooden structures only. For structures other
than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable for
the mounting surface and the surrounding environment.
ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum 15 degree angled
ceiling installation.
Fig. 3
20 KG
Fig. 2

Aria Installation Instructions
5 | P a g e
INSTALLATION OF BLADE (Fig. 4)
1. Before Installing the blades, remove the motor blade screws and flat washers from the bottom of the
fan motor assembly.
2. Align the 2 holes on the blade with the 2 holes on the rotating member of the fan motor assembly.
3. Use the 2 blade screws from step 1, to secure the blade onto the fan motor assembly.
Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing. Take care
not to over tighten the screws, as this can damage the blades.
4. Repeat the same process for the other blades.
INSTALLATION OF BOTTOM COVER (Fig. 5)
•Install the bottom cover to the fan assembly then secure it by turning clockwise.
Fig. 4
Fig. 5

Aria Installation Instructions
6 | P a g e
HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is
positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in
operation. (Fig.6)
ELECTRICAL WIRING DIAGRAM
PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG.7)
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED
WIRING.
Ensure the motor earth wire is connected to the single earthing terminal block “1” in the diagram below.
(Fig. 7)
NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is
omitted when no light kit is used with the ceiling fan.
USE WITH WALL SWITCH WIRING DIAGRAM:
Fig. 7a
Fig. 6

Aria Installation Instructions
7 | P a g e
USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately)
1/ Remote without plugs
2/ Remote with plugs
Fig. 7b
Fig. 7c

Aria Installation Instructions
8 | P a g e
FINISHING THE INSTALLATION
•After completing the electrical connection at the mounting bracket terminal block, connect the ceiling
fan wiring via the quick connector plug.
•Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy
and that the wires are not damaged during this step. Secure the canopy to the hanger bracket using
the screws provided.
USING YOUR CEILING FAN
FAN WALL CONTROL
Turn on the power and check the operation of the fan.
• OFF Position – Fan off
• 3rd Position – Low fan speed
• 2nd Position – Medium fan speed
• 1st Position –High fan speed
Light Control
• Toggle Switch – On/off (the fan is without light )

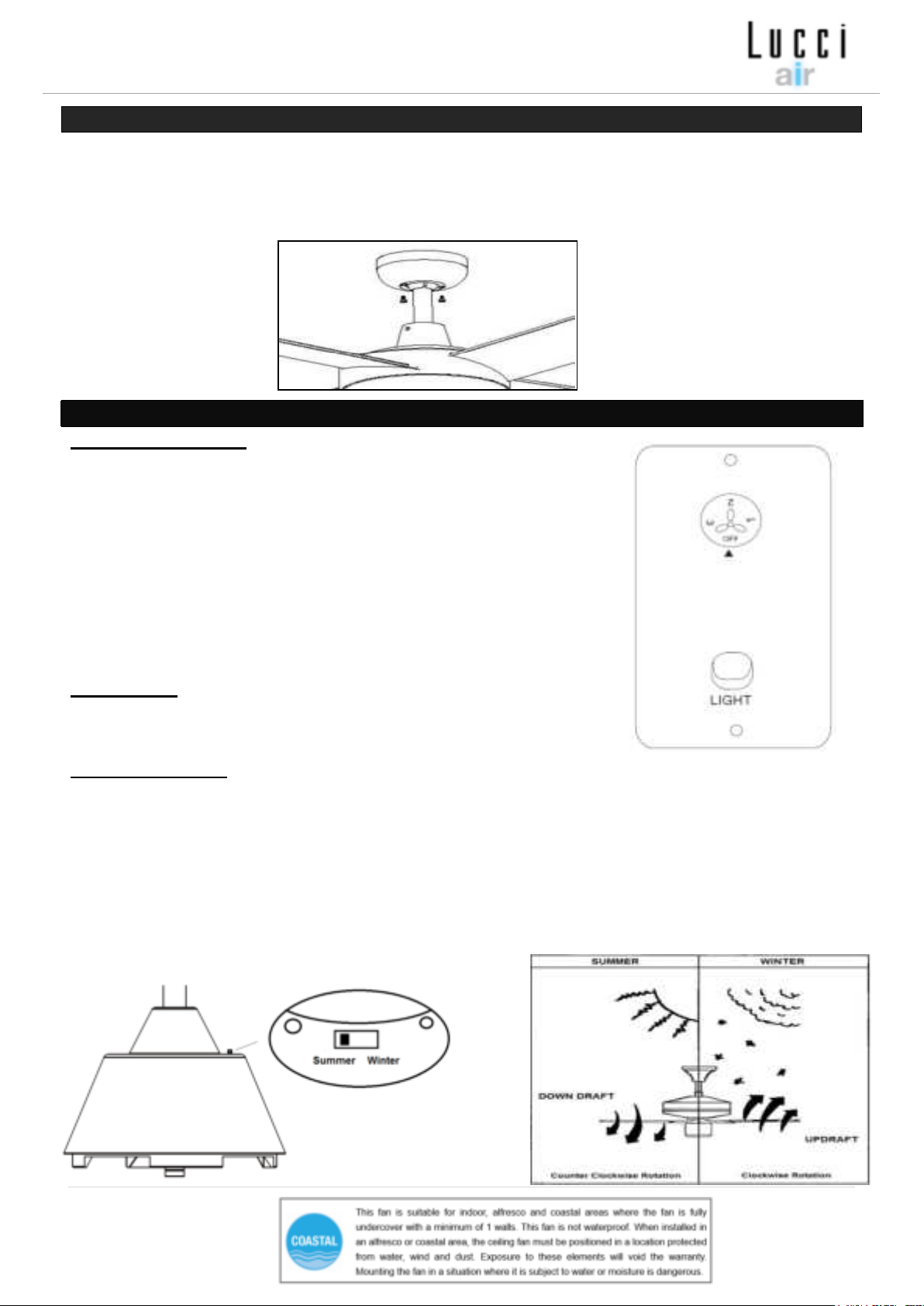

REVERSING SWITCH
Your ceiling fan can operate in either summer or winter mode.
SUMMER Mode: The reverse switch shall be in the “down” (SUMMER) position to make the fan rotate in an
anticlockwise direction. The airflow will be directed downwards, for cooling in summer.
WINTER Mode: The reverse switch shall be in the “up” (WINTER) position to make the fan rotate in a clockwise
direction. The airflow will be directed upwards assisting in the circulation of warm air, for energy conservation in
winter.
Fig. 10
Fig. 9
Fig. 8

Aria Installation Instructions
9 | P a g e
AFTER INSTALLATION
WOBBLE:
NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the
fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite
acceptable and DOES NOT suggest any problem.
TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod are
secure.
BALANCING KIT: A balancing kit is provided to balance the ceiling fan on initial installation. Please refer to the
instruction on how to use the balancing kit. The balancing kit can be used to assist re-balancing should the ceiling
fan become un-balanced again. Store your balancing kit away after installation for future use if required.
NOISE:
When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and frequency
signals superimposed in the electricity for off-peak hot water control, may cause a change in fan motor noise. This
is normal. Please allow a 24-hour “settling-in” period, most noises associated with a new fan disappear during this
time.
The manufacturer’s warranty covers actual faults that may develop and NOT minor complaints such as hearing the
motor run –All electric motors are audible to some extent.
CARE & CLEANING
NOTE: Always turn OFF the power at the mains switch before performing any maintenance or
attempting to clean your fan.
•Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft
brush or lint free cloth to avoid scratching the paint finish. Please turn off electricity power when you
do so.
•Do not soak or immerse your ceiling fan in the water or other liquids. It could damage the motor or
the blades and create the possibility of an electrical shock.
•Ensure that the fan does not come in contact with any organic solvents or cleaners.
•To clean the fan blade, wipe with only a damp clean cloth with NO organic solvents or cleaners.
•The motor has a permanently lubricated ball bearing so there is no need to oil.
TECHNICAL INFORMATION
Fan
36’’ ARIA fan only
Fan Models
ARIA 36”-WS-WH; ARIA 36”-WS-BK / SKU# 213003; 213004
Rated Voltage
220-240V~ 50Hz
Rated Wattage (Motor)
45W
Rated wattage (Lamp)
N/A
Battery for remote
N/A
Weight
4.6kg
Canopy Dimensions
H:50mm Dia:136mm

Aria Installation Instructions
10 | P a g e
LUCCI CEILING FAN WARRANTY DETAIL
LUCCI FAN WARRANTY CONTACT INFORMATION:
Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims
Email: [e-mail]
Lucci Fan Warranty Hotline: (Free Call) 1800 602 243
THIS WARRANTY IS VALID IN AUSTRALIA ONLY
In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am &
5pm (EST) Monday to Friday. Please make sure you have all the ceiling fan details filled out at the end of the
manual before making the call.
Every Lucci ceiling fan is thoroughly inspected and tested before being released for sale. In addition to any
warranty rights or conditions under statutory regulations, Lucci warrants all of its ceiling fans against defective
workmanship and faulty materials for twenty four (24) months from the date of purchase. Lucci undertakes, at its
option, to repair or replace, free of charge, each product or part thereof on condition that;
1. The fan or relevant part has not been subjected to misuse, neglect, or been involved in an accident.
2. The repairs are not required as a result of normal wear and tear.
3. The product was installed by a licensed electrical contractor.
4. A copy of the original receipt of purchase is presented.
5. 12 month warranty applies when used in any non-domestic applications.
6. This warranty does not cover stains, scratch and scuff marks, or dents if the product is purchased through
a factory outlet or to refurbished items.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to
a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Lucci Design cannot be held responsible for any repair other than those carried out by it or one of its
Authorised Service Agents. Please keep this warranty information in a safe place. This information must
be produced in the event of service being required.
Distributed by:
Beacon Lighting
140 Fulton Drive
Derrimut, Victoria, 3026
Australia
Ph [phone]
Email: [e-mail]

Aria Installation Instructions
11 | P a g e
CEILING FAN WARRANTY INFORMATION
LUCCI FAN WARRANTY CONTACT INFORMATION:
Online Warranty Form: https://www.beaconlighting.com.au/warranty-claims
Email: [e-mail]
Lucci Fan Warranty Hotline: (Free Call) 1800 602 243
Complete and retain this form for your personal records and warranty purposes.
NAME……………………………………………………………………………………………………..…
ADDRESS……………………………………………………………………………………………..……
……………………………………………………POSTCODE……………………………………………
MODEL NUMBER………………………………………………………………………………………..…
(PO# + DATECODE Sticker here)
PO NUMBER or DATECODE …………………………………………………………………………….
DATE OF PURCHASE………………………………………………………………………………….…
INSTALLING LICENSED ELECTRICIAN……………………………………………………………..…
………………………………………………………………………………………………………….……
LICENCE No………………………………………………………………………………….……………
ATTACH PROOF OF PURCHASE HERE
THIS COMPLETED DETAIL PAGE SHOULD BE PRODUCED AND SENT TO
THE WHOLESALER OR THEIR AUTHORISED AGENTS BEFORE OBTAINING
WARRANTY SERVICE
