Lumex RJ4700 Parts list manual
RJ4700-INS-LAB-RevB12
1
The RJ4700 Set N’ Go's intended use is as a Rollator, a walking aid with wheels, manipulated by
both arms.
Please note the following special statements, used throughout this manual, and their signicance:
s
Info: Provides application recommendations or other useful information to ensure that you
get the most from your product.
Intended Use ....................................................................... 1
safety GUIdelInes—Please Read BefoRe Use ........ 1
UnPackInG ............................................................................ 2
assemBly .............................................................................. 2
oPeRatIon ............................................................................. 4
cleanInG and maIntenance ............................................ 5
sPecIfIcatIons * ................................................................. 6
lIfetIme lImIted WaRRanty ............................................. 6
InstRUccIones en esPañol ............................................ 7
RJ4700-INS-LAB-RevB12
2
rear leg and wheel,
handle and brake cable
(2 each)
seat, seat frame, and
pouch (1 each)
back bar
(1 each)
triangular knob
(4 each)
quadrangular knob
(2 each)
front leg
and wheel
(2 each)
Unless the Rollator is to be used immediately, retain box and packaging materials for storage until
use is required.
1. Carefully remove all components from the carton.
2. Inspect all components (shown above in g. 1).
3. If damage is evident to the contents, please notify the carrier and your Graham-Field authorized
distributor.
Refer to pictures at right during assembly.
Info: As shown in fig. 2, each frame leg tube has a
number corresponding to one of the four legs. Match
each number at upper end of leg to each number on
frame tube.
Info: Consult your healthcare professional to
determine proper seat height adjustment.
assembly
match number
RJ4700-INS-LAB-RevB12
3
1. Lay the Rollator on its side to install the legs.
2. Install both front legs: Match leg number to frame tube
number and insert leg into tube until locking button
pops into place at appropriate seat height.
3. Install both rear legs: Match leg number to frame tube
number and insert leg into tube until locking button
pops into place at appropriate seat height.
4. Install triangular locking knobs to secure all legs: Insert
knob into hole as shown in g. 3 and turn clockwise
until tight.
1. Position Rollator upright on wheels.
2. Open Rollator frame; spread front and rear legs apart.
3. Push down on both side crossbars so that locking
mechanisms lock legs open.
4. Fold seat down so that it rests on both seat frame
tubes.
Install both handles in frame handle receptacles as shown
in g. 4.
Info: Consult your healthcare professional to
determine proper handle height adjustment.
1. Install the height adjustment knob in the appropriate
adjustment hole with knob facing outward; install nut
on knob and tighten. Repeat for the other side. Ensure
both handles are adjusted to the same height.
Info: After adjusting handle height, the brakes
must be checked and, if necessary, adjusted by a
Graham-Field authorized distributor.
2. Secure both brake cables onto frame with brake cable clips as shown in g. 4.
seat height adjustment
seat height
adjustment
button
triangular
locking knob
handle height
adjustment
frame handle
receptacle
quadrangular
locking knob
brake cable
brake
shoe
frame brake
cable clip
seat frame tube
side
crossbar
locking
mechanism
handle
RJ4700-INS-LAB-RevB12
4
Fasten each snap on front and back of rollator to secure
the pouch to the seat frame tubes as shown in g. 5.
Install both ends of back bar into frame back bar
receptacles as shown in g. 6; push down until both
locking buttons snap into place.
Stand behind your Rollator with a hand placed securely
on each handgrip. Move your Rollator slowly forward
and select a pace that is comfortable for you. Always
be sure the rear wheels are a few inches ahead of your
body.
The Rollator has loop locking hand brakes. To slow
down, squeeze the hand brakes upward toward the
handgrips. To hold the Rollator in a stationary position,
push the hand brakes down, away from the handgrips,
until the hand brakes lock into place; the rear wheels
will be locked in place in parked position. To release,
pull the hand brakes upward toward the handles until
the rear wheels move freely.
rest
seat
handgrip
locking
hand brake
folding
pull strap
frame back bar
receptacle
back bar
locking button
back bar
seat
pouchseat frame tube snap
RJ4700-INS-LAB-RevB12
5

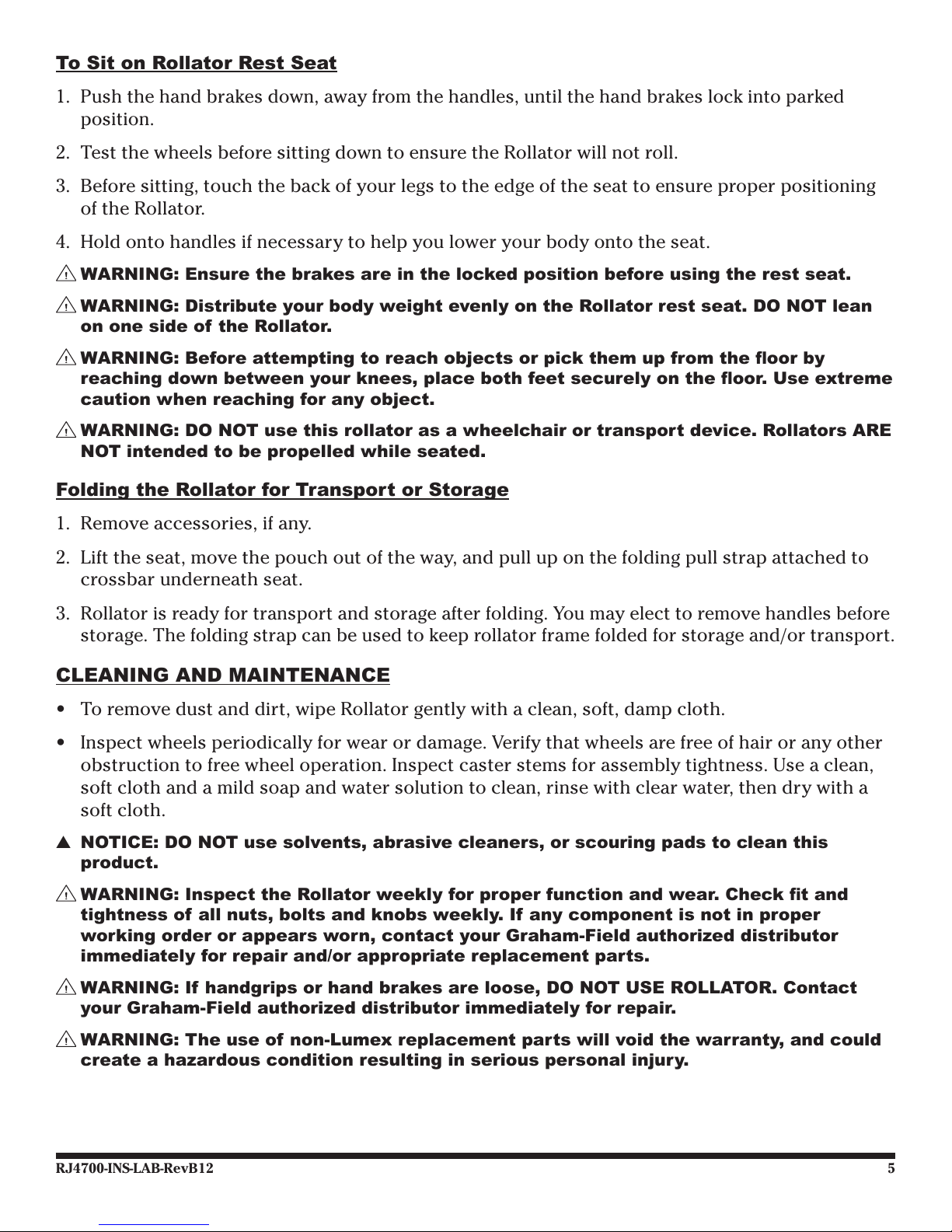

1.
Push the hand brakes down, away from the handles, until the hand brakes lock into parked
position.
2. Test the wheels before sitting down to ensure the Rollator will not roll.
3. Before sitting, touch the back of your legs to the edge of the seat to ensure proper positioning
of the Rollator.
4. Hold onto handles if necessary to help you lower your body onto the seat.
1. Remove accessories, if any.
2. Lift the seat, move the pouch out of the way, and pull up on the folding pull strap attached to
crossbar underneath seat.
3.
Rollator is ready for transport and storage after folding. You may elect to remove handles before
storage. The folding strap can be used to keep rollator frame folded for storage and/or transport.
• To remove dust and dirt, wipe Rollator gently with a clean, soft, damp cloth.
• Inspect wheels periodically for wear or damage. Verify that wheels are free of hair or any other
obstruction to free wheel operation. Inspect caster stems for assembly tightness. Use a clean,
soft cloth and a mild soap and water solution to clean, rinse with clear water, then dry with a
soft cloth.
s
RJ4700-INS-LAB-RevB12
6
GF Health Products, Inc. is not responsible for typographical errors.
Graham-Field and Lumex are registered trademarks of GF Health Products, Inc.
Model 4700 Set N’ Go 4718 Set N’ Go Wide
Dimensions Width Inside Handgrips 16.3" (414 mm) 19" (483 mm)
Overall 24.5" (622 mm) 27" (686 mm)
Depth At Minimum Seat Height 25" (635 mm) 27.5" (699 mm)
At Maximum Seat Height 29" (737 mm) 31.5" (800 mm)
Height At Minimum Handle Height 29" (737 mm) 32" (813 mm)
At Maximum Handle Height 38" (965 mm) 38" (965 mm)
Seat Height 18" - 21.5" (457 mm - 546 mm) 19.5" - 23.5" (495 mm - 597 mm)
Width 14" (356 mm) 15.75" (400 mm)
Depth 12" (305 mm) 12.4" (315 mm)
Casters Diameter 6" (152 mm) 7.5" (191 mm)
Weight Maximum Weight Capacity, EVENLY DISTRIBUTED 300 lb (136 kg) 350 lb (158 kg)
Product Weight 14 lb (6.4 kg) 16.5 lb (7.5 kg)
GF Health Products, Inc. offers a product lifetime (ve years) limited warranty on the
RJ4700 Set N’ Go Rollator /
RJ4718 Set N’ Go Wide Rollator for defects in workmanship and
materials of the frame and welding.
All other components not specically listed above are excluded from this warranty. This warranty
does not extend to non-durable components, such as wheels and brakes, which are subject to
normal wear and require periodic replacement.
During the warranty period, defective items will be repaired or replaced at GF Health Products, Inc.
option. Warranty does not include any labor charges incurred in replacement part(s) installation
or any associated freight or shipping charges to GF Health Products, Inc.
The warranties contained herein contain all the representations and warranties with respect
to the subject matter of this document, and supersede all prior negotiations, agreements and
understandings with respect thereto. The recipient of this document hereby acknowledges and
represents that it has not relied on any representation, assertion, guarantee, warranty, collateral
contract or other assurance, except those set out in this document.
