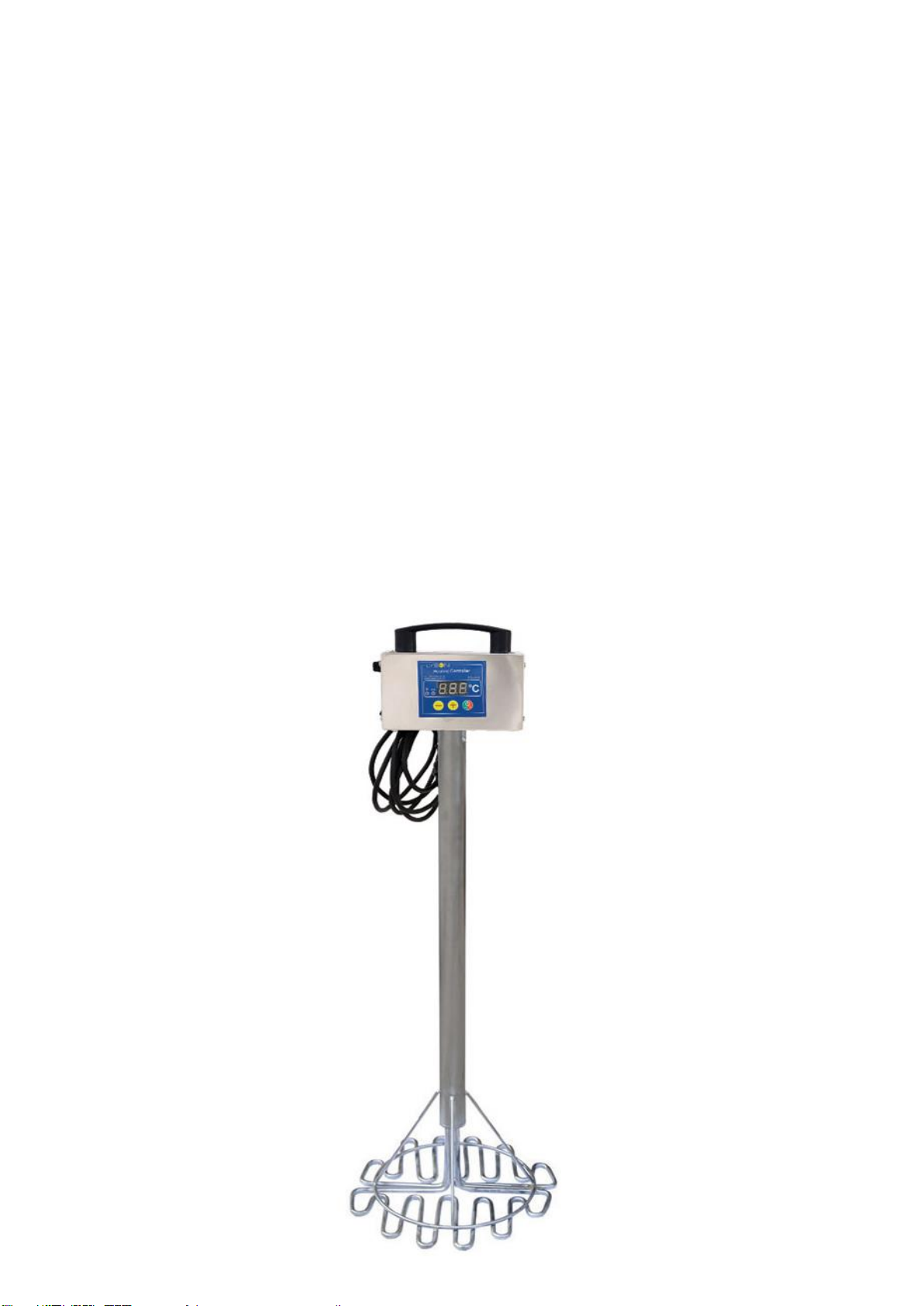

LYSON W3207 User manual

MANUAL
HONEY DECRYSTALLIZATION COIL
WITH TEMPERATURE REGULATOR
Przedsiębiorstwo Pszczelarskie Tomasz Łysoń
Spółka z o.o. Spółka Komandytowa
34-125 Sułkowice, ul. Racławicka 162, Polska
www.lyson.com.pl, email; ly[email protected]
tel. [phone]
Company based in: Klecza Dolna 148, 34-124 Klecza Górna
2017

The following manual covers the devices
bearing the following codes:
W3207 , W3208 , W3210
Manual
1. General principles for usage safety.
1.1. Electrical safety
1.2. Usage safety
2. Characteristics for the decrystallization
device.
2.1.Decrystallization.
2.2.Technical parameters of the device
3. Temperature regulator
3.1. Setting up the Controller
3.2. Starting the controller’s operation
3.3. Controller error report
3.4. Technical parameters of the regulator
4. Storing a honey creaming machine with a
heating mantle
5. Cleaning and maintenance
6. Recycling
7. Guarantee

DECRYSTALLIZATION DEVICES WITH A
TEMPERATURE REGULATOR
POWER SUPPLY 230V
Prior to operating the device please refer to the manual and
act according to the guidelines contained therein. The
manufacturer cannot be held accountable for the
damages cause by misusing the device or its improper
handling.
1. General safety principles for the
decrystallization device usage
1.1. Electric safety
a) The device must be plugged in to the socket with
grounding, with the voltage specified on the product nominal
plate
b) Power supply electric installation must be equipped
with RCD with nominal tripping current In below 30 mA.
Functioning of overcurrent circuit breaker must be checked
periodically. .
c) Periodically check the power supply cable. If non-
detachable power supply cable gets damaged and must be
replaced, it must be performed at a guarantor’s or by a
specialised repair centre or by a qualified person in order to
avoid any threat. Do not operate the device when the power
supply cable is damaged
d) In case when the device has got damaged , in order to
avoid any danger, it may be repaired by a specialist repair
centre or a qualified person solely
It is forbidden to pull the power supply cable. The power
supply cable must be kept away from any heat sources, sharp
edges and its proper state must be secured.
.
1.2. USAGE SAFETY
a) The following equipment is not intended to be used by
persons with limited physical, sensory or mental capabilities
(including children) or persons inexperienced or unfamiliar with
that type of equipment unless the usage occurs under
supervision or in line with the equipment operating manual
provided by safety supervising persons.
b) Controlling unit must be protected against humidity:
(also during storage)
c) Do not operate the device in the vicinity of flammable
materials.
d) It is forbidden to perform any maintenance works when
the device is in operation.
e) The device may be activated inside only. The device is
not adjusted to operate outdoors.
2. Characteristics for the decrystallization device
The coil shall be placed on top of the tank in which the
crystallised honey has placed.
Connect the device to the mains and set the temperature
regulator (initially max . 35 ºC until the heater gets immersed)
During the initial decrystallization phase , the coil must be
observed to avoid its falling over
2.1. HONEY DECRYSTALLIZATION:
IMPORTANT activity in the decrystallization process
remains to initially set up a lower temperature for the heaters,
e.g. 35 degrees C. The temperature shall be increased
gradually afterwards.
The regulator allows to set up the temperature ranging from
30-95 degrees C.
Honey decrystallization shall occur at the maximum
temperature of 35 to 40 degrees C.
(it is important not to overheat the honey as , on a par with
the pollen, it loses its properties with the temperatures
exceeding 40 degrees C.)
Fresh honey remains dense and transparent. With time, it is
subject to natural crystallization.
Heating the honey until the temperature of 40 degrees C
and maintaining the temperature for several days shall
make the honey switch from crystallized state (set honey)
to liquid state (strained honey).
2.2. Device technical parameters:
•Power supply –230V
•Coil power:
- Fi 250 –800W/10A.
- Fi 330 –1000W/10A
- Fi 500 –1500W/10A
•Temperature regulation: 30~95ºC
•Digital display in the temperature regulator.

3. TEMPERATURE REGULATOR
The device has been equipped with HC-01 temperature
regulator
Heating Controller
c
4 5 6
3
1 2
3.1. Setting up the controller
1. Prior to plugging in the device to the mains, one must
make sure that the controller is switched off.
2. Switch (0/1) on the control panel shall be in “0” position
3. Once plugged in to the mains, Switch (0/1) shall be
moved from “0” position to “1” position
4. Controller should be programmed in line with individual
needs
5. In order to enter the programming mode (Prog),
buttons “+” and “-“ must be pressed at the same time during
controller start-up.
3.2. Starting work with the controller
1 –signalling the work state
Indicator lights up –temperature regulator switched on,
indicator dimmed –temperature regulator switched off
(controller operates as an ordinary thermometer), indicator
flashes –temperature regulator switched on and initial heating
in progress
2 –signalling the activation of heating transmitter
Indicator lights up –transmitter contacts closed (heating on),
indicator dimmed –contacts opened (heating off)
3 –display
Working mode –default mode, selected after controller
power supply switched on. The display shows the measured
temperature, readings specified in oC.
Setting mode –selected when button “+” or “-“ has been
pressed. The display shows the preset temperature. Readings
specified in oC. Reading flashes and returns to measured
temperature after a while.
Working time setting mode (Pro.) –activated when
“ON/OFF” button is pressed and held. The display shows
working time, counting it from activation, after which the
thermostat gets switched off. Readings specified in hours.
Display brightness setting mode (d.br.) –activated when
“ON/OFF” button is pressed and held for a longer time. The
display shows the currently set brightness on all its segments .
When the setting limit values are reached, the segments start
to flash.
The modes specified below are accessible once the
relevant code have been entered.
Calibration mode (CAL.) code L-1 –activated when the
“ON/OFF’ button has been pressed and held for a longer time.
The display shows the measured temperature including the
calibration. Readings specified in oC.
Preliminary heating time setting mode (P.tI.) code L-2 –
activated when “ON/OFF” button is pressed and held for a
longer time. The display shows the working time, counting it
from the activation, for which the controller performs
preliminary heating maintaining the preliminary heating
temperature programmed by the manufacturer. Reading “OFF”
means deactivation of the preliminary heating function.
Readings specified in minutes. When preliminary heating
activated, the controller displays marking “HC2” during start-
up.
Preliminary heating temperature setting mode (P.tE.) code
L-3 –activated when the “ON/OFF” button is pressed and held
for a longer time. The display shows the value of preset
temperature for preliminary heating. Readings P … specified in
oC.
Preset temperature limit setting mode (L.t.h.) code L-4 –
activated when “ON/OFF” button is pressed and held for a
loner time. The display shows maximum value of preset
temperature that can be set . Readings L … are specified in
oC.
.4 –button „-„ value decreasing
Working mode –pressing the button will decrease the preset
temperature value. During preliminary heating, the option to
change the setting for preset temperature is blocked.
Working time setting mode –pressing the button will
decrease the time after which the thermostat will get switched
off.
Display brightness setting mode –pressing the button will
decrease the brightness of the display.
Calibration mode –pressing the button will decrease the
value of the temperature to be transferred, calibrating the
measurement duct in this way.
Preliminary heating time setting mode –pressing the button
will decrease the time after which the thermostat will switch
from preliminary heating phase to proper heating phase.

Preliminary heating temperature setting mode –pressing
the button will decrease the value of preset temperature that
will be maintained during preliminary heating.
Preset temperature limit setting mode –pressing the button
will decrease the value of maximum preset temperature that
will be to set. 5 –button „+” value increasing
Working mode –pressing the button will increase the value of
preset temperature. During preliminary heating, the preset
temperature setting changes is blocked.
Working time setting mode –pressing the button will
increase the time after which the thermostat gets switched off.
Display brightness setting mode –pressing the button will
increase the brightness of the display
Calibration mode –pressing the button will increase the value
of the transferred temperature, calibrating the measuring duct
in this way.
Preliminary heating time setting mode –pressing the button
will increase the time after which thermostat switches from
preliminary heating phase to proper heating phase.
Preliminary heating temperature setting mode pressing the
button will increase the value of preset temperature which will
be maintained during preliminary heating.
Preset temperature limit setting mode –pressing the button
will increase the value of maximum preset temperature that
can be set 6 –„ON/OFF” button
Short-time pressing of the button will activate (ON) and
deactivate (OFF) the regulator interchangeably. At deactivated
state (OFF) the regulator act as a thermometer. At activated
state (ON) , the regulator shall activate and deactivate the
outlet to control the heater in order to maintain the temperature
set by the user.
Longer pressing and holding of the button and subsequent
button releasing will activate the working time setting mode,
signalled with (Pro.) notice. In this mode, by means of “+” and
“-“ buttons , the user has a possibility to define the time after
which the controller gets deactivated, i.e. switches to the OFF
state. Exit from the mode and setting approval occurs once the
“ON/OFF” button is shortly pressed.
Longer pressing and holding of the button and its subsequent
releasing will activate the display brightness setting mode –
signalled with (d.br) notice.
In this mode, by means of “+” and “-“ buttons the user has the
possibility to set the brightness of the display segments. Exit
from the mode and confirming the setting occurs when the
“ON/OFF” button is pressed shortly. Longer pressing and
holding of the button and subsequent releasing of the button
will activate the calibration mode, signalled by the (CAL)
notice. In this mode by means of “+” and “-“ buttons, the user
has a possibility to adjust the temperature readings to the real
temperature. Exist from the mode and confirming the
calibration settings occurs when the “ON/OFF” button is
pressed shortly.
NOTE –the controllers supplied have been calibrated
already.
Longer pressing and holding of the button and subsequent its
releasing shall activate the preliminary heating time setting
mode, signalled by (P.tl) notice. In this mode by means of “+”
and “-“ buttons the user has a possibility to define the time
after which the controller gets switched from preliminary
heating phase to proper heating phase. Deactivation of
preliminary heating is signalled by the “OFF” notice. Exist from
the mode and setting confirmation occurs when the “ON/OFF”
button is pressed shortly.
Longer pressing and holding of the button and its subsequent
releasing will activate the preliminary heating temperature
setting mode, signalled by (P.tE.) notice. In this mode by
means of “+” and “-“ buttons the user has a possibility to define
the preset temperature that shall be maintained during
preliminary heating. Exit from the mode and setting
conformation occurs when the “ON/OFF” button is pressed
shortly.
Longer pressing and holding of the button and its subsequent
releasing will activate the preset temperature limit setting
mode, signalled by (L.t.h.) notice. In this mode by means of
“+” and “-“ buttons the user has the possibility to set the upper
limit of the preset temperature settings. Exit from the mode and
setting confirmation occurs after the “ON/OFF” button is
pressed shortly
NOTE –all controller settings and working state
(activated or deactivated) are stored in the non-
volatile memory.
Entering the access codes
During controller start-up (displayed controller’s name,
software version, settings), press and hold the “+” and “-
“ buttons. Once “---“ has been displayed on the screen,
buttons may be released and the relevant code can be set.
The code shall be confirmed by the “ON/OFF” button.
CODE
ACCESS LEVEL
Any
L-0
157
L-1
314
L-2
628
L-3
942
L-4
Working time setting mode (code L-0)
Display brightness setting mode (code L-0)
Calibration mode (code L-1)
Preliminary heating time setting mode (code L-2)
Preliminary heating temperature setting mode (code L-3)
Preset temperature limit setting mode (code L-4)
3.3. Controller error report
HC1 controller has been equipped with advanced
mechanisms for error detection. Detection of any error
activates emergency work stoppage and triggers error report
screen. Error report screen is displayed in a continuous
manner. It is therefore necessary to disconnect power supply,
remove the error source and controller reconnection.

ERROR
ERROR DESCRIPTION
(E-0) CPU
STATUS
Damaging the main processing
unit.
(E-3) T < Tmin
Too low temperature measured
by T1 sensor.
(E-4) T > Tmax
Too high temperature measured
by T1 sensor.
(E-5) button -
“-“ button damage/pressing
(E-6) button +
“+” button damage /pressing
(E-7) button
ON/OFF
“ON/OFF” button
damage/pressing
3.4. Controller’s technical parameters
CONTROLLER’S TECHNOLOGICAL
PARAMETRES (STATE FOR FW: 0.1)
Temperature measurement
range*:
-50oC ... +250oC
Temperature readout
resolution:
0,1°C
Temperature measurement
accuracy:
± 1,5 °C
Minimal value of preset
temperature:
30°C
Maximum value of preset
temperature:
Set up in the range:
45oC ... 95oC
Setting range for automatic
deactivation:
1 … 96 hours
Setting range for
preliminary heating
temperature:
30oC ... 40oC
Setting range for
preliminary heating time:
0 … 60 minutes
Regulation type:
b--state
Controller’s electrical parameters
Power supply for the
controller board:
Power supply of dedicated
feeder:
12VDC ±10%, Min.
200mA
100…240VAC 50/60Hz
Measurement input for
temperature measurement
PT1000
Outlet type:
Relay, contact NO
Output load:
AC1 - 9A 230V
Maximum power of the
heater attached:
2000W 230VAC
Outlet switching durability
> 3 x 104for 10A 230VAC
Maximum switching
frequency AC1
600 cycles/h
Environmental conditions
Temperature of the
regulator in operation:
0oC…55oC
Ambient temperature for
stored regulator:
0oC…60oC
Air humidity for the
regulator in operation:
Max 65% at 25oC
4. Storing the device
Once the activities related to the device operation have
terminated, the device must cleaned and dried thoroughly.
Prior to the device start-up, in case when it has been
transferred from the room with lower temperature to the room
with higher temperature, one must wait until it has reached the
ambient temperature. To be stored in dry rooms with
temperatures over 0º C
Prior to every season, an additional inspection must be
performed for technical issues and in case any fault has
been detected, a service point must be contacted
5. Cleaning and maintenance
IMPORTANT!
Prior to the maintenance, the plug must be taken out from
the mains.
Prior to the first use, the creaming machine must be washed
and dried thoroughly.
The device shall be washed with hot water with added agents
permissible to be used in food industry. The device shall be
washed with soft flannel fabrics, remember to protect any
electrical elements. Once cleaned, rinse with pure water and
dry.
Once honey creaming process has terminated, the device
must be washed and dried.
Creaming machine shall be stored in a dry room.
None of the device elements shall be maintained with
chemicals.
.
6. Recycling
Worn-out product must be removed as waste only within
selective waste collection organised by the Network of
Communal Electric and Electronic Waste Collecting Points. A
customer is entitled to return the used equipment to the

electrical equipment distributor network, at least free of charge
and directly, if the device to be returned is of proper type and
serves the same purpose as the newly purchased device
6. Guarantee
Product purchased from “Łysoń’ company are encompassed
by the manufacturer’s guarantee.
The guarantee duration equals 24 months.
A receipt or a VAT invoice is issued for each product
purchased.
Detailed guarantee terms and conditions, see
www.lyson.com.pl
