Makita 1911B User manual

110 mm (4-318") MODEL 1911B
Planing depth
110 mm 14 3/8"1 2 mm (1116"l
Planing width
INSTRUCTION MANUAL
No load speed Overall length Net weight
IRPMI
16,000 355 mm 114") 4 2 kg (9 3 Ibs)
DOUBLE
IIYSUL ATION
* Manufacturer reserves the right to change specifications without notice
Note Specifications may differ from country to country

I M PO RTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. Whennot
in use, tools should be stored indry, and high
or locked-up place
- out of reach of children.
DON'T FORCE TOOL.
It will do thejob better andsafer at the rate for which
it was intended.
USE RIGHT TOOL. Don't force smalf tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear loose clothing orjewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering to contain long hair.
USE SAFETY GLASSES. Also use face or dust mask
if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cord or yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructions for lubricating and changing acces-
sories. Inspect toolcords periodicallyand if damaged, haverepairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not inuse, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keys and adjusting wrenches are removed fromtool beforeturning
it on.
15. AVOID UNINTENTIONAL STARTING. Don‘t carry plugged-intool with finger
on switch. Be sure switch is
OFF when plugging in.
16. OUTDOOR USE EXTENSION CORDS. When tool is usedoutdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don’t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform its intended function. Check for alignment of
movingparts, bindingof movingparts, breakage of parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere inthis instruction manual.
Have defective switches replaced by authorized service center. Don’t use
tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS.When servicing, use only identical replacement parts.
VOLTAGE WARNIN?: Beforeconnecting the tool toa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY to the user - as well as damage to
the tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source
with
voltage less than the nameplate rating is harmful to the motor.
3

ADDITIONAL SAFETY RULES
1. Rags, cloth, cord, string and the like should never be left around the work
2. Avoid cuttingnails. Inspectfor and remove all nails from the workpiece be-
3. Handle the blades very carefully.
4. Be sure the blade installation bolts are securely tightened before operation.
5. Hold the tool firmly with both hands.
6. Keep hands away from rotating parts.
7. Before using the tool on an actual workpiece, let it run for a while. Watch
for vibration or wobbling that could indicate poor installation or a poorly
balanced blade.
8. Make sure the blade is not contacting the workpiece before the switch is
turned on.
9. Wait until the blade attains full speed before cutting.
area.
fore operation.
IO. Keep at least 200 mm (8”) away from the tool at all times.
11. Always switch off and wait for the blades to come to a complete stop be-
12. Never stick your finger into the chip chute. Chute may jam when cutting
13. Do not leave the tool running. Operate the tool only when hand-held.
14. When leaving the planer, switch off and set it with the front base up on a
15. Always change bothblades or covers onthe drum, otherwise the resulting
fore any adjusting.
damp wood. Clean out chips with a stick.
wooden block,
so that the blades do not contact anything.
imbalance will cause vibration and shorten tool life.
SAVE THESE INSTRUCTIONS.
4

Removing or installing planer blades
CAUTION :
Always be sure that the tool is switched off and unplugged before removingor installing
the blade.
The blade
is secured with four bolts. Re-
move the inner two bolts entirely with
the socket wrench and loosen the outer
two bolts two turns each.
Press down on the pin inthe middle of the
drum with one end of the socket wrench
handle. The blade can be pushed and
jiggled out
so as to be removed. (If the
blade becomes
so short that it cannot be
grasped,
you must remove the four bolts
and the drum cover. Then push the blade
out with one end
of the socket wrench
handle.)
To install the blades, first clean out all
chips or foreign matter adhering to the
drum or blades. Use blades of the same
dimensions and weight, or drum oscilla-
tionhibration will result, causing poor
planing action and, eventually, tool break-
down.
Insert the blade, holding both ends,
so that
it protrudes from between the blade holder
and the drum. Then secure the four bolts
only finger-tight.
Fig. 1
Fig. 2
Fig. 3
5

Align the blade edge with the mark and
make the drum stationary by means of the
stopper pin.
Place the leveller over the rear
base and blade, and press the leveller down
slightly.
Release the stopper pin.
Turn the drum in the direction of the
arrow
(Fig. 6) to check the blade protru-
sion, holding the leveller flush against the
blade and rear base. The blade edge should
just contact the underside of the leveller.
When the blade edge does not protrudefar
enough from the base, press down on the
pin in the middle of the drum with the
socket wrench handle, and adjust the
blades again
as mentioned above. After
adjusting both blades, tighten the four in-
stallation bolts evenly and alternately with
the socket wrench.
Stopper pin
When released When secured
~ Fig.
4
I
Leveller
-
R se
I
Fig.
CATU ION :
Tighten the blade installation bolts carefully when attaching the blades to the tool. A
loose installationbolt can be dangerous. Always check to see they are tightened securely.
6

For the correct planer bladesetting
Your planing surface
will end up rough and uneven, unless the blade is set properly and
securely. The blade must
be mounted so that the cuttingedge is absolutely level, that is,
parallel to the surface
of the rear base. Below are some examples of proper and improper
settings.
(A) Front base (Movable shoe)
(B)Rear base (Stationaryshoe)
Although this side view cannot show
it, the edges of the blades run perfectlv
parallel to the rear base surface.
Nicks in
surface
Cause: One or both blades fails to have
edge parallel to rear base line.
to rear base line.
at start
~~~&~~ Cause: One or both blade edges pro-
trudes too far in relation to rear
base line.
at end
Adjusting depth of cut
Depth of cut may
be adjusted by simply
turning the knobon
the front of the tool.
Switch action
To start the tool, simply pull the trigger.
Release the trigger tostop. For continuous
operation, pull the trigger and then push in
the lock button.
To stop the tool from the
locked position. pull the trigger fully, then
release
it.
Fig. 8
CAUTION :
Before plugging in the tool, always check to see that the trigger switch actuates properly
and returns tothe
"OFF" position when released.
7

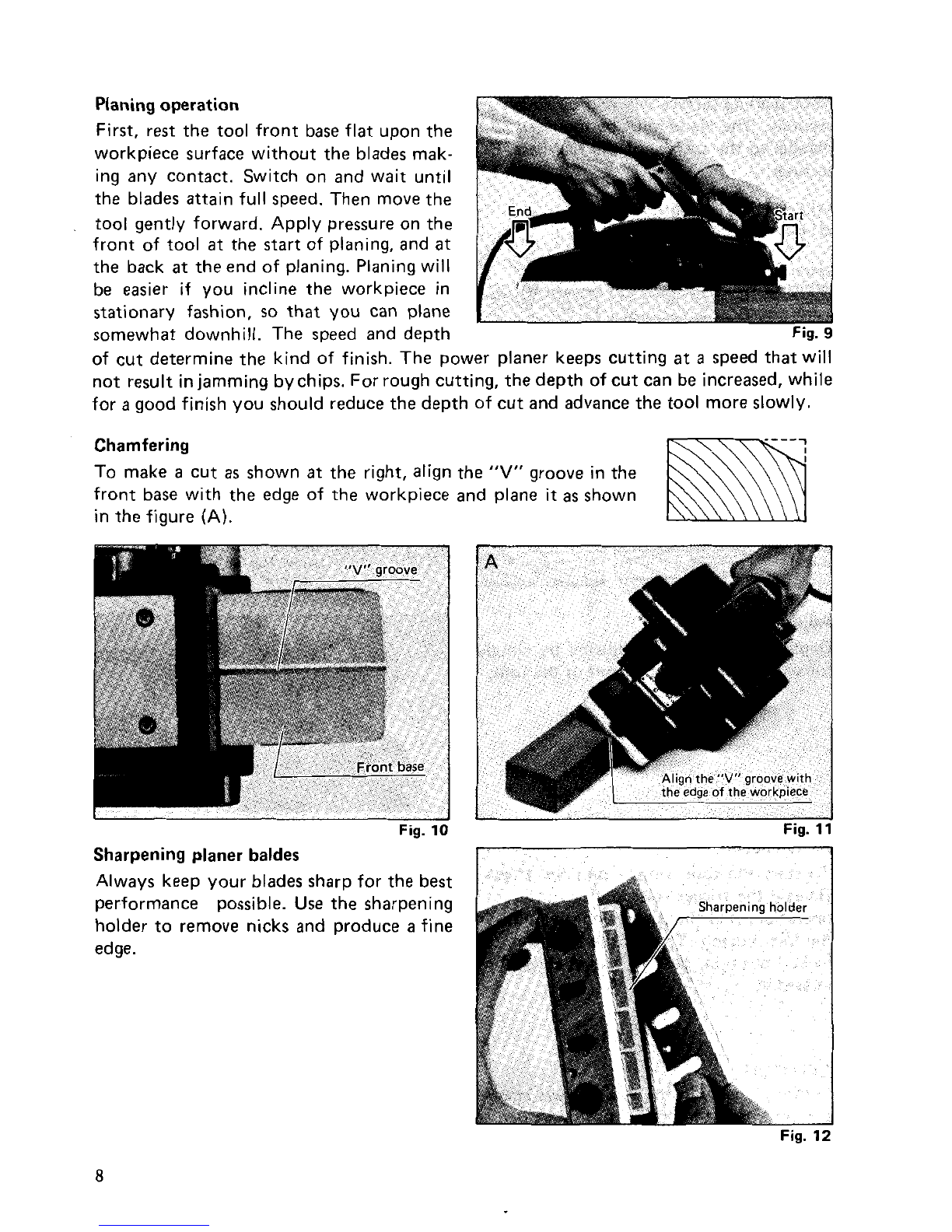

Planingoperation
First, rest the tool front base flat upon the
workpiece surface without the blades mak-
ing any contact. Switch on and wait until
the blades attain full speed. Then move the
tool gently forward. Apply pressure on the
front of tool
at the start of planing, and at
the back at the end of planing. Planingwill
be easier if you incline the workpiece in
stationary fashion,
so that you can plane
Fig. 9
somewhat downhill. The speed and depth
of cut determine the kind of finish. The power planer keeps cutting
at a speed that will
not result injamming bychips. Forrough cutting, the depth of cut can be increased, while
for
a good finish you should reduce the depth of cut and advance the tool more slowly.
Chamfering
To make
a cut as shown at the right, align the "V" groove inthe
front base with the edge of the workpiece and plane
it as shown
inthe figure (A).
Sharpening planer
baldes
Always keep your blades sharpfor the best
performance possible.
Use the sharpening
holder
to remove nicks and produce a fine
edge.
A Ignthe "V" groove w th
theedge
of the worcpiece
Fig. 11
I 1
Fig. 12
8

First, loosen the two wing nuts on the
holder and insert the blades
(A) and (B)
so that they contact the sides (C) and (D).
Then tighten the wing nuts.
Immerse the dressing stone in water for
2
or 3 minutes before sharpening. Hold the
holder
so that the blades both contact the
dressing stone for simultaneous sharpening
at the same angle.
I
Wing nut
Side (C)
Fig. 1
Fig. Id
MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspection
or maintenance.
The tool will stop when the carbon brushes wear to
a certain length. When this occurs,
both carbon brushes should be replaced.
To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and
replacement, any other maintenance or adjustment should be performed by Makita
Authorized or Factory Service Centers, always using Makita replacement parts.
9

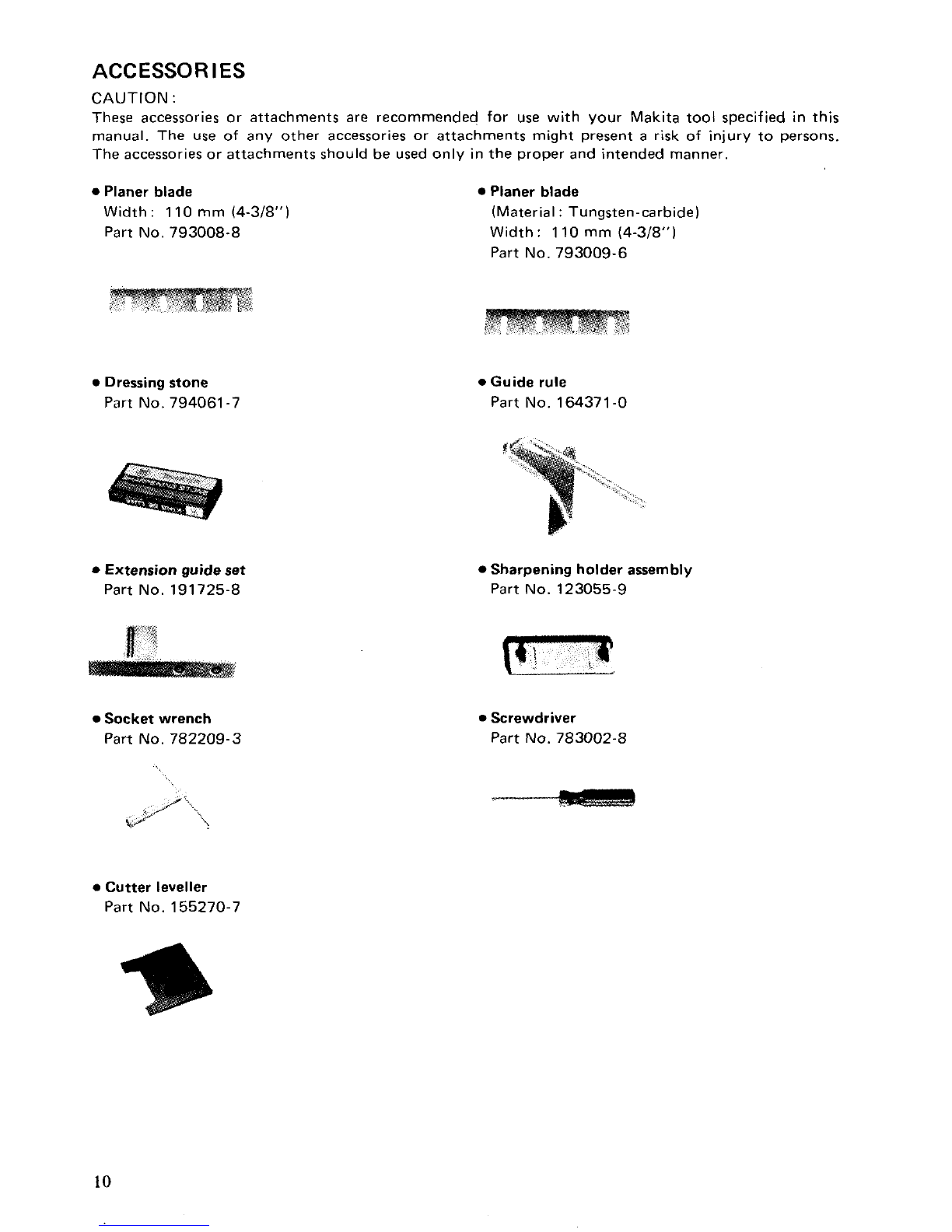

ACCESSO R I ES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachments should be used only inthe proper and intended manner.
0 Planer blade
Width : 110 mm (4-3/8")
Part No. 793008-8
Planer blade
(Material : Tungsten-carbide)
Width: 110 mm (4-3/8")
Part
No. 793009-6
Dressingstone
Part No. 794061 -7
0 Extension guide set
Part No. 191725-8
0 Guide rule
Part No. 164371 -0
Sharpening holder assembly
Part No. 123055-9
Socket wrench
Part No. 782209-3
0 Screwdriver
Part No. 783002-8
0 Cutter leveller
Part No. 155270.7
10

110 mm (4-3/8")
POWER PLANER
Model 1911B
Dec.-10-'87 EN
Note: The switch. noise suppressor and other part configurations
may differ from country to country.
11

Mar -31-89 US
ITEM A:D DESCRIPTION
MB
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
40
49
50
51
52
53
54
55
56
57
58
59
EO
61
11
21
1
1
1
1
1
1
6
1
1
1
1
1
1
1
1
1
1
1
1
2
4
2
8
1
1
1
1
1
1
1
51 1
10
11
12
13
14
15
16
17
18
19
21
22
23
1
4
2
2
1
2
1
1
1
1
1
1
1
24 6
25 1 1
26
27
28
29
30
31
32
1
1
1
1
1
2
1
Cord
Cord Guard
Strain Relief
Pan Head Screw M4x18 IWith Washerl
Switch
Handle Cover
Pan
Head Screw M4x40 IWilh Washer1
Pan Head Screw M4x30 (WithWasherl
Name Plate
Rivet 0-5
Brush Holder
Carbon
Brush
Pan Head Screw M4x40 IWith Washerl
Pan Head Screw M4x14 IWifhWaaherl
Rear Cover
Knob
50
Fiat Washer 10
Main
Frame
Rubber Packing
Pan Head Screw M5x2O lWi~hWasherl
Rear Base
Baffle Plate
Rubber Pin 4
Ball
Bearing 60BLLB
' Rubber Pm 4
FIELD ASSEMBLY
, Hex holt M5x65 IWith Washer)
Inulation Washer
ComDresslon Spring 18
' Front Base
ARMATURE ASSEMBLY
IWith
Items 28 & 32 - 361
Fan 68
Dust Seal 10
Ball Bearing 6200LLB
Bracket
Pan Head Screw M4x30 (WithWasher1
V Pulley 4-24L
Poly VBelf 4-272
Belt Cover
Pan Head Screw M4x16 (WithWasherl
V Pulley 4-38
Ball Bearing 600022
Washer 10
Drum
Washer 12
Ball Bearing 620122
Rubber Psn 6
Rubber Pin 4
Blade Holder
Pan Head Screw M4r8 IWith Washerl
Drum
Plate
Hex Flange Head Bolt M6x17
Pln
StOD Ring E-3
Slopper P,"
Pan 2
Nut M4-12
Leaf
Spring
COmDreSSlOn SDrlnQ 5
Note The switch and other part specifications may differ from country to country
MAKITA LIMrlED ONE YEARWARRANTY
Warranty Policy
tvery Makita tool IS thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship or material. Makita will repair (or at our optlan,
replace) without charge.
This
Warranty does not apply where:
repairs have been made oratlemDted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or impronerlv maintained:
alterationshave been made to the 1001.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE
OR USE OFTHE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OFTHIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE,"
AFTER THE ONE-YEAR TERM OFTHIS WARRANTY.
This
Warranty gives you specific legal rights, and you may also have other nghts which vary from
state to state. Some States do not allow the exclusion or limitation of Incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an imphed warranty lasts, so the above limitation may not apply to you.
Flrrtkir-,ud.
11-8,3-chome, Sumiyorhi-cho, Anjo, Aichi 446, Japan
883098 - 062
PRINTED INJAPAN
1989 - 5 - N
