Makita HG 1100 User manual

Power Planer
Planing
width
82 mm (344”) MODEL 1100
Planing Rabbeting No load speed Overall Net
depth depth (RPM) length weight
INSTRUCTION MANUAL
82 mm
(3-114”)
DOUBLE
INSULATION
415 mm 4.9 kg
(1
6-318”) (10.8 Ibs)
16,000
3 mm 20 mm
(118“)
(314”)
SPECIFICATIONS
Manufacturer reserves the right to change specifications without notice.
* Note: Specifications may differ from country to country.

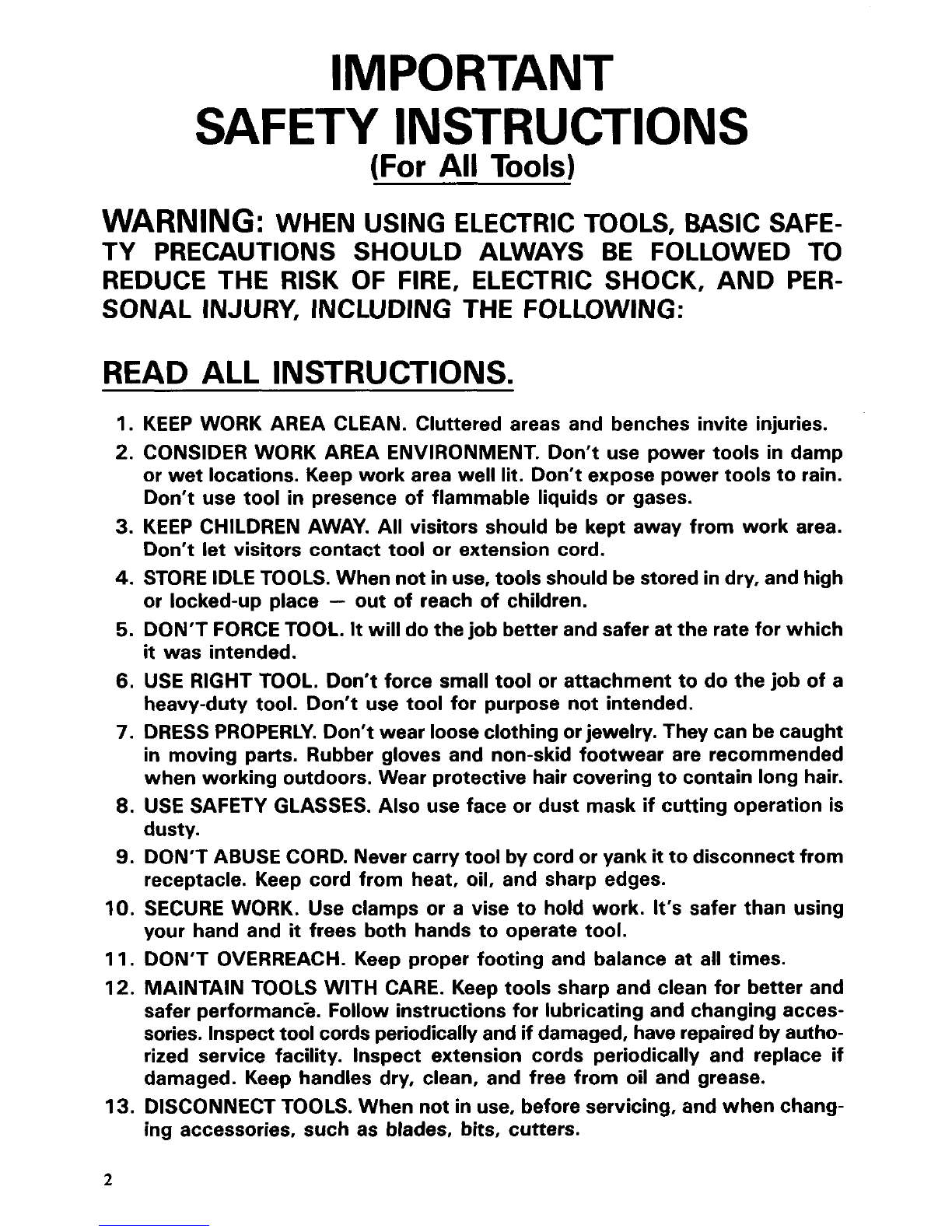

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. Whennot
in use, toolsshould bestoredindry, andhigh
or locked-up place - out of reach of children.
DON'T FORCETOOL.
It willdothejob better and safer attheratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool
or attachment to do thejob of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing
or jewelry. They can becaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
USE SAFETY GLASSES. Also use face
or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool bycordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAINTOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricating and changing acces-
sories. Inspecttool cordsperiodicallyand
if damaged, haverepairedbyautho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removed from toolbefore turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-intoolwithfinger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. When tool is usedoutdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what youare doing, use common sense. Don't operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform its intended function. Check for alignment of
movingparts, bindingof movingparts, breakageof parts, mounting, and any
other conditions that may affect its operation. A guard or other part that
isdamagedshould be properly repairedor replaced by an authorized service
center unlessotherwise indicated elsewhereinthis instructionmanual. Have
defective switches replaced by authorized service center. Don't use tool if
switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identicalreplacementparts.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY tothe user - as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

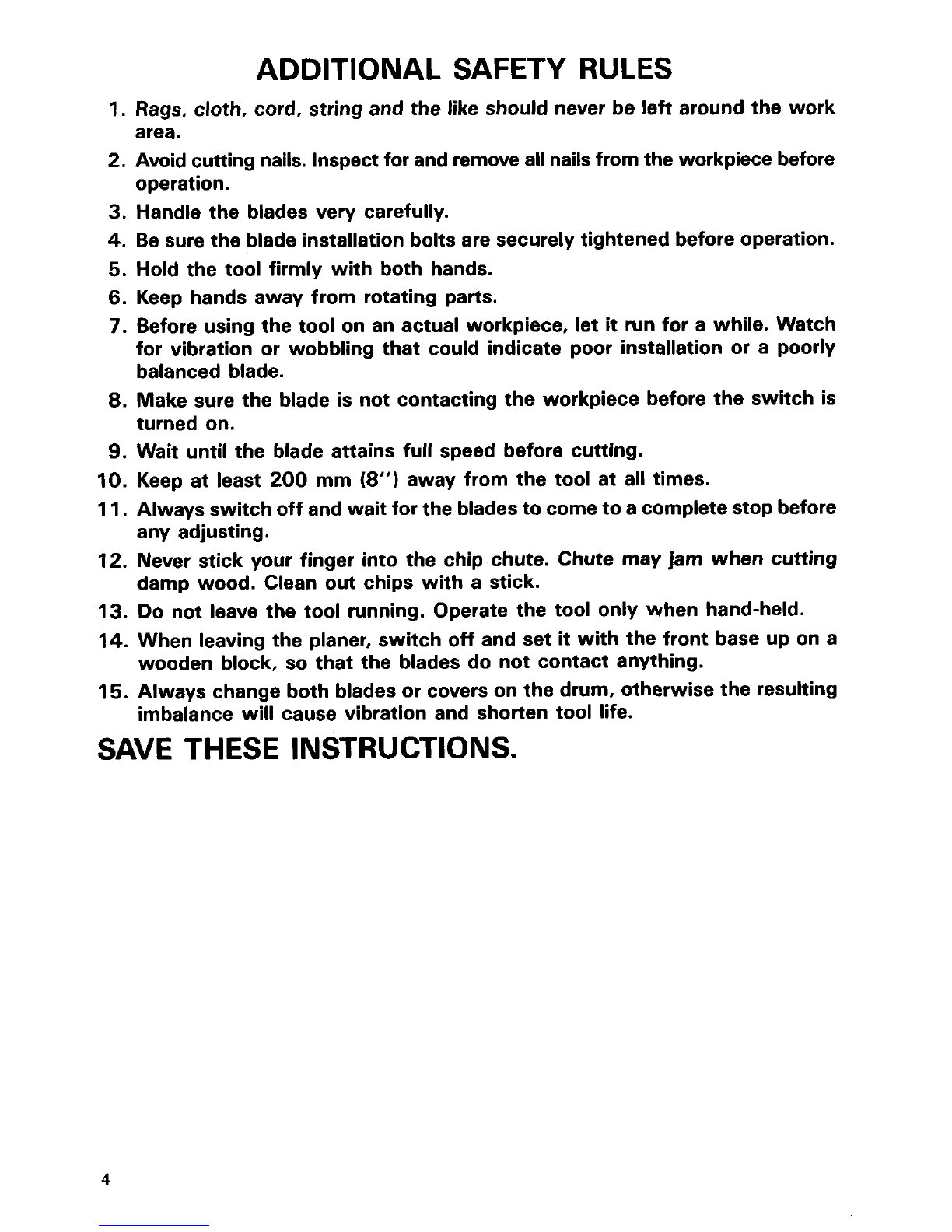

ADDITIONAL SAFETY RULES
1. Rags, cloth, cord, string and the like should never be left around the work
2. Avoid cutting nails. Inspectfor andremoveall nailsfrom theworkpiecebefore
3. Handle the blades very carefully.
4. Be sure the bladeinstallation bolts are securely tightened beforeoperation.
5. Hold the tool firmly with both hands.
6. Keep hands away from rotating parts.
7. Before using the tool on an actual workpiece, let it run for a while. Watch
for vibration or wobbling that could indicate poor installation or a poorly
balanced blade.
8. Make sure the blade is not contacting the workpiece before the switch is
turned on.
9. Wait until the blade attains full speed before cutting.
area.
operation.
IO. Keep at least 200 mm (8”) away from the tool at all times.
11. Always switchoff andwait for the bladestocometoacompletestop before
12. Never stick your finger into the chip chute. Chute may jam when cutting
13. Do not leave the tool running. Operate the tool only when hand-held.
14. When leaving the planer, switch off and set it with the front base up on a
15. Always change both bladesor covers on the drum, otherwise the resulting
any adjusting.
damp wood. Clean out chips with a stick.
wooden block,
so that the blades do not contact anything.
imbalance
will cause vibration and shorten tool life.
SAVE THESE INSTRUCTIONS.
4

Removingor installingmini planer blades
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore removing or installing
the blade.
To remove the blades on the drum, un-
screw the three installation bolts with the
socket wrench. The drum cover comes off
together with the blades.
1. Remove the existing blade, if the tool has been in use, carefully clean the drum sur-
faces and the drum cover.
2. Loosely attach the adjust plate to the set plate with the pan head screws and set the
mini planer blade on the gauge base
so that the cutting edge of the blade is perfectly
flush with the inside flank of the gauge plate.
3. Set the adjust platehet plate on the
gauge base
so that the planer blade
locating lugs on the
set plate rest in the
mini planer blade groove, then press in
the heel of the adjust plate flush with
the back side of the gauge base and
tighten the pan head screws.
4. It is important that the blade sits flush
with the inside flank
of the gauge plate,
the planer blade locating lugs
sit in the
blade groove and the heel of the adjust
plate is flush with the back side of the
gauge base. Check this alignment care-
fully to ensure uniform cutting.
Inside flank of
\
Mini planer blade
5. Slip the heel of the adjust plate into the groove of the drum.
6. Set the drum cover over the adjust plate/set plate and screw in the three hex flange
head bolts
so that a gap exists between the drum and the set plate to slide the mini
planer blade into position. The blade will be positioned by the planer blade locating
lugs
on the set plate.
5

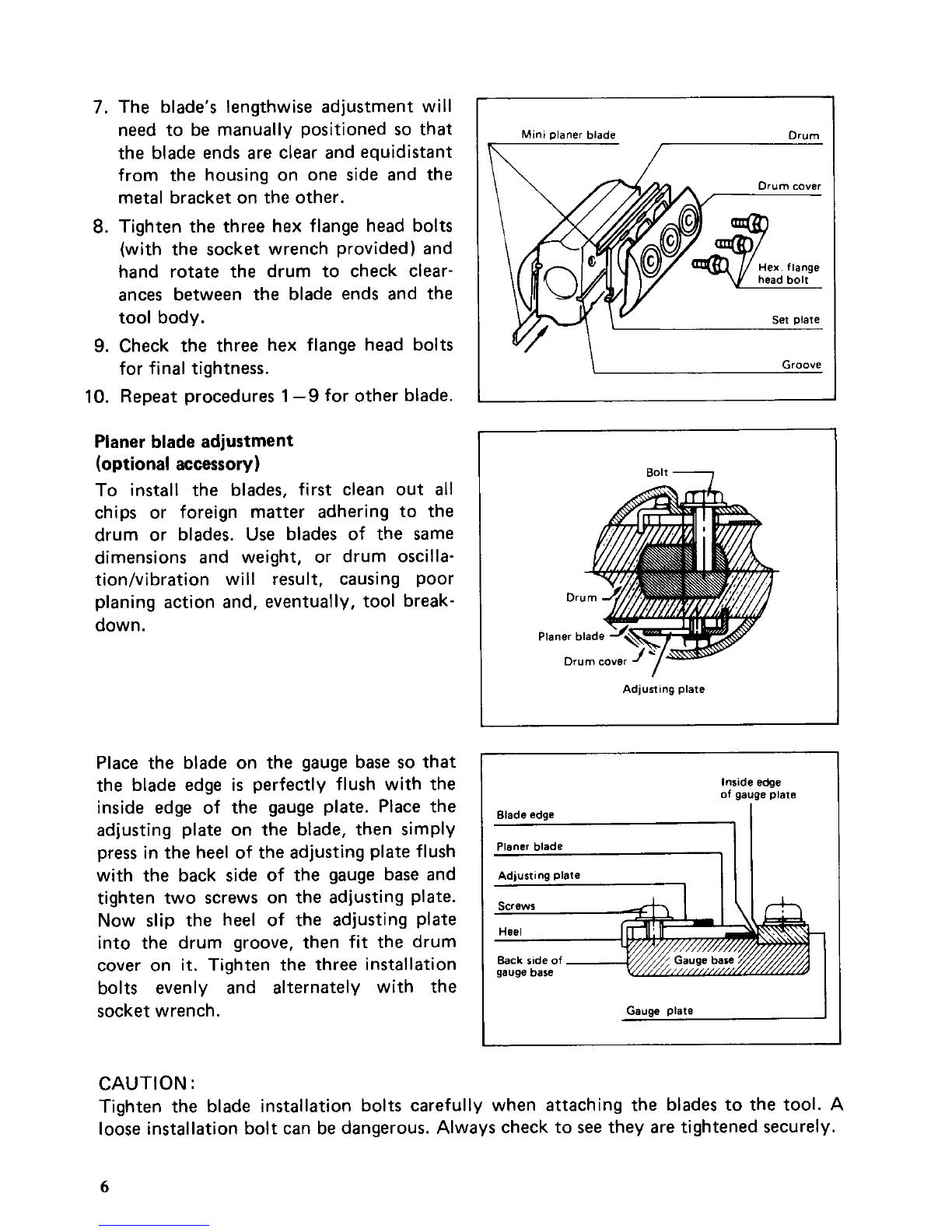

7. The blade's lengthwise adjustment will
need to be manually positioned
so that
the blade ends are clear and equidistant
from the housing on one side and the
metal bracket on the other.
8. Tighten the three hex flange head bolts
(with the socket wrench provided) and
hand rotate the drum to check clear-
ances between the blade ends and the
tool body.
9. Check the three hex flange head bolts
for final tightness.
IO. Repeat procedures 1-9 for other blade.
Planer blade adjustment
(optional accessory)
To install the blades, first clean out all
chips or foreign matter adhering to the
drum or blades. Use blades of the same
dimensions and weight, or drum oscilla-
tion/vibration will result, causing poor
planing action and, eventually, tool break-
down.
Place the blade on the gauge base
so that
the t.ade edge
is perfectly flush with the
inside edge of the gauge plate. Place the
adjusting plate on the blade, then simply
press inthe heel of the adjusting plate flush
with the back side of the gauge base and
tighten two screws on the adjusting plate.
Now slip the heel of the adjusting plate
into the drum groove, then fit the drum
cover on
it. Tighten the three installation
bolts evenly and alternately with the
socket wrench.
I Mini planer blade Drum
s-
\ Groove
Plar
ier blade yq
Drum cover '
Bolt
Drum
-
Adjusting plate
I
Inside edge
of gauge plate
Blade edge
Planer blade
Adjusting plate
Back side
of --
gaugebase
Gauge plate
CAUTION :
Tighten the blade installation bolts carefully when attaching the blades to the tool. A
loose installation bolt can be dangerous. Always check to
see they are tightened securely.
6

For the correct planer blade setting
Your planing surface will end up rough and uneven, unless the blade is set properly and
securely. The blade must
be mounted so that the cutting edge is absolutely level, that is,
parallel to the surface of the rear base. Below are some examples of proper and improper
settings .
(A) Front base (Movable shoe)
(6) Rear base (Stationary shoe)
Although this side view cannot show
it, the edges of the blades run perfectly
parallel tothe rear base surface.
Cause: One or both blades fails to
have edge parallel to rear base
line.
Nicks
in
surface
to rear base line.
Gouging
at end
~~~&~( Cause : One or both blade edges pro-
trudes too far
in relation to
rear base line.
Adjusting depth of cut
Depth of cut may be adjusted by simply
turning the knobon the front of the tool.
7
7

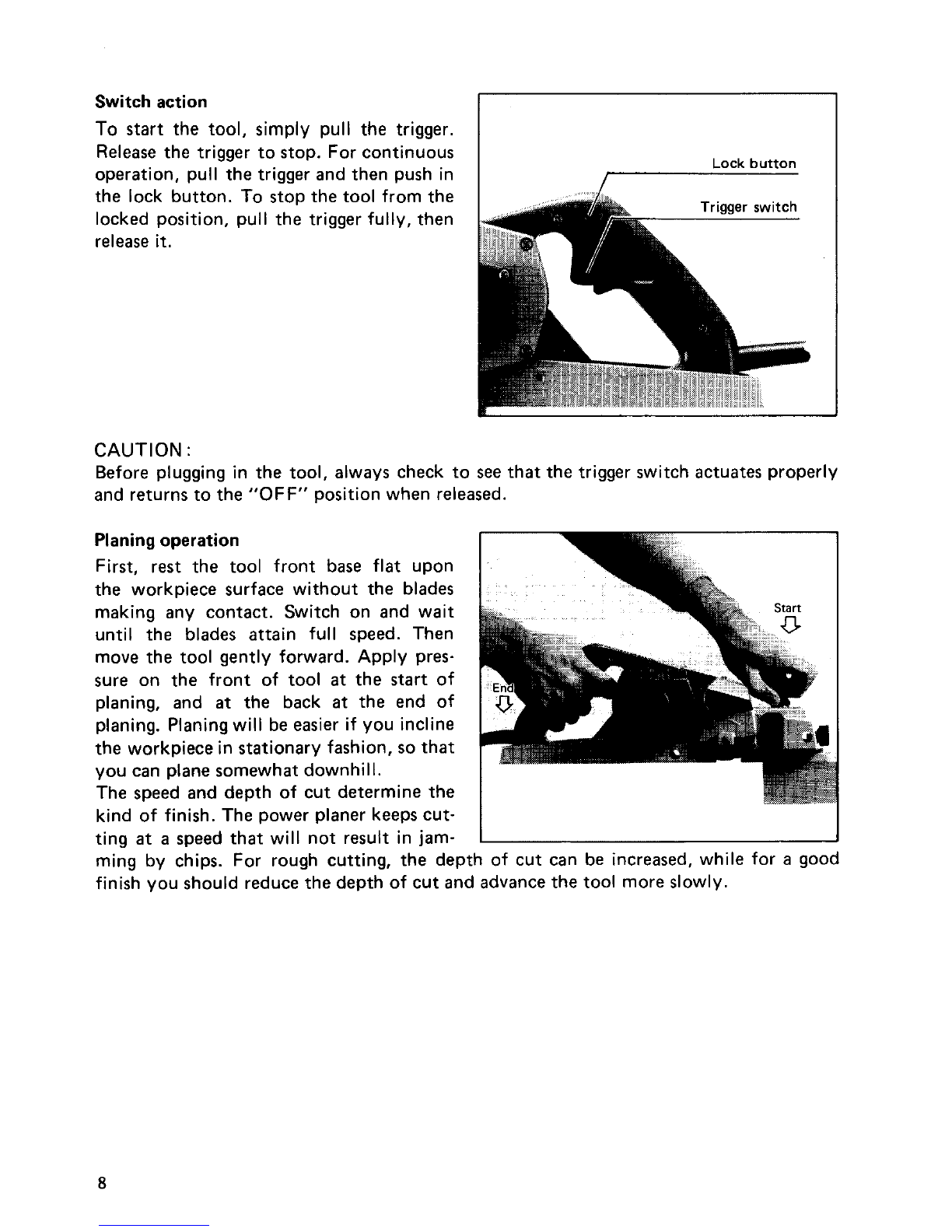

Switch action
To start the tool, simply pull the trigger.
Release the trigger tostop. For continuous
operation, pull the trigger and then push in
Lock button
-
the lock button. To stop the tool from the
locked position, pull the trigger fully, then
release
it.
CAUTION :
Before plugging in the tool, always check to see that the trigger switch actuates properly
and returns tothe
"OFF" position when released.
Planingoperation
First, rest the tool front base flat upon
the workpiece surface without the blades
making any contact. Switch on and wait
until the blades attain full speed. Then
move the tool gently forward. Apply pres-
sure on the front
of tool at the start of
planing, and
at the back at the end of
planing. Planingwill be easier if you incline
the workpiece instationary fashion,
so that
you can plane somewhat downhill.
The speed and depth of cut determine the
kind of finish. The power planer keeps cut-
ting
at a speed that will not result in jam-
ming by chips. For rough cutting, the depth of cut can be increased, while for
a good
finish you should reducethe depth of cut and advance the tool more slowly.
8

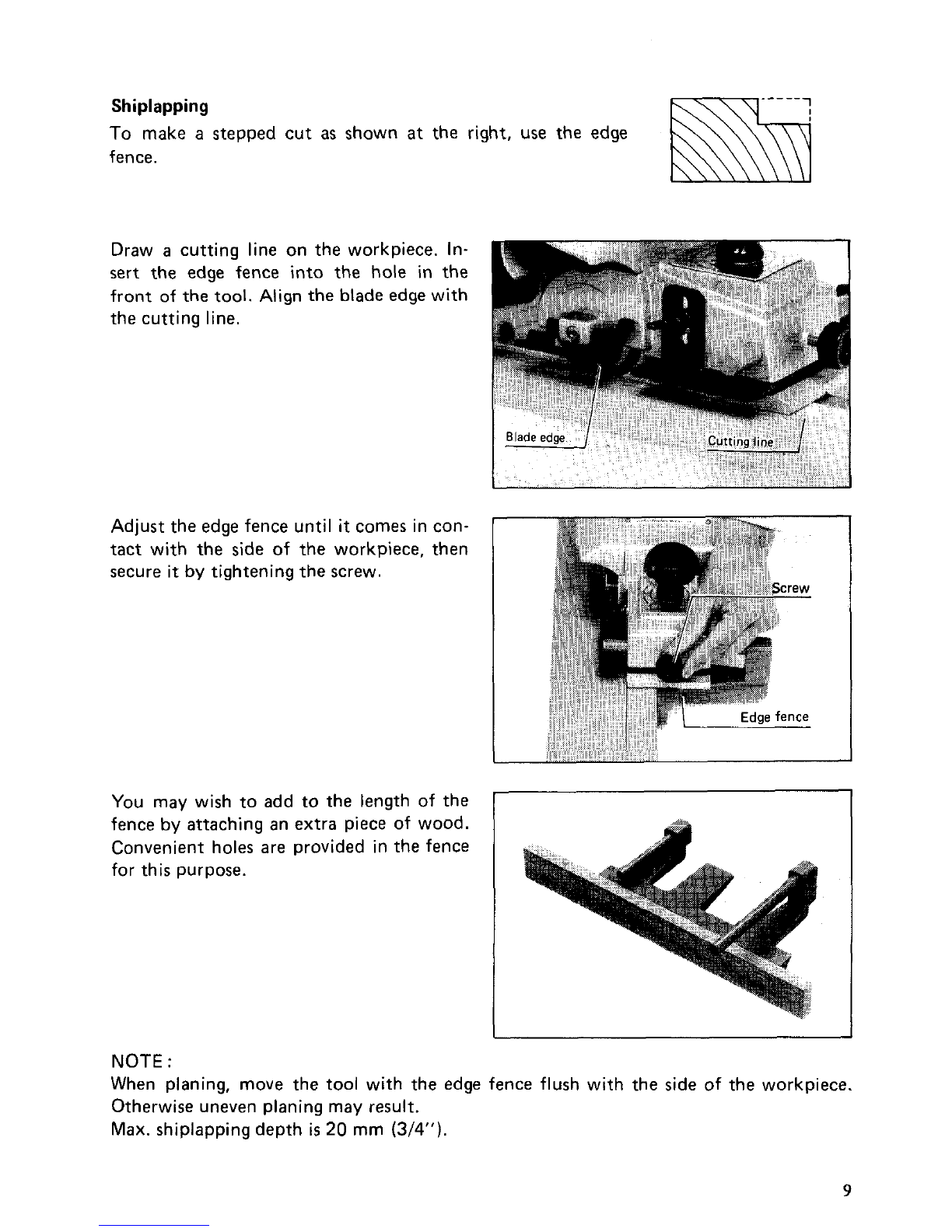

Shiplapping
To make a stepped cut as shown at the right, use the edge
fence.
Draw
a cutting line on the workpiece. In-
sert the edge fence into the hole in the
front
of the tool. Align the blade edge with
the cutting line.
Adjust the edge fence until
it comes in con-
tact with the side of the workpiece, then
secure it
by tightening the screw.
You may wish
o add to the I
ngth of the
fence
by attaching an extra piece of wood.
Convenient holes are provided in the fence
for this purpose.
NOTE :
When planing, move the tool with the edge fence flush with the side of the workpiece.
Otherwise uneven planing may result.
Max. shiplapping depth
is 20 mm (3/4").
9

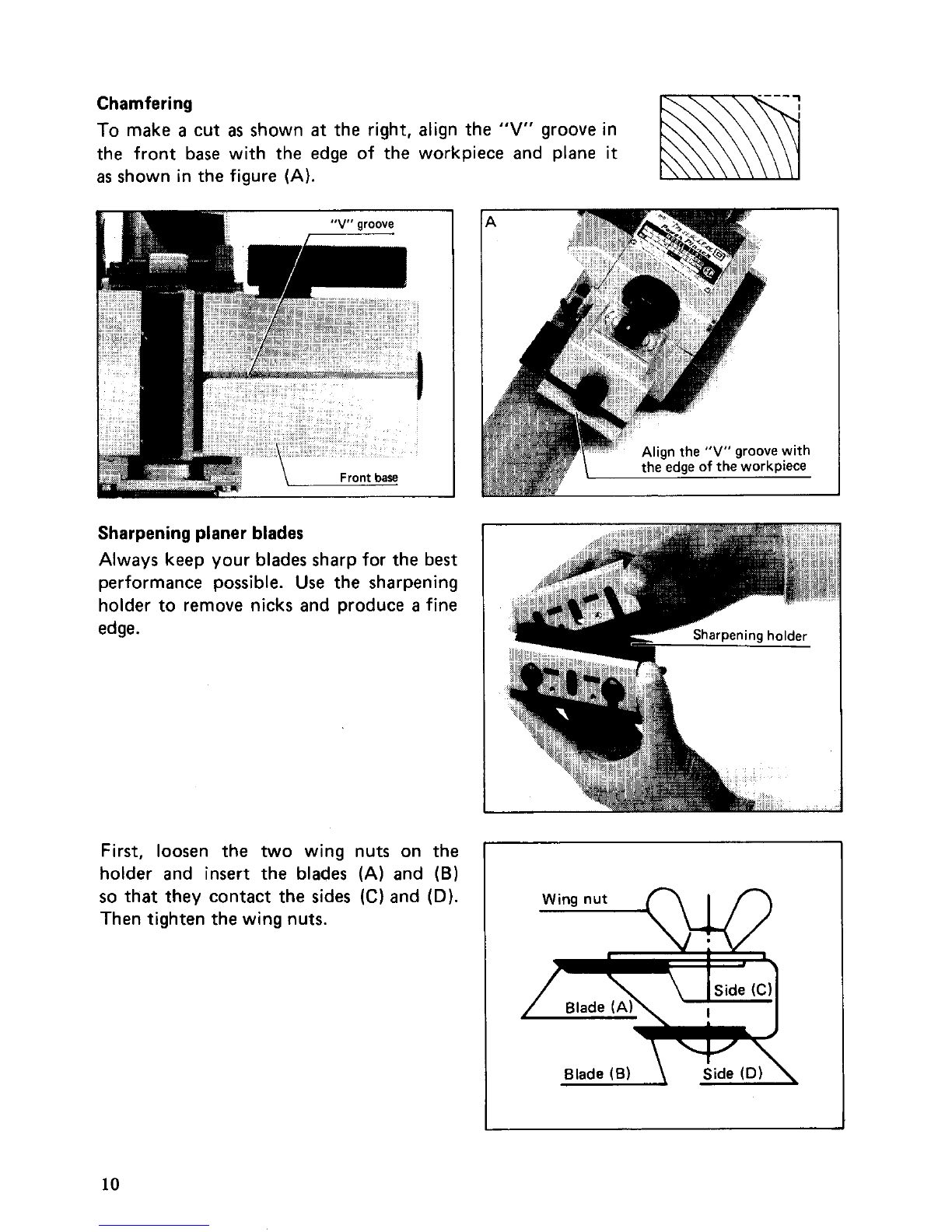

Chamfering
To make a cut as shown at the right, align the "V" groove in
the front base with the edge of the workpiece and plane
it
as shown in the figure (A).
Sharpening planer blades
Always keep your blades sharp for the best
performance possible. Use the sharpening
holder to remove nicks and produce
a fine
edge.
First, loosen the two wing nuts
on the
holder and insert the blades (A) and
(B)
so that they contact the sides (C) and (D).
Then tighten the wing nuts.
10

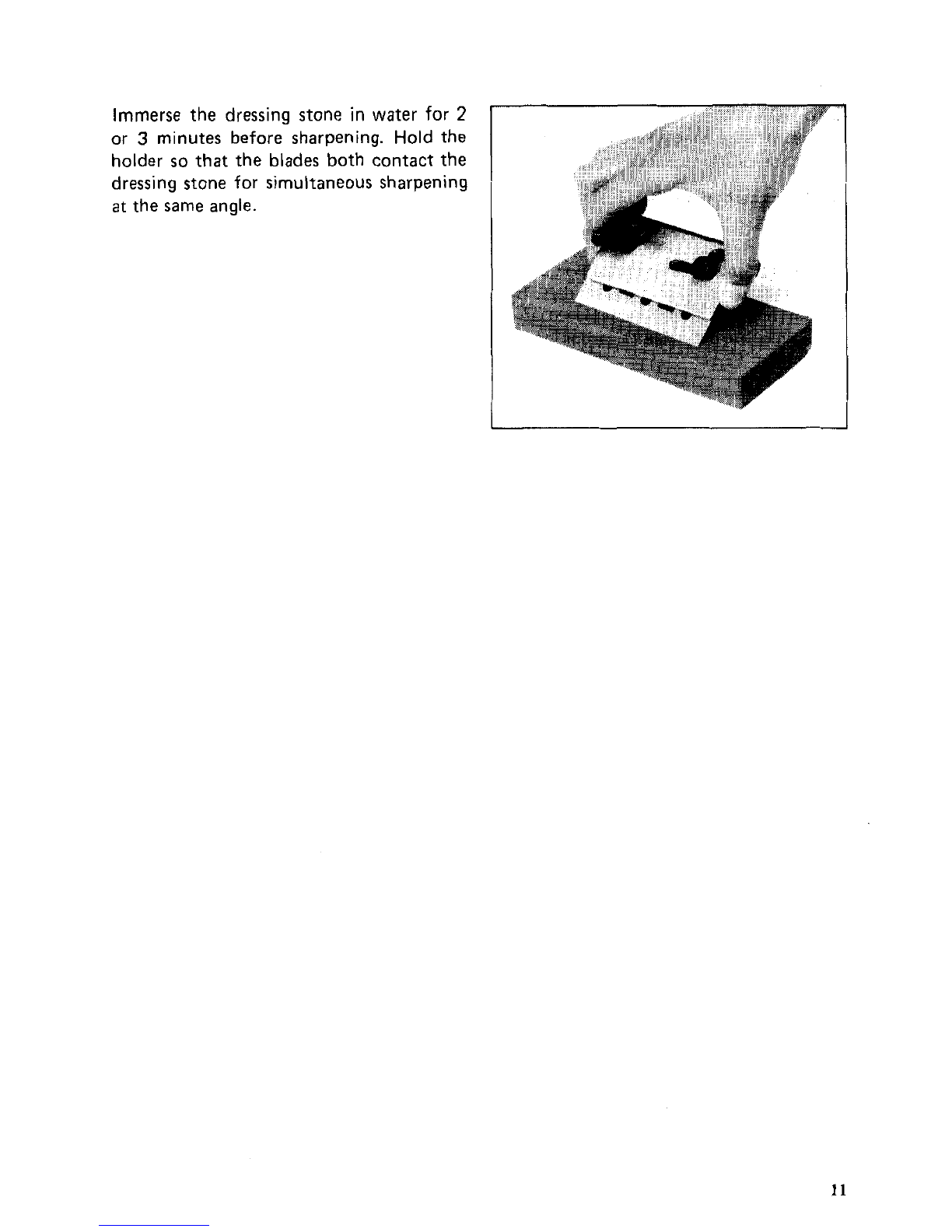

Immerse the dressing stone in water for 2
or 3 minutes before sharpening. Hold the
holder
so that the blades both contact the
dressing stone for simultaneous sharpening
at the same angle.
11

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unpluggedbefore attempting to perform
inspection or maintenance.
Replacing carbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced
at the
same time. Use only Makita carbon brushes.
Use
a screwdriver to removethe chip cover
as shown in the figure.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure the
brush holder caps.
/ Limit mark
Screwdriver
I
Chip cover
/ 1
Brush holder cap
I
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should be performed by Makita Authorized or Factory Service Centers,
always usingMakita replacementparts.
12

ACCESSOR I ES
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachmentsshould be used only
in the proper and intended manner.
0 Replacement baldes
Width
: 82 mm (3-1/4")
Part
No. 731001-4
.Mini planer blades
(Material
: Tungsten-carbide)
Width
: 82 mm (3-1/4')
Part
No. 793322-2
(Usewith set plate
343433- 9)
0 Dressingstone
Part
No. 741802-2
0(+) Screwdriver
Part
No. 783002-8
*Sharpening holder
Part
No. 123004-6
.Hex flange hd. bolts
Part
No. 251920-3
Y
PI aner blades
(Material
: Tungsten-carbide)
Width
: 82 mm (3-1/4')
Part
No. 731201-6
0 Bevel guide
Part
No. 123032-1
0 Guide rule
Part
No. 161046-2
Socket wrench
Part
No. 782209-3
0 Bladegauge
Part
No. 123010-1
0 Steel carrying case
Part
No. 181178-9
13

May-l5-'90 US

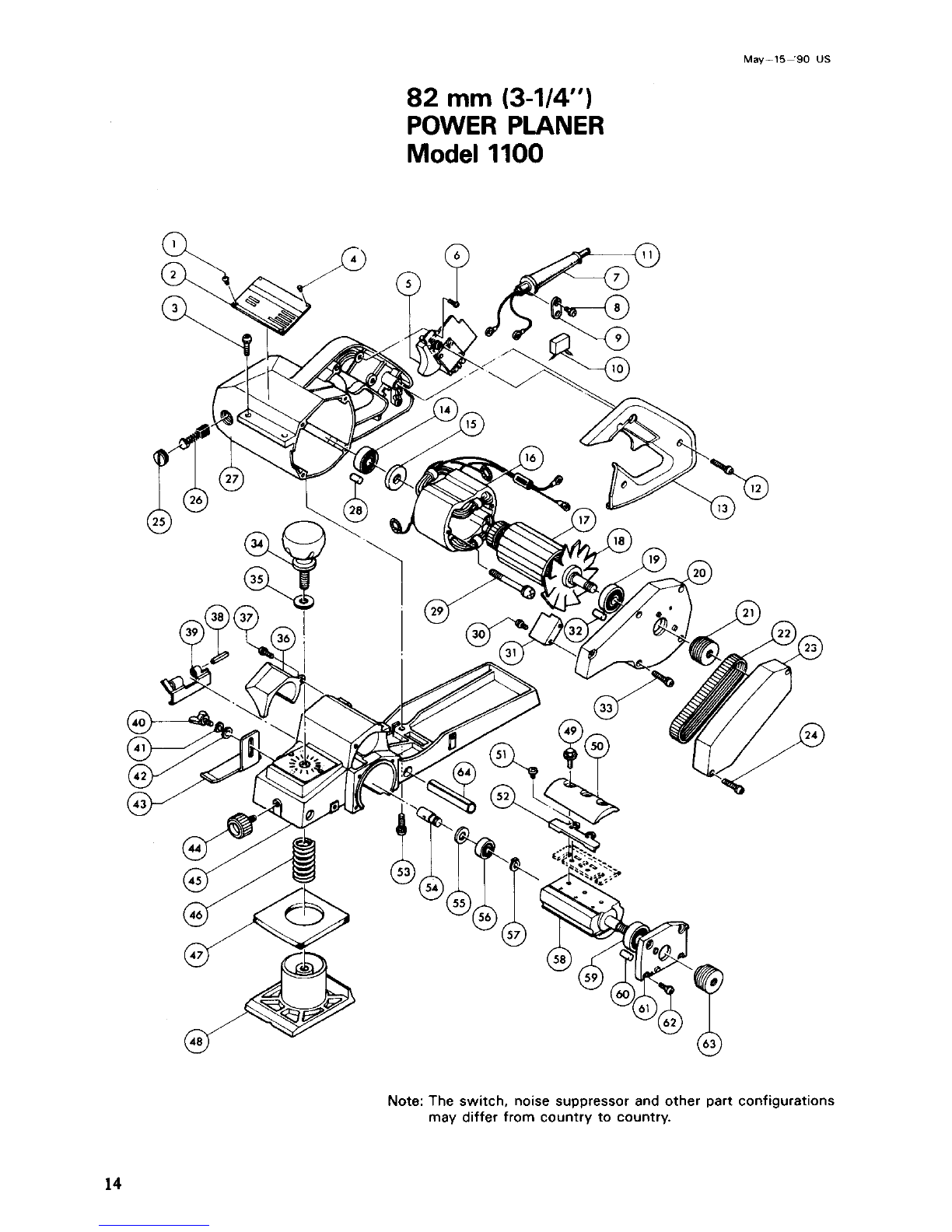

82 mm (3-1/4')
POWER PLANER
Model 1100
Note: The switch, noise suppressor and other part configurations
may differ from country to country.
14

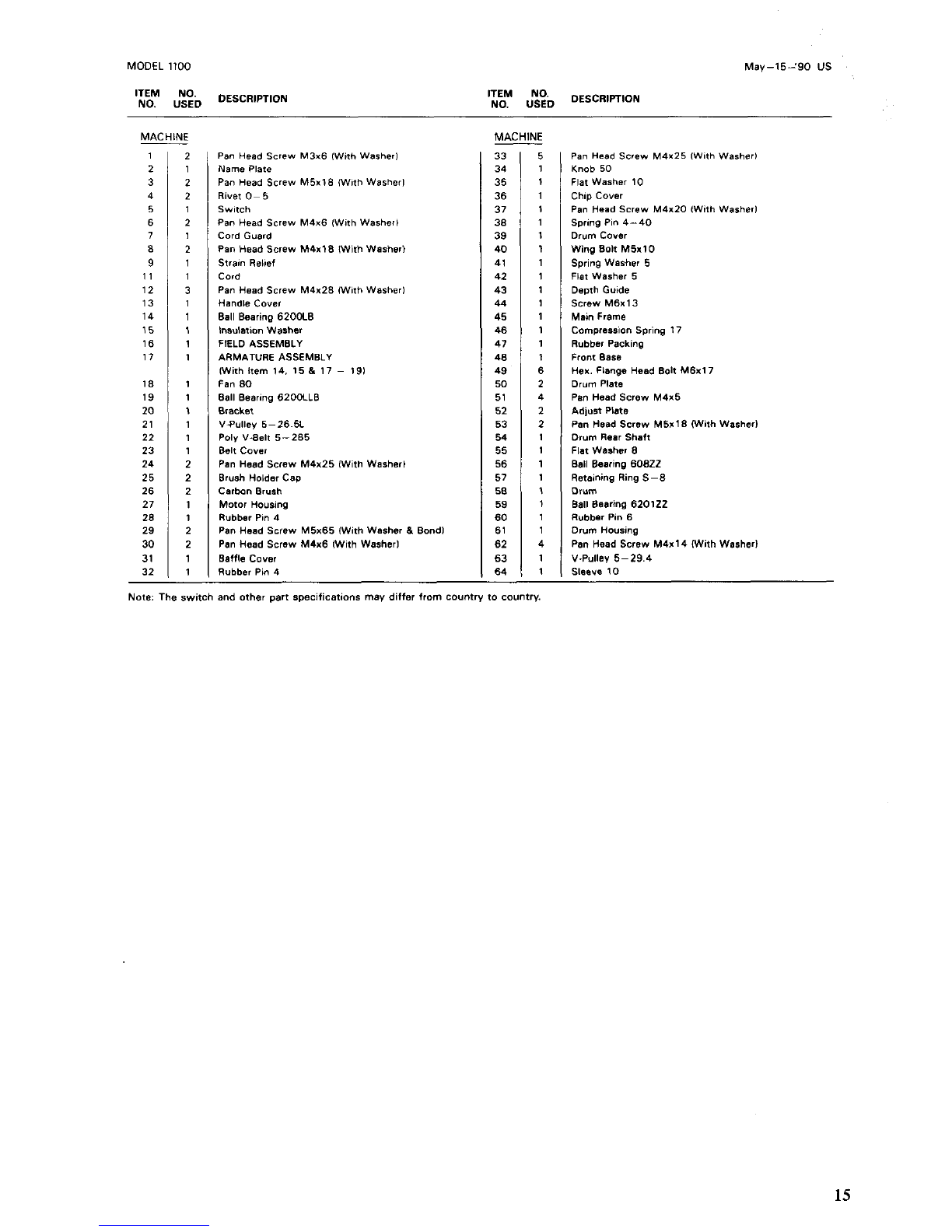

MODEL 1100
ITEM NO.
NO. USED
MACHINE
__
MACHlNE
33
34
35
36
37
38
39
40
41
42
43
44
45
46
41
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
Mav-15-'90
US
DESCRIPTION 'Yz G2D DESCRIPTION
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
6
2
4
2
2
1
1
1
1
1
1
1
1
4
1
1
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
21
28
29
30
31
32
-
2
1
2
2
1
2
1
2
1
1
3
1
1
1
1
1
1
1
1
1
1
1
2
2
2
1
1
2
2
1
1
-
Pan Head Screw M3x6 (WithWasher]
Name Plate
Pan
Head Screw M5x18 {WithWasher1
Rivet
0-5
Switch
Pan Head Screw M4x6 IWlfh Washer1
Cord Guard
Pan Head Screw M4x18 (With Washer)
Strain
Relief
Cord
Pan Head Screw M4x28 lWith Washer)
Handle Cover
Ball Bearing 620OLB
Insulation Washer
FIELD ASSEMBLY
ARMATURE ASSEMBLY
IWnh item 14. 15
& 17 - 191
Fan 80
Ball Bearing 620oLLB
Bracksl
V Pulley 5-26 5L
Poly V Be11 5-265
Belt Cover
Pan Head
Screw M4x25 (With Wssherl
Brush Holder Cap
Carbon Brush
Motor
Housing
Rubber Pin 4
Pan
Head Screw M5x65 IWithWasher & Bond1
Pan Head Screw M4x6 iWith Washer)
Baffle Cover
Rubber Pm 4
Pan Head Screw M4x25 IWith Washerl
Knob 50
Flat Washer 10
Chip Cover
Pan Head Screw M4x20 IWith Washerl
Spring
Pin 4-40
Drum Cover
Wing Bolt M5x10
Spring Washer 5
Flat Washer 5
Depth Guide
Screw M6xl3
Main Frame
Compression Spring 17
Rubber Packing
Front Base
Hex Flange Head Bolt M6xll
Drum Plate
Pen Head
Screw M4x5
Adjust Plate
Pan Head
Screw M5x18 (With Washerl
Drum
Rear Shaft
Flat Washer 8
Ball
Bearing 60822
Retaming Ring 5-8
Dl"W
Ball Bearing 620122
Rubber Pin 6
Drum Housing
Pan Head Screw M4r14IWith Washer)
V-Pulley
5-29 4
Slasve 10
Note. The switch and other part specificstions may differ
from country to country.
15

f

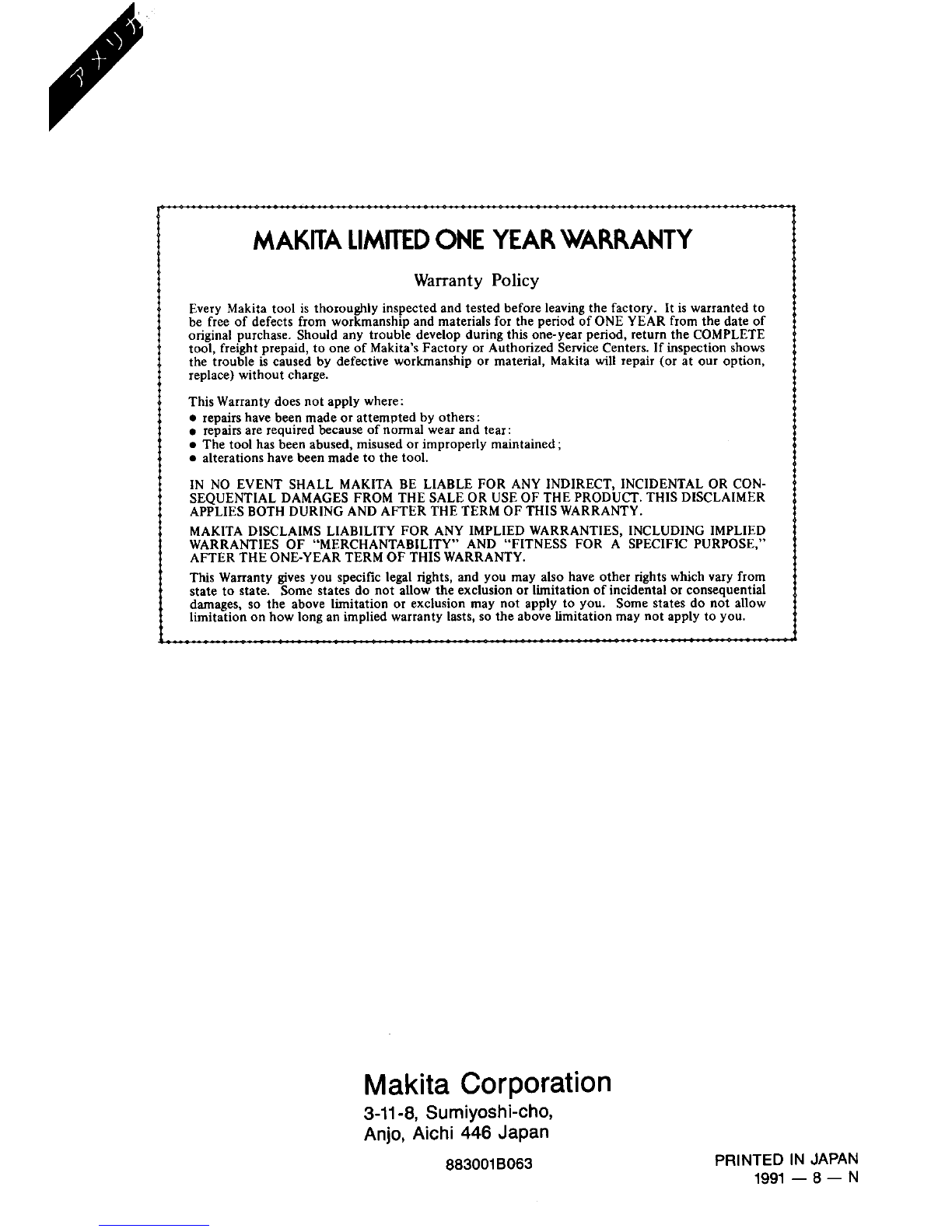

MAKITA LlMrEDONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, toone of Makita’s Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita
will repair (or at our option,
replace) without charge.
ThisWarranty does not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE
OF THE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM
OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THE ONE-YEAR TERM
OF THIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state
to state. Some states do not allow the exclusion orlimitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation onhow long an implied warranty lasts,
so the above Limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883001 BO63
PRINTED IN JAPAN
1991 - 8 - N
