INSTRUCTION MANUAL
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
ENGLISH
Router
MODEL 3620
003251
DOUBLE
INSULATION

2
SPECIFICATIONS
• Due to our continuing programme of research and development, the specifications herein are subject to change
without notice.
• Note: Specifications may differ from country to country.
SYMBOLS END201-2
The following show the symbols used for the tool. Be
sure that you understand their meaning before use.
...................Read instruction manual.
...................DOUBLE INSULATION
..................Only for EU countries
Do not dispose of electric equipment
together with household waste mate-
rial!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment and its imple-
mentation in accordance with
national law, electric equipment that
have reached the end of their life
must be collected separately and
returned to an environmentally com-
patible recycling facility.
Intended use
The tool is intended for flush trimming and profiling of
wood, plastic and similar materials.
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated in accordance with European
Standard and can, therefore, also be used from sockets
without earth wire.
For European countries only
Noise and Vibration
The typical A-weighted noise levels are
sound pressure level: 92 dB (A)
sound power level: 105 dB (A)
– Wear ear protection. –
The typical weighted root mean square acceleration
value is not more than 2.5 m/s2.
EC-DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product
is in compliance with the following standards of stand-
ardized documents, HD400, EN50144, EN55014,
EN61000 in accordance with Council Directives, 73/23/
EEC, 89/336/EEC, 98/37/EC.
Yasuhiko Kanzaki CE 2003
Director
MAKITA INTERNATIONAL EUROPE LTD.
Michigan Drive, Tongwell, Milton Keynes, Bucks MK15
8JD, ENGLAND
Model 3620
Collet chuck capacity 8 mm or 3/8”
Plunge capacity 0 - 35 mm
No load speed (min-1)29,000
Overall height 211 mm
Net weight 2.4 kg
Safety class /II

3
SAFETY INSTRUCTIONS ENA001-2
WARNING:
When using electric tools, basic safety precautions, including the following,
should always be followed to reduce the risk of fire, electric shock and
personal injury. Read all these instructions before operating this product
and save these instructions.
For safe operations:
1. Keep work area clean.
Cluttered areas and benches invite injuries.
2. Consider work area environment.
Do not expose power tools to rain. Do not use
power tools in damp or wet locations. Keep work
area well lit. Do not use power tools where there is
risk to cause fire or explosion.
3. Guard against electric shock.
Avoid body contact with earthed or grounded sur-
faces (e.g. pipes, radiators, ranges, refrigerators).
4. Keep children away.
Do not let visitors touch the tool or extension cord.
All visitors should be kept away from work area.
5. Store idle tools.
When not in use, tools should be stored in a dry,
high or locked up place, out of reach of children.
6. Do not force the tool.
It will do the job better and safer at the rate for which
it was intended.
7. Use the right tool.
Do not force small tools or attachments to do the job
of a heavy duty tool. Do not use tools for purposes
not intended; for example, do not use circular saws
to cut tree limbs or logs.
8. Dress properly.
Do not wear loose clothing or jewellery, they can be
caught in moving parts. Rubber gloves and non-skid
footwear are recommended when working outdoors.
Wear protecting hair covering to contain long hair.
9. Use safety glasses and hearing protection.
Also use face or dust mask if the cutting operation is
dusty.
10. Connect dust extraction equipment.
If devices are provided for the connection of dust
extraction and collection facilities ensure these are
connected and properly used.
11. Do not abuse the cord.
Never carry the tool by the cord or yank it to discon-
nect it from the socket. Keep the cord away from
heat, oil and sharp edges.
12. Secure work.
Use clamps or a vice to hold the work. It is safer
than using your hand and it frees both hands to
operate the tool.
13. Do not overreach.
Keep proper footing and balance at all times.
14. Maintain tools with care.
Keep cutting tools sharp and clean for better and
safer performance. Follow instructions for lubrica-
tion and changing accessories. Inspect tool cord
periodically and if damaged have it repaired by an
authorized service facility. Inspect extension cords
periodically and replace, if damaged. Keep handles
dry, clean and free from oil and grease.
15. Disconnect tools.
When not in use, before servicing and when chang-
ing accessories such as blades, bits and cutters.
16. Remove adjusting keys and wrenches.
Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool
before turning it on.
17. Avoid unintentional starting.
Do not carry a plugged-in tool with a finger on the
switch. Ensure switch is off when plugging in.
18. Use outdoor extension leads.
When tool is used outdoors, use only extension
cords intended for outdoor use.
19. Stay alert.
Watch what you are doing. Use common sense. Do
not operate tool when you are tired.
20. Check damaged parts.
Before further use of the tool, a guard or other part
that is damaged should be carefully checked to
determine that it will operate properly and perform
its intended function. Check for alignment of moving
parts, free running of moving parts, breakage of
parts, mounting and any other conditions that may
affect its operation. A guard or other part that is
damaged should be properly repaired or replaced
by an authorized service center unless otherwise
indicated in this instruction manual. Have defective
switches replaced by an authorized service facility.
Do not use the tool if the switch does not turn it on
and off.
21. Warning.
The use of any accessory or attachment, other than
those recommended in this instruction manual or
the catalog, may present a risk of personal injury.
22. Have your tool repaired by a qualified person.
This electric tool is in accordance with the relevant
safety requirements. Repairs should only be carried
out by qualified persons using original spare parts,
otherwise this may result in considerable danger to
the user.

4
ADDITIONAL SAFETY RULES ENB033-2
1. Hold tool by insulated gripping surfaces when
performing an operation where the cutting tool
may contact hidden wiring or its own cord. Con-
tact with a “live”wire will make exposed metal parts
of the tool “live”and shock the operator.
2. Wear hearing protection during extended period
of operation.
3. Handle the bits very carefully.
4. Check the bit carefully for cracks or damage
before operation. Replace cracked or damaged
bit immediately.
5. Avoid cutting nails. Inspect for and remove all
nails from the workpiece before operation.
6. Hold the tool firmly with both hands.
7. Keep hands away from rotating parts.
8. Make sure the bit is not contacting the work-
piece before the switch is turned on.
9. Before using the tool on an actual workpiece, let
it run for a while. Watch for vibration or wob-
bling that could indicate improperly installed bit.
10. Be careful of the bit rotating direction and the
feed direction.
11. Do not leave the tool running. Operate the tool
only when hand-held.
12. Always switch off and wait for the bit to come to
a complete stop before removing the tool from
workpiece.
13. Do not touch the bit immediately after operation;
it may be extremely hot and could burn your
skin.
14. Always lead the power supply cord away from
the tool towards the rear.
15. Do not smear the tool base carelessly with thin-
ner, gasoline, oil or the like. They may cause
cracks in the tool base.
16. Draw attention to the need to use cutters of the
correct shank diameter and which are suitable
for the speed of the tool.
SAVE THESE INSTRUCTIONS

5
FUNCTIONAL
DESCRIPTION CAUTION:
•Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.

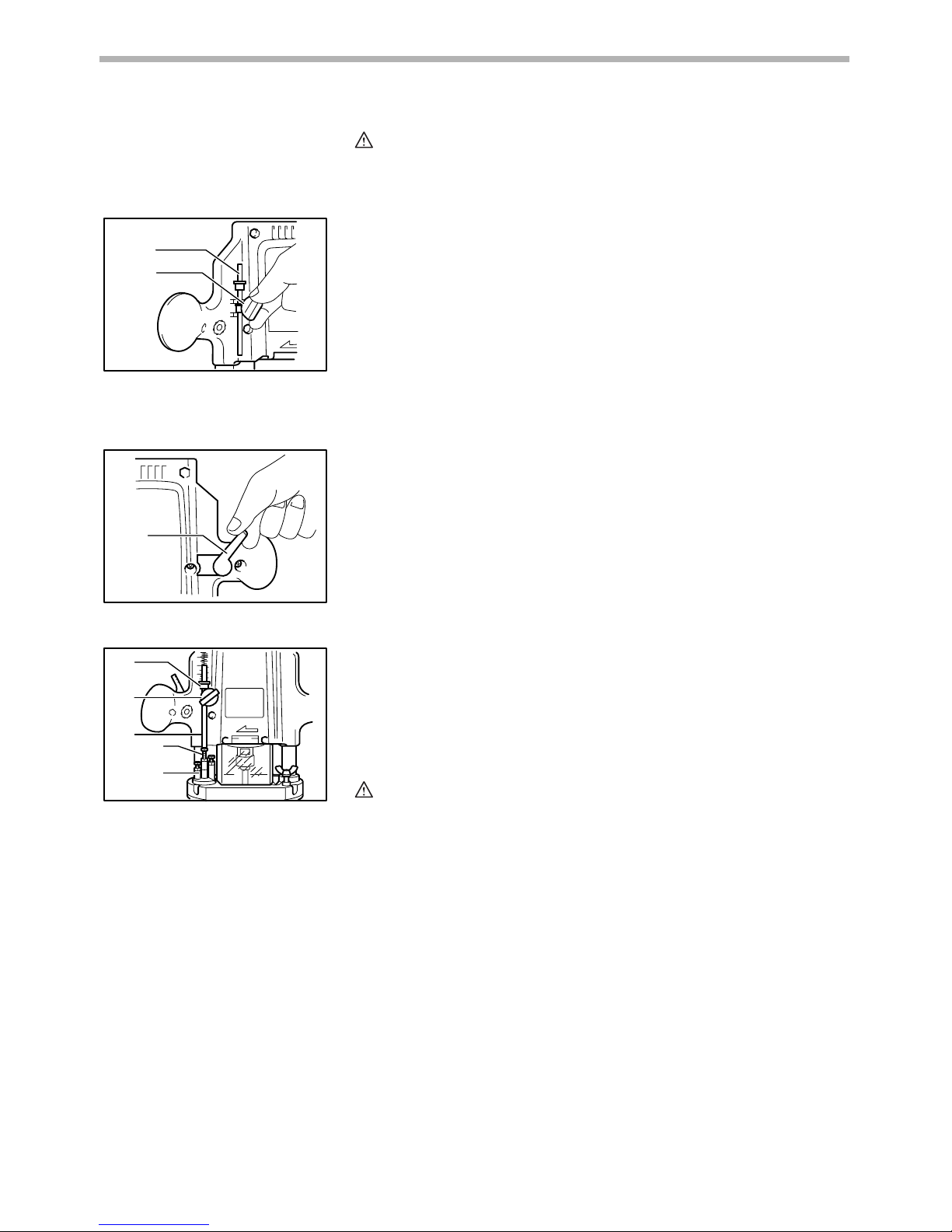

Adjusting the depth of cut
Place the tool on a flat surface. Loosen the screw securing the stopper pole.
Loosen the lock lever and lower the tool body until the bit just touches the flat
surface. Tighten the lock lever to lock the tool body.
Next, lower the stopper pole until it makes contact with the adjusting hex bolt.
Align the depth pointer with the “0”graduation.
Raise the stopper pole until the desired depth of cut is obtained. The depth of
cut is indicated on the scale (1 mm per graduation) by the depth pointer. Then
tighten the screw to secure the stopper pole.
Now, your predetermined depth of cut can be obtained by loosening the lock
lever and then lowering the tool body until the stopper pole makes contact with
the adjusting hex bolt.
CAUTION:
•Since excessive cutting may cause overload of the motor or difficulty in
controlling the tool, the depth of cut should not be more than 15 mm at a
pass when cutting grooves with an 8 mm diameter bit.
•When cutting grooves with a 20 mm diameter bit, the depth of cut should
not be more than 5 mm at a pass.
When you wish to cut grooves more than 15 mm deep with an 8 mm
diameter bit or more than 5 mm deep with a 20 mm diameter bit, make
several passes with progressively deeper bit settings.
1. Stopper pole
2. Screw
1. Lock lever
1
2
003252
1
003253
1. Depth pointer
2. Screw
3. Stopper pole
4. Adjusting hex bolt
5. Stopper block
1
2
34
5
003254

6
Stopper block
The stopper block has three adjusting hex bolts which raise or lower 0.8 mm
per turn. You can easily obtain three different depths of cut using these adjust-
ing hex bolts without readjusting the stopper pole.
Adjust the lowest hex bolt to obtain the deepest depth of cut, following the
method of “Adjusting depth of cut”. Adjust the two remaining hex bolts to
obtain shallower depths of cut. The differences in height of these hex bolts are
equal to the differences in depths of cut.
To adjust the hex bolts, first loosen the hex nuts on the hex bolts with the
wrench and then turn the hex bolts. After obtaining the desired position,
tighten the hex nuts while holding the hex bolts in that desired position. The
stopper block is also convenient for making three passes with progressively
deeper bit settings when cutting deep grooves.
CAUTION:
When using a bit having total length of 60 mm or more, or edge length of 35
mm or more, the depth of cut cannot be adjusted as previously mentioned. To
adjust, proceed as follows:
Loosen the lock lever and carefully adjust bit protrusion below the tool base to
the desired depth of cut by moving the tool body up or down. Then retighten
the lock lever to lock the tool body at that depth of cut. Keep the tool body
locked at this position during use. Since the bit always protrudes from the tool
base, be careful when handling the tool.
Adjusting the lock lever
The locked position of the lock lever is adjustable. To adjust it, loosen the lock
lever 3/4 turn and press the center of the lock lever. The hex nut will come out.
Set the hex nut to the desired position and tighten the lock lever.
Switch action
CAUTION:
•Before plugging in the tool, always check to see that the switch trigger
actuates properly and returns to the “OFF”position when released.
To start the tool, simply pull the switch trigger. Release the switch trigger to
stop.
1. Depth pointer
2. Screw
3. Stopper pole
4. Adjusting hex bolt
5. Stopper block
1
2
34
5
005083
1. Hex nut
1
003255
1. Switch trigger
1
003256

7
ASSEMBLY CAUTION:
•Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
Installing or removing the bit
CAUTION:
•Install the bit securely. Always use only the wrenches provided with the
tool. A loose or overtightened bit can be dangerous.
•Do not tighten the collet nut without inserting a bit. It can lead to
breakage of the collet cone.
Insert the bit all the way into the collet cone and tighten the collet nut securely
with the two wrenches.
A 6 mm or 1/4”collet cone is also provided as standard equipment besides the
8 mm or 3/8”collet cone that is factory installed on the tool. Use the correct
size collet cone for the bit which you intend to use.
To remove the bit, follow the installation procedure in reverse.
OPERATION Set the tool base on the workpiece to be cut without the bit making any con-
tact. Then turn the tool on and wait until the bit attains full speed. Lower the
tool body and move the tool forward over the workpiece surface, keeping the
tool base flush and advancing smoothly until the cutting is complete.
When doing edge cutting, the workpiece surface should be on the left side of
the bit in the feed direction.
NOTE:
•Moving the tool forward too fast may cause a poor quality of cut, or
damage to the bit or motor. Moving the tool forward too slowly may burn
and mar the cut. The proper feed rate will depend on the bit size, the kind
of workpiece and depth of cut. Before beginning the cut on the actual
workpiece, it is advisable to make a sample cut on a piece of scrap
lumber. This will show exactly how the cut will look as well as enable you
to check dimensions.
•When using the straight guide, be sure to install it on the right side in the
feed direction. This will help to keep it flush with the side of the
workpiece.
003257
1. Workpiece 2. Bit revolving direction
3. View from the top of the tool 4. Feed direction
12
3
44
2
001984
1. Feed direction
2. Bit revolving direction
3. Workpiece
4. Straight guide
1
23
4
001985

8

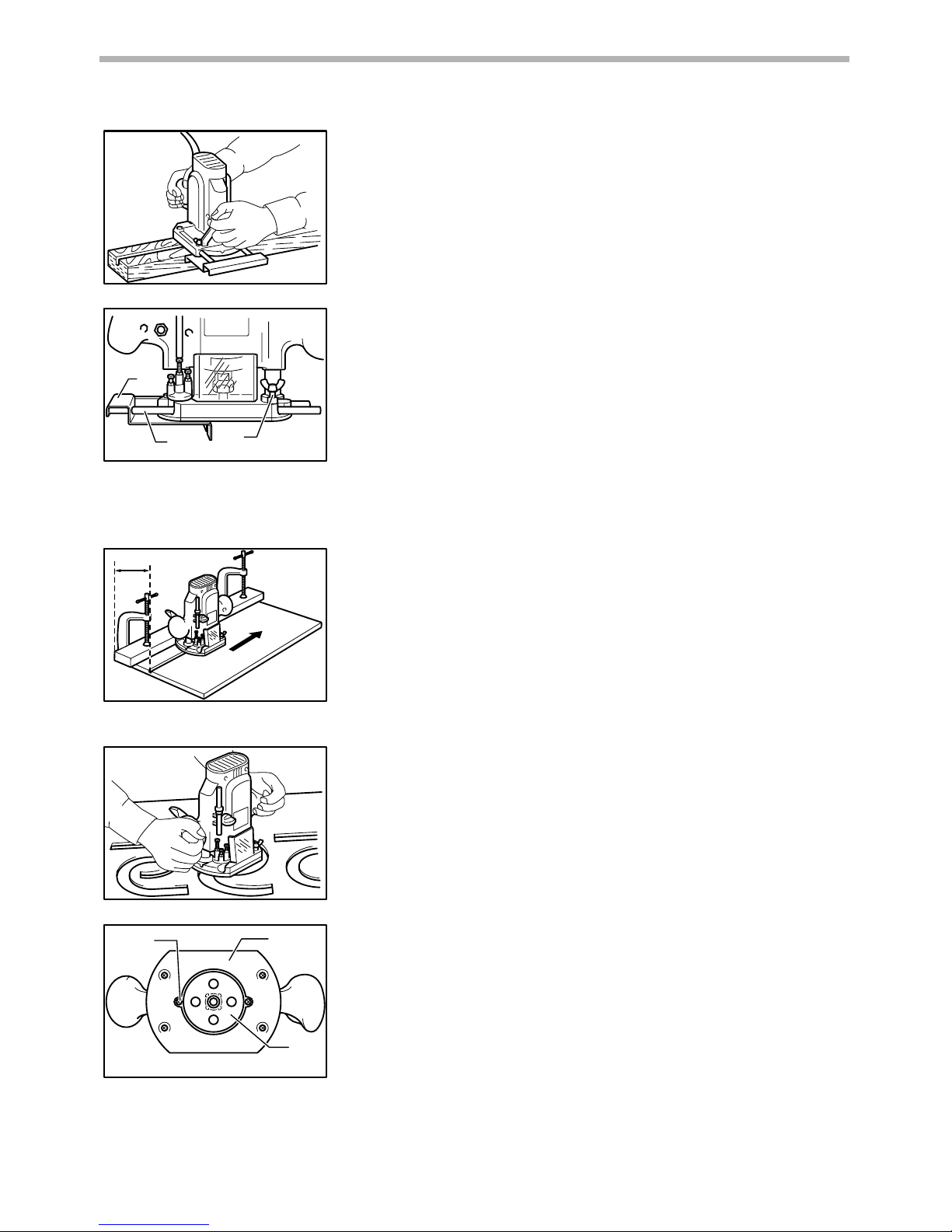

Straight guide
The straight guide is effectively used for straight cuts when chamfering or
grooving.
To install the straight guide, insert the guide bars into the holes in the tool
base. Adjust the distance between the bit and the straight guide. At the desired
distance, tighten the wing bolts to secure the straight guide in place.
When cutting, move the tool with the straight guide flush with the side of the
workpiece.
If the distance (A) between the side of the workpiece and the cutting position is
too wide for the straight guide, or if the side of the workpiece is not straight, the
straight guide cannot be used. In this case, firmly clamp a straight board to the
workpiece and use it as a guide against the router base. Feed the tool in the
direction of the arrow.
Templet guide (Accessory)
The templet guide provides a sleeve through which the bit passes, allowing
use of the tool with templet patterns.
To install the templet guide, loosen the screws on the tool base, insert the tem-
plet guide and then tighten the screws.
003259
1. Straight guide
2. Guide bar
3. Wing bolt
1
23
003260
A
003261
003262
1. Screw
2. Base plate
3. Templet guide
12
3
003263

9
Secure the templet to the workpiece. Place the tool on the templet and move
the tool with the templet guide sliding along the side of the templet.
NOTE:
•The workpiece will be cut a slightly different size from the templet. Allow
for the distance (X) between the bit and the outside of the templet guide.
The distance (X) can be calculated by using the following equation:
Distance (X) = (outside diameter of the templet guide - bit diameter) / 2
Vacuum head set (Accessory)
Use the vacuum head for dust extraction. Install the vacuum head on the tool
base using the two screws.
Then connect a vacuum cleaner to the vacuum head.
1. Bit
2. Base
3. Templet
4. Workpiece
5. Distance (X)
6. Outside diameter of the templet
guide
7. Templet guide
1
2
3
4
5
6
7
003695
1. Vacuum head
1. Dust nozzle
2. Hose of vacuum cleaner
3. Screws
1
005073
1
2
3
003258
005084

10
MAINTENANCE CAUTION:
•Always be sure that the tool is switched off and unplugged before
attempting to perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, any other mainte-
nance or adjustment should be performed by Makita Authorized Service Cent-
ers, always using Makita replacement parts.
ACCESSORIES
CAUTION:
•These accessories or attachments are recommended for use with your Makita tool specified in this manual. The
use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding these accessories, ask your local Makita service center.
•Straight & groove forming bits
•Edge forming bits
•Laminate trimming bits
•Straight guide
•Templet guide 25
•Templet guides
•Templet guide adapter
•Lock nut
•Collet cone 3/8”, 1/4”
•Collet cone 6 mm, 8 mm
•Wrench 8
•Wrench 13
•Wrench 22
•Vacuum head set

Memo
11

Makita Corporation Anjo, Aichi, Japan
883585D225
