Makita 5093DZ User manual

85 mm (3-3/8”) MODEL 5093DZ 85 mm (3-3/8”) MODEL 5093DWA
With High Capacity Battery Charger
Blade Cutting depth No load speed Overall
diameter
900 450 (RPM) length
INSTRUCTION MANUAL
Net
weight
85 mm
(3-318“)
0 - 24.5 mm 0 - 18“ 320 mm 2.0 kg
(0 - 15/16”) (0 - 11/16”) (1 2.518”) 14.4 Ibs)
1,000
Battery Cartridge 1222
Voltage
12
v
Model DC1411 High capacity Battery charger
Input output Charging time
A.C. only 50 - 60 Hz D.C. 7.2 V - 14.4 V 1 Hr.

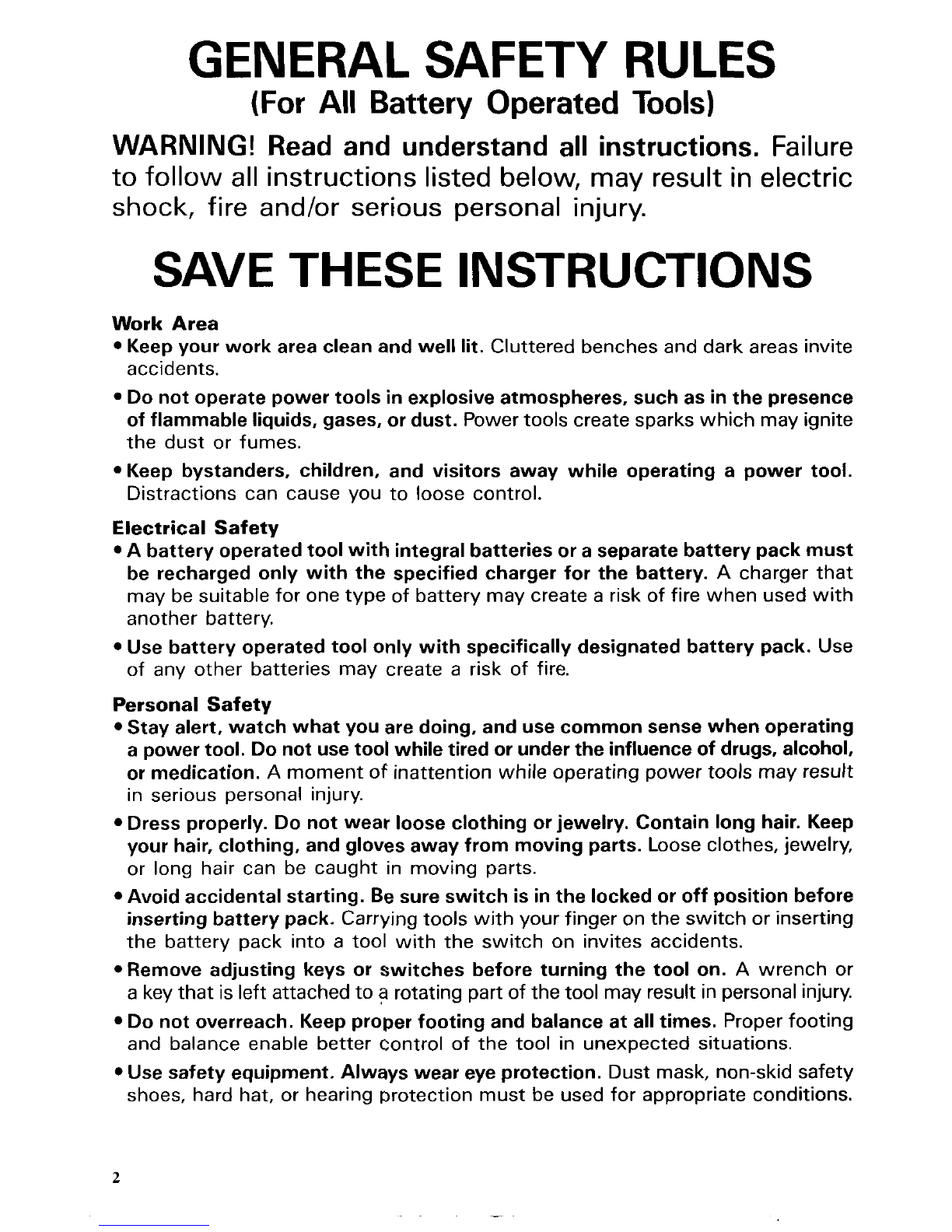

GENERAL SAFETY RULES
(For All Battery Operated Tools)
WARNING! Read and understand all instructions. Failure
tofollow
all instructions listed below, may result in electric
shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
Keep your work area clean and well lit. Clutteredbenches and dark areas invite
accidents.
Do notoperate power tools in explosive atmospheres, such as in the presence
of flammableliquids, gases, or dust. Powertools create sparks which may ignite
the dust or fumes.
Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to loose control.
Electrical Safety
A batteryoperatedtoolwithintegral batteries or a separate batterypack must
be recharged only with the specified charger for the battery.
A charger that
may be suitable for one type of battery may create a risk of fire when used with
another battery.
Use battery operated tool only with specifically designated battery pack. Use
of any other batteries may create a risk of fire.
Personal Safety
Stay alert, watch what you are doing, and use commonsense when operating
a powertool. Do not usetoolwhile tired or underthe influence of drugs, alcohol,
or medication.
A moment of inattention while operating power tools may result
in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep
your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry,
or long hair can be caught in moving parts.
Avoid accidental starting. Be sure switch is inthe locked or off position before
insertingbattery pack. Carrying tools
with your finger onthe switchor inserting
the battery pack into a
tool with the switch on invites accidents.
*Remove adjusting keys or switches before turning the tool on.
A wrench or
a key that is left attachedto
a rotatingpartof thetool may result inpersonalinjury.
Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enable better control of the tool in unexpected situations.
Usesafety equipment. Always wear eye protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must be used for appropriate conditions.
2

Tool Use and Care
Use clamps or other practical way to secure and support the workpiece to a
stable platform. Holdingthe work by handor againstyour body is unstableand
may lead to
loss of control.
.Do not force tool. Use the correct tool for your application. The correct tool
will do the job better and safer at the rate for which
it is designed.
.Do not use tool if switch does not turn it on or off. A tool that cannot be
controlled
with the switch is dangerous and must be repaired.
Disconnect battery pack from tool or place the switch in the locked or off
position before making any adjustments, changing accessories, or storingthe
tool. Such preventive safety measures reduce the risk
of starting the tool
accidenta
I I y.
Store idle tools out of reach of children and other untrained persons. Tools are
dangerous
in the hands of untrained users.
When battery pack is not in use, keep it away from other metal objects like:
paper clips, coins, keys, nails, screws, or other small metal objects that can
make a connection from one terminaltoanother. Shortingthebatteryterminals
together may cause sparks, burns, or a fire.
Maintaintools with care. Keepcuttingtools sharpandclean. Properly maintained
tools
with sharp cutting edge are less likely to bind and are easier to control.
Check for misalignment or bindingof movingparts, breakageof parts, andany
other conditionthat may affectthetool’s operation. Ifdamaged, havethe tool
serviced before using. Many accidents are caused
by poorly maintained tools.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitablefor one tool maycreatea risk of injury
when used on another tool.
Service
Tool service must be performed only by qualified repair personnel. Service or
maintenance performed
by unqualified personnel may result in a risk of injury.
When servicinga tool, use only identical replacement parts. Follow instructions
in the Maintenance section of this manual. Use of unauthorized parts or failure
to follow Maintenance Instructions may create a risk of shock or injury.
3

Specific Safety Rules
1. DANGER! Keep hands away from cuttingarea and blade. Keep your second
hand on auxiliary handle, or motor housing.
If both hands are holding the
saw, they cannot be cut by the blade.
Keep your body positioned to either side of the saw blade, but not
in line
withthe saw blade. KICKBACK could cause the saw tojump backwards. (See
"Causes and Operator Prevention of Kickback")
Do not reach underneath the work while blade is rotating. The guard can
not protect you from the blade below the work. Don't attempttoremove cut
material when blade is moving.
CAUTION: Blades coast after turn
off.
2. Check lower guard for proper closing before each use. Do not operate saw
if lower guard does not move freely and close instantly. Never clamp or tie
the lower guard intothe open position.
If saw is accidentally dropped, lower
guard may be bent. Raisethe lower guard
with the Retracting Handleand make
sure
it movesfreely and does nottouch the blade or any other part, in all angles
and depths
of cut.
3. Check the operation and condition of the lower guard spring. If the guard
andthe spring are not operating properly, they must be serviced beforeuse.
Lower guard may operate sluggishly due to damaged parts gummy deposits,
or
a buildup of debris.
4. Lower guard should be retracted manually only for special cuts such as
"Pocket Cuts" and "Compound Cuts." Raise lower guard by Retracting
Handle.As
soon as blade enters the material, lowerguardmustbe released.
For
all other sawing, the lower guard should operate automatically.
5. Always observe that the lower guard is covering the blade before placing
saw down on bench or floor. An unprotected, coasting blade will cause the
saw to walk backwards, cutting whatever is in its path. Be aware
of the time
it takes for the blade to stop after switch is released.
6. NEVER hold piece being cut in your hands or acrossyour leg. It is important
to support the work properly to minimize body exposure, blade binding, or
loss of control.
7. Holdtool by insulatedgripping surfaces when performing an operation where
the cutting tool may contact hidden wiring or its own cord. Contact
with
a "live" wire will also make exposed metal parts of the tool "live" and shock
the operator.
8. When ripping always use a rip fence or straight edge guide. This improves
the accuracy of cut and reduces the chance for blade binding.
9. Always use blades with correct size and shape (diamondvs. round) arbor
holes. Blades that do not matchthe mounting hardware
of the saw will run
eccentrically, causing
loss of control.
IO. Never use damaged or incorrect blade washers or bolts. The blade washers
and bolt were specially designed for your saw, for optimumperformance and
safety or operation.
4

11. Causes and Operator Prevention of Kickback:
Kickback is a sudden reaction to a pinched, bound or misaligned saw blade,
causing an uncontrolled saw to lift up and out of the workpiece toward the
operator.
When the bladeis pinched or bound tightly by thekerf closing down, the blade
stalls and the motor reaction drives the unit rapidly back toward the operator.
If the blade becomes twisted or misaligned in the cut, the teeth at the back
edge
of the blade can dig into the top surface of the wood causing the blade
to climb out
of the kerf and jump back toward operator.
Kickback is the result of tool misuse and/or incorrect operating procedures
or conditions and can be avoidedby takingproper precautions as given below.
Maintain a firm grip with bothhands onthe saw and positionyour bodyand
arm to allow you to resist KICKBACK forces. KICKBACK forces can be
controlled by the operator,
if proper precautions are taken.
When blade is binding, or when interrupting a cut for any reason, release
the trigger and holdthe saw motionless
in the material until the blade comes
toa complete stop. Never attempt to removethe saw from the work or pull
the saw backward while the blade is
in motion or KICKBACK may occur.
Investigateandtake corrective actionstoeliminate the cause of blade binding.
When restarting a saw
in the workpiece, center the saw blade in the kerf
and check that saw teeth are not engaged into the material. If saw blade
is binding,
it may walk up or KICKBACK from the workpiece as the saw is
restarted.
Support large panelstominimize the risk of blade pinching and KICKBACK.
Large panels tend to sag under their own weight. Supports must be placed
under the panel on both sides, near the line
of cut and near the edge of the
panel as shown
in Fig. 1.
To minimize the risk of blade pinching and kickback.When cutting operation
requires the resting of the saw on the work piece, the saw shall be rested
on the larger portion and the smaller piece cut
off.
To avoid kickback do support board
or panel near the cut. Don’t support board or panel away
from the cut.
Fig. 1 Fig.
5

Do not use dull or damaged blade. Unsharpened or improperly set blades
produce narrow kerf causing excessive friction, blade bindingand KICKBACK.
Blade depth and bevel adjusting lockinglevers must be tight and secure before
making cut. If blade adjustment shifts while cutting,
it may cause binding and
KICKBACK.
Use extra caution when makinga "Pocket Cut" into existing walls or other
blindareas. The protruding blade may cut objects that can cause KICKBACK.
NEVER place your hand or fingers
behind the saw. If kickback occurs,
the saw could easily jump backwards
over your hand, possibly causing
severe injury.
Fig. ,
12. Adjustments. Before cuttingbesure depth and bevel adjustments are tight.
13. Avoid Cutting Nails. Inspect for and remove all nails from lumber before
cutting.
14. When operating the saw, keep the
cord away from the cuttingarea and
position
it so that it willnotbecaught
on the workpiece during the cutting
operation.
Operate with proper hand support,
proper workpiece support, and
supply cord routing away from the
work area.
WARN
I NG :
A typical illustration of proper hand
support, workpiece support, and
supply cord routing.
Fig. 8
It is importantto support the workpiece properly and to holdthe saw firmly
toprevent
loss of control whichcould cause personal injury. Fig. 4 illustrates
typical hand support of the saw.
6

15. Place the wider portionof the saw baseonthat partoftheworkpiece which
issolidly supported, notonthe section that
will fall off when the cut is made.
As examples, Fig.
5 illustrates the RIGHT way tocut off the end of a board,
and Fig.
6 the WRONG way. If the workpiece isshort or small, clamp it down.
DON'T TRY TO HOLD SHORT
PLACES BY HAND!
\ /
~
Fig. 5
16. Never attempt to saw with the
circular saw held upside down
in a
vise. This isextremelydangerousand
can lead to serious accidents.
-
Fig. 1
Fig. 7
17. Before setting the tooldown after completinga cut, be sure that the lower
(telescoping)guard has closed and the blade has cometoa completestop.
7

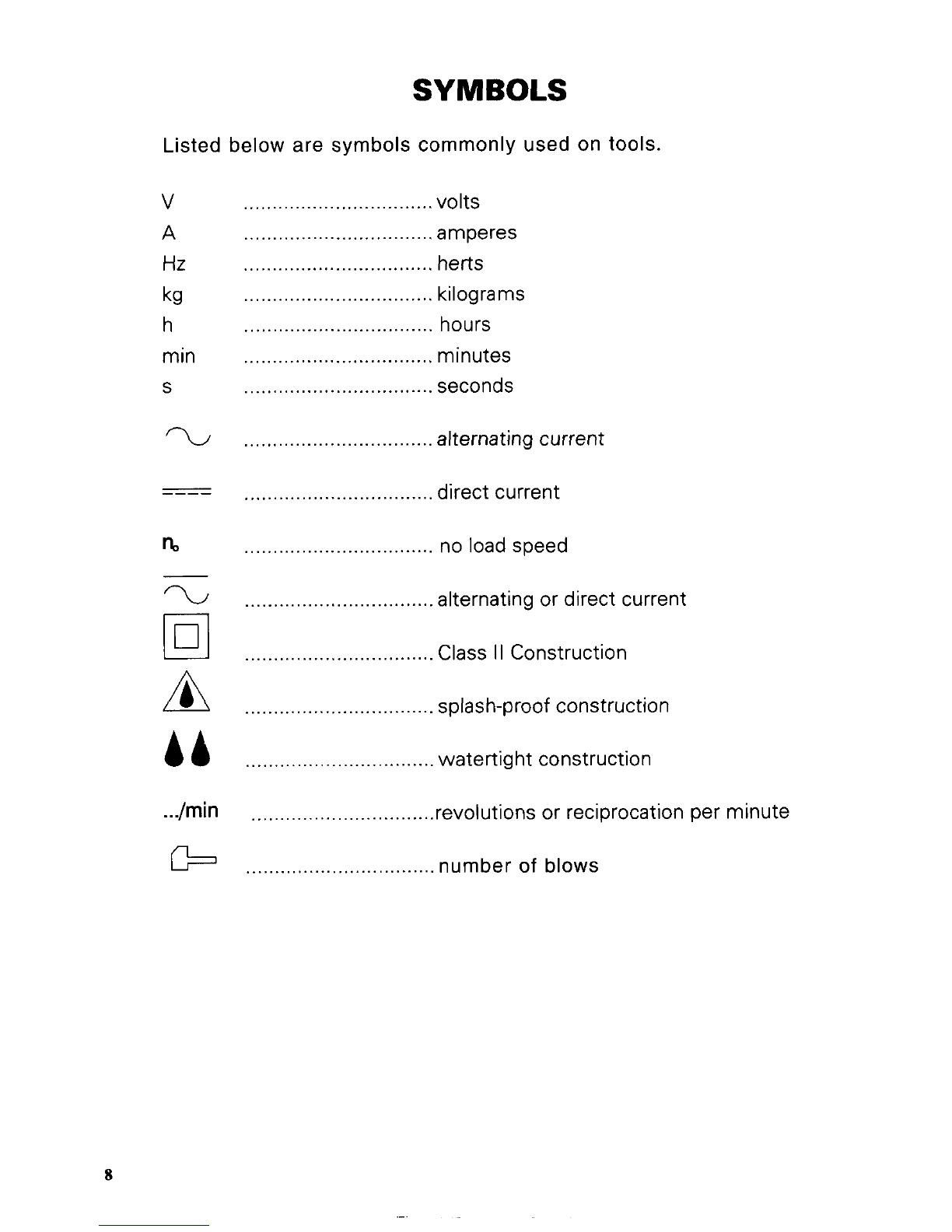

SYMBOLS
Listed below are symbols commonly used on tools.
G
A
AA
.../ min
G=l
... .... volts
................................. amperes
..... hens
................................. kilograms
............................. hours
................................. minutes
................................. seconds
.......................... . alternating current
. direct current
...... no load speed
.... alternating or direct current
...... Class II Construction
......................... splash-proofconstruction
................................. watertight construction
................................ revolutions or reciprocation per minute
......... ...... number of blows
8

IMPORTANT SAFETY INSTRUCTIONS
FOR CHARGER
&
BATTERY CARTRIDGE
1. SAVE THESE INSTRUCTIONS - This manual
contains important safety and operating instructions for battery charger.
2. Before using battery charger, read all instructions and cautionary markings
on (1) battery charger, (2) battery, and
(3) product using battery.
3. CAUTION
- To reduce risk of injury, charge only MAKITA BatteryCartridge
7000, 7001, 7002, 7033, 7100, 7120,
9000, 9001, 9002, 9033, 9100,
9101,9102,9120,9122,9133,1200,1201,1202,1210,1211,1220,1222,
I233,1422,1433,9101A, 9102A. 1201Aor 1202A. Other types of batteries
may burst causing personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer may result ina risk of fire, electric shock, or injury topersons.
6. To reduce risk of damage to electric plug and cord, pull by plug rather than
cord when disconnecting charger.
7. Make sure cord is located
so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of
improper extension cord could result in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pins on plugof extension cordarethe same number, size, and shape
b. That extensioncord isproperly wired and ingoodelectrical condition; and
c. That wire size is at least as large as the one specified in the table below.
TABLE 1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS
as those of plug on charger;
I Length of Cord (Feet) I 25 I 50 I 100 I 150 I
1 I I
I AWG Size of Cord I 18 I 18 I 18 16 I
I I I
I I I
9. Do not operate charger with damaged cord or plug - replace them im-
mediately.
IO. Do notoperate charger if it has receivedasharp blow, beendropped, or other-
wise damaged in any way; take
it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
12. To reduce risk
of electric shock, unplugcharger from outlet before attempt-
ingany maintenance or cleaning. Turningoff controls will notreducethis risk.
9

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (5OoF)
or ABOVE 4OoC (104OF).
2. Do notattempt touse a step-up transformer, an engine generator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the battery terminals with the battery cover when the battery
5. A battery short can cause a large current flow, overheating, possible burns
receptacle.
cartridge is not used.
and even a breakdown.
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container withother metalobjects such
(3) Do not expose battery cartridge to water or rain.
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode in a fire.
as nails, coins, etc.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
SAVE THESE INSTRUCTIONS.

Installingor removing the batterycartridge 1222
*Always switch off the tool beforeinsertion or removal of the batterycartridge.
*To remove the battery cartridge, withdraw
itfrom the tool while pressing the buttons
on bothsides of the cartridge.
*To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip it until it is
locked with
a little click.
I .I
*Do not use force when inserting the battery cartridge. If the cartridge does not slide in
easily, it is not being insertedcorrectly.
Installingthe set plate
Always installthe set plate when using bat-
tery cartridges 1200, 1201, 1201A, 1202 or
1202A. Installthe set plate on the tool with
the screw and nut providedas shown in the
figure.
Installingor removing thebatterycartridge 1200,1201,1201A. 1202 and 1202A.
*Always switch off the tool before insertion or removalof the batterycartridge.
*To remove the battery cartridge, pull out
the set plate on the tool and grasp both
sides
of the cartridge while withdrawing it
from the tool.
*To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip it into place.
Snap the set plate back into place. Be sure
to close the set plate fully before usingthe
tool.
*Do not use force when inserting the battery cartridge. If the cartridge does not slide in
easily, it is not being insertedcorrectly.
11

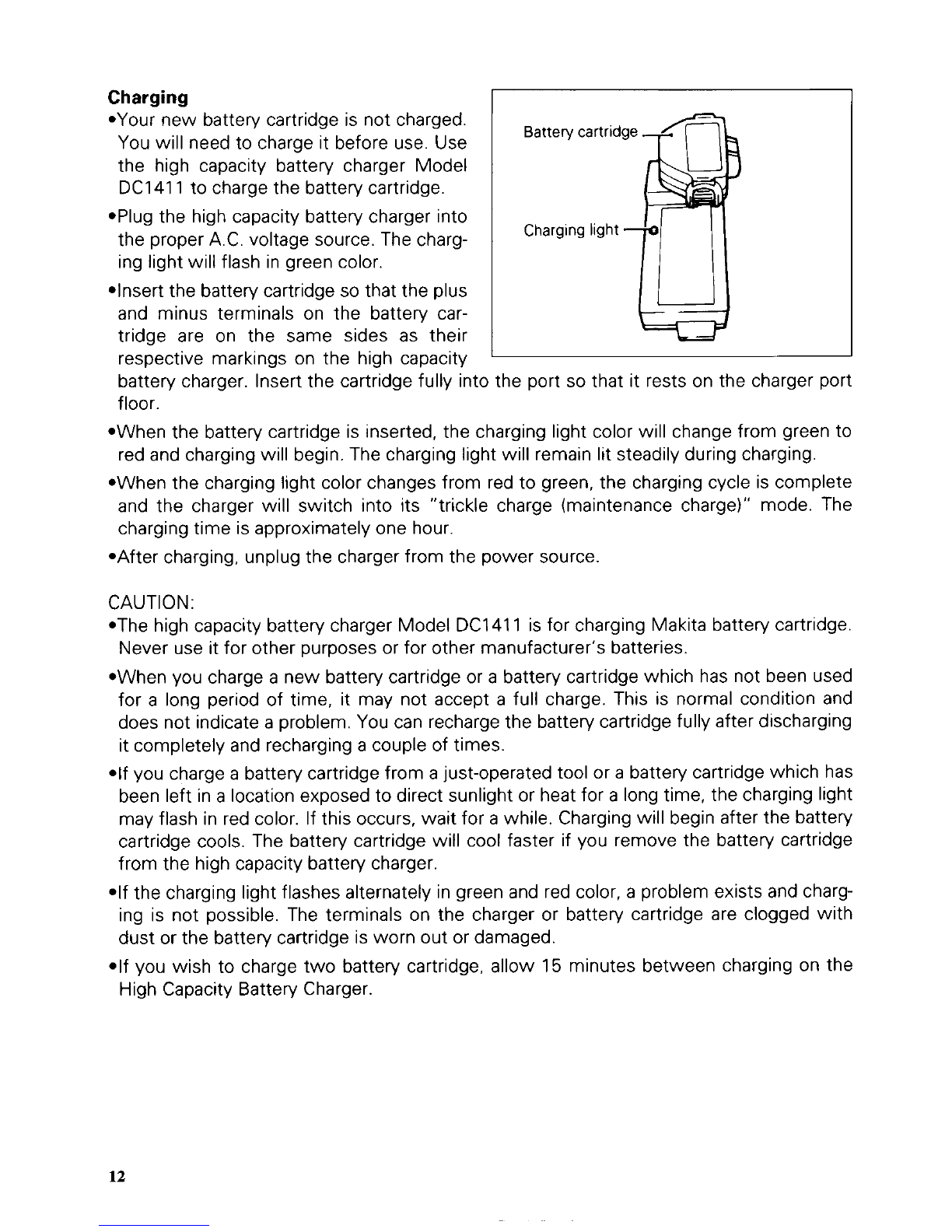

Charging
*Your new battery cartridge is not charged.
You will need to charge it before use. Use
the high capacity battery charger Model
DC1411 to chargethe batterycartridge.
*Plug the high capacity batterycharger into
the proper A.C.voltage source. The charg-
ing lightwill flash in green color.
*Insert the battery cartridge
so that the plus
and minus terminals on the battery car-
tridge are on the same sides as their
respective markings on the high capacity
batterycharger. Insert the cartridge fully into the port
so that it restson the charger port
floor.
*When the battery cartridge is inserted, the charging light color will change from green to
redand chargingwill begin. The charging light will remain lit steadily during charging.
*When the charging light color changesfrom red to green, the chargingcycle is complete
and the charger will switch into its ”trickle charge (maintenance charge)” mode. The
chargingtime is approximately one hour.
*After charging, unplugthe chargerfrom the power source
CAUTIO
N :
*The high capacity batterycharger Model DC1411 is for charging Makita battery cartridge.
Never use it for other purposes or for other manufacturer‘s batteries.
*When you charge
a new battery cartridge or a batterycartridge which has not been used
for
a long period of time, it may not accept a full charge. This is normal condition and
does not indicate a problem. You can rechargethe battery cartridge fully after discharging
itcompletely and recharging
a couple of times.
*If you charge
a batterycartridge from a just-operated tool or a battery cartridge which has
been left in
a location exposedto direct sunlight or heat for a longtime, the charging light
mayflash in red color. If this occurs,
wait for a while. Chargingwill begin after the battery
cartridge cools. The battery cartridge will cool faster if you remove the battery cartridge
from the high capacity batterycharger.
*If the charging light flashes alternately in green and red color,
a problem exists and charg-
ing is not possible. The terminals on the charger or battery cartridge are clogged with
dust or the batterycartridge is worn out or damaged.
*If you wish to charge two battery cartridge, allow 15 minutes between charging on the
High Capacity Battery Charger.
12

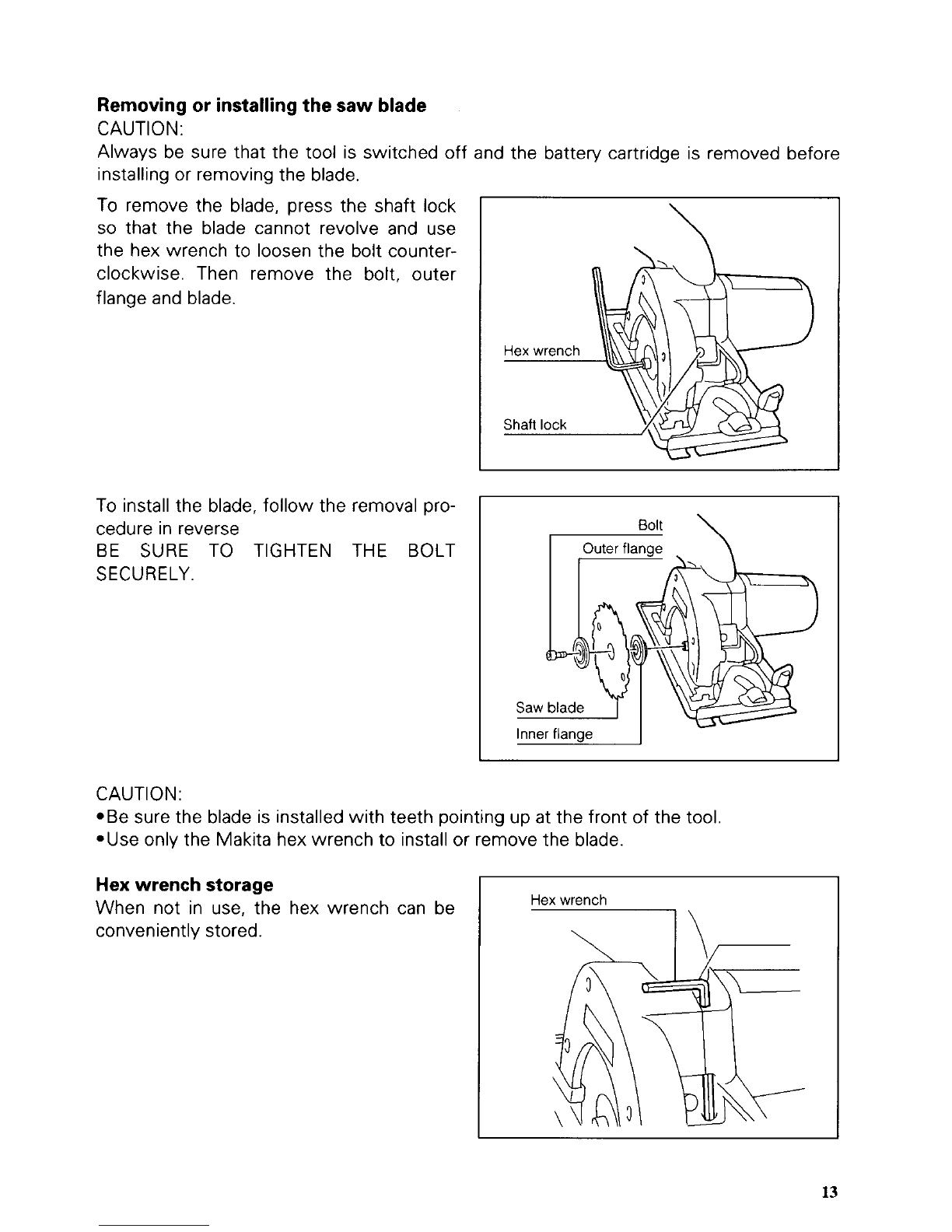

Removingor installingthesaw blade
CAUTIO N:
Always be sure that the tool is switched off and the battery cartridge is removed before
installing or removingthe blade.
To remove the blade, press the shaft lock
so that the blade cannot revolve and use
the hex wrench to loosen the bolt counter-
clockwise. Then remove the bolt, outer
flange and blade.
To installthe blade, follow the removal pro-
cedure in reverse
BE SURE TO TIGHTEN THE BOLT
SECURELY.
Bolt \
CAUTl ON :
*Be sure the blade is installed with teeth pointing up at thefront of the tool.
*Use only the Makita hex wrench to installor remove the blade.
Hex wrenchstorage
When not in use, the hex wrench can be
convenientlystored.
Hex wrench
I\
13

Adjustingthe depth of cut
Loosen the screw on the depth guide and move the base up or down. You can read the
depth
of cut by aligning the top of the notch in the depth guide with the graduations on its
right side. (Note:This can be done for
0" bevel cutting only.)At the desired depth of cut,
secure the baseby tighteningthe screw
Depth guide
Fr--
CAUTION :
Depth guide Top of notch
*Use a shallow depth of cut when cutting thin workpiece for cleaner, safer cuts
*After adjusting the depth of cut, always tighten the clamp screw securely.
Bevelcutting
Loosen the screw on the bevel scale plate
on the front of the base. Set for the desired
angle (0"
- 45") by tilting accordingly, then
tighten the clamp screw securely.
Screw I I Bevel scale plate
CAUTION:
After adjusting the depth of cut and bevel cutting angle, be sure to tighten the screw.
14

Sighting
The front of the base is notched to provide
twoguide edges.
For straight cuts, align the edge with
0"
engraved on it with your cutting line on the
workpiece.
For
45" bevel cuts, align the edge with 45"
engraved on itwith your cuttingline.
For straight cuts I For 45" bevel cuts
Cutting line
Switch action
CAUTION:
Before inserting the battery cartridge into the tool, always check to see that the switch
trigger actuates properly and returns tothe "OFF" position when released.
To prevent the trigger from being acciden-
tally pulled,
a lock-off lever is provided.
To start the tool, slide the lock-off lever in
the direction of the arrow and pull the trig-
ger. Releasethe trigger to stop.
Operation
Hold the tool firmly. Set the base plate on
the workpiece to be cut without the blade
making any contact. Then turn the tool on
and wait until the blade attains full speed.
Now simply move the tool forward over
the workpiece surface, keeping it flat and
advancing smoothly until the sawing is
completed. To get clean cuts, keep your
sawing line straight and your speed of
advance uniform.
CAUTION:
Lock-off lever
7
I\
IL
I Base '
*Always gently keep the tool movingstraight ahead when cutting. Forcingor twisting the
tool will result in overheating of the motor and dangerous kickback, possibly causing
severe injury.
*If the tool is operated continuously until the battery cartridge has discharged, allow the
toolto restfor
15 minutesbefore proceedingwith a fresh battery.
15

Guide rule
The handy guide rule allows you to do
extra-accurate straight cuts. Simply slide
the guide rule up snugly against the side of
the workpiece and secure it in positionwith
the clamp screwon the front of the base. It
also makes repeated cuts of uniform width
possible.
MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and the battery cartridge is removed before
attempting to perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY,repairs, maintenanceor adjustment should
be performed by Makita Authorized or Factory Service Centers, always using Makita
replacement parts.
Trickle charge (Maintenancecharge)
If you leave the battery cartridge in the charger to prevent spontaneous discharging after
full charge, the charger will switch into its ”trickle charge (maintenancecharge)”modeand
keep the batterycartridge fresh andfully charged.
Tipsfor maintainingmaximum battery life
1. Chargethe batterycartridge before completely discharged.
Always stop tool operation and charge the battery cartridge when you notice less tool
power.
2. Never rechargeafully chargedbatterycartridge.
Overchargingshortens the batteryservice life.
3. Chargethe battery cartridge with room temperature at 10°C - 40°C (50°F - 104°F).
Let a hot batterycartridge cool downbeforecharging it.
16

Recycling the Battery
The only way to dispose of a Makita battery is
to recycle it. The law prohibits any other
method
of disposal.
@
N i-Cd
I
To recycle the battery:
1. Remove the battery from the tool.
2. a). Take the battery to your nearest Makita Factory Service Center
or
b). Take the battery to your nearest Makita Authorized Service Center or
Distributor that has been designated as a Makita battery recycling location.
Call your nearest Makita Service Center or Distributor to determine the location
that provides Makita battery recycling. See your local Yellow Pages under
"Tools- Electric'
17

ACCESSORIES
CAUTION
These accessories or attachments are recommended for use with your Makita tool specified in this
manual The use of any other accessories or attachments might present a risk of injury to persons
The accessories or attachments should be used only in the proper and intended manner
Part No,
721003-8
Hasfewer teeththan
cross-cut blade for
faster cutting.
High capacitybatterycharger
Model DC1411
Part No. 192700-7
Diameter Holediameter No.
(mm) (mm) teeth
85 (3-3/8") 15 (19/32") 50
Battery cover
Part No. 414938-7
Part No
cutting of plywood and
Hex wrench
Part No. 783202-0
Diameter Holediameter No.
b" (mm) teeth
f-
a Set plate
Part No. 343579-1
-Tungstencarbidetipped saw blade
For wood
Battery cartridge 1200
*High capacitybattery 1201,1202
Part No. 1922714
Part No. 192296-8 (1201)
Part No. 192536-4 (1202)
*Power display battery (Highcap.)
1201A, 1202A
Part No. 192407-5 (1 201A)
Part No. 192537-2 (1 202A)
-Highcapacity battery 1222
Part No. 192598-2
Part No, I Diameter I Hole(2m;leter No.
h" I teeth
792623-5 I 85 (3-3/8") I 15(19/32") I 20
-Plywoodsaw blade
w 792299-8 I 85 (3-3/8") I 15 (19/32") I 50
1s

July-13-'98 US
85 mm (3-3/8")
CORDLESS CIRCULAR SAW
Model 5093D
Note: The switch and other part configurations
may differ from country to country.
19

MODEL 5093D
$:D DESCRIPTION
MACHINE
~
1 1 Name Plate
2 1 DC Motor
3 1 Motor
Housing
4 3 Tapping Screw PT 4x18
5 I Compression Spring 4
6 1 Lock Off Lever
7 1 Housing Set iWith Item 111
8 1
Hex Nut M4
9 1 Battery Holder
10 1 Battery
11 1 Housing Set lW8th Item 71
12 3
Tapping Screw PT 4x18
13 1
Hex Nut M5
14 1 Tapping Screw PT 4x30
15 1
Pan Head Screw M4x25
16 1 Makita
Label
1 J 1 Compression Spring 7
18 1 Tapping Screw PT 4x20
19 1 Hex Socket Head Bolt MSx12
20 1
Outer Flange 28
22
1 Inner Flange 28
23
1 Retaining Ring S 28
24 1
Safety Cover
25 1 Tapping Screw PT 4x25
26 1 Flat Washer 30
27 1 Bearing Box
28 1 Blade Care
29 3 Tapping Screw PT 4x18
30 1
Pin 4
31 1
Retaining Ring E 3
July-13-'98 US
AtD DESCRIPTION
MACHINE
32 1
33 1
34 1
35 1
36 1
37 1
38 1
39 1
40 1
41 1
42 1
43 1
44 1
45 1
46 1
47 1
48 1
49 1
50 1
51 1
52 1
53 1
54 1
55 1
56 1
57 1
58 1
59 1
60 1
~
Base
Retaining Ring E-3
Flat Washer 5
Sprtng Washer 5
Thumb Screw M5x10
Thumb
Screw M5x10
Angular Guide
Pl" 5
Spring Pin 4-40
Retaining Ring E-4
Depth Guide
Flat Washer 5
Spring Washer 5
Thumb Screw MSx10
Ball Beating 6000LB
Spindle
Woodruff
Key 3
Compression Spring 7
Pl" 5
Ball Bearing 608LB
Flat Washer 8
Helical Gear 33
Retaining Ring 5-8
Thin Washer 4
Gear Complete 8-68
Switch Lever
Switch
Plane Bearing 4
Plane
Beam9 4
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroubly inspected and tested before leaving the factory. It IS warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date
of
origlnal purchase. Should any trouble develop dunngthis one-year period, return the COMPLETE
tool, freight prepaid,
to one of Makita's Factory or Authorized Servxe Centers. If inspection shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
e repairs have been made or attempted by others:
repairs are required because of normal wear and tear
The tool has been abused, misused or improperly maintained,
alterations have been made tothe tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE
OR USE OF THE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM OFTHISWARRANTY.
MAKITA DISCLAIMS LIABILITY
FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES
OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE,"
AFTER THE ONE-YEAR TERM
OF THISWARRANTY.
This Warranty gives you specific legal rights, and you may also have other nghts which vary from
state
to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation
an haw long an implied warranty lasts, so the above limitation may not apply to you
Makita Corporation of America
2650 Buford Hwy., Buford, GA 30518
MCW 09-98
884186-068
PRINTED IN USA
1999-01 -4D
