Makita DBO380 User manual
DBO380
DBO381
EN Cordless Finishing Sander INSTRUCTION MANUAL 9
SL Brezžični brusilnik NAVODILA ZA UPORABO 20
SQ Rektikues lustrimi me bateri MANUALI I PËRDORIMIT 31
BG Акумулаторен виброшлайф РЪКОВОДСТВО ЗА
ЕКСПЛОАТАЦИЯ 42
HR Akumulatorska vibracijska
brusilica PRIRUČNIK S UPUTAMA 55
МК Безжична шмиргла за
финиширање УПАТСТВО ЗА УПОТРЕБА 66
SR Бежична брусилица за
завршну обраду УПУТСТВО ЗА УПОТРЕБУ 79
RO Mașină de șlefuit cu
acumulator MANUAL DE INSTRUCŢIUNI 91
UK Акумуляторна шліфувальна
машина кінцевої обробки ІНСТРУКЦІЯ З
ЕКСПЛУАТАЦІЇ 103
RU
Аккумуляторная
вибрационная шлифмашина
РУКОВОДСТВО ПО
ЭКСПЛУАТАЦИИ 115
2
1
2
3
Fig.1
1
2
Fig.2
1
2
3
Fig.3
1
Fig.4
12
3
5
4
1
4
52
3
Fig.5
1
2
3
Fig.6
3
1
2
3
4
5
1
2 3
4
5
Fig.7
1
2
Fig.8
1
2
3
4
5
1
2 3
4
5
Fig.9
1
2
3
3
5
4
5
4
Fig.10
1
1
2
3
Fig.11
4
1
2
3
Fig.12
1
23
Fig.13
12
3
Fig.14
12
3
Fig.15
1
2
3
3
Fig.16
15
2
3
4
Fig.17
15
2
3
4
Fig.18
5
1
2
3
3
Fig.19
12
34
Fig.20
12
3
4
Fig.21
1
Fig.22
Fig.23
2
1
Fig.24
6
Fig.25
Fig.26
Fig.27
Fig.28
1
Fig.29
1
2
3
4
Fig.30
7
1
2
3
Fig.31
1
Fig.32
12
1
2
Fig.33
Fig.34
1
Fig.35
8
1
2
Fig.36
1
Fig.37
1
Fig.38
12
1
2
Fig.39
9ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DBO380 DBO381
Pad size 93 mm x 185 mm
Abrasive paper size 93 mm x 228 mm
Orbits per minute High 12,000 min-1
Medium 8,000 min-1
Low 4,000 min-1
Overall length (with front grip) 336 mm
Rated voltage D.C. 18 V
Net weight 1.9 - 2.2 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsandbatterycartridgemaydierfromcountrytocountry.
• Theweightmaydierdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Batterycartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH / DC18WC
• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof
residence.
WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges
andchargersmaycauseinjuryand/orre.
Intended use
The tool is intended for the sanding of large surface of
wood, plastic and metal materials as well as painted
surfaces.
Noise
ThetypicalA-weightednoiseleveldeterminedaccord-
ing to EN62841-2-4:
Model DBO380
Sound pressure level (LpA) : 72 dB(A)
Uncertainty(K):3dB(A)
Model DBO381
Sound pressure level (LpA) : 72 dB(A)
Uncertainty(K):3dB(A)
Thenoiselevelunderworkingmayexceed80dB(A).
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
methodandmaybeusedforcomparingonetoolwith
another.
NOTE: The declared noise emission value(s)
mayalsobeusedinapreliminaryassessmentof
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can dier from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o and when it is running idle in addition to the
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841-2-4:
Model DBO380
Work mode: sanding metal plate
Vibration emission (ah) : 3.6 m/s2
Uncertainty(K):1.5m/s2
Model DBO381
Work mode: sanding metal plate
Vibration emission (ah) : 3.6 m/s2
Uncertainty(K):1.5m/s2
10 ENGLISH
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
andmaybeusedforcomparingonetoolwithanother.
NOTE:Thedeclaredvibrationtotalvalue(s)mayalso
beusedinapreliminaryassessmentofexposure.
WARNING: The vibration emission during
actual use of the power tool can dier from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o and when it is running idle in addition to the
trigger time).
EC Declaration of Conformity
For European countries only
TheECdeclarationofconformityisincludedasAnnexA
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
Theterm"powertool"inthewarningsreferstoyour
mains-operated(corded)powertoolorbattery-operated
(cordless) power tool.
Sander safety warnings
1.
Always use safety glasses or goggles. Ordinary
eye or sun glasses are NOT safety glasses.
2. Hold the tool rmly.
3. Do not leave the tool running. Operate the tool
only when hand-held.
4. This tool has not been waterproofed, so do not
use water on the workpiece surface.
5. Ventilate your work area adequately when you
perform sanding operations.
6. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
7. Use of this tool to sand some products, paints
and wood could expose user to dust contain-
ing hazardous substances. Use appropriate
respiratory protection.
8. Be sure that there are no cracks or breakage
on the pad before use. Cracks or breakage
may cause a personal injury.
9. Watch your footing and maintain your balance
with the tool. Make sure there is no one below
when working in high locations.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1.
Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery char-
ger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery
cartridge.Itmayresultinare,excessiveheat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4.
If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge.Suchconductmayresultina
re,excessiveheat,orexplosion.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
Forcommercialtransportse.g.bythirdparties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consulting an
expert for hazardous material is required. Please also
observepossiblymoredetailednationalregulations.
Tapeormaskoopencontactsandpackupthe
batteryinsuchamannerthatitcannotmove
around in the packaging.
11 ENGLISH
11.
When disposing the battery cartridge, remove it from
the tool and dispose of it in a safe place. Follow your
local regulations relating to disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
siveheat,explosion,orleakofelectrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15.
Do not touch the terminal of the tool immediately
after use as it may get hot enough to cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge.Itmaycauseheating,catchingre,
burstandmalfunctionofthetoolorbatterycar-
tridge,resultinginburnsorpersonalinjury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines.Itmayresultinamalfunctionor
breakdownofthetoolorbatterycartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION:
Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
havebeenaltered,mayresultinthebatterybursting
causingres,personalinjuryanddamage.Itwillalso
voidtheMakitawarrantyfortheMakitatoolandcharger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2.
Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3.
Charge the battery cartridge with room tempera-
ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot
battery cartridge cool down before charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
Important safety instructions for
wireless unit
1. Do not disassemble or tamper with the wire-
less unit.
2. Keep the wireless unit away from young chil-
dren. If accidentally swallowed, seek medical
attention immediately.
3. Use the wireless unit only with Makita tools.
4. Do not expose the wireless unit to rain or wet
conditions.
5. Do not use the wireless unit in places where
the temperature exceeds 50 °C (122 °F).
6. Do not operate the wireless unit in places
where medical instruments, such as heart
pace makers are nearby.
7. Do not operate the wireless unit in places
where automated devices are nearby. If oper-
ated,automateddevicesmaydevelopmalfunction
or error.
8. Do not operate the wireless unit in places
under high temperature or places where
static electricity or electrical noise could be
generated.
9. The wireless unit can produce electromagnetic
elds (EMF) but they are not harmful to the
user.
10. The wireless unit is an accurate instrument. Be
careful not to drop or strike the wireless unit.
11. Avoid touching the terminal of the wireless
unit with bare hands or metallic materials.
12. Always remove the battery on the product
when installing the wireless unit into it.
13. When opening the lid of the slot, avoid the
place where dust and water may come into the
slot. Always keep the inlet of the slot clean.
14. Always insert the wireless unit in the correct
direction.
15. Do not press the wireless activation button
on the wireless unit too hard and/or press the
button with an object with a sharp edge.
16. Always close the lid of the slot when
operating.
17. Do not remove the wireless unit from the slot
while the power is being supplied to the tool.
Doingsomaycauseamalfunctionofthewireless
unit.
18. Do not remove the sticker on the wireless unit.
19. Do not put any sticker on the wireless unit.
20. Do not leave the wireless unit in a place where
static electricity or electrical noise could be
generated.
21. Do not leave the wireless unit in a place sub-
ject to high heat, such as a car sitting in the
sun.
22. Do not leave the wireless unit in a dusty or
powdery place or in a place corrosive gas
could be generated.
23. Sudden change of the temperature may bedew
the wireless unit. Do not use the wireless unit
until the dew is completely dried.
24. When cleaning the wireless unit, gently wipe
with a dry soft cloth. Do not use benzine, thin-
ner, conductive grease or the like.
25. When storing the wireless unit, keep it in the
supplied case or a static-free container.
26. Do not insert any devices other than Makita
wireless unit into the slot on the tool.
27. Do not use the tool with the lid of the slot dam-
aged.Water,dust,anddirtcomeintotheslotmay
cause malfunction.
28. Do not pull and/or twist the lid of the slot more
than necessary.Restorethelidifitcomeso
from the tool.
29.
Replace the lid of the slot if it is lost or damaged.
SAVE THESE INSTRUCTIONS.
12 ENGLISH

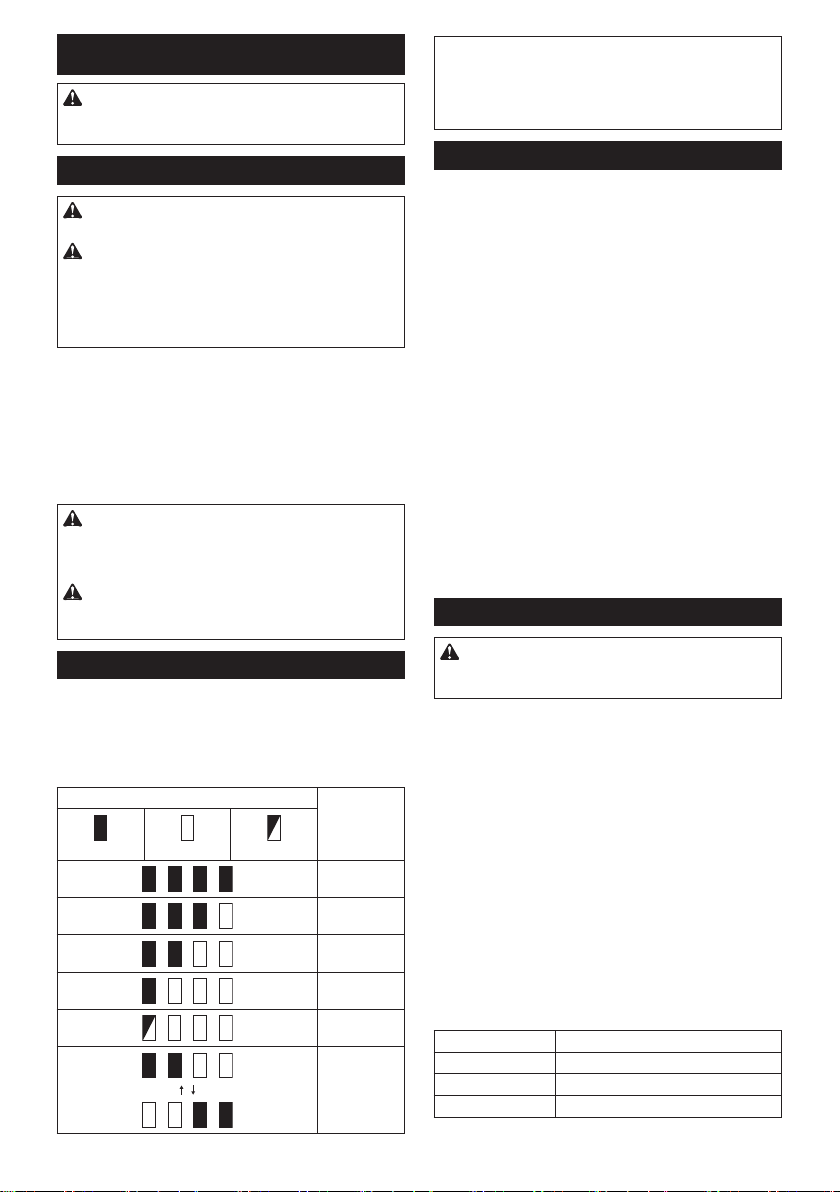

FUNCTIONAL DESCRIPTION
CAUTION: Always be sure that the tool is
switched o and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery cartridge
CAUTION: Always switch o the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge.Failuretoholdthetoolandthebattery
cartridgermlymaycausethemtoslipoyourhands
andresultindamagetothetoolandbatterycartridge
andapersonalinjury.
►Fig.1: 1. Red indicator 2. Button 3.Batterycartridge
Toremovethebatterycartridge,slideitfromthetool
while sliding the button on the front of the cartridge.
Toinstallthebatterycartridge,alignthetongueonthe
batterycartridgewiththegrooveinthehousingandslip
itintoplace.Insertitallthewayuntilitlocksinplace
withalittleclick.Ifyoucanseetheredindicatoras
showninthegure,itisnotlockedcompletely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
youorsomeonearoundyou.
CAUTION: Do not install the battery cartridge
forcibly.Ifthecartridgedoesnotslideineasily,itis
notbeinginsertedcorrectly.
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
►Fig.2: 1. Indicator lamps 2. Check button
Pressthecheckbuttononthebatterycartridgetoindi-
catetheremainingbatterycapacity.Theindicatorlamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
Thebattery
mayhave
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydierslightly
fromtheactualcapacity.
NOTE:Therst(farleft)indicatorlampwillblinkwhen
thebatteryprotectionsystemworks.
Tool / battery protection system
Thetoolisequippedwithatool/batteryprotectionsys-
tem.Thissystemautomaticallycutsopowertothe
motortoextendtoolandbatterylife.Thetoolwillauto-
maticallystopduringoperationifthetoolorbatteryis
placed under one of the following conditions:
Overload protection
Whenthetoolorbatteryisoperatedinamannerthat
causesittodrawanabnormallyhighcurrent,thetool
automaticallystopswithoutanyindication.Inthissit-
uation,turnthetooloandstoptheapplicationthat
caused the tool to become overloaded. Then turn the
tool on to restart.
Overheat protection
Whenthetoolorbatteryisoverheated,thetoolstops
automatically.Inthiscase,letthetoolandbatterycool
before turning the tool on again.
Overdischarge protection
Whenthebatterycapacityisnotenough,thetoolstops
automatically.Inthiscase,removethebatteryfromthe
toolandchargethebattery.
Switch action
CAUTION: Avoid turning the tool on while it
is placed on the workpiece or on your workbench.
Itmaycausepersonalinjuryordamage.
Turning the tool on and o
Press the power/speed select button on the top of the
main handle to start the tool. The tool starts to run at its
highest orbital speed.
Press the stop button to pause or cease operation.
►Fig.3: 1. Power/speed select button 2. Stop button
3. Main handle
Changing the tool speed
The orbital speed can be changed in three modes, that
is, high, medium and low depending on the application
and workload.
Press the power/speed select button to switch speed
mode.
►Fig.4: 1. Power/speed select button
Speed settings table
Speed level Orbital per minute
3 (High) 12,000 min-1 (/min)
2 (Medium) 8,000 min-1 (/min)
1 (Low) 4,000 min-1 (/min)
13 ENGLISH
NOTICE: If the tool is operated continuously
at low speeds for a long time, the motor will get
overloaded, resulting in tool malfunction.
NOTICE: Select an appropriate speed range for
your sanding operations to avoid overheating
and melting the workpiece. Sanding at high orbital
speedmayheatworkpieceandmeltitatthepointof
contact.
Electronic function
The tool is equipped with the electronic function for
easyoperation.
Constant speed control
This function serves a constant orbital speed to obtain
nenish.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o and the battery cartridge is removed
before carrying out any work on the tool.
Installing and removing abrasive paper
CAUTION: Always make sure that a sheet of
abrasive paper is installed securely before use.
Thepapermayotherwisebeloosened,removed
easilyandsubjecttoslippage,resultinginuneven
sanding operation.
Using abrasive paper supplied with
tool

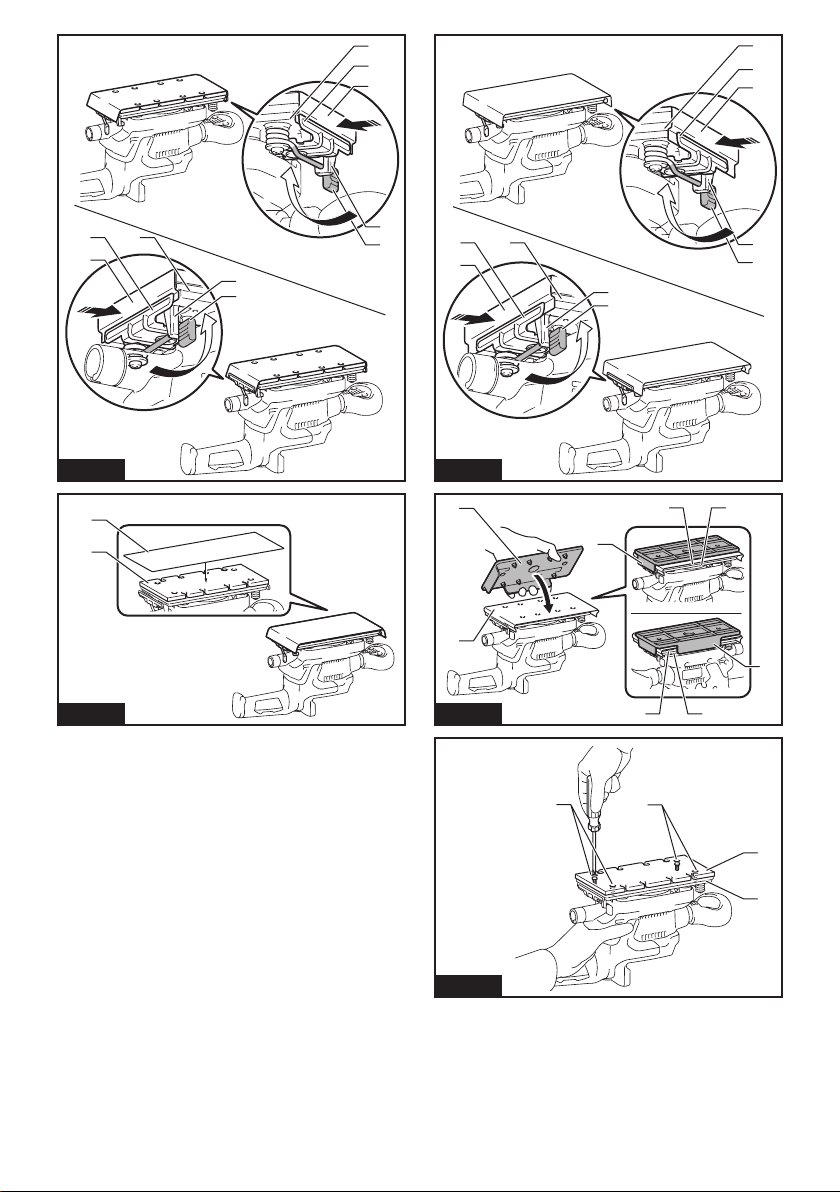

1. Push and hold down the clamp lever on either
frontorrearendofthepad,andslideitawayfromthe
stopper so the clamp is released from its fastened
position.
2. Pull the clamp lever outwards as far as possible to
create a space between the clamp and side wall of the
sanding base in which one end of abrasive paper can
be inserted.
►Fig.5: 1. Clamp lever 2. Stopper 3. Clamp
4. Sanding base 5. Pad
3. Place a sheet of abrasive paper over the pad,
aligning the dust-suction holes in the paper with those
in the pad.
►Fig.6: 1. Abrasive paper 2. Pad 3. Dust-suction hole
4. Slip one end of the abrasive paper into the space
between the clamp and sanding base.
5. Set the clamp lever back in a locked position so
theendofabrasivepaperisclampedsecurely.
6. Release the clamp on the other end, and have the
otherendofabrasivepaperreadytobeclamped.
7. Maintain a proper tension on abrasive paper, and
then set the clamp lever on the other end in a locked
position.
►Fig.7: 1. Abrasive paper 2. Clamp 3. Sanding base
4. Clamp lever 5. Stopper
8. To remove the abrasive paper, release the clamps
onbothendsandtakethepaperothepad.
Using abrasive paper available in the
market
1. Cut a sheet of abrasive paper down to an appro-
priate size.
►Fig.8: 1. Abrasive paper 2. Pad
2. Push and hold down the clamp lever on either
frontorrearendofthepad,andslideitawayfromthe
stopper so the clamp is released from its fastened
position.
3. Pull the clamp lever outwards as far as possible to
create a space between the clamp and side wall of the
sanding base in which one end of abrasive paper can
be inserted.
4. Slip one end of the abrasive paper into the space
between the clamp and sanding base.
5. Repositiontheabrasivepapersoitisnelyover-
laid on the pad surface.
6. Set the clamp lever back in a locked position to
clamptheendofabrasivepapersecurely.
7. Release the clamp on the other end, and have the
otherendofabrasivepaperreadytobeclamped.
8. Maintain a proper tension on abrasive paper, and
then set the clamp lever on the other end in a locked
position.
►Fig.9: 1. Abrasive paper 2. Clamp 3. Sanding base
4. Clamp lever 5. Stopper
9. Cover the abrasive paper with the punch plate
withitspositioningstoppersadjacenttothecornerwell
tontotwoofthesideedgesofthepadandsanding
base.
►Fig.10: 1. Abrasive paper 2. Punch plate
3. Positioning stoppers 4. Pad 5. Sanding
base
10. Push the punch plate over the abrasive paper to
make dust-suction holes.
11. To remove the abrasive paper, release the clamps
onbothendsandtakethepaperothepad.
Using hook-and-loop abrasive paper
Optional accessory
CAUTION: Make sure to install a hook-and-
loop pad correctly and securely. A loose attach-
ment will run out of balance and cause an excessive
vibration resulting in loss of control.
CAUTION: Be sure that a hook-and-loop pad
and abrasive paper are aligned and securely
attached.
CAUTION: Only use hook-and-loop abrasive
papers. Never use pressure-sensitive abrasive
papers.
14 ENGLISH

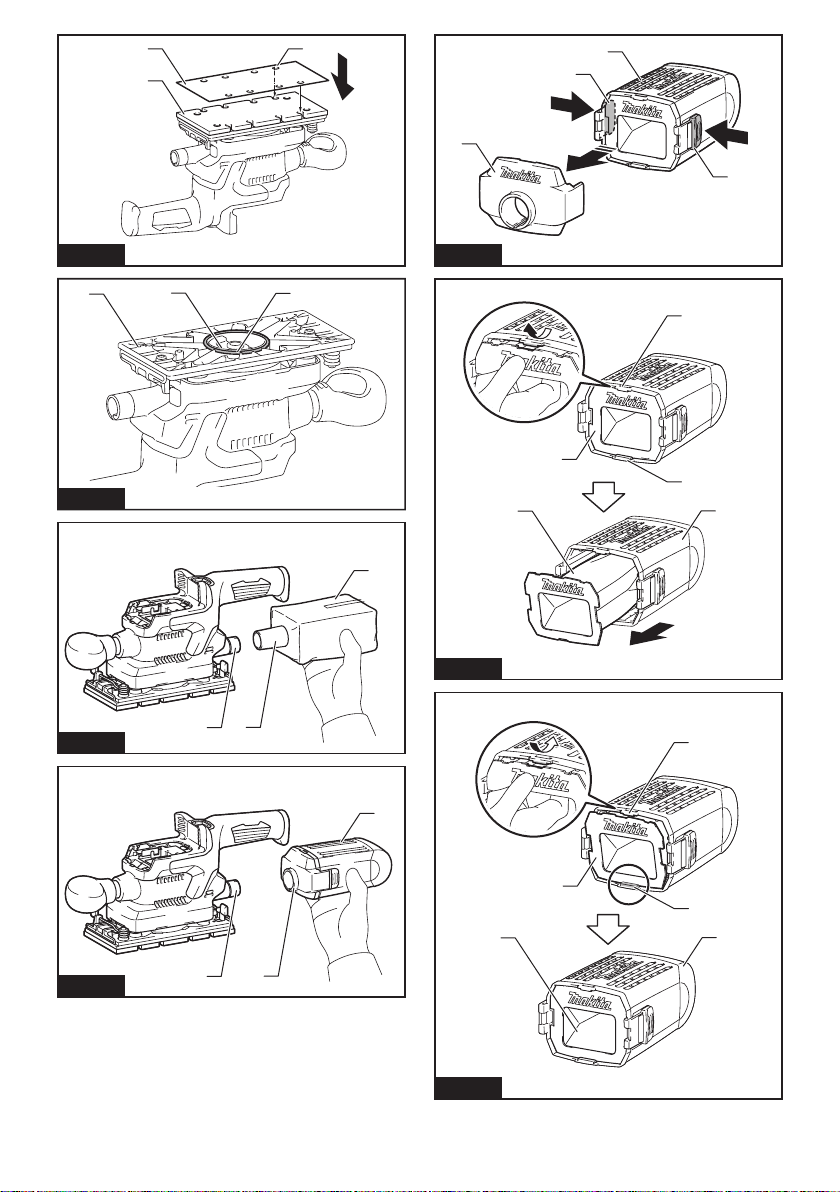

1. Loosen and remove the four screws securing the
pad to the sanding base.
2. Replace the standard-equipped pad with an
optional hook-and-loop pad.
3. Re-tightenthescrewsrmlytosecurethehook-
and-loop pad.
►Fig.11: 1. Screws 2. Sanding base 3. Pad
4. Remove all dirt and foreign matter from the hook-
and-loop pad.
5. Attach a sheet of optional hook-and-loop abrasive
paper to the pad, aligning the dust-suction holes in the
paper with those in the pad.
►Fig.12: 1. Abrasive paper 2. Pad 3. Dust-suction
holes
6. Toremovetheabrasivepaper,peelitofromthe
edge.
CAUTION: The O ring may come out of the
sanding base while replacing the pad. Set the O
ring back in the circular grooves around the cen-
ter of the base before installing the optional pad.
►Fig.13: 1. O ring 2. Sanding base 3. Circular
grooves
Installing and removing dust bag
Optional accessory
Attach the dust bag over the tapered dust spout at the
back end of the motor housing. Put the dust inlet of the
bag onto the dust spout as far as it will go to avoid it
fromcomingoduringoperation.
►Fig.14: 1. Dust spout 2. Dust inlet 3. Dust bag
NOTE: Make sure to attach the dust bag with its
zipper slider facing downwards.
NOTE:Toensureoptimaldustcollecting,emptythe
dustbagwhenitbecomeslledtoapproximatelyhalf
ofitscapacity.
Remove the dust bag from the tool and pull the fas-
tenerout.Thengentlyshakeortapthedustbagto
empty.
Installing and removing dust box
Optional accessory
Attach the dust box over the tapered dust spout at the
back end of the motor housing. Put the dust nozzle onto
the dust spout as far as it will go to avoid it from coming
oduringoperation.

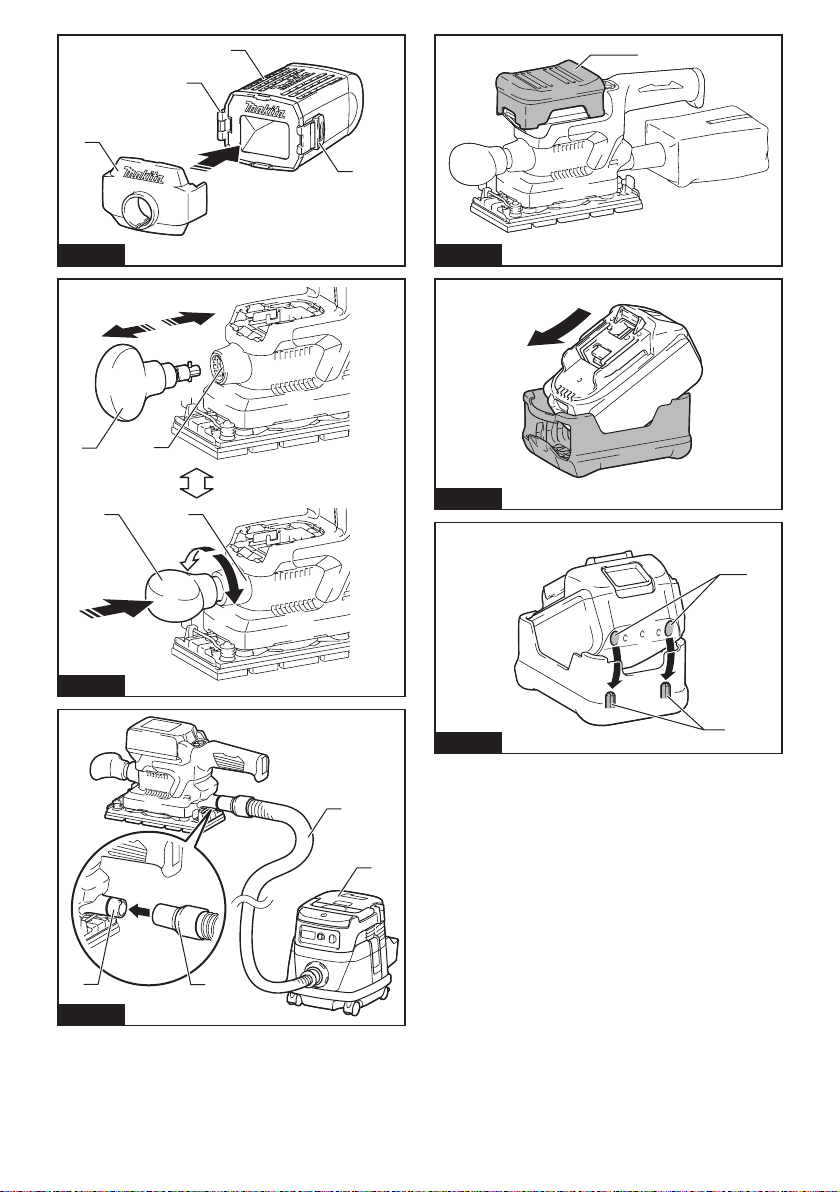

►Fig.15: 1. Dust spout 2. Dust nozzle 3. Dust box
NOTE:Toensureoptimaldustcollecting,emptythe
dustboxwhenitbecomeslledtoapproximatelyhalf
ofitscapacity.
1. Remove the dust box from the tool.
2. Detach the dust nozzle from the box while
pressing and holding the locking latches on both
sides of the box.
3. Gentlyshakeortapthedustboxtoempty.
Replacing lter
NOTICE: Be aware to align the logos on all the
dust box, lter and dust nozzle in a consistent
orientation when reassembling components.
1. Remove the dust box from the tool.
2. Detach the dust nozzle from the box while press-
ing and holding the locking latches on both sides of the
box.
►Fig.16: 1. Dust nozzle 2. Dust box 3. Locking latch
3. Hold the inner top edge of the cardboard opening,
andpullitodownwardstodisengagetheoutertop
edge of the cardboard opening from the upper hooking
tab on the lip of the dust box.
4. Takethelteroutofthedustboxwhilepullingthe
outer bottom edge of the cardboard opening free from
the lower hooking tab.
►Fig.17: 1. Filter 2. Cardboard opening 3. Upper
hooking tab 4. Lower hooking tab 5. Dust
box
5. Replacealterbyengagingthebottomedgeof
the cardboard opening in the lower hooking tab and
push the top edge inwards until it clips into the upper
hooking tab .
►Fig.18: 1. Filter 2. Cardboard opening 3. Upper
hooking tab 4. Lower hooking tab 5. Dust
box
6. Snap the dust nozzle into place while pressing
and holding the locking latches on both sides of the dust
box.
►Fig.19: 1. Dust nozzle 2. Dust box 3. Locking latch
Installing and removing front grip
Installation
Installthefrontgriptothetoolbeforeoperation,ifthey
areseparatelyincludedinthepackage.
Insert the end of the front grip into the slot on the motor
housing, aligning the outlines of the grip end with those
of the slot.
Pushandholdthefrontgriprmlytowardsthehousing
and rotate it 90 degrees with its gripping surface facing
upwards.
►Fig.20: 1. Front grip 2. Slot 3. Motor housing
4. Gripping surface
CAUTION: After assembly, pull the front grip
to check if it is securely attached together.
NOTICE: Make sure to push the front grip fully
into the slot end and keep it positioned where it is
while rotating the front grip.Failuretodosomay
cause damage to the tool.
Uninstallation
Byremovingthedetachablefrontgrip,sandingopera-
tionintight,connedandhard-to-reachareascanbe
performedeectively.
Pushandholdthefrontgriprmlytowardsthemotor
housing and rotate it 90 degrees to either the left or
right. Then pull it apart from the tool.
15 ENGLISH
Connecting with vacuum cleaner
Optional accessory
Whenyouwishtoperformcleansandingoperation,con-
nectaMakitavacuumcleanertoyourtool.Useeitheran
optionalhorse28mmoracombinationoffrontcus22and
hose provided with the cleaner to establish a connection.
►Fig.21: 1. Dust spout 2.Frontcus3. Hose
4. Vacuum cleaner
Installing and removing battery protector
Optional accessory
Thebatteryprotectorisintendedforprotectingthe
workpieceandbattery.
►Fig.22: 1.Batteryprotector
CAUTION: Never hand hold a battery pro-
tector when carrying the tool from one area to
another or when holding the tool while not in use.
NOTE:Thebatteryprotectorcannotbeusedwiththe
thin batteries, such as BL1815N and BL1820B.
Toinstallthebatteryprotector,followthestepsbelow.
1. Insertthebatteryintothebatteryprotectoras
showninthegure.
►Fig.23
2.
Pushthebatteryintothebatteryprotectorsothatthe
bossesinthebatteryprotectorttheholesonthebattery.
►Fig.24: 1. Hole 2. Boss
3. Makesurethatthefourcornersarermlyhooked
withthebatteryprotector.

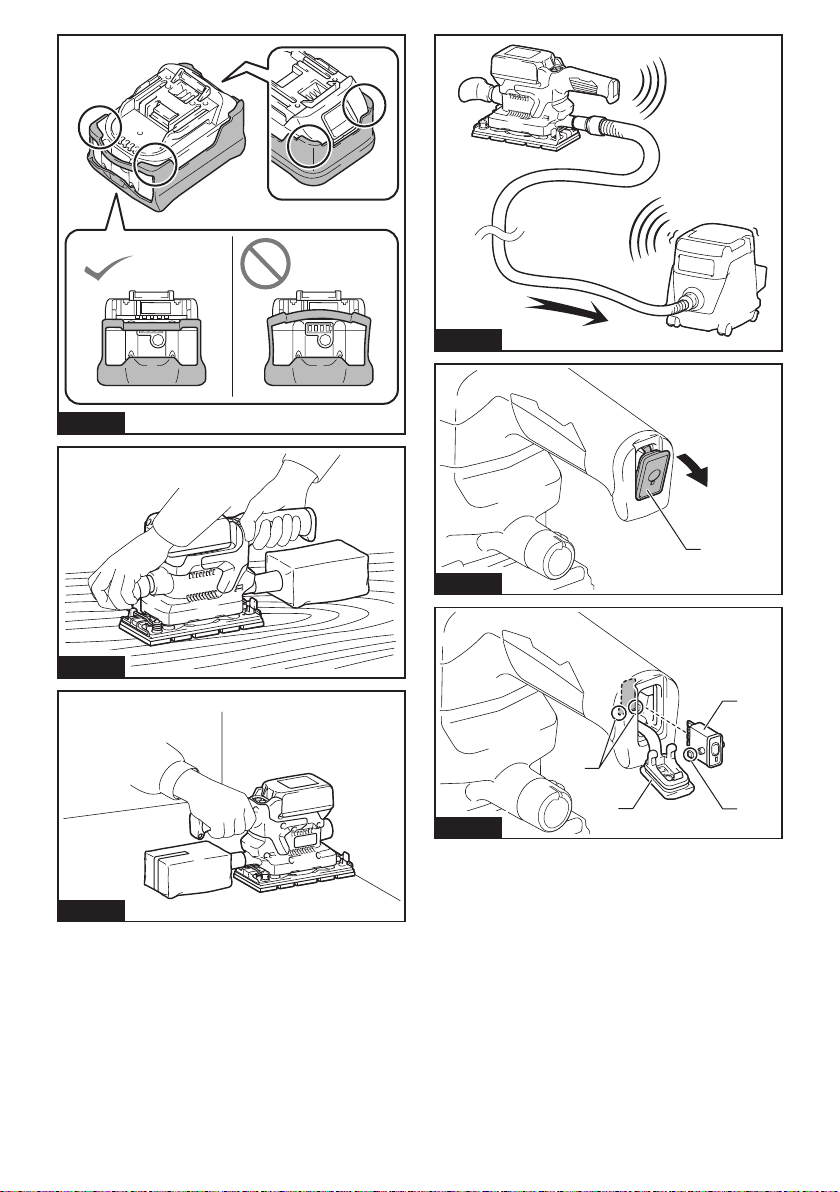

►Fig.25
Toremovethebatteryprotector,unhookthefourcor-
ners,andslowlypulloutthebatteryfromthebattery
protector so that the bosses comes out of the holes on
thebattery.Whilepullingthebattery,holdthebattery
andbatteryprotectorrmly.
OPERATION
Sanding operation
CAUTION: Never run the tool without the
abrasive paper.Youmayseriouslydamagethepad.
CAUTION: Never force the tool. Excessive
pressuremaydecreasethesandingeciency,dam-
age the abrasive paper and/or shorten tool life.
Sanding open areas
1. Holdthetoolrmlywithyourbothhands,one
hand on the handle and the other on the front grip.
2. Turn the tool on and wait until it attains full speed.
3. Gentlyplacethetoolontheworkpiecesurface.
4. Keeptheentirepadlevelandevenwiththesur-
faceandapplyslightpressureonthetool.
►Fig.26
Sanding conned areas
1. Detach the front grip from the tool.
2. Hold the handle with one hand.
3. Turn the tool on and wait until it attains full speed.
4. Gentlyplacethetoolontheworkpiecesurface.
5. Keeptheentirepadlevelandevenwiththesur-
faceandapplyslightpressureonthetool.
6. Move the tool along curves, wall faces and in other
connedspaces,sandingwiththefrontandcorner
edgesofthepadasyouneed.
►Fig.27
WIRELESS ACTIVATION
FUNCTION
For model DBO381 only
NOTICE:Thewirelessfunctionisonlyavailable
when the supported vacuum cleaner is being
installed.
What you can do with the wireless
activation function
The wireless activation function enables clean and com-
fortableoperation.Byconnectingasupportedvacuum
cleanertothetool,youcanrunthevacuumcleaner
automaticallyalongwiththeswitchoperationofthetool.
►Fig.28
To use the wireless activation function, prepare following items:
• Awirelessunit(optionalaccessory)
• A vacuum cleaner which supports the wireless
activation function
The overview of the wireless activation function setting is
as follows. Refer to each section for detail procedures.
1. Installing the wireless unit
2. Tool registration for the vacuum cleaner
3. Starting the wireless activation function
Installing the wireless unit
Optional accessory
CAUTION: Place the tool on a at and stable
surface when installing the wireless unit.
NOTICE:
Clean the dust and dirt on the tool before
installing the wireless unit.Dustordirtmaycause
malfunction if it comes into the slot of the wireless unit.
NOTICE: To prevent the malfunction caused by
static, touch a static discharging material, such
as a metal part of the tool, before picking up the
wireless unit.
NOTICE: When installing the wireless unit,
always be sure that the wireless unit is inserted
in the correct direction and the lid is completely
closed.
16 ENGLISH
1. Openthelidonthetoolasshowninthegure.
►Fig.29: 1. Lid
2. Insert the wireless unit to the slot and then close
the lid.
Wheninsertingthewirelessunit,aligntheprojections
with the recessed portions on the slot.
►Fig.30: 1. Wireless unit 2.Projection3. Lid
4. Recessed portion
Whenremovingthewirelessunit,openthelidslowly.
The hooks on the back of the lid will lift the wireless unit
asyoupullupthelid.

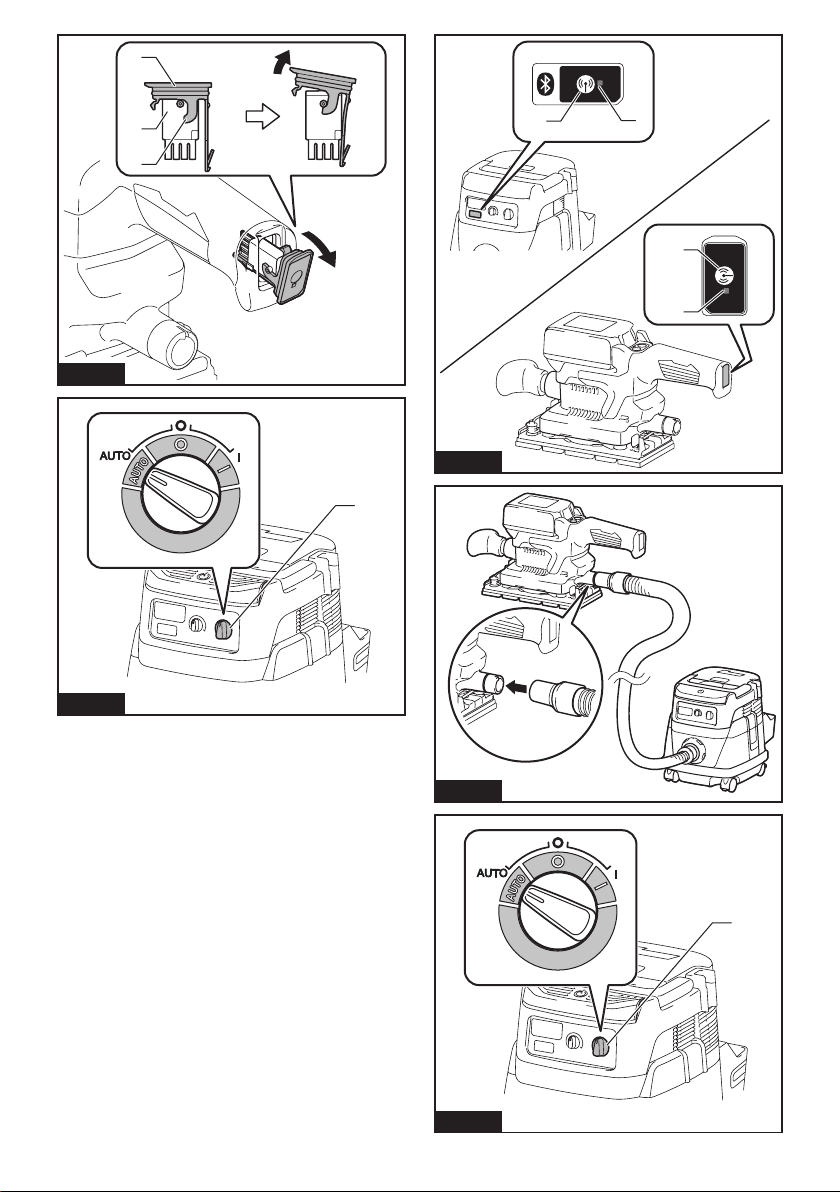

►Fig.31: 1. Wireless unit 2. Hook 3. Lid
After removing the wireless unit, keep it in the supplied
case or a static-free container.
NOTICE: Always use the hooks on the back of
the lid when removing the wireless unit. If the
hooks do not catch the wireless unit, close the lid
completelyandopenitslowlyagain.
Tool registration for the vacuum
cleaner
NOTE: A Makita vacuum cleaner supporting the
wireless activation function is required for the tool
registration.
NOTE: Finish installing the wireless unit to the tool
before starting the tool registration.
NOTE: During the tool registration, do not pull the
switch trigger or turn on the power switch on the
vacuum cleaner.
NOTE: Refer to the instruction manual of the vacuum
cleaner, too.
Ifyouwishtoactivatethevacuumcleaneralongwith
theswitchoperationofthetool,nishthetoolregistra-
tion beforehand.
1. Install the batteries to the vacuum cleaner and the
tool.
2. Setthestand-byswitchonthevacuumcleanerto
"AUTO".
►Fig.32: 1.Stand-byswitch
3. Press the wireless activation button on the vac-
uum cleaner for 3 seconds until the wireless activation
lamp blinks in green. And then press the wireless acti-
vationbuttononthetoolinthesameway.
►Fig.33: 1. Wireless activation button 2. Wireless
activation lamp
If the vacuum cleaner and the tool are linked success-
fully,thewirelessactivationlampswilllightupingreen
for 2 seconds and start blinking in blue.
NOTE:Thewirelessactivationlampsnishblinking
in green after 20 seconds elapsed. Press the wireless
activation button on the tool while the wireless acti-
vation lamp on the cleaner is blinking. If the wireless
activation lamp does not blink in green, push the wire-
lessactivationbuttonbrieyandholditdownagain.
NOTE: When performing two or more tool registra-
tionsforonevacuumcleaner,nishthetoolregistra-
tiononebyone.
Starting the wireless activation
function
NOTE: Finish the tool registration for the vacuum
cleaner prior to the wireless activation.
NOTE: Refer to the instruction manual of the vacuum
cleaner, too.
After registering a tool to the vacuum cleaner, the
vacuumcleanerwillautomaticallyrunsalongwiththe
switch operation of the tool.
1. Install the wireless unit to the tool.
2. Connect the hose of the vacuum cleaner with the
tool.

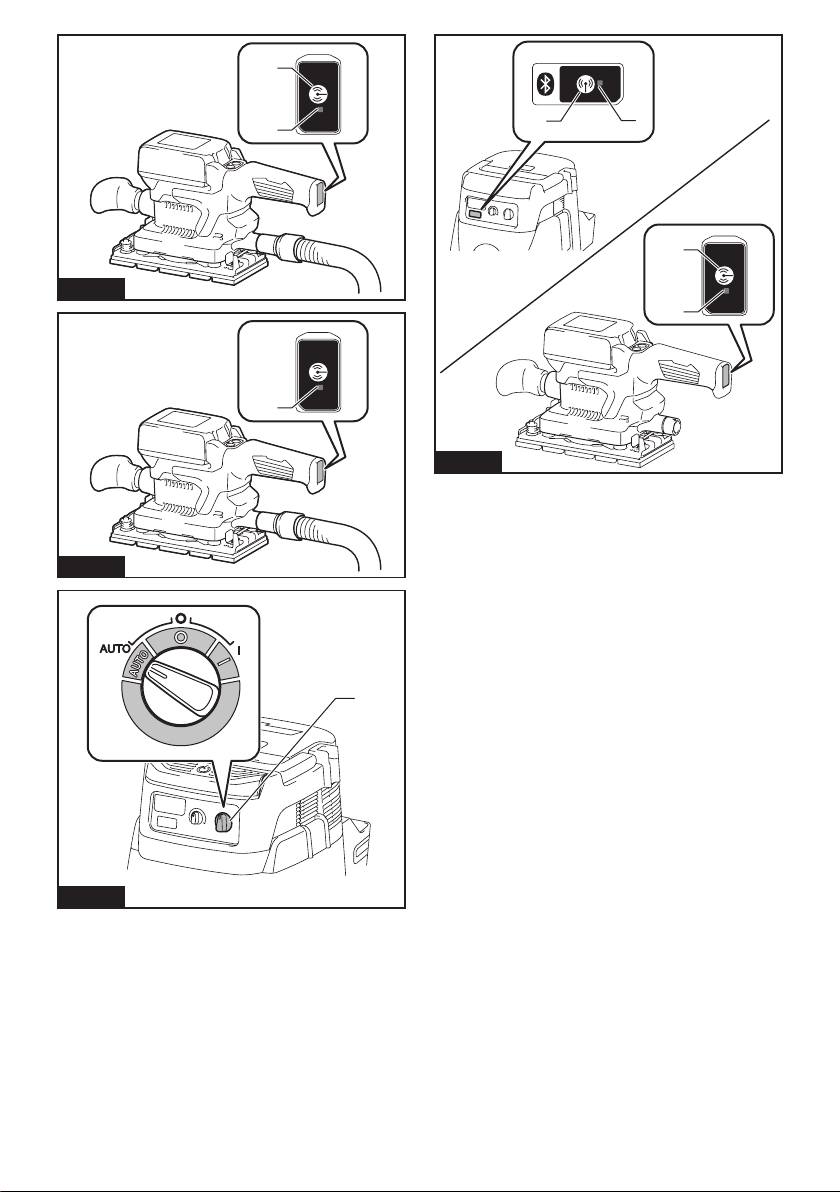

►Fig.34
3. Setthestand-byswitchonthevacuumcleanerto
"AUTO".
►Fig.35: 1.Stand-byswitch
4. Push the wireless activation button on the tool
briey.Thewirelessactivationlampwillblinkinblue.
►Fig.36: 1. Wireless activation button 2. Wireless
activation lamp
5. Turn on the tool. Check if the vacuum cleaner runs
while the tool is operating.
To stop the wireless activation of the vacuum cleaner,
push the wireless activation button on the tool.
NOTE: The wireless activation lamp on the tool will
stop blinking in blue when there is no operation for
2hours.Inthiscase,setthestand-byswitchonthe
vacuum cleaner to "AUTO" and push the wireless
activation button on the tool again.
NOTE:Thevacuumcleanerstarts/stopswithadelay.
There is a time lag when the vacuum cleaner detects
a switch operation of the tool.
NOTE: The transmission distance of the wireless unit
mayvarydependingonthelocationandsurrounding
circumstances.
NOTE: When two or more tools are registered to
onevacuumcleaner,thevacuumcleanermaystart
runningevenifyoudonotturnonyourtoolbecause
another user is using the wireless activation function.
17 ENGLISH
Description of the wireless activation lamp status
►Fig.37: 1. Wireless activation lamp
The wireless activation lamp shows the status of the wireless activation function. Refer to the table below for the
meaning of the lamp status.
Status Wireless activation lamp Description
Color
On
Blinking
Duration
Standby Blue 2 hours The wireless activation of the vacuum cleaner is available. The
lampwillautomaticallyturnowhennooperationisperformed
for 2 hours.
When
the tool is
running.
The wireless activation of the vacuum cleaner is available and the
tool is running.
Tool
registration
Green 20 seconds Readyforthetoolregistration.Waitingfortheregistrationbythe
vacuum cleaner.
2 seconds Thetoolregistrationhasbeennished.Thewirelessactivation
lamp will start blinking in blue.
Cancelling
tool
registration
Red 20 seconds Readyforthecancellationofthetoolregistration.Waitingforthe
cancellationbythevacuumcleaner.
2 seconds Thecancellationofthetoolregistrationhasbeennished.The
wireless activation lamp will start blinking in blue.
Others Red 3 seconds The power is supplied to the wireless unit and the wireless activa-
tion function is starting up.
O - - The wireless activation of the vacuum cleaner is stopped.
Cancelling tool registration for the
vacuum cleaner
Perform the following procedure when cancelling the
tool registration for the vacuum cleaner.
1. Install the batteries to the vacuum cleaner and the
tool.
2. Setthestand-byswitchonthevacuumcleanerto
"AUTO".
►Fig.38: 1.Stand-byswitch
3. Press the wireless activation button on the vac-
uum cleaner for 6 seconds. The wireless activation
lamp blinks in green and then become red. After that,
press the wireless activation button on the tool in the
sameway.
►Fig.39: 1. Wireless activation button 2. Wireless
activation lamp
Ifthecancellationisperformedsuccessfully,thewire-
less activation lamps will light up in red for 2 seconds
and start blinking in blue.
NOTE:Thewirelessactivationlampsnishblinkingin
red after 20 seconds elapsed. Press the wireless acti-
vation button on the tool while the wireless activation
lamp on the cleaner is blinking. If the wireless acti-
vation lamp does not blink in red, push the wireless
activationbuttonbrieyandholditdownagain.
18 ENGLISH
Troubleshooting for wireless activation function
Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedinthemanual,
donotattempttodismantlethetool.Instead,askMakitaAuthorizedServiceCenters,alwaysusingMakitareplace-
ment parts for repairs.
State of abnormality Probable cause (malfunction) Remedy
The wireless activation lamp does
not light/blink.
The wireless unit is not installed into the tool.
Thewirelessunitisimproperlyinstalled
into the tool.
Installthewirelessunitcorrectly.
The terminal of the wireless unit and/or
theslotisdirty. Gentlywipeodustanddirtontheterminalofthe
wireless unit and clean the slot.
The wireless activation button on the
tool has not been pushed.
Push the wireless activation button on the tool
briey.
Thestand-byswitchonthevacuum
cleaner is not set to "AUTO". Setthestand-byswitchonthevacuumcleanerto
"AUTO".
Nopowersupply
Supplythepowertothetoolandthevacuumcleaner.
Cannotnishtoolregistration/can-
cellingtoolregistrationsuccessfully.
The wireless unit is not installed into the tool.
Thewirelessunitisimproperlyinstalled
into the tool.
Installthewirelessunitcorrectly.
The terminal of the wireless unit and/or
theslotisdirty. Gentlywipeodustanddirtontheterminalofthe
wireless unit and clean the slot.
Thestand-byswitchonthevacuum
cleaner is not set to "AUTO". Setthestand-byswitchonthevacuumcleanerto
"AUTO".
Nopowersupply
Supplythepowertothetoolandthevacuumcleaner.
Incorrect operation
Pushthewirelessactivationbuttonbrieyandperform
the tool registration/cancellation procedures again.
Thetoolandvacuumcleanerareaway
from each other (out of the transmission
range).
Get the tool and vacuum cleaner closer to each other. The
maximumtransmissiondistanceisapproximately10m
howeveritmayvaryaccordingtothecircumstances.
Beforenishingthetoolregistration/cancellation;
-theswitchofthetoolisturnedonor;
- the power button on the vacuum
cleaner is turned on.
Pushthewirelessactivationbuttonbrieyand
perform the tool registration/cancellation procedures
again.
The tool registration procedures for the
toolorvacuumcleanerhavenotnished.
Perform the tool registration procedures for both the
tool and the vacuum cleaner at the same timing.
Radiodisturbancebyotherappliances
whichgeneratehigh-intensityradio
waves.
Keepthetoolandvacuumcleanerawayfromthe
appliances such as Wi-Fi devices and microwave
ovens.
The vacuum cleaner does not run
along with the switch operation of
the tool.
The wireless unit is not installed into the tool.
Thewirelessunitisimproperlyinstalled
into the tool.
Installthewirelessunitcorrectly.
The terminal of the wireless unit and/or
theslotisdirty. Gentlywipeodustanddirtontheterminalofthe
wireless unit and clean the slot.
The wireless activation button on the
tool has not been pushed.
Pushthewirelessactivationbuttonbrieyandmake
sure that the wireless activation lamp is blinking in blue.
Thestand-byswitchonthevacuum
cleaner is not set to "AUTO". Setthestand-byswitchonthevacuumcleanerto
"AUTO".
More than 10 tools are registered to the
vacuum cleaner.
Perform the tool registration again.
If more than 10 tools are registered to the vacuum
cleaner, the tool registered earliest will be cancelled
automatically.
The vacuum cleaner erased all tool
registrations.
Perform the tool registration again.
Nopowersupply
Supplythepowertothetoolandthevacuumcleaner.
Thetoolandvacuumcleanerareaway
from each other (out of the transmission
range).
Get the tool and vacuum cleaner closer each other. The
maximumtransmissiondistanceisapproximately10m
howeveritmayvaryaccordingtothecircumstances.
Radiodisturbancebyotherappliances
whichgeneratehigh-intensityradio
waves.
Keepthetoolandvacuumcleanerawayfromthe
appliances such as Wi-Fi devices and microwave
ovens.
The vacuum cleaner runs while the
tool is not operating.
Other users are using the wireless
activation of the vacuum cleaner with
their tools.
Turnothewirelessactivationbuttonoftheother
tools or cancel the tool registration of the other
tools.
19 ENGLISH
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
beperformedbyMakitaAuthorizedorFactoryService
Centers,alwaysusingMakitareplacementparts.
After use
Wipeothetoolusingadryclothorclothslightlymoist-
enedwithsoapywateratregularintervals.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual.Theuseofanyother
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
Ifyouneedanyassistanceformoredetailsregard-
ingtheseaccessories,askyourlocalMakitaService
Center.
• Abrasive paper (with pre-punched holes)
• Hook-and-looptypeofabrasivepaper
• Punch plate
• Backingpad(Forusewithhook-and-looptypeof
abrasive paper)
• Backingpad(Forusewithconventionaltypeof
abrasive paper)
• Dust bag
• Dust box
• Filter
• Hose
• Wireless unit (for model DBO381)
• Batteryprotector
• Makitagenuinebatteryandcharger
NOTE:Someitemsinthelistmaybeincludedinthe
toolpackageasstandardaccessories.Theymay
dierfromcountrytocountry.
20 SLOVENŠČINA
SLOVENŠČINA (Originalna navodila)
TEHNIČNI PODATKI
Model: DBO380 DBO381
Velikost podloge 93 mm x 185 mm
Velikostbrusnegapapirja 93 mm x 228 mm
Vrtljajinaminuto Hitro 12.000 min-1
Srednje 8.000 min-1
Počasi 4.000 min-1
Celotnadolžina(ssprednjimročajem) 336 mm
Nazivna napetost D.C. 18 V
Netoteža 1,9 - 2,2 kg
• Kernenehnoopravljamoraziskaveinrazvijamosvojeizdelke,selahkotehničnipodatkivtemdokumentu
spremenijobrezobvestila.
• Tehničnipodatkiinbaterijskivložkiselahkorazlikujejogledenadržavouporabeizdelka.
• Težaselahkorazlikujegledenapriključke,vključnozakumulatorskobaterijo.Najlažjainnajtežjakombinacijav
skladu s postopkom EPTA 01/2014 sta prikazani v preglednici.
Uporabna akumulatorska baterija in polnilnik
Baterijskivložek BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B
Polnilnik DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF /
DC18SH / DC18WC
• Nekaterezgorajnavedeneakumulatorskebaterijeinpolnilnikimordavvašidržaviprebivališčanisonavoljo.
OPOZORILO: Uporabljajte le zgoraj navedene akumulatorske baterije in polnilnike. Uporaba drugih
akumulatorskihbaterijinpolnilnikovlahkopovzročitelesnepoškodbein/alipožar.
Predvidena uporaba
Orodjejenamenjenobrušenjuvelikihlesenihpovršin,
plastikeinkovinskihmaterialovterlakiranihpovršin.
Hrup
ObičajnaA-ovrednotenaravenhrupavskladuz
EN62841-2-4:
Model DBO380
Ravenzvočnegatlaka(LpA): 72 dB (A)
Odstopanje(K):3dB(A)
Model DBO381
Ravenzvočnegatlaka(LpA): 72 dB (A)
Odstopanje(K):3dB(A)
Nivohrupameddelomlahkopreseže80dB(A).
OPOMBA:Navedenevrednostioddajanjahrupaso
bileizmerjenevskladusstandardnimimetodami
testiranjainselahkouporabljajozaprimerjavoorodij.
OPOMBA:Navedenevrednostioddajanjahrupa
selahkouporabljajotudipripredhodnioceni
izpostavljenosti.
OPOZORILO: Uporabljajte zaščito za sluh.
OPOZORILO: Oddajanje hrupa med dejansko
uporabo električnega orodja se lahko razlikuje od
navedenih vrednosti, odvisno od načina uporabe
orodja in predvsem vrste obdelovanca.
OPOZORILO: Upravljavec mora za lastno
zaščito poznati varnostne ukrepe, ki temeljijo
na oceni izpostavljenosti v dejanskih pogojih
uporabe (poleg časa proženja je treba upoštevati
celoten delovni cikel, vključno s časom, ko je
orodje izklopljeno, in časom, ko deluje v prostem
teku).
Vibracije
Skupnevrednostivibracij(vektorskavsotatrehosi)v
skladu z EN62841-2-4:
Model DBO380
Delovninačin:brušenjekovinskeplošče
Emisijevibracij(ah): 3,6 m/s2
Odstopanje(K):1,5m/s2
Model DBO381
Delovninačin:brušenjekovinskeplošče
Emisijevibracij(ah): 3,6 m/s2
Odstopanje(K):1,5m/s2
Other manuals for DBO380
11
This manual suits for next models
3
Table of contents
Languages:
Other Makita Sander manuals
Makita
Makita M9204 User manual
Makita
Makita DBO380 User manual
Makita
Makita BBO140 User manual
Makita
Makita 9902 User manual
Makita
Makita 9901 User manual
Makita
Makita BO5012 User manual
Makita
Makita PW5001C User manual
Makita
Makita 9403 User manual
Makita
Makita BO6030 User manual
Makita
Makita 9207SPB User manual
Makita
Makita BO5040 User manual
Makita
Makita 9741 User manual
Makita
Makita BO4900 User manual
Makita
Makita PO6000C User manual
Makita
Makita DBO380 User manual
Makita
Makita PV001GZX05 User manual
Makita
Makita PW5001C User manual
Makita
Makita BO6040 Quick start guide
Makita
Makita 9031 User manual
Makita
Makita DBO484Z User manual
