Malta Dynamics X Series User manual

INSTRUCTION
MANUAL

X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
2
Manual Revision:
03-15-2021
THE X500 INSTRUCTION MANUAL

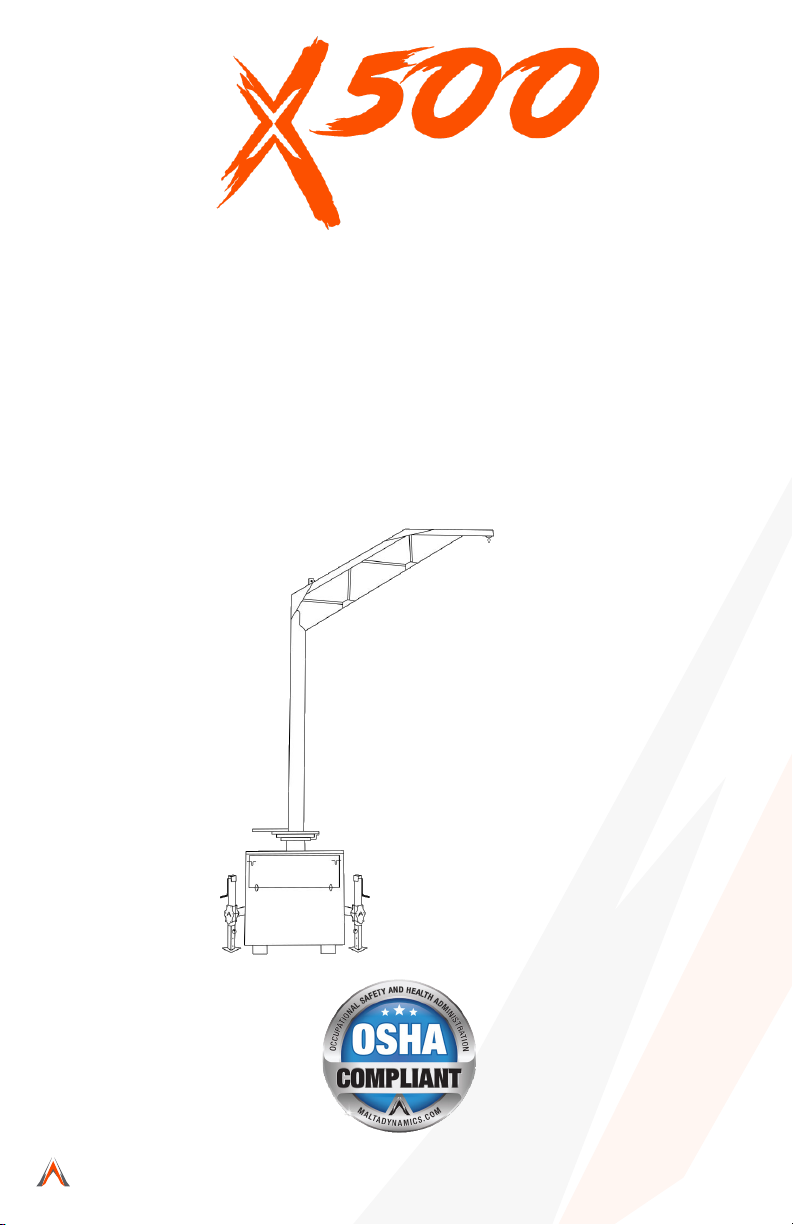

These instructions apply to the following model(s): X500
Manual Revision Date: March 15, 2021
Please visit www.MaltaDynamics.com for the latest user instruction manual
revision available for this product offering as well as supporting documentation.
Width: 4’-10”
Height: 20’-5”
Length: 13’
Reach: 10’
Anchor Point Height: 20'
Unit Weight: 5,950 lbs

3
X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
Visit www.MaltaDynamics.com for the latest user
instruction manual based upon date of manufacture.
TABLE OF CONTENTS
General ------------------------------------------------------------------ 4
Training ------------------------------------------------------------------ 4
Training Topics ---------------------------------------------------------- 4
Under Penalty of Law----------------------------------------------------- 5
Warnings & Limitations------------------------------------------------- 6
General Operation and Initial Setup------------------------------------- 8
Lifting The Unit ----------------------------------------------------------- 10
Maintenance Schedule--------------------------------------------------- 11
Safety Instructions--------------------------------------------------------- 11
Inspection ---------------------------------------------------------------- 12
Initial Quality Inspection--------------------------------------------------- 13
Limited Warranty ----------------------------------------------------------14
Warranty Registration Form ---------------------------------------------- 15

X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
4
Manual Revision:
03-15-2021
GENERAL
Malta Dynamics fall protection systems are designed for use where fall hazards
exist.
This equipment is to be used with an ANSI rated self-retracting device (SRD) with
an average arrest force of 900lbs or less. This fall arrest system meets the needs
of a construction and industrial worker’s safety requirements.
The X500 is comprised primarily of A36 steel but also includes but not limited to
rubber, plastics, copper, and concrete.
TRAINING
All training shall be conducted by trainers deemed competent. Manufacturer’s
based training is essential to help understand the capabilities and limitations of
their personal protective equipment. Training also helps promote condence and
should be conducted as an initial introduction as well as periodically for review
and additional practice.
Please note it is the expectation of the manufacturer that users are all deemed
competent for working at heights and conned space under the relevant industry
codes.
TRAINING TOPICS
Following is a suggested list of training objectives. Training should be site and
project specic and may need to cover more topics than those listed.
1. Recognizing fall hazards and eliminating hazards where possible.
2. Knowing the four parts of a fall arrest system:
Anchorage, Body Support, Connectors and Devices.
• Select the proper PPE for the job.
• Consider environmental and other workplace factors.
• Determine and reduce free fall distance, always work in limited free-fall.
• Wear a properly tted harness.
• Implement a pre-determined rescue plan.
• Inspect and maintain all PPE.
• Understand the limitations and requirements of the PPE being used.
• Understand the consequences of not following or understanding these
instructions.

5
X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
Visit www.MaltaDynamics.com for the latest user
instruction manual based upon date of manufacture.
UNDER PENALTY OF LAW
The instructions are not to be removed except by the user of this system. Current
instructions must always be available to any potential user. If you have any difculty
or experience any problems with Malta Dynamics systems or need assistance
with the instruction: contact Malta Dynamics for assistance.
This equipment is designed to be used as a part of a complete fall protection
system. It is to be inspected and maintained on a regular basis.
It is the responsibility of the user and their management to review these instructions
periodically, and to ensure their continued compliance.
Malta Dynamics systems shall be a part of a complete fall
protection system.
If the user chooses to disregard this warning, he or she is solely
responsible for the safety of the entire system and all users.
Prior to replacing or modifying any components to a fall protection
system, consult Malta Dynamics.
Any changes to this system must be authorized by Malta Dynamics
in writing.
Operators must read and understand all instructions fully; failure to
do so could result in a serious or fatal injury.
To achieve the maximum level of safety that this system is capable of
providing, all instructions must be followed diligently.
This means careful planning of your application and work method.
WARNING
WARNING
WARNING
You assume complete liability if you fail to follow these
instructions and become injured. Use this system only as instructed.
WARNING
WARNING
WARNING

X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840 6Manual Revision: 03-15-2021
WARNINGS & LIMITATIONS
• Failure to follow these instructions could result in a serious or fatal
electrical incident. Read, understand, and follow the instruction manual,
assembly drawings, and warnings provided with your system before
beginning installation to avoid injury.
• Equipment shall only be used by a person trained and competent in its
safe use.
• Do not use if the system or any part of the system appears to be
damaged.
• Do not use the system if any components do not operate properly.
• Use in highly corrosive or caustic environments dictates a more frequent
inspection and servicing program to ensure the integrity of the system is
maintained. Always perform a hazard analysis before use that identifies
impact hazards, swing hazards, or any other hazards that may exist.
Address and correct all hazards before use.
• If used in highly corrosive or caustic environments a more frequent
inspection and servicing program to ensure the integrity of the system
is maintained.
• Do not attempt to repair this system.
• Do not make alterations or additions to the equipment without the
manufacturer’s prior written consent, and that any repair shall be carried
out in accordance with the manufacturer’s procedures.
• Personal fall arrest systems and components subjected to impact
loading shall be immediately removed from service and shall not be
used again for employee protection until inspected and determined by
a competent person to be undamaged and suitable for reuse.
• A rescue plan shall be in place to deal with any emergencies that could
arise during work.
• All equipment must be inspected before each use. Any component
exhibiting deformities, unusual wear, or deterioration must be
immediately discarded.
•The X500 is designed for up to 1 worker in any combination of Fall
Restraint or Fall Arrest with a maximum weight capacity of 310lbs. The
X500 is a mobile engineered anchorage solution designed to protect
workers from fall hazards.
• Never use fall protection equipment for towing or hoisting.
• Do not operate the machine in strong or gusty winds.
• Do not increase the surface area of the platform or load. Increasing the
area exposed to the wind will decrease machine stability.
• Inspect for dangers that may arise be the use of combinations of items
of equipment in which the safe function of any one item is affected by
or interferes with the safe function or another.
• User must carry out a pre-use check of the equipment, to ensure that
it is in a serviceable condition and operates correctly before it is used.

7
X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
Visit www.MaltaDynamics.com for the latest user
instruction manual based upon date of manufacture.
• It is essential for safety that equipment is withdrawn from use
immediately should any doubt arise about its condition for safe use
or it has been used to arrest a fall. Unit must not be used again until
confirmed in writing by a competent person that it is acceptable to do
so.
• It is essential for safety that the anchor device or anchor point should
always be positioned, and work carried out in such way, as to minimize
both the potential for falls and potential fall distance.
• A full body harness is the only acceptable body holding device that can
be used in a fall arrest system.
• Verify the free space required beneath the user at the workplace before
each occasion of use, so that, in the case of a fall, there will be no
collision with the ground or the other obstacle in the fall path.
• Consider hazards that may affect the performance of the equipment
and corresponding safety precautions that have to be observed (e.g.:
extremes of temperature, trailing or looping of lanyards or lifelines
over sharp edges, chemical reagents, electrical conductivity, cutting,
abrasion, climatic exposure, pendulum falls).
• It is essential for the safety of the user that if the product is re-sold
outside the original country of destination the reseller shall provide
instructions for use, for maintenance, for periodic examination and for
repair in the language of the country in which the product is to be used.
• Perform regular periodic examinations, and that the safety of users
depends upon the continued efficiency and durability of the equipment.
• Periodic examination frequency shall be at least every 12 months.
Periodic examinations are only to be conducted by a competent person
and strictly in accordance with the manufacturer’s periodic examination
procedures.
• Check the legibility of the product markings.
• Any repair shall only be conducted by a competent person for repair, who
has been authorized by the manufacturer, and that the repair procedure
shall be strictly in accordance with the manufacturer’s instructions.
• Always check for obstructions below the work area to make certain the
potential fall path is clear.
• Use only compatible locking snap hooks or locking carabiners with this
product.
• Use only approved Malta Dynamics hardware with this product.
• Do not attempt to move the system while workers are attached.
• The X500 should always be placed on level surfaces as any unexpected
movement of the unit could occur resulting in bodily injury or death.
• Do not remove product labels.
• It is the customer’s responsibility to confirm that the system and

X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
8
Manual Revision:
03-15-2021
components will work in and are acceptable for their specic application
and environment.
GENERAL OPERATION & INITIAL SETUP
Don a full body harness according to the manufacturer’s instructions.
Install only ANSI compliant self-retracting lifelines (SRL’s) and personal fall
protection according to the manufacturer’s instructions supplied with that
product.
INITIAL SETUP:
Before using the unit, be sure to read, understand, and follow the instructions
that come with your system. Knowing how to use the system properly will
greatly reduce the possibility of injury.
Equipment Needed for Assembly:
a. This manual
b. Applicable safety equipment for workers’ use during assembly, such as
hard hats, safety shoes, etc.
c. Telescoping fork truck or crane (minimum lifting height: 35 feet;
recommended capacity: 6,000 pounds )
d. Man lift/cherry picker
e. Torque wrench
f. Lifting straps
g. Wrench/Socket sizes: 15/16 inch
h. A spacious, level area for assembly
WORKING AREA/USE: When using the unit, the walking/working
surface being accessed by the user must be of a sufcient height as not to
allow any part of a worker’s body to strike an object, or, the next lower
level, in the event of a fall arrest situation, as required by OSHA. The X500
may be used up to 30 degrees off plumb in the East, West and South
directions depending upon model and anchor points being used so long as
the user cannot strike an object or the next lower level in a fall arrest.

9
X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
Visit www.MaltaDynamics.com for the latest user
instruction manual based upon date of manufacture.
WARNING: Use only ANSI rated SRLs. Adhere to all safety
precautions and warnings that come with your SRL. Attach
SRLs only to designated anchor points on the system.
Failure to do so could lead to serious injury or death.
LOCATION: The area where the system is used must be no less capable of
supporting twice the weight of the system and the loads applied by the system
in event of a fall.
SYSTEM CAPACITY FOR X500: The maximum number of users per unit is
1 (one). Only (1) user per individual anchor point is permitted. The capacities
are based on maximum user’s weight, including tools, clothing etc. of 310 lbs.
Warning: Maximum working load for each attachment point is 310 lbs. Do not
exceed this weight per individual attachment point.
COMPONENT COMPATIBILITY: The X500 is designed for use with ANSI
Z359.14-2014 Class B Self retracting lifelines or comparable that maintains an
average arresting force of 900lbs or less and approved components only.
Substitution or replacement with non-approved components will endanger the
compatibility within the system and may affect the reliability and safety of the
total system.
MOVING THE SYSTEM: Always disconnect workers before attempting to move
the system. Never expose a worker(s) to a fall hazard by moving the system
while connected to the system.
SURFACE GRADE: The X500 is designed for use on surfaces that allow the unit
to be leveled within 2° horizontal and vertical to grade.
Warning: Do not use on surfaces that do not allow the unit to be leveled within
2° horizontal and vertical to grade.
WORKING DISTANCE: WARNING: DO NOT EXCEED WORKING DISTANCE
REQUIREMENTS.
CONNECTORS: Anchorage connectors are components that couple the
personal fall arrest system to the anchorage. In accordance with ANSI
Z359.1-2007 the anchorage connector must be capable of withstanding
(without breaking) a 5,000 lb. (22.2kN) load, and able to withstand a 3,600 lb.
(16kN) load without cracking, or permanent deformation visible to the unaided
eye. Non-approved, non-compatible components may cause accidental
disengagement (roll-out). Only self-locking, self-closing connectors are
recommended.
WARNING
WARNING
WARNING

X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
10
Manual Revision:
03-15-2021
Caution must be taken when using self-retracting devices near moving
machinery, electrical hazards, sharp edges, or abrasive surfaces. Contact with
these elements may cause equipment failure, personal injury, or death.
LIFTING THE UNIT
FORKLIFT TRANSFER: To properly lift the unit with a forklift, use the built-in
forklift pockets.
ASSEMBLY INSTRUCTIONS:
1. Ensure all parts are accounted for before assembly. (20- 5/8th 3” Hex cap
Bolts, 20- 5/8th alloy lock washers, 20- 5/8th washer, swing arm, and weighted
base)
2. Fill grease fitting located on the underside of the pivot gear (Where the weighted
base and swing arm connect)
3. Before attempting to connect the swing arm to the weighted base, ensure
that all four outrigger jacks are deployed and are supporting the weight of the
system.
4. Attach the lifting device to the pick point located on the upper mast of the
swing arm.
5. Slowly lifting the swing arm with a crane/telehandler, align the predrilled bolt
holes to the holes on the weighted base.
6. Install all 20 bolts, lock washers, and washers on the inner holes of the unit.
7. Once all bolts are installed using a torque wrench, ensure all bolts are torqued
to 240 Ft/Lbs
8. Ensure all bolts are installed and torqued to the correct specs before
disconnecting lifting device. Use a manlift/cherry picker to safely reach
connecting device.
9. Ensure the unit is within 2 degrees of level by looking at the two levels installed
on the front/side of the mast.
10. Unit should rotate when a force is applied to the handle and be able to rotate
360 degrees in both directions.

11 X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
Visit www.MaltaDynamics.com for the latest user
instruction manual based upon date of manufacture.
MAINTENANCE SCHEDULE
SAFETY INSTRUCTIONS
Safety Warning Labels
You shall read and follow all instructions and safety labels for your own
protection.
You must read and fully understand or have the following instructions explained
to you before using this equipment. You must be properly trained prior to using
this equipment. This system shall be inspected prior to each use. The X500 shall
be inspected by a competent person at a minimum of every 12 months.
All inquiries should be made to Malta Dynamics either by means of phone, fax, or
e-mail. Malta Dynamics shall not be held responsible for injuries the user may
receieve from a fall if the system or any PPE is used outside of the prescribed
scope or any Industrial Code of Practice.
At no time shall this unit be altered or repaired unless authorized by the
manufacturer. Failure to follow the preceding instructions can result in a serious
or fatal injury.
Every Use (By
Authorized
User)
Monthly
(By Authorized
User)
12 Month
(Competent Person
Other than End
User
Item to Inspect
X Grease Coupler
X X X Labels
X X X Manual
X X Grease Fittings
X X X Anchor Points (Bolts & Swivel)
X Torque Bolts
X500 Maintenance & Inspection Schedule
The user is responsible for all maintenance, training and
inspection records. The system user pre-certied on
an annual basis by an authorized Malta Dynamics
representative or competent person.
WARNING
WARNING
WARNING

X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
12
Manual Revision:
03-15-2021
At no time shall the equipment not be used in a way or for a purpose other than
as instructed by the manufacturer.
Use of components within the system must adhere to the instructions provided.
Using combinations of components including but not limited to lanyards,
harnesses, SRDs, and anchors in combinations is strictly prohibited.
Exposing the system to any chemical that could in any way effect its performance
must be avoided. Users must contact the manufacturer for further guidance if
such a situation presents itself.
Extreme caution must be used when using the system around moving machinery.
Workers must be aware and use appropriate caution when using the system
around sharp edges.
INSPECTION
Inspection frequency: All systems shall be inspected visually by the user prior
to each use. The unit shall be inspected by a competent person every 12
months.
Detailed inspection records shall be kept. An inspection chart is provided in the
owner’s manual attached to the system for your convenience. In the event this
system has been involved in a fall, the unit and all components must be removed
from service IMMEDIATELY and checked by a trained and competent person
before possibly being put back in service.
Systems used in harsh environments may require more frequent formal inspections.
(Example: caustic or corrosive environments.)
Corrective actions: If damage is found or questionable conditions are apparent,
remove the equipment from service immediately and tag DO NOT USE. Failure to
remove systems that have been damaged or where their condition is questionable
could lead to a serious or fatal injury.

13
X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
Visit www.MaltaDynamics.com for the latest user
instruction manual based upon date of manufacture.
Use this form to maintain records for inspection of this equipment.
1. Proceed around the machine inspecting welds for cracks or gaps
*Cracks in the paint may help identify these areas.
2. Check that bolts and nuts are tightened and not missing.
3. Ensure that the leveling jacks show no sign of wear or damage.
4. Inspect the anchor points for deformation, cracks, and that they rotate freely.
5. Make sure that all labels are present and legible.
6. If ANY part of this inspection does not pass, mark machine with DO NOT
USE tag and contact your authorized X500 dealer.
INITIAL QUALITY INSPECTION
(Use this form for the rst inspection after receipt of system)
Purchase Date (mm/dd/yy): ______________________________
System Serial No: _______________________________________
Date of Inspection (mm/dd/yy): ___________________________
Inspected by: ____________________________________________
Inspection Date User Pass Fail

X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
14
Manual Revision:
03-15-2021
LIMITED WARRANTY
Malta Dynamics, LLC warrants that the X500 shall be free from defects in material
and workmanship that develop under normal use for a period of one year
from the date of shipment. The foregoing shall be the exclusive remedy of the
buyer and the exclusive liability of Malta Dynamics, LLC. Our warranty excludes
normal replaceable wear items, i.e. gaskets, wear parts, seals, Orings,
belts, drive chains, clutches, etc. Any equipment, part or product which is
furnished by Malta Dynamics, LLC but manufactured by another, bears only
the warranty given by such other manufacturer (Malta Dynamics, LLC agrees
to furnish free of charge a written description of problem or cause). Warranty is
voided by product abuse, alterations, use of equipment in applications for
which it was not intended, use of non-manufacturer parts, or failure to follow
documented service instructions. The foregoing warranty is exclusive of all other
warranties whether written or oral, expressed or implied. No warranty of
merchantability or fitness for a particular purpose shall apply. The agents,
dealers, and employees of Malta Dynamics, LLC are not authorized to make
modifications to this warranty, or additional warranties binding on the Malta
Dynamics, LLC. Therefore, additional statements, whether oral or written, do
not constitute warranty and should not be relied upon.
Except as set forth here in above and without limitation of the above, there
are no warranties or other affirmation which extend beyond the description of
the products on the fact hereof, or as to operational efficiency, product
reliability, or maintainability or compatibility with products furnished by others.
In no event, whether as a result of breach of contract or warranty or alleged
negligence, shall Malta Dynamics, LLC be liable for special or consequential
damages including but not limited to: Loss of profits or revenue, loss of
use of the product or any associated product, cost of capital, cost of
substitute products, facilities
INSPECTION ITEM PASS FAIL
Physical Damage to Body
Damaged, loose, corroded, or missing
hardware or connectors
Check anchorage points are secured
(mounting nuts tight) and inspect the eyes for
distortion or cracks
Check all bolts on mast are in place and
secure
Check that all labels are in place and legible
Inspect the SRL for damage and ensure that
the hook is not damaged and latch works
correctly

15
X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
Visit www.MaltaDynamics.com for the latest user
instruction manual based upon date of manufacture.
or services or claims of customers. Malta Dynamics, LLC does not assume
responsibility for any accident due to equipment modication or misuse. No claim
will be allowed for products lost or damaged in transit. Such claims should be
led with the carrier within fteen days.
WARRANTY REGISTRATION FORM
Fax Warranty Registration Form to 740-586-0772 or submit online at
www.MaltaDynamics.com by clicking on “Contact Us” and then
“Warranty Registration”.
Contact:_________________________________________________________
Company Name:__________________________________________________
Address:_________________________________________________________
City: ___________________________State:_______________ Zip:_________
Phone: (___)__________________ Fax: (___)___________________________
Email:___________________________________________________________
Purchased From:_________________________________________________
Purchase Date:______________________ Serial No:____________________
Type of Industry: Rental Construction Masonry Other
Please complete this warranty registration card and return via mail, fax or
email within 30 days of purchase to validate your manufacturer’s warranty for
all Malta Dynamics products.
Warranty provisions of this machine are handled directly through the
manufacturer.
Malta Dynamics | 210 13th Street | Malta, OH 43758
Phone: [phone] | Fax: [phone] | [email protected]
X500 Warranty Registration

X500 XSERIES Instruction Manual
MaltaDynamics.com | 800-494-1840
16
Manual Revision:
03-15-2021
800-494-1840
MaltaDynamics.com
210 13th Street
Malta, OH 43758 USA
