Mandik FDMA-PM User manual

2
These Technical Specifications define the range of the manufactured sizes and models, the main dimensions and the
scope of use of the FDMA-PM fire dampers (hereinafter referred to only as the "fire dampers"). They are binding for
production, designing, ordering, delivery, storage, assembly, operation, maintenance and operability inspections.
1. Description.........................................................................................................................
3
2. Design................................................................................................................................
4
3. Communication and control devices....................................................................................
15
4. Dimensions, weights and effective area..............................................................................
18
5. Placement and Assembly....................................................................................................
20
6. Statement of installations....................................................................................................
22
7. Thin shaft wall..…………….................................................................................................
55
8. Installation frames..……………...........................................................................................
58
9. Suspension system………….........................................................................................….
64
10. Pressure loss...................................................................................................................
68
11. Coefficient of local pressure loss.......................................................................................
69
12. Noise data.........................................................................................................................
69
13. Material.............................................................................................................................
71
14. Inspection, testing.............................................................................................................
72
15. Logistic terms....................................................................................................................
72
16. Assembly..........................................................................................................................
72
17. Entry into service and revisions.........................................................................................
73
18. Spare parts.......................................................................................................................
74
19. Restore function of actuating mechanism after fuses initiation...........................................
74
75
20. Ordering key.....................................................................................................................
75
21. Data label...........................................................................................….......……........….
76

3
Damper characteristics
• CE certified acc. to EN 15650
• Tested in accordance with EN 1366-2
• Classified acc. to EN 13501-3+A1
• Fire resistance EIS 120, EIS 90
• External Casing leakage class C, Internal leakage class 2 acc. to EN 1751
• Cycling test in class C 10000 acc. to EN 15650
• Corrosion resistant acc. to EN 15650
• ES Certificate of conformity No. 1391-CPR-2016/0158
• Declaration of Performance No. PM/FDMA-PM/01/20/1
• Hygienic assessment of fire dampers - Report No. 1.6/pos/19/19b
Fire dampers are shutters in ducts of air-conditioning devices that prevent spreading the fire and
combustion products from one fire segment to the other one by means of closing the duct in the points
of fire separating constructions.
The damper blade automatically closes the air duct using a shutting spring or an actuating mechanism
of back spring. The shutting spring is activated by pressing the start button or by the impulse from the
thermal fuse. The back spring of the actuating mechanism is started when the thermoelectric starting
mechanism BAT is activated, when the reset button on BAT is pressed or when the power supply to
the actuating mechanism is stopped.
After closing the blade, the damper is sealed with a silicon packing against smoke penetration. The
damper can be delivered with a seal without silicone at the customer's wish. At the same time, the
damper blade is embedded in a material which enlarges its volume due to increasing temperature and
hermetically seals the air duct.
The dampers have one inspection hole, as the shutting device and the inspection hole can be set to
the most advantageous position with respect to operation and handling of the control device by turning
the damper a little in case of the spiro model of the dampers.
Working conditions
Right damper function is secured under the following conditions:
a) Maximum air circulation speed: 12 m/s
Maximum pressure difference: 1200 Pa
b) The air circulation in the whole damper section must be secured as steady on whole
surface.
Operation of the dampers does not depend on the direction of air circulation. The dampers can
be located in an arbitrary position.
Dampers are suitable for systems without abrasive, chemical and adhesive particles.
Dampers are designed for macroclimatic areas with mild climate according to EN 60 721-3-3.
Temperature in the place of installation is permitted to range from -30°C to +50°C.

4
Design with mechanical control
Design with mechanical control with a thermal protective fuse which actuates the shutting device,
after the nominal start temperature 72°C has been reached. Automatic initiation of the shutting
device is not activated if the temperature does not exceed 70°C. In case that other start
temperatures are required, thermal fuses with nominal start temperature +104°C or +147°C can
be supplied (this requirement must be specified in the order).
Design .01 with mechanical control can be complemented with a terminal switches signaling of
the damper blade position "CLOSED" and "OPEN". Limit switches are connected via damper
casing, cables are connected directly to limit switches.
Limit switch
“CLOSED”
Limit switch
“CLOSED”
Limit switch
“OPEN”
Design .01 with mechanical control can be complemented with a limit switch signalling of the
damper blade position "CLOSED". Cable is connected directly to limit switch.

5
1(COM) - black wire
2(NC) - gray wire
4(NO) - blue wire
This limit switch is possible to connect in following two versions:
a) if the arm is moving … connect wire 1+2
b) if the arm is moving … connect wire 1+4
AC 230V / 5A
IP 67
-25°C … +120°C
1 Damper
2 Mounting plate
3 Sealing cover
4 Seal plates
5
Mounting plate cover
6 Thermal fuse
7 Mechanics
8
Actuator
9 Temperature sensor
10 Sensor sticker

6
Design with actuating mechanism
The dampers are equipped with Belimo actuating mechanisms with back spring and thermoelectric
actuating device, of range BF (hereinafter referred to only as the "actuating mechanism"). After being
connected to power supply AC/DC 24V or AC 230V, respectively, the actuating mechanism moves
the damper blade to "OPEN" operation position and at the same time pre-stretches its back spring.
While the actuating mechanism is under voltage, the damper blade is in the "OPEN" position and the
back spring is pre-stretched. The time needed for full opening of the damper blade from "CLOSED"
position to "OPEN" position is 120 seconds at the maximum. if the power supply to the actuating
mechanism is cut off (due to loss of power supply or by pressing the reset button on the BAT
thermoelectric starting mechanism), the back spring will move the damper blade to "CLOSED" failure
position. The time of moving the blade from "OPEN" position to "CLOSED" position takes 20
seconds at the maximum. If the power supply is restored (the blade can be in any position), the
actuating mechanism starts to move the damper blade to "OPEN" position again.
A thermoelectrical starting mechanism BAT, which contains two thermal fuses Tf1 and Tf2, is a part
of the actuating mechanism. These fuses are activated when temperature +72°C has been
exceeded (the fuse Tf1 when the temperature around the damper and the fuses Tf2 when the
temperature inside the air-conditioning piping has been exceeded). After the thermal fuse Tf1 or Tf2
has been activated, the power supply is permanently and irreversibly cut off and the actuating
mechanism, by means of the pre-stretched spring, displaces the damper blade into the breakdown
position "CLOSED".
Signalisation of damper blade position "OPEN" and "CLOSE" is provided by two limit switches.
12 S3
S1 S2 S5S4 S6
NL1
~
- +
<5° <80°
BAT
Tf Tf LED
BAT
Actuating
mechanism

7
Design .41 or .51 with actuating mechanism can be complemented with smoke detector ORS 142
K. The voltage can be AC 230 V or 24 V DC. Design with voltage AC 230 V is equpped with
Communication and supply device BKN 230-24-MOD and with actuating mechanism BF 24-TN.
The smoke detector is activated when smoke spreads in air duct system. Deactivation of smoke
detector is provided by interruption of supply voltage for min. 2s.
Signalisation of damper blade position "OPEN" a "CLOSE" is provided by two limit switches..
Operating voltage 18 … 28 V DC
Residual ripple ≤ 200 mV
Power Consumption Socket
(without actuating mechanism) max. 22 mA
Degree of protection IP 42
Ambient temperature -20°C … +75°C
Aditional temperature senzor +70°C
Connection - net
- motor
- communication and supply device BKN
Cabel 1m, connected to terminals 1, 2 and 4
Actuator connected on the terminals 2 and 5
Cabel 1m, connected to terminals 1, 2, 4 and 5
Nominal voltage AC 24 V 50/60 Hz
DC 24 V
AC 230 V 50/60 Hz
Power consumption - motoring
- holding
7 W
2 W
8 W
3 W
Dimensioning 10 VA (Imax 8,3 A @ 5 ms) 12,5 VA (Imax 500 mA @ 5 ms)
Protection class III II
Degree of protection IP 54
Running time - motor
- spring return
120 sec
~ 16 sec
Ambient Temperature
- normal duty
- safety duty
- non-operating temperature
-30°C … +50°C
The safe position will be attained up to max. 75°C
-40°C … +50°C
Connecting - motor
- auxiliary switch
cable 1 m, 2 x 0,75 mm²
cable 1 m, 6 x 0,75 mm²
(BF 24-T-ST) with plug-in connectors
Thermal trips Tf1: duct outside temperature Duct +72°C
Tf2/Tf3: duct intside temperature Duct +72°C

8
2
3
4
5
6
1
relay
contact
relay
contact
RS-Bus communication
1
2
3
4
5
6
7
1
2S2S1 S3 S5S4 S6
2
3
4
5
6
1
BAT
Tf Tf LED
1
2S2S1 S3 S5S4 S6
24 V DC
2
3
4
5
6
1
BAT
Tf Tf LED

9

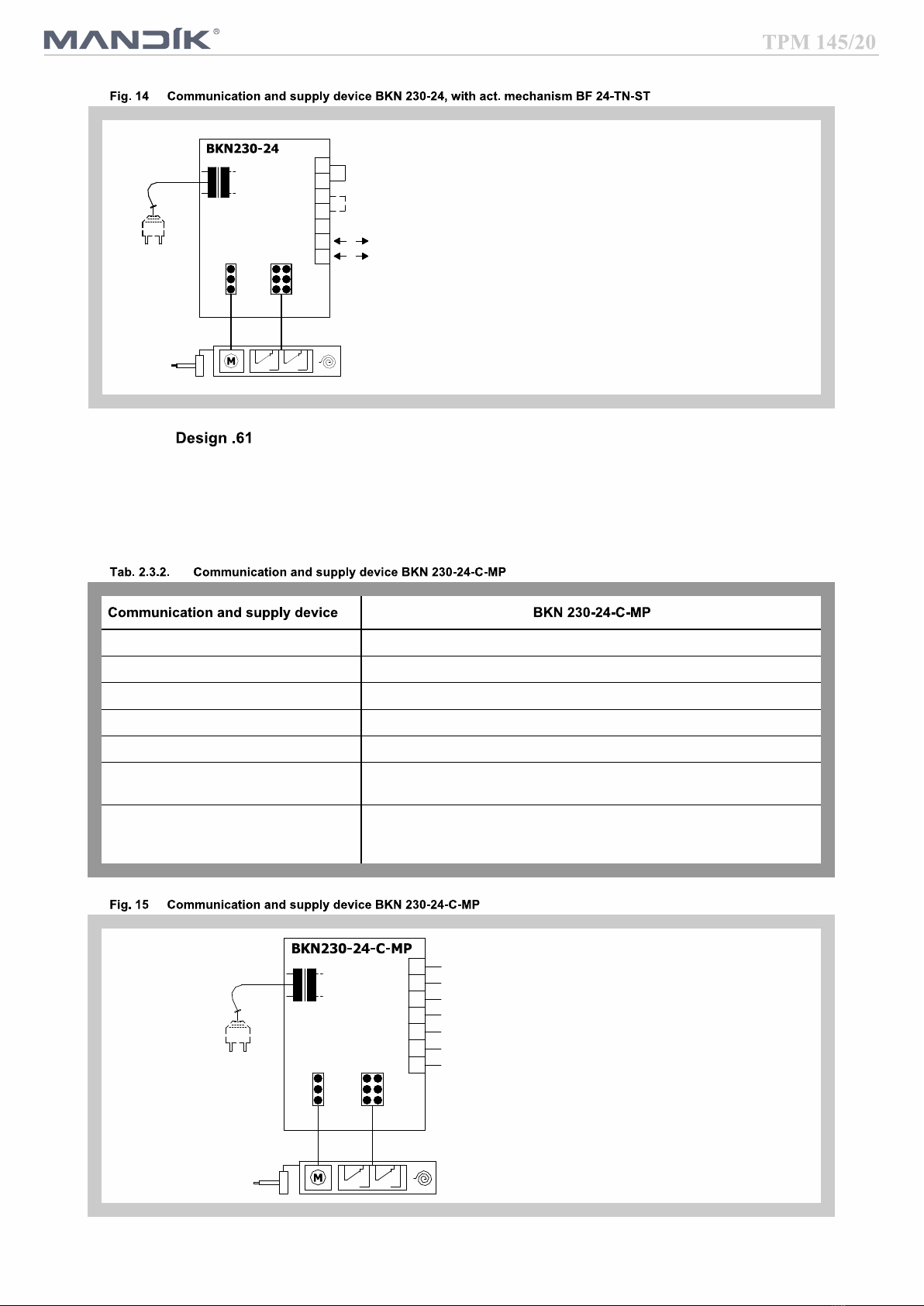

Design with the communication and supply device BKN 230-24 and the actuating mechanism
BF 24-TN-ST. It simplifies electrical wiring and interconnection of fire flap valves. It facilitates on
site check and enables central control and checks of fire damper by means of a simple 2-
-conductor wiring.
BKN 230-24 functions as a decentralized network device for supplying the actuating mechanism
BF 24-TN-ST with a spring back drive on one hand and on the other hand it transmits the signal
informing about the flap valve position OPERATION and FAILURE through 2-conductor wiring to
the central. Control command SWITCHED ON - SWITCHED OFF from the central through BKN
230-24 goes through the same wiring to the actuating mechanism.
To simplify the connection, the actuating mechanism BF 24-TN-ST is equipped with
connecting plugs that are inserted directly to BKN 230-24. BKN 230-24 is supplied with a
conductor and an EURO plug to be connected to the 230V mains. 2- conductor wiring is
connected to BKN 230-24 by means of terminals 6 and 7. If the drive is supposed to be controlled
without any signal from the central, it can be switched on by means of a bridge between the
terminals 3 and 4. A green LED pilot light on BKN 230-24 is on when voltage is present in the
drive (AC 24V).
If the button on BAT is switched on or if the power supply (e.g. by a signal from ELECTRICAL
FIRE SIGNALISATION ) is disconnected, the damper position will be "FAILURE".
BAT
BKN
Actuating
mechanism
Nominal voltage AC 230 V 50/60Hz
Power consumption 3,5 W (operating position)
Dimensioning 11 VA (including actuating mechanism with spring return)
Protection Class II
Degree of protection IP 40
Ambient temperature
Non-operating temperature
-20°C … +50°C
-40°C … +80°C
Connection - net
- motor
- terminal board
cable 0,9 m with EURO plug type 26
6-pole connector, 3-pole connector
screw terminals for cable 2x1,5 mm²

10

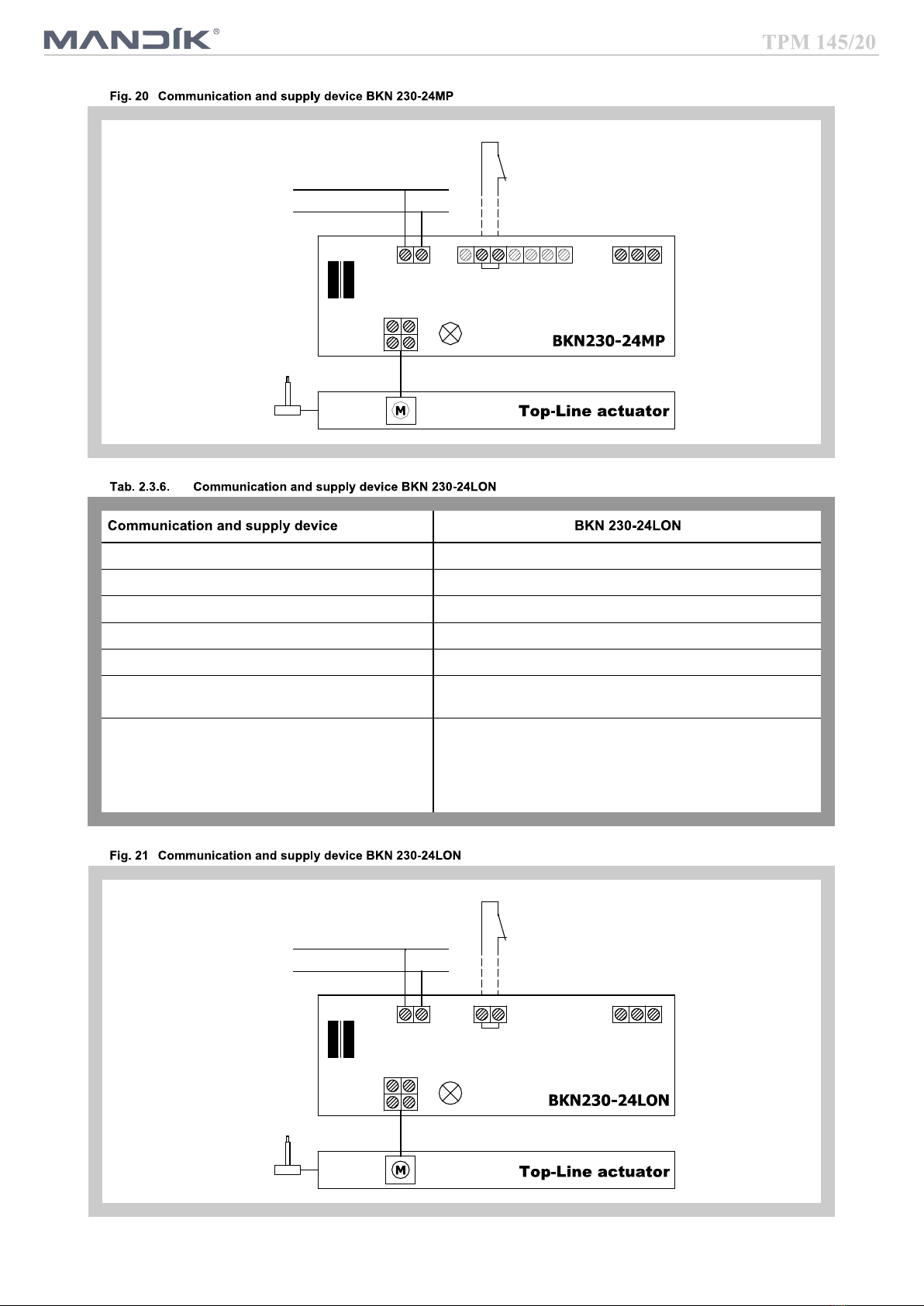

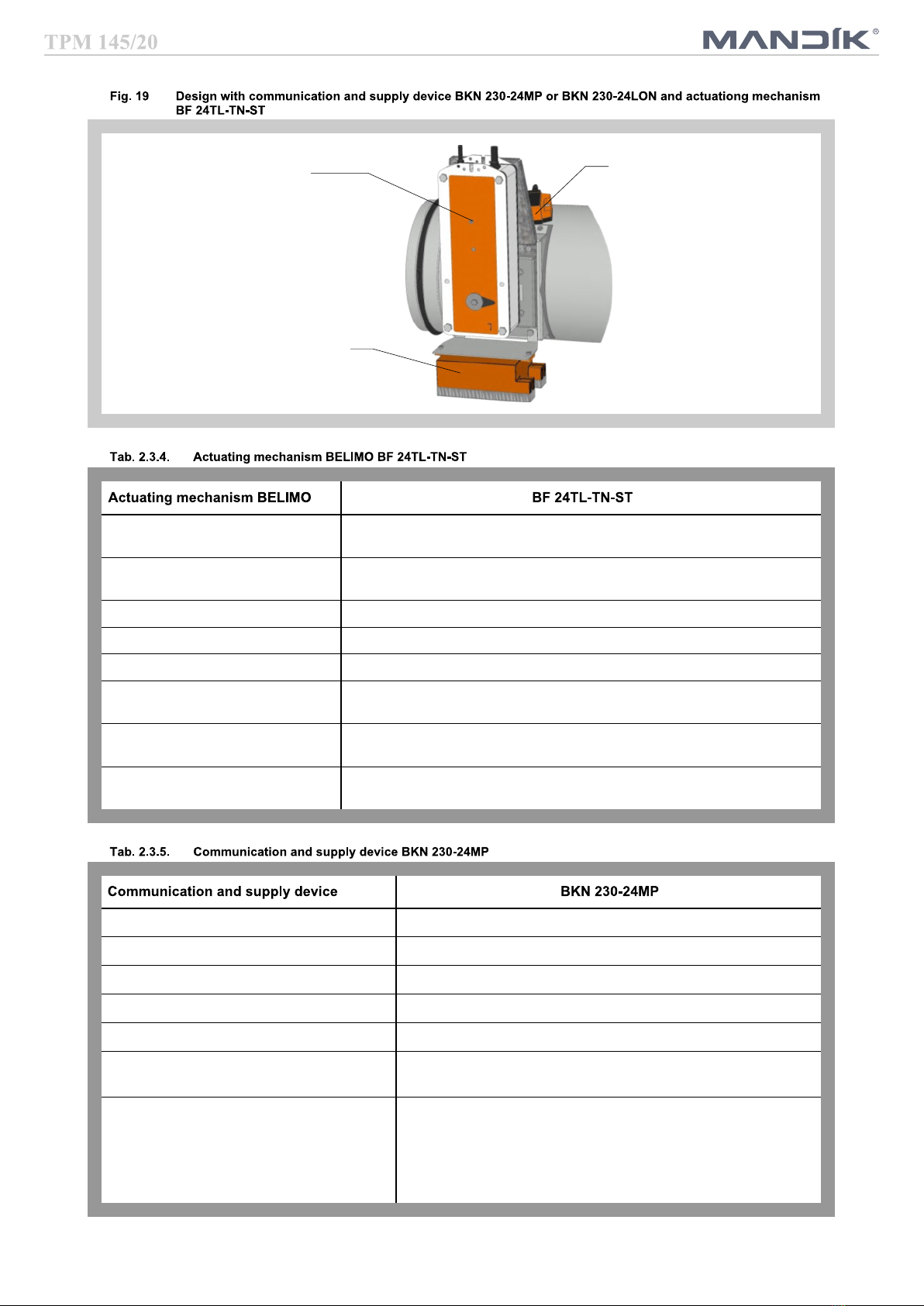

Design .61 with communication and supply device can be complemented with smoke detector
ORS 142 K. For supply and comunnication is used BKN 230-24-C-MP, which together with the
BF 24-TN-ST enables central control and checks of fire damper by means of a simple 2-conductor
wiring and it also allows connection to the system via MP-BUS communication. More information
in the Belimo catalog.
Nominal voltage AC 230 V 50/60Hz
Power consumption 3,5 W (operating position)
Dimensioning 10 VA (including actuating mechanism with spring return)
Protection Class II
Degree of protection IP 40
Ambient temperature
Non-operating temperature
-20°C … +50°C
-40°C … +80°C
Connection - net
- motor
- terminal board
cable 0,9 m with EURO plug type 26
6-pole connector, 3-pole connector
screw terminals for cable 2x1,5 mm²
External smoke detector, +24 V, max. 50 mA
External smoke detector, control input
Connection of more BKN devices as slaves
GND
MP-BUS
a
b
1
2
3
4
5
6
7
BAT
1
2
3
4
5
6
7b
a
1)1)
2)
BAT
1) Bridge has been installed by the manufacturer. If needed, it can be
removed ad replaced with a thermoelectric starting mechanism. If
terminals 1 and 2 are not interconnected, safety function is initiated.
2) Bridge can be used only for starting and without BKS24… !
Two conductor wiring to BKS24

11
Design .60 with communication and supply device can be complemented with smoke detector
ORS 142 K. For supply and comunnication is used BKN 230-24-MOD, which is used together with
the BF 24-TN-ST for communication with control systems using the Modbus RTU or BACnet MS
/ TP protocol. The wiring of the line is to be carried out in accordance with applicable RS485
regulations. Parameterization of the communication is done using DIL switches. The BKN
230-24-MOD can be installed separately, without a connection to a master control system, in
which case the connection bridge between the terminals 1 and 4 must be installed. For more
information, see the Belimo catalog.
Nominal voltage AC 230 V 50/60Hz
Power consumption 3 W (operating position)
Dimensioning 14 VA (including actuating mechanism with spring return)
Protection Class II
Degree of protection IP 40
Ambient temperature
Non-operating temperature
-20°C … +50°C
-40°C … +80°C
Connection - net
- motor
- terminal board
cable 0,9 m with EURO plug type 26
6-pole connector, 3-pole connector
screw terminals for cable 2x1,5 mm²
1
2
3
4
5
6
7
12 S2
S1 S3 S5S4 S6
2
3
4
5
6
1
BAT
Tf Tf LED

12
Design with the communication and supply device BKN 230-24MP and actuating mechanism BF
24TL-TN-ST for connection to MP-Bus. BKN 230-24MP supplies to intelligent actuating
mechanisms of fire dampers BF 24TL-TN-ST decentrally needed power supply. In this way can
be realize long MP-Bus communications (up to 800 m). Up to 8 Bus nodes can be parallel
connected and controlled by Master device (DDC with interface).
More information in Belimo catalogue.
Design with the communication and supply device BKN 230-24LON and actuating mechanisms
of fire dampers BF 24TL-TN-ST for cooperation with control units based on technology
LonWorks. BKN 230-24LON complements actuating mechanism for integrated safety function
and converts digital protocol MP from actuating mechanism to LonTalk and back.
More information in Belimo catalogue.
1
2
3
4
5
6
7
2
3
4
5
6
1
12 S2
S1 S3 S5S4 S6
BAT
Tf Tf LED
External smoke detector, +24 V, max. 50 mA
External smoke detector, control input
GND
BKN Direct Control, override control input
GND
D+
D-
1
2
3
4
5
6
7
BAT

13
BAT
BKN
Actuating
mechanism
Nominal voltage AC 24 V 50/60Hz
DC 24 V
Power consumption - motoring
- holding
7 W
2 W
Dimensioning 10 VA (Imax 8,3 A @ 5 ms)
Protection class III
Degree of protection IP 54
Running time - motor
- spring return
120 sec
~ 16 sec
Ambient temperature
Non-operating temperature
-30°C … +50°C
-40°C … +50°C
Connection Connector for BKN 230-24LON and BKN 230-24MP
cable 1 m, 4 x 0,75 mm² halogen-free
Nominal voltage AC 230 V 50/60Hz
Power consumption 11 W (including actuator mechanism)
Dimensioning 13 VA (including actuator mechanism)
Protection Class II
Degree of protection IP 40
Ambient temperature
Non-operating temperature
-30°C … +50°C
-40°C … +80°C
Connection - net
- motor (BF…-Top)
- net MP
- starting mechanism (variable)
- Top-Line PC-Tool
(via ZIP-RS232)
cable 1m, with EURO plug
4-pole connector
screw terminal 2-pole
screw terminal 2-pole
3-pole connector

14
Nominal voltage AC 230 V 50/60Hz
Power consumption 14 W (including actuating mechanism)
Dimensioning 16 VA (including actuating mechanism)
Protection Class II
Degree of protection IP 40
Ambient temperature
Non-operating temperature
-30°C … +50°C
-40°C … +80°C
Connection - net
- actuator (BF…-Top)
- net LonWorks
- starting mechanism (optional)
- Top-Line PC-Tool (via ZIP-RS232)
cable 1m, with Euro plug
4-pole connector
screw terminal 2-pole
screw terminal 2-pole
3-pole connector
PC Tool
17
Ya
24VGND
MP
1) 2)
24V
AC230 V
GND
MP
net MP-Bus additional external conntact,
eg. fire smoke detector
PC Toolb
a
1) 2)
Test
AC230 V
GND
MP
net LON WORKS additional external conntact,
eg. fire smoke detector

15
BKS 24-1B communication and control device is used for control and checks of fire dampers with
BF 24-TN-ST actuating mechanism in conjunction with the BKN 230-24 supply and
communication device. BKS 24-1B receives information about the situation of the fire damper
through the BKN 230-24 supply and communication device and issues controlling commands.
The device is intended for building in into the distribution board. Light diodes on the front side of
the device signalise the operating situations of the damper and breakdowns of the whole system.
Potentialless auxiliary contacts enable connection to the master control system (signaling of the
damper position, failure reports, release of the ventilators etc.).
While a flashing green LED pilot light signalises damper blade motion towards the given position,
the same pilot light reports reaching the required position when shining constantly. If the flap
blade, with respect to the given time, does not reach the required position, then a red LED pilot
light starts to flash and at the same time, the failure contact is active. Once the damper blade
reaches the given position, this contact is deactivated. The LED pilot light keeps flashing unless
the failure is unblocked by means of the RESET button. Except for reporting failures, other three
auxiliary contacts are available. Contacts showing operating and failure position of the damper
are active when the damper is in the given position. Function check can be done by pressing and
holding the button "RESET/TEST" for longer time. While holding the button, the damper blade
moves in the direction of the failure position. Fault function is indicated by the LED pilot light.
BKS 24-1B can be connected by means of ZSO-11 11 pole connector for DIN 35 mm panel.
4
7
8
2
10
1
5
9
an insulation
transformer
~
damper position
breakdown
Notice: Relay contacts are drawn
without power
11
b
a
2-conductor wiring
to BKN230-24
Control
on /off
Reset
Test
External buton
optional
be interchanged
6
3
AC
24V
damper position
operation
Reset
Test
open
closed
alarm
failure
Connection through
conection can
not available
, starting with switching AC 24 on or pressing
«Reset/Test» button
possible cause: • short circuit or interruption of 2-conductor wiring
or damper failure (at BKN..) • Power supply AC 230V missing • defective
thermoelectrical starting • smoke detector activated • exceeded operation time
• Fault in system signalled, system check should be
done
Damper (drive) turning into of breakdown position
Damper (drive) in
Damper (drive) turning into of operating position
Damper (drive) in
light diodes contacts Description
Cause/Course
state
open closed alarm
closed
flashing
63
63
67
64
64
63
63
67
switched
closed closed
closed closed
closed closed
closed
closed
closed
closed
closed
closed
closed
closed
open open open
open
open
open
flashing
flashing
• damper blocked

16
Nominal voltage AC 24 V 50/60Hz
Power consumption 2,5 W (operating position)
Dimensioning 5 VA
Protection Class III
Degree of protection IP 30
Ambient temperature 0 … +50°C
Connection 11-pole connector ZSO-11, it is not part of BKS24-1B,
ZSO-11 is 11-pole screw terminal 11 x 1,5 mm²
BKS 24-9A communication and control device is used for group control and checks of 1 to 9 fire
dampers with the actuating mechanism BF 24-TN-ST in connection with the supply and
communication device BKN 230-24. Signalisation of the damper position is individual; the
damper can be controlled and tested only as a group. BKS 24-9A is intended for use in the
distribution board and displays the operation situations and failure reports of the connected fire
dampers. It is possible to signalise functions such as the damper position and failure reports or to
transmit them further to the system by means of integrated auxiliary switches. BKS 24-9A
receives signals from BKN 230-24 through the two-conductor wiring and issues control
commands. Proper damper operation is indicated by two light LED diodes:
Control ON = position OPERATION
Control OFF = position FAILURE
If the fire damper do not reach the given position in time tolerable for displacing, the appropriate
light diode FAILURE starts to flash and K1 contact is opened (current failure). In case that the
faulty damper finally reaches its given position, K1 is closed and the failure report light shines (the
failure is saved in memory). K2 - the auxiliary contact - is used for signaling of the flap position to
the master device. Function of this auxiliary contact can be programmed through the terminal
14 according to the Tab. 3.2.1.
current failure 15 16
no failure 15 16
K2 contact is on if all the
flaps are open 14 11
17 18
K2 contact is on if the flap
No. 1 is open 14 12
K2 contact is on if all the
flaps are closed 14 open
Function check can be done in the position OPERATION by means of pushing the TEST button.
While the button is pushed, the flap blade is turning into the position FAILURE. Fault function is
indicated by a report "FAILURE". Assembly and connection BKS 24 - 9A can be made by DIN
35 mm panel. It is connected by two 9-pole plug-in connectors.

17
Nominal voltage AC 24 V 50/60Hz
Power consumption 3,5 W
Dimensioning 5,5 VA
Protection Class III
Degree of protection IP 30
Ambient temperature 0 … +50°C
Connection terminal 2 x 1,5 mm²

18
475
115
375
50 50
13020110
125
ØD
Position:
1 Damper casing
2 Mechanics
3 Damper blade
4
Inspection hole covering
5 Sensor sticker
6 Hole for camera
475
115
375 5050
13020
ØD
Position:
1 Damper casing
2
Actuating mechanism
3 Damper blade
4 Inspection hole covering
5
BAT thermoelectrical starting mechanism
6 Hole for camera
Dimensions

19
Weights and effective area
84,5 326,5 53,0 56,0 0,5727 BF M4
134,5 376,5 70,9 73,9 0,7147 BF M4
134,5 376,5 56,0 59,0 0,5727 BF M4
184,5 426,5 74,0 77,0 0,7147 BF M4
Blades overlaps
Act. mechanism side "g" Tab. 4.2.1
Side without act. mechanism "h"
Act. mechanism side "e" Tab. 4.2.2
Side without act. mechanism "f"
e
f
g
h
For the design .60 (with BKN supply and communication device) add to weight of the damper with
an actuating mechanism (from the Tab. 4.2.1. and 4.2.2.) the weight of BKN (0.5 kg).

20
The fire dampers are suitable for installation in arbitrary position in vertical and horizontal passages
of fire separating structures. The damper assembly procedures must be done so that all load transfer
from the fire separating constructions to the damper body is absolutely excluded. The back-to-back
air-conditioning piping must be suspended or supported so that all load transfer from the back-to-
back piping to the damper flanges is absolutely excluded. The gap between the installed damper and
the building structure must be perfectly filled with approved material all over its volume.
To provide the necessary space for access to the control device, all other items must be situated at
least 350 mm from the control parts of the damper. At least one inspection hole must be accessible.
The damper must be installed so that the damper blade (in closed position) is situated in the fire
separating structure - marked by the label BUILD-IN EDGE on the damper body. If such solution is
not possible, the piping between the fire separating structure and the damper blade must be
protected according to the certified installation method, see Section 6.
During the installation and plastering process, the control mechanism must be protected (covered)
against damage and pollution. The damper body should not be deformed during bricking in. Once
the damper is built in, the damper blade should not grind on the damper body during opening or
closing.
The distance between the fire damper and the structure (wall, ceiling) must be 75 mm at the
minimum. If two or more dampers are to be installed in one fire separating structure, the distance
Built in edge
375
260 5050
"Wall edge sticker" indicates the recommended edge of installation of fire damper into the fire partition structure (wall).
The damper must be installed so that the entire damper blade - in the closed position - is located inside the fire separating structure
(wall) and at the same time the control mechanism and inspection openings are freely accessible.
