METROPOLIS S2S MANUAL
METROPOLIS COMBI I METROPOLIS MEETING TABLE

COMBI LEG
Fix connection beam to legs.
Complete look for combi leg.
Hook in connection beam cover.
1
3
2
1
METROPOLIS S2S MANUAL METROPOLIS COMBI I METROPOLIS MEETING TABLE
M6 x 16mm M6 x 4mm
Cap Screw
x 4
Spring Washer
x 4
Allen Key
5mm
FRAME
stabilization bar - Fix stabilization bar to connection
beam.
stabilization bar - Complete look for stabilization bar.
1 2

METROPOLIS S2S MANUAL METROPOLIS COMBI I METROPOLIS MEETING TABLE
FRAME
x-beam - Mount x-beam to the end legs.
x-beam - Complete look for x-beams meeting table.
x-beam - Complete look for x-beams cluster of 2
combi desk.
3
5
4
Hexagon rod - Slot in a.hexagon outside to the end legs,
b. slot in hexagon stopper for end legs
6
a.
a.
b.
b.
Hexagon rod - Slot in hexagon inside to hexagon
outside with the same distance for all end legs.
7
Hexagon rod - Hexagon inside should be stop at
hexagon stopper for all end legs.
8
2

METROPOLIS S2S MANUAL METROPOLIS COMBI I METROPOLIS MEETING TABLE
FRAME
Hexagon rod - Slot in hexagon inside to hexagon
outside with the same distance for all end legs.
Complete look for hexagon rods meeting table.
*For the middle combi share leg use only 2pcs of
hexagon outside instead of 4pcs.
Complete look for hexagon rods cluster of 2 combi desk.
9
11
10
Top view of hexagon rod
CABLE TRAY
Place cable tray bottom on top of stabilization bar. Place cable tray cover on top of cable tray bottom.
1 2
3

METROPOLIS S2S MANUAL METROPOLIS COMBI I METROPOLIS MEETING TABLE
CABLE TRAY
Complete look for cable tray cluster of 2 combi desk.
3
WORKTOP
Place worktop on frame.
Place worktop on frame.
Cluster of 2 - Attach worktops with JCBC screws from
bottom of top supports for all end legs.
1
3
2
M8 x 16mm
JCBC Screw
x 16
Allen Key
5mm
Meeting table - Attach worktops with JCBC screws from
bottom of top supports for all end legs.
4
M8 x 16mm
JCBC Screw
x 24
Allen Key
5mm
4

FIXING
x-beam - Tighten all the x-beam with set screws. Hexagon rod - Tighten all the hexgon stoppers.
1 2
METROPOLIS S2S MANUAL METROPOLIS COMBI I METROPOLIS MEETING TABLE
Allen Key
4mm
Set Screw
x 8
Complete look for Metropolis combi desk.
3
Complete look for Metropolis meeting table.
4
5

METROPOLIS S2S MANUAL METROPOLIS COMBI I METROPOLIS MEETING TABLE
CONTROL BOX
Bottom view - Fix control panel with S/D screws
at the bottom of the worktop.
Place control box in cabletray, tidy up all the cables into
the cabletray.
1 2
M3 x 13mm
S/D Screw
x 4
Attention:
Before starting the system, please make sure, that the operating voltage of the
system conforms with the local power supply. The mains plug of the control has
to be connected to a free accessible power supply.
* PLUG IN - FOLLOW THE INSTRUCTION BELOW.
BACK VIEWFRONT VIEW
HS
MI
M2
DRIVE 1
DISPLAY
DRIVE 2
6

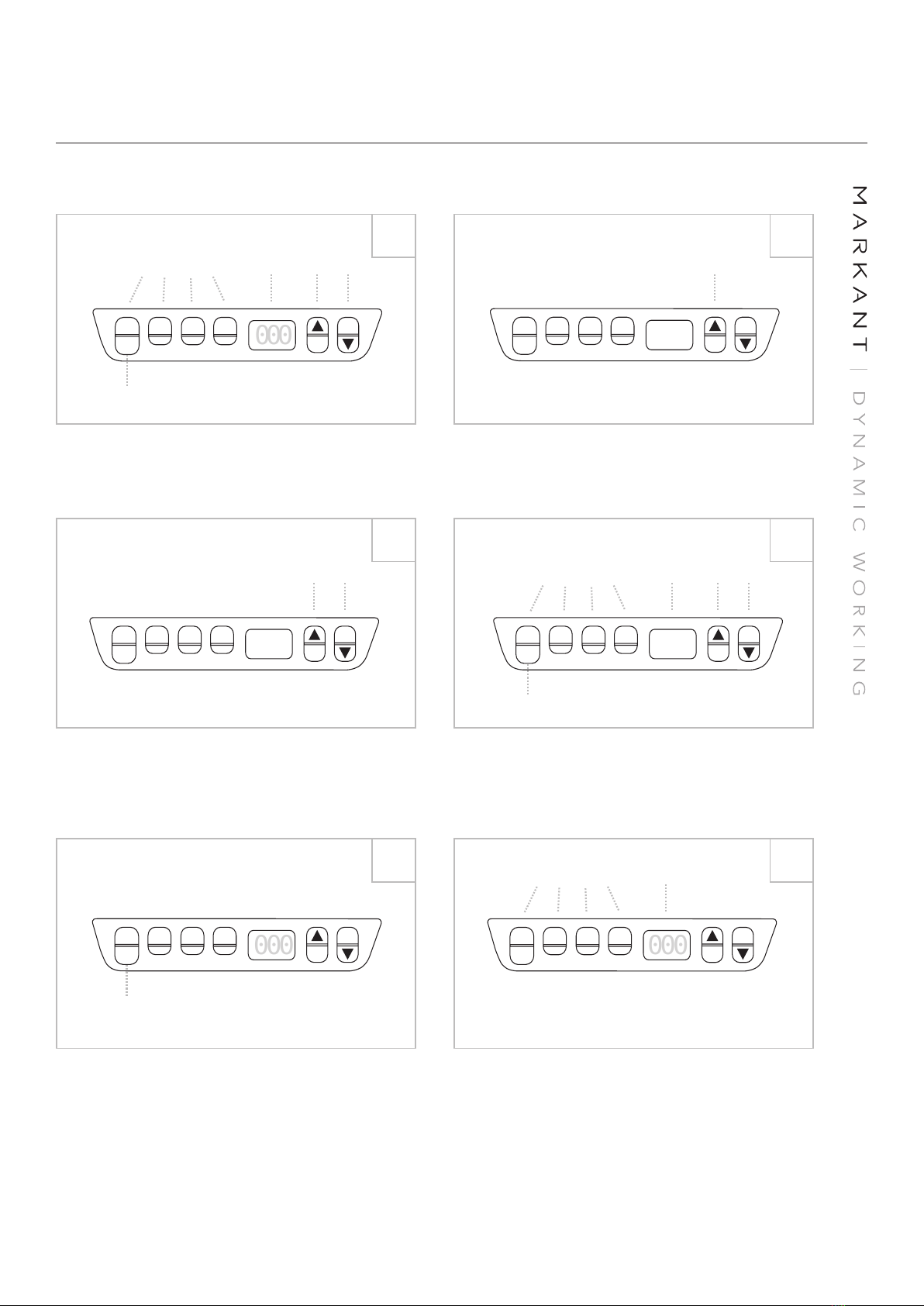

SETTING
1
S
234
Display
Store memory Handset
Memory 1,2,3,4 Up Down
---
000
000
1
S
234
DisplayMemory 1,2,3,4
S 1
Press and hold the down button until the lowest position
068 is reached (show in display, stop ashing), system is
ready for further programming,the maximum reachable
height is 118.
1
S
234
Handset = 68 - 118cmH
Up
068
1
S
234
Up Down
070
1
S
234
Display Up Down
068
Store memory
Memory 1,2,3,4
1
S
234
000
Store memory
S -
Start up - Turn on the main power supply before
setting. Once the power is on, display ashes show
000 or ---.
1 2
Normal operation - Press and hold up or down
until the desired height of the desk has been
reached, the display always shows the actual height.
Move to the desired desk height. Press the store
memory ‘S’. You will see the display shows ‘S - ‘.
Press one of the memory keys, 1,2,3,4, and the number
of the position height is displayed, a double click is heard
at the end of memory saved. Repeat the same step of
this for other preferred heights.
Saving preferred height -4 preferred heights can
be saved.
3
5 6
4
METROPOLIS S2S MANUAL METROPOLIS COMBI I METROPOLIS MEETING TABLE
7

METROPOLIS S2S MANUAL METROPOLIS COMBI I METROPOLIS MEETING TABLE
SETTING
PLEASE REFER TO MARKANT
MOTOR CONNECTOR SET
USER MANUAL FOR
HEIGHT ADJUSTABLE DESK
FOR FURTHER HELP
1
S
234
068
Memory 1,2,3,4
Moving to a saved preferred height -Press and
hold one of the keys, 1, 2, 3, 4, the desk will moves
towards to the preferred height.
7
