MasterCraft 068-0005-0 User manual

model no. 068-0005-0
Wall Cabinet
IMPORTANT
Please read this manual carefully before assembling and
using this product, and save it for reference.
INSTRUCTION
MANUAL
Due to continuing improvements,
the actual product may differ slightly
from the product described herein.

2
TABLE OF CONTENTS
3
3
4
5
10
11
TABLE OF CONTENTS
SAVE THESE INSTRUCTIONS
This manual contains important safety and
instructions and follow them carefully with use of this product.
operating instructions. Read all
NOTE:
If any parts are missing or damaged, or if you have any questions, please call our toll-free
helpline at: 1-800-689-9928. Have the product number, cash register receipt and the date
of purchase available when you call. DO NOT SHIP YOUR PRODUCT BACK TO THE STORE,
UNLESS WE SEND YOU WRITTEN INSTRUCTIONS FOR RETURN.
EXPLODED VIEW / PARTS LIST
MAINTENANCE
WARRANTY
SAFETY
ASSEMBLY INSTRUCTIONS
model no. I contact us 1-800-689-9928068-0005-0
COORDINATING PRODUCTS

SAFETY
3
Before assembling and using this product, carefully read this instruction manual and all of the labels
affixed to the product. Failure to follow all warnings and instructions may result in product damage or
personal injury.
Save all warnings and instructions for future reference.
-Maximum load: 100 lb (45 kg)
-Maximum load for shelf: 50 lb (22.5 kg)
-Maximum load for bottom panel: 50 lb (22.5 kg)
Grease and oil can be removed with most standard cleaning fluids. For safety, use a
nonflammable cleaning fluid.
Periodically clean the surfaces with a soft rag and water.
MAINTENANCE
SAFETY / MAINTENANCE
To reduce the risk of serious injury, read and follow the safety instructions below before assembling
and using this product.
Keep the product on level surfaces. The product could become unstable and it may tip over if
stored or moved on an uneven surface, which may cause personal injury, death or product
damage.
This product is intended for indoor use only.
This product must be securely mounted on wall before using.
Any assembly or maintenance of the product must be carried out by adults only.
Arrange for necessary manpower when assembling, installing and moving the cabinet.
Check all nuts and bolts periodically for tightness. When required, tighten them.
Close and lock the door before moving this cabinet.
DO NOT stand on this product. You may fall which may cause personal injury or death.
DO NOT alter this product in any manner. For example, do not weld external bar locks or attach
electrical equipment. This may cause product damage or personal injury.
DO NOT leave children unattended near this product. Cabinet may tip over if improperly opened.
DO NOT put anything on the top panel of the cabinet.
DO NOT exceed the following weight limit for this product.
This product is not designed for commercial nor industrial usage.

16
13
12
2
3
7
4
5
6
8
9
1
11
10
14
17
18

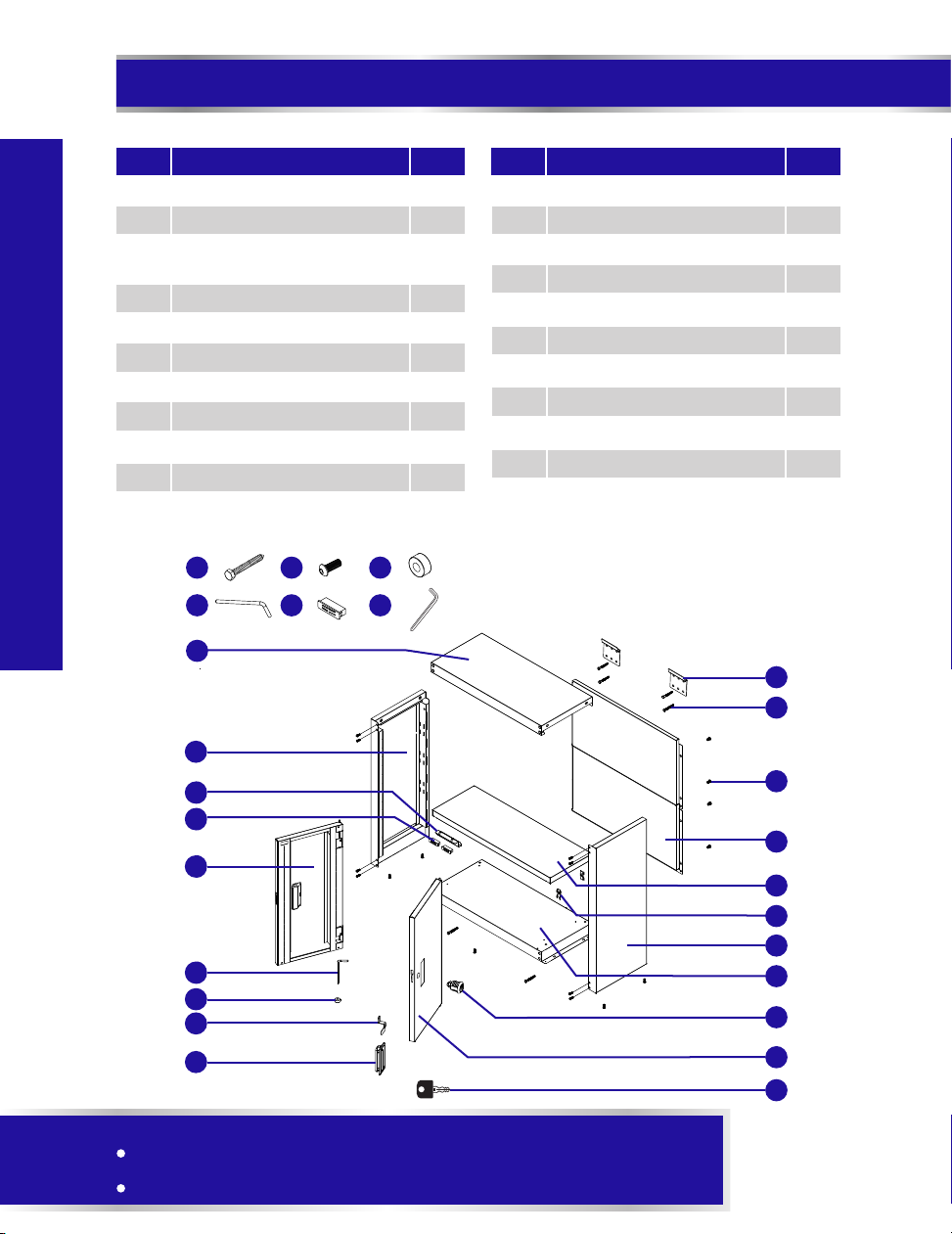

EXPLODED VIEW / PARTS LIST
Description
No. Qty. No.
6
2M6 x 40 hex tapping bolt
M6 x 16 hex socket
head screw 30
3
24 Back panel
1
1
5
7
Shelf
Bottom panel
Mounting bracket 2
1
Description Qty.
No. Description No.
9
Qty.
1
12
13
14
2
1
2
4
1
EXPLODED VIEW / PARTS LIST
4
1
6
8
Lock
15
16
17
Right door
Door handle
Locking hook
Rubber ring
Left door
Pin
Magnet
Door stopper
Left side panel
2
1
4
m o d e l n o . I contact us 1-800-689-9928068-0005-0
Right side panel
NOTE:
be required.
Give information for spare parts: part number and quantity required.
Replacement keys may be ordered. Call our toll-free number. The code which appears on the lock will
3
2
21
1
10
Key
18
19
Top panel
Hex wrench
1
1
20
1
15
19
20
11 2
Shelf bracket
21
NOTE: Extra M6 x 16 hex socket
head screw(s) is (are) provided.
14
15 17
*
*

ASSEMBLY INSTRUCTIONS
5
Attach the side panels (7 and 19) to the bottom panel (8) with eight M6 x 16 hex socket head screws (3).
TOOLS REQUIRED FOR ASSEMBLY
• Hex wrench (21)
• Power drill (not included)
First press the two trapezoidal taps at the front centre of the top panel (20) inwards by 90 degrees.
3
8
7
19
NOTE:
product from being scratched during assembly.
Assemble on a flat surface. A piece of cardboard is recommended to keep the
ASSEMBLY INSTRUCTIONS
STEP 1 ATTACH THE BOTTOM AND SIDE PANELS
•
•
STEP 2 ATTACH THE DOOR STOPPER
Insert the door stopper (18) onto the two taps. Make sure the magnets (17) are outside of the top
panel (20) and face toward the front of the cabinet.
•Finally, bend the two trapezoidal taps of the top panel (20) outwards until they are against the door
stopper (18).
1 2 3
20
18 17

6
ASSEMBLY INSTRUCTIONS
model no. I contact us 1-800-689-9928068-0005-0
Make sure your floor is free of debris or the cabinet
face is protected before laying the cabinet on its face.
Insert the top edge of top back
panel under the top panel.
3
4
The top edge of the top back panel should be inserted
under the back of the top panel.
Lay the cabinet on its face.
Attach two back panels (4) to the back of the cabinet with fourteen M6 x 16 hex socket head screws (3).
Insert the screws by hand. DO NOT tighten.
•
•
STEP 3 ATTACH THE TOP PANEL
STEP 4 ATTACH THE BACK PANELS
Attach the top panel (20) to the side panels (7 and 19) with eight M6 x 16 hex socket head screws (3).
Insert the screws by hand. DO NOT tighten.
•
3
19
7
20

ASSEMBLY INSTRUCTIONS
7
12 3
45
Close the doors to see if the doors can touch the magnets (17) completely. If not, adjust the cabinet’s
top and side panels to make sure the shape of the cabinet is square and flush. Until the doors can
catch the magnets (17) completely, tighten the top and back panels’ screws.
10
16
15
14
Lay down the left door (16) on its face with a soft mat underneath. Pull the bottom locking tab at the
right bottom corner of the door outwards. Insert a pin (15) through the hole at the door’s bottom
corner and put a rubber ring (14) into the pin’s vertical end.
When push the locking tab back to its place, make sure the end of the
pin's horizontal part inserted into the hole of the locking tab to make
the pin well locked.
STEP 5 ATTACH THE DOORS
•
•
view from door bottom
view from door top
Push back the bottom locking tab to its place. Insert the horizontal end of the pin (15) into the hole at
the locking tab at the same time.
•
Take up the left door (16) and insert the pin (15) into the hole at the left bottom corner of the bottom
panel (8).
•
Pull the upper locking tab at the right top corner of the door outwards. Insert a pin (15) through the
hole at door’s right top corner into the hole at the left top corner of the cabinet
•
Push back the upper locking tab to its place. Insert the horizontal end of the pin (15) into the hole at
the locking tab at the same time.
•
Repeat the same procedure to install the right door (10).
•
8
locking tab

8
ASSEMBLY INSTRUCTIONS
model no. I contact us 1-800-689-9928068-0005-0
Shelf locked by shelf
bracket after installation
Slots on the inner
back side of side
panel
Slots on the inner
front side of side
panel
5
6
STEP 7 INSTALL THE SHELF

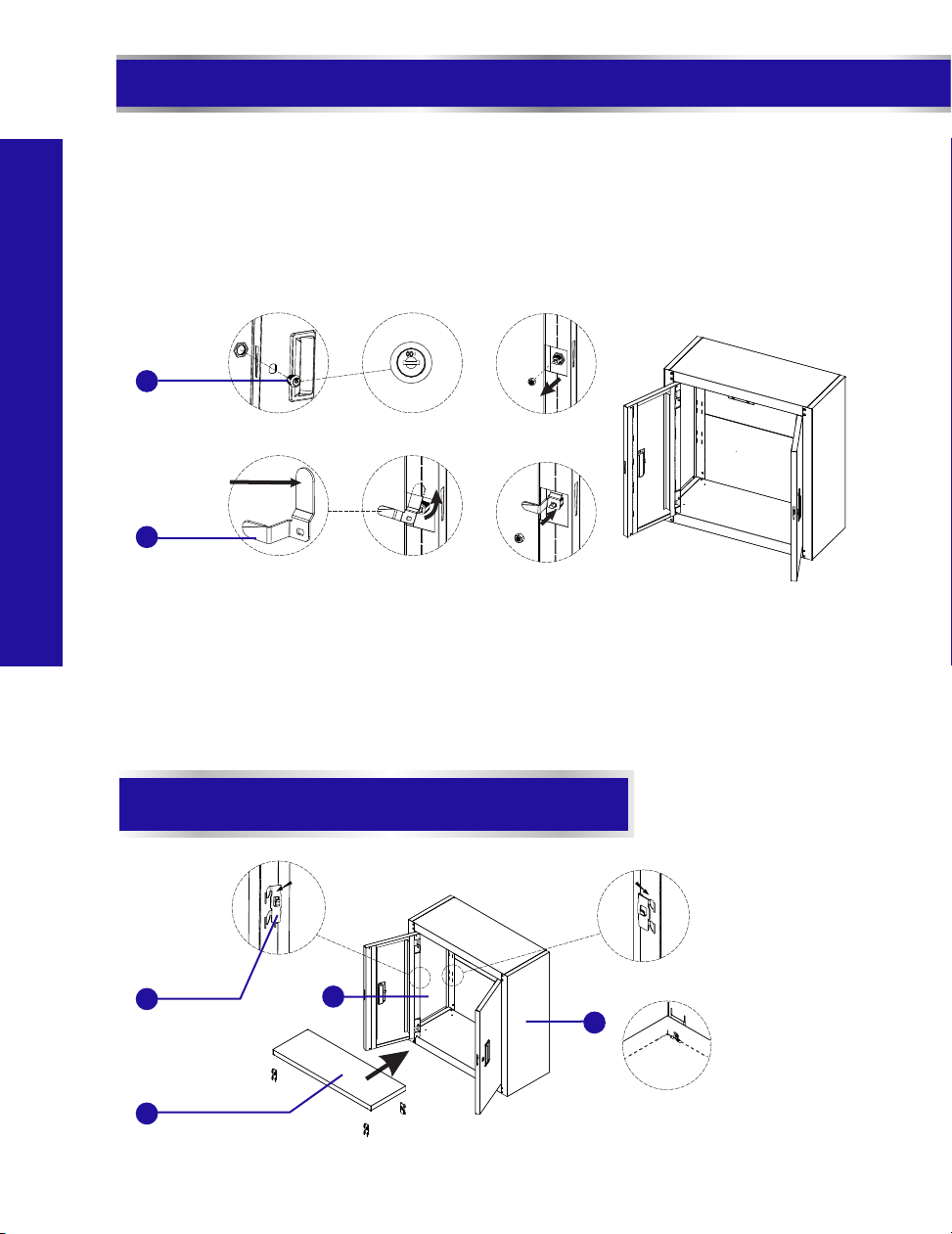

STEP 6 INSTALL THE LOCKING HOOK
Insert four shelf brackets (6) into the slots on the side panels (7 and 19) at the desired height.
Make sure the four brackets (6) are at the same height. Place the shelf (5) over the shelf
brackets (6), and push it down onto the shelf brackets (6). Make sure the shelf (5) is properly
and safely locked by the upright hooks of the shelf brackets (6).
NOTE: To use the locking mechanism, the shelf must be placed in the centre position.
19
7
9
3
2
4
Install the lock (9) per Step 1, ensuring the lock code stays on top of the lock face. Release the
nut from the lock (9) back and attach the locking hook (13) per Step 3. Tighten the hook (13)
securely with the nut previously removed from the lock (9) back as shown in Step 4.
This section must be
inserted into the
square hole.
1
13

The M6 x 40 hex tapping bolts (2) should be drilled into
the studs of the wall.
The mounting brackets should be level after installing
on the wall.
Wall
back
back
Wear safety glasses when drilling the screws into the
wall.
Wall
2
1
4.5 in.
Make sure the wall cabinet is securely attached to the
mounting brackets.
Hang the wall cabinet onto the mounting brackets (1).
NOTE: The two M6 x 40 hex tapping bolts (2) for each mounting
bracket (1) should not line up horizontally. They should line up
vertically.
9

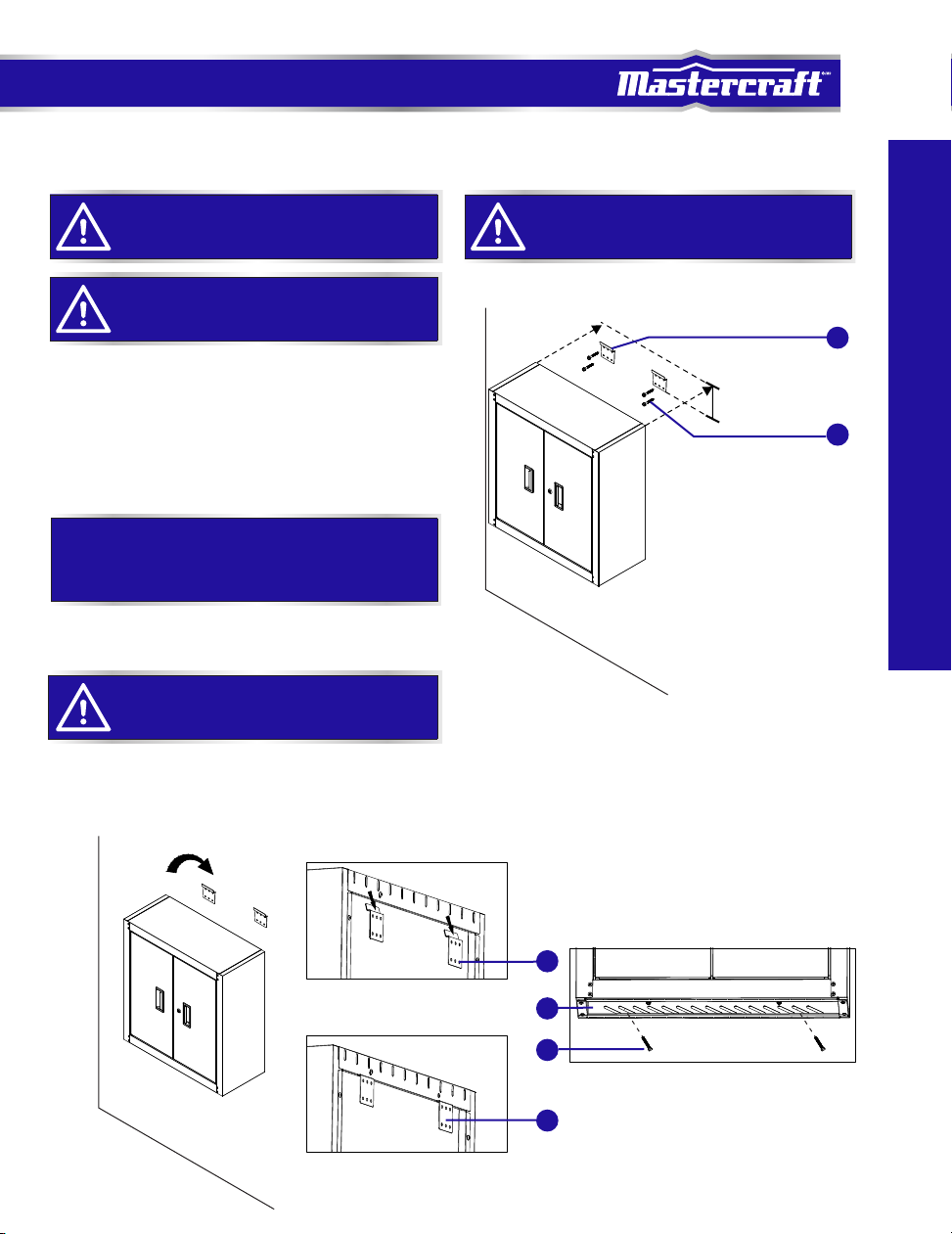

Install the mounting brackets (1) on the wall with
four M6 x 40 hex tapping bolts (2).
Decide the location of the wall cabinet on the wall
first to find the location of the mounting brackets (1).
The bottom edge of the mounting brackets (1) should
be 4 1/2" (11 cm) away below the cabinet’s top edge.
•
•
ASSEMBLY INSTRUCTIONS
STEP 8 INSTALL THE MOUNTING BRACKETS
STEP 9 HANG THE CABINET
•
Drill two M6 x 40 hex tapping bolts (2) through the bottom holes at the back of the bottom panel (8) into
the studs of the wall. The two M6 x 40 hex tapping bolts should be drilled into the studs of the wall.
•
1
1
8
2

10
model no. I contact us 1-800-689-9928068-0005-0
COORDINATING PRODUCTS
COORDINATING PRODUCTS

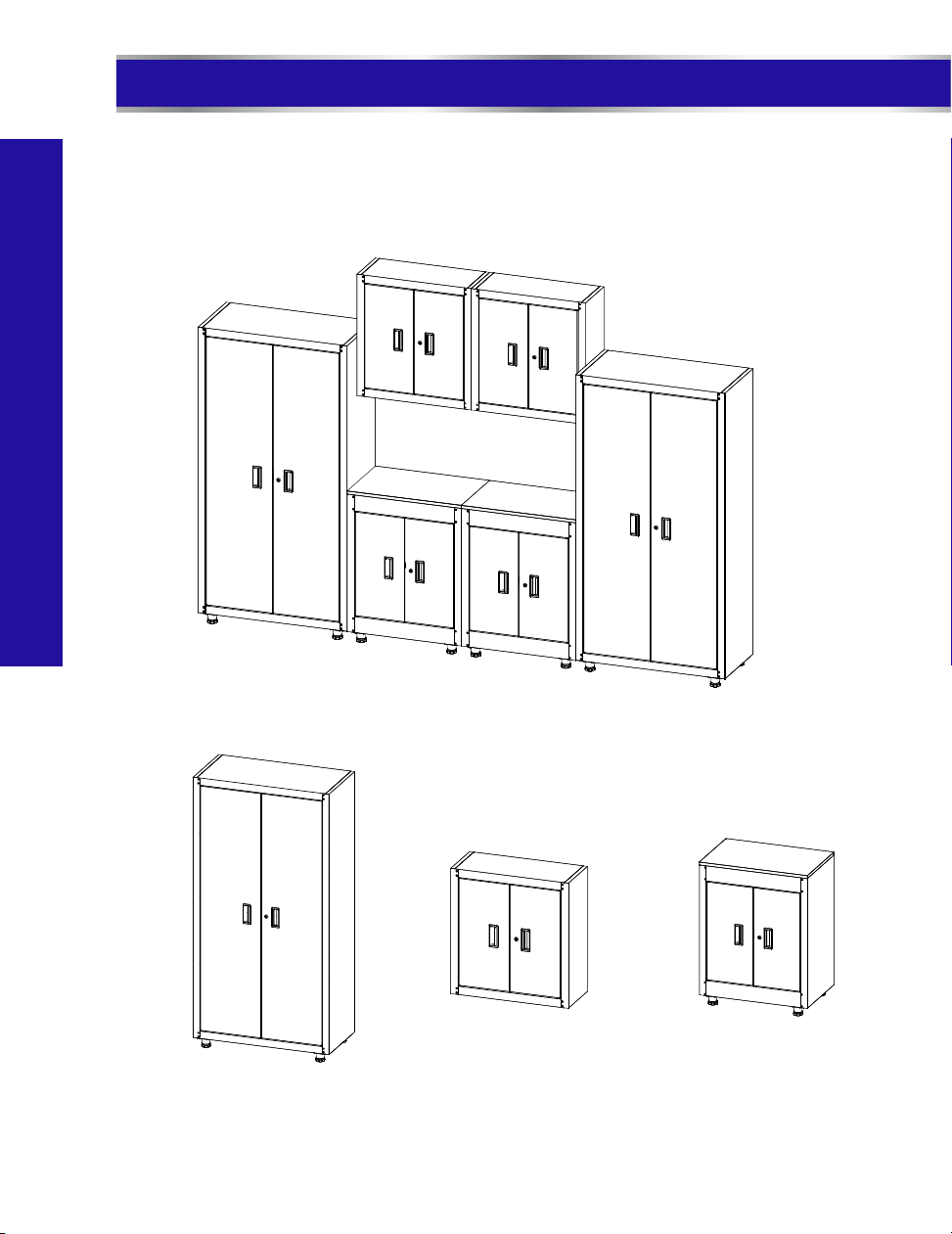

This product coordinates well with the units below to offer a best storage solution. They can be
combined into various combinations to meet different storage requirements.
Tall Cabinet
068-0006-8
Wall Cabinet
068-0005-0
Stainless Steel Top
Base Cabinet
068-0004-2

11
KNOW YOUR CABINET
WARRANTY
LIMITED WARRANTY
This product is guaranteed for 1 year from the date of original retail purchase against defects in
materials and workmanship.
Subject to the conditions and limitations described below, this product, if returned to us with a proof
of purchase within the stated warranty period and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification), at our option. We will bear
the cost of any repair or replacement and any costs of labour relating thereto.
This warranty is subject to the following conditions and limitations:
A sales receipt that indicates the date of purchase must be provided;
This warranty will not apply to any product or part thereof which is worn or broken or which
has become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper
installation, operation or maintenance (as outlined in the applicable owner's manual or
operating instructions) or which is being used for industrial, professional, commercial or
rental purposes;
This warranty will not apply to normal wear and tear or to expendable parts or accessories
that may be supplied with the product that are expected to become inoperative or unusable
after a reasonable period of use;
This warranty will not apply to routine maintenance and consumable items such as, but not
limited to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or
adjustments;
(i.e. persons not authorized by the manufacturer);
T reconditioned or refurbished his warranty will not apply to any product that was sold as a
product (unless otherwise specified in writing);
This warranty will not apply to any product or part thereof if any part from another
manufacturer is installed therein or any repairs or alterations have been made or attempted
by unauthorized persons;
This warranty will not apply to normal deterioration of the exterior finish, such as, but not
limited to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive
and chemical cleaners;
This warranty will not apply to component parts sold by and identified as the product of
another company, which shall be covered under the product manufacturer's warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer
nor the manufacturer shall be liable for any other expense, loss or damage, including, without
limitation, any indirect, incidental, consequential or exemplary damages arising in connection with
the sale, use or inability to use this product.
Notice to Consumer
This product is not guaranteed if used for industrial or commercial purposes.
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify,
take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial
or federal legislation.
Made in China.
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
a)
b)
c)
d)
e)
f)
g)
h)
ti)
This warranty will not apply if damage is caused by repairs made or attempted by others
