MasterCraft 068-1576-4 User manual

model no. 068-1576-4
48 x 72" (122 x 183 cm) Tall Cabinet
IMPORTANT
Please read this manual carefully before assembling and
using this product, and save it for reference.
INSTRUCTION
MANUAL
Due to continuing improvements,
the actual product may differ slightly
from the product described herein.

2
TABLE OF CONTENTS
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions. Read all
instructions and follow them carefully with use of this product.
NOTE:
If any parts are missing or damaged, or if you have any questions, please call our toll-free
helpline at: 1-800-689-9928. Have the product number, cash register receipt and the date
of purchase available when you call. DO NOT SHIP YOUR PRODUCT BACK TO THE STORE
UNLESS WE SEND YOU WRITTEN INSTRUCTIONS FOR RETURN.
model no. 068-1576-4 I contact us 1-800-689-9928
3
3
4
5
12
13
TABLE OF CONTENTS
EXPLODED VIEW / PARTS LIST
MAINTENANCE
WARRANTY
SAFETY
ASSEMBLY INSTRUCTIONS

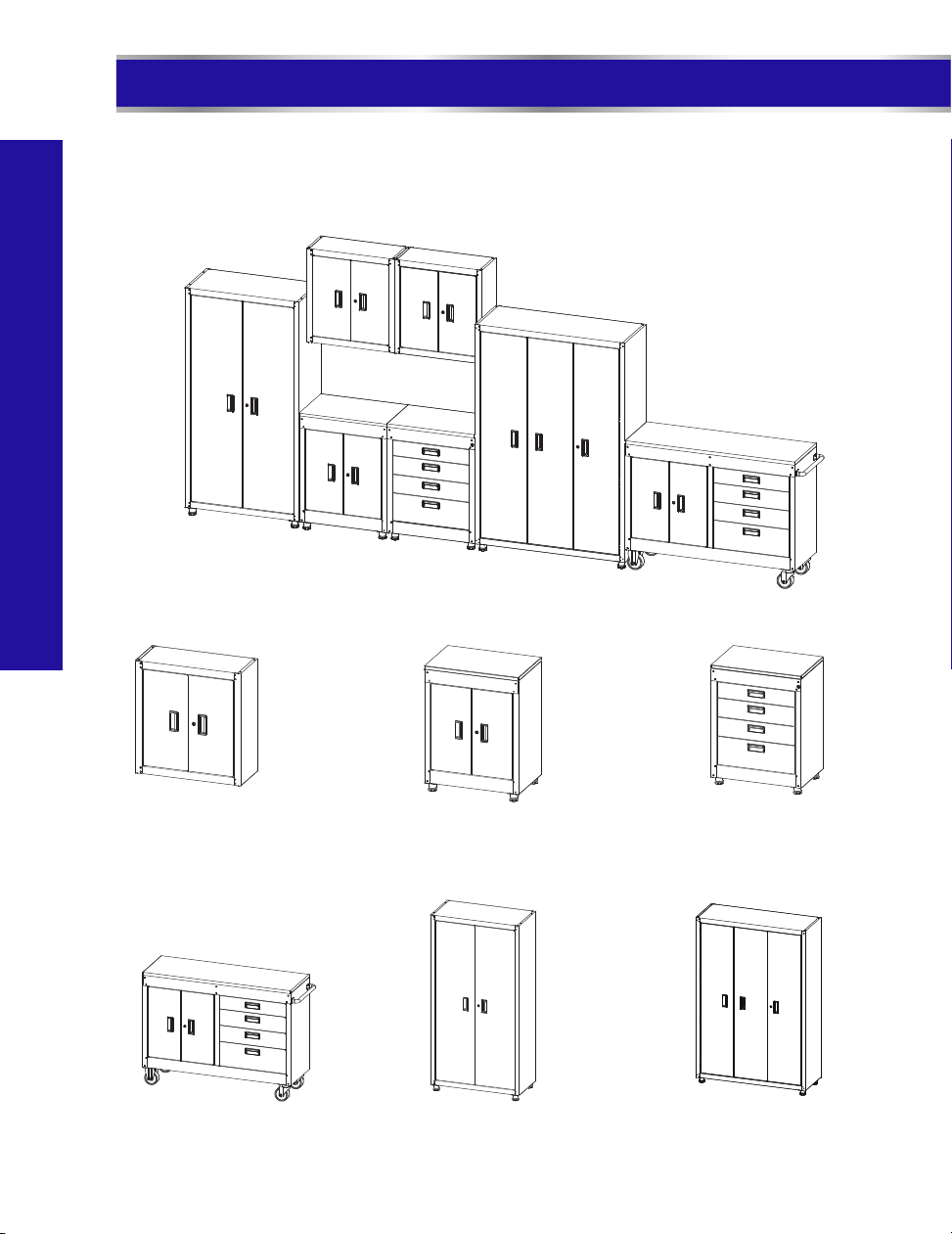

COORDINATING PRODUCTS

SAFETY
3
Before assembling and using this product, carefully read this instruction manual and all of the labels
affixed to the product. Failure to follow all warnings and instructions may result in product damage or
personal injury.
Save all warnings and instructions for future reference.
To reduce the risk of serious injury, read and follow the safety instructions below before assembling
and using this product.
-Maximum load: 850 lb (385 kg)
-Maximum load for shelf: 150 lb (68 kg)
-Maximum load for bottom panel: 400 lb (181 kg)
Keep the product on level surfaces. The product could become unstable and it may tip over if
stored or moved on an uneven surface, which may cause personal injury, death or product
damage.
This product is intended for indoor use only.
Any assembly or maintenance of the cabinet must be carried out by adults only.
Use at least two people to move, assemble or install this cabinet. Failure to do so can result in
personal injury or product damage.
Close and lock the doors before moving this cabinet.
DO NOT alter this product in any manner. For example, do not weld external bar locks or attach
electrical equipment. This may cause product damage or personal injury.
DO NOT stand on the cabinet and do not use it as scaffold.
DO NOT leave children unattended near this product. Cabinets may tip over if improperly opened.
Check all nuts and bolts periodically for tightness. When required, tighten them.
DO NOT exceed the following weight limits for this product.
This product is not designed for commercial nor industrial usage.
It is always recommended to secure this product to the wall with the anti-tip hardware provided.
DO NOT put anything on the top panel of this product.
Grease and oil can be removed with most standard cleaning fluids. For safety, use a nonflammable
cleaning fluid.
Periodically clean the surfaces with a soft rag and water.
MAINTENANCE
SAFETY / MAINTENANCE

No.
1
2
M6 x 40 hex
tapping bolt 2
3
4Grommet
5
7
Back panel
Right side panel
Safety strap 1
1
Description Qty.
No. Description No.
9
Qty.
13
15
2
1
1
1
1
EXPLODED VIEW / PARTS LIST
6
8
Shelf
14
16
17
Lock (001-010)
Right door and middle
door
Top roller
Shelf bracket
Left side panel
3
12
4
model no. 068-1576-4 I contact us 1-800-689-9928
Magnet
10
M4 x 12 cross-head
pan head screw
18
Top panel
Hex wrench
1
1
19
1
Door handle
11
M6 x 16 hex socket
head screw
20
21
14
16
2
3
8
4
6
9
11
1
12
17
19
21
20
22
5
13
Safety bracket
Bottom panel
Adjustable foot
12 4
Bottom roller
22
23
Left door
1
Key (001-010)
EXPLODED VIEW / PARTS LIST
NOTE:
Replacement keys may be ordered. Call our toll-free number. The code which appears on the lock will
be required.
Give information for spare parts: part number and quantity required.
6
3
23
11
7
*
NOTE : Extra screws are provided.
*
5
5
2
3
78
1
1
16
Part No. Part No.
Part Description Quantity
ATop panel 1
BShelf 3
CLeft side panel 1
DTop roller 1
ELeft door 1
FHandle 3
Part Description Quantity
G
Door hinger 12
HBottom roller 1
LMagnet 2
M6 x 16 hex socket head screw 54
M
Q
1
AA
M6 x 40 hex tapping bolt
BB
Key
Bottom panel
2
1
CC
Shelf bracket
2
DD Adjustable foot
12
4
AA
N
Right side panel
Replacement Part #
TBD
Replacement Part #
TBD
A
B
C
E
H
K
FF
L
CC
DD
M
J
D
F
GI
P
ILock 1
JMiddle door 1
KRight door 1
EE Safety bracket 1
FF
M4 x 12 Phillips pan head screw
16
O
1
Back panel 5
P
Safety strap
O
7
10
15
18
20
14
16
2
3
8
4
6
9
11
1
12
17
19
21
20
22
5
13
7
10
15
18
314230
212591
203902
320327
312033
320202
320328
313066
306018
304236
314027
115009
121653
121654
121651
121642
121641
121652
121650
121649
121648
317023
NOTE: Extra M6 x 16 hex socket
head screw(s) is (are) provided.
*
304196
*

5
TOOLS REQUIRED FOR ASSEMBLY
11
10
NOTE: Assemble on a flat surface. A piece of cardboard is
recommended to keep the product from being scratched during
assembly.
6
6
10
22
7
ASSEMBLY INSTRUCTIONS

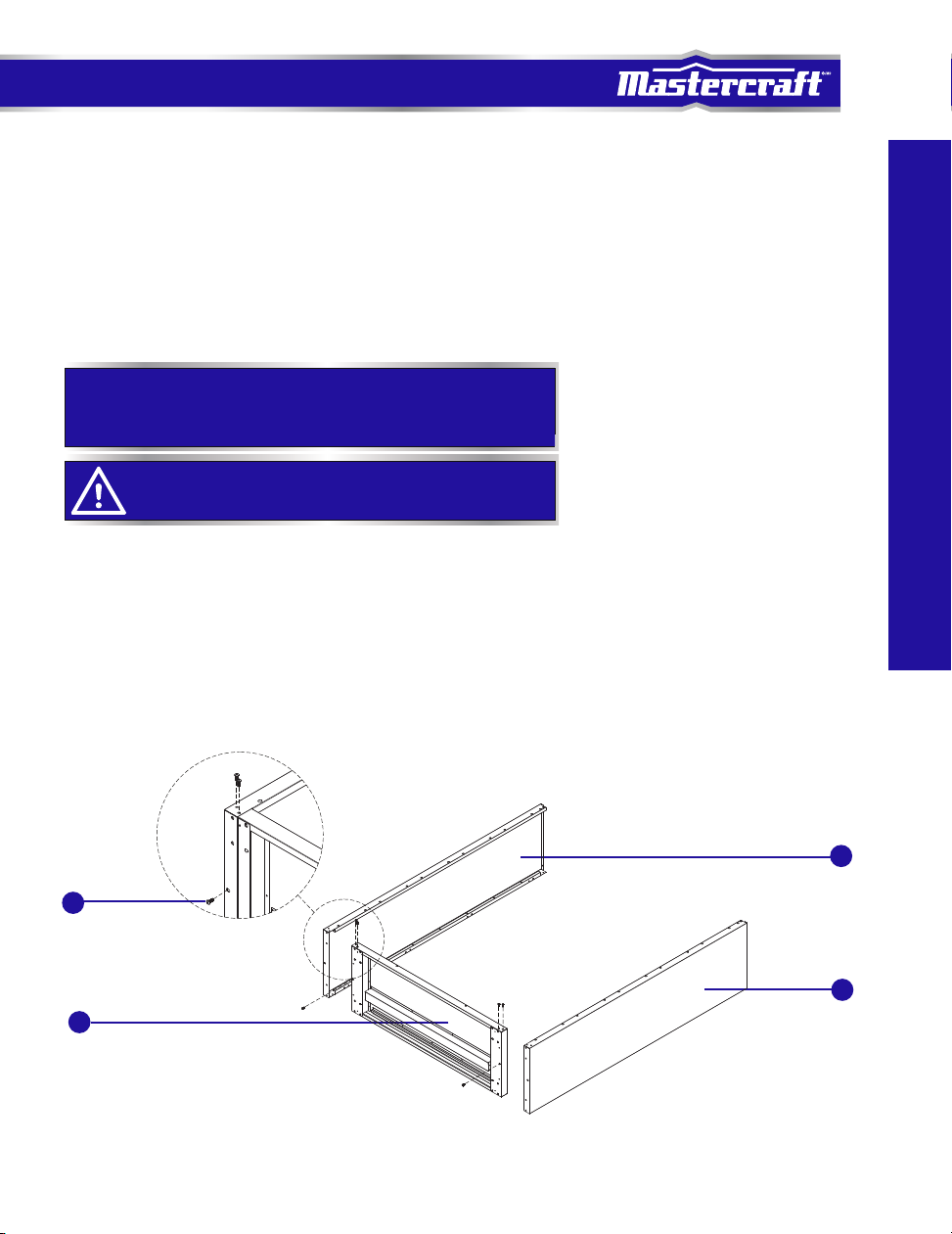

STEP 1 ATTACH THE SIDE AND BOTTOM PANELS
View from under
the cabinet
Front
Back
• Hex Wrench (23)
• Power Drill (not included)
• Cross-head Screwdriver (not included; magnetic is preferable)
• Measuring Tape (not included)
Please wear gloves during the whole assembly process.
10
21
8
Lay the bottom panel (10) on its front and attach the side panels (8 & 21) and the bottom panel (10)
with four M6 x 16 hex socket head screws (6) through the holes on bottom left and right corners.
DO NOT tighten.
•
•Screw two M6 x 16 hex socket head screws (6) at the middle of bottom. Tighten securely.
6
Back
ASSEMBLY INSTRUCTIONS

6
model no. 068-1576-4 I contact us 1-800-689-9928
The top edge of the top back panel (5) should
be inserted under the top panel (22).
STEP 2 ATTACH THE TOP PANEL
STEP 3 ATTACH THE BACK PANELS
Attach the top panel (22) to the side panels (8 & 21) with four M6 x 16 hex socket head
screws (6) on the top left and right corners. Insert the screws by hand. DO NOT tighten.
•
Screw four M6 x 16 hex socket head screws (6) on the top. Insert the screws by hand.
DO NOT tighten.
•
8
22
21
1
2
3
4
5
Attach the five back panels (5) to the back of the cabinet bottom up with thirty-two M6 x 16
hex socket head screws (6). Insert the screws by hand. DO NOT tighten.
6
5
1
2
3
4
5
Insert the top edge of top back
panel under the top panel.
View from cabinet top
6
ASSEMBLY INSTRUCTIONS

7

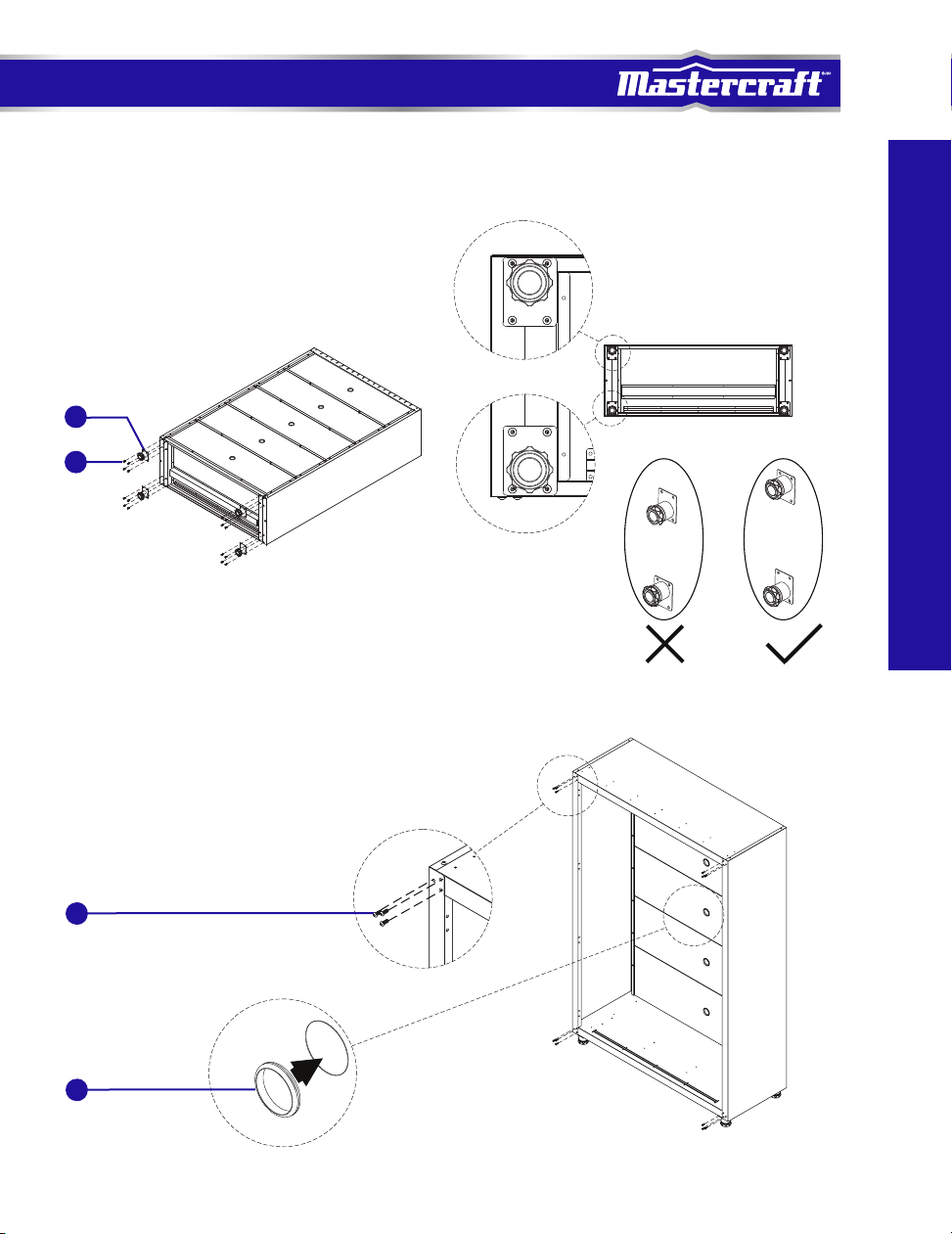

STEP 4 INSTALL THE ADJUSTABLE FEET
Install the adjustable feet (12) to the bottom. Tighten securely with sixteen M6 x 16
hex socket head screws (6).
Back
Front
STEP 5 SCREW THE FRONT OF THE CABINET
6
12
6
Stand up the cabinet.
Screwing twelve M6 x 16 hex socket head
screws (6) on the top and bottom.
DO NOT tighten.
Stand up the cabinet.
•
•Screw twelve M6 x 16 hex socket head
screws (6) on the top and bottom.
DO NOT tighten.
4
ASSEMBLY INSTRUCTIONS
•Install the grommets (4) into the cord
access holes.

8
model no. 068-1576-4 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
STEP 6 CONNECT THE CABINET TO THE WALL
Wall
70 3/16 ”
(178.3 cm)
floor
Wall
View from cabinet top
View from inside of cabinet
When push the locking tab back to its place, make sure the end of the
pin's horizontal part inserted into the hole of the locking tab to make
the pin well locked.
This step must be carried out accordingly. Failure to do so
may result in personal injury.
The M6 x 40 hex tapping bolts (3) should be drilled into the
stud of the wall.
3
2
1
7
2
1
23
Square up the cabinet and make sure the inner diagonal lines are equal with the help of a
measuring tape. Tighten all screws on front and back.
Find a flat floor the cabinet will be placed. Install the safety bracket (2) to the wall with two
M6 x 40 hex tapping bolts (3).
Fasten the tall cabinet by using the safety strap (1) to tie the tall cabinet and safety bracket (2)
together. Tighten securely.
Adjust the feet so that the tall cabinet will be on a flat level.
Square up the cabinet and make sure the inner diagonal lines are equal with the help of a
measuring tape. Tighten all screws on front and back.
•
•
•
•
Find a flat floor where the cabinet will be placed. Install the safety bracket (2) to the wall with
two M6 x 40 hex tapping bolts (3).
Fasten the tall cabinet by using the safety strap (1) to tie the tall cabinet and safety bracket (2)
together. Tighten securely.
Adjust the feet so that the tall cabinet will be level.

9
STEP 7 ATTACH THE RIGHT AND MIDDLE DOORS
Install the safety bracket (2) to the wall with two M6 x 40 hex tapping bolts (3).
Fasten the tall cabinet by using the safety strap (1) to tie the tall cabinet and safety bracket (2)
together. Tighten securely.
The safety bracket’s bottom M6 x 40 hex tapping bolt (3) should be 70 3/8"
(179 cm) from the floor.
Wall
floor
3
2
View from cabinet top
View from inside of cabinet
1
2
The M6 x 40 hex tapping bolts (3) should be drilled into the stud of the wall.
70 3/8" (179 cm)
Wall
14
11
21
8
12
Screwing two M4 x 12 Phillips pan head screws (11) into the top and bottom holes on the inner side
of the right side panel (8). DO NOT screw to the end first.
Position the right door and middle door (14) to the right side panel (8) through the gourd holes on
the door hinges to the two screws (11).
Secure the right door and middle door (14) with another six M4 x 12 Phillips pan head screws (11)
through the door hinges to the right side panel (8). Tighten all screws through the hinges securely.
Close the doors to see if it falls into the cabinet frame. If not, adjust the feet (12) until it falls into the
cabinet frame.
Screw two M4 x 12 cross-head pan head screws (11) into the top and bottom holes on the inner side
of the right side panel (8). DO NOT screw to the end first.
•
•
•
•
Position the right door and middle door (14) to the right side panel (8) by sliding the gourd holes on
the door hinges onto the two screws (11).
Secure the right door and middle door (14) with another six M4 x 12 cross-head pan head screws (11)
through the door hinges to the right side panel (8). Tighten all screws through the hinges securely.
Close the doors to see if they fall into the cabinet frame. If not, adjust the feet (12) until the doors
fall into the cabinet frame.
ASSEMBLY INSTRUCTIONS

10
model no. 068-1576-4 I contact us 1-800-689-9928
STEP 8 ATTACH THE ROLLER
STEP 6 INSTALL THE LOCKING HOOK
7
22
8
9
Insert twelve shelf brackets (9) into the slots on the side panels (7 and 22) at the desired heights.
Make sure the four brackets (9) for each shelf (8) are at the same height.
Place the shelves (8) over the shelf brackets (9), and push them down onto the shelf brackets (9).
Make sure the shelves (8) are properly and safely locked by the upright hooks of the shelf
brackets (9).
•
•
STEP 7 INSTALL THE SHELVES
Shelf locked by shelf
bracket after installation
Slots on the inner
back side of side
panel
Slots on the inner
front side of side
panel
NOTE: To use the locking mechanism, one of the shelves must be placed in the center position.
16
3
2
4
This section must be
inserted into the
square hole.
1
17
Install the lock (16) per Step 1, ensuring the lock code stays on top of the lock face. Release the
nut from the lock (16) back and attach the locking hook (17) per Step 3. Tighten the hook (17)
securely with the nut previously removed from the lock (16) back as shown in Step 4.
When push the locking tab back to its place, make sure the end of the
pin's horizontal part inserted into the hole of the locking tab to make
the pin well locked.
19
6
15
6
Repeat the same procedure as the right door and middle door (14) to attach the left door (18)
to the left side panel (21).
STEP 9 ATTACH THE LEFT DOOR
18
11
11
11
14
21
Attach the bottom roller (15) to the bottom of the middle door with two M6 x 16 hex socket
head screws (6). Make sure the cylindrical part falls into the bottom track. Tighten securely.
•
•Repeat the same procedure to attach the top roller (19) to the top of the middle door.
ASSEMBLY INSTRUCTIONS

11
STEP 10 ATTACH THE SHELVES
Install the safety bracket (2) to the wall with two M6 x 40 hex tapping bolts (3).
Fasten the tall cabinet by using the safety strap (1) to tie the tall cabinet and safety bracket (2)
together. Tighten securely.
The safety bracket’s bottom M6 x 40 hex tapping bolt (3) should be 70 3/8"
(179 cm) from the floor.
Wall
floor
3
2
View from cabinet top
View from inside of cabinet
1
2
The M6 x 40 hex tapping bolts (3) should be drilled into the stud of the wall.
70 3/8" (179 cm)
Wall
NOTE: One of the shelves should be placed in the centre position so as to use
the locking mechanism. At the same time, magnet holes on this shelf should be
faced to the front to install the magnets.
Slots on the inner
back side of side
panel
20
9
Insert the short side of hex wrench (23) by half at your desired cord access holes, and pry the knock-outs
towards your side.
Drop off the knock-outs carefully and install the grommets.
STEP 11 INSTALL THE GROMMETS
•
•
After installation
1 2
3 4
Insert the twelve shelf brackets (20) into the slots on the side panels (8 & 21) at the desired
heights. Make sure the four brackets (20) for each shelf (9) are at the same height.
•
Place the shelves (9) over the shelf brackets (20). Make sure magnet holes on one of the shelves
face to the front.
•
Insert the two magnets (7) into the magnet holes on the shelf so as to catch the doors. The cabinet
is ready for use.
•
7
ASSEMBLY INSTRUCTIONS

12
model no. 068-1576-4 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS / OPERATION / MAINTENANCE
COORDINATING PRODUCTS
COORDINATING PRODUCTS
This product coordinates well with the units below to offer our best storage solutions. They can be
combined into various combinations to meet different storage requirements.
2-Door Tall Cabinet
068-0006-8
Wall Cabinet
068-0005-0
28" (71 cm)
Base Cabinet
068-1554-6
28" (71 cm) Base
Cabinet with Drawers
068-1575-6
54" (137 cm)
Workstation
068-1577-2
48 x 72" (122 x 183 cm)
Tall Cabinet
068-1576-4

13
KNOW YOUR CABINET
WARRANTY
LIMITED WARRANTY
This product is guaranteed for 1 year from the date of original retail purchase against defects in
materials and workmanship.
Subject to the conditions and limitations described below, this product, if returned to us with a proof
of purchase within the stated warranty period and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification), at our option. We will bear
the cost of any repair or replacement and any costs of labour relating thereto.
This warranty is subject to the following conditions and limitations:
A sales receipt that indicates the date of purchase must be provided;
This warranty will not apply to any product or part thereof which is worn or broken or which
has become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper
installation, operation or maintenance (as outlined in the applicable owner's manual or
operating instructions) or which is being used for industrial, professional, commercial or
rental purposes;
This warranty will not apply to normal wear and tear or to expendable parts or accessories
that may be supplied with the product that are expected to become inoperative or unusable
after a reasonable period of use;
This warranty will not apply to routine maintenance and consumable items such as, but not
limited to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or
adjustments;
(i.e., persons not authorized by the manufacturer);
This warranty will not apply to any product that was sold as a reconditioned or refurbished
product (unless otherwise specified in writing);
This warranty will not apply to any product or part thereof if any part from another
manufacturer is installed therein or any repairs or alterations have been made or attempted
by unauthorized persons;
This warranty will not apply to normal deterioration of the exterior finish, such as, but not
limited to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive
and chemical cleaners; and
This warranty will not apply to component parts sold by and identified as the product of
another company, which shall be covered under the product manufacturer's warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer
nor the manufacturer shall be liable for any other expense, loss or damage, including, without
limitation, any indirect, incidental, consequential or exemplary damages arising in connection with
the sale, use or inability to use this product.
Notice to Consumer
This product is not guaranteed if used for industrial or commercial purposes.
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify,
take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial
or federal legislation.
Made in China.
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
a)
b)
c)
d)
e)
f)
g)
h)
ti)
This warranty will not apply if damage is caused by repairs made or attempted by others
