MasterCraft 068-1575-6 User manual

model no. 068-1575-6
28" (71 cm) Base
Cabinet with Drawers
IMPORTANT
Please read this manual carefully before assembling and
using this product, and save it for reference.
INSTRUCTION
MANUAL
Due to continuing improvements,
the actual product may differ slightly
from the product described herein.

2
TABLE OF CONTENTS
3
3
5
13
14
TABLE OF CONTENTS
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions. Read all
instructions and follow them carefully with use of this product.
NOTE:
If any parts are missing or damaged, or if you have any questions, please call our toll-free
helpline at: 1-800-689-9928. Have the product number, cash register receipt and the date
of purchase available when you call. DO NOT SHIP YOUR PRODUCT BACK TO THE STORE
UNLESS WE SEND YOU WRITTEN INSTRUCTIONS FOR RETURN.
MAINTENANCE
COORDINATING PRODUCTS
WARRANTY
SAFETY
ASSEMBLY INSTRUCTIONS
model no. 068-1575-6 I contact us 1-800-689-9928
4
EXPLODED VIEW / PARTS LIST

To reduce the risk of serious injury, read and follow the safety instructions below before assembling
and using this product.
SAFETY
3
SAFETY / MAINTENANCE
Before assembling and using this product, carefully read this instruction manual and all of the labels
affixed to the product. Failure to follow all warnings and instructions may result in product damage or
personal injury.
Save all warnings and instructions for future reference.
-Maximum load: 430 lb (195 kg)
-Maximum load for each drawer: 70 lb (32 kg)
-Maximum load for rubber wood top: 150 lb (68 kg)
Keep the product on level surfaces. The product could become unstable and it may tip over if
stored or moved on an uneven surface, which may cause personal injury, death or product damage.
This product is intended for indoor use only.
Any assembly or maintenance of the product must be carried out by adults only.
Use at least two people to move, assemble or install this cabinet. Failure to do so can result in
personal injury or product damage.
Check all nuts and bolts periodically for tightness. When required, tighten them.
Close and lock the drawers before moving this cabinet.
DO NOT alter this product in any manner. For example, do not weld external bar locks or attach
electrical equipment. This may cause product damage or personal injury.
DO NOT leave children unattended near this product. Cabinets may tip over if improperly opened.
DO NOT exceed the following weight limits for this product.
Periodically clean the surfaces with a soft rag and water.
Grease and oil can be removed with most standard cleaning fluids.
For safety, use a nonflammable cleaning fluid.
MAINTENANCE
This product is not designed for commercial nor industrial usage.
DO NOT open more than one drawer at a time.
Fill from the bottom drawer up. If the cabinet is filled from the top drawer down, it will be top-heavy
and may tip over.
Lubricate the slides (twice a year) with a spray lubricant or light duty oil.
DO NOT step or climb on this product or on the drawers.
It is always recommended to secure this product to the wall with the anti-tip hardware provided.

EXPLODED VIEW / PARTS LIST
No.
1
2
1
3
44
Top drawer front panel 1
4
5
7
Right side panel
Back top beam
1
1
Description Qty.
No. Description No. Qty.
11
14
16
16
4
1
EXPLODED VIEW / PARTS LIST
2
6
15
17
4
NOTE:
Replacement keys may be ordered. Call our toll-free number. The code which appears on the lock will
be required.
Give information for spare parts: part number and quantity required.
Bottom panel
Lock (001-010)
1
8
210 Key (001-010)
19
2
18
Front top beam
1
20
Drawer liner
2
4
Part No. Part No.
4
model no. 068-1575-6 I contact us 1-800-689-9928
12 23
10
19
Right slide
Drawer handle
Left slide
Left side panel
Back panel
M6 x 40 hex tapping bolt
21
1
Drawer panel
Middle drawer
front panel
Bottom drawer
front panel
1
2
4
5
20
22
3
18
9
19
13
12
7
17
6
8
11
14
15
16
9 11
M4 x 6 cross-head pan
head tapping bolt
9 16
M4 x 5 cross-head bolt
22 1
21
12
M6 x 16 hex socket
head screw *
48
13 4
Adjustable foot
Hex wrench
23 1
Rubberwood top
121611
242913
572161
300398
300399
313066
320327
320335
320336
320328
317023
121613
304236
121607
113539
121548
121549
121550
306018
242781
242909
*
*
552183
NOTE: Extra M6 x 16
hex socket head screw(s)
is (are) provided.
*
NOTE: Extra pcs are provided.
*
304196

ASSEMBLY INSTRUCTIONS
5
STEP 1 ATTACH THE SIDE AND BOTTOM PANELS
ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED FOR ASSEMBLY
• Hex Wrench (23)
• Power Drill (not included)
• Cross-head Screwdriver (not included; magnetic is preferable)
• Measuring Tape (not included)
Please wear gloves during the whole assembly process.
Lay the bottom panel (15) on its front and attach the side panels (1 & 16) to the bottom
panel (15) with two M6 x 16 hex socket head screws (12) through the holes on bottom left
and right corners. DO NOT tighten.
NOTE: Assemble on a flat surface. A piece of cardboard is recommended to keep the product
from being scratched during assembly.
15
1
16
12
Front
Back

6
model no. 068-1575-6 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
STEP 3 INSTALL THE ADJUSTABLE FEET
Install the adjustable feet (13) to the bottom panel (15). Tighten securely with sixteen M6 x 16 hex
socket head screws (12).
•
Screw two M6 x 16 hex socket head screws in the middle through the side panels (1 & 16)
into the bottom panel (15). Tighten securely.
•
STEP 2 ATTACH THE BACK TOP BEAM AND BACK PANELS
Attach the back top beam (20) and back panels (18) to the back. Insert sixteen M6 x 16 hex socket
head screws (12) by hand. DO NOT tighten.
The top edge of the top back panel (18) should be inserted under the back top
beam (20).
18
15
13
12
12
16
20
Insert the top edge of top back
panel under the back top beam.

ASSEMBLY INSTRUCTIONS
7
STEP 5 INSTALL THE SLIDES
STEP 4 ATTACH THE FRONT TOP BEAM
Stand up the cabinet.
•
Attach the front top beam (3) to the side panels (1 & 16) with four M6 x 16 hex socket head
screws (12). DO NOT tighten.
•
Screw four M6 x 16 hex socket head screws (12) through the side panels (1 & 16) into the
bottom panel (15). DO NOT tighten.
•
See the drawing below to distinguish left slide (14) and right slide (4).
Front
Front
Back
Back
Left slide
Right slide
12
1
3
15
16
14
4

8
model no. 068-1575-6 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS

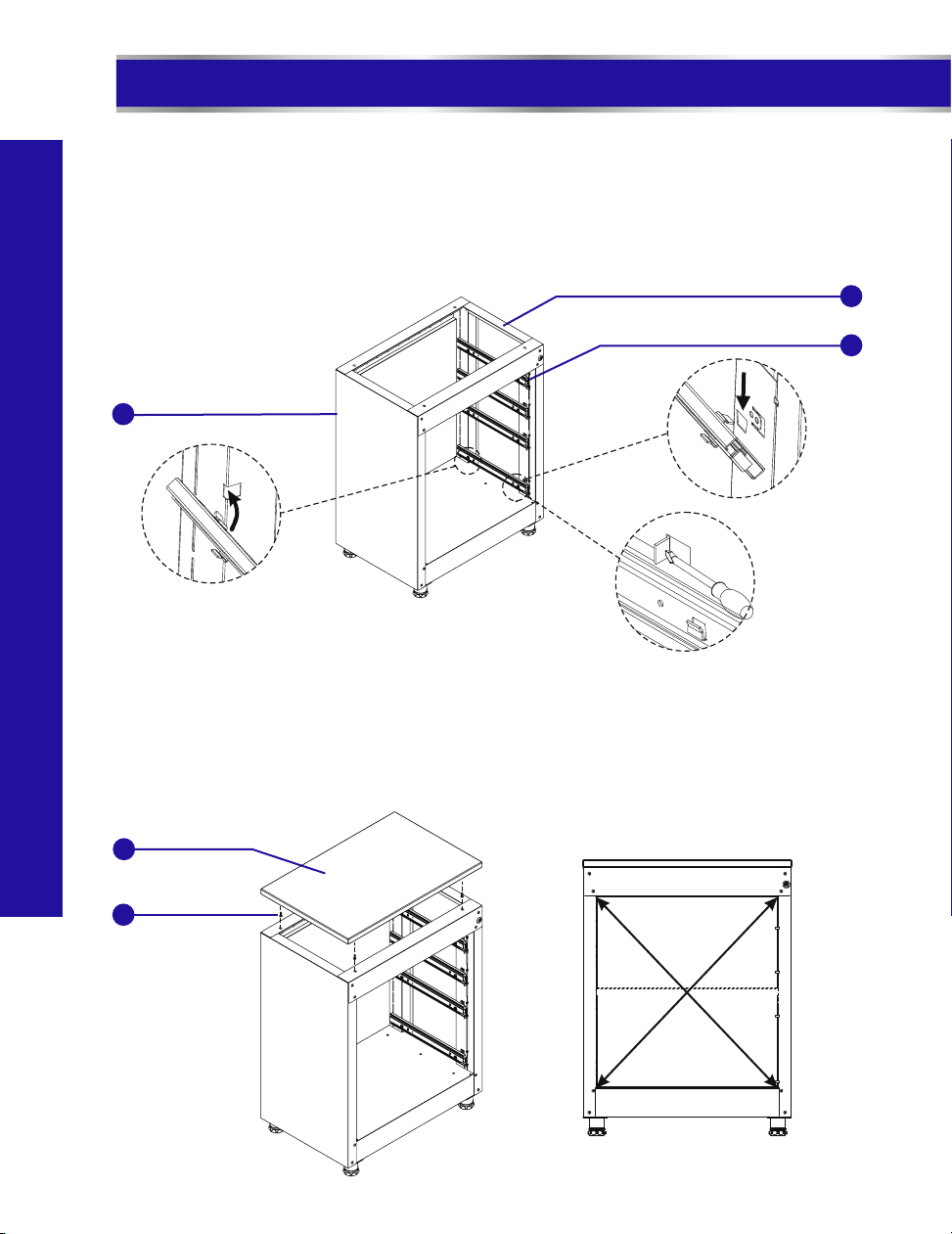

STEP 6 ATTACH THE RUBBERWOOD TOP
•Attach the rubberwood top (22) to the cabinet top by inserting four M6 x 16 hex socket head
screws (12) through the pre-drilled holes underneath. Tighten securely.
•At the same time, square up the cabinet and make sure the inner diagonal lines are equal with
the help of a measuring tape. Tighten all screws on front and back.
4
22
12
16
•Slide the back clip of the outer rail of a right slide (4) into the back slot at the right slide panel (1)
and slide the front clip of the outer rail into the slot at the front of the right slide panel (1).
•Repeat the same procedure to install the other right slides (4) to the right slide panel (1).
•Repeat the same procedure to install four left slides (14) to the left slide panel (16).
•Bend the eight clips above the left and right slides outwards with the help of a straight screwdriver
so as to secure the slides.
1
2
3
1
(back slot)
(front slot)

9
ASSEMBLY INSTRUCTIONS
20
STEP 8 ASSEMBLE THE DRAWERS
19
NOTE: Make sure your platform is free of debris or the drawer bottom is protected before
laying the drawer on its bottom.
Lay the drawer panel (17) on its bottom.
•
•Bend up the side panels upright to 90°. During this process, insert the clips at the two ends
of the back panel into the slots of the side panels.
Bend all the clips towards the back panel until they lean against the back panel.
•
Place the cabinet on a flat floor against a wall. Use a power drill to attach the cabinet to the
wall with two M6 x 40 hex tapping bolts (19) through the holes at the back top beam (20).
Tighten securely. For safety, the bolts should be drilled into the studs of the wall.
STEP 7 SECURE THE CABINET TO WALL
17
1 2 3
4
drawer back

10
ASSEMBLY INSTRUCTIONS / OPERATION / MAINTENANCE
model no. 068-1575-6 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS

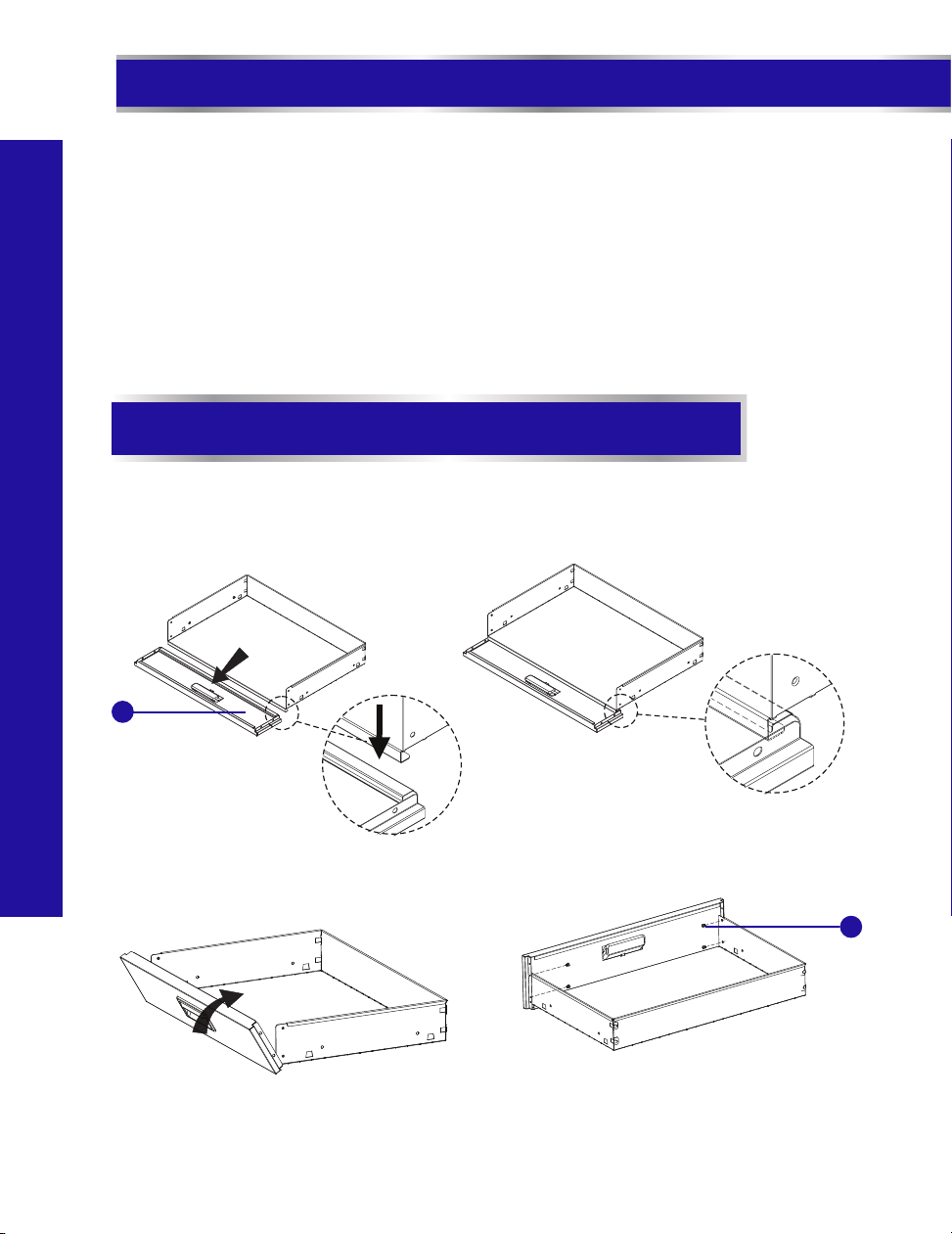

STEP 9 ASSEMBLE THE DRAWERS (continued)
NOTE: At this step, DO NOT use power tool. Otherwise, product damage may be
caused. A magnetic cross-head screwdriver is preferred.
•Lay down the drawer front panel (5 & 6 & 8) on its face with a soft mat underneath for
protection.
Put the drawer body's front onto the drawer front panel.
•
Slide the drawer body's front bottom bent edge into the bottom groove of the drawer
front panel.
•
•Turn up the drawer front panel upright to 90°.
Fasten the drawer front panel and side panels together using four M4 x 6 cross-head
pan head tapping bolts (9).
•
•Repeat the same procedure to assemble all drawers.
1
5
9
1 2
34
4

11
ASSEMBLY INSTRUCTIONS

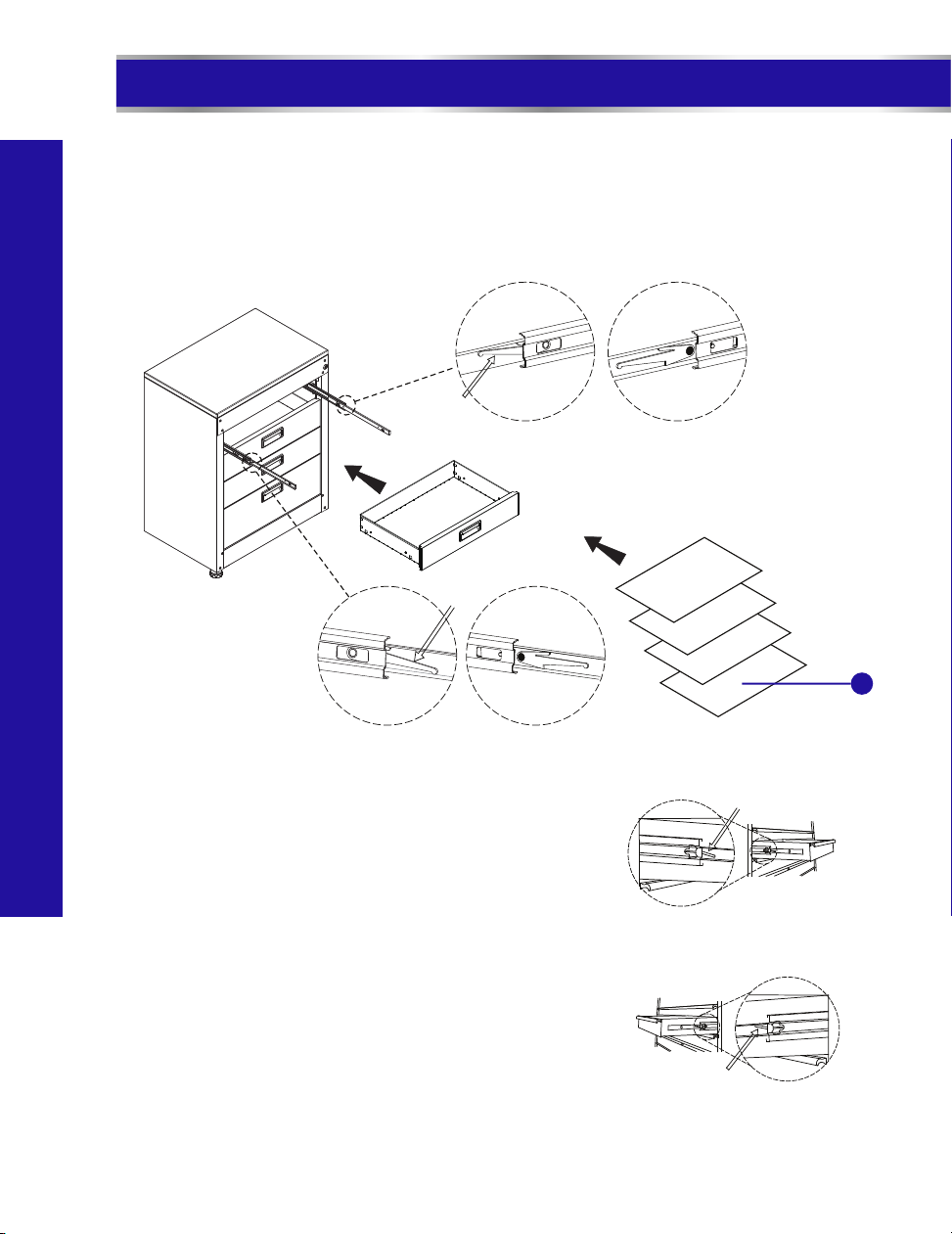

STEP 10 ATTACH THE DRAWERS BOTTOM-UP
Extend the bottom slides and attach the bottom drawer to the slides by sliding the slots at
the drawer's side panels onto the upright clips of the slides.
•
•Secure the drawer to the slides by screwing four M4 x 5 cross-head bolts (11) through
the drawer to the slides.
Repeat the same procedure to attach the other two middle drawers to the slides, attaching
the lower one first.
•
NOTE: Read the procedure to attach the top drawer (the fourth point) carefully. Otherwise,
the product may be scratched.
11
NOTE: At this step, DO NOT use power tool. A magnetic cross-head screwdriver is preferred.
Otherwise, product damage may be caused.
12
3 4

12
ASSEMBLY INSTRUCTIONS / OPERATION / MAINTENANCE
model no. 068-1575-6 I contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
Before attaching the top drawer, extend the slides first. There are two black release levers on
each side of inner rails. Pull one up and push the other one down until you see a silver dot.
•
•Repeat the same procedure as the other drawers to attach the top drawer to the slides. The
cabinet is ready for use.
Push down – side
Pull up – side
DRAWER REMOVAL
DRAWER REPLACEMENT
Extend the drawer slides from the tool chest or cabinet.
Insert the brackets on each side of the drawer into the slots
in the slides, being careful that they are properly positioned.
Once properly inserted, completely close the drawer to set
the slides in their proper positions.
Push down - one side
Pull up - other side
Pull the drawer out until it is extended to the maximum.
There are two black release levers: one on each side of
the drawer. Pull one up while you push the other one
down simultaneously. At the same time, pull the drawer
out of the drawer slides.
•Place the drawer liners (21) into each drawer of the cabinet.
21

13
COORDINATING PRODUCTS
COORDINATING PRODUCTS
This product coordinates well with the units below to offer our best storage solutions. They can be
combined into various combinations to meet different storage requirements.
2-Door Tall Cabinet
068-0006-8
Wall Cabinet
068-0005-0
28" (71 cm) Base Cabinet
068-1554-6
28" (71 cm) Base
Cabinet with Drawers
068-1575-6
54" (137 cm)
Workstation
068-1577-2
48 x 72" (122 x 183 cm)
Tall Cabinet
068-1576-4

LIMITED WARRANTY
This product is guaranteed for 1 year from the date of original retail purchase against defects in
materials and workmanship.
Subject to the conditions and limitations described below, this product, if returned to us with a proof
of purchase within the stated warranty period and if covered under this warranty, will be repaired or
replaced (with the same model, or one of equal value or specification), at our option. We will bear
the cost of any repair or replacement and any costs of labour relating thereto.
This warranty is subject to the following conditions and limitations:
A sales receipt that indicates the date of purchase must be provided;
This warranty will not apply to any product or part thereof which is worn or broken or which
has become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper
installation, operation or maintenance (as outlined in the applicable owner's manual or
operating instructions) or which is being used for industrial, professional, commercial or
rental purposes;
This warranty will not apply to normal wear and tear or to expendable parts or accessories
that may be supplied with the product that are expected to become inoperative or unusable
after a reasonable period of use;
This warranty will not apply to routine maintenance and consumable items such as, but not
limited to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or
adjustments;
(i.e., persons not authorized by the manufacturer);
This warranty will not apply to any product that was sold as a reconditioned or refurbished
product (unless otherwise specified in writing);
This warranty will not apply to any product or part thereof if any part from another
manufacturer is installed therein or any repairs or alterations have been made or attempted
by unauthorized persons;
This warranty will not apply to normal deterioration of the exterior finish, such as, but not
limited to, scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive
and chemical cleaners; and
This warranty will not apply to component parts sold by and identified as the product of
another company, which shall be covered under the product manufacturer's warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer
nor the manufacturer shall be liable for any other expense, loss or damage, including, without
limitation, any indirect, incidental, consequential or exemplary damages arising in connection with
the sale, use or inability to use this product.
Notice to Consumer
This product is not guaranteed if used for industrial or commercial purposes.
This warranty gives you specific legal rights, and you may have other rights, which may vary from
province to province. The provisions contained in this warranty are not intended to limit, modify,
take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial
or federal legislation.
Made in China.
Imported by Mastercraft Canada Toronto, Canada M4S 2B8
a)
b)
c)
d)
e)
f)
g)
h)
ti)
This warranty will not apply if damage is caused by repairs made or attempted by others
14
ASSEMBLY INSTRUCTIONS / OPERATION / MAINTENANCE
model no. 068-1575-6 I contact us 1-800-689-9928
WARRANTY
