MasterCraft BUTCHER BLOCK TOP 068-7305-4 User manual

continuation tabs
IMPORTANT:
Please read this manual carefully before assembling
and using this cabinet and save it for reference.
INSTRUCTION
MANUAL
BUTCHER BLOCK TOP ROLLING CABINET
Model no. 068-7305-4

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 062-3582-8 | contact us 1-800-689-9928

1
TABLE OF CONTENTS
TABLE OF CONTENTS
2
3
5
8
15
Safety
Exploded View
Parts List
Assembly Instructions
Warranty
NOTE:
If any parts are missing or damaged, or if you have any questions,
please call our toll-free helpline at 1-800-689-9928.
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions.
Read all instructions and follow them with use of this product.

2
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 068-7305-4 | contact us 1-800-689-9928
SAFETY
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 062-3582-8 | contact us 1-800-689-9928
• To reduce the risk of serious injury, read the following safety
instructions before assembling and using the cabinet.
• This cabinet is intended for domestic, indoor use only.
• The cabinet should be positioned on a level surface.
• Any assembly or maintenance of the cabinet must be carried
out by adults only.
• Arrange for necessary manpower when assembling and moving
the cabinet.
• Check all the nuts and bolts periodically for tightness.
When required, tighten them again.
• Use a slightly damp, soft cloth to clean the cabinet.
• Do not stand on the cabinet and do not use it as a scaffold.
• Do not exceed the weight limit specified for this cabinet.
Maximum Worktop Load: 286 lb (130 kg)
Maximum Middle Shelf Load: 88 lb (40 kg)
Maximum Bottom Shelf Load: 132 lb (60 kg)
Maximum Drawer Load: 33 lb (15 kg)
Maximum Load Capacity: 704 lb (320 kg)
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions.
Read all instructions and follow them with use of this product.

3
EXPLODED VIEW

4
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 068-7305-4 | contact us 1-800-689-9928
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 062-3582-8 | contact us 1-800-689-9928
EXPLODED VIEW
Small Drawer Assembly
Large Drawer Assembly

5
PARTS LIST

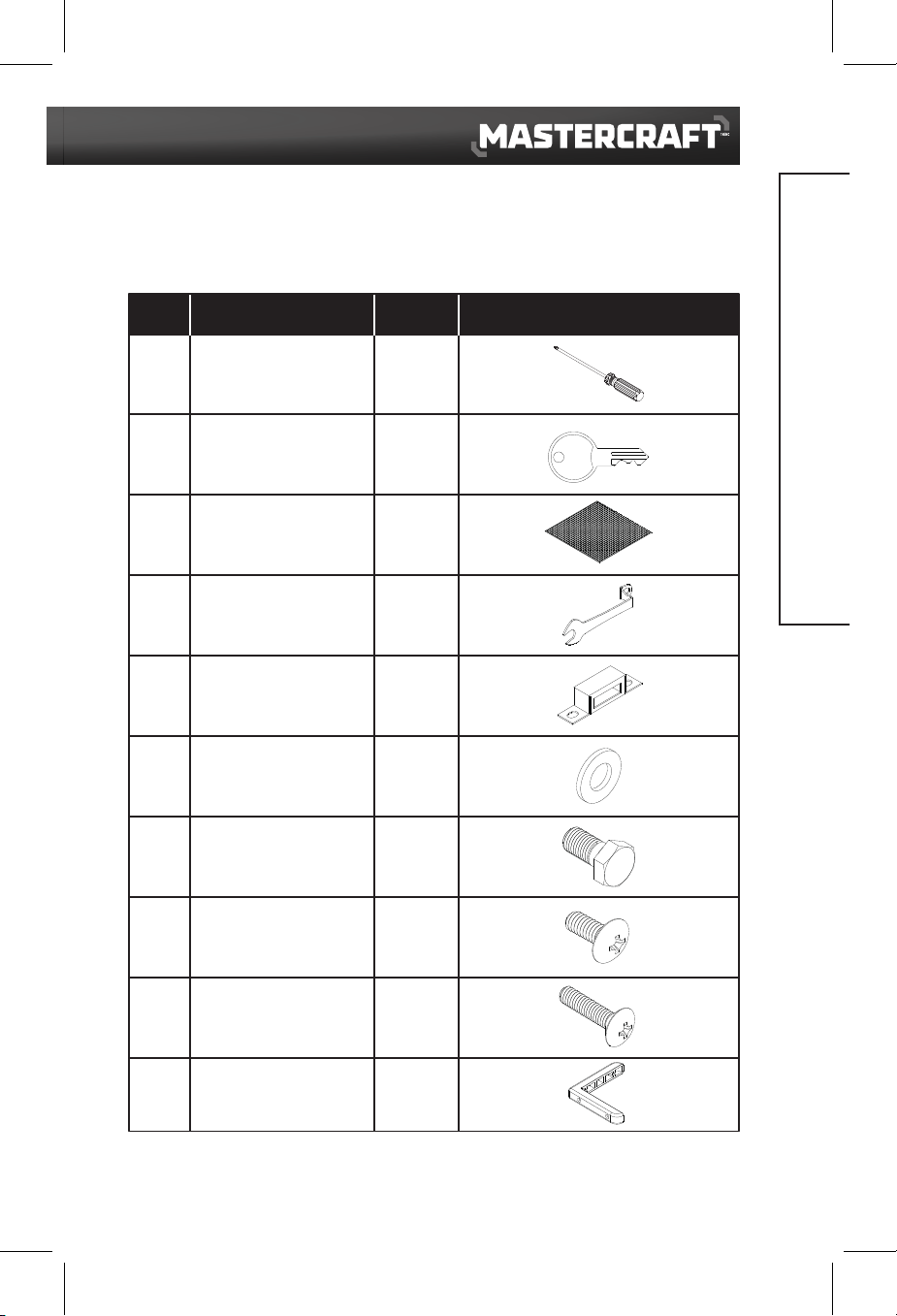

PARTS LIST
No.
1
2
3
4
5
6
7
8
9
10
Description
Left side panel
Right side panel
Front frame
Back frame
Base panel
Left door
Right door
Solid hardwood top
Handle bar
Middle shelf
Qty.
1
1
1
1
1
1
1
1
2
1
Illustration

6
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 068-7305-4 | contact us 1-800-689-9928
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 062-3582-8 | contact us 1-800-689-9928
PARTS LIST
No.
11-1
11-2
12-1
12-2
12-3
12-B
13-B
14
15
17
Description
Small side drawer
front
Small side drawer
bottom panel
Large-size drawer
front
Large-size drawer
bottom panel
Large-size drawer
back panel
Swivel wheel with
brake
Fixed wheel w/o
brake
Drawer slider
support
Screw (M4 x 8L)
Screw (M8 x 18L)
Qty.
4
4
2
2
2
2
2
1
129
16
Illustration

7
PARTS LIST
No.
21
22
24
25
26
27-B
40
41
42
57
Description
Screwdriver
Key
Drawer mat
Wrench
Magnet support
Washer (M8)
Screw (M4 x 18L)
Screw (M4 x 8L)
Screw (M4 x 30L)
Bumper
Qty.
1
2
6
1
2
6
6
24
16
4
Illustration

8
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 068-7305-4 | contact us 1-800-689-9928
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 062-3582-8 | contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
ASSEMBLY PREPARATION
• Assemble the storage cabinet on a clean, level surface.
• Remove all items from the packaging box and ensure that all parts listed on page
5 – 7 are included.
• When installing parts that have more than one screw, tighten all screws by hand
before tightening them with the screwdriver provided.
ASSEMBLY INSTRUCTIONS
1. Unpack
Open both inner boxes. Please note
the Solid Hardwood Top (8) is packed
inside one cardboard box (Fig. A).
2. Install Back Frame (4) to Solid
Hardwood Top (8)
[Use the Wrench (25) for this step.]
When assembling this item, place the
Solid Hardwood Top (8) upside down
on the cardboard to avoid scratching
the top surface (fig. A). Using three
Screws (40) with three Washers
(27-B), attach the "Top" of the Back
Frame (4), indicated by the attached
sticker, to the Solid Hardwood Top (8).
Make sure the Back Frame is flush
with the Solid Hardwood Top, and do
not move frontward or backward
when tightening (Fig. B).
3. Install the Left Side Panel (1)
Align Left Side Panel (1) with the
Back Frame (4), making sure the
indicated "Top" of Left Side Panel (1)
is on the Solid Hardwood Top (8), and
attach with three Screws (15) using
Screwdriver (21) to tighten (Fig. C).
Fig. A
Fig. B
Fig. C

9
ASSEMBLY INSTRUCTIONS
4. Install Drawer Slider Support
(14)
Align Drawer Slider Support (14) with
the Back Frame (4), making sure the
indicated "Top" of the Drawer Slider
Support (14) is close to the Solid
Hardwood Top (8), and attach with
three Screws (15) using Screwdriver
(21) to tighten (Fig. D).
5. Install the Right Side Panel (2)
Align the Right Side Panel (2) with
Back Frame (4), making sure the
indicated "Top" is against the Solid
Hardwood Top (8), and attach with
three Screws (15) using Screwdriver
(21) to tighten (Fig. E).
6. Install the Front Frame (3)
Place the Front Frame (3) in position
and align the screw holes. Use three
Screws (15) each to attach the Front
Frame (3) to the Left and Right Side
Panels (1 and 2) and the Drawer
Slider Support (14) and tighten with
Screwdriver (21). Use three Screws
(40) with Washers (27-B) to attach the
indicated "Top" of the Front Frame (3)
to the Solid Hardwood Top (8), and
tighten with Wrench (25) (Fig. F).
Fig. D
Fig. E
Fig. F

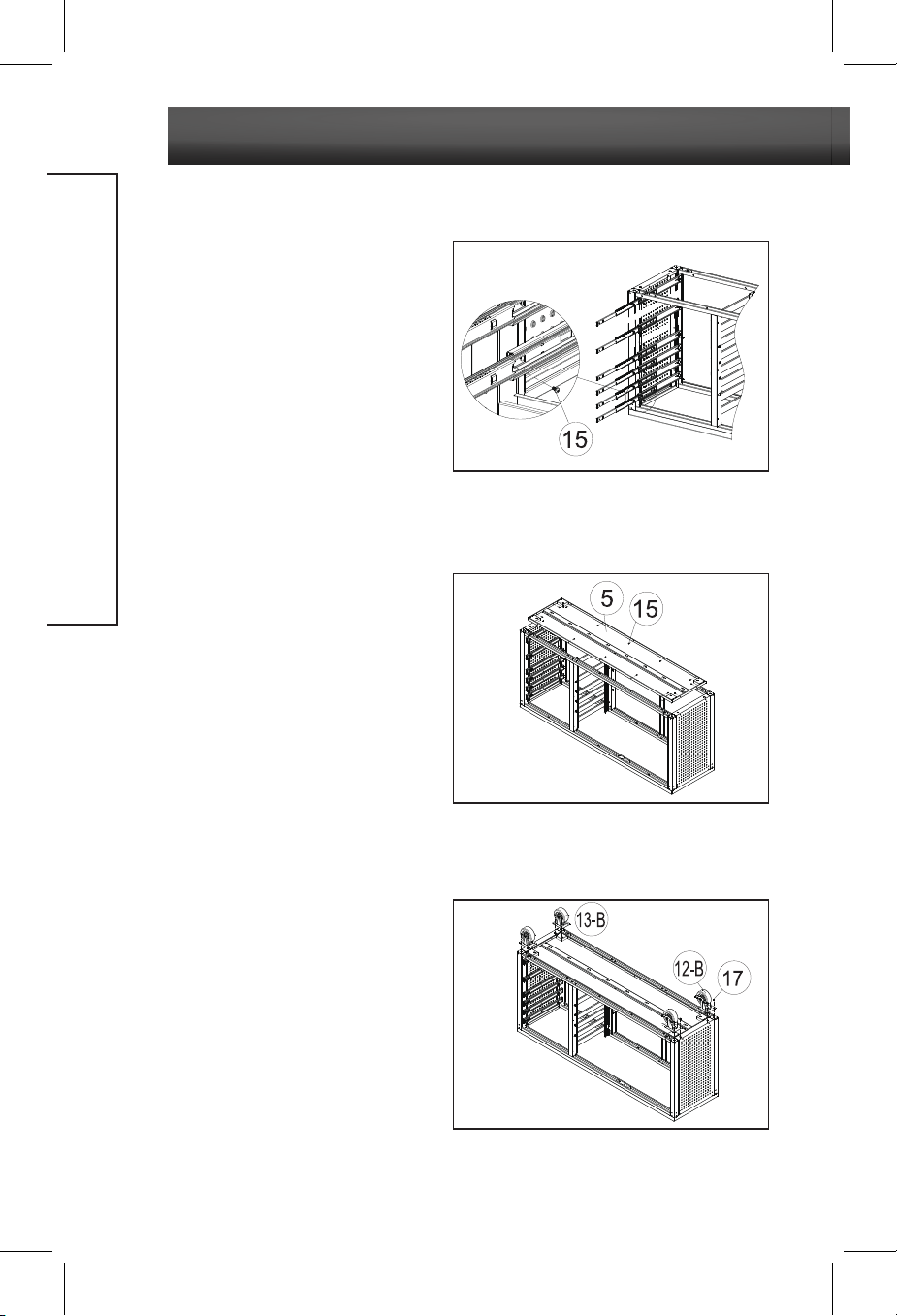

7. Install Drawer Slider Support
(14)
As shown in the picture, pull out the
slider until the screw hole is visible.
Attach the Right Side Panel (2) and
the Drawer Slider Support (14) onto
the Front Frame (3) with three Screws
(15) using Screwdriver (21) to tighten
(Fig. G).
8. Install Base Panel (5)
Attach the Base Panel (5) to the Left
and Right Side Panels (1 and 2) and
the Front and Back Frames (3 and 4)
with 14 Screws (15) using Screw-
driver (21) (Fig. H).
9. Install Wheels (12-B and 13-B)
Place Fixed Wheels w/o Brakes (13-B)
on the same end (right or left side) of
the cabinet and the Swivel Wheels
with Brakes (12-B) on the other end.
Secure wheels with 16 Screws (17)
using Screwdriver (21) to tighten (Fig.
I).
Note: There is some tolerance in the
wheel screw holes, so make sure that
the two Fixed Wheels w/o Brakes
(13-B) are parallel both to each other
and with the frame of the cabinet.
10
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 068-7305-4 | contact us 1-800-689-9928
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 062-3582-8 | contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
Fig. G
Fig. H
Fig. I

11
ASSEMBLY INSTRUCTIONS
10. Install Bumpers (57)
Using 16 Screws (42) to attach
Bumpers (57) to the bottom four
corners of the cabinet (Fig. J).
11. Install Handle Bars (9) and
Magnet Supports (26)
Install Handle Bars (9) on Left and
Right Side Panels (1 and 2) with 12
Screws (41) for each Handle Bar (9)
and use Screwdriver (21) to tighten.
Attach Magnet Supports (26) to the
Front Frame (3) with two Screws (15)
each and use Screwdriver (21) to
tighten (Fig. K).
12. Install Large-size Drawer
Bottom (12-2) and Large-size
Drawer Back Panel (12-3)
1. Fold the left and right panels
straight up. Please make sure that the
flat surfaces are facing the inside of
the drawer, and both sides of the
external sliding rail are facing outward.
2. Fasten the Large-size Drawer Back
Panel (12-3) onto the folded Large-size
Drawer Bottom (12-2) with seven
Screws (15) using Screwdriver (21) to
tighten (Fig. L).
Fig. J
Fig. K
Fig. L

12
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 068-7305-4 | contact us 1-800-689-9928
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 062-3582-8 | contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS

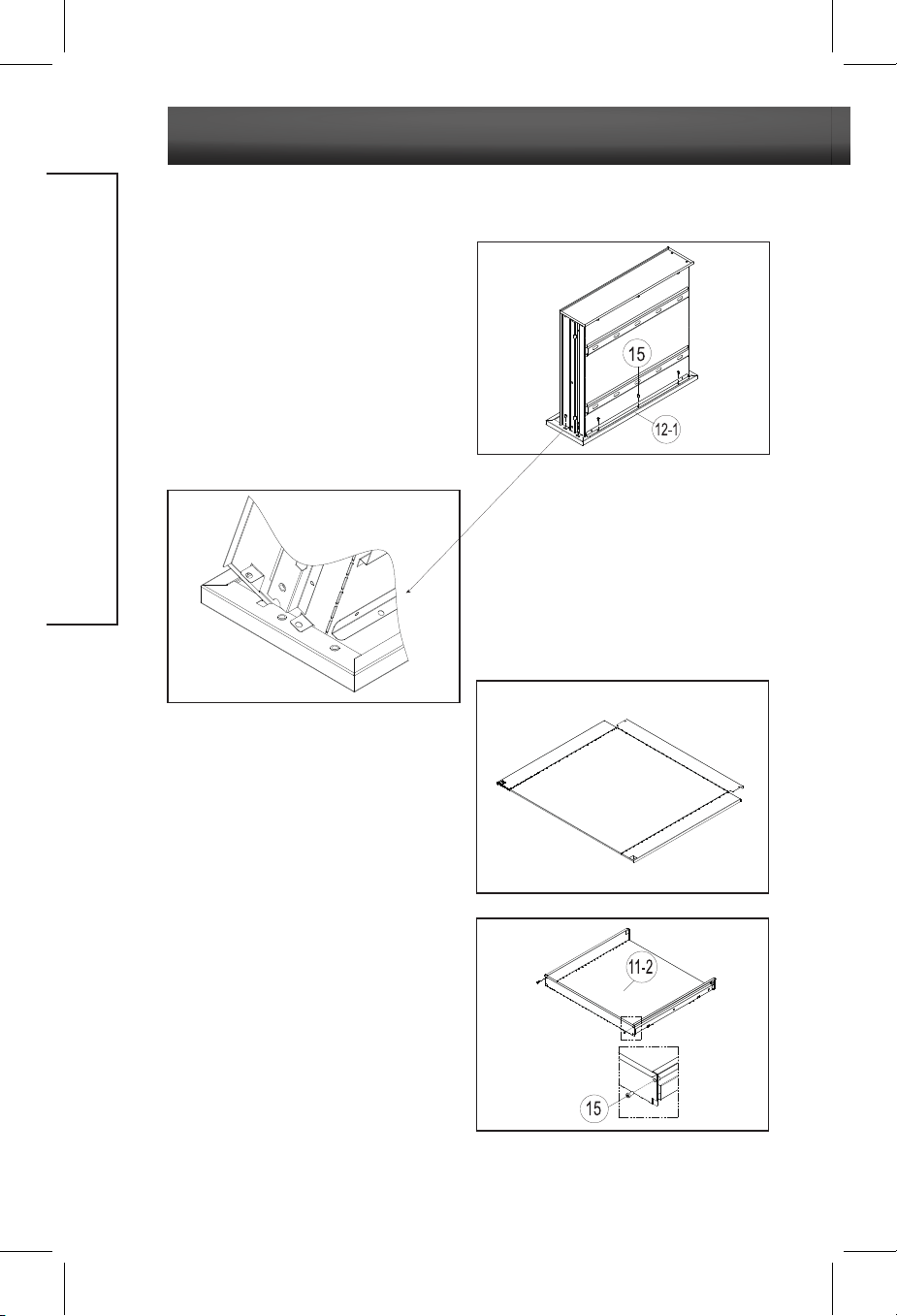

13. Install Large-size Drawer
Front (12-1)
Slide the sides of the drawers into the
gap in the Large-size Drawer Front
(12-1) and secure with seven Screws
(15) using Screwdriver (21) to tighten
(Fig. M).
Repeat steps 12 and 13 to assemble
the other large-size drawer.
14. Assemble the Small-size
Drawers
1. Fold the left, right and back panels
straight up. Please make sure that the
flat surfaces are facing the inside of
the drawer, and both sides of the
external sliding rail are facing outward.
2. Secure the back of the Small-size
Drawer Bottom Panel (11-2) to the
sides with two Screws (15) using
Screwdriver (21) to tighten (Fig. O).
Fig. M
Fig. N
Fig. O

13
ASSEMBLY INSTRUCTIONS
15. Place the Drawers
1. Pull out the sliders completely (Fig.
Q).
Note: Please remove the hook's
rubber protectors before you assem-
ble drawers onto slides.
2. Place the drawers on the sliders,
making sure the square holes on the
drawer side panels are lined up and
the drawer is completely hooked onto
the sliders (Fig. R).
3. Slide the sides of the drawers into
the gap in the Small-size Drawer
Front (11-1) and secure with five
Screws (15) using Screwdriver (21) to
tighten (Fig. P).
Fig. P
Fig. Q
Fig. R

14
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 068-7305-4 | contact us 1-800-689-9928
headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 062-3582-8 | contact us 1-800-689-9928
ASSEMBLY INSTRUCTIONS
3. Secure the sliders to the drawer
using four Screws (15) each and
tightening with Screwdriver (21). Place
the Drawer Mat (24) inside the drawer.
Repeat for all six drawers (Fig. S).
16. Install the Stainless Steel
Doors
Attach the Left Door (6) and the Right
Door (7) using five Screws (15) each
and tightening with Screwdriver (21)
(Fig. T).
Note: The screw holes on the door
hinge have tolerance, enabling the
door to be adjusted and centred in the
door frame (Fig. T).
17. Install the Middle Shelf (10)
Place the Middle Shelf (10) in the unit at
the desired height and ensure that all
four corners are secured on the hooks
on the front and back frame (Fig. U).
NOTE: This product provides
fingerprint-resistant surfaces and
increased durability.
Stainless Steel Maintenance:
A fingerprint-resistant finish has been
applied to these parts. Do not use traditional stainless steel cleaners on this unit.
Lightly wipe off once a month with clean warm water and a soft cloth (preferably a
microfibre cloth). This is the safest formula to prevent new stains from appearing
over time and manage unwanted fingerprints or grease marks. Remember to always
wipe in the direction of the surface grain (NEVER ACROSS) and always use a lint-free
cloth. Once the surface is clean, thoroughly wipe dry with a soft absorbent cloth.
Fig. S
Fig. T
Fig. U

This Mastercraft® product carries a one (1) year warranty from the date of the original
retail purchase, against defects in material and workmanship. Subject to the condi-
tions and limitations described below, this product, if returned to us with proof of
purchase within the stated warranty period and if covered under this warranty, will be
repaired or replaced (with the same model, or one of equal value or specification), at
our discretion. We will bear the cost of any repair or replacement and any costs of
labour relating thereto.
This warranty is subject to the following conditions and limitations:
a. a bill of sale verifying the purchase and purchase date must be provided;
b. this warranty will not apply to any product or part thereof which is worn or broken
or which has become inoperative due to abuse, misuse, accidental damage, neglect or
lack of proper installation, operation or maintenance (as outlined in the applicable
owner's manual or operating instructions) or which is being used for industrial, profes-
sional, commercial or rental purposes;
c. this warranty will not apply to normal wear and tear or to expendable parts or acces-
sories that may be supplied with the product which are expected to become inopera-
tive or unusable after a reasonable period of use;
d. this warranty will not apply to routine maintenance and consumable items such as,
but not limited to, fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids,
tune-ups or adjustments;
e. this warranty will not apply where damage is caused by repairs made or attempted
by others (i.e., persons not authorized by the manufacturer);
f. this warranty will not apply to any product that was sold to the original purchaser as
a reconditioned or refurbished product (unless otherwise specified in writing);
g. this warranty will not apply to any product or part thereof if any part from another
manufacturer is installed therein or any repairs or alterations have been made or
attempted by unauthorized persons;
h. this warranty will not apply to normal deterioration of the exterior finish, such as, but
not limited to, scratches, dents, paint chips, or to any corrosion or discolouring by heat,
abrasive and chemical cleaners; and
i. this warranty will not apply to component parts sold by and identified as the product
of another company, which shall be covered under the product manufacturer's
warranty, if any.
15
WARRANTY

headline bars
continuation tabs
notes
warnings
Additional Limitations
This warranty applies only to the original purchaser and may not be
transferred. Neither the retailer not the manufacturer shall be liable for
any other expense, loss or damage, including, without limitation, any
indirect, incidental, consequential or exemplary damages arising in
connection with the sale, use or inability to use this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other
rights, which may vary from province to province. The provisions
contained in this warranty are not intended to limit, modify, take away
from, disclaim or exclude any statutory warranties set forth in any applica-
ble provincial or federal legislation.
Made in China
Imported by
Mastercraft Canada Toronto, Canada M4S 2B8

continuation tabs
IMPORTANT :
Veuillez lire attentivement ce guide avant d’assembler
et d’utiliser cette armoire haute et le conserver à titre de référence.
INSTRUCTION
MANUAL
ARMOIRE SUR ROULETTES À DESSUS
DE TYPE BLOC DE BOUCHER
Modèle nº 068-7305-4

headline bars
continuation tabs
notes
warnings
headline bars
continuation tabs
notes
warnings
model no. 062-3582-8 | contact us 1-800-689-9928
