MaxLite AR Series User manual

Operating Instructions AR Series
MaxLite LED Medium Area Light
• This fixture is designed for outdoor lighting service, and should not be
used in areas of limited ventilation, or in high ambient temperatures.
• Before installing light fixtures, read and understand all cautions,
warnings, instructions, and product labels. Failure to do so could
result in injury and/or void the warranty.
• nstallation should be done by a qualified electrician. Make sure power
is OFF before installing or maintaining fixture.
• Risk of injury or damage. Unit will fall if not installed properly.
Follow installation instructions.
• To reduce the risk of death, personal injury or property damage from fire,
electric shock, falling parts, cuts/abrasions, and other hazards read all
warnings and instructions included with and on the fixture box and all
fixture labels.
• Before installing, servicing, or performing routine maintenance upon
this equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires
should be performed by a qualified licensed electrician.
• DO NOT NSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and grounded UL listed junction box.
WARNING:
R SK OF ELECTR CALSHOCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture
to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label information.
• Make all electrical and grounded connections in accordance with the National Electrical
Code and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
CAU ION:
R SK OF NJURY
• Unit will fall if not installed properly. Follow installation instructions.
• Wear gloves and safety glasses at all times when removing luminaire from carton, installing,
servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be hazardous to children.
CAU ION:
R SK OF F RE
• Keep combustible and other materials that can burn away from luminaire and lamp/lens.
• M N 90°C SUPPLY CONDUCTORS
Models:
Example: AR60, AR75, AR100, AR145, AR200, and AR310 Series
Operating characteristics:
Operating temperature: -40°C to 40°C
nput voltage range: 100-277Vac, 277-480Vac, 50/60Hz
1
®

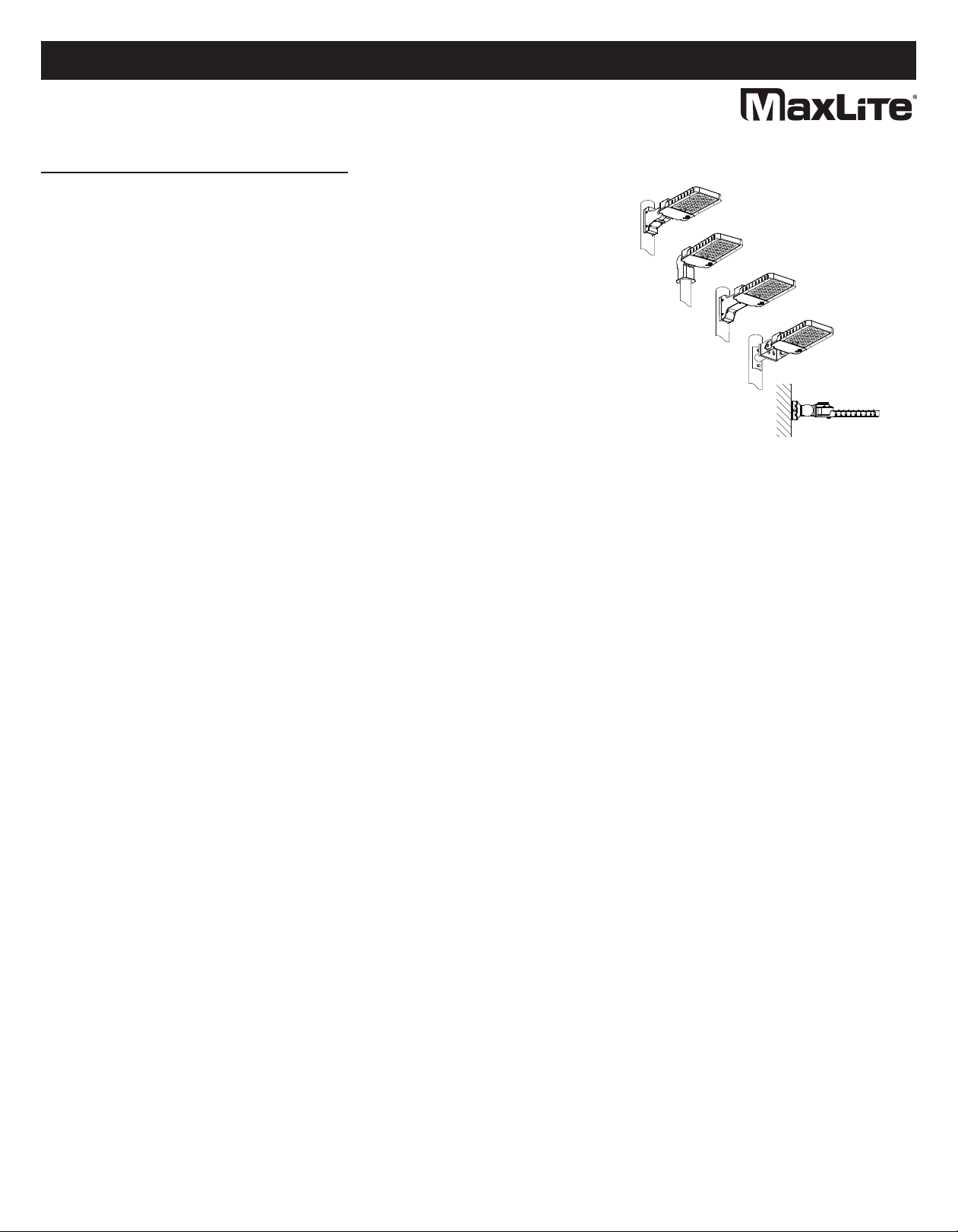

Picture is for illustration purposes only.
Your model may vary.
General Safety Information
© Copyright 2021. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 1
REV: 11/19/21

Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2021. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 2
REV: 11/19/21
Setting Color emperature
1. Remove the 1/2 NPT knock-out plug from the driver compartment cover (see FIG. A).
FIG. A
CCT Switch
2. Adjust the CCT switch to the desired CCT and replace the 1/2 NPT plug. Make sure that the plug and gasket are
closed tightly to prevent water leaks (see FIG. B).
FIG. B

Installation & Operation
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
Follow the appropriate installation instructions based on your selected mounting method:
A. Flexible Arm mounting
B. Slipfitter mounting
C. Fixed Arm mounting
D. Trunnion mounting
E. Wall mounting with bracket
Mounting Plate
Silicone PadNut Plate
L
FIG. 1 FIG. 2 FIG. 3
A: Flexible Arm Mounting:
This fixture can be mounted to a pole with an adapter mounting plate that is included. The flexible arm can be aimed 0 to 60° both
upward and downward in 20° increments (see FIG. 1). The mounting plate has a slot pattern that will cover many existing hole
patterns on poles, install in accordance with FIG. 3. f there is no existing hole pattern or the holes are outside of the slot range on
the pole, drill holes according to the pattern in FIG. 2.
Different adapters are available, including square pole adapter, 3” round pole adapter (RPA), 4” RPA, and 5” RPA.
1. Tighten the nut plate and adapter on the pole. (See FIG. 3)
2. nsert the fixture into the adapter. (See FIG. 4）3. Tighten the 4pcs M8 *20 bolts on the flexible arm and secure it to the adapter. Connect the power leads properly according to
the wiring diagrams below. Make wiring connections inside the flexible arm, and tighten the bottom cover with 4pcs M4*12
screws (see FIG. 5). The wiring connections can also be made inside the pole.
4. To aim the fixture, loosen the M12x40 center knuckle bolt on the arm, adjust the aim 0 to 60° both upward and downward
(see FIG. 6)
5. nspect installation to ensure fixture is secure.
FIG. 4 FIG. 5 FIG. 6
© Copyright 2021. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 3
REV: 11/19/21
Lamp
Rotatable Stents

Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2021. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 4
REV: 11/19/21
Installation & Operation
B: Slipfitter Mounting:
This fixture can be mounted 0 to 60° in either direction aiming in 20 increments (see FIG. 7)
1. Connect the power leads properly, make the wiring connections (see Wiring Diagrams below) and lay the wires in the pole.
Once completed, insert the slipfitter onto the pole (see FIG. 8).
2. Tighten the four M8x25 bolts on the slipfitter and secure it to the pole (see FIG. 9).
3. To aim the fixture, loosen the M12x40 center knuckle bolt on the arm, adjust the aim 0 to 60° in either direction (see FIG. 10)
4. nspect installation to ensure fixture is secure.
FIG. 7 FIG. 8 FIG. 9 FIG. 10
C. Fixed Arm Mounting:
This fixture can be mounted to a pole with an adapter mounting plate that is included. The mounting plate has a slot pattern that
will cover many existing hole patterns on poles, install in accordance with FIG. 3. f there is no existing hole pattern or the holes
are outside of the slot range on the pole, drill holes according to the pattern in FIG. 2.
Different adapters are available, including square pole adapter, 3”round pole adapter (RPA), 4”RPA, and 5”RPA.
1. Tighten the nut plate and adapter on the pole. (see FIG. 3)2. nsert the fixture onto the adapter (see. FIG. 11)3. Tighten the four M8*20 bolts on the fixed arm and secure it to the adapter. Connect the power leads properly (see Wiring
Diagrams below), make wiring connections inside the fixed arm, and secure the bottom cover with screws (see FIG. 12).
The wiring connections can also be made inside the pole.
4. nspect installation to ensure fixture is secure.
FIG. 11 FIG. 12 FIG. 13

Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2021. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 5
REV: 11/19/21
Installation & Operation
D: runnion Mounting:
This fixture can be mounted to a tenon pole or tenon adapter.
1. Tighten the fixture to the tenon pole or tenon adapter by two M12 bolts (see FIG. 14).
2. Loosen the center bolts and the adjusting screws on the sides of the trunnion mount. Adjust the fixture to the desired angle,
maximum is 60° (see FIG. 15).
3. Make wiring connections (see Wiring Diagrams below).
4. nspect installation to ensure fixture is secure.
FIG. 14 FIG. 15
E: Wall Mounting Bracket:
The fixture can be configured to mount to wall.
1. Loosen the 4 M5*12 screws as FIG. 16, then take off the back plate of the bracket.
2. f the wires need to go through the 1/2 NPT knockout hole on the bracket back plate, remove the knockout plug.
3. Drill holes on the bracket back plate based on the junction box pattern used in the application. Fix the bracket back plate to the
wall with four screws (see FIG. 17)
4. Fix one end of the metal cord to the bracket back plate with a screw, and attach the other end of the cord to the fixture
(see FIG. 18). This is for safety while making wiring connections and can be removed afterwards.
5. Connect the power leads to the driver compartment. Take off the metal cord from the bottom bracket and fixture. Tighten
the fixture to the wall by the 4 M5*12 Screws. (see FIG. 19).
6. Use side knockout hole for conduit installation (see FIG. 20).
7. Remove the mount cover plate and loosen the center bolt to adjust the mount to the desired angle (see FIG. 21).
8. nspect installation to ensure fixture is secure.
FIG. 16 FIG. 17 FIG. 18
FIG. 19 FIG. 20 FIG. 21

Wiring Instructions
CAU ION: Make sure power is OFF before replacing or disassembling fixture. Make sure the wiring is correct and
properly connected before switching on power.
Note:
1. Verify that supply voltage is correct by comparing it to claimed voltage on the product label.
2. All Wiring inside the fixture use WAGO connector of 5 P N, 3 P N and 2 P N (See FIG. 22). f need to remove or replace any
component in the driver compartment, please keep the WAGO connector for future use.
3. The FIG. 23 to FIG. 26 demonstrates the interior wiring of four different configurations in the driver compartment (When need
to remove or replace any component in the driver compartment, please refer to the below wiring FIG. 25 to FIG. 28 and base
on the actual condition, resume using the fixture by wire connecting).
4. Disconnect the AC power supply to prevent electric shock when making wiring or installation, removing or replacing any
component in the fixture. Make sure to use WAGO connector properly to ensure proper and secure wiring, make sure of
correct wiring before restoring power supply to light up the fixture.
2 Pin 3 Pin 5 Pin
Fixture Wiring Diagram
1. FIG. 23 is for wirings when only one LED driver is used in driver compartment, no options.
Pink
FIG. 22
FIG. 23
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2021. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 6
REV: 11/19/21
NO E: The Vaux- wire is only on AR200 and AR310 models.

Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2021. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 7
REV: 11/19/21
Fixture Wiring Diagram
2. FIG. 24 is for wirings when photocell sensor is used.
Pink
FIG. 24
3. FIG. 25 is for wirings when motion sensor is used.
Pink
Pink
FIG. 25
NO E: The Vaux- wire is only on AR200 and AR310 models.
NO E: The Vaux- wire is only on AR200 and AR310 models.

Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2021. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 8
REV: 11/19/21
Fixture Wiring Diagram
4. FIG. 26 is for wirings when motion sensor and photocell sensor are used.
Pink
Pink
FIG. 26
NO E: The Vaux- wire is only on AR200 and AR310 models.

1. Remove the set screw from the round
c-Max™ USB-C receptacle with 1.5M
Allen Wrench. (see FIG. 27).
c-Max™ node Installation Instructions (Applicable only on CR models)
Operating Instructions AR Series
MaxLite LED Medium Area Light
®
© Copyright 2021. MaxLite, nc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 9
REV: 11/19/21
2. Remove the USB-C receptacle cover by
turning it 90° (see FIG. 28).
3. Plug the c-Max™ control node into the
USB-C receptacle (see FIG. 29).
4. Rotate the outer ring until the arrows
align (see FIG. 30).
5. Secure the control node in place with
the provided set screw. (1.5M
Allen Wrench.)
FIG. 27 FIG. 28
FIG. 29
FIG. 30

Maintenance
The unit is designed for years with minimum care. For optimum performance, periodically clean lens
