Operating Instructions MaxLite Hazardous Location Linear Light - CID1
MaxLite Hazardous Location Linear Light - CID1
• To reduce the risk of death, personal injury or property damage from fire,
electric shock, falling parts, cuts/abrasions, and other hazards read all
warnings and instructions included with and on the fixture box and all
fixture labels.
• Before installing, servicing, or performing routine maintenance upon
this equipment, follow these general precautions.
• Commercial installation, service and maintenance of luminaires
should be performed by a qualified licensed electrician.
• DO NOT INSTALL DAMAGED PRODUCT!
• This fixture is intended to be connected to a properly installed and
grounded UL listed junction box.
• Make sure that the supply voltage is the same as the luminaire voltage.
• Do not install where the marked operating temperatures exceed the
ignition temperatures of the hazardous atmosphere.
• Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
• All gasket seals must be clean and undamaged.
WARNING:
RISK OF ELECTRICALS OCK
• Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
• Turn off the power when you perform any maintenance.
• Verify that supply voltage is correct by comparing it with the luminaire label information.
• Make all electrical and grounded connections in accordance with the National Electrical
Code and any applicable local code requirements.
• All wiring connections should be capped with UL approved wire connectors.
• Luminaire must be supplied by a wiring system with an equipment grounding conductor.
CAUTION:
RISK OF INJURY
• Wear gloves and safety glasses at all times when removing luminaire from
carton, installing, servicing or performing maintenance.
• Avoid direct eye exposure to the light source while it is on.
• Account for small parts and destroy packing material, as these may be hazardous to children.
CAUTION:
RISK OF FIRE
• Keep combustible and other materials that can
burn away from luminaire and lamp/lens.
• MIN 90°C SUPPLY CONDUCTORS.
Models:
HL-LI2440!@#$$P-D1
HL-LI4880!@#$$P-D1
! = U, H (U=100-277V, H=277-480V)
@ = [blank], N, T ([blank] =wide, N = narrow,
T= Type II distributions)
# = [blank], D ([blank] =clear, D=diffused lenses)
$$ = [blank], 40, 30 ([blank] =5000 , 40=4000 ,
30=3000 Color Temperatures)
Followed by suffix P-D1
Operating characteristic:
Rated Voltage: 100-277 Vac or 277-480 Vac, 50/60 z
Ambient Temperate Range: -40°C (-40°F) ~ +60°C (140°F)
© Copyright 2020. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: [e-mail]
®

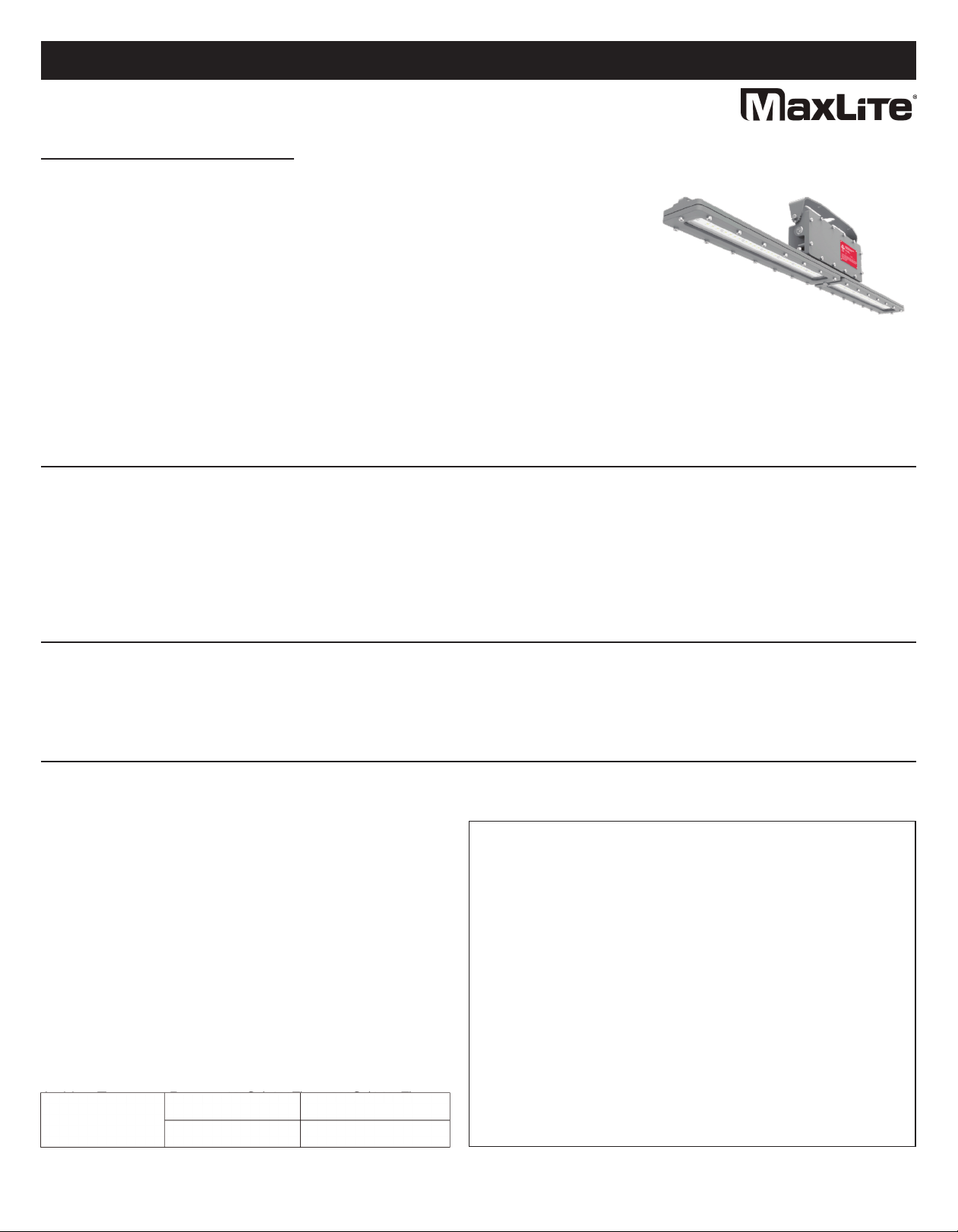

Picture is for illustration purposes only.
Your model may vary.
General Safety Information
This fixture is suitable for use in the following
hazardous (classified) areas as defined by the
National Electrical Code (NEC) and Canadian
Electrical Code (CEC):
azardous Locations
Class I, Division 1, Groups C, D
Class I, Division 2, Groups A, B, C, D
Compliances Environmental Ratings
UL 844 Suitable for hazardous
UL 1598 location.
UL 1598A
Page: 1
REV: 10/29/20
Refer to the luminaire nameplate for specific classification
information, maximum ambient temperature suitability and
corresponding operating temperature (T-Code).
T-Code Class I Division 1,
Groups C, D
T6
Class I Division 2,
Groups A, B, C, D
T3C

Installation & Operation
Electrical Connection:
1. Loosen the twelves pcs of M6 hexagon bolts on the Tank Cover.
2. The thread of the entry hole to the Task is ¾” NPT; connect the tank to a suitable conduit.
3. Insert the wire from outside the tank, through the conduit and entry hole, and into the tank housing; connect wire leads
to the terminal block.
4. Introduce the wires of the branch circuit as follows:
Black-wire connects to Line
White-wire connects to Neutral
Green-wire connects to Ground
5. Re-attach the Tank Cover and tighten it using the twelve pieces of M6 hexagon bolts on the tank cover; secure to a
torque of 7 N-m.
6. Check the tightness of the conduit and Tank Cover.
General Wiring Diagram
CAUTION: Turn off electrical power at
fuse or circuit breaker box before wiring
fixture to the power supply.
Connecting panels to AC source supply:
All units must be individually connected to
the AC supply.
Black = Line
White = Neutral
Green = Ground
Operating Instructions MaxLite Hazardous Location Linear Light - CID1
MaxLite Hazardous Location Linear Light - CID1
®
Wall Mount:Ceiling Mount:
Stanchion Mount:
Φ48/60
Hanging Ring Mount:
Conduit,cables and seal fitting provided by othersSecure in place with set screw provided
Pendant Mount:
Expansion bolts (not included)(Gasket+Washers included) M10
Expansion bolts (not included)(Gasket+Washers included) M10
* Dimensions in mm
8-Φ8.51902880
58
R5R3680
8510
338
© Copyright 2020. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 2
REV: 10/29/20
BLACK (LINE)
WHITE (NEUTRAL)
GREEN (GROUND) Te rminal
Block LED Driver
AC INPUT
(LEAD WIRES TO LED LOAD)
（-）（+）DIMMER
Yellow-VAUX (+12V)
Purple-DIM+ (0-10V)
Gray-DIM-(NEG)

Installation & Operation (continued)
Second-Retention Point:
1. Attach the hook to any of the retention points demonstrated in
Figure 3 (2-FT 40W) and 4 (4-FT 80W). (Fig 1)
2. Route cable around a suitable mounting structure and
feed the clamp side through the sling. (Fig 2 and 3)
Retention Cable
• 4’ long with 1/8” diameter stainless steel sling
• Weight capacity of 250 lb.
• If purchasing retention cable from Maxlite, use part
number LSC250 ( 4ft long, rated for 250 lbs, Stainless steel).
Servicing
• To avoid personal injury, disconnect power to the light and allow the unit to cool down before performing
maintenance.
• Perform visual, electrical, and mechanical inspections on a regular basis. The environment and frequency
of use should determine this. owever, it is recommended that checks be made at least once a year.
Frequency of use and environment should determine this.
• The external glass should be cleaned periodically to ensure continued luminaire performance. Clean the
glass with a clean, damp, non-abrasive, lint-free cloth. If this is not sufficient, use a mild soap or a liquid
cleaner. Do not use an abrasive, strong alkaline or acid cleaner as damage may occur.
• Inspect the cooling fins on the luminaire to ensure that they are free of any contamination
(i.e. excessive dust build-up). Clean with a non-abrasive cloth if needed.
• Mechanically check that all parts are properly assembled.
• Electrically check to make sure that all connections are clean and tight.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and (2)this device must accept any interference
received, including interference that may cause undesired operation
Operating Instructions MaxLite Hazardous Location Linear Light - CID1
MaxLite Hazardous Location Linear Light - CID1
®
© Copyright 2020. MaxLite, Inc. All Rights Reserved.
12 York Ave, West Caldwell, NJ 07006 Tel: [phone] Fax: [phone] Email: inf[email protected]
Page: 3
REV: 10/29/20

MaxLite Inc. warrants its products for a minimum period of FIVE (5) years from the date of original purchase from
MaxLite or its authorized distributor/dealer (the “Warranty Period”), as follows: If a Product fails to operate during the
Warranty Period as a result of defects in materials or workmanship, MaxLite will, at its option, repair it, replace it with
the same or like Product.
Please refer to Maxlite’s website (at http://maxlite.com/resources/warranties) for the complete
terms and conditions of our warranty.
Limitation of Liability
T E FOREGOING WARRANTY IS EXCLUSIVE, AND IS T E SOLE REMEDY FOR ANY AND ALL CLAIMS,
W ET ER IN CONTRACT, IN TORT OR OT ERWISE ARISING FROM T E FAILURE OF PRODUCT AND IS IN
LIEU OF ALL OT ER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ALL WARRANTIES OF
MERC ANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, W IC WARRANTIES ARE EREBY
EXPRESSLY DISCLAIMED TO T E EXTENT PERMITTED BY LAW AND, IN ANY EVENT, S ALL BE LIMITED TO
T E WARRANTY PERIOD SPECIFIED ABOVE. T E LIABILITY OF MAXLITE S ALL BE LIMITED TO T E TERMS
OF T E EXPRESS WARRANTY SET FORT EREIN. IN NO EVENT WILL MAXLITE BE LIABLE FOR ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING, WIT OUT LIMITATION, DAMAGES
RESULTING FROM LOSS OF USE, PROFITS, BUSINESS OR GOODWILL, LABOR COSTS, REMOVAL OR
INSTALLATION COSTS, DECREASE IN T E LIG T OUTPUT OF T E LAMP, AND/OR DETERIORATION IN T E
LAMP’S PERFORMANCE, W ET ER OR NOT MAXLITE AS BEEN ADVISED OF T E POSSIBILITY T EREOF.
UNDER NO CIRCUMSTANCES S ALL MAXLITE’S ENTIRE LIABILITY FOR A DEFECTIVE PRODUCT EXCEED
T E PURC ASE PRICE OF T AT PRODUCT. WARRANTY SERVICES PROVIDED UNDER T ESE TERMS AND
CONDITIONS DO NOT ENSURE T E UNINTERRUPTED OPERATION OF PRODUCTS; MAXLITE S ALL NOT BE
LIABLE FOR DAMAGES CAUSED BY ANY DELAYS INVOLVING WARRANTY SERVICE.
This Limited Warranty gives you specific legal rights and you may also have other rights that may vary from state to
state. Because some states or jurisdictions do not allow the exclusion or limitation of liability for consequential or
incidental damages, this limitation may not apply to you.
